AMERICAN DYNAMICS ENVIRONMENTAL CAMERA HOUSING
Product specifications and availability subject to
change without notice.
Certain product names mentioned herein may be trade
names and/or registered trademarks of other companies. VS338-02 09/04 L
©2004 Sensormatic Electronics Corporation
Model Numbers
ADCH10 . . . . . . . . . . . . . . . . . . . . .Environmental Camera Housing
ADCH10MT8 . . . . . . . . . . . . . . . .Environmental Camera Housing with
8 inch wall mount
ADCH10HB*. . . . . . . . . . . . . . . . .Environmental Camera Housing 24 VAC
heater and blower installed
ADCH10HBMT8*. . . . . . . . . . . .Environmental Camera Housing with wall
mount and 24 VAC heater and blower
installed
ADCH10H*. . . . . . . . . . . . . . . . . .Environmental Camera Housing with
heater
ADCH10B*. . . . . . . . . . . . . . . . . . .Environmental Camera Housing with
blower
* This housing must be powered by a Class II source. This housing is to be used with a
camera that meets Class II requirements.
Mechanical
Construction
Housing . . . . . . . . . . . . . . . . . . .Magnum®941 Polymer
Viewing Window . . . . . . . . . . .4.8 mm (0.19 in) Lexan®
Color . . . . . . . . . . . . . . . . . . . . . . . .Light gray
Finish . . . . . . . . . . . . . . . . . . . . . . . .Epoxy
Dimensions (H x W x D) . . . . . . .163 x 146 x 348 mm
(6.50 x 5.75 x 13.75 in)
Unit Weight
Without Sunshield . . . . . . . . . .1.4 kg (3.0 lbs)
Shipping Weight . . . . . . . . . . . .1.7 kg (3.8 lbs)
With Sunshield . . . . . . . . . . . . .1.9 kg (4.4 lbs)
Cable Entry . . . . . . . . . . . . . . . .Via cable pass mount
Maximum Camera/
Lens Length . . . . . . . . . . . . . . . . . .253 mm (10 in)
Heater
Type . . . . . . . . . . . . . . . . . . . . . . .Thermostatically controlled pad heater
Supply Voltage . . . . . . . . . . . . .24 VAC
Power . . . . . . . . . . . . . . . . . . . . . .0.63 A
Weight . . . . . . . . . . . . . . . . . . . . .68 g (0.15 lbs)
Environmental
Weatherproof Standard . . . . . . . .IP4 (NEMA-3R)
Operating Temperature . . . . . . . .-23˚ to 43˚ C (-10˚ to 110˚ F) with heater
and blower 85% (non-condensing)
Accessories
ADCH10SS . . . . . . . . . . . . . . . . . . .Sunshield
AD1314-H24 . . . . . . . . . . . . . . . . .24 VAC heater
AD1314-B24 . . . . . . . . . . . . . . . . . .24 VAC blower
Recommended Housing Mounts
ADCHMTCEIL . . . . . . . . . . . . . . .Ceiling mount 9.6 kg (20 lbs) capacity
ADCHMTWALL . . . . . . . . . . . . . .Wall mount 9.6 kg (20 lbs) capacity
ADCHMTPOLE . . . . . . . . . . . . . .Pole mount 9.6 kg (20 lbs) capacity
ADCHMTCRNR . . . . . . . . . . . . . .Corner mount 9.6 kg (20 lbs) capacity
ADCHMTPED . . . . . . . . . . . . . . . .Pedestal mount 9.6 kg (20 lbs) capacity
Regulatory
Safety . . . . . . . . . . . . . . . . . . . . . . . .UL2044

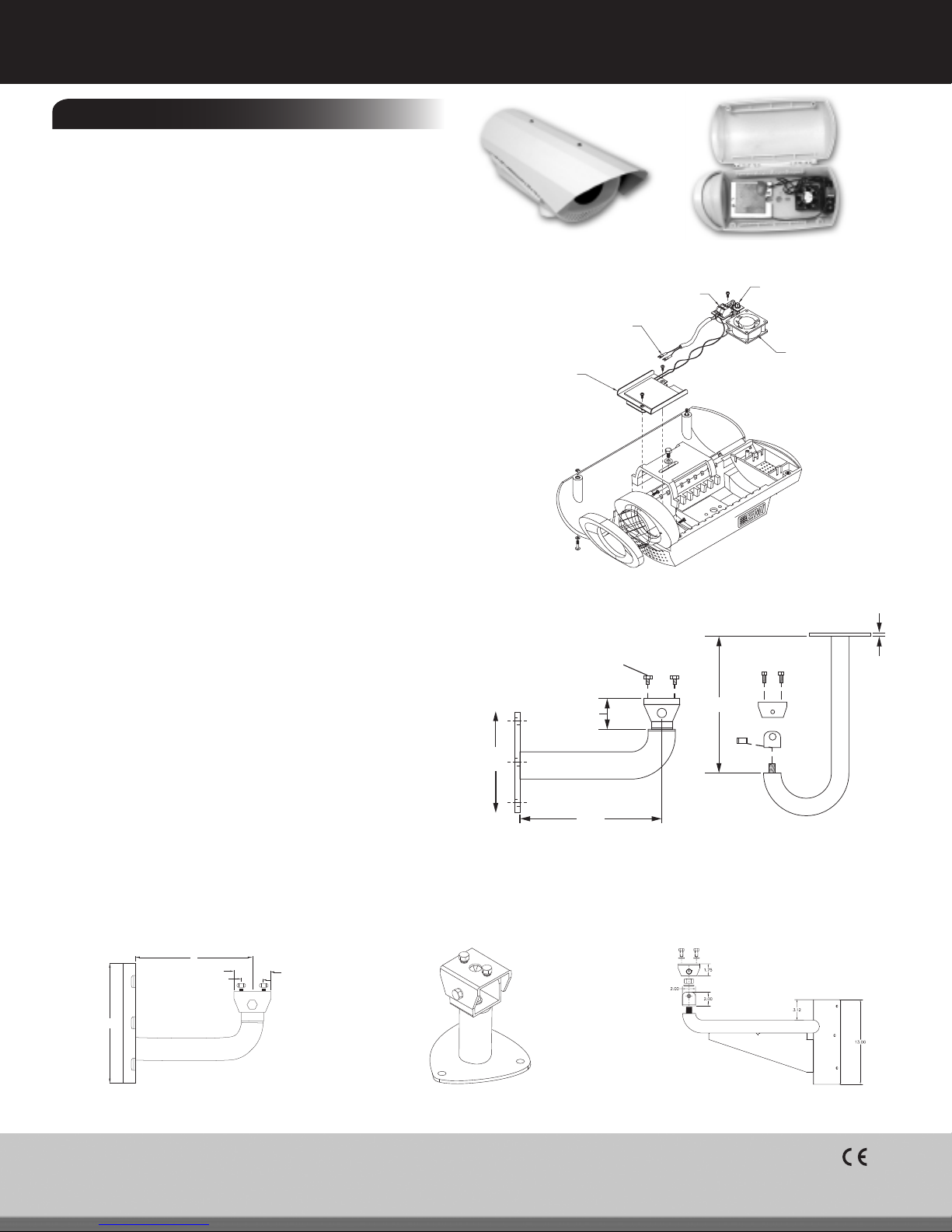

Housing with Sunshield Housing in open position
1/4 in - 20 x 1/2 in
Bolts (2)
41 mm
(1 5/8 in)
203 mm
(8 in)
6.3 mm
(1/4 in)
304 mm
(12 in)
137 mm
(5 3/8 in)
Housing
Mounts
Camera Power Supply Cable
Included Only with 24V Unit
Terminal Block Thermostat
Fan
24V,120V
.3A,4W
Heater Plate
24V,15W
120V,15W
Pole Mount Side View
ADCHMTPOLE
Pedestal Mount Side View
ADCHMTPED
Corner Mount Side View
ADCHMTCRNR
Wall Mount Side View
ADCHMTWALL
Ceiling Mount Side View
ADCHMTCEIL
