American Panel HurriChill AP3BCF30-1 Administrator Guide

Installation & Operators Manual
HURRiCHiLL™ touchscreen blast chillers & shock freezers
Please read this manual
before installing or
operation of this equipment.
This manual is updated as new information and models are released. Visit our website for the latest manual. 990260_APC_HC-TS_OEM
07/22
5800 SE 78th St. Ocala, FL 34472 • 352.245.7055 • [email protected]
Versatile, Dependable Walk-Ins & Blast Chillers
MODELS COVERED:
AP3BCF30-1 TS
AP5BCF45-2 TS
AP7BCF70-2
AP7BCF70-2-C
AP10BCF100-2
AP12BCF110-3
AP20BCF200-3
AP20BC(F)200-2
AP24BC250-3(-R)
AP24BCF300-3(-R)
Part #: 990260

5800 SE 78th St. Ocala, FL 34472
2P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Warranty ....................................................................................................................................................................3
Basic Safety Information............................................................................................................................................4
Equipment Tag...........................................................................................................................................................5
Pre-installation Checks..............................................................................................................................................5
Installation ..............................................................................................................................................................6-9
Installation Checklist..................................................................................................................................................6
Proper Clearances & Location Check .......................................................................................................................7
Specications & Performance .................................................................................................................................10

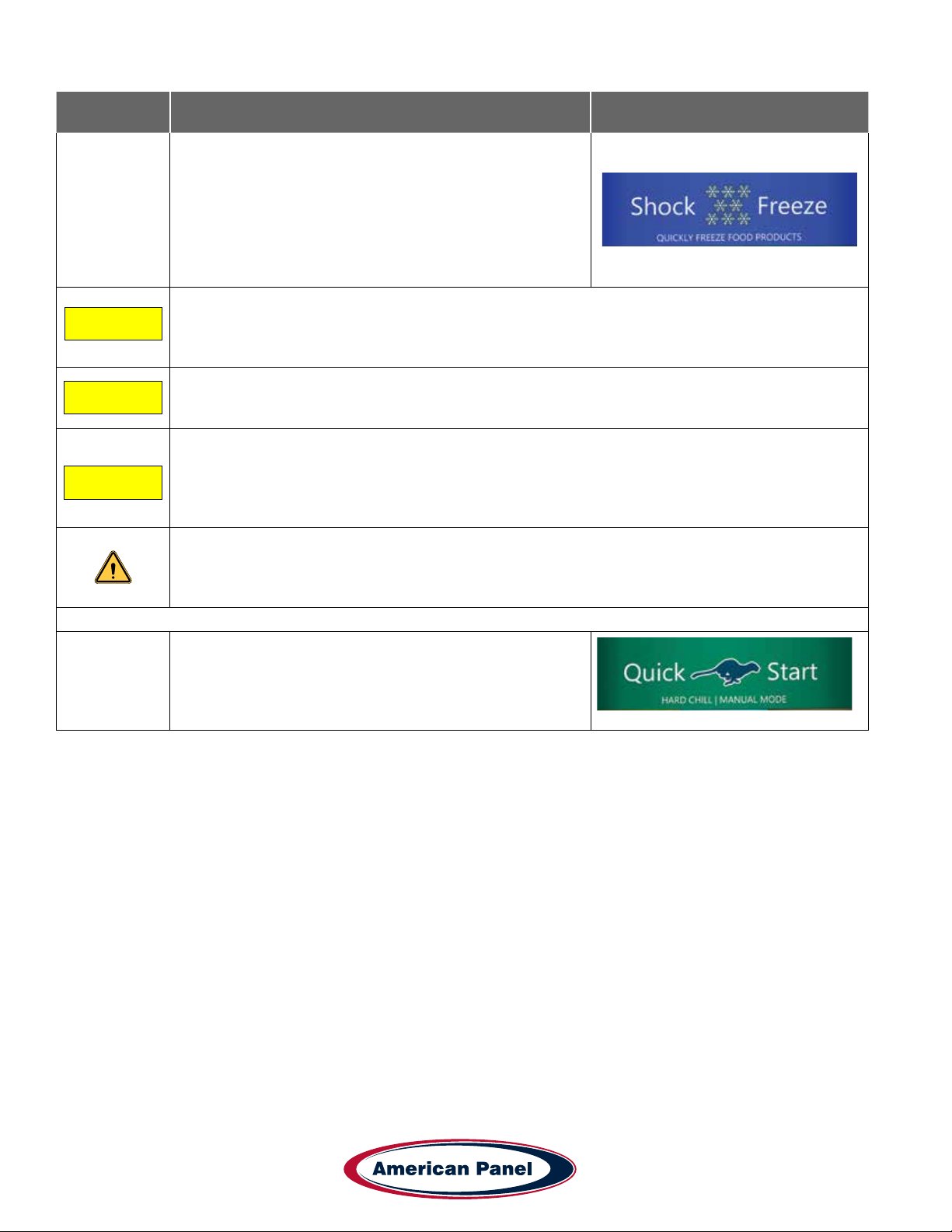

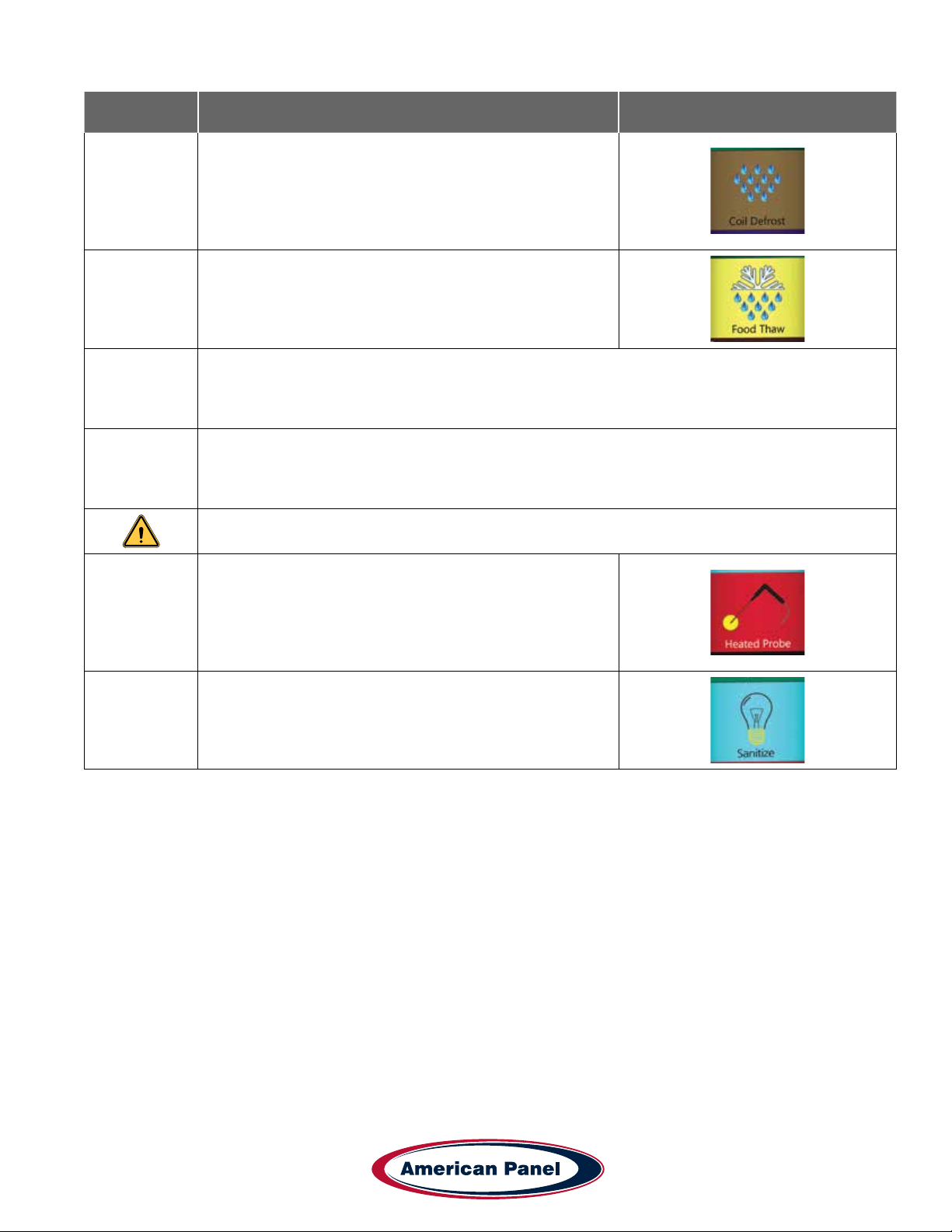

Cycles & Modes Explained.................................................................................................................................11-13
Factory Presets .......................................................................................................................................................14
Unit Operation ....................................................................................................................................................15-22

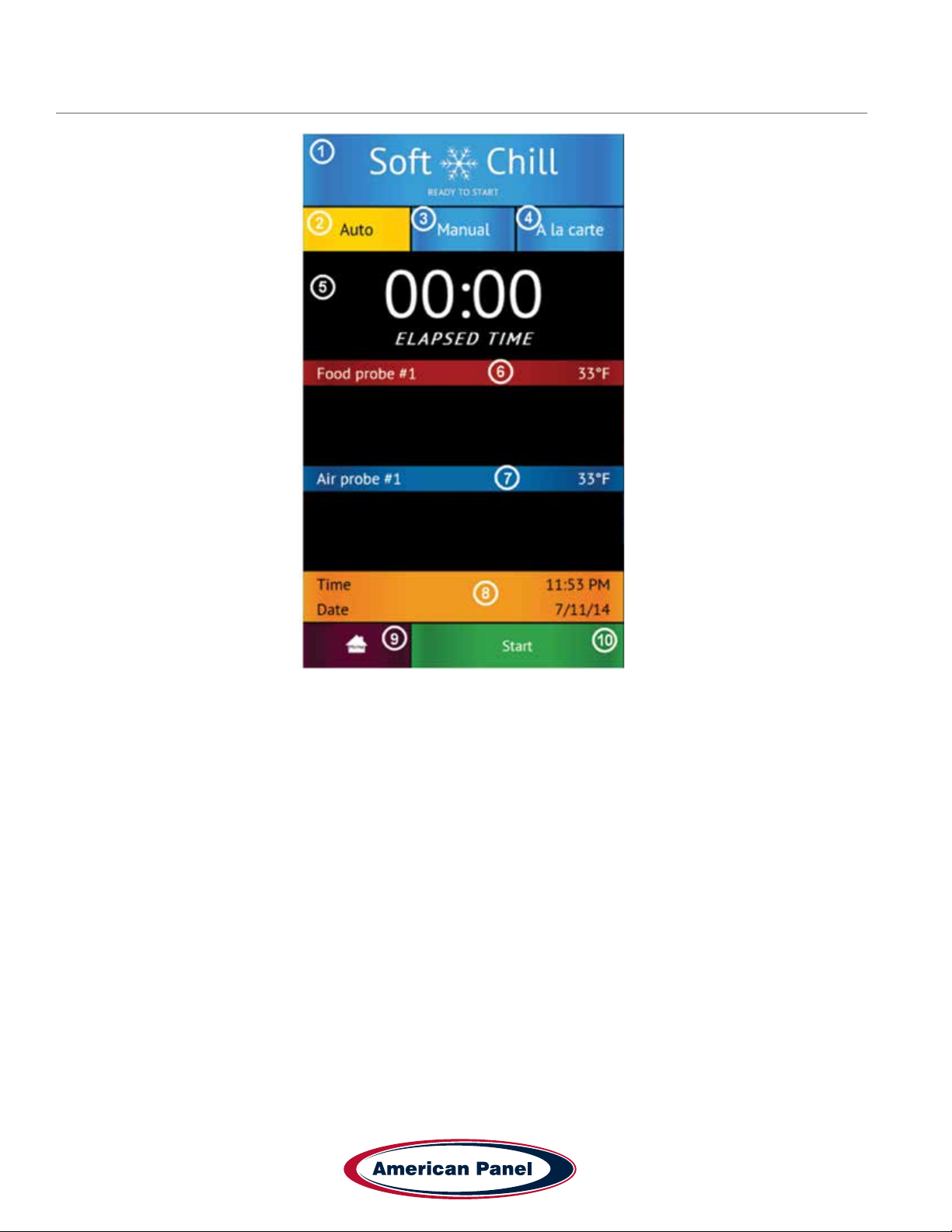

- Home Screen ............................................................................................................................................15
- Automatic Mode Screen............................................................................................................................16
- Start a Cycle in Automatic Mode...............................................................................................................17

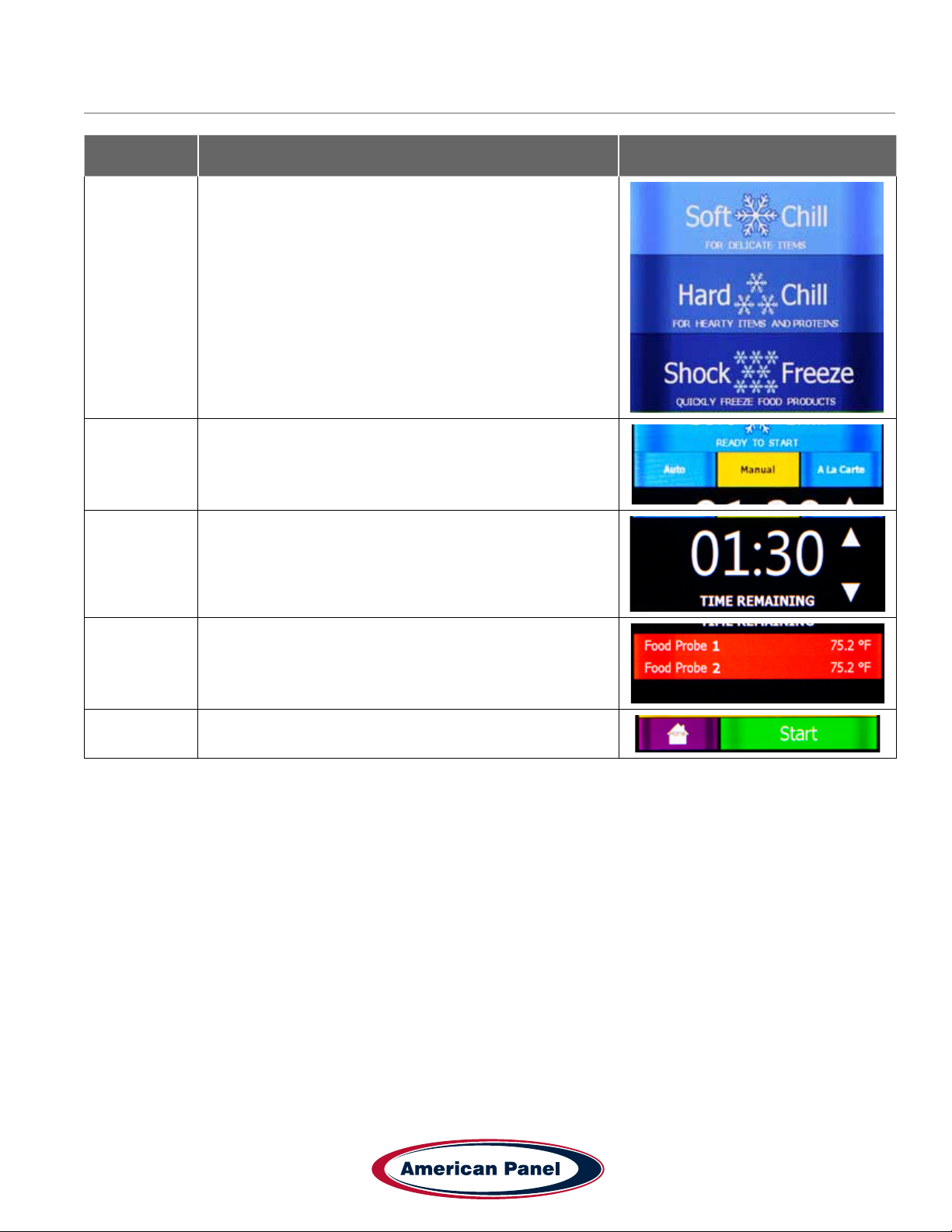

- Manual Mode Screen................................................................................................................................18
- Start a Cycle in Manual Mode...................................................................................................................19
- A La Carte Mode Screen...........................................................................................................................20
- Start a Cycle in A La Carte Mode..............................................................................................................21
- Start a Cycle in Quick Start Mode.............................................................................................................22
- Customize the Quick Start Button.............................................................................................................22
PC Connection Package .........................................................................................................................................23
Connect to Controller - Direct Connection...............................................................................................................23
Connect to Controller - WiFi ...............................................................................................................................24-25
Connect to Controller - WiFi Notication Setup.......................................................................................................26
HACCP Download via USB.....................................................................................................................................26
HACCP Download via Peer to Peer ........................................................................................................................27
HACCP Download via WiFi .....................................................................................................................................27
Customizing the Cycles......................................................................................................................................28-29
Temperature Probe Adjustments .............................................................................................................................29
General Operating Instructions................................................................................................................................30
Maintenance Instructions....................................................................................................................................30-32
Evaporator Coil Cleaning.........................................................................................................................................33
Replace Optional Ozone Generator Lamp .............................................................................................................34
Contacts and Information
Customer service - [phone] or [phone]
Service department. - [email protected]
Parts department. - [email protected]
Website - www.americanpanel.com
For all blast chiller information requests, please have the Model and Serial Number available as stated on the
equipment tag (pg 5) on the exterior of the cabinet.

3
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
American Panel Warranty
American Panel Corporation products are warranted to the original user installed within the United States, Canada
and Puerto Rico to be free from defects in materials and workmanship under normal use and service for the
applicable period shown in the chart below.
NOTE: This Warranty does not apply to altered or misused parts.
WARRANTY COVERS PARTS LABOR
Cabinet Assembly 1 Year from date of shipment 1 Year from date of shipment
Refrigeration Components 1 Year from date of shipment None
Refrigeration Compressor 5 Years from date of shipment None
Probes & Lights None None
American Panel Corporation agrees to repair or replace at its option, FOB Factory, any part which proves to be
defective due to defects in material or workmanship during the warranty period, providing the equipment has been
properly installed, maintained and operated in accordance with the HurriChill™ User’s Manual. Refer to the above
chart for details and exceptions for various equipment items. Labor covered by this warranty must be authorized by
American Panel Corporation and performed by a factory authorized service agency.
This warranty does not apply to remote or pre-assembled remote refrigeration systems requiring electrical inter-
wiring or refrigerant piping provided by others. In no event shall American Panel Corporation be liable for the loss of
use, revenue or prot or for any other indirect, incidental, special or consequential damages including, but not limited
to, losses involving food spoilage or product loss. American Panel Corporation reserves the right to withdraw this
warranty if it is determined that equipment is not being operated properly. There are no other warranties expressed or
implied.
During the warranty period, all requests for service MUST be made before any work is begun. Such requests must be
directed to American Panel Corporation Service Department, which will issue written authorization when applicable.
Without this authorization, the Warranty may be voided. The service department can be contacted by mail at American
Panel Corp., 5800 S.E. 78th Street, Ocala, Florida 34472-3412; or by telephone at 1-800-327-3015; or by fax at (352)
245-0726; or via email at [email protected].
Proper installation is the responsibility of the dealer, the owner-user, or the installing contractor.
It is not covered by this warranty.

5800 SE 78th St. Ocala, FL 34472
4P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Basic Safety Information
Do not touch or operate the machine with damp or
wet feet and hands.
Do not insert screwdrivers, kitchen tools or other
items between the protections and the moving parts.
Before carrying out cleaning operations or routine
maintenance, disconnect the machine from the
power supply mains, switching the master switch off
and removing the plug.
If the power supply cable is damaged, it must be
replaced by a service provider or similarly qualied
staff, in order to avoid risks.
This unit must be equipped with a disconnection
device incorporated in the xed connection in
compliance with local regulations.
When loading the machine, the use of kitchen gloves
is recommended in order to prevent burns on contact
with the hot trays and trolleys.
Use gloves suitable for trays and cold trolleys.
During cleaning operations, of the condenser in
particular, always wear protective gloves, safety
glasses and mask for the respiratory protection.
The core probe must only be used for the purpose for
which it has been designed: detect the temperature
at the center of the food stuffs to be blast chilled and/
or frozen.
It is prohibited to remove the protections and safety
devices in order to perform routine maintenance.
Do not block the ventilation openings of the unit and
of the structure in which it is positioned.
WARNING - Please read the entire
installation procedure before attempting
to install the unit. Failure to follow the
procedures listed in this manual may result
in voiding the warranty.
IMPORTANT - Due to the size and weight of
this equipment, a minimum of two people
are required to install this equipment safely.
All OSHA regulations must be followed
while on the job site.
• This manual is an integral part of the product, it
supplies all of the indications necessary for correct
installation, correct use and maintenance of the
machine.
• It is mandatory for the user to read this manual
carefully and always make reference to it. It must be
kept in a place that is known and accessible to the
authorized operators (installer, user, maintenance
technician)
• The blast chiller is intended for professional use and
therefore only qualied staff can use it
• The blast chiller is destined only for the use for which it
has been designed.
• The manufacturer declines all responsibility for any
damage caused by incorrect or unreasonable use, as
for example:
• improper use by untrained staff.
• modication or interventions that are not specic for
the model.
• use of non-original spare parts or that are not
specic for the model.
• failure to comply, even partial, with the instructions
in this manual.
• The manufacturer disclaims all responsibility for
problems related to an incorrect installation of the blast
chiller.
• The blast chiller must be installed by an authorized
service/install provider.

5
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Pre-installation Checks
• Check components against the packing list. The packing list is located inside the accessory box.
• Check the integrity of the components once unpacked.
• Check for proper location
• Ambient temperature no greater than 90˚F
• Do not install near heat source
• Do not install near vapor source
• Do not install near grease source
• Do not install in direct sun light
• Do not install in closed areas with insufcient air change
• Check for proper clearances
• See Page 7 for clearances.
• Check for unobstructed air ow at the condensing unit

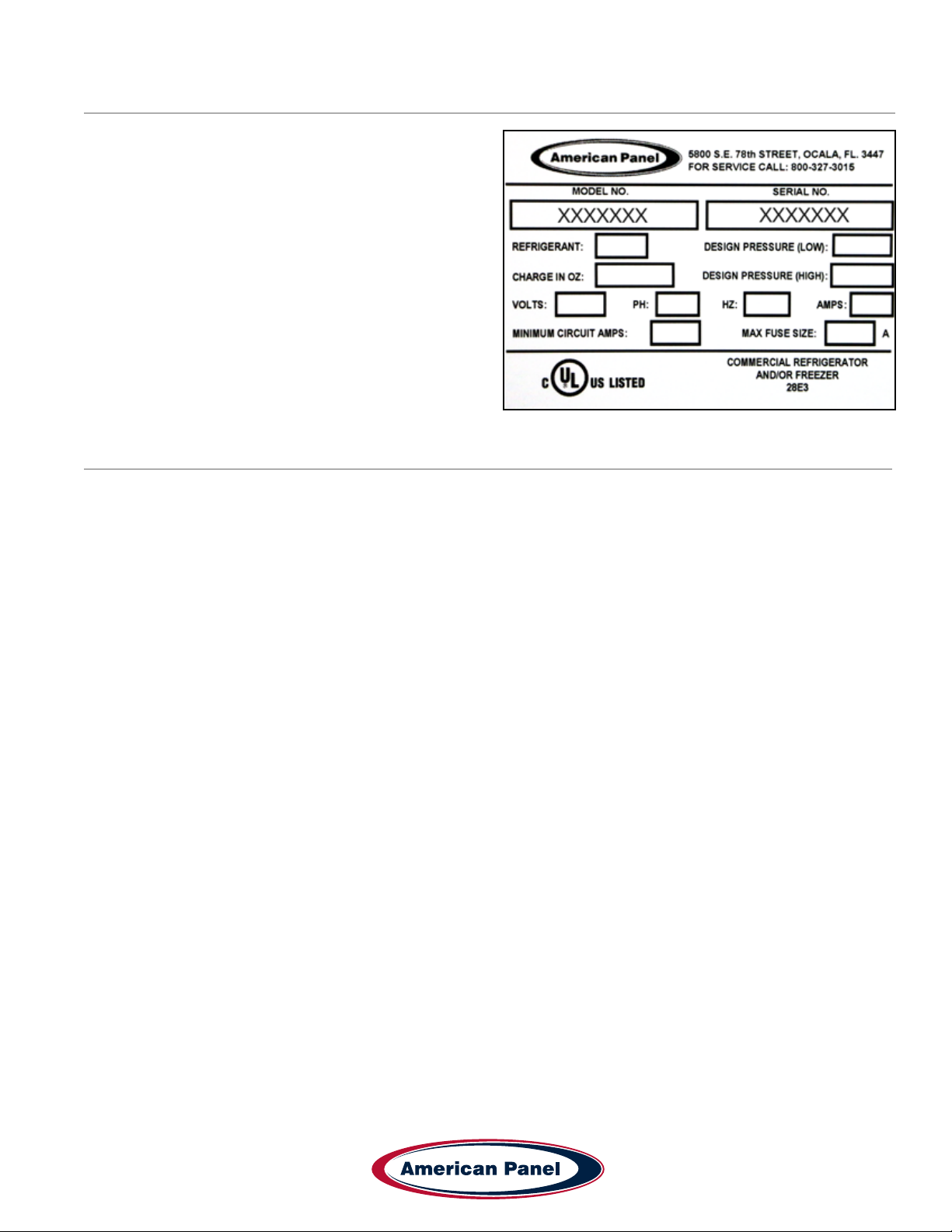

Equipment Tag
The equipment tag is located on the exterior of the unit
and displays the following information that is unique to
the unit:
• Model Number
• Serial Number
• Refrigerant Charge
• Refrigerant Pressure (Low & High)
• Electrical Volts, Phase, Hertz and Amps
• Minimum Circuit Amps
• Maximum Fuse Size (Amps)
Please have this information on hand when contacting
service or parts.

5800 SE 78th St. Ocala, FL 34472
6P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Installation
American Panel Corporation equipment has been shipped in a package designed to sufciently protect from damage
under normal shipping circumstances. Upon receiving the shipment, carefully inspect the package for visible damage
and check the number of packages against the Bill of Lading. Notify the carrier immediately of any shortage or
damage to your shipment. Claims must be led promptly with the carrier.
After receipt of shipment, carefully and safely remove the unit from the package. Check the contents of the package
against the packing list. Under no circumstances may a damaged piece of equipment be returned to American Panel
Corporation without rst obtaining written permission.
To assure proper installation carefully read and comply with the following instructions.
WARNING - Please read the entire installation procedure before attempting to install the unit. Failure
to follow the procedures listed in this manual may result in voiding the warranty.
IMPORTANT - Due to the size and weight of this equipment, a minimum of two people are required to
install this equipment safely. All OSHA regulations must be followed while on the job site.
Installation Checklist
Check the integrity of the unit once it is unpacked.
On remote refrigeration units only, the cabinet and the condensing unit is shipped with a nitrogen charge,
Make sure the charge is still present.
Check for proper location.
• Ambient temperature no greater than 90oF (to ensure rated performance)
• Do not install near heat source
• Do not install near vapor source
• Do not install in direct sun light
• Do not install in closed areas with insufcient air change

7
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Check for proper clearances
Reach-In Models:
• 1” clearance on the door handle side of the unit
• 2 ½” clearance on the door hinge side of the unit
• 3” clearance on the back of the unit
• Provide enough space in front to allow door opening
• Check for unobstructed air ow at the condensing unit
Roll-In Models:
• 6” clearance on both sides of the unit (for service and door clearance)
• 15” clearance on top of the unit (for service)
• 6” clearance on the back of the unit (for service and drain hook-up)
• Provide enough space in front to allow door opening
• Check for unobstructed air ow at the condensing unit
Prepare the location.
• Check that the oor is level
• Place a layer of water resistant caulk around the perimeter of the entire footprint of the unit (roll-in units only)
• Place the unit in the chosen location and level it.
Note: Keep the unit in the upright position at all times. If you must tilt the unit for clearing door
ways, do so for a very short period of time. Once in place, keep the unit in upright position for a
period of minimum 24 hours prior to powering the unit.
Failure to comply with the above note may cause severe damage to the unit and will void the warranty.
Verify the electrical service to be in accordance with the manufacturer label located on the right side of the
unit.
Reach-In Data
Nameplate
Location Roll-In Data
Nameplate
Location

5800 SE 78th St. Ocala, FL 34472
8P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Connect the unit to the mains.
Reach-In Models:
• Plug the unit into the wall receptacle
Roll-In Models:
• Quick disconnect must be provided by the installer in close proximity to the unit
• The electrical connection must be carried out by a licensed electrician
• The electrical J-Box (6 1/4” x 3 1/8”) is located on the top of the unit towards the front.
• On remote refrigeration models the cabinet and the condensing unit require separate electrical power supplies.
Condensate Drainage
Reach-In Models:
• Install drain pan or drain line. Install the drain pan by sliding the pan on the guides located on the bottom of the
unit.
• When installing the drain line the drainage connection must be carried out in conformity with the local regulation.
As a standard conguration, all reach-in Hurrichill units are provided with ¾” ID exible tubing drain line.
Roll-In Models:
• The drainage connection must be carried out in conformity with the local regulations.
• As a standard conguration, all roll-in / self-contained Hurrichill units are provided with 1” FPT union at the back
of the unit.
Install wire shelves (if so equipped).
Operate the unit in Hard Chill / Manual mode for approximately 20 minutes to verify temperature pull down, see
chapter Unit Operation – Manual Mode any Cycle.
Verify proper airow direction.
• Evaporator – front to back
• Condenser – front to back
Note: American Panel Corporation blast chillers are equipped with a short cycle protection. If the
unit is stopped or the door is opened and closed during a chilling cycle more than once, the com-
pressor will not start for a period of 3 to 5 minutes.
Inspect liquid-line sight glass to ensure is clear and dry.
When possible, inspect the oil level within the compressor, minimum ½ full on level indicator window.

9
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Engage, operate and verify effectiveness of manually engaged defrost cycle, see chapter Unit Operation –
Defrost Cycle.
Note: The blast chiller is programmed, from the factory, to automatically engage the defrost cycle at
12:00 AM every morning. The defrost cycle will not engage unless is needed and the unit is in
stand-by mode (no other cycle engaged). To change the time or to disable the automatically engaged
defrost cycle see chapter Customizing the Cycles.
Setup and verify the PC connection (if so equipped), see chapter PC Package. IT personnel may be needed.
Inform the factory if any functional and performance issues were found following the completion of the above
tests.
Verify that the operator has all necessary operation manuals, menus and instructions. Contact factory with any
questions, Monday-Friday 8:00 a.m. to 5:00 p.m. ET at 800-327-3015 or consult the website at
www.americanpanel.com

5800 SE 78th St. Ocala, FL 34472
10 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Specications and Performance
Blast chilling - Capable of lowering the core temperature of product from 160˚F to 38˚F within 90 minutes.
Shock freeze - Capable of lowering the core temperature of product from 160˚F to 0˚F within 240 minutes.
Model Type Pan Capacity
Sheet/Steam
Chilling Capacity
(90 min)
Freezing Capacity
(240 min)
AP3BCF30-1 TS Blast Chiller/Shock Freezer 0/3 30 36
AP5BCF45-2 TS Blast Chiller/Shock Freezer 0/5 45 54
AP7BCF70-2 Blast Chiller/Shock Freezer 7/14 100 60
AP7BCF70-2-C Blast Chiller/Shock Freezer 7/7 70 42
AP10BCF100-2 Blast Chiller/Shock Freezer 0/10 100 60
AP12BCF110-3 Blast Chiller/Shock Freezer 12/24 110 90
AP20BCF200-3 Blast Chiller/Shock Freezer 10/20 200 120
AP20BC200-2 Blast Chiller (1) 26” x 29” x 70” Rack 200 -
AP20BCF200-2 Blast Chiller/Shock Freezer (1) 26” x 29” x 70” Rack 200 120
AP24BC250-3 Blast Chiller (1) 26” x 30.5” x 70” Rack 250 -
AP24BCF300-3 Blast Chiller/Shock Freezer (1) 26” x 30.5” x 70” Rack 300 180
AP24BC250-3-R Blast Chiller (1) 202 Rational Rack* 250 -
AP24BCF300-3-R Blast Chiller/Shock Freezer (1) 202 Rational Rack* 300 180
* Standard conguration sized for 202 Rational rolling rack. other combi congurations are available; consult factory for details.
Note: Each unit was designed for a specic product capacity as shown above. Overloading the unit
could signicantly reduce its service life.

11
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Modes Explained
Each unit is capable of running in either an ‘Automatic’, ‘Manual’ or ‘A la Carte’ mode:
• In ‘Automatic’ mode the unit will read the food temperature via the food probe and adjust the air temperature
accordingly.
NOTE: When using ‘Automatic’ mode it is very important to insert the food probe in the product.
The food probe must read the core temperature of the product in order for the unit to work as
intended.
• In ‘Manual’ mode the air within the cabinet will be held at a preset temperature for a preset amount of time based
on the selected operating cycle (see below).
• In ‘A la Carte’ mode the air within the cabinet will be held at a preset temperature until all of the timers expire.
Cycle Description Button (icon)
Soft Chill
Used for delicate items and salad items. Items with low fat
or moisture content such as bakery goods should also use
this mode.
Automatic Mode: The air temperature will cycle between 28°F and 35°F until the food core
temperature will reach 40°F, at this point the blast chiller will switch into holding mode where the
air temperature will cycle between 35°F and 42°F until the food is removed from the cabinet and/or
cycle is stopped by the operator.
Manual Mode: The air temperature will cycle between 28°F and 35°F for 1.5 hours. After 1.5 hours
the unit will switch into holding mode where the air temperature will cycle between 35°F and 42°F
until the food is removed from the cabinet and/or cycle is stopped by the operator.
A La Carte: The air temperature will cycle between 28°F and 35°F until all the timers expire, after
that the unit will switch into holding mode where the air temperature will cycle between 35°F and
42°F until the cycle is manually stopped by the operator.
Hard Chill
Used for all foods. Some freezing on the food surface
may occur, especially with thicker products; if this is not
acceptable use the ‘Soft’ cycle as described above.
Automatic Mode: The air temperature will cycle between 0°F and 10°F until the food core
temperature will reach 60°F (rst part of the cycle). After the food core temperature reaches 60°F
the air temperature inside the unit will cycle between 28°F and 35°F (second part of the cycle) until
the food core temperature will reach 40°F. At this point the blast chiller will switch into holding mode
where the air temperature will cycle between 35°F and 42°F until the food is removed from the
cabinet and/or cycle is stopped by the operator.
Manual Mode: The air temperature will cycle between 0°F and 10°F for one hour (rst part of
the cycle). After one hour the air temperature inside the unit will cycle between 28°F and 35°F for
another hour (second part of the cycle). At this point the blast chiller will switch into holding mode
where the air temperature will cycle between 35°F and 42°F until the food is removed from the
cabinet and/or cycle is stopped by the operator.
A La Carte: The air temperature will cycle between 0°F and 10°F until all the timers expire, after
that the unit will switch into holding mode where the air temperature will cycle between 35°F and
42°F until the cycle is manually stopped by the operator.
Auto
Manual
A La Carte
Auto
Manual
A La Carte

5800 SE 78th St. Ocala, FL 34472
12 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Cycle Description Button (icon)
Shock Freeze
Use for all freezing needs. When using the Shock Freezing
Cycle the ice crystals that form within the product are
very small. The quality and the texture of the product is
preserved. For that reason, the Shock Freeze Cycle is
suitable even for delicate products such as sushi meat and
prime meat cuts. Shock Freeze Cycle will give excellent
results when used in the process of Ice Cream and Gelato
hardening, it will give a smooth texture to the product.
Automatic Mode: The air temperature will cycle between -25°F and -15°F until the food core
temperature will reach 0°F, at this point the blast chiller will switch into holding mode where the air
temperature will cycle between -4°F and 3°F until the food is removed from the cabinet and/or cycle
is stopped by the operator.
Manual Mode: The air temperature will cycle between -25°F and -15°F for 4 hours. After 4 hours
the unit will switch into holding mode where the air temperature will cycle between -4°F and 3°F
until the food is removed from the cabinet and/or cycle is stopped by the operator.
A La Carte: The air temperature will cycle between -25°F and -15°F until all the timers expire, after
that the unit will switch into holding mode where the air temperature will cycle between -4°F and 3°F
until the cycle is manually stopped by the operator.
NOTE: At the end of any cycle the unit will switch into holding mode to maintain the food
at a specic temperature. However, the unit is not designed to be a refrigerator or holding
cabinet. Do not allow the blast chiller to function in holding mode for extended periods of
time.
Occasional overnight holding is allowed.
Quick Start
The Quick Start mode allows for one button operation of
the most common cycle as dened by the user. Quick
Start is set from the factory as a Soft Chill - Manual
mode but can be customized in the settings for any cycle
operation.
Auto
Manual
A La Carte

13
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Cycle Description Button (icon)
Defrost
Use this mode to defrost the evaporator coil. The defrost
cycle must be manually engaged (see controller operation
below). Defrost the unit once a day or as needed. Ice
build-up can be observed by looking thru the fan grill at the
evaporator coil. The factory preset for the Defrost Cycle is
30 minutes.
Thaw Cycle
(if equipped)
Use to thaw frozen products. Units equipped with the
Thaw feature will be delivered with a special thaw probe, a
cordless drill and a sanitary drill bit. Use the cordless drill
and sanitary drill bit to provide a hole to probe the frozen
product.
Automatic Mode: The air temperature will cycle between 42°F and 50°F until the food temperature,
as recorded by the thaw probe, will reach 32°F; at this point the blast chiller will switch into holding
mode where the air temperature will cycle between 35°F and 42°F until the food is removed from
the cabinet and/or cycle is stopped by the operator.
Manual Mode: The air temperature will cycle between 42°F and 50°F for a preset amount of time,
set by the operator at the time of starting the cycle. After the cycle time expires, the unit will switch
into holding mode where the air temperature will cycle between 35°F and 42°F until the food is
removed from the cabinet and/or cycle is stopped by the operator.
NOTE: When probing for thaw cycle, use the drill bit to provide a hole in the frozen product.
Heated Probe
(if equipped)
Use the Heated Probe feature prior to extracting the
temperature probe from the frozen product. Gentle heat
will be applied to the food probe for 5 seconds to facilitate
the extraction of the probe. The Heated Probe will run only
if the temperature at the food probe is below 30°F. Repeat
the heated probe cycle if needed.
Sanitize
(if equipped)

5800 SE 78th St. Ocala, FL 34472
14 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Factory Presets Automatic Mode - Quick Reference Chart
Cycle Setting Low Air
Part 1
High Air
Part 1
Breaking
Temp.
Low Air
Part 2
High Air
Part 2
End Food
Temp.
Low Air
Holding
High Air
Holding
Soft 28˚F 35˚F NA NA NA 40˚F 35˚F 42˚F
Hard (Chillers Only) 10˚F 20˚F 60˚F 28˚F 35˚F 40˚F 35˚F 42˚F
Hard (Chillers &
Freezers) 0˚F 10˚F 60˚F 28˚F 35˚F 40˚F 35˚F 42˚F
Shock Freeze -25˚F 15˚F NA NA NA 0˚F -4˚F 3˚F
Thaw 42˚F 50˚F NA NA NA 32˚F 35˚F 42˚F
Factory Presets Manual Mode - Quick Reference Chart
Cycle Setting Low Air
Part 1
High Air
Part 1
Time
Part 1
Low Air
Part 2
High Air
Part 2
Time
Part 2
Low Air
Holding
High Air
Holding
Soft 28˚F 35˚F NA NA NA 90 Min 35˚F 42˚F
Hard (Chillers Only) 10˚F 20˚F 60 Min 28˚F 35˚F 60 Min 35˚F 42˚F
Hard (Chillers &
Freezers) 0˚F 10˚F 60 Min 28˚F 35˚F 60 Min 35˚F 42˚F
Shock Freeze -25˚F 15˚F NA NA NA 240 Min -4˚F 3˚F
Thaw 42˚F 50˚F NA NA NA Set at Start 35˚F 42˚F

15
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
Home Screen
The home screen can be accessed by taping on the blank display, if the display is off, or by pressing the home button,
if the controller is in one of the cycle screens.
1) Soft Chill Button – Press to access Soft Chill Cycle Menu
2) Hard Chill Button – Press to access Hard Chill Cycle Menu
3) Shock Freeze Button – Press to access Shock Freeze Cycle Menu
4) Quick Start Button – Press to engage the preset cycle, the Quick Start Button is set from the factory to engage
the Soft Chill cycle in Manual Mode. The operator can set the Quick Start Button to engage the desired cycle, see
Settings -> Quick Start.
5) Food Thaw Button – Press to access Food Thaw Cycle Menu. Food Thaw Cycle is an optional cycle and is
available on selected models only.
6) Sanitize Button – Press to access the Sanitize Cycle Menu. Sanitize Cycle is optional and is available on
selected models only. Sanitize Cycle will sanitize the interior of the cabinet. Sanitize Cycle can be set to engage
automatically at preset times of the day when unit not in use, see Settings -> Sanitize.
7) Defrost Cycle Button – Press to access the Defrost Cycle Menu. Defrost Cycle can be set to engage
automatically at preset times of the day when unit not in use, see Settings -> Defrost.
8) Reports Button – Press to access the HACCP reports preview menu.
9) Probe Heat Button – Press to choose which food probe to heat for easier extraction from the frozen product.
10) Settings Button – Press to access the settings menu.

5800 SE 78th St. Ocala, FL 34472
16 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Automatic Mode Screen
1) Status Label – Displays the selected cycle and the status of the cycle.
Status:
READY TO START – unit in standby mode waiting for the user to make a selection such as Start
CYCLE IN PROGRESS – the chilling cycle is in progress
COMPLETED – the chilling cycle has been completed and the unit is maintaining the product at safe holding
temperatures
2) Auto Mode Button – Press to select the automatic blast chilling mode.
3) Manual Mode Button – Press to switch to the manual blast chilling mode.
4) A la carte Mode Button – Press to switch to the A la carte blast chilling mode.
5) ELAPSED TIME Label – Displays the elapsed time form the start of the cycle.
6) Food probe #... Label/Button – Press to assign to the current probe the food ID that it monitors. The assigned
food ID will show on the HACCP reports. The label of Food probe #... will display the temperature of the probe.
One food probe is the standard conguration for all American Panel Corporation blast chillers, the controller
supports up to 4 food probes.
7) Air probe #... Label – Displays the air temperature inside the cabinet. Double and triple depth cabinet models will
have two and three air probes respectively, one for each cabinet.
8) Time and Date Label – Displays the current date and time.
9) Home Button – Press to stop the current cycle and switch to the home screen.
10) Start/Stop Button – Press to start or stop the cycle. If the stop button will be pressed during the cycle a
conrmation screen will prompt the user to conrm the choice.

17
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
How to Start a Cycle in Automatic Mode
Step Description Action
1Choose Soft Chill, Hard Chill or Shock Freeze from the
Home screen
2
Make sure Auto tab is selected
(For the Auto mode to work as intended the food probe
must be inserted into the product)
3
Optional: press Food Probe # to assign a Food ID to the
Probe. Choose from a set list of Food IDs or enter your
own name.
4Press start to start the cycle

5800 SE 78th St. Ocala, FL 34472
18 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
Manual Mode Screen
1) Status Label – Displays the selected cycle and the status of the cycle
Status:
READY TO START – unit in standby mode waiting for the user to make a selection such as Start
CYCLE IN PROGRESS – the chilling cycle is in progress
COMPLETED – the chilling cycle has been completed and the unit is maintaining the product at safe holding
temperatures
2) Auto Mode Button – Press to select the automatic blast chilling mode.
3) Manual Mode Button – Press to switch to the manual blast chilling mode.
4) A la carte Mode Button – Press to switch to the A la carte blast chilling mode.
5) TIME REMAINING Label – Indicates the remaining time to the end of the cycle.
6) UP/DOWN BUTTONS – Press to adjust the cycle time as needed.
7) Food probe #... Label/Button – Press to assign to the current probe the food ID that it monitors. The assigned
food ID will show on the HACCP reports. The label of Food probe #... will display the temperature of the probe.
One food probe is the standard conguration for all American Panel Corporation blast chillers, the controller
supports up to 4 food probes.
8) Air probe #... Label – Displays the air temperature inside the cabinet. Double or triple depth cabinet models will
have two or three air probes respectively, one for each cabinet.
9) Time and Date Label – Displays the current date and time.
10) Home Button – Press to stop the current cycle and switch to the home screen.
11) Start/Stop Button – Press to start or stop the cycle. If the stop button will be pressed during the cycle a
conrmation screen will prompt the user to conrm the choice.

19
5800 SE 78th St. Ocala, FL 34472
Touchscreen HURRiCHiLL Installation & Operations Manual
P: [phone]
E: [email protected]
How to Start a Cycle in Manual Mode
Step Description Action
1Choose Soft Chill, Hard Chill or Shock Freeze from the
Home screen
2Make sure Manual tab is selected
3Optional: Press up or down on the time arrows to adjust
the cycle time
4
Optional: press Food Probe # to assign a Food ID to the
Probe. Choose from a set list of Food IDs or enter your
own name.
5Press start to start the cycle

5800 SE 78th St. Ocala, FL 34472
20 P: [phone]
E: [email protected]
Touchscreen HURRiCHiLL Installation & Operations Manual
A La Cart Mode Screen & Timer Screen
1) Status Label – Displays the selected cycle and the status of the cycle
Status:
READY TO START – unit in standby mode waiting for the user to make a selection such as Start
CYCLE IN PROGRESS – the chilling cycle is in progress
COMPLETED – the chilling cycle has been completed and the unit is maintaining the product at safe holding
temperatures
2) Auto Mode Button – Press to select the automatic blast chilling mode.
3) Manual Mode Button – Press to switch to the manual blast chilling mode.
4) A la carte Mode Button – Press to switch to the A la carte blast chilling mode.
5) Timer Buttons/Labels – Press to access the timer setting screen. The timer label will indicate the remaining time
and the product name of the food it monitors.
6) Food probe #... Label - The label of Food probe #... will display the temperature of the probe. One food probe is
the standard conguration for all American Panel blast chillers, the controller supports up to 4 food probes.
7) Air probe #... Label – Displays the air temperature inside the cabinet. Double or triple depth cabinet models will
have two or three air probes respectively, one for each cabinet.
8) Time and Date Label – Displays the current date and time.
9) Home Button – Press to stop the current cycle and switch to the home screen.
10) Start/Stop Button – Press to start or stop the cycle. If the stop button will be pressed during the cycle a
conrmation screen will prompt the user to conrm the choice.
11) Set Timer Id Button – Press to assign a food id. to the current timer.
12) Up/Down Buttons – Press to adjust the timer.
