American Standard WALK-IN BATH Quick start guide

WALK-IN BATH INSTALLATION
INSTRUCTIONS AND OWNER’S MANUAL

1
CONGRATULATIONS!
You are now the owner of a walk-in bathtub from the most trusted name in plumbing.
We thank you for your purchase. Your American Standard ® walk-in bath is a true
investment in your health and peace of mind.
Customer Support: [phone]

OWNERS MANUAL
2
TABLE OF CONTENTS
UNPACKING THE UNIT………………………………………………………………. Page 3
RESPONSIBILITIES OF THE INSTALLER…………………………………………… Page 4
TESTING YOUR TUB BEFORE INSTALLATION…………………………………… Page 5
INSTALLATION PREPARATION…………………………………………………….. Page 6
ELECTRICAL INSTALLATION………………………………………………………. Page 7
INSTALLATION PROCEDURES……………………………………………………... Page 8-9
SAFETY INSTRUCTIONS ……………………………………………………………. Page 10
OPERATING INSTRUCTIONS……………………………………………………….. Page 11-12
CLEANING & MAINTENANCE…………………………………………………….... Page 13
WARRANTY…………………………………………………………………………... Page 14

OWNERS MANUAL
3
UNPACKING THE UNIT
1. FIRST, inspect the carton for damage: Take a picture if possible. CAREFULLY
RECORD ALL PERCEIVED DAMAGE and call us at 1-866-423-0800.
2. DO NOT LIFT THE TUB BY THE PLUMBING. Doing so can result in leaks, for
which the installer is responsible. All Walk-In Tubs are water tested before they
leave our factory and the bathtub you have purchased has passed inspection.
3. Immediately inspect the unit for damage even if there is no carton damage. All
product damage must be reported within 72 hours of receipt from American
Standard®. Once the unit is installed, surface damages will be assumed to be
installation-related if not reported prior to installation. Installers are also
responsible for damage that occurs once the unit is placed in its niche.
NOTE: Remove all packaging material except for the protective plastic. This has
been placed on the tub at the factory to eliminate abrasions from handling. This
should only be removed at final clean up.
4. Inspect the plumbing for any fittings that may have loosened in transit.
5. Read the following instructions completely before installing this product. If the
home-owner or installer has any questions, please call us at 1-866-423-0800.
6. You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN
PRODUCT DAMAGE OR INJURY TO BOTH INSTALLER AND HOMEOWNER. IT
WILL ALSO RESULT IN ASSUMPTION OF ALL LIABILITY BY SAID INSTALLER.

OWNERS MANUAL
4
RESPONSIBILITIES OF THE INSTALLER
The Installer must inspect and water test the product prior to installation to ensure the unit is free of defect
and /or damage. In the event of a problem, the unit must not be installed. If the packaging or product has
been damaged, please call immediately at 1-866-423-0800.
This product has been listed by INTERTEK / ETL and IAPMO / C UPC. The product has been tested and
complies with the following standards and guidelines: IAPMO /C UPC, UL-1795, ANSI Z-124.1.2,
ASME A 112.19.7, ASME A 112.19.15 & CSA B-45. The installer is responsible for compliance to
state and local codes.
This product is designed to be installed by a licensed tradesperson. Licensed plumbers and electricians
should be employed to insure proper installation. Installer assumes all liabilities for installation
procedures.
Although American Standard® has taken reasonable precautions to ensure that the Quick Drain TM is
suitable for residential plumbing; it is the responsibility of the installer to insure that the plumbing is
acceptable for use of the Quick Drain TM. American Standard® does not accept responsibility for
damage arising from use of the Quick Drain TM.
Only accessories authorized by manufacturer should be used with this product.
IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO RISK OF FIRE,
ELECTRICAL SHOCK OR INJURY TO PERSONS
SAVE THESE INSTRUCTIONS!
WARNING! ALL INSTRUCTIONS LISTED IN THIS MANUAL SHOULD BE READ AND
FOLLOWED CAREFULLY. ALL PRECAUTIONS PERTAINING TO RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS MUST BE UNDERSTOOD AND
EXPLAINED TO OWNER.
TO REDUCE THE RISK OF INJURY, CHILDREN OR PERSONS WITH INFIRMITIES
MUST NOT BE PERMITTED TO USE THIS PRODUCT WITHOUT CLOSE AND
CONTINUOUS SUPERVISION.

OWNERS MANUAL
5
TESTING YOUR WALK-IN TUB BEFORE INSTALLATION
1. All American Standard® walk-in baths are 100% water tested at the factory and have passed inspection.
Transportation and mishandling may loosen fittings and cause leaks. It is therefore necessary to test the
bathtub while there is access to all sides of the bath.
2. This unit should be both static and operationally tested with water. It is best to test the unit outside by
filling with a garden hose.
a. Place the tub on a completely flat surface in an area where it may be drained after testing.
b. Using a clean rag and warm water wipe down seal to insure it is free of debris.
c. Seal the drain hole (this can be done with tape) and fill the tub to at least three inches above the
highest jet, or to the bottom of the safety bar if no jets are present.
d. Allow the water to stand in tub for 10 minutes and then inspect all plumbing and seals for
leaks.
e. Using appropriately rated three-prong extension cords, all plugged in to separate outlets,
operate all electrical components (air blower, water pump, and heater if applicable) for another
10 minutes and inspect for leaks again. Inspect the unions around the pump and heater.
f. If a leak persists at a union after tightening, it may have been over-tightened or might have a
displaced O-ring. Disassemble it and make sure the O-ring was seated properly. Do the same if
a leak persists at the heater. Verify that the heater threads match the pipe threads.
g. Ensure that all jets are open and working (some hydro jets are adjustable for both flow rate and
direction of flow. For some jets, the water flow is adjusted by turning either the outside ring or
the inside nozzle clockwise or counterclockwise. The small jets are not adjustable at the jet but
can be adjusted by the pump speed or legs only massage.
3. If the pump/blower/heater does not operate:
a. Check the breaker to ensure that power is on and make sure that any cables connecting the
control box to the switches and pumps are firmly attached. Check outlet for current by plugging
in a light or hair dryer.
b. Ensure the pump/blower is plugged into the control box and the control box is plugged into the
wall.
c. If an optional heater is present, check the indicator light on the top of its housing. This light
will only come on while the pump is running. The heater is dormant when no water flows.
d. Do not run any pumps unless the tub is filled with water to the proper level. Damage due to dry
operation of pumps is not covered under the ten year warranty.
Failure to perform these tests before installation will make the installer liable for future repair costs.

OWNERS MANUAL
6
INSTALLATION PREPARATION

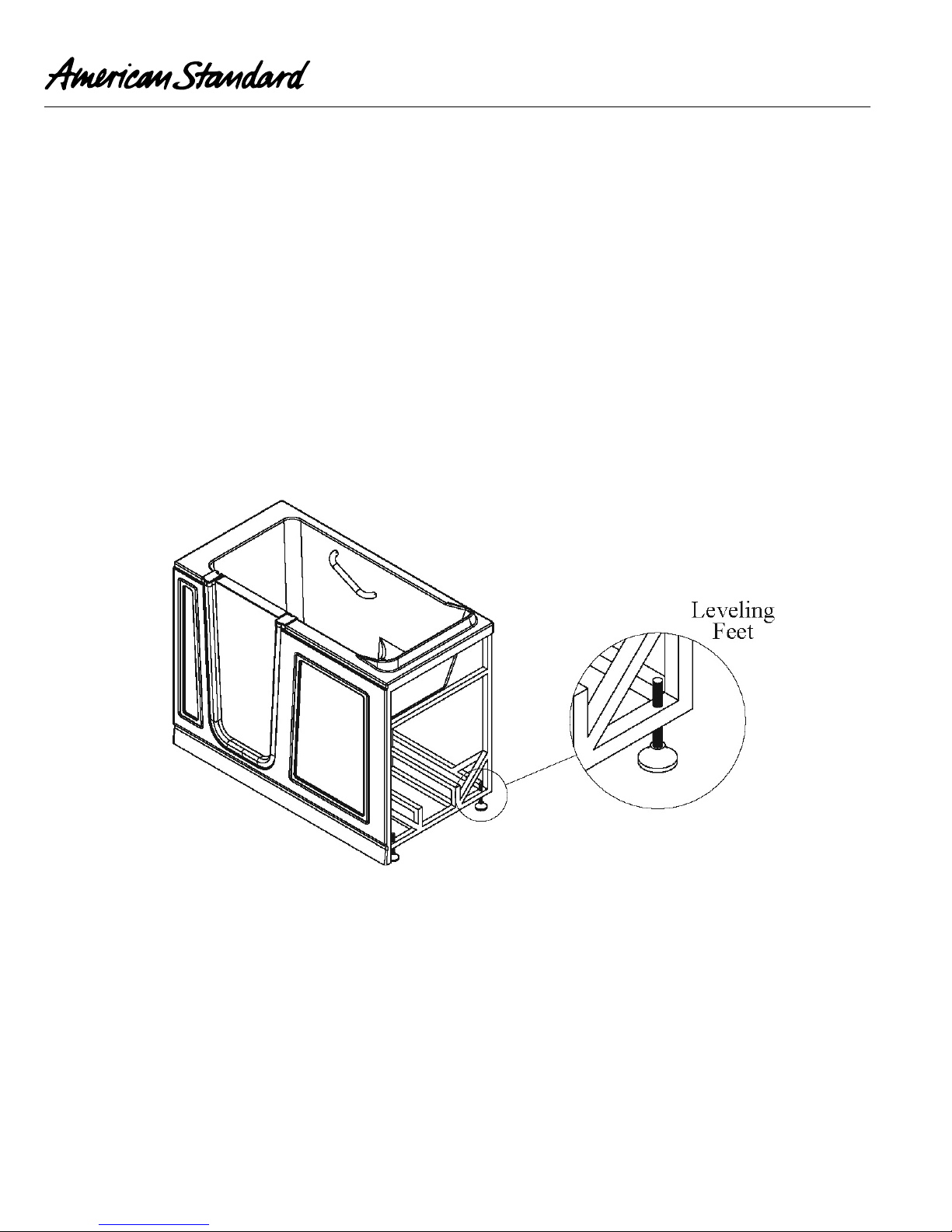

1. Check the floor area where the tub is to be installed.
a. Clean area of any debris or trash.
b. Use a 5 or 6-foot level and determine if the floor is level. If the floor is not level,
adjust all 5 leveling feet to perfectly level the tub. Note: It is important that all
5 leveling feet are completely touching the floor and level for the door system to
work properly.
2. Check to ensure that the drain piping has been “roughed-in” at the proper location. See
specification sheets (installation detail) included in this manual.
3. Ensure that the proper electrical service has been installed at the pump location. See electrical
requirements in the manual.

OWNERS MANUAL
7
ELECTRICAL INSTALLATION
All electrical wiring must be installed in accordance with the National Electrical Code and with all
local codes. All wiring shall be done by a qualified electrician. Run one, two or three branch circuits
(as required) from the main electrical service panel to the pump area of the framing structure to
provide power to the unit.
Electrical components have specific wiring requirements. Refer to the matrix below for the electrical
supply requirements for the whirlpool bathtub and factory installed components.
Branch circuits must be rated for 110 – 120 volts. Use 12 Gauge, 3 conductor cable for the circuits.
If the length run exceeds 100 feet, check with local codes for requirements. Install moisture proof
junction box(s) 6” above the floor at the pump end of the framing for each circuit.
DO NOT INSTALL THE JUNCTION BOX(S) WHERE IT CAN BE REACHED WHILE SITTING OR
STANDING IN THE TUB OR TOUCHING THE FAUCETS.
WHIRLPOOL & AIR SPA CONFIGURATIONS FOR FACTORY INSTALLED COMPONENTS
This section lists the factory installed components of the Whirlpool and/or Air Spa Systems.
Note the required number of circuits and their rating for the Whirlpool & Air Spa unit you are planning to install.
CONFIGURATION LABEL FOR FACTORY INSTALLED COMPONENTS
Systems Electrical Rating Circuit 1 Electrical Rating Circuit 2
Soaker w / Quick Drain™ 15 Amp GFCI
Soaker w / Light 15 Amp GFCI
Soaker w / Quick Drain™ w / Light 15 Amp GFCI
Whirlpool or Air Spa 15 Amp GFCI
Whirlpool or Air Spa w / Light 15 Amp GFCI
Whirlpool or Air Spa w/ Quick Drain™ 15 Amp GFCI 15 Amp GFCI
Whirlpool or Air Spa w/ Light & Quick Drain™ 15 Amp GFCI 15 Amp GFCI
Whirlpool & Air Spa (Combo) 15 Amp GFCI 15 Amp GFCI
Whirlpool & Air Spa (Combo) w/ Light 15 Amp GFCI 15 Amp GFCI
Whirlpool & Air Spa (Combo) w/ Quick Drain™ 20 Amp GFCI 15 Amp GFCI
Whirlpool & Air Spa (Combo) w/ Light & Quick Drain™ 20 Amp GFCI 15 Amp GFCI
IN-LINE HEATERS REQUIRE ITS OWN 15 AMP GFCI DEDICATED CIRCUIT
All electrical connections must be carried out by a certified electrician in accordance with local electrical
requirements and codes.

OWNERS MANUAL
8
INSTALLATION PROCEDURES
▲WARNING: When installing whirlpool massage baths, air spa baths, or combo baths, the following
precautions must be followed:
▲WARNING: Danger: Risk of electrical shock; connect components to separate circuits, EACH protected
by a ground fault circuit interrupter (GFCI)
▲WARNING: Installation must provide access for servicing the pump and motor (all American
Standard® walk-in baths come with access panels for the pump, motor and faucet).
1. Install tub waste/overflow according to instructions included with the provided kits. Some installations will
require the purchase of additional fittings.
2. Install faucet. If spout and supply lines are to be installed on deck of tub, carefully mark their locations and
drill ¼” pilot holes from acrylic side of product. Using properly sized hole saws, drill spout, hand shower,
diverter and supply lines from acrylic side of the product.
NOTE: Do not drill a hole in the deck directly above the overflow. Position the diverter slightly to one
side to clear the waste/overflow fitting. “Dry-fitting” the top portion of the overflow will make this crystal
clear. The handle sequence is generally: “Hot, Cold, Diverter, Spout and Handheld”. It is recommended
that the handheld be installed on the corner closest to the wall to prevent water from leaking off the deck
and onto the floor.
3. Install the optional in-line water heater per manufacturer’s instructions.
4. Standard Installation - After framing is complete, set product in place to check fit and make certain that the
tub can be properly leveled. (Caution: If the bathtub is not resting on all five leveling feet, water will not
drain properly and this may cause the door to leak). Secure tub frame to the studs using metal straps.
4a. Fire-Rated Drywall – If fire-rated drywall is specified, the finished fire-rated wall must be in place before
the tub is installed. The dimensions of the framing structure must be increased by the thickness of fire-
rated drywall.
WARNING: Never allow the weight of the tub to be supported by wood support stringers and do not use
integral tile flange (if equipped) to screw or nail in place, as this will result in product failure and will
void the warranty.
5. Verify the product is completely level by checking tub deck surface and ensure all 5 leveling feet are
touching the ground.
6. Electrical connection is made by simply plugging each cord into the GFCI outlet.
7. After plumbing and electrical connections have been made the tub should be cleaned of dirt and debris.
8. Installation is not complete until the bathtub has been water-tested in place and does not leak.

OWNERS MANUAL
9

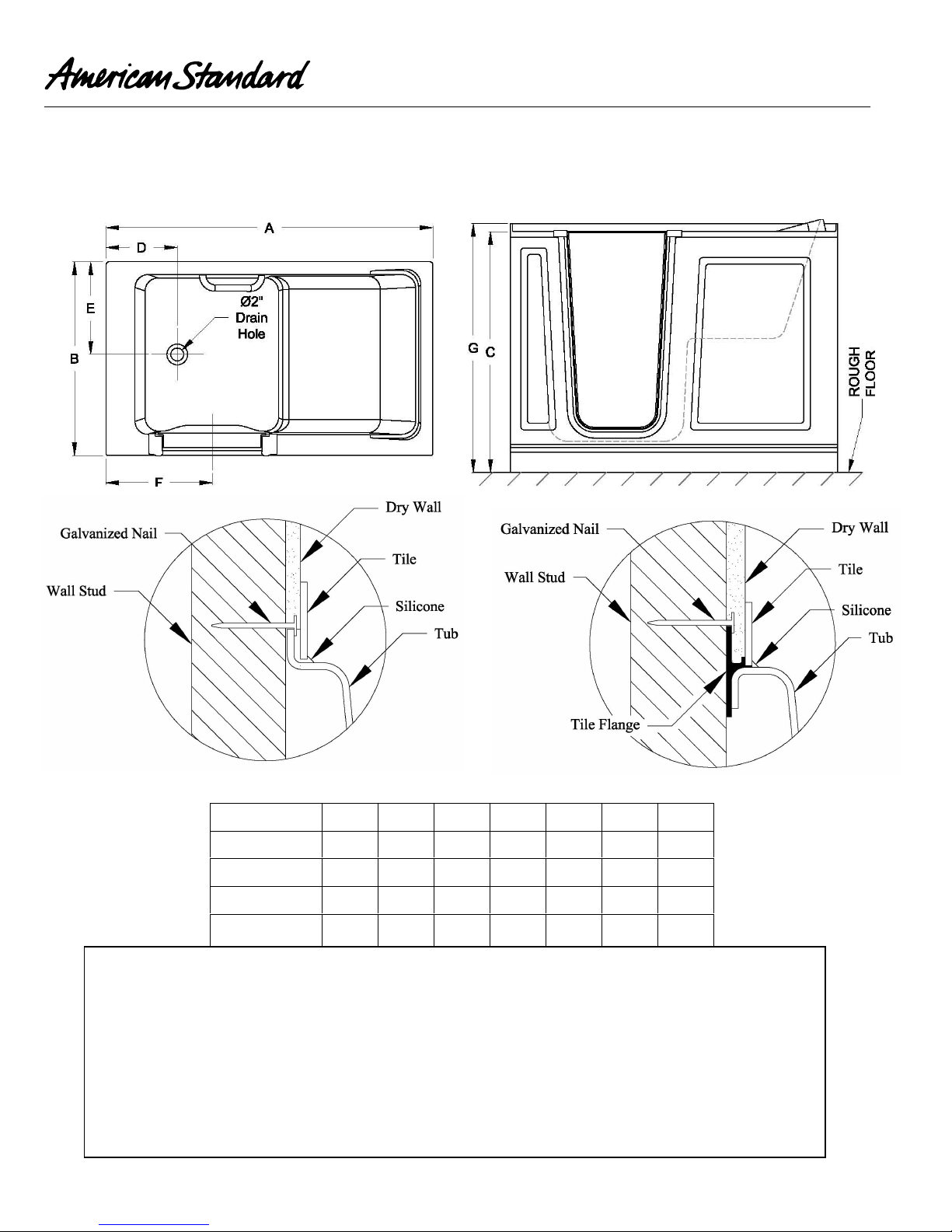

Alcove Installation
`
Faucet and Pump
Access Panels
IMPORTANT
Do not use tile flange to
screw or nail tub in place.
Tubs installed in an alcove installation require a raised flange to prevent water from seeping past the tub and into
the wall. Tubs without a raised flange shall be installed with a tile flange kit model TFK-60. The flange kit is a
long plastic strip that is fits onto the rim of the tub to provide the leak protection needed.
The tile flange should be installed on the tub before it is placed in the alcove. Install the tile flange along all sides
of the tub where the wall will be. Measure to fit and miter cut the flange corners. The flange should be attached to
the tub with a construction adhesive. Once the tub is in place to be installed and flange kit mounted, fasten the
flange to studs using galvanized fasteners
Warning: Never attempt to nail or screw thru the tub as this will result in product failure and will void the
warranty.
Non Integral Flange
Integral Flange
Model A B C D E F G
2651.110 50.5” 26 ¼” 37 ½” 9 ½” 11 ½” 15 ½” N/A
2848.100 48” 28” 38” 10 ¾” 14” 16 ¾” N/A
3051.110 50.5” 30 ½” 37 ½” 9 ½” 14½” 15 ½” N/A
3260.210 59 ½” 32 37 11 ½” 16” 20½” N/A
