Ametek Land IQ Series User manual

Thermometer
User Guide
Issue 6
30 April 2018
Publication Nº 806609
Language: English
© Land Instruments International, 2011 - 2018
series

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ

Health and Safety Information
Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS
- before using this product. If there is any instruction which you do not understand, DO
NOT USE THE PRODUCT.
Safety Signs
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or
personal injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury to the user or users, or result in damage to the product or to property.
NOTE
Indicates a potentially hazardous situation which, if not avoided, could result in damage or the loss of
data.
Signs and Symbols used on equipment and Documentation
Caution, risk of electric shock.
Caution, attention to possibility of risk of damage to the product, process or surroundings. Refer
to instruction manual.
Caution, hot surface.
Protective Conductor Terminal.
Observe precautions for handling electrostatic discharge sensitive devices.
Equipment Operation
Use of this instrument in a manner not specied by Land Instruments International may be hazardous.
Read and understand the user documentation supplied before installing and operating the equipment.
The safety of any system incorporating this equipment is the responsibility of the assembler.
Protective Clothing, Face and Eye Protection
It is possible that this equipment is to be installed on, or near to, machinery or equipment operating at
high temperatures and high pressures. Suitable protective clothing, along with face and eye protection
must be worn. Refer to the health and safety guidelines for the machinery/equipment before installing
this product. If in doubt, contact Land Instruments International.
Electrical Power Supply
Before working on the electrical connections, all of the electrical power lines to the equipment must
be isolated. All the electrical cables and signal cables must be connected exactly as indicated in these
operating instructions. If in doubt, contact Land Instruments International.
Storage
The instrument should be stored in its packaging, in a dry sheltered area.
Unpacking
Check all packages for external signs of damage. Check the contents against the packing note.
Lifting Instructions
Where items are too heavy to be lifted manually, use suitably rated lifting equipment. Refer to the
Technical Specication for weights. All lifting should be done as stated in local regulations.
IMPORTANT INFORMATION - PLEASE READ
Contact Us
UK - Droneld
Land Instruments International
Tel: [phone]
USA - Pittsburgh
AMETEK Land, Inc.
Tel: [phone]
China
AMETEK Land China Service
Tel: [phone] ext 122
India
AMETEK Land India Service
Tel: +91 - 80 67823240
Email: [email protected]
Web: www.ametek-land.com
For further details on all AMETEK Land oces, distributors and representatives, please visit our website.
Return of Damaged Goods
IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the
supplier immediately. Damage caused in transit is the responsibility of the carrier not the supplier.
DO NOT RETURN a damaged instrument to the sender as the carrier will not then consider a claim. Save
the packing with the damaged article for inspection by the carrier.
Return of Goods for Repair
If you need to return goods for repair please contact our Customer Service Department. They will be able
to advise you on the correct returns procedure.
Any item returned to Land Instruments International should be adequately packaged to prevent damage
during transit.
You must include a written report of the problem together with your own name and contact information,
address, telephone number, email address etc.
Design and Manufacturing Standards
The Quality Management System of Land Instruments International is approved to BS EN ISO 9001 for
the design, manufacture and on-site servicing of combustion, environmental monitoring and non-contact
temperature measuring instrumentation.
Registered ISO 9001 Management System approvals apply in the USA
UK Calibration Laboratory: UKAS 0034
USA Calibration Laboratory: ANAB Accredited ISO/IEC 17025
National Accreditation Board for Testing and Calibration Laboratories approvals apply in India.
Operation of radio transmitters, telephones or other electrical/electronic devices in close proximity
to the equipment while the enclosure doors of the instrument or its peripherals are open, may cause
interference and possible failure where the radiated emissions exceed the EMC directive.
The protection provided by this product may be invalidated if alterations or additions are made to the
structural, electrical, mechanical or pneumatic parts of this system. Such changes may also invalidate the
standard terms of warranty.
Copyright
This manual is provided as an aid to owners of Land Instruments International’s products and contains
information proprietary to Land Instruments International. This manual may not, in whole or part, be
copied, or reproduced without the expressed written consent of Land Instruments International Ltd.
Copyright © 2018 Land Instruments International.
MARCOM0311, Issue 9, 12 April 2018

Thermometer User Guide
series

User Guide Thermometer
series
Contents
1 Introduction 1
1.1 General Introduction 1
1.2 About IQ Series Thermometers 1
1.3 Nomenclature 2
2 Specications 3
3 Hardware Conguration 5
3.1 Thermometer variants 5
3.2 Conguration 6
4 Laser Alignment 8
5 Instrument Setup and Conguration 10
5.1 IQ Series Congurator Software 10
6 Thermometer Installation 19
6.1 Basic Variant Thermometers 19
6.2 Standard Variant Thermometers 20
6.3 Enhanced and Premium Variant Thermometers 21
6.3 Using the Brainboxes USB/RS485 convertor 22
7 Time Functions 23
7.1 Averager 23
7.2 Peak Picker 24
7.3 Track and Hold 25
8 Emissivity 27
8.1 Refractories 29
8.2 Alloys 29
8.3 Glass 29
8.4 Metals 30
9 Maintenance, Servicing & Calibration 31
9.1 Maintenance 31
9.2 Servicing 31
9.3 Calibration 31
Appendix A 33
Appendix B 43

Thermometer User Guide
series

Page 1
User Guide Thermometer
series
1 Introduction
1.1 General Introduction
This publication gives you the information required to operate the Land IQ
Series thermometer.
It is important to check all equipment with which you have been supplied, and
read all the literature provided with the Land IQ Series thermometer before
using the thermometer for the rst time. Additionally, keep all supplied
literature readily available, for reference when the equipment is in general
use.
The equipment must only be used and maintained by suitably trained
personnel, capable of following the procedures and guidelines given in this
User Guide.
1.2 About IQ Series Thermometers
The Land IQ series are compact, rugged, industrial thermometers designed to
meet the needs of high temperature process control applications. IQ series
thermometers feature an all metal design with integrated water cooling, air
purge and screw terminal connections to facilitate simple and cost effective
operation. Thermometers can be congured using any permutation of four
wavelengths, four feature levels and four focus distances to suit users’
requirements.

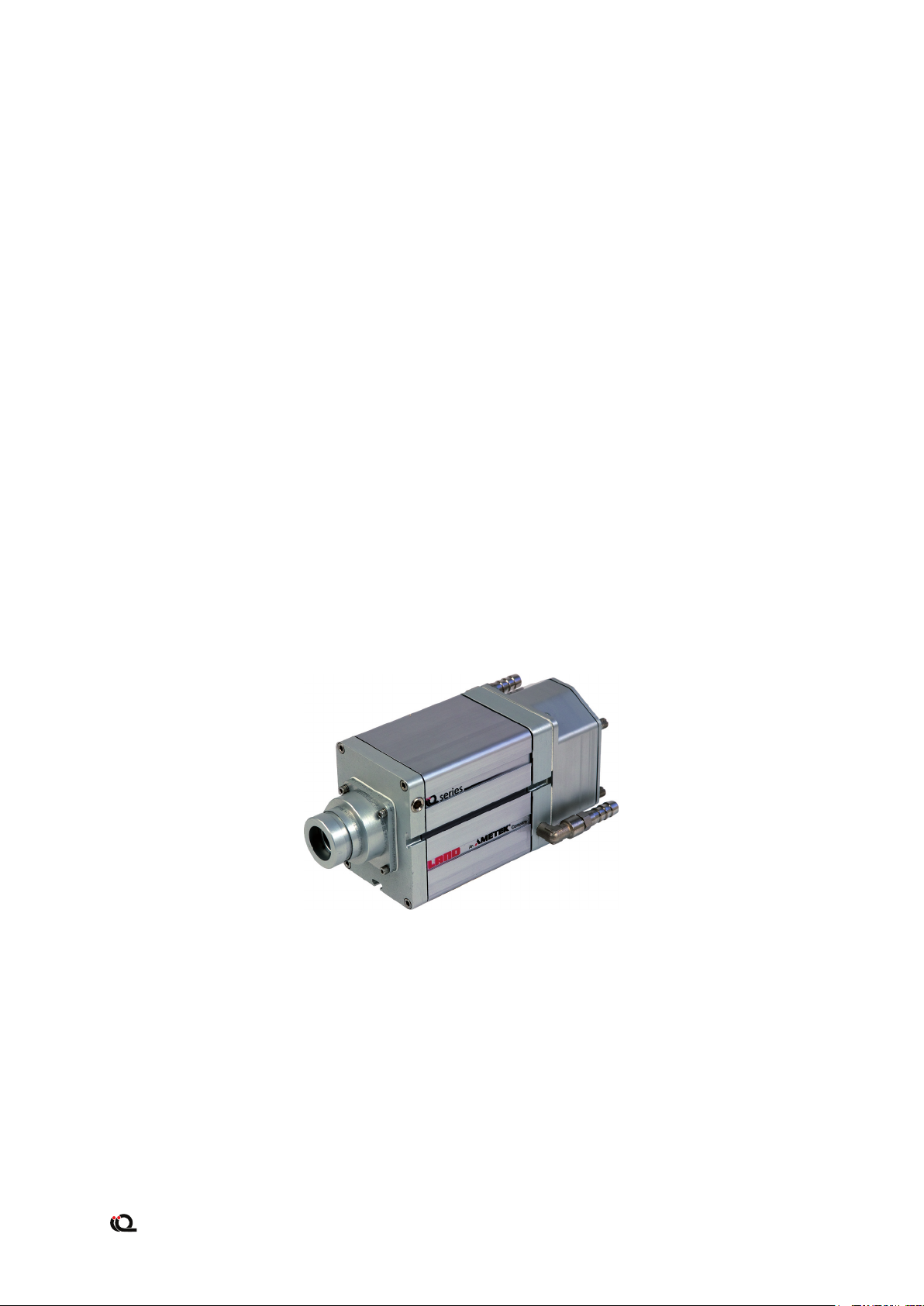

Fig. 1-1 Land IQ Series Thermometer

Page 2
Thermometer User Guide
series
1.3 Nomenclature
The Instrument detail label is on the rear face of the IQ Series thermometer.
The instrument Type species the thermometer variant and variant options.
The instrument Serial Number is a unique number incorporating the
manufacture date code.
Upon receipt of the instrument, check and make a note of the instrument
Type and Serial Number.
Fig. 1-2 Land IQ Series Digital Thermometer Nomenclature
IQ 1 S Y (500mm)
IQ Series Name Focus Distance
Wavelength Laser 250mm
1 1µm Features Not Fied 500mm
2 1.6µm B Basic Y Fied 1000mm
5 5µm S Standard Infinity
R 1µm Rao E Enhanced
P Premium

Page 3
User Guide Thermometer
series
2 Specifications
Model IQ1 IQ2 IQ5 IQR
Operating range: 1022 to 3182°F
550 to 1750°C
482 to 2372°F
250 to 1100°C
392 to 2012°F
200 to 1100°C
1292 to 3182°F
700 to 1750°C
Specied range: 1112 to 3182°F
600 to 1750°C
572 to 2372°F
300 to 1300°C
482 to 2012°F
250 to 1100°C
1382 to 3182°F
750 to 1750°C
Spectral response: 1µm 1.6µm 5µm 1µm ratio
Field of view
(90% energy):
110:1 110:1 60:1 110:1
Focusing: Factory selectable: 250mm/9.8in, 500mm/19.7in, 1000mm/39.4in and innity
(IQxP models have user congurable focus)
Output: 0 or 4 to 20mA user selectable (isolated 50V)
Response time
(0 to 90%):
10ms 10ms 50ms 10ms
Emissivity: 0.10 to 1.00
Non greyness: 0.80 to 1.25
Resolution
(mid range):
<1K
Stability: 0.2°/° 0.2°/° 0.02%°/° 0.05%°/°
Accuracy
(absolute):
0.3% +1°C 2°C 0.35% +1°C 0.6% +1.5°C
Time functions: Peak picker, Track and hold, and Averager
(Enhanced and Premium variants only)
Alarm outputs: Process high, Process low, Internal temperature,
Emissivity/Non-greyness signal lost, Insufcient signal (IQ1 only); rated to 50V
d.c., 0.1A non-inductive, NO or NC - software selectable
(Enhanced and Premium variants only)
Laser sighting: Laser dening optical axis; Class 2, 1mW, 650nm,
120s ON duration, Automatic switch-off
(Standard, Enhanced and Premium variants only)
Ambient limits: 5 to 60°C / 41 to 140°F specied; 0 to 70°C / 32 to 158°F operating
EMC: EN 61326:1999 Class A
Sealing: IP65 / NEMA 4X
Vibration: 3g (10 to 300Hz)
Power supply: 18 to 30V d.c. (24V d.c. nominal - IQ1, 2 & 5 current requirement:
100mA / IQR: 300mA)
Optional
accessories:
1-axis and 2-axis adjustable mounting brackets; Tripod mount; d.c. power
supply unit; Temperature indicator unit LMi

Page 4
Thermometer User Guide
series
Notes for IQR Thermometers
• IQR ratio thermometers have an internal heater that must be warmed
up before valid temperature readings can be produced. This can take
typically 2 to 3 minutes at room temperature, followed by a further
stabilisation time of 2 to 3 minutes before a fully reliable reading is
available.
• During the warming up period, the instrument will indicate
‘Obscuration’ and the temperature output is either held under range or
over range, depending on your chosen setting for upscale/downscale
drive under conditions of signal obscuration.
• At ambient temperatures of 50°C or above, the instrument will produce
a valid output immediately, but will still require 2 to 3 minutes settling
time.
• In a cold environment, at the lower end of the ambient operating
temperature range, the warm up time required may be in excess of
10 minutes at the nominal 24V power supply voltage. A longer period
may be required if the power supply voltage is below the nominal
value. If your application process is not continuous (e.g. switched off
overnight), or if it is in a cold environment, it is recommended that
any IQR installation has a continuous power supply. This is especially
relevant if your process needs to be restarted quickly.

Page 5
User Guide Thermometer
series
3 Hardware Configuration
IQ Series thermometers offer simple analogue ‘plug & play’ and digital
methods of communication. The features available on your IQ series
thermometer will depend upon what feature set has been supplied.
3.1 Thermometer variants
3.1.1 Basic Variant Features
IQ x B variant thermometers are specially designed to offer the maximum in
simplicity and economy. The thermometer will operate at a xed emissivity/
non-greyness (value dependant on waveband variant) when powered. Should
emissivity/non-greyness adjustment be required the user can supply a 0 to
20mA current to the thermometer corresponding to the desired emissivity/
non-greyness. Use the table in Section 8 to nd the appropriate current for
the desired emissivity/non-greyness.
3.1.2 Standard Variant Features
IQ x S variant thermometers have all of the same features available in the
Basic variant but also include laser sighting to denote the centre of the
measurement area. Activating the laser can be done using either the push-
button mounted on the top of the connection PCB or by an external volt free
contact closure across the LSRin and Com terminals on the connection PCB.
Once activated the laser will remain illuminated for a period of 120 seconds.
3.1.3 Enhanced Variant Features
IQ x E variant thermometers include all of the features of the Basic and
Standard variant models and also RS485 digital communications, signal
processing, 2 x relay alarms. These thermometers also include PC
conguration software which is used to congure all of the above. See IQ
series Windows Conguration Software User Guide for more details (part
number 806230).
3.1.4 Premium Variant Features
IQ x P variant thermometers include all of the features of the Basic, Standard
and Enhanced variant models and also the ability for the user to set the focus
distance as they wish to any of the four pre-dened available distances.
Note: Changing the focus distance does not affect instrument calibration.

Page 6
Thermometer User Guide
series
3.2 Configuration
3.2.1 IQ Series Windows Configurator Software (IQ-WCS)
NOTE
The IQ Series Windows Congurator Software (IQ-WCS) is provided
free of charge. This enables low-cost conguration of IQ series
thermometers for those users who are able to engineer and support
the required RS485 physical connection. Land does sell a cable, and
a recommended RS485 communications converter, in relation to this
method of connection. Ask for a quote for Part Nº 806730.
These instructions detail how to install and use the IQ Series Windows
Congurator Software. This allows a IQ Series thermometer to be
congured from any laptop or PC having an RS485 connection.
1) Insert the IQ Series Windows Congurator software CD into your PC/
Laptop CD Drive.
2) The CD should auto-run.
3) If this fails, click the setup.exe le on the CD.
NOTE
If ‘Live data’ is not displayed (greyed out), check that the laptop/PC
comms and the thermometer comms are synchronised. Also check
that the thermometer is connected correctly.

Page 7
User Guide Thermometer
series
If ‘Live Data’ is ‘greyed out’;
1) Select the Comms menu option.
2) From the Comms drop-down menu, set the following:
• Serial Port - serial port connecting laptop/PC and thermometer, default
set to 1
• Baud Rate - data transfer rate between thermometer and laptop/PC.
Ensure that this is set to 57600 (default).
• Address - the congurator address (1 to 254), default set to 1
• 1 to 1 (Address 0) - used when only one iQ series thermometer is
connected to the RS485 port
NOTE
The 1 to 1 (Address 0) mode must not be used if more than one iQ series
thermometer is connected to the RS485 port.
The 1 to 1 mode enables communication with the thermometer, regardless of
the user-settable thermometer address.
Where multiple thermometers are to be connected to a shared RS485 bus,
the instruments should rst be congured separately and given a unique
address, so that each thermometer on the shared bus will have a separate
address.
Once installed on the shared bus, communication with a particular
thermometer is achieved by setting the congurator address to match that of
the thermometer.
When all the ‘485 Settings’ are synchronised between laptop/PC and
thermometer, the dynamic ‘Live Data’ is then displayed. If this does not
happen, check that the thermometer connections are correct, as shown in the
standard iQ series User Guide.

Page 8
Thermometer User Guide
series
4 Laser Alignment
Warning
CLASS 2 Laser Product.
DO NOT stare into laser beam (1.0mW maximum output at 650nm).
DO NOT look directly towards the thermometer window, or into the
laser beam during operation.
If the laser is projected onto a highly reective surface, DO NOT look at
the laser stripe from a position where a direct (‘mirror-like’) reection
may enter the eye.
Warning
CLASS 2 Laser Product.
DO NOT attempt to disassemble the laser unit or any of its mounting
components.
The S, E and P variant IQ Series thermometers are tted with a laser
alignment utility, which can be used to align the thermometer accurately on
the required target.
When the laser is activated, a laser beam is emitted from the lens in the front
of the IQ Series thermometer. The laser beam denes the centre line of the
thermometer eld of view. For details of the target size at a particular point
in the eld of view, refer to the target size table for your thermometer.
Fig. 4-1 Location of laser warning labels on the IQ Series Thermometer
Laser beam
Laser warning labels

Page 9
User Guide Thermometer
series
There are four methods of activating the laser alignment utility in the IQ
Series thermometer:
• the laser switch on the rear face of the thermometer (See Fig. 4-1);
• a direct connection between pin Com and LSRin on the electrical
connector on the rear face of the thermometer. This connection can be
made via a user-supplied external switch;
• For E and P variants only - the laser ‘button’ in the congurator software.
Refer to Section 5.2;
• For E and P variants only - by sending an appropriate message to the
thermometer over an RS485 digital communications link.
When the laser is activated, it will remain switched on for 2 minutes (120
seconds).
Warning
CLASS 2 Laser Product.
If the lens is removed for re-focusing the thermometer, the laser
energy emitted is increased. Therefore, ensure that the laser is
switched off before re-focusing the thermometer

Page 10
Thermometer User Guide
series
5 Instrument Setup and Configuration
5.1 IQ Series Configurator Software
Note
The IQ Series Congurator Software is provided free of charge with E
and P variant thermometers. This enables low-cost conguration of IQ
Series thermometers using an RS485 physical connection.
Land recommends the use of USB to RS485 Connection Kit (Part Nº
806370) for computers without an RS485 port.
These instructions detail how to install and use the IQ Series Congurator
Software. This allows an IQ Series thermometer to be congured from any
laptop or PC having an RS485 connection.
1) Insert the IQ series CD into the drive on your computer.
2) If the software does not run automatically, open the My Computer
utility on your PC and double-click on the Setup.exe le listed in the CD
contents.
3) Follow and conrm the Wizard prompts to install the software. An IQ
Series icon is automatically placed on the Desktop when installation is
successful.
4) Double-click the IQ Series icon on the Desktop to start the Congurator
software. The Home page is displayed by default.
Note
If ‘Live Data’ is not displayed (greyed out), check that the laptop/PC
comms and the thermometer comms are synchronised. Also check
that the thermometer is connected correctly.
If ‘Live Data’ is ‘greyed out’;
1) Select the Comms menu option.
2) From the Comms drop-down menu, set the following:
• Serial Port - serial port connecting laptop/PC and thermometer, default
set to 1
• Baud Rate - data transfer rate between thermometer and laptop/PC.
Ensure that this is set to 57600 (default).
• Address - the congurator address (1 to 254), default set to 1
• 1 to 1 (Address 0) - used when only one IQ Series thermometer is
connected to the RS485 port
Note
The 1 to 1 (Address 0) mode must not be used if more than one
SOLOnet thermometer is connected to the RS485 port.

Page 11
User Guide Thermometer
series
The 1 to 1 mode enables communication with the thermometer, regardless of
the unreasonable thermometer address.
Where multiple thermometers are to be connected to a shared RS485 bus,
the instruments should rst be congured separately and given a unique
address, so that each thermometer on the shared bus will have a separate
address.
Once installed on the shared bus, communication with a particular
thermometer is achieved by setting the congurator address to match that of
the thermometer.
When all the ‘485 Settings’ are synchronised between laptop/PC and
thermometer, the dynamic ‘Live Data’ is then displayed. If this does not
happen, check that the thermometer connections are correct, as shown in
Fig. 5-1.

Page 12
Thermometer User Guide
series
12 3
4
5
6
8
9
10
11
13
12
15
IMPORTANT: Please note radiation safety warning, where this symbol appears
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
1mW MAX OUTPUT AT 650nm
IEC 60825-1:2007
Fig. 5-1 Congurator with IQ1, IQ2 or IQ5 thermometer connected

Page 13
User Guide Thermometer
series
Fig. 5-2 Congurator with IQR thermometer connected
12 3
4
57 8
910
11
13
12
14
15
IMPORTANT: Please note radiation safety warning, where this symbol appears
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
1mW MAX OUTPUT AT 650nm
IEC 60825-1:2007

Page 14
Thermometer User Guide
series
Item Description User set? Function
1 File Yes New - resets to a default conguration
setting
Open - opens a saved conguration
le
Save - saves the current conguration
le. Note: selecting Save when
running from the default conguration
i.e. Default.snt (Item 15) will create a
new default conguration, which will be
applied when the congurator is next
opened.
Save As - saves the current
conguration le with a new le name
Exit - closes the IQ Series Congurator
2 Thermometer Yes Apply - applies any changes made to
the thermometer
Read - reads and displays the
parameters set in the thermometer
3 Comms Yes 485 Settings - displays and allows
changes to be made to the RS485
settings. Serial Port, Baud Rate and
Address (see Fig. 5-3). Note that this
menu only sets the baud rate of the
congurator, not the thermometer.
Note: the factory default baud rate
setting is 57600 for both the software
and for all IQ Series thermometers.
4 Live Data No Continuously updated information,
including target temperature
instrument Label, Internal Ambient
Temperature, selected Time Function
and Alarms status
Fig. 5-3 ‘485 Settings’ sub-menu
