NCT PG-IRT1603 User manual

PG-IRT1603
Infrared Forehead/Ear
Thermometer
Thanks for buying and using this product, please read this
manual carefully before use.
User manual
The USB Lighter Company, LLC
Address: 10940 Wilshire Blvd
STE 2010
Los Angeles, CA 90024
[phone]
Brand: NCT
Date: 06-16-2020 Rev : A/0

02
Contents
Product introduction............................................................3
Use caution items...............................................................4
Common sense about body temperature............................5
Product layout.....................................................................6
Screen display marks..........................................................7
Battery installation explanation...........................................7
Basic parameter instructions ..............................................8
Introduction of Measurement methods...............................8
Product cleaning methods instructions.............................10
Frequently Asked Questions and Solutions.......................11
Troubleshooting................................................................12
Specifications of the product.............................................13
Safety precautions..............................................................2
Safety precautions
The warning signs and illustrations indicated in the
manual are intended to enable you to use the product
safely and correctly and to prevent any harm to you and
others. Warning signs, illustrations and their meanings
are as follows.
Warning
Please ask professional doctors to explain the
measured value of body temperature.
The product is only used for human body temperature
measurement.
Please do not use this product for purposes other than
body temperature measurement.
Do not use mobile phones close to this product.
Please do not use equipment that generates
electromagnetic fields near the product.
Please do not disassemble or repair this
device by yourself.
Please do not bend or stretch the device.
Please do not impact or drop this product.
Caution: please refer to attached file.
Legend
IP Classification: IP22
General rules and guidelines. The left graph
shows general compulsion.
Prohibited. This symbol tells you what not to do. it
means general prohibition in left picture.
Do not disassemble.
Type BF Applied part
Water resistance, moisture resistance.
Please read the manual carefully before
use.
The package of this unit can comply with the
requirements of green environmental protection.
Do not discard / Do not throw in trash.
The material of product or product itself is made of
renewable material so that we can recycle this
product, which benefits the environment and our earth.
Warning symobl.

If you use or store this product beyond the range of
specified temperature and humidity, it may not reach
original performance specification.
Use environment: temperature: from 50°F~104°F,
humidity: from 15%RH~93%RH
Storage environment: temperature: from -13°F~131°F,
humidity: from 0%RH~93%RH
Product introduction
0403
Use caution items
Intended use: Infrared Forehead Thermometer intended
to measure human body temperature by measuring
forehead or ear canal.
Scope of application: Displaying the body temperature of
the measured object by measuring the heat radiation of
the forehead or inner ear canal.
Features:
1. Non-touching type infrared measurement of ear/
forehead temperature.
2. Multiple colors and backlight display: White, Green,
Orange and Red.
3. 9 sets of memory values.
4. Switch between Fahrenheit°F and Celsius°C.
(original setting is Celsius°C)
5. Instant measurement within 1 second.
6. The design is convenient and economical without
earmuff, which can save subsequent use costs.
7. It has the function of sound on/off.
8. When the machine is idle for 30 seconds, the power will
turn off automatically.
Warm tip:
The measurement results of this unit at any time are
meant to be a reference, it can not replace the medical
diagnosis of professional doctor. If you have any
questions about a temperature result, please consult a
doctor or physician.
1. It is very dangerous for patients to judge and treat on their
only by measurement results, so please be sure toown
doctor's instructions.follow the
Self-judgment may lead to a worsening condition of◆
patient.
2. Please do not touch with your hands or blow infrared
sensor with your mouth.
◆When the infrared sensor is damaged or dirty, it may
cause abnormal measurement results.
3. If there is a temperature difference between the storage
site and the measurement site, please place it at room
temperature (measurement site）for about 30 minutes
before next measurement.
◆May result in incorrect measurement results.
4. Please keep this product out of the reach of children.
◆Children can potentially harm their ears with misuse. If
a child swallows a battery or the transparent cover,
please contact your doctor immediately.
5. When measuring body temperature, please do not get
close to air conditioning.
◆Avoid affecting the measurement accuracy.
6.Before and after use: Use a cotton swab dipped in
75% alcohol to wipe the probe surface. (If you see
stains, fog or water on the infrared sensor glass, please
use a cotton swab dipped in 75% alcohol to clean the
infrared sensor glass gently.)
7. The product suffers mechanical damage.
◆There is a possibility that the measurement is not right.
Warning items
This unit is only used for human body temperature
measurement without use of disease diagnosis; it
cannot be used for emergency and continuous
measurement in surgery.
Parental guidance required for children under
the age of twelve. Children's temperature should
only be measured under the guidance of an
adult.
Patients should not diagnose a disease and/or
get treatment by themselves on the basis of a
measurement result. Please consult a physician.
Children under 12 years of age and those who
cannot express their thoughts must be
supervised during use.
Please do not use this product if you suffer from
otitis external, tympanitis, or other ear diseases.
Warning
◆Do not use toilet paper or facial tissue, they risk
scratching the infrared sensor resulting in incorrect
measurement results.
◆ Avoid cross-infection of ear disease.

8. If the product touches water or is dropped in water,
fully dry before use, especially water on the surface of the
sensor should be cleaned with a cotton swab.
◆Our aim is to avoid causing safety accidents and
affecting measurement accuracy.
Caution:
1. Please do not use this product with people who suffer
from otitis external, tympanitis and other ear diseases.
◆It is possible to worsen the affected area.
2. Please do not use this product after swimming, bathing
or with wet ears.
◆ It is possible to have a lower measurement.
3. Do not place waste battery to danger zone.
◆The battery may break.
4. When measuring the ear temperature, the product must
be operated in the ear temperature mode.
◆Can result in inaccurate measurement result.
Suggestions
1. When discussing your temperature measurement
results with a doctor, please specify to the doctor mode
(Forehead or Ear) that you measured in.
2. Please don't force impact, fall, trample or shake this
product.
3. Please do not disassemble, repair or modify this product.
4. Please do not allow liquid to enter the body of the
product.
5. Store the product in a clean, dry place.
6. If you find any problems, please contact the sales team,
you can not repair the product by yourself.
7. Please do not use under the environment of
electromagnetic interference.
8. Please deal with the waste and residue of this product
at the end of the service life according to local laws and
regulations.
Common sense about body temperature
The comparison of different measurement methods.
The measured values are different if we use different
measurement methods. The WHO provides normal human
body temperature reference values, please see below table
about the specific temperature difference.
The changes in human body temperature
Humans are constant body temperature animals, the body
temperature is basically constant, but it is not totally
changeless, the human body temperature is constantly
changing in a day, the details are as follows:
At night
Lowest Body temperature is lowest because of sleep and
decreasing activity.(below 98.6ºF )
In the morning
Higher From warm bed to the lower temperature room
in the morning, the whole body's muscles get
contractions and produce heat.
At noon
Highest After lunch, the human body reaches the highest
temperature and the body will adjust naturally.
Three or four o’clock in the afternoon
Lower Due to physical exertion, blood sugar decreases.
In the evening
Lowest Due to sun down, the room temperature goes
down.

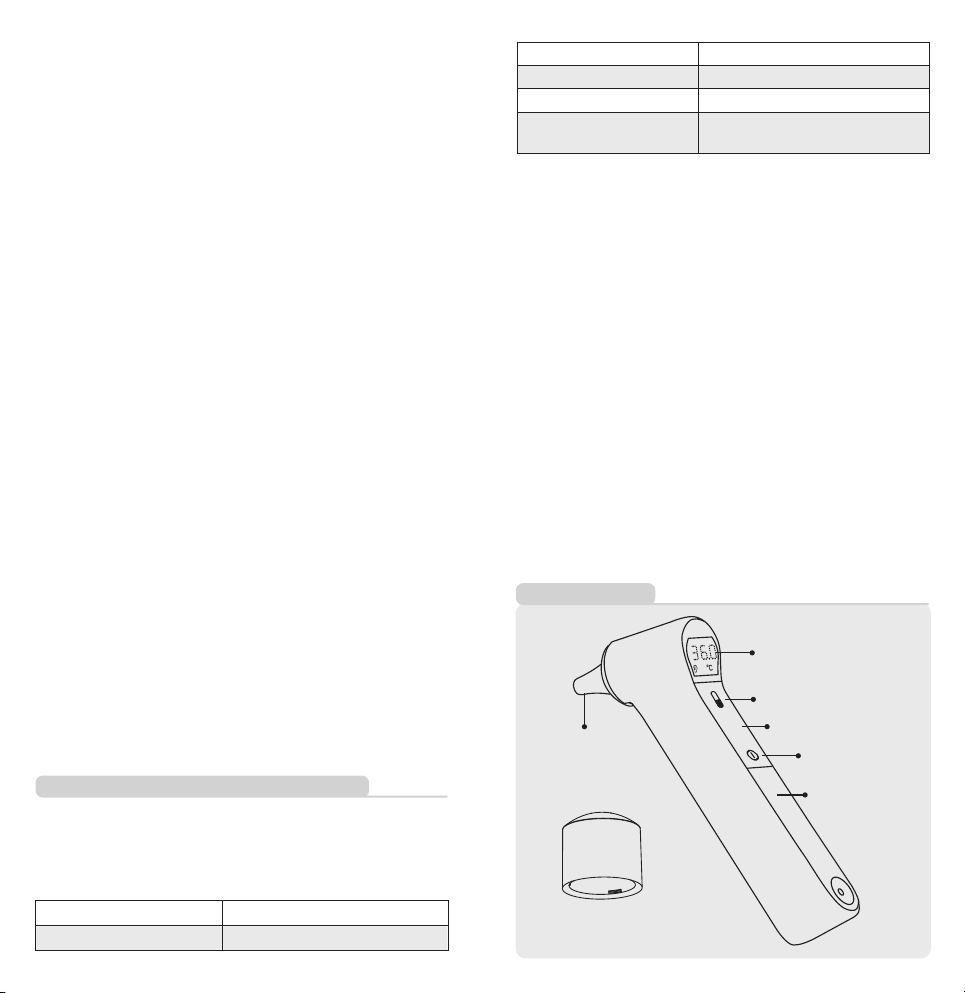

Product layout
Measurement methods
Anal temperature
Normal body temperature
97.8ºF ~ 100.4ºF
Head cover for
forehead temperature
0605
mem
Display screen
Measurement display
MEM button
Power button
Battery cover
Probe
Oral temperature
Axillary temperature
Cochlear temperature
Oral temperature
95.9ºF ~ 99.5ºF
94.5ºF ~ 99 ºF
96.5ºF ~ 100.4ºF
95.9ºF ~ 99.5ºF
(PG-IRT1603 measured value)

0~5mm
or or
Introduction of Measurement methods
Please pull back the ear
for children.
Ear temperature
Please pull these persons'
ears back above.(over one
year old kids and adults)
Ear temperature
Forehead
Forehead temperature
08
07
Basic parameter instructions
1. Sound function: turn on/off
1)
2)
3)
2.
In the power-on state, press the “ mem ” key to set the sound
on or off.
After pressing, the LCD screen will show “ ” meaning the
sound is on and will produce a short beeping sound.
Press "mem" button again, " " will disappear, meaning the
sound is off.
Toggling between °F and °C
In off status , long press “mem” button for six seconds, it can
switch between Fahrenheit degree (°F) and Celsius degree
(°C). Wait for 8 seconds to turn on the product
automatically or press “ ” to turn off the product directly.

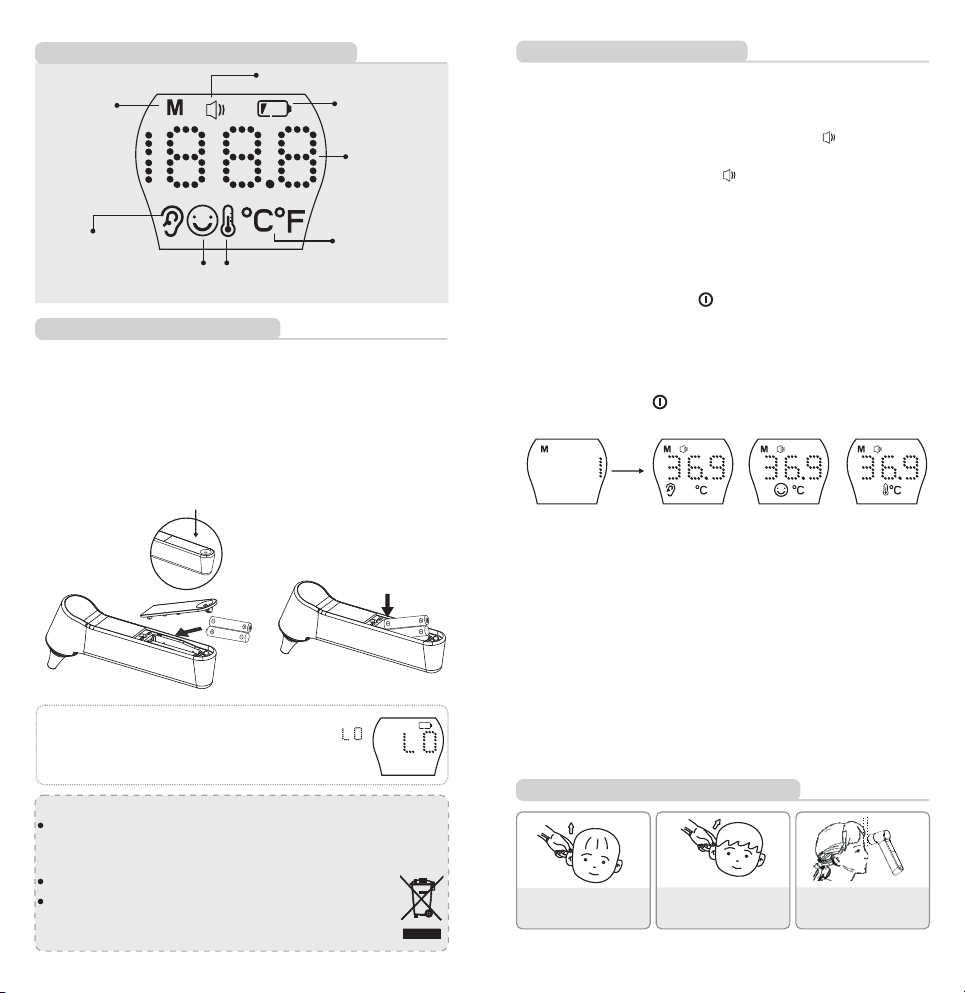

Screen display marks
Battery installation explanation
Remove the battery
cover with pressure
Battery installation flow:
1. Press the battery cover, the battery cover will pop open
automatically.
2. Prepare two AAA batteries with the module of 1.5V AAA
(number seven battery) batteries (It is recommended to
use alkaline batteries), please install into base of battery
according to correct positive and negative poles.
Insufficient power caution:
when battery voltage is low, LCD shows “ ”
sign and battery mark is always on, which
means you should replace the battery.
Warm prompts
If storing the product for an extended period, please
remove the battery to assure longevity. Battery fluids may
harm the product; and pollute our environment.
It is recommended to use alkaline batteries.
The way to handle a scrapped battery should match
the requirements of local country government and
environmental protection organizations.
Use your finger to press down
hard on the endpiece of battery
"-" for ejecting the battery.
3.Memory storage function
In off status, press “mem” button, the product can read
and save 9 sets of measurement values in order (as below
picture shows). It will turn off automatically after 30
seconds. Press “ ”button to turn off manually.
4. Back light status instructions
When measured temperature is <93.2°F, the display reads
LO with a red light.
When measured temperature value is 93.2°F ~ 98.8°F, the
display reads with a green light.
When measured temperature value is 98.9°F ~ 100.5°F,
the display reads with an orange light.
When measured temperature value is 100.6°F ~ 109.4°F,
the display reads with a red light.
When measured temperature value is >109.5°F, the
display reads with a red light and shows HI.
Warm prompts: This function is for reference only.
Memory
storage
Power level
Ear temperature
mode
Temperature
unit (℉ or ℃ )
Forehead
temperature mode
Objects measurement
Sound symbols
Measurement
result display

1.Ear temperature measurement
Remove the forehead
thermometer cover to
measure temperature by
ear.
1009
MEM
1.1 After removing the cover, please press the button
on this product to enter the ear temperature
measurement mode, LCD will display measurement
value last time. Then put the thermometer in your ear,
the ear temperature can be measured directly by
pressing“ ”button.
to turn
1.2 After 1 second, you can see the measurement result.
When LCD is flashing,
we are waiting for
starting measurement.
Measurement result
Note: If you did not hear the beep sound, this means that
the temperature measurement has not yet been
completed. Please do not remove the thermometer probe
from ear canal at this time. (If you have disabled the
sound indication, it will have no sound indication.)
2.Forehead temperature measurement
Install head cover of
forehead thermometer
which can measure
forehead temperature.
2.1 After installing head cover of forehead thermometer,
press“ ”button to turn on this product to enter the
forehead temperature measurement mode, LCD will
display measurement value last time. Then the
forehead thermometer is aimed at the forehead and
measurement distance should be 0~5mm, the
forehead temperature can be measured directly by
pressing “ ” button.
2.2 After 1 second, you can see the measurement result.
When LCD is flashing,
we are waiting for starting
measurement.
Measurement
result
Note: If you did not hear the beep sound, this means that
the temperature measurement has not yet been
completed. Please do not remove the thermometer probe
from forehead at this time. (If you have disabled the sound
indication, it will have no sound indication.)
3. Object pattern measurement
The installation of the head cover of forehead
temperature has no influence to object pattern
measurement.
3.1 Long press“ ”button to enter the object measurement
mode for 6 seconds, and then aim the thermometer at
object, the temperature of the target object can be the
measured directly by pressing button.“ ”
3.2 After 1 second, you can see the result of the measurement.
When LCD is flashing,
we are waiting for starting
measurement.
Measurement
result
0~5mm
Note: If you did not hear the beep sound, this means that
the temperature measurement has not yet been completed.
Please do not remove thermometer probe from target object
at this time. (If you have disabled the sound indication, it
will have no sound indication.)
Product cleaning instructions
In order to ensure precise measurements, it is
recommended to clean the device after each use.
Please use a cotton swab dipped in 75% alcohol to
wipe the thermometer probe and remove any residue
and/or dirt. We recommend you clean the probe for at
least 5 seconds then wipe the other components with a
soft and dry cloth for at least 10 seconds. After cleaning,
please ensure that there is no visible dirt or residue on your
thermometer, Wait 10 minutes before measuring
The device can be cleaned a maximum of 40000 times.

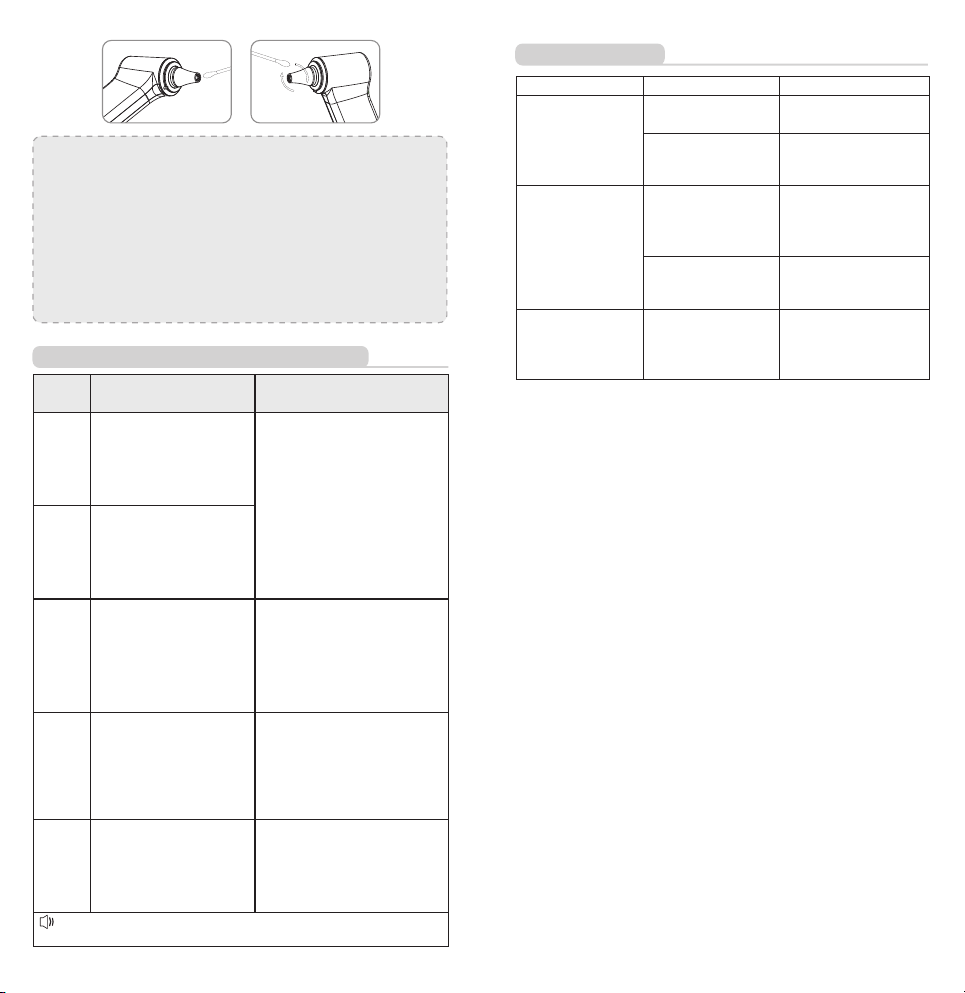

Why do you need to do a cleaning job after each
measurement?
Because infrared temperature uses a highly sensitive
technique to detect the temperature of the target object,
not only will any earwax or dust affect the measurement
accuracy, but it is more likely to cause a bacteria
infection. So we suggest that you cleaning as well as
the diagram shows after each use.
12
Frequently Asked Questions and Solutions
1. (When the measurement probe
is not properly placed in the ear
canal or if the measurement
distance is too far during the
measurement process, the
measurement result may be low.)
2. When measurement probe is
dirty, the measurement value may
be low; one should use a cotton
swab dipped in alcohol to wash
the measurement probe properly.
Screen
display Reasons Solutions
HI
When the target object
temperature is higher than
measurement range (the ear
temperature is more than
109.4°F), the LCD screen
will show "HI".
Lo
When the target object
temperature is lower than
measurement range (the
ear temperature is less
than 93.2°F), the LCD
screen will show "Lo".
Er.H
This product has a max
operating temperature of
104°F. When the
temperature exceeds this
point, the LCD screen will
display an error message
“Er.H".
When you operate this product,
the environment temperature
cannot be greater than 104°F.
Er.L
This product has a lower
operating temperature of
50°F. When the ambient
temperature exceeds this
temperature point, the LCD
screen will display an error
message “Er.L”.
When you operate this product,
the environment temperature
can not be lower than 50°F
The measurement
temperature is low.
The measurement
position is not
correct.
There's a blockage
in the sensor or ear
canal.
Please clear all
debris before
measurement.
Measure the
temperature correctly
according to the
instructions.
Big temperature
fluctuations with
continuous
measurement.
The measurement
interval is too small.
The interval for each
measurement should
be above 10 seconds.
Troubleshooting
Phenomenons Reasons Solutions
When the power
is turned on, the
screen can not
be displayed.
The battery is
exhausted.
Replace with a new
battery.
The battery
polarity is wrong.
The battery polarity
is the same as the
battery case.
11
When the operation is wrong, if the sound is turned on, then the sound will
read the value and remind at this moment.(A short beep will be heard.)
Err
When the environment
temperature changes rapidly
about 5 degrees, it will show
“ Err ” during measurement
in object temperature mode,
then shutdown automatically.
When it shows “Err”, please place
this product and keep steady in
current environment for 30 minutes
before next measurement.

13 14
Voltage
fluctuations/
flicker emissions
IEC 61000-3-3
Group 1
Class B
N.A.
N.A.
Guidance and manufacturer’s declaration–electromagnetic
emissions
Emissions
Compliance Electromagnetic
environment-guidance
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic
emissions
IEC 61000-3-2
Appendix 1 Guidance and Manufacturer Declaration Tables
The Model PG-IRT1603 Infrared Thermometer is intended for use in
the electromagnetic environment specified below. The customer or
the user of the Model PG-IRT1603 Infrared Thermometer
should assure that it is used in such an environment.
The Model PG-IRT1603 Infrared
Thermometer uses RF energy only
for its internal function. Therefore,
its RF emissions are very low and
are not likely to cause any
interference in nearby electronic
equipment.
The Model PG-IRT1603 Infrared
Thermometer is used in home
and it’s powered by DC 3V
Guidance and manufacturer’s declaration – electromagnetic
immunity
The Model PG-IRT1603 Infrared Thermometer is intended for use in
the electromagnetic environment specified below. The customer or
the user of the Model PG-IRT1603 Infrared Thermometer
should assure that it is used in such an environment.
Immunity
test
Electrostatic
discharge
(ESD)IEC
61000-4-2
IEC 60601
test level
±8 kV contact
±2 kV, ±4 kV,
±8 kV, ±15KV
air
Power
frequency
(50/60 Hz)
magnetic
field IEC
61000-4-8
30 A/m,
50/60Hz
NOTE U is the a.c. mains voltage prior to application of the test level
T
Compliance
level
Electromagnetic
environment-guidance
±8 kV contact
±2 kV, ±4 kV,
±8 kV, ±15 KV
air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
30 A/m,
50/60Hz
Power frequency
magnetic fields should
be at levels characteristic
of a typical location in a
typical commercial or
hospital environment.
Specifications of the product
Product name: Infrared Forehead/Ear Thermometer
Model number: PG-IRT1603
Product appearance dimensions: 31×175×72mm
Product weight: about 77g (without battery)
Measuring range: 93.2°F-109.4°F.
Object temperature: 32°F-199.7°F (0°C- 93.2°C)
Resolution ratio: 0.1°C/°F
Measurement Location: laboratory
Accuracy: (95.0°F~107.9°F)±0.4°F，(35.0°C~42.0°C)
±0.2°C, other temperature±0.3°C.
Operation temperature: 50.0°F~104.0°F (10.0°C~40.0°C),
relative maximum humidity 15%RH~93%RH
Atmospheric pressure:70kPa~106kPa
Transportation/storage temperature: -13°F~131°F
(-25°C~55°C), relative maximum humidity 0%RH~93%RH
Atmospheric pressure: 50kPa~106kPa
Display screen: LCD display screen, 4 bit numbers and
special icons.
Sound: when you turn on the product and are ready to
measure, a short beep will be heard.
The measurement is finished with a long beep.
System error or fault: beeps quickly three times.
Fever alert: beeps quickly ten times with urgency.
1. Main body
2. Product manual
Memory: record nine temperature settings in memory
mode.
Automatically shut down: if no operation for 30 seconds,
the device will shutdown automatically.
Battery: two 1.5V AAA batteries
(alkaline batteries are recommended).
Period of use: five years
1603 Forehead mode：
Clinical bias, Dcb: 0.078
Limits of Agreement, LA：0.243
Clinical Repeatability, σr ：0 .069
Reference body site: forehead
Measuring site: forehead
Packing parts list：

15 16
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures,
objects and people.
a The ISM (industrial, scientific and medical) bands between 0,15 MHz
and 80 MHz are 6,765 MHz to 6,795 MHz; 13,553 MHz to 13,567 MHz;
26,957 MHz to 27,283 MHz; and 40,66 MHz to 40,70 MHz. The amateur
radio bands between 0,15 MHz and 80 MHz are 1,8 MHz to 2,0 MHz,
3,5 MHz to 4,0 MHz, 5,3 MHz to 5,4 MHz, 7 MHz to 7,3 MHz, 10,1 MHz
to 10,15 MHz, 14 MHz to 14,2 MHz, 18,07 MHz to 18,17 MHZ, 21,0
MHz to 21,4 MHz, 24,89 MHz to 24,99 MHz, 28,0 MHz to 29,7 MHz and
50,0 MHz to 54,0 MHz.
b The compliance levels in the ISM frequency bands between
150 kHz and 80 MHz and in the frequency range 80 MHz to 2,7
GHz are intended to decrease the likelihood that mobile/portable
communications equipment could cause interference if it is
inadvertently brought into patient areas. For this reason, an
additional factor of 10/3 has been incorporated into the formulae
used in calculating the recommended separation distance for
transmitters in these frequency ranges.
c Field strengths from fixed transmitters, such as base stations for
radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site
survey should be considered. If the measured field strength in the
location in which the Model PG-IRT1603 Infrared Thermometer is
used exceeds the applicable RF compliance level above, the Model
PG-IRT1603 Infrared Thermometer should be observed to verify
normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orienting or relocating the
Model PG-IRT1603 Infrared Thermometer.
d Over the frequency range 150 kHz to 80 MHz, field strengths should
be less than 3 V/m.
Guidance and manufacturer ’s declaration – electromagnetic
immunity
The Model PG-IRT1603 Infrared Thermometer is intended for use in
the electromagnetic environment specified below. The customer or
the user of the Model PG-IRT1603 Infrared Thermometer should
assure that it is used in such an environment.
Immunity
test
IEC 60601
test level
Compliance
level
Electromagnetic environment
- guidance
Conducted
RF IEC
61000-4-6
3 Vrms150
kHz to 80
MHz 6 Vrms
150 kHz to
80 MHz
outside ISM
bandsa
N/A Portable and mobile RF
communications equipment
should be used no closer to
any part of the Model PG-
IRT1603 Infrared
Thermometer, including
cables, than the recommended
separation distance calculated
from the equation applicable to
the frequency of the
transmitter.
Recommended separation
distance P
V
dú
û
ù
ê
ë
é
=
1
5.3
Radiated
RF IEC
61000-4-3
10 V/m
80 MHZ to
2.7 GHz
10 V/m
P
E
dú
û
ù
ê
ë
é
=
1
5.3
80MHz to 800MHz
P
E
dú
û
ù
ê
ë
é
=
1
7
800MHz to 2.7GHz
where P is the maximum output
power rating of the transmitter
in watts (W) according to the
transmitter manufacturer and d
is the recommended separation
distance in metres(m).
Field strengths from fixed RF
transmitters, as determined
by an electromagnetic site
a
survey, should be less than
the compliance level in each
b
frequency range
Interference may occur in the
vicinity of equipment marked
with the following symbol:

Recommended separation distances between
portable and mobile RF communications equipment and the
Model PG-IRT1603 Infrared Thermometer
The Model PG-IRT1603 Infrared Thermometer is intended for use in an
electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the Model PG-IRT1603 Infrared
Thermometer can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the Model PG-IRT1603
Infrared Thermometer as recommended below, according to the
maximum output power of communications equipment.
Rated Maximum
output of
transmitter
W
Separation distance according to frequency of transmitter
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.7 GHz
P
V
d]
5.3
[
1
=P
E
d]
5.3
[
1
=P
E
d]
7
[
1
=
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above the
recommended separation distance d in metres (m) can be estimated
using the equation applicable to the frequency of the transmitter, where
P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the
higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection
from structures, objects and people.
17 D07
