AMF-BRUNS LINEARLIFT AL1 User manual

Operating Instructions
LINEAR LIFT AL1
www.amf-bruns.de

Foreword
Linear Lift AL1 Page 3 of 76
Foreword
Dear Reader,
these Operating Instructions serve to provide all infor-
mation required for the safe use of the Linear Lift.
The Linear Lift is designed and constructed in accordance
with state of the art technology and recognised safety
standards. Persons and materials can however be endan-
gered, as not all danger areas can be eliminated if the
functional capability is to be maintained. Accidents caused
by these dangers can however be prevented by strictly
observing these Operating Instructions. Over and above
this, the operational efficiency of your Linear Lift can be
used to the full and unnecessary faults can be prevented.
After reading these Operating Instructions for the first time,
keep them in a safe place for future reference over the en-
tire lifetime of the Linear Lift. Chapter 11 of these Operating
Instructions contains an Inspection Log that is required by
the technical expert for his / her annual inspection of the
Linear Lift.
If you sell the Linear Lift, hand these Operating Instructions
over to the new owner.
All details, figures and dimensions contained in these Op-
erating Instructions are non-binding. No claims in any form
can be derived from these.
This document must not be reproduced or duplicated, in
full or in part, without the prior, written permission of the
manufacturer.
The Linear Lift must never be converted or modified in any
way, without seeking the prior, written permission of the
manufacturer. The manufacturer will not be held responsi-
ble in any way whatsoever if conversions or modifications
are carried out without authorisation.
Use only original spare parts or spare parts which have
been approved of by the manufacturer. If spare parts other
than these are used, this can have a negative effect on the
specified characteristics, the functionality and safety of the
Linear Lift. Using non-original or unauthorised spare parts
will render the guarantee null and void.
Contact our customer service department to order spare
parts or accessories. The spare parts catalogue can be
found in the service section of our Internet site (see Chap-
ter 14, page 74).

Foreword
Page 4 of 76 Linear Lift AL1
Explanation of symbols and signs
To improve understanding, the following conventions
should be met for these Operating Instructions:
1.
The following types of special note are used to highlight
text passages of an important nature.
DANGER!
 warns of a situation of immediate danger, which will lead
to serious or fatal injuries, if not avoided.
W
ARNING!
 warns of a potentially dangerous situation, which will
lead to serious or fatal injuries, if not avoided.
CAUTION!
 warns of a potentially dangerous situation, which will
lead to slight or minor injuries or material damage if not
avoided.
A
TTENTION !
...warns of a potentially dangerous situation, which can
cause material damage, if not avoided.
...contains general notes and useful information.
...gives a reference to important information in other sec-
t
ions and documents.
2.
Some texts serve a particular purpose. These are identified
as follows:
 Lists
 Instructional text, e.g. a sequence of activities.

Contents
Linear Lift AL1 Page 5 of 76
Contents
Foreword................................................................. 3
Contents.................................................................. 5
1 Safety ................................................................. 7
1.1 Proper Use........................................................... 7
1.2 Improper Use .......................................................8
1.3 Personnel Requirements ......................................8
1.4 Product Monitoring...............................................9
1.5 Danger Zone ........................................................9
1.6 Safety Devices ................................................... 10
1.6.1 Guardrails ................................................ 10
1.6.2 Roll-off guard........................................... 10
1.7 Safety and Accident Prevention Regulations ...... 10
1.8 Disposal ............................................................. 12
2 Description ...................................................... 13
2.1 Layout and Function........................................... 13
2.1.1 Platform................................................... 14
2.1.2 Transfer plate .......................................... 16
2.1.3 Lifting unit .................................................17
2.1.4 Hydraulic system ......................................17
2.2 Rating Plate........................................................ 18
2.3 Technical Data ................................................... 19
2.4 Operating Controls.............................................20
3 Transportation .................................................22
4 Installation / Commissioning............................23
5 Operation .........................................................24
5.1 Safety Regulations for Operation........................24
5.2 Switching OFF in an Emergency
(Emergency Stop) ..............................................26
5.3 Switching the Linear Lift ON ...............................26
5.4 Switching the Linear Lift OFF .............................. 27
5.5 Lowering the Platform ........................................ 27
5.6 Raising the Platform ...........................................30

Contents
Page 6 of 76 Linear Lift AL1
6 Emergency Mode.............................................33
6.1 Raising in the Emergency Mode.........................33
6.2 Lowering in the Emergency Mode......................35
7 Maintenance and Repair ................................. 37
7.1 Safety Regulations for Maintenance
and Repair.......................................................... 37
7.2 Routine Maintenance Work ................................38
7.2.1 Service life of components.......................38
7.2.2 Maintenance schedule.............................38
7.2.3 Maintenance record ................................39
7.3 Functional Test of the Safety Devices.................39
7.4 Inspection of the Hydraulic Hoses......................39
7.5 Yearly Inspection................................................40
7.6 Maintenance and Inspection Record..................40
8 De-Commissioning and Conservation............. 41
9 Faults and Troubleshooting.............................42
10 Fine Adjustments .............................................45
10.1 Roll-Off Guard ....................................................45
10.2 Transfer Plate..................................................... 47
10.3 Split Platform: Adjusting the Platform
Segments...........................................................48
10.4 Elbow Joints.......................................................49
10.5 Adjusting the Panorama Platform....................... 51
10.6 Arrester Hooks...................................................54
10.7 Micro-Switches ..................................................55
11 Inspection Log .................................................60
11.1 Inspection Log Master Data Sheet ..................... 61
11.2 Inspection List ....................................................62
11.3 Inspection Results ..............................................63
12 Electrical Circuit Diagrams ...............................71
13 Hydraulic Circuit Diagram................................ 73
14 Customer Service ............................................ 74
15 Declaration of Conformity ............................... 75

Safety
Linear Lift AL1 Page 7 of 76
1 Safety
CAUTION!
There are a number of risks of suffering personal injury and
material damage involved in the operation and mainte-
nance of the Linear Lift.
Therefore:
 It is imperative, that these Operating Instructions are
read thoroughly before operating your Linear Lift. Al-
ways observe the notes and information contained
therein, in particular the safety instructions.
 If these Operating Instructions or parts thereof are lost
or become illegible, please request a new copy from the
manufacturer.
Prerequisite to the safe handling and trouble-free opera-
tion of the Linear Lift is a thorough knowledge of the appli-
cable safety information and the safety regulations.
It is therefore imperative that this Chapter is read thor-
oughly before operating the Linear Lift and that the instruc-
tions and warnings herein are strictly observed. The safety
information and warnings, given at the appropriate places
in the following Chapters, must also be strictly observed.
The manufacturer will not be held responsible if safety in-
formation and warnings are not observed.
In addition to the information given in these Operating In-
structions, local legislative regulations must be taken into
consideration, in particular those regarding safety and ac-
cident prevention.
1.1 Proper Use
The Linear Lift must only be used for lifting and lowering
disabled persons seated in wheelchairs or empty wheel-
chairs. By using the Linear Lift, persons can be embarked
into or disembarked from the vehicle to which it is fitted.
When doing so, the Linear Lift is operated by an accompa-
nying person who does not ride on the platform. Unless of
course the person in the wheelchair is also the driver of
the vehicle.
Proper use also includes strictly adhering to the infor-
mation given in these Operating Instructions.

Safety
Page 8 of 76 Linear Lift AL1
W
ARNING!
If the Linear Lift is used for any other purpose than that
described above, this may result in dangerous situations
f
or persons or material damage being caused.
Therefore:
 Only use the Linear Lift for the purpose for which it was
intended.
 Always adhere to information given in these Operating
Instructions.
 Do not use the Linear Lift for any other purposes, par-
ticularly those given in Section 1.2. These are deemed to
be improper use.
1.2 Improper Use
Any type of use, other than that mentioned in section 1.1 is
deemed to be improper use.
The Linear Lift is deemed to be improperly used if for ex-
ample:
 for lifting and lowering goods (exception: empty wheel-
chairs),
 for lifting and lowering persons who are not seated in a
wheelchair,
 it is used as a link bridge or
 it is used by incompetent persons.
1.3 Personnel Requirements
The Linear Lift must only be handled by persons who:
 who are of legal age,
 have been instructed in how to operate the Linear Lift,
 have read and understood these Operating Instructions,
 have proven their ability to operate the Linear Lift to the
vehicle's owner,
 have been expressly assigned by the vehicle's owner to
operate the Linear Lift,
 have the technical knowledge to operate the wheel-
chair's brakes and switch the motors of electrically driv-
en wheelchairs ON and OFF and
 who are in a position to adapt themselves to the par-
ticular behaviour and needs of disabled persons.

Safety
Linear Lift AL1 Page 9 of 76
Transportation, installation, commissioning, maintenance,
repair, fault finding and disposal of the Linear Lift must only
be carried out by persons with the corresponding technical
training and experience.
1.4 Product Monitoring
Please contact AMF-Bruns GmbH & Co. KG immediately if
faults or problems are encountered when operating your
Linear Lift or if accidents or "near-misses" occur.
AMF-Bruns will effect a solution to the problem with your
help and the knowledge gained will flow into future pro-
jects.
NOTE
Guarantee work on the Linear Lift must only be carried out
with the prior agreement of AMF-Bruns GmbH & Co. KG.
The costs of such work will not be accepted by AMF-Bruns
without prior agreement.
If damage occurs, AMF-Bruns GmbH & Co. KG will require
t
he serial number, the year built as well as a description o
f
t
he damage and if possible, a photograph of the damage.
1.5 Danger Zone
The danger zone is any area on, below or within the range
of movement of the platform, as well as around the drive
and carrier system, in which persons are exposed to the
risk of injury or damage to health.
CAUTION!
Risk of injury through movements of the Linear Lift.
There are a number of risks of personal injury if standing
within the danger zone.
Therefore:
 Only operate the Linear Lift if there are no persons
standing within the danger zone.
 Keep the danger zone under observation and stop the
Linear Lift if any persons enter the danger zone.

Safety
Page 10 of 76 Linear Lift AL1
1.6 Safety Devices
1.6.1 Guardrails
The guardrails fold down to the horizontal position, togeth-
er with the platform, when the Linear Lift’s platform is low-
ered from the stowed position to the deployed position.
They provide support for the passenger and increase the
sense of security when the platform is being raised or low-
ered.
1.6.2 Roll-off guard
A roll-off guard is fitted to the side of the platform furthest
from the vehicle. When the platform is raised, the roll-off
guard rises automatically and latches in position. This pre-
vents the passenger in their wheelchair from rolling off the
platform.
1.7 Safety and Accident Prevention
Regulations
Adhere to the following notes in order to prevent personal
injuries and material damage. Also adhere also to the rele-
vant safety and accident prevention regulations laid down
by the trade associations.
 The Linear Lift must only be operated if all safety and
protective devices are correctly fitted (see Section 1.6,
page 10). Such devices must only be removed in order
to enable maintenance and repair work to be carried
out. All safety and protective devices must be replaced
immediately after such work has been completed. If
they are not replaced correctly, there is a high risk of in-
jury.
 The Linear Lift must only be used for the purpose for
which it is intended, otherwise dangerous situations,
with resultant injuries, may occur (Proper use: see Sec-
tion 1.1, page 7).
 The owner is responsible for ensuring that proper use is
adhered to, in particular that the Linear Lift is only oper-
ated by authorised persons.

Safety
Linear Lift AL1 Page 11 of 76
 If the Linear Lift is used commercially or as a public utili-
ty, the owner must ensure that operating personnel are
familiar with the operation of the Linear Lift under all op-
erating conditions by giving training and familiarisation
courses.
 In order to be able to transport wheelchair-bound per-
sons, the vehicle must be fitted with the necessary spe-
cial equipment in accordance with DIN EN 75078. To
prevent dangers in road traffic, the Linear Lift must be
equipped with warning lights or warning markings.
 A number of dangers may arise during operation due to
adverse lighting conditions. The owner is obliges to
equip the vehicle or the Linear Lift with the correspond-
ing lighting fixtures.
 It is forbidden for persons to ride on the platform id they
are not in a wheelchair.
 Proper use of the Linear Lift also includes adherence to
the specified maintenance and repair work, in particular
strict adherence to the maintenance intervals. If such
work is not carried out, trouble-free operation can not
be guaranteed. Risks of personal injury and material
damage can occur. We recommend that maintenance
records be kept.
 If the Linear Lift is used commercially or as a public utili-
ty, it must be inspected by a technical expert at intervals
of not more than 1 year after commissioning. During in-
spection, faults affecting the safety should be systemat-
ically identified and remedial action taken (see "Inspec-
tion Log", page 60).
 Do not deposit any items on the Linear Lift. Persons can
suffer injuries if such items fall off the platform.
 The Linear Lift must not be operated in a faulty condi-
tion, as serious injuries may be caused by this. If faults
occur, do not use the Linear Lift until repairs have been
effected.

Safety
Page 12 of 76 Linear Lift AL1
 Switch the Linear Lift OFF before carrying out mainte-
nance or repair work, this includes cleaning work. Make
certain that no other person can switch the Linear Lift
ON (e.g. by disconnecting the starter battery). If this is
not done, there is a risk of injury.
 Use only original spare parts or spare parts which have
been approved of by the manufacturer. If non-original or
unauthorised replacement parts are used, this will ren-
der the guarantee null and void.
1.8 Disposal
When the Linear Lift's useful life has expired, it must only
be disposed of by qualified specialists. The manufacturer
will accept no liability for damage caused by incorrect dis-
posal.

Description
Linear Lift AL1 Page 13 of 76
2 Description
Persons who are wheelchair-bound can be embarked into
or disembarked from a vehicle using the Linear Lift.
The main components of the Linear Lift are:
 the platform,
 the lifting unit with carrier arms, guardrails and floor an-
chorages,
 the hydraulic system and
 the operating controls.
The aim of this chapter is to illustrate the construction and
function of the Linear Lift. To this end, the individual as-
semblies and components are described in the following
sections.
2.1 Layout and Function

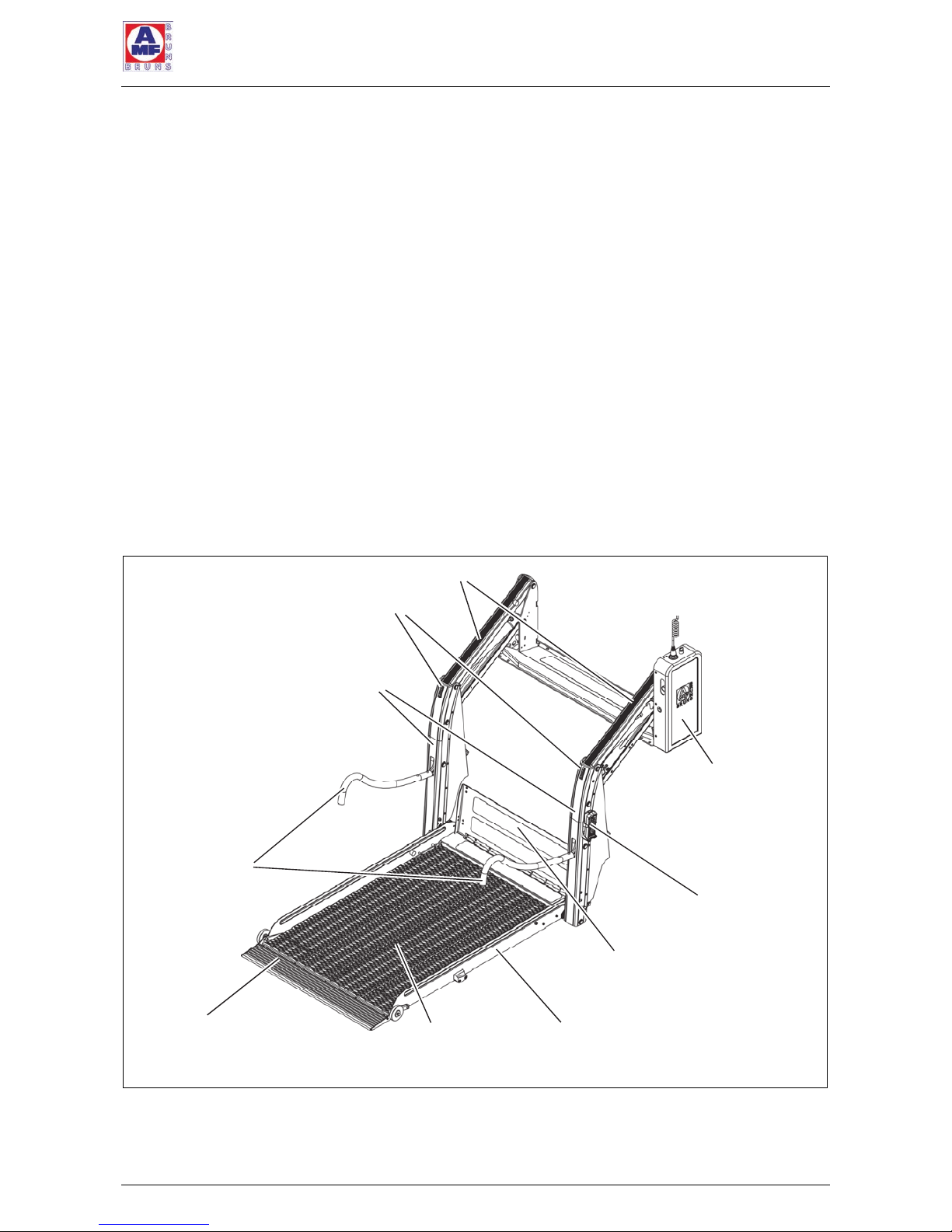

Figure 1: Linear Lift AL1 Solid, Overview
Guardrails
Platform
Roll-off guard
Switch box with
hydraulic pump
Transfer plate
Carrier arms
Blinkers (optional)
Carrier struts
Remote control
Side roll-off guards

Description
Page 14 of 76 Linear Lift AL1
2.1.1 Platform
The platform has an anti-slip grating surface and is
equipped with side roll-off guards. These prevent the pas-
senger’s wheelchair from rolling off the side of the plat-
form.
A roll-off guard is fitted to the side of the platform furthest
from the vehicle (see Figure 1, page 13). When the platform
is lowered fully to the ground, the roll-off guard folds down.
This provides the passenger in the wheelchair with easy
access the platform. As soon as the platform is raised
from the ground, the roll-off guard rises and latches in po-
sition. This prevents the passenger’s wheelchair from roll-
ing backwards off the platform.

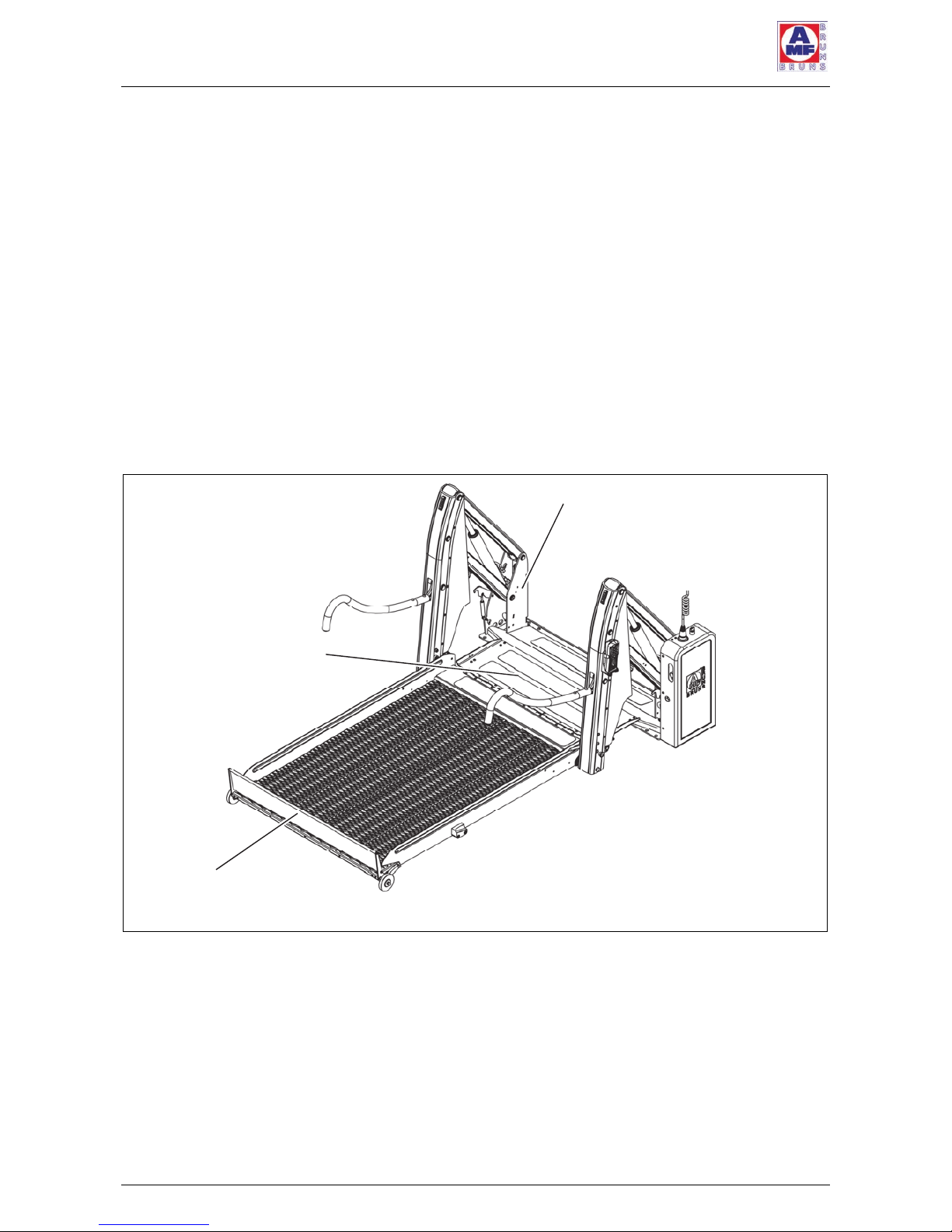

Figure 2: Linear Lift AL1 Solid, Embarkation and Disembarkation Level
The Linear Lift AL1 Solid has a one-piece platform. The
platform of the Linear Lift AL1 Panorama is made up of two
sections such that it is shortened when folded up to the
stowed position.
Transfer plate
Roll-off guard
Floor anchorage

Description
Linear Lift AL1 Page 15 of 76
This enables a Linear Lift with a long platform to be in-
stalled in vehicles with restricted interior height. In addition
to this, the driver has a clear view through the rear window
when driving. Over and above this, the fact that a Linear
Lift is installed in the vehicle can not be seen from the out-
side (see Figure 3 and Figure 4).
Figure 3: Linear Lift AL1 Panorama, Overview
Figure 4: Linear Lift AL1 Panorama, Stowed Position
Platform
Platform

Description
Page 16 of 76 Linear Lift AL1
The platform of the Linear Lift AL1 Split is split lengthwise.
When it is stowed in the driving position, the two halves of
the platform separate (see Figure 5). Because of this, it is
possible to enter and leave the vehicle by way of the door
in which the Linear Lift is installed, even though the Linear
Lift is in the vertical, stowed position.
Figure 5: Linear Lift AL1 Split, Stowed Position
2.1.2 Transfer plate
A transfer plate is fitted to the Linear Lift. When the plat-
form reaches the same level as the vehicle’s floor when
being raised (embark / disembark level), the transfer plate
closes the gap between platform and vehicle. This ensures
convenient, safe embarkation / disembarkation (see
Figure 1, page 13 and Figure 2, page 14).
Platform

Description
Linear Lift AL1 Page 17 of 76
2.1.3 Lifting unit
The lifting unit represents the connection between platform
and vehicle. The lifting and lowering movements are car-
ried out by four carrier arms that are powered by hydraulic
cylinders (see Figure 1, page 13). The carrier arms act on
carrier struts, to which the platform and guardrails are at-
tached. The platform and guardrails automatically fold
down on elbow joints actuated by the carrier arms when
the Linear Lift is lowered from its vertical position.
When the Linear Lift is raised to a level above the floor of
the vehicle, to the stowed position, the guardrails and plat-
form are folded up to the vertical, stowed position. Be-
cause of this, the Linear Lift takes up a minimum of space
in the vehicle (see Figure 5, page 16).
The carrier arms are connected to the vehicle by the floor
anchorages (see Figure 2, page 14).
2.1.4 Hydraulic system
The hydraulic system’s motor, pump and oil reservoir are
located in the switch box on the side of the Linear Lift (see
Figure 1, page 13). The operating voltage for the motor is
supplied by the starter battery. The hydraulic cylinders that
are powered by the pump are located between the carrier
arms.
The hydraulic system can be manually operated in an
emergency.

Description
Page 18 of 76 Linear Lift AL1

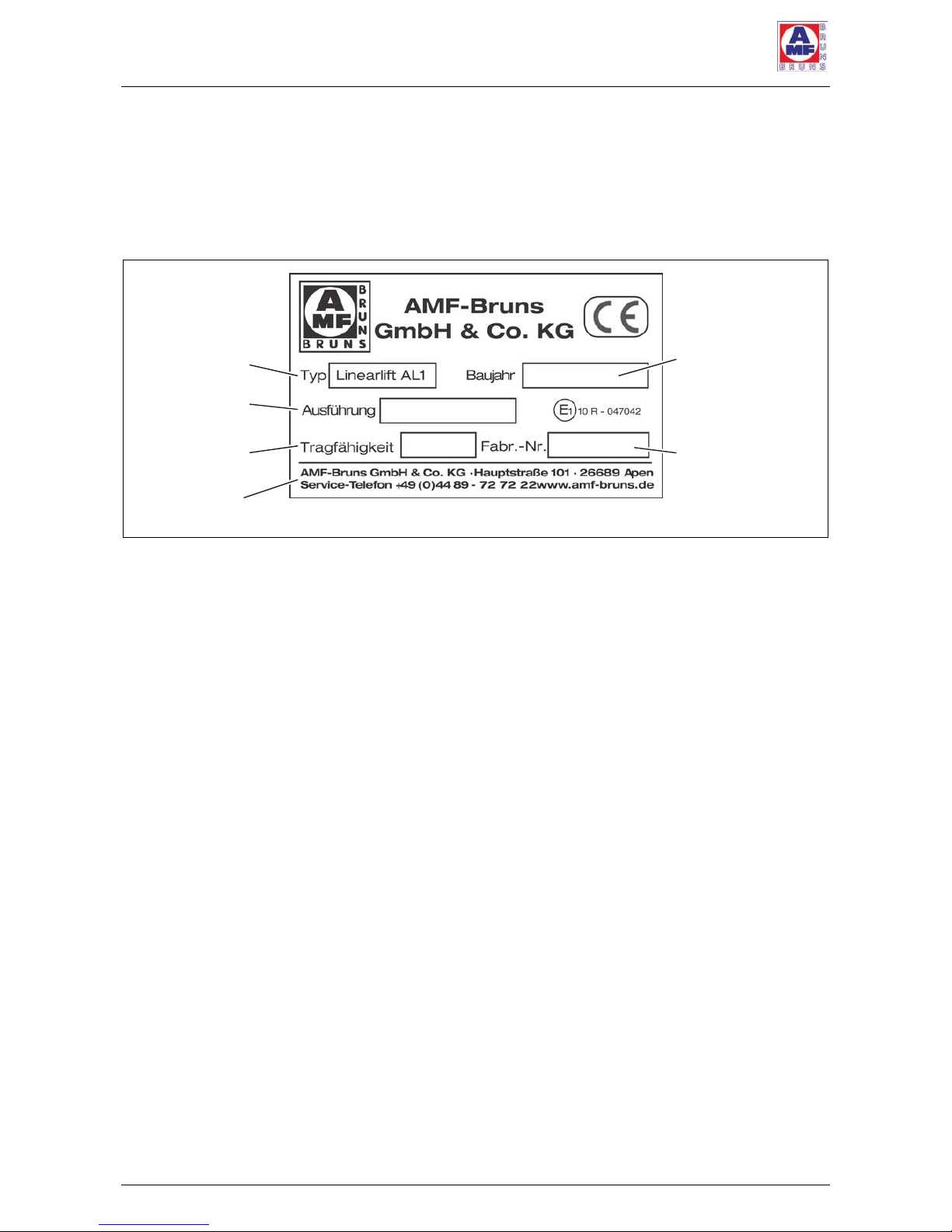

2.2 Rating Plate
A rating plate, which contains the fundamental data, is at-
tached to the Linear Lift (see Figure 6). The rating plate is
located on the floor anchorage.
Figure 6: Rating Plate
Year of manufacture
Serial number
Designation
Manufacturer
Version
Load bearing
capability

Description
Linear Lift AL1 Page 19 of 76
2.3 Technical Data
Designation Linear Lift AL1
Type / Lifting platform Solid 1065
Solid 1130
Solid 1200
Solid 1380
Panorama 1200
Panorama 1400
Split 1085
Split 1085 S
Split 1300
Weight 133 kg ± 10
Permissible operating pressure 92 bar
Permissible number of persons on the max. 1 person in a wheelchair
Carrying capacity 400 kg
Lifting height 900 mm
Lifting speed 0.058 m*
Max. lowering speed 0.068 m*
Deploy speed 0.3 m*
Stow speed 0.3 m*
Operating / control voltage 12 V
Current consumption max. 60 A
Sound pressure emission < 78 dB(A)
Equipment suitable for use in the vehicle
Safeguard against the platform lowering
inadvertently if leaks occur in the hydraulic
pipelines
Burst pipe protection valve
(see Hydraulic Circuit Diagram)
Safeguard against excess hydraulic pres-
sure
Operating pressure 92 bar;
Response pressure 75/92 bar
Hydraulic oil Recommendation: ATF Dextron II, 1.4 litre
Appendix to the Inspection Log Electrical Circuit Diagram, Hydraulic Circuit

Description
Page 20 of 76 Linear Lift AL1
2.4 Operating Controls
Figure 7: Operating Controls on the Remote Control
Figure 8: Operating Controls on the Hydraulic Pump
3
2
5
1
4
No function.
6
