Hard Drive Removal
IMPORTANT NOTE: If you are replacing a PATA hard drive with a SATA hard drive,
please see “PATA to SATA Hard Drive Conversion”.
Hard Drive Identification:
To determine whether your hard drive is quick-click or non-quick-click, look for a light gray adapter
between the hard drive adapter and the hard drive mounting bracket. See Figure 1. If there is such an
adapter,thenyouhaveaquick-clickharddrive;ifnot,thenyourharddriveis non-quick-click.ThePATA
hard drive with a clamp will simply have a clamp as shown in Figure 1. The SATA hard drive is also
shown in Figure 1. The SATAis easily identifable by the lack of a hard drive ribbon cable and adapter.
(d)SATA(c) PATA hard drive with clamp
HARD DRIVE
A
DAPTER CLAMP
HARD DRIVE
ADAPTER
HARD DRIVE
CABLES
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion
HARD DRIVE
ADAPTER
QUICK CLICK
A
DAPTER
(a) quick-click hard drive
HARD DRIVE
RIBBONCABLE
HARD DRIVE
SCREW
SECURING
HARD DRIVE
MOUNTING
PLATE TO
ELECTRONICS
BOX COVER
(b) non-quick-click

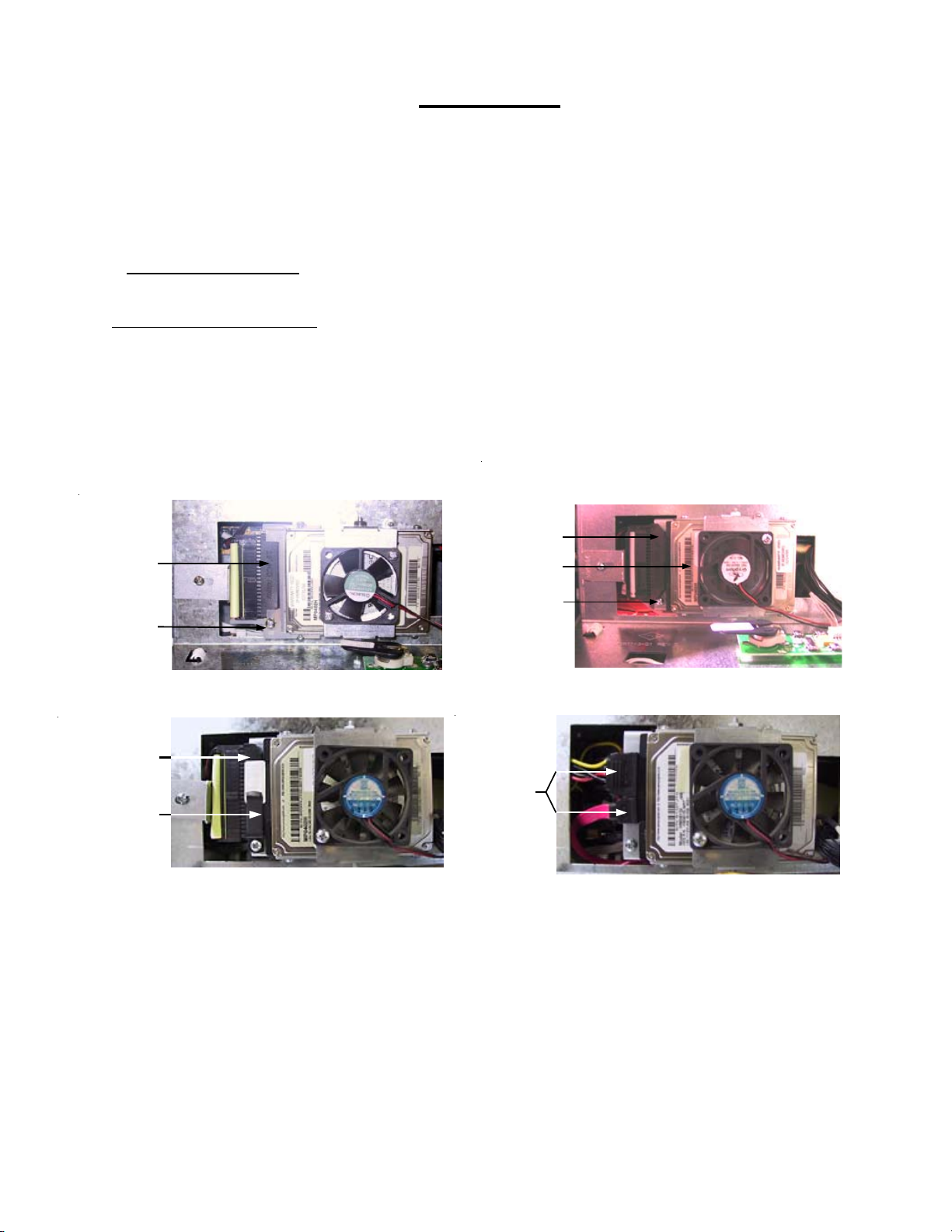

FIGURE1- HARD DRIVES

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
5. Remove the screw securing the hard drive mounting bracket to the electronics box, then slide the
hard drive assembly off the electronics box cover. This mounting screw will not be reused.
6. Separate the CPU fan mounting plate from the hard drive mounting bracket by removing the 2 nuts
(see Figure 2).
NUTS
SECURING
CPU FAN TO
HARD DRIVE
MOUNTING
BRACKET
SCREW
SECURING HARD
DRIVE RIBBON
CABLE SUPPORT
BRACKET
HARD DRIVE ADAPTER
(WRITING FACING OUT)
A
ND HARD DRIVE RIBBON CABLE
ATTACHED TO HARD DRIVE
SCREW, THROUGH
QUICK CLICK ADAPTER,
SECURING HARD DRIVE
A
SSEMBLY TO
ELECTRONICS BO
X
HARD DRIVE RIBBON CABLE
WITH THE RED STRIPE ON THE
CABLE AT THE BOTTOM AND
THE 2-PIN POWER CONNECTOR
AT THE TOP

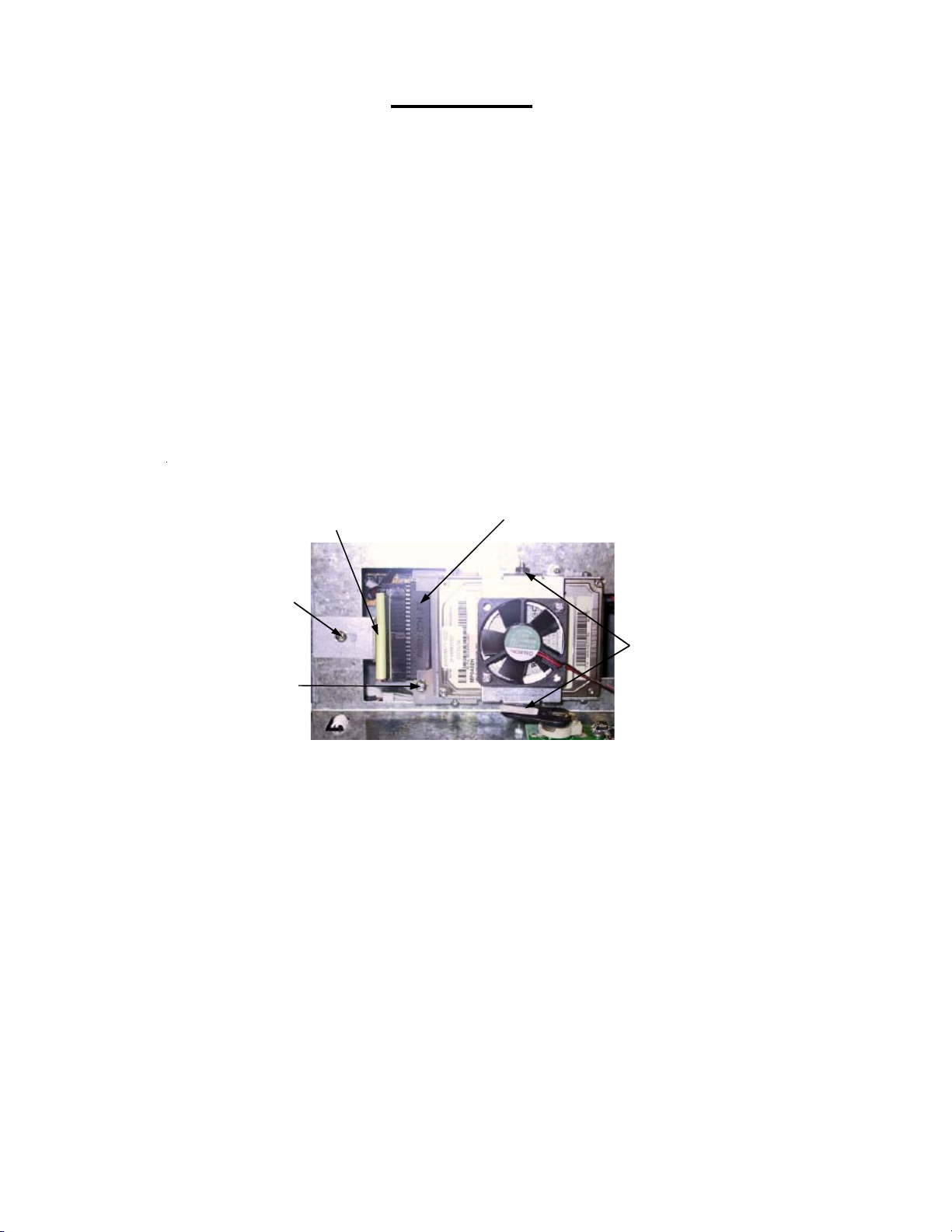

FIGURE2-QUICK-CLICKHARDDRIVEASSEMBLYONELECTRONICSBOX
Quick-ClickHardDriveRemoval
1. If youare connectedto TournaMAXX orTournaCHAMPyoumustperforman Update From Server
before removing the hard drive so that no information is deleted.
2. Turn off and unplug the game.
3. Unlock and open the front bezel.
4. Loosen the screw on the hard drive support bracket and disconnect the hard drive adapter, with the
attached ribbon cable, from the hard drive (see Figure 2).

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual
Quick-ClickHard DriveInstallation
1. Reattach the CPU fan mounting plate to the supplied hard drive assembly with the 2 existing nuts
(see Figure 2).
2. Attach the hard drive ribbon cable on the electronics box to the supplied hard drive by lining up the
leftsideoftheharddriveadapterwiththepinson the hard drive and then carefully inserting it all the
way into the quick-click adapter (see Figure 3 for proper orientation).
FIGURE3-QUICK-CLICKHARDDRIVEASSEMBLYCONNECTION
SCREW SECURING
HARD DRIVE
ASSEMBLY TO
MOUNTING PLATE
HARD DRIVE ADAPTE
R
(
WRITING FACING OU
T
HARD DRIVE
RIBBON CABLE
WITH THE RED STRIPE
ON THE CABLE
FACING RIGHT
AND 2-PIN
POWER CONNECTOR
ON THE LEFT
QUICK-CLIC
K
A
DAPTER
ATTACHED TO
HARD DRIVE AND
MOUNTING PLATE
3. Slide the hard drive assembly into place on the electronics box cover and secure it with the sup-
plied screw (see Figure 2).
4. Secure the ribbon cable in place with the hard drive support bracket and tighten the screw (see
Figure 2).
5. Close and lock the bezel.
6. Pluginandturn onthegame. Thegamewill reboottwiceto configurethehardware. Whenprompted,
perform a touchscreen calibration.
7. If you are connected to TournaMAXX or TournaCHAMP you must re-enter the dial-in settings after
completingthesoftwareupgrade.Afterenteringthesettings,maketheinitial call into the server and
then perform two Updates From Server. Refer to the MegaNet manual for information on how to
perform these functions.

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)

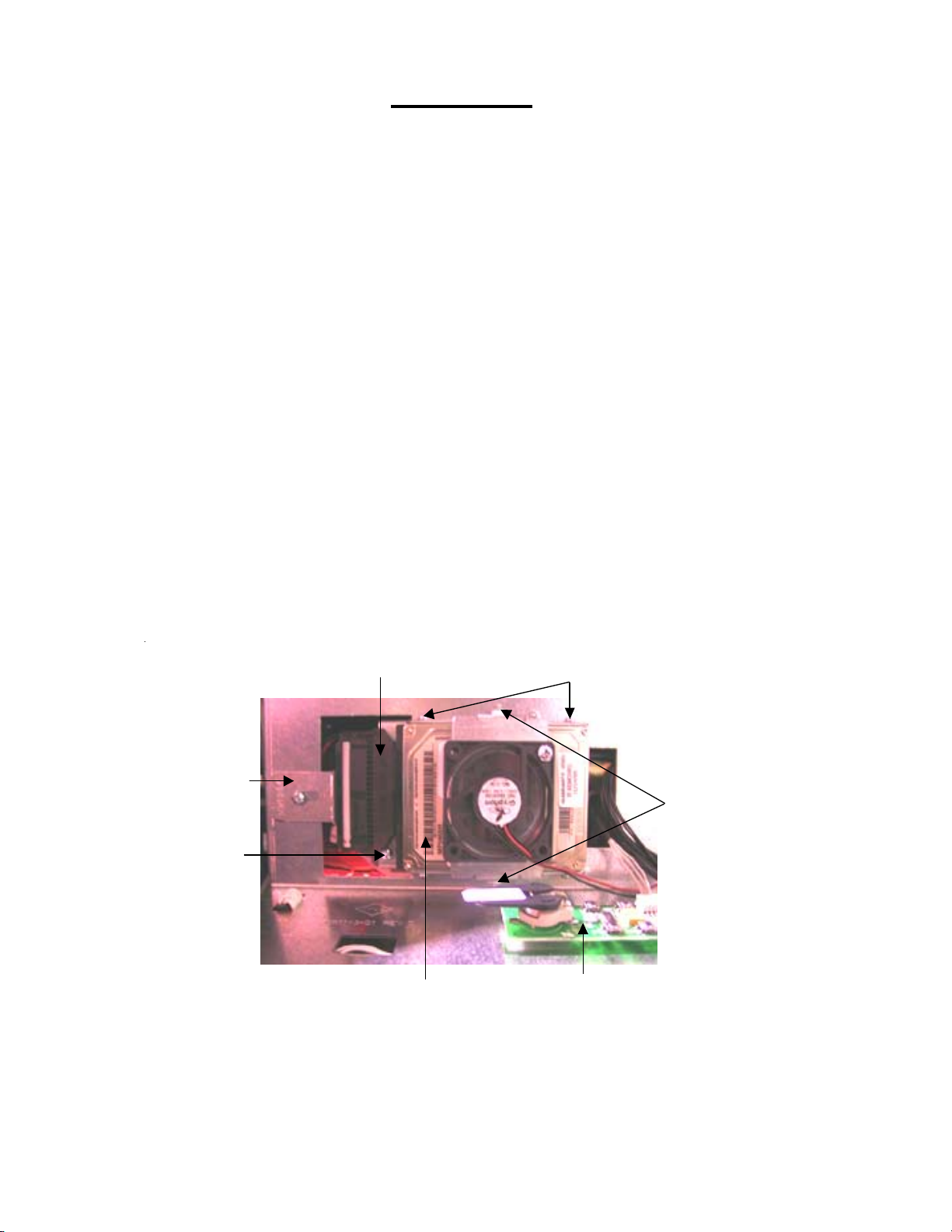

FIGURE4-NON-QUICK-CLICKHARDDRIVEASSEMBLYONELECTRONICSBOX
Non-Quick-ClickHardDriveRemoval
1. If youare connectedto TournaMAXX orTournaCHAMPyoumustperforman Update From Server
before removing the hard drive so that no information is deleted.
2. Turn off and unplug the game.
3. Unlock and open the front bezel.
4. Loosen the screw on the hard drive support bracket and disconnect the hard drive ribbon cable
from the hard drive (see Figure 4).
5. Remove the screw supporting the hard drive mounting plate and slide the hard drive and mounting
plate off of the electronics box cover. See Figure 4.
6. Separate the CPU fan mounting plate from the hard drive mounting plate by removing the 2 nuts
(see Figure 4).
7. Remove the 4 screws and washers from the hard drive mounting plate, then carefully extract the
hard drive. See Figure 4.
HARD DRIV
E
SUPPOR
T
BRACKE
T
OSD BOARD
HARD DRIVE
RIBBON CABLE
HARD DRIVE
SCREWS SECURING HARD DRIVE TO
MOUNTING PLATE
(
BOTH SIDES
)
NUTS
SECURING
FAN
MOUNTING
PLATE TO
HARD DRIVE
MOUNTING
PLATE
SCRE
W
SECURING
HARD DRIV
E
MOUNTING
PLATE T
O
ELECTRONIC
S
BOX COVE
R
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual
Non-Quick-ClickHard DriveInstallation
1. Insert the new hard drive, circuit board-side down with the connection facing left, into the hard drive
mounting plate. Secure the hard drive in place with 4 screws and washers. See Figure 4.
2. Reattach the CPU fan mounting plate to the hard drive mounting plate with the 2 existing nuts. See
Figure 4.
3. Slide the hard drive mounting plate into place on the electronics box cover and secure it with the
existing screw. See Figure 4.
4. Connect the hard drive ribbon cable to the hard drive. Note that 4 pins on the hard drive are set off
and will remain unconnected. Make certain that the red stripe on the ribbon cable (indicating pin-1
position) is inserted facing the unconnected pins.
5. Secure the ribbon cable in place with the hard drive support bracket and tighten the screw. See
Figure 3.
6. Close and lock the bezel.
7. Pluginandturn onthegame. Thegamewill reboottwiceto configurethehardware. Whenprompted,
performatouchscreencalibration.
8. If you are connected to TournaMAXX or TournaCHAMP you must re-enter the dial-in settings after
completingthesoftwareupgrade.Afterenteringthesettings,maketheinitial call into the server and
then perform two Updates From Server. Refer to the MegaNet manual for information on how to
perform these functions.

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual
5. Remove the screw securing the hard drive mounting bracket to the electronics box, then slide the
hard drive assembly off the electronics box cover. This mounting screw will not be reused.
6. Separate the CPU fan mounting plate from the hard drive mounting bracket by removing the 2 nuts
(see Figure 5).

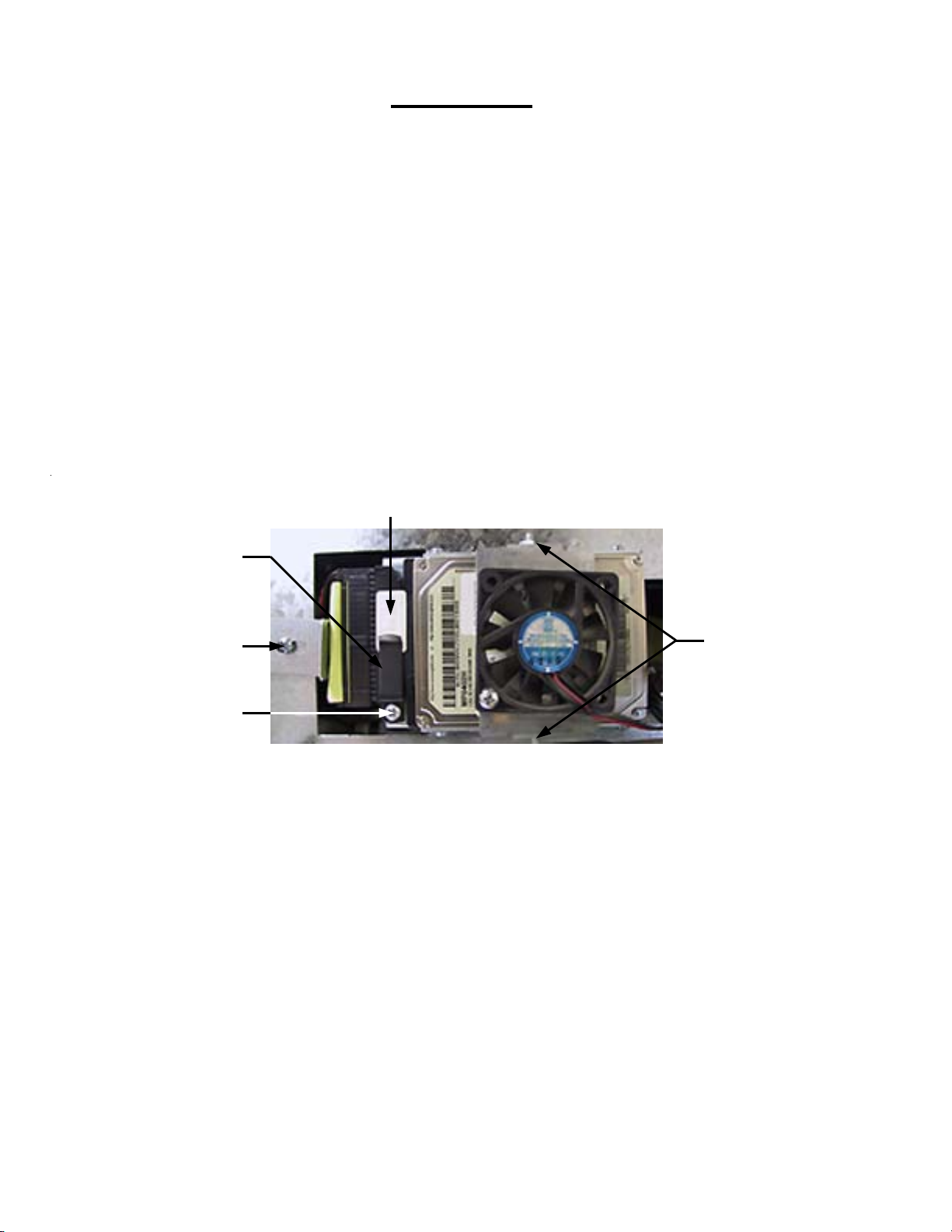

FIGURE5-QUICK-CLICKHARDDRIVEASSEMBLYONELECTRONICSBOX
PATAHardDrive (withclamp)Removal
1. If youare connectedto TournaMAXX orTournaCHAMPyoumustperforman Update From Server
before removing the hard drive so that no information is deleted.
2. Turn off and unplug the game.
3. Unlock and open the front bezel.
4. Loosen the screw on the hard drive support bracket and disconnect the hard drive adapter, with the
attached ribbon cable, from the hard drive (see Figure 5). Then, separate the hard drive adapter
from the ribbon cable and 2-pin power cable. This hard drive adapter will not be reused.
LABEL ON
HARD DRIVE ADAPTER
NUTS SECURING CPU
FAN TO HARD DRIVE
MOUNTING BRACKET
SCREW SECURING HARD
DRIVE ASSEMBLY TO
ELECTRONICS BO
X
CLAMP SECURING
HARD DRIVE ADAPTE
R
SCREW SECURING
HARD DRIVE RIBBON
CABLE BRACKET

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual
PATAHard Drive (withclamp) Installation
1. Reattach the CPU fan mounting plate to the supplied hard drive assembly with the 2 existing nuts
(see Figure 5).
2. Attach the 2-pin power cable in the game to the new hard drive adapter, which comes attached to
the new hard drive. Do so by locating the two stand-alone pins on the hard drive adapter, and then
sliding the 2-pin adapter onto these pins (for help, see the label on the hard drive adapter - see
Figure5).Note:Theblack wire on the power cord MUST be facing toward the label side of the hard
drive adapter. Failure to do so could result in a damaged hard drive.
3. Attach the hard drive ribbon cable on the electronics box to the new hard drive. Do so by lining up
the pins on the hard drive adapter with the mating holes on the ribbon cable (the red stripe on the
ribbon cable should be on the side opposite the power cable). Carefully insert the ribbon cable all
the way into the adapter so that it is fully seated.
4. Slide the hard driveassemblyintoplaceontheelectronicsboxcover.Alignthehole in the mounting
bracket with the hole on the mounting plate, then secure the supplied screw, washer, and clamp to
the mounting plate (see Figure 5). The clamp should rest on the hard drive adapter, holding it in
place when screwed in tightly.
5. Secure the ribbon cable in place with the hard drive support bracket and tighten the screw (see
Figure 5).
6. Close and lock the bezel.
7. Plug in and turn on the game. The game will reboot twice to configure the hardware. When
prompted, perform a touchscreen calibration.
8. If you are connected to TournaMAXX or TournaCHAMP you must re-enter the dial-in settings after
completingthesoftwareupgrade.Afterenteringthesettings,maketheinitial call into the server and
then perform two Updates From Server. Refer to the MegaNet manual for information on how to
perform these functions.

COPYRIGHT©2009AMIENTERTAINMENTNETWORK,INC.
ATTENTION:
OBSERVEPRECAUTIONSFORHANDLINGESD-SENSITIVEDEVICES
Removal/Installation of Major Assemblies -
Ion Fusion (cont’d)
Troubleshooting Information - Removal/Installation of Major Assemblies -
Ion Fusion
MegatouchIonTechnicalReferenceManual

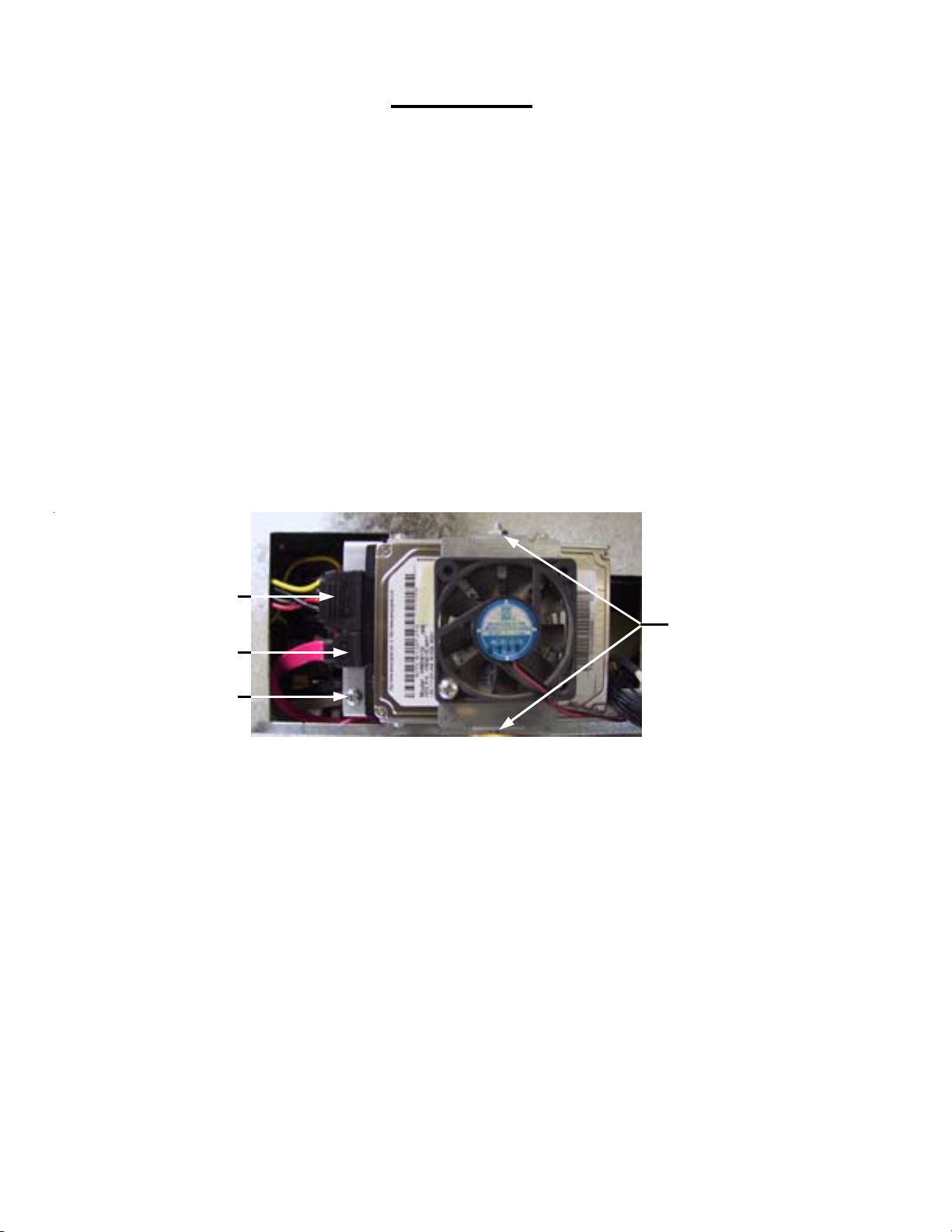

SATAHardDriveRemoval
1. If youare connectedto TournaMAXX orTournaCHAMPyoumustperforman Update From Server
before removing the hard drive so that no information is deleted.
2. Turn off and unplug the game.
3. Unlock and open the front bezel.
4. Disconnect the hard drive data and power cables from the hard drive (see Figure 6).
5. Remove the screw securing the hard drive mounting bracket to the electronics box (see Figure 6).
Slide the hard drive assembly off the electronics box cover.
6. Separate the CPU fan mounting plate from the hard drive mounting bracket by removing the 2 nuts
(see Figure 6).
SATAHardDriveInstallation
1. Reattach the CPU fan mounting plate to the supplied hard drive assembly with the 2 existing nuts
(see Figure 6).
2. Slide the hard drive assembly onto the electronics box cover and screw it into place to secure it
(see Figure 6).
3. Attach the hard drive data and power cables (see Figure 6).
4. Close and lock the front bezel.
5. Plug in and turn on the game. The game will reboot twice to configure the hardware. When
prompted, perform a touchscreen calibration.
6. If you are connected to TournaMAXX or TournaCHAMP you must re-enter the dial-in settings after
completingthesoftwareupgrade.Afterenteringthesettings,maketheinitial call into the server and
then perform two Updates From Server. Refer to the MegaNet manual for information on how to
perform these functions.
HARD DRIVE
POWER CABLE
HARD DRIVE
DATA CABLE
SCREW SECURING
HARD DRIVE
A
SSEMBLY TO
ELECTRONICS BO
X
NUTS SECURING
CPU FAN TO
MOUNTING PLATE
FIGURE6- SATAHARDDRIVEASSEMBLYONELECTRONICS BOX
