DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the operation
of the appliance.

3
Safety instructions ..................................................................................................4
Description of the appliance ...................................................................................8
Installation ............................................................................................................10
Operation..............................................................................................................12
Baking in the oven – practical hints......................................................................27
Test dishes.................................................................................................................31
Cleaning and maintenance...................................................................................33
Troubleshooting....................................................................................................37
Technical data.......................................................................................................38
TABLE OF CONTENTS

4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts become hot
during use. Care should be taken to avoid touching heating
elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the ha-
zards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by chil-
dren without supervision.
During use the appliance becomes hot. Care should be taken
to avoid touching heating elements inside the oven.
Accessible parts may become hot during use. Young children
should be kept away.
Warning: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch
the surface, which may result in shattering of the glass.
Warning: Ensure that the appliance is switched o󰀨 before
replacing the lamp to avoid the possibillity of electric shock.
You should not use steam cleaning devices to clean the
appliance.

5
SAFETY INSTRUCTIONS
● Ensure that small items of household equipment, including connection leads, do not touch
the hot oven as the insulation material of this equipment is usually not resistant to high
temperatures.
● Do not leave the oven unattended when frying. Oils and fats may catch re due to over-
heating or boiling over.
● Do not put pans weighing over 15 kg on the opened door of the oven.
● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
● Do not use the oven in the event of a technical fault. Any faults must be xed by an ap-
propriately qualied and authorised person.
● In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
● The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the oven.
● The appliance has been designed only for cooking. Any other use (for example for heat-
ing) does not comply with its operating prole and may cause danger.
During the pyrolytic oven cleaning process the oven cham-
ber can reach a very high temperature. Consequently, the
appliance outer surfaces can heat up more than usual, so
keep children away at all times.
Danger of burns! Hot steam may escape when you open the
oven door. Be careful when you open the oven door during
or after cooking. Do NOT lean over the door when you open
it. Please note that depending on the temperature the steam
can be invisible.

6
HOW TO SAVE ENERGY
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
●Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
● Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
●Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o󰀨 the oven 10 minutes before the
end time.
Important! When using the timer, set ap-
propriately shorter cooking times according
to the dish being prepared.
●Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
●Do not install the cooker in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.

7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpack-
ing, please dispose of all
elements of packaging in a
way that will not cause dam-
age to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the
instruction manual or the packaging shows
that it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
a signicant contribution to the protection of
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.

8

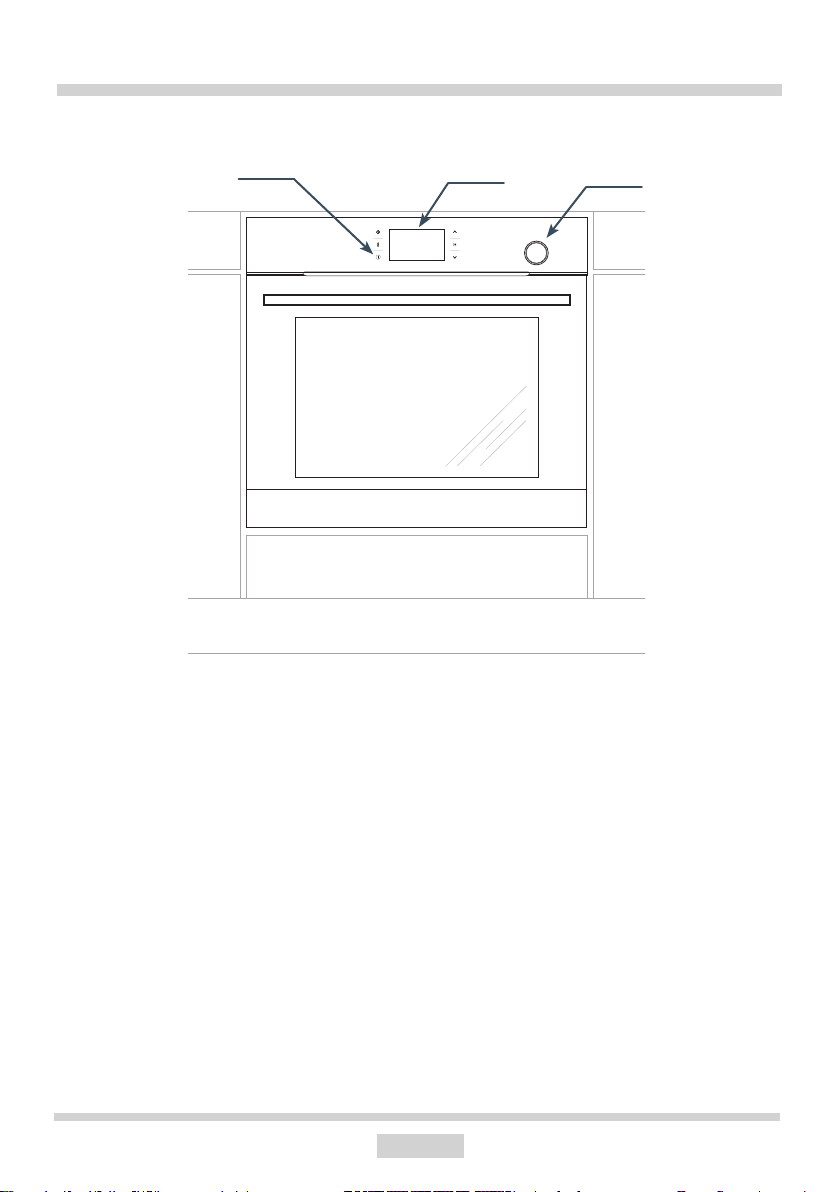

DESCRIPTION OF THE APPLIANCE
P Electronic programmer
1. On / o󰀨 switch
2. Water container drawer
2
P
1

9
SPECIFICATIONS OF THE APPLIANCE

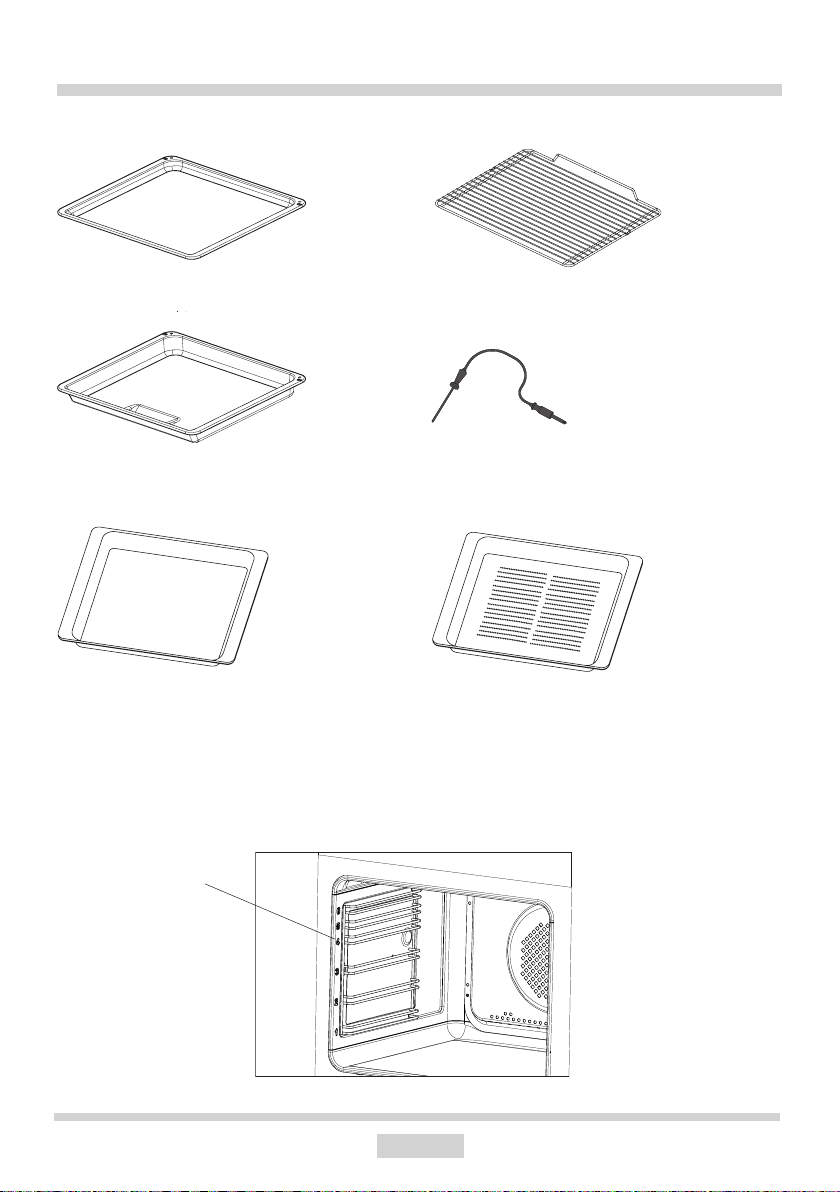

Oven ttings
Baking tray Grill grate
(drying rack)
Roasting tray
Sideracks
Meat probe
Perforated bowl Solid bowl

10
INSTALLATION
Installing the oven
● The kitchen area should be dry and aired
and equipped with e󰀩cient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
● This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneer used on tted furniture must be
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
● Hoods should be installed according to
the manufacturer’s instructions.
● Make an opening with the dimensions
given in the diagram for the oven to be
tted.
● Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
● Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
600
560
560
600
min 38
40
595
560
560
40
40

11
INSTALLATION
● The oven is manufactured to work with
a one-phase alternating current (230V
1N~50 Hz) and is equipped with a 3 x 1,5
mm2 connection lead of 1,5 m length with
a plug including a protection contact.
● A connection socket for electricity supply
should be equipped with a protection
pin and may not be located above the
cooker. After the cooker is positioned, it is
necessary to make the connection socket
accessible to the user.
● Before connecting the oven to the socket,
check if:
- the fuse and electricity supply are able to
withstand the cooker load,
- the electricity supply is equipped with an
e󰀩cacious ground system which meets
the requirements of current standards
and provisions,
- the plug is within easy reach.
Electrical connection
Important!
If the xed power supply cable is damaged,
it should be replaced at the manufacturer
or at an authorized servicing outlet, or by a
qualied person to avoid danger.

12
OPERATION
Before rst use
• Remove all packaging elements, par-
ticularly those protecting the interior of
the oven chamber during transport.
• Remove all the accessories from inside
of the oven and wash them thoroughly
in warm water with gentle washing up
liquid.
• Remove the protective foil from the sur-
faces of the telescopic runners.
• Use warm water with the addition of
mild detergent to wash the inside of the
chamber. Do not use hard brushes or
sponges. They could damage the coat-
ing of the inside of the chamber.
Warm up the oven chamber
• Turn on the ventilation in the room or
open a window.
• Select conventional heating or fan
assisted heating (a detailed descrip-
tion of these functions can be found be-
low in this manual).
The oven should operate for a minimum of
30 minutes; while it is operating the oven
produces a smell, which is only present at
the beginning but will eventually go away as
the appliance is used. This is perfectly nor-
mal and is part of the process of warming up
the oven chamber.
Control Panel
On/o󰀨 switch is on the left side of the dis-
play. To activate the On/o󰀨 switch, touch the
glass in the place indicated by a pictogram.
An acoustic signal will be heard, which was
selected in the menu. (See section: Electronic
programmer).
Touch sensor surfaces must be kept clean.

13
OPERATION
WiFi function
The oven is equipped with the WiFi function.
It can be controlled by mobile application.
Note:
• Touch each time to confirm your
selection, or touch to adjust the
settings.
• When you activate the function, the WiFi
menu will be displayed.
• No operation for 30 seconds, the appli-
ance enters Standby mode.
• To immediately exit from the menu and
switch the appliance to standby mode
touch and .
To access the WiFi menu in standby mode,
touch and hold the sensor. Then touch the
sensors select one of the following:
- WIFI,
- PARING,
- MONITOR,
- CONTROL,
- RESET,
- ERROR.
Touch to make your selection and then
touch to conrm. Then select ON/OFF
or YES/NO to RESET. Touch to conrm.
Note: By default the WiFi feature is OFF.
Available connection modes:
• Access Point — connect your mobile
device directly to the oven without the
use of any home wireless network de-
vices.
• LAN — connect your mobile device to
the oven via the home WiFi network,
access from outside this network is not
possible.
• WAN — connect your mobile device
to the oven via the Internet – the appli-
ance can be accessed from anywhere
in the world.
Note: Active connection is indicated on the
display. Access Point is the default connec-
tion. You can change the connection type
using the mobile app.
Please visit www.amica-group.de for step-
by-step instructions how to configure
your network.
Error Codes: When there is a connection
failure, you can check the error code in ER-
RORS or WiFi menu:
Error Reason Solution
E20 Connection
error
Try to reconnect
and, if unsuccessful,
contact your net-
work administrator
E21
Number
of users
exceeded
The appliance
stores all users
who connect by
Wi - to erase the
list, disconnect the
appliance from the
power supply and
reconnect again.
Information you need for correct congura-
tion:
• Make sure that the oven is connected to
the power supply.
• In Access Point mode, make sure you
are within range (SSID: SmartIN).
• In LAN mode, make sure that your mo-
bile device is connected to the same
WiFi home network that the oven is
connected to.
• In WAN mode, make sure the Internet
connection is available in your WiFi net-
work.
• In LAN and WAN mode, you will need
a password (if exist) to connect to your
home WiFi network.

14
OPERATION
Electronic programmer
The Control Panel is equipped with an LCD display and 6 touch sensors:
Sensors Description Symbol Description
On / o󰀨 switch (Standby mode) Child Lock
Temperature of the setting Adjust temperature
Clock setting Active odour catalyst
Plus / up [+] Door lock (pyrolysis)
Conrm End Time
Minus / down [–] Duration
Automatic power cut out
Note: You will hear a beep each time you touch a sensor. It is not possible to turn o󰀨 the
acoustic beeps.
Note: When mains power is cut and restored (power outage), the appliance automatically
enters standby and immediately displays the current time.
Switch on the appliance and select interface language.
When you connect the appliance to mains power you will be prompted to select your preferred
LANGUAGE.
Use the sensor to go through all the items in the LANGUAGE menu. Select the language
in which you want the messages to be displayed and touch to conrm.
Set current time
Once your preferred language is set you now need to conrm the current time by touching
or set the time using the sensors.

15
OPERATION
Time can be set in the range from 0:00 to
23:59 for 24-hour clock system or from 0:00
to 12:00 for the 12-hour clock system.
When current time is set, the appliance enters
standby mode in which the display shows the
current time only.
You need to touch to start setting the
current time. Use the sensors to select
SETTINGS and touch to conrm. Use the
sensors to enter the TIME menu, select
TIME and touch to conrm.
Important!
To exit to submenu at any time, simultane-
ously touch and .
Menu
Touch to activate the appliance from
standby. Use the sensors to navigate
the menu.
The following main menu items are available:
- SETTINGS
- HEATING FUNCTIONS
- PRE-SET PROGRAMMES
- USER PROGRAMMES
- STEAM PROGRAMMES
- CLEANING
- OPENUP!
- EXIT
Touch to select any menu item.
If no changes are made within 60 seconds,
the appliance enters standby mode. To im-
mediately exit from the menu and switch the
appliance to standby mode, select the EXIT
icon and touch to conrm. To immediately
exit from the menu and switch the appliance
to standby mode simultaneously touch
and .
Settings
Touch to enter the menu. Use the
sensors to select the SETTINGS menu and
touch to conrm.
The SETTINGS menu items:
- LANGUAGE,
- TIME
- LIGHTING
- TONES
- DISPLAY BRIGHTNESS
- SERVICE,
- FACTORY SETTINGS,
- EXIT
Use the sensors to navigate the menu.
Touch to select the chosen item.
To exit from the SETTINGS, navigate to exit
using the and touch to conrm.
To immediately exit from the SETTINGS
menu and switch the appliance to standby
mode, simultaneously touch and .
Language
In the LANGUAGE menu select the required
language using the sensors and touch
to conrm.
Available languages:
- DEUTSCH,
- ENGLISH,
- POLSKI,
- PYCCКИЙ,
- ČESKY,
- SRBSKI,
- LIETUVIŠKAI,
- EESTI,
- LATVISKI,
- FRANÇAIS,
- ESPAÑOL,
- TÜRKÇE,
- SVENSKA,
- NORSK,
- SUOMI,
- DANSK,

16
OPERATION
- ITALIANO,
- NEDERLANDS
- EXIT,
To exit into SETTINGS from the LANGUAGE
menu use the sensors to select EXIT
and touch to conrm.
To immediately exit from the LANGUAGE
menu and switch the appliance to standby
mode, simultaneously touch and .
Time
Use the sensors to select TIME and
touch to conrm. Items available in the
TIME menu
- CURRENT TIME,
- MINUTE MINDER,
- CLOCK TYPE,
- TIME FORMAT
- EXIT.
Use the sensors to select the required
item and touch to conrm.
Clock type
Select the clock type menu and touch . The
following items will be available:
- DIGITAL,
- ANALOGUE.
Use the sensors to make your choice
in the CLOCK TYPE menu and touch to
conrm.The selection is stored by the ap-
pliance and the TIME upper level menu is
automatically displayed.
The selected clock type will now appear in
the upper right corner of the display and
during standby.
Time format
Select the TIME FORMAT menu and touch
. The following items will be available:
- 24h,
- AM / PM.
Use the sensors to make your choice
of time format and touch to conrm. The
selection is stored by the appliance and the
TIME upper level menu is automatically
displayed.
This option is only available for a digital clock.
Minute Minder
When you select the MINUTE MINDER and
touch , the appliance will display the time
in the following format: 00:00.
When the appliance is in standby you can
also access Minute Minder when you touch
and then .
MINUTE MINDER
If no changes are made within 5 seconds, the
appliance enters standby mode.
Touch the sensors to adjust minute
minder in 1 minute steps. Touch to conrm
and start the countdown.
Touch the sensor to adjust the minute
minder setting during countdown.
When the time has elapsed, a beep will sound
and the display will show the time - 00:00.
Touch to mute the beeping. The appliance
switches to standby mode.
Lighting
Select the LIGHTING menu and touch .

17
The following items will be available:
- CONTINUOUS LIGHTING
- ECO LIGHTING
Use the sensors to select the desired
lighting option and touch to conrm. The
selection is stored by the appliance and the
SETTINGS upper level menu is displayed.
CONTINUOUS LIGHTING
When continuous lighting mode is selected,
the light will be on continuously during the
programme (heating function) or when the
oven door is opened.
ECO LIGHTING
When this option is selected, the lighting
will be on for 30 seconds when you touch
any sensor during a programme (heating
function). When oven door is opened, light
is turned on for as long as the oven door is
open, but no longer than 10 minutes, after
which the light is turned o󰀨.
Tones
Select the tones menu and touch . The
following items will be available:
- TONE 1
- TONE 2
- TONE 3
Use the sensors to select the desired
option and touch to conrm. The selection
is stored by the appliance and the SET-
TINGS upper level menu is displayed.
Display brightness
Select the DISPLAY BRIGHTNESS menu
and touch . The display brightness ex-
pressed in % will be shown on the display.
OPERATION
DISPLAY BRIGHTNESS
Use the sensors to adjust display bright-
ness within 0-100% range in 1% steps. Touch
to store the selected display brightness
level. The selection is stored by the appli-
ance and the SETTINGS upper level menu
is displayed.
Service
Select the SERVICE menu and touch . The
following message will be shown.
SERVICE
If the appliance detects an error, its code will
be displayed on the screen.
Factory settings
Select the FACTORY SETTINGS menu
and touch . The following message will
be shown.
FACTORY SETTINGS
Restore factory settings
YES NO

18
OPERATION
Heating functions
Use the sensors to select the HEATING
FUNCTIONS menu and touch to conrm.
The following HEATING FUNCTIONS menu
items are available:
- RAPID PREHEATING
- CONVENTIONAL
- PASTRY
- GRILL
- TURBO GRILL
- SUPER GRILL
- FAN COOKING
- PIZZA
- BROWNING
- ROASTING
- DEFROSTING
- ECO FAN COOKING
- EXIT.
Please, see the table below for overview of
oven functions, oven elements, temperature
and default settings.
Use the sensors to choose to restore
the factory settings or leave the current set-
tings.
To keep current settings, select “No” and
touch to conrm. The appliance will exit
to SETTING upper level menu.
Select “Yes” to restore the factory settings.
Function Description Oven elements
Temperature [°C] Default
tempera-
ture [°C]
Level
from the
bottom
min. max
RAPID PREHEATING fan heater + fan + grill 30 280 180 3
CONVENTIONAL bottom heater + top heater 30 280 180 3
PASTRY bottom heater + top heater + fan 30 280 170 3
GRILL grill 30 280 280 4
TURBO GRILL grill + Fan 30 280 200 2
SUPER GRILL grill + top heater 30 280 280 4
FAN COOKING fan heater + fan 30 280 170 3
PIZZA fan heater + bottom heater + fan 30 280 220 2
BROWNING top heater 30 230 180 -
ROASTING bottom heater 30 240 200 -
DEFROSTING fan - - - 3
ECO FAN COOKING* fan heater + fan 30 280 170 3
* ECO Fan Cooking is an optimised heating function designed to save energy when cooking
food.

19
OPERATION
Fan cooking
Use the sensors to select the FAN
COOKING and touch to conrm. The
following screen is displayed showing the
default temperature of 170°C and level three.
FAN COOKING
TEMPERATURE COOKING TIME
You can adjust the default temperature within
5 seconds when the symbol is ashing.
Touch the sensors to adjust the set-
tings. Touch to conrm and the symbol
will disappear.
Touch to adjust temperature again.
Note. The appliance will beep when the set
temperature in the oven cavity is reached.
When Duration is not set, touch to turn
o󰀨 the appliance. The appliance switches to
standby mode.

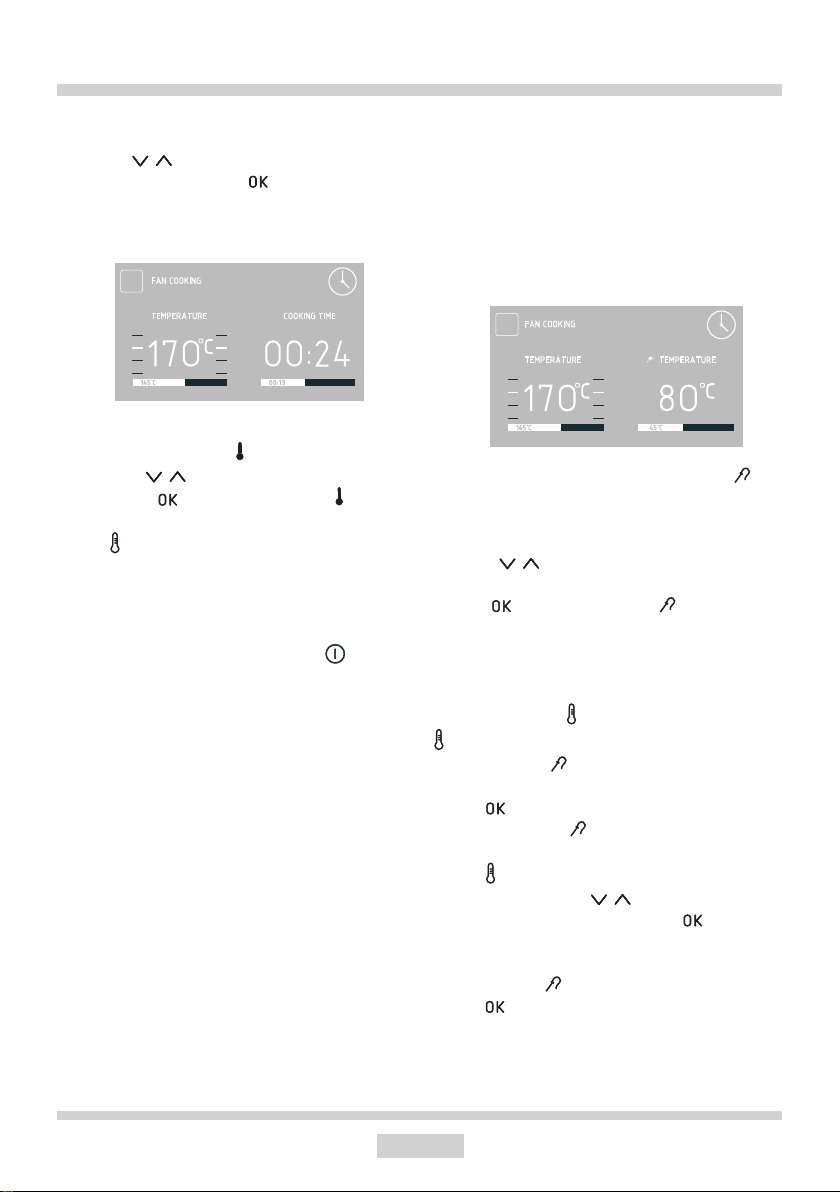

Use the meat probe
When select a heating function, set the
desired cooking temperature, or accept the
default temperature.
Plug the meat probe in the socket. The de-
fault meat probe temperature of 80°C will be
displayed.
FAN COOKING
TEMPERATURE TEMPERATURE
When meat probe is connected, the will
ash for 5 seconds. If no changes are made
within 5 seconds, the default temperature is
set for the meat probe.
Use the sensors to adjust the tempera-
ture from 30°C to 99°C in 1°C steps.
Touch to conrm. The symbol and
current meat probe temperature will be
displayed.
You can also adjust the temperature during
a programme.
To do this touch . When you rst touch the
sensor, the set meat probe temperature is
displayed, the symbol is ashing and you
can adjust the temperature.
Touch to conrm the adjusted meat probe
temperature, the will stop ashing and the
appliance will resume normal operation.
Touch twice to adjust the oven temperature
setting. Touch the sensors to adjust
temperature in 1°C steps. Touch to conrm
the temperature.
When the time has elapsed you will hear a
beep and the continues to ash.
Touch to mute the beeping. The appliance
switches to standby mode.

20
OPERATION

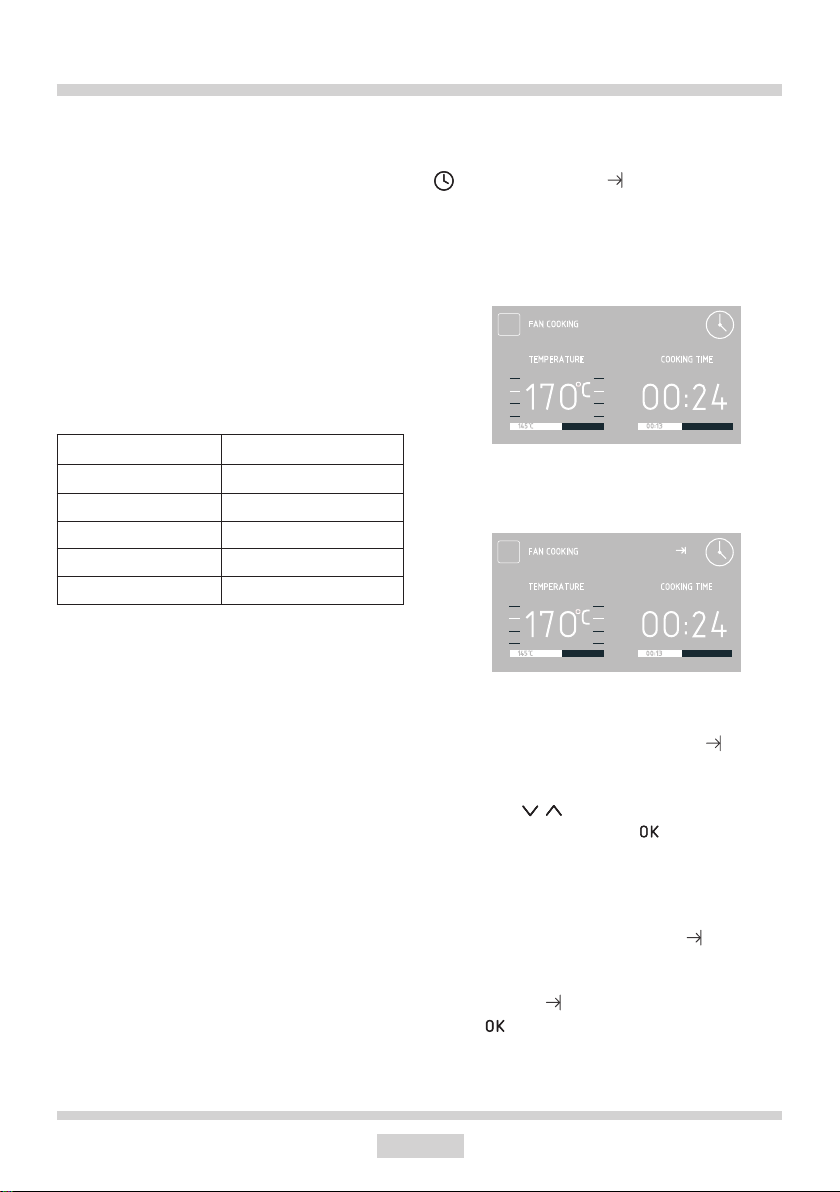

Setting Duration (for a heating function)
When the heating function is set, touch the
sensor. When the symbol ashes, the
display will show DURATION and “00:00”.
Display before Duration or Duration and End
Time are set
FAN COOKING
TEMPERATURE COOKING TIME
Display when Duration or Duration and End
Time are set
FAN COOKING
TEMPERATURE COOKING TIME
If you make no adjustment within 5 seconds
the display will show the temperature only,
duration will not be shown and the symbol
will stop ashing.
Touch the sensors to adjust duration
in 1 minute steps. Touch to conrm and
store the duration. DURATION changes to
END TIME and entered Duration, for example
0:30, changes to the actual end time, while
the remaining time is displayed on the bar
below the actual end time. The symbol is
displayed continuously.
When the time has elapsed you will hear a
beep and the continues to ash.
Touch to mute the beeping. The appliance
switches to standby mode.
The use of meat probe is recommended when
cooking large portions of meat (at least 1 kg).
The use of meat probe is not recommended
when cooking poultry and meat with bones.
When not in use, unplug the meat probe from
its socket and remove from oven cavity.
Note:
Only use the meat probe provided with your
appliance.
Recommended meat probe temperature
settings
Type of meat Temperature [°C]
Pork 85 - 90
Beef 80 - 85
Veal 75 - 80
Lamb 80 - 85
Venison 80 - 85
