AML ACC-7735 User manual

User’s Guide
ACC-7735
4-Position
Charging Cradle
© 2020 AML
2190 Regal Parkway • Euless, TX 76040
800.648.4452 • Local: 817.571.9015
www.amltd.com • 800.648.4452
© 2020 AML
© 2020 AML
2190 Regal Parkway • Euless, TX 76040
800.648.4452 • Local: 817.571.9015
Regulatory Information
All AML devices are designed to be compliant with rules and
regulations in locations they are sold and will be labeled as required.
Any changes or modifications to AML equipment, not expressly
approved by AML, could void the user's authority to operate the
equipment.
Power Supply
Use only an AML approved Power Supply, output rated 24 VDC and
minimum 2.5A. The PWR Power Supply is certified to EN60950.
Disclaimer
AML reserves the right to make changes in specifications and other
information contained in this document without prior notice, and the
reader should in all cases consult American Microsystems, Ltd. to
determine whether any such changes have been made. The information
in this publication does not represent a commitment on the part of AML
AML shall not be liable for technical or editorial errors or omissions
contained herein; nor for incidental or consequential damages resulting
from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated into another language without
the prior written consent of AML
FCC Declaration of Conformity
Product Name: 4-Position Charging Cradle
Model Number: ACC-7735
Radio Frequency Interference Requirements
This equipment complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This equipment may not cause harmful
interference, and (2) this equipment must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence when the equipment is operated in a residential environment. This
equipment generates uses and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If you determine the equipment does cause harmful interference to
radio or television reception (this may be determined by monitoring the
interference while turning the equipment off and on), you are encour-
aged to try to correct the interference by one of the following measures:
· Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver.
· Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
· Consult the dealer or an experienced radio or TV technician for help.
Radio Frequency Interference Requirements - Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
Marking and European Economic Area (EEA)
Products intended for sale within the European Union are
marked with the CE mark which indicates compliance to
applicable Directives and European Normes (EN), as follows.
Amendments to these Directives or EN’s are included.
· Electromagnetic Compatibility Directive 89/336/EEC
· Low Voltage Directive 73/23/EEC

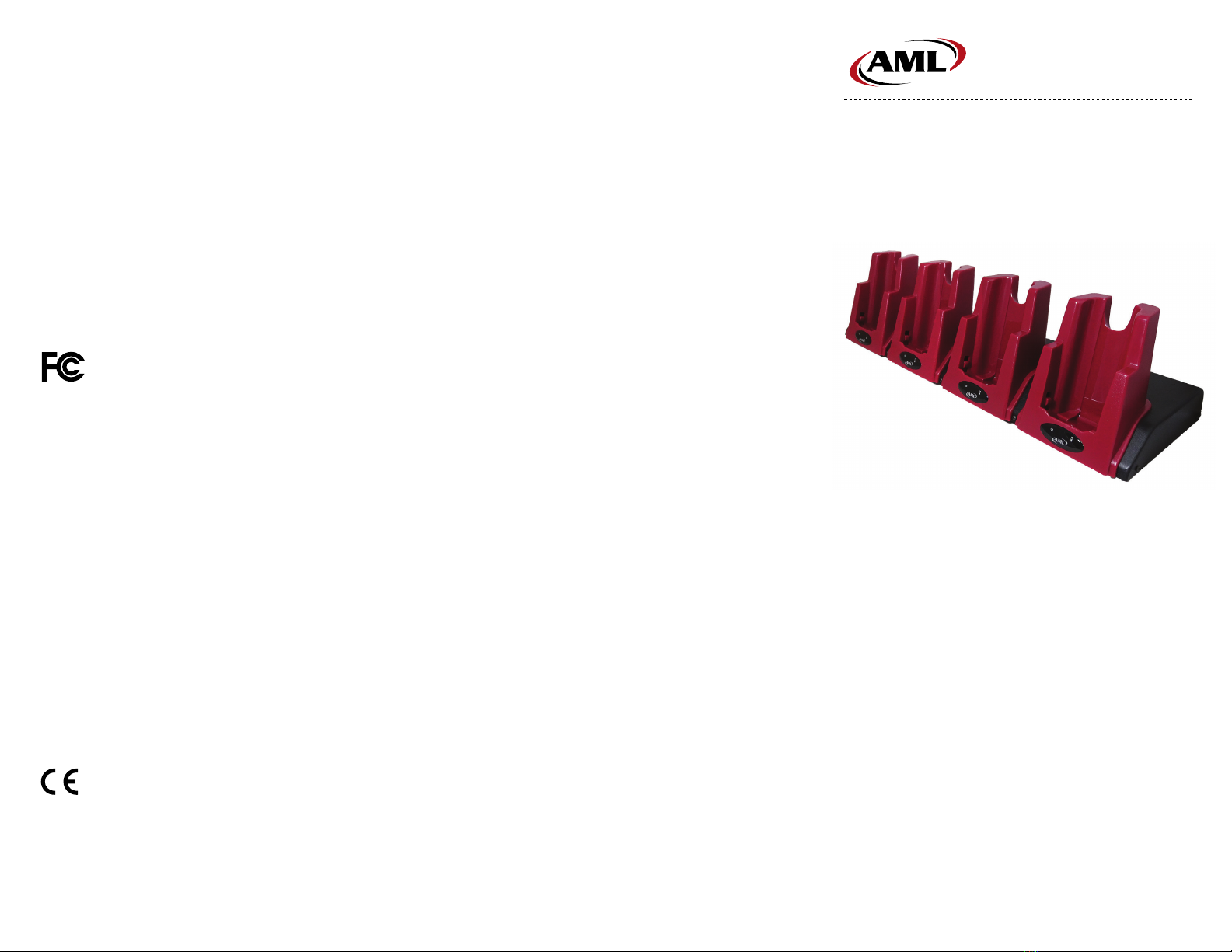

Charge up to four AML Scepter or Striker
mobile computers at one time, with one
device using the ACC-7735.

To connect power to the charger:
1. Plug in the PWR-7835 power supply to a standard 120VAC
electrical outlet.
2. Connect the plug on the end of the power supply into the
round, barrel-jack connector, marked “12-36VDC” on the
back of the charger.
3. After 2 seconds the charger’s power LED, on the front
panel, will illuminate red to indicate power is connected.
Charging
Set the Scepter or Striker into a cradle slot. It begins to charge as
soon as it is inserted.
The ACC-7735 Cradle’s Communication PortsIntroduction
The ACC-7735 4-Position Charging Cradle charges all Scepter and
Striker models.
About This Guide
This guide provides instruction on setting up and using the
ACC-7735 4-Position Charging Cradle. For instructions on battery
charging, see the Battery Information guide that can be found at
www.amltd.com/Product-Documentation.
Set Up
Setting up the charging cradle includes unpacking, connecting the
power supply, and positioning the charger on a table top.
Unpacking the Charger
The shipping box includes the following:
· One ACC-7735 4-Position Charging Cradle
· One PWR-7835 Power Supply (24 VDC, 2.5 A)
· This User’s Guide.
If any parts are missing or damaged, contact your authorized
Customer Support Representative immediately. Save the shipping
box for storing or shipping.
Connecting the Power
The PWR-7835 power supply is included with the ACC-7735
4-Position Charging Cradle. If a country-specific AC power supply
is required, please contact your authorized Customer Support
Representative.
Use only an AML approved power supply. The PWR-7835 power
supply, included with the charger, is intended for 120VAC
operation.
© 2020 AML
2190 Regal Parkway • Euless, TX 76040
800.648.4452 • Local: 817.571.9015
© 2020 AML
2190 Regal Parkway • Euless, TX 76040
800.648.4452 • Local: 817.571.9015
© 2020 AML
2190 Regal Parkway • Euless, TX 76040
800.648.4452 • Local: 817.571.9015
Cradle Power
Indicator
Mobile Computer
Indicator
Spare Battery
Indicator
RED = The cradle has power from the power supply.
OFF = The power supply is disconnected or not
plugged into the electrical outlet.
RED = The mobile computer is charging.
GREEN = The mobile computer is fully charged.
OFF = The mobile computer is not in the cradle.
RED = The spare battery is charging.
GREEN = The spare battery is fully charged.
OFF = The spare battery is not in the cradle.
Cradle power indicator
does not light.
Symptom Cause Correction
Cradle is not receiving
power.
Make sure the
PWR-7835 power supply
is securely plugged into
the electrical outlet
and its power cord is
securely connected to
the cradle.
Mobile Computer
Indicator does not
illuminate.
Mobile computer is not
firmly seated in the
cradle, or there is no
battery in the device.
Misalignment occurs
when cradle contacts
are bent or damaged.
Make certain there is a
battery in the device,
and that the device is
firmly seated in the
cradle. Return cradle to
an AML repair center for
corrective action.
Spare Battery Indicator
does not illuminate.
Spare battery is not
seated properly in the
spare battery charging
compartment.
Reseat the spare
battery in the spare
battery charging
compartment.
Indicator Lights
Troubleshooting
The ACC-7735 Charging Cradle has two communication ports and
one power jack located on the rear of the cradle. The cradle itself
has no internal or external settings that can be changed. If a PC
connection is required while charging, place the mobile computer
in the cradle with the communication ports on the back.
USB Type A
Connect to a device
(mouse, keyboard, USB drive)
USB Type B
Connect to a PC
(transfer files, software development)
