AMS TMG3992 EVM User manual

Quick Start Guide
TMG3992 EVM
TMG3992 Light-To-Digital Color Ambient Light Sensor / Proximity Sensor
Evaluation Kit with IRBeam™ Support
Version 1.0

page 2/5
Contents
Out of the Box...................................................................................................................................... 3
Software Installation ............................................................................................................................ 3
Connect Hardware............................................................................................................................... 4
Start the Application ............................................................................................................................ 4

page 3/5
Out of the Box
Each TMG3992 EVM comes with the following components:
•Controller board v2.1
•TMG3992 Daughterboard
•USB Cable with A connector and mini B connector
•Flash Drive with Application Software and Documents

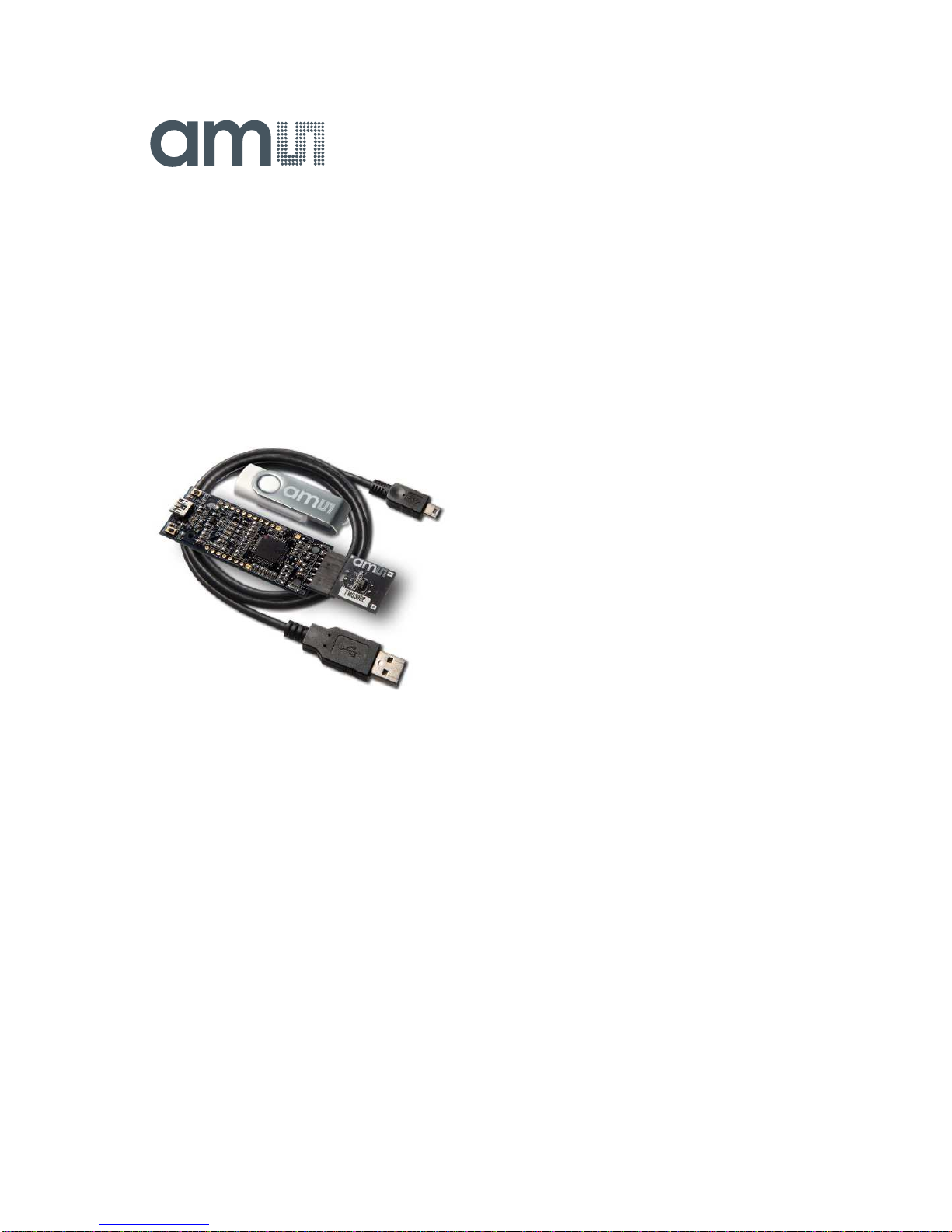

Figure 1 TMG3992 EVM Kit
Software Installation
Most PCs should have one or more Universal Serial Bus (USB) ports. Install the ams flash drive
into an unused USB port.
1. Double-click the Setup.exe file on the flash drive, or
2. Click Start -> Click Run -> Type E: setup.exe and press Enter. IMPORTANT: Use the
appropriate drive letter in the above command to install the software. Flash Drive will
commonly be assigned the next available drive letter for example C: hard drive D: CD-ROM
E: flash drive
The Digital Light Sensor Setup Wizard will open and guide you through the installation of the
TMG3992 host software, (Figures 2 through 8). To re-install, run the setup.exe file again. To
remove the software from your computer Select ams -> TMG3992 EVM > Uninstall TMG3992EVM
or use the Windows Control Panel (Figure 9).

page 4/5
Connect Hardware
Plug the TMG3992 Daughterboard into the Controller board. (Figure 1) Always use ESD procedures
when handling the EVM.
Using the enclosed USB cable, plug the mini-B connector into the EVM module. Using the other
end of the cable, plug the USB A-connector into a USB port on the computer.
Start the Application
Click the Digital Light Sensors icon on the desktop.
Figure 2 Welcome Screen Figure 5 Select Start Menu Folder
Figure 3 Liability Disclaimer Figure 6 Installation in Progress

page 5/5
Figure 4 Select Installation Folder Figure 7 Thank You Screen
Figure 8 Installation Completed Successfully Figure 9 Remove Installation
Contact and Support
For detail in using the TMG3992 EVM please refer to the User’s Guide included in the documents.
If any technical difficulties are encountered, use the Tech Support page at www.ams.com/Support
to submit a technical support request anytime or call [phone] (main) M-F 8AM-5PM CST
You may also use http://www.ams.com to find worldwide local representatives in your area.
