AMX Modero NXA-WAP200G User manual

802.11g wireless access point
WIRELESS FUTURE
Experience flexible and securewireless connectivity with the feature-
packed Wireless Access Point (NXA-WAP200G) from AMX. The WAP is
fully compatible with the IEEE 802.11b (2.4GHz) frequency band and
forwardcompatible with 802.11g for futureexpandability of new and
existing wireless networks. It supports a limitless number of AMX Modero®
Touch Panels and provides a wide coverage area and long range.
FREEDOM
Set up a simple all-wireless network or establish a wireless extension of
the existing wired Ethernet network, in both residential and commercial
applications. The WAP is designed to create fast, flexible and highly
secure wireless networks without the expense or hassle of installing
cables. The WAP’s Power over Ethernet feature eliminates the need for
an electrical outlet, increasing deployment options and the speed of
installation while reducing the overall cost.
SIMPLICITY
The WAP can be installed, configured, and activated in a matter of
moments. No special software or complicated programming is necessary.
Installation of the WAP for residential and business environments requires
only a few easy-to-follow steps.
SECURITY
Fortify your wireless network and maximize end-user privacy. The WAP
incorporates standard 64-bit and 128-bit WEP encryption, WPA and 802.1x
authentication via a remote RADIUS server.

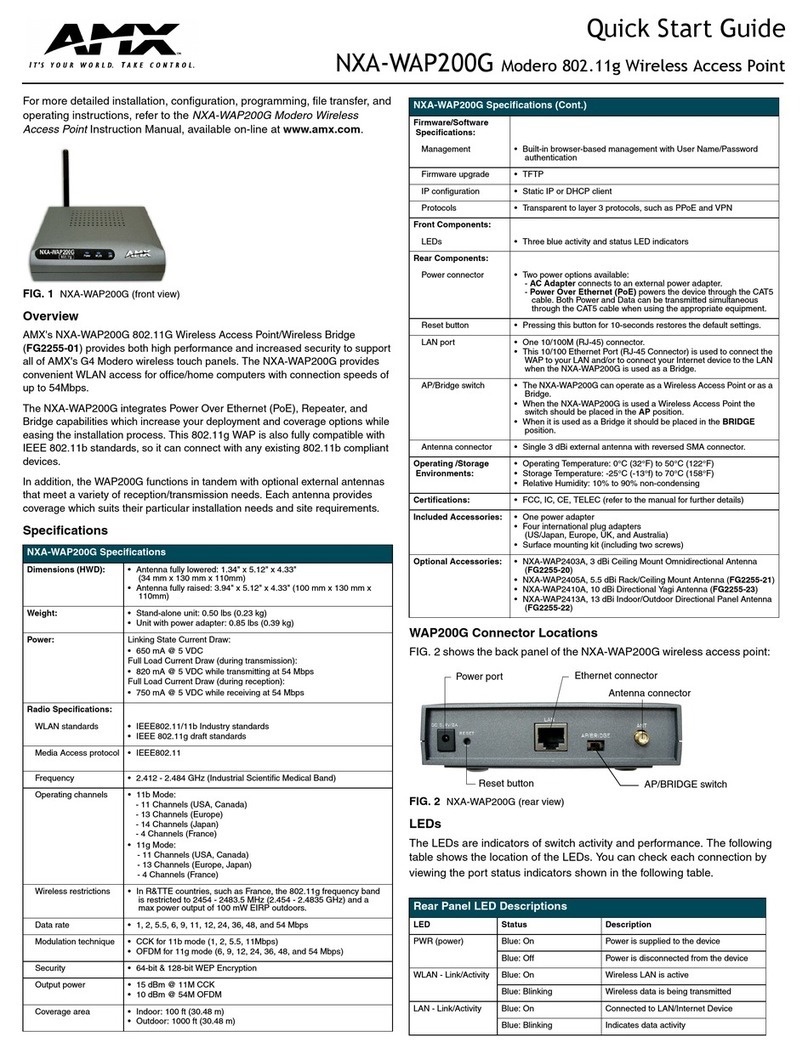

NXA-WAP200G (FG2255-01)
DIMENSIONS (HWD)
•Antenna fully lowered: 1.34" x 5.04" x 4.29"
(34mm x 128mm x 109mm)
•Antenna fully raised: 3.94" x 5.04" x 4.29"
(100mm x 128mm x 109mm)
WEIGHT
•0.53lbs (0.24kg)
POWER
•5.4V
RADIO SPECIFICATIONS
•WLAN standards:
-IEEE 802.11/11b Industry standards
-IEEE 802.11g draft standards
•Media Access Protocal
-IEEE 802.11
•Frequency
-2.4 - 2.4835 GHz (Industrial Scientific Medical Band)
•Operating Channels
-11b Mode:
11 Channels (USA, Canada)
13 Channels (Europe)
14 Channels (Japan)
-11g Mode:
11 Channels (USA, Canada)
13 Channels (Europe, Japan)
•Data Rate Shifting
-1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54 Mbps
•Modulation Technique
-CCK for 11b mode (1, 2, 5.5, 11 Mbps)
-OFDM for 11g mode (6, 9, 12, 24, 36, 48, 54 Mbps)
•Security
-64-bit & 128-bit WEP Encryption
-64-bit & 128-bit WPA Encryption
-802.1x Pass Through
•Outdoor Power
-15 dBm @ 11M CCK
-10 dBm @ 54M OFDM
•Coverage Area
-Indoor: 100ft (30.5m)
-Outdoor: 1000ft (305m)
FIRMWARE/SOFTWARE SPECIFICATIONS
•Management/Configuration
-Built-in browser-based utility with
User Name/Password authentication
•Firmware Upgrade
-TFTP
•IP Connection
-Static IP or DHCP client
•Protocols
- Transparent to layer 3 protocols, such as PPoE and VPN
FRONT COMPONENTS
•LEDs
-Three blue activity and status LED indicators
Power - Indicates power is on
WLAN - Indicates wireless network activity
LAN - Indicates wired LAN activity
REAR COMPONENTS
•Power Connector
-AC Adapter connects to a 1.5A @ 5.4VDC external
power adapter
-Power Over Ethernet (PoE) powers the device through
the CAT5 cable. Both Power and Data can be
transmitted simultaneous through the CAT5 cable.
•Reset Button
-Pressing this button restores the settings to their
factory values: administrator password, IP address,
and other configurations. This button is also helpful if
you cannot access the configuration utility.
-Note: Resetting the WAP will erase all your settings
(WEP Encryption, Wireless and LAN settings,
Passwords, etc.) and restore them to their factory
default values. Do not reset the WAP if you want to
retain these settings.
•LAN Port
The NXA-WAP200G can operate as a Wireless Access Point
or as a Bridge.
-LAN - PC toggle switch
-When configured as a Wireless Access Point it allows
multiple computers to connect to the LAN wirelessly
-When configured as a Bridge is allows devices with a
10/100 port, to be connected to the wireless LAN,
such devices include desktop computers, printers, XBoxes,
PlayStation2s, PVRs, Stereos, etc.
-When the NXA-WAP200G is used as a Wireless
Access Point the switch should be positioned to LAN
-When it is used as a Bridge it should be positioned to PC
•Antenna Connector
-Single 3 dBi external antenna with reversed SMA
connector
ENVIRONMENTAL SPECIFICATION
•Operating Temperature: 0ªC (32ªF) to 50ªC (122ªF)
•Storage Temperature -25ªC (-13ªF) to 70ªC (158ªF)
•Relative Humidity: 10% to 90% non-condensing
CERTIFICATIONS
•FCC, IC, CE, TELEC
• Wi-Fi Interoperable
INCLUDED ACCESSORIES
•One power supply
•Five international plug adapters
OPTIONAL ACCESSORIES
•NXA-WAP2403A (FG2255-20) 3 dBi Ceiling Mount
Omnidirectional Antenna
•CC-NET (FG10-051-10) Ethernet Cable
•CC-NET (FG10-051-10) Ethernet Cable
•NXA-WAP2405A (FG2255-21) 5 dBi Rack/Ceiling Mount
Omnidirectional Antenna
•CC-NET (FG10-051-10) Ethernet Cable
•NXA-WAP2410A (FG2255-23) 10 dBi Yagi Outdoor Directional
Antenna
•NXA-WAP2413A (FG2255-22) 13 dBi Indoor/Outdoor
Directional Antenna
•NXA-WAP2413AMB (FG2255-24) NXA-WAP2413A Mounting Bracket
•NXA-WAP2413ACMB (FG2255-25) NXA-WAP2413A Corner
Mounting Bracket
•NXA-WAP10C (FG2255-26) 10' RG58 Plenum Antenna
Extension Cable
ARGENTINA • AUSTRALIA • BELGIUM • BRAZIL • CANADA • CHINA • ENGLAND • FRANCE • GERMANY • GREECE • HONG KONG • INDIA • INDONESIA • ITALY • JAPAN
LEBANON • MALAYSIA • MEXICO • NETHERLANDS • NEW ZEALAND • PHILIPPINES • PORTUGAL • RUSSIA • SINGAPORE • SPAIN • SWITZERLAND • THAILAND • TURKEY • USA
ATLANTA • BOSTON • CHICAGO • CLEVELAND • DALLAS • DENVER • INDIANAPOLIS • LOS ANGELES • MINNEAPOLIS • PHILADELPHIA • PHOENIX • PORTLAND • SPOKANE • TAMPA
3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • 469.624.8000 • +1.469.624.7400 • 469.624.7153 fax • www.amx.com
802.11g wireless access point
©2006 AMX. All rights reserved. AMX and the AMX logo are all trademarks of AMX. AMX reserves the right to alter specifications without notice at any time.
