Analog Devices UG-388 User manual

Evaluation Board User Guide
UG-388
One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: [phone] •Fax: [phone] •www.analog.com
Daughter Card Evaluation Board for the ADP1053 Digital Power Supply Controller
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.Rev. 0 | Page 1 of 8
FEATURES
ADP1053 daughter card with 40-pin connector
and I2C interface
Plugs into ADP1053 evaluation motherboard
PMBus compliant
Low component count
PCB size: 28 mm × 50 mm
Robust design
GENERAL DESCRIPTION
The ADP1053, based on a voltage mode PWM architecture, is
a flexible, application dedicated digital controller designed for
isolated and nonisolated dc-to-dc power supply applications.
The ADP1053 enables highly efficient power supply design and
facilitates the introduction of intelligent power management
techniques to improve energy efficiency at a system level. The
ADP1053 operates from a single 3.3 V supply.
The ADP1053 provides control, monitoring, and protection
of up to three independent channel outputs. The eight flexible
PWM outputs can be configured as three independent channels:
two regulated channels with feedback control plus one additional
unregulated channel with a fixed duty cycle. The frequency of
these three channels can be programmed individually from
50 kHz to 625 kHz; all channels can be synchronized internally
or to an external signal.
Features include differential voltage sensing, fast current sensing,
flexible start-up sequencing and tracking, and synchronization
between devices to reduce low frequency system noise. Protection
and monitoring features include overcurrent protection (OCP),
undervoltage protection (UVP), overvoltage protection (OVP),
and overtemperature protection (OTP).
EVALUATION BOARD DESCRIPTION
The ADP1053 daughter card evaluation board allows the user
to quickly evaluate the ADP1053 (see Figure 1). The ADP1053
daughter card plugs into an existing ADP1053 evaluation
motherboard. Communication to the daughter card is established
by connecting the USB-to-I2C dongle interface between the
daughter card and a PC running Windows® 2000, Windows NT,
Windows XP, Windows Vista®, or Windows 7.
The USB-to-I2C dongle interface (Part No. ADP-I2C-USB-Z)
must be purchased separately from Analog Devices, Inc. The
graphical user interface (GUI) software for the ADP1053
daughter card evaluation board can be downloaded from the
ADP1053 product page.
This user guide describes how to set up and use the ADP1053
daughter card evaluation board. The user guide should be read
in conjunction with the ADP1053 data sheet, which provides
detailed information about the ADP1053 3-channel digital
power supply controller.
ADP1053DC-EVALZ DAUGHTER CARD EVALUATION BOARD
PIN 1
PIN 1
40-PIN
CONNECTOR
ADP1053
USB-TO-I2C
DONGLE
CONNECTOR
10612-001
Figure 1.

UG-388 Evaluation Board User Guide
Rev. 0 | Page 2 of 8
TABLE OF CONTENTS
Features .............................................................................................. 1
General Description ......................................................................... 1
Evaluation Board Description......................................................... 1
ADP1053DC-EVALZ Daughter Card Evaluation Board............ 1
Revision History ............................................................................... 2
Hardware Description...................................................................... 3
40-Pin Connector ......................................................................... 3
USB-to-I2C Dongle .......................................................................3
Operating Instructions for the Evaluation Board .........................4
Evaluation Board Schematic and Artwork.....................................5
Ordering Information.......................................................................7
Bill of Materials..............................................................................7
Related Links..................................................................................7
REVISION HISTORY
5/12—Revision 0: Initial Version

Evaluation Board User Guide UG-388
Rev. 0 | Page 3 of 8
HARDWARE DESCRIPTION
40-PIN CONNECTOR
The ADP1053 daughter card PCB is 28 mm × 50 mm. A
40-pin connector is soldered to the back of the daughter
card evaluation board (see Figure 2).
10612-002
Figure 2. Backside of the Daughter Card
The 40-pin connector plugs directly into an existing ADP1053
evaluation motherboard. A 5 V source from the USB connection
provides power to the on-board ADP3303 LDO, which, in turn,
provides the 3.3 V power to the ADP1053.
Figure 3 shows the pin assignments for the 40-pin connector on
the ADP1053 daughter card evaluation board.
NC 40
NC
12V_AUX
39
FLAGOUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
TOP VIEW
(COMPONENT SIDE)
RTD1
VS+_A
VS–_A
PGND_A
OVP_A
CS2–_A
CS2+_A
PGOOD_A
CS1_A
ACSNS
PSON_A
SCL
OUT1
OUT2
OUT3
OUT4
NC
AGND
3.3V
FLAGIN
RTD2
VS+_B
VS–_B
PGND_B
OVP_B
CS2–_B
CS2+_B
PGOOD_B
CS1_B
CS
PSON_B
SDA
OUT8
OUT7
OUT6
OUT5
10612-004
Figure 3. 40-Pin Connector Pin Assignments
USB-TO-I2C DONGLE
For a complete evaluation of the ADP1053, the following items
are required:
•ADP1053 evaluation motherboard
•ADP1053 evaluation daughter card
•USB-to-I2C dongle interface
•Software GUI
Figure 4 shows how to use the USB-to-I2C dongle to connect
the ADP1053 daughter card to the PC.
DONGLE
CABLE
ADP1053
DAUGHTER CARD
USB TO I2C
DONGLE USB
CABLE
PC
10612-003
Figure 4. Connecting the ADP1053 Daughter Card to a PC
Using the USB-to-I2C Dongle
The USB-to-I2C dongle interface has four pins (see Table 1).
Table 1. I2C Connector Pin Assignment
Pin No.
Evaluation Board Function
1
5 V
2 SCL (clock)
3 SDA (data)
4 Ground

UG-388 Evaluation Board User Guide
Rev. 0 | Page 4 of 8
OPERATING INSTRUCTIONS FOR THE EVALUATION BOARD
To use the ADP1053 evaluation board, follow these steps:
1. Insert the ADP1053DC-EVALZ daughter card into the
ADP1053 evaluation motherboard (see Figure 5). Note
that users must create a motherboard for the ADP1053
evaluation daughter card (the motherboard shown in
Figure 5 is a prototype).
2. Connect the cables of the USB-to-I2C dongle to the daughter
card and to the PC (see Figure 4).
The USB interface provides the 5 V supply to the daughter
card. The daughter card has an on-board LDO (the ADP3303)
that provides the 3.3 V power to the ADP1053.
3. Download the ADP1053 GUI software from the ADP1053
product page and install the software on a PC.
4. Run the GUI software to verify the connection to the
ADP1053 before applying the input supply voltage to
the motherboard.
5. Apply power to the input terminals of the motherboard.
ADP1053
DAUGHTER CARD
10612-005
Figure 5. ADP1053 Evaluation Board with Daughter Card Plugged In

Evaluation Board User Guide UG-388
Rev. 0 | Page 5 of 8
EVALUATION BOARD SCHEMATIC AND ARTWORK
DGND PGND_BPGND_A AGND
SCL PSON_A CS ACSNS CS1_B CS1_A PGOOD_A PGOOD_B CS2+_A CS2-_A OVP_A CS2+_B CS2-_B PGND_A VS-_A VS+_A PGND_B VS-_B RTD2
12V
FLAGIN RTD1
12V
3.3V
FLAGOUT
OVP_B PSON_B VS+_B SDA 12V_A UX FLAGOUT OUT6 OUT4
SCL
OUT3 OUT2
SDA
OUT1 OUT8 OUT7 OUT5 AGND TBD1 TBD2 TBD3
PGND_BPGND_A
SDA SCL
0
D
D
3.3V
0
12V
0
3.3V
3.3V
00
00
0
0
3.3V
3.3V
0
0
00
0 0
R1610k
C14 1nF
R1510k
R25200
R7 2.2k
R26200
R12 27K
C21 100pF
C9 1uF
J2
COM2
1
2 3
4
C11 0.1uF
C17
100pF
U1
ADP1053
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17 18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
VS+_A
VS-_A
PGND_ A
OVP_A
CS2-_A
CS2+_A
PGOOD_A
CS1_A
ACSNS
PSON_ A
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 SDA SCL
PSON_ B
CS
CS1_B
PGOOD_B
CS2+_B
CS2-_B
OVP_B
PGND_ B
VS-_B
VS+_B
FLAGIN/SYNC
FLAGOUT
RTD2
DGND
VCORE
VDD
AGND
RES
ADD
RTD1
C3 1nF
J1
ADP1053 DAUGHTER CARD CONNECTOR
1 2 3 4
5
6 7
8
9 10
11
12 13
14
15 16
17
18 19
20
21 22
23
24 25
26
27
28
29
30
31 32
33
34 35
36
37 38
39
40
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
R2347.5k
R210R
D2 BAV70WT1
R2 4.99k
C7 0.1uF
C15 1nF
C6
0.1uF
R8 2.2k
R11 1K
C13
1nF
R17 2
12
R9 4.99k
C16 1nF
R241k
C4 1nF
R220R
C19 100pF
R6
27K
C18
100pF
U2
ADP3303
1
2
3
45
6
7
8
OUT1 OUT2 NR GN D#SD
#ERR
IN1 IN2
R180R
R5 1K
R202.2k
C1 1nF
R14 27K
R19
2.2k
R10 4.99k
C10 0.1uF
C20 100pF
R13 1K
R3
27K
R4
1K
C12 1uF
R1 4.99k
D1 BAV70W T1
C2 1nF
C8 330nF
C5 0.1uF
10612-006

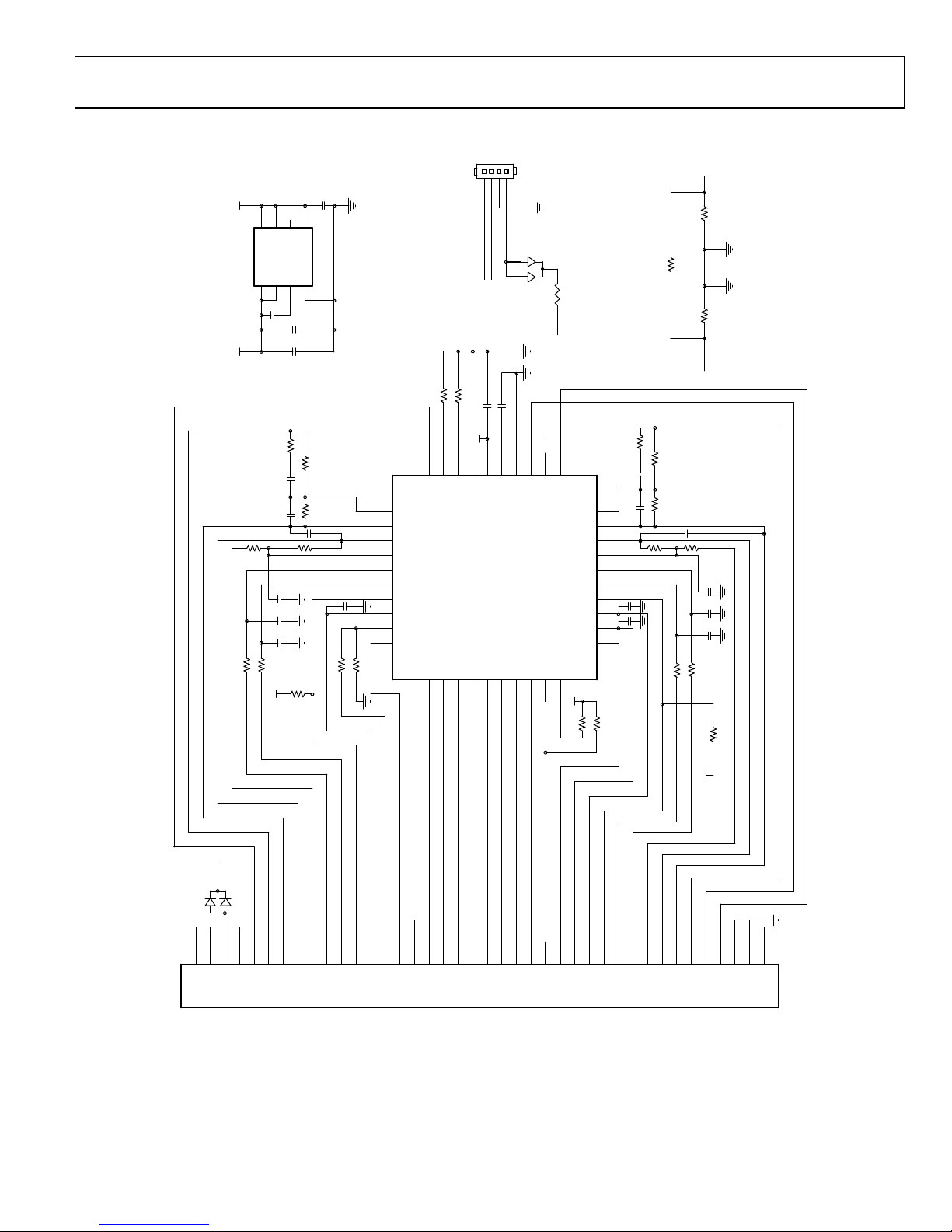

Figure 6. Schematic of the Evaluation Board

UG-388 Evaluation Board User Guide
Rev. 0 | Page 6 of 8
10612-007

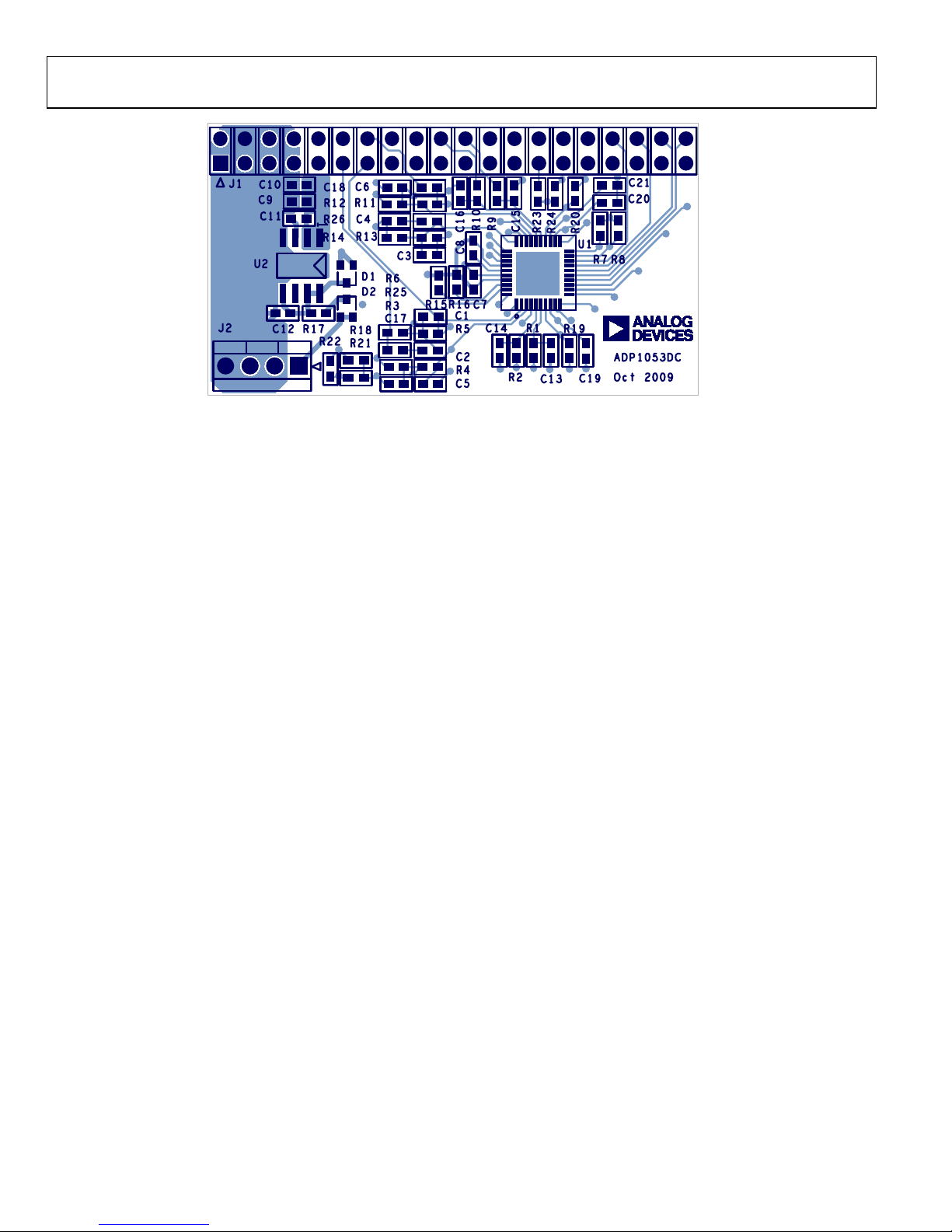

Figure 7. Top Layer and Silkscreen

Evaluation Board User Guide UG-388
Rev. 0 | Page 7 of 8
ORDERING INFORMATION
BILL OF MATERIALS
Table 2.
Qty Reference Description Vendor Part No.
1 U1 ADP1053 (device under test), 40-lead LFCSP Analog Devices ADP1053ACPZ-R7
1 U2 ADP3303 low dropout linear regulator Analog Devices ADP3303ARZ-3.3
8 C1, C2, C3, C4, C13, C14,
C15, C16
Capacitor, MLCC, 1 nF, 50 V, C0G, 0603 Digi-Key C1608C0G1H102J
5 C5, C6, C7, C10, C11 Capacitor, MLCC, 0.1 µF, 50 V, X7R, 0603 Digi-Key C1608X7R1H104K
1 C8 Capacitor, MLCC, 330 nF, 50 V, X7R, 0603 Digi-Key C1608X7R1H334K
2 C9, C12 Capacitor, MLCC, 1 µF, 16 V, X7R, 0603 Digi-Key C1608X7R1C105K
5 C17, C18, C19, C20, C21 Capacitor, MLCC, 100 pF, 50 V, C0G, 0603 Digi-Key C1608C0G1H101J
2 D1, D2 Diode, 200 mA, 70 V Digi-Key BAV70WT1G
1 J1 40-pin connector Digi-Key PPTC202LFBN-RC
1 J2 Connector, header, 4-pin, single, PCB 30GOLD Digi-Key 609-2411-ND
4 R1, R2, R9, R10 Resistor, 4.99 kΩ, 0.1%, 1/10 W, 0603 Digi-Key TNPW06034K99BEEA
4 R3, R6, R12, R14 Resistor, 27 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2702V
5 R4, R5, R11, R13, R24 Resistor, 1 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF1001V
4 R7, R8, R19, R20 Resistor, 2.2 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2201V
2 R15, R16 Resistor, 10 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF1002V
1 R17 Resistor, 2 Ω, 5%, 1/10 W, 0603 Digi-Key ERJ-3GEYJ2R0V
3 R18, R21, R22 Resistor, 0 Ω, 50 mΩ max, 1/10 W, 0603 Digi-Key ERJ-3GEY0R00V
1 R23 Resistor, 47.5 kΩ, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF4752V
2 R25, R26 Resistor, 200 Ω, 1%, 1/10 W, 0603 Digi-Key ERJ-3EKF2000V
RELATED LINKS
Resource Description
ADP1053 Product Page, 3-Channel Digital Power Supply Controller
ADP-I2C-USB-Z Product Page, USB to I2C Interface Connector

UG-388 Evaluation Board User Guide
Rev. 0 | Page 8 of 8
NOTES
ESD Caution
ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection
circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.
Legal Terms and Conditions
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions
set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you
have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your a
cceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc.
(“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, A
DI hereby grants to Customer a free, limited, personal,
temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and agrees that the Evaluation Board is provided
for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted is expressly made subject to the following additional
limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any Third Party to access the Evaluation Board. As used herein, the term
“Third Party” includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is NOT sold to Customer; all rights not expressly granted herein, including
ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all be considered the confidential and proprietary information of ADI. Customer may
not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of use of the Evaluation Board or termination of this Agreement, Customer agrees to
promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile or reverse engi
neer chips on the Evaluation Board. Customer shall inform ADI of any
occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited to soldering or any other activity that affects the material content of the Evaluation Board.
Modifications to the Evaluation Board must comply with applicable law, including but not limited
to the RoHS Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice
to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO
WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED
TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL
PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF
THE EVALUATION BOARD, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE
AMOUNT OF ONE HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable
United States federal laws and regulations relating to exports. GOVERNING LAW. Th
is Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of
Massachusetts (excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby
submits to the personal jurisdiction and venue of such courts.The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.
©2012 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
UG10612-0-5/12(0)
