ANALOX O2EII Pro User manual

O2EII Pro
Quick Start Guide
Packaging & Contents:
On opening your O2EII Pro please
check you have the following items:
a) O2EII Pro
b) O2Sensor
c) Dome adaptor with Hose barb
(to receive a sample from your BCD)
d) Any accessories ordered
About the O2EII Pro:
The O2EII Pro includes an Analox 9100-9220-9B type Electro
Chemical Sensor, this has an expected life span of 4-5 years in air and
a 36 month graded warranty. The battery within is a 9V alkaline (PP3)
and has an approximate life of 12 months.
OO22 EEIIII PPrroo
Oxygen Analyser
MO2-860-01
IT IS IMPORTANT THAT THESE INSTRUCTIONS ARE
READ BEFORE USING THE O2 EII Pro
AAbboouutt tthhee OO22 EEIIII PPrroo::
The O2 EII Pro includes an Analox 9100-9220-9B type Electro Chemical
Sensor, this has an expected life span of 4-5 years in air and a 36 month
graded warranty. The battery within is a 9V alkaline (PP3) and has an
approximate life of 12 months.
TTeecchhnniiccaall mmaannuuaall ddeettaaiillss::
Visit our commercial website for the full technical manual
www.analoxsensortechnology.com and search for O2 EII Pro in the search
bar and the associated pages will appear, the download section is where
you will find the user manual.
PPaacckkaaggiinngg && ccoonntteennttss::
On opening your O2 EII Pro, please check you have the following items:
a) O2 EII Pro.
b) O2 Sensor.
c) Dome adaptor with Hose Barb (to receive a sample from your BCD)
d) Any accessories ordered for your O2 EII Pro.
SSaaffeettyy NNootteess SSeennssoorr HHaannddlliinngg::
The sensor in the O2 EII Pro is an electrochemical device and
contains an acidic electrolyte. Always check to make sure that
it is not leaking and do not allow it onto any part of your body
or clothing. In the event that you do come into contact with
the electrolyte wash the contaminated part with plenty of water.
For further information please see the full technical manual.
Quick Start Guide
Safety Notes Sensor Handling:
The sensor in the O2EII Pro is an electrochemical device
and contains an acidic electrolyte. Always check to make
sure that it is not leaking and do not allow it onto any part
of your body or clothing. In the event that you do come
into contact with the electrolyte wash the contaminated
part with plenty of water. For further information please
see the full technical manual.
Technical manual details:
Visit our commercial website for the full technical manual
www.analoxgroup.com and search for O2EII Pro in the search bar and
the associated pages will appear, the download
section is where you will nd the user manual.
a
b
c
Accessories:
The O2EII Pro can be supplied with any of the following accessories:
a) Storage case (SA2EIIMINICASE)
b) Sensor Saver (Available in packs of 5—SSP1,
or packs of 10—SSP2)
c) Replacement Tubing (Per metre, 1817-5000)
d) Dome adaptor with Hose Barb (to receive a sample from your BCD)
(MO2-475)
e) Dome adaptor without Hose Barb (MO2-422)
AAnnaallooxx
15 Ellerbeck Court,
Stokesley Business Park, Stokesley
North Yorkshire, TS9 5PT UK
Tel: [phone]
[e-mail]
www.analox.net
AAnnaallooxx UUSSAA
5981 Engineer Drive
Huntington Beach, CA 92649
Tel: [phone] or (877) SAFE-AIR (723-3247)
[e-mail]
www.analox.net
AAcccceessssoorriieess::
The O2 EII Pro can be supplied with any of the following accessories:
a) Storage case (SA2EIIMINICASE).
b) Sensor Saver (Available in packs of 5—SSP1, or packs of 10—
SSP2)
c) Replacement Tubing (Per metre, 1817-5000).
d) Dome adaptor with Hose Barb (to receive a sample from your
BCD) (MO2-475).
e) Dome adaptor without Hose Barb (MO2-422).

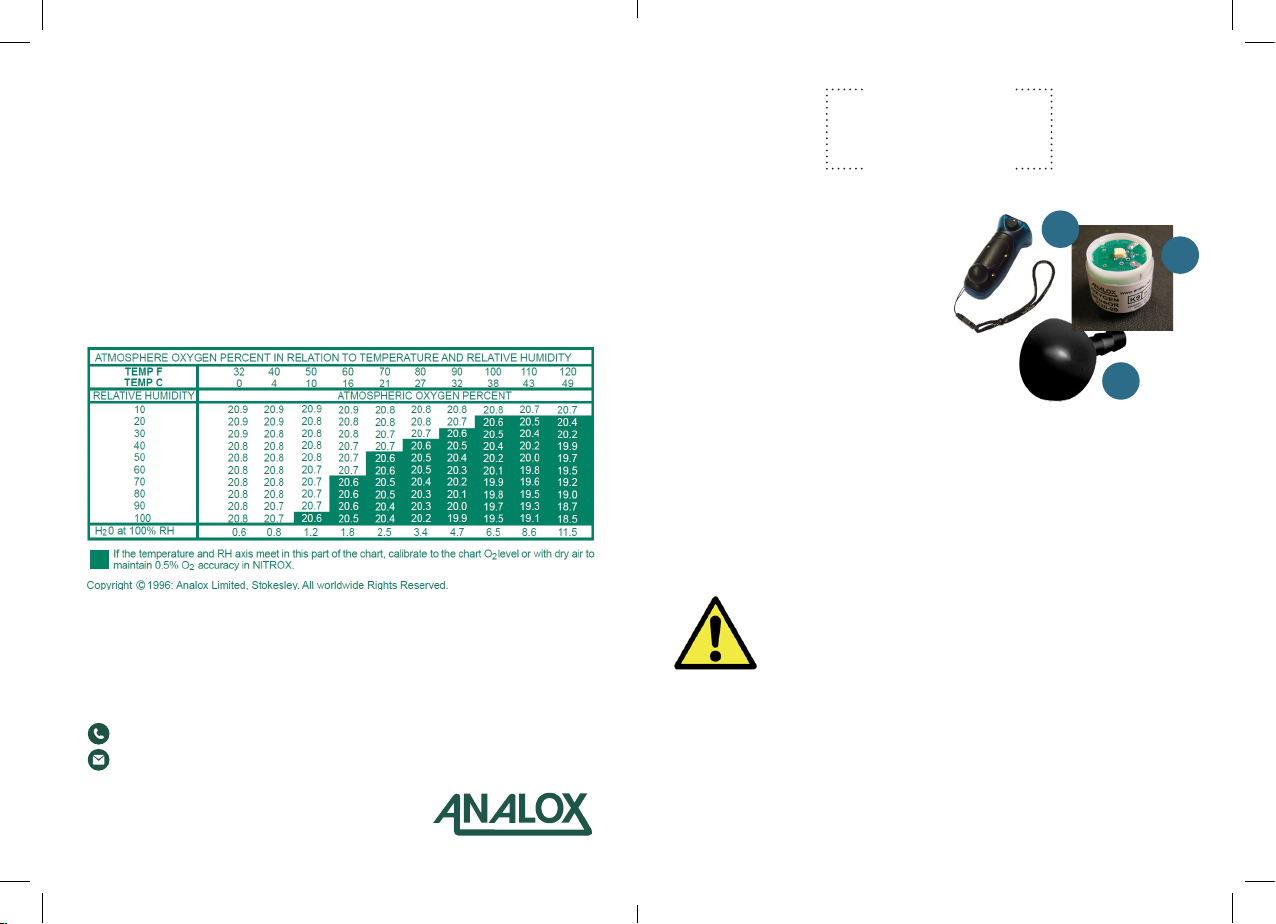

Oxygen compensation chart for moisture in the atmosphere
Analox
15 Ellerbeck Court,
Stokesley Business Park,
Stokesley,
North Yorkshire,
TS9 5PT, UK
[phone]
[email protected]
Analox USA
North & South America,
15121 Graham Street #B106,
Huntington Beach,
California,
92649 USA
[phone] or Toll Free: [phone]
[email protected]
MO2-860-03

Fitting the O2Sensor How to take a reading
Take the O2EII Pro
and oxygen sensor,
carefully cut open
the bag to obtain the
sensor and allow the
sensor to settle for
24hrs prior to use.
Remove the front
cover from the unit.
Secure the sensor
to the front cover.
Connect the JST
cable connector
to the JST header
on the PCB of the
oxygen sensor
as shown.
Gently place the
cover back onto the
unit taking care not
to trap any wires
and secure.
With the O2EII Pro
in your left hand,
press the button to
turn on.
Adjust the
calibration knob until
the display reads the
correct value, using
the O2compensation
chart on the
back page.
Open the tank until
you hear the gas
gently hissing out.
Hold the O2EII Pro
in your left hand,
press the sample
dome rmly against
the cylinder outlet.
Once you have a
stable reading, press
the power button to
hold it.
1
2
3
4
5
1
2
3
4
5
Connect the BCD
to the tank.
Connect the other
end of the pipe work
to the analyser
ow restrictor.
Allow the O2EII Pro
reading to settle
then take a reading
by pressing the
power button.
Prior to tting
the tank hose to
the BCD, connect
pipe work to the
spigot on the dome
adaptor on the
O2EII Pro.
Connect the
analyser ow
restrictor to the
tank hose.
Reconnect the tank
hose up to the BCD.
You are now ready
to dive.
Fitting the BCD adaptor and taking a reading
OO22 EEIIII PPrroo
Oxygen Analyser
MO2-860-01
IT IS IMPORTANT THAT THESE INSTRUCTIONS ARE
READ BEFORE USING THE O2 EII Pro
AAbboouutt tthhee OO22 EEIIII PPrroo::
The O2 EII Pro includes an Analox 9100-9220-9B type Electro Chemical
Sensor, this has an expected life span of 4-5 years in air and a 36 month
graded warranty. The battery within is a 9V alkaline (PP3) and has an
approximate life of 12 months.
TTeecchhnniiccaall mmaannuuaall ddeettaaiillss::
Visit our commercial website for the full technical manual
www.analoxsensortechnology.com and search for O2 EII Pro in the search
bar and the associated pages will appear, the download section is where
you will find the user manual.
PPaacckkaaggiinngg && ccoonntteennttss::
On opening your O2 EII Pro, please check you have the following items:
a) O2 EII Pro.
b) O2 Sensor.
c) Dome adaptor with Hose Barb (to receive a sample from your BCD)
d) Any accessories ordered for your O2 EII Pro.
SSaaffeettyy NNootteess SSeennssoorr HHaannddlliinngg::
The sensor in the O2 EII Pro is an electrochemical device and
contains an acidic electrolyte. Always check to make sure that
it is not leaking and do not allow it onto any part of your body
or clothing. In the event that you do come into contact with
the electrolyte wash the contaminated part with plenty of water.
For further information please see the full technical manual.
Quick Start Guide
Warning:
If a ow rate in excess of 2 litres per minute is passed over this sensor
when taking a reading, this will pressurise the sensor and make the
reading inaccurate. Best accuracy is achieved with a ow between 0.5
to 1 litres per minute.
It is the users responsibility to purchase the correct connection
equipment in order to do so. For more information please contact us.
Note: Tank contents can be checked either during setup of rig or just
before dive.
12
34
56
