DELUXE CONNECTED BLOOD PRESSURE MONITOR
Model UA-651CNBLE
Instruction Manual
ORIgINaL

E-1
A&D Medical (Toll-Free): 1-888-726-9966
1. GREETINGS
2. PRELIMINARY REMARKS
This A&D blood pressure monitor is one of the most advanced
monitors available and is designed for ease of use and accuracy.
This device will facilitate your daily blood pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time. The Bluetooth
®
word mark and logos
are registered trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by A&D is under license. Other trademarks and trade names
are those of their respective owners.
3. PRECAUTIONS
☞
Precision components are used in the construction of this device.
Extremes in temperature, humidity, direct sunlight, shock or dust
should be avoided.
☞
Clean the device and cuff with a dry, soft cloth or a cloth dampened
with water and a neutral detergent. Never use alcohol, benzene,
thinner or other harsh chemicals to clean the device or cuff.
☞
Avoid tightly folding the cuff or storing the hose tightly twisted for
long periods, as such treatment may shorten the life of the
components.
☞
The device and cuff are not water resistant. Prevent rain, sweat
and water from soiling the device and cuff.
☞
The device is designed for use on adults only, and is not
intended for infants.
☞
This device is designed for use in the home healthcare
environment to measure blood pressure and pulse rate of people
for diagnosis.

E-2
A&D Medical (Toll-Free): 1-888-726-9966
☞
Measurements may be distorted if the device is used close to
televisions, microwave ovens, cellular telephones, X-ray or other
devices with strong electrical fields.
☞
When using the device, confirm that the device is clean.
☞
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the
applicable local regulations.
☞
When the AC adapter is used, make sure that the AC adapter
can be readily removed from the electrical outlet when
necessary.
☞
Do not modify the device. It may cause accidents or damage to
the device.
☞
To measure blood pressure, the arm must be squeezed by the
cuff hard enough to temporarily stop blood flow through the
artery. This may cause pain, numbness or a temporary red mark
to the arm. This condition will appear especially when
measurement is repeated successively. Any pain, numbness, or
red marks will disappear with time.
☞
Do not apply the cuff on an arm in which another medical device
is attached. The equipment may not function properly.
☞
People who have a severe circulatory deficit in the arm must
consult a doctor before using the device, to avoid medical
problems.
☞
Do not self-diagnose the measurement results and start
treatment by yourself. Always consult your doctor for evaluation
of the results and treatment.
☞
Do not apply the cuff on an arm with an unhealed wound.
☞
Do not apply the cuff on an arm receiving an intravenous drip or
blood transfusion. It may cause injury.
PRECAUTIONS

E-3
A&D Medical (Toll-Free): 1-888-726-9966
☞
Do not use the device where flammable gases such as anesthetic
gases are present. It may cause an explosion.
☞
Do not use the device in highly concentrated oxygen suc as a
high-pressure oxygen chamber or an oxygen tent. It may cause a
fire or explosion.
PRECAUTIONS
☞
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including interference that
may cause undesired operation of the device.
☞
Take care to avoid accidental strangulation of infants with the hose.
☞
Do not twist the air hose during measurement. This may cause injury
due to continuous cuff pressure.
☞
Measuring blood pressure too frequently may cause harm due to
blood flow interference. Check that the operation of the device does
not result in prolonged impairment of blood circulation, when using
the device repeatedly.
☞
If you have had a mastectomy, please consult a doctor before
using the device.
☞
Do not let children use the device by themselves and do not use
the device in a place within the reach of infants.
☞
There are small parts that may cause a choking hazard if swallowed
by infants.
☞
Wireless communication devices, such as home networking devices,
mobile phones, cordless phones and their base stations,
walkie-talkies can affect this blood pressure monitor. Therefore, a
minimum distance of 11 feet should be kept from such devices.

E-4
A&D Medical (Toll-Free): 1-888-726-9966
?PARTS IDENTIFICATION........................................................................... E-5
SYMBOLS...................................................................................... E-6 - E-7
USING THE MONITOR.................................................................... E-8 - E-15

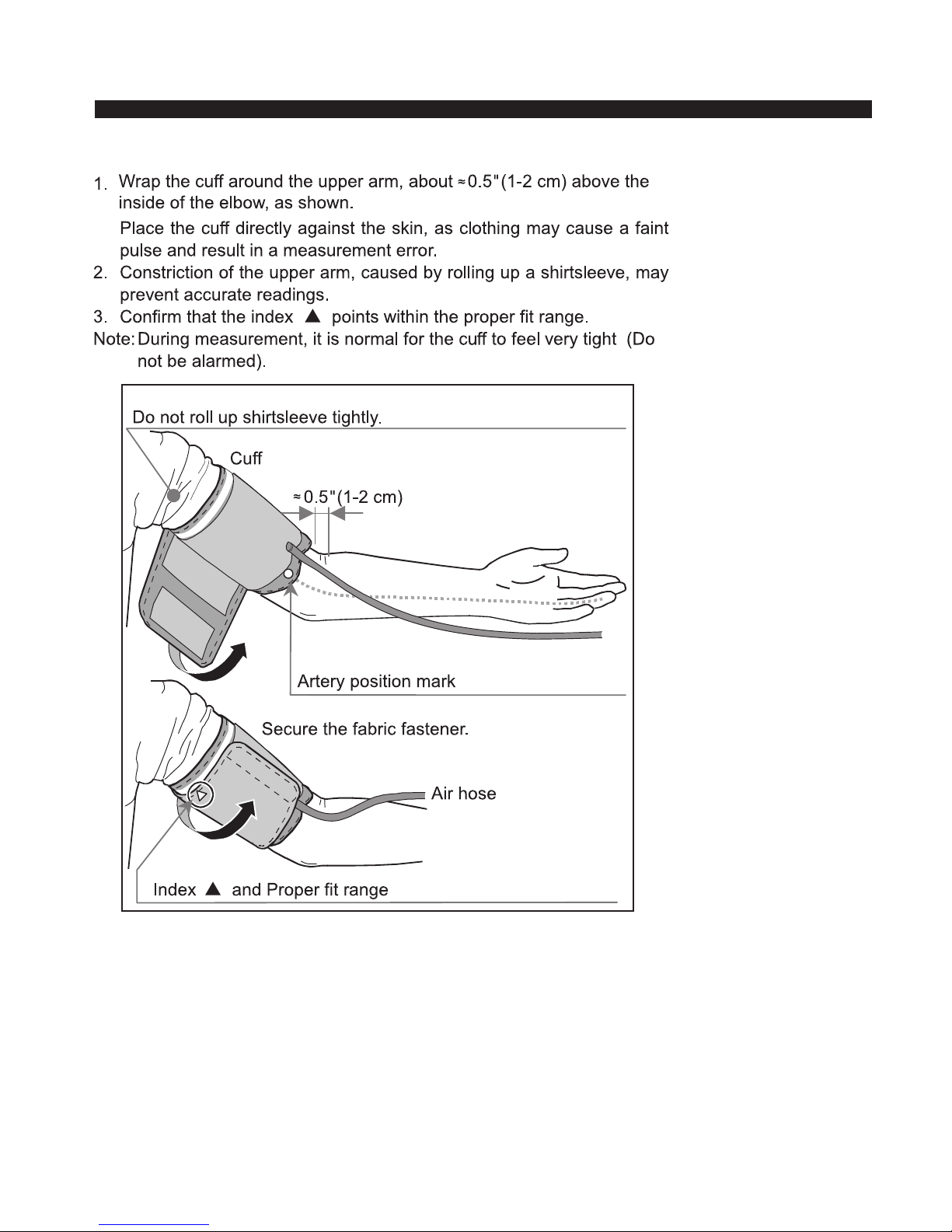

MEASUREMENT......................................................................... E-16 - E-18
WHAT IS AN IRREGULAR HEARTBEAT..................................................... E-19

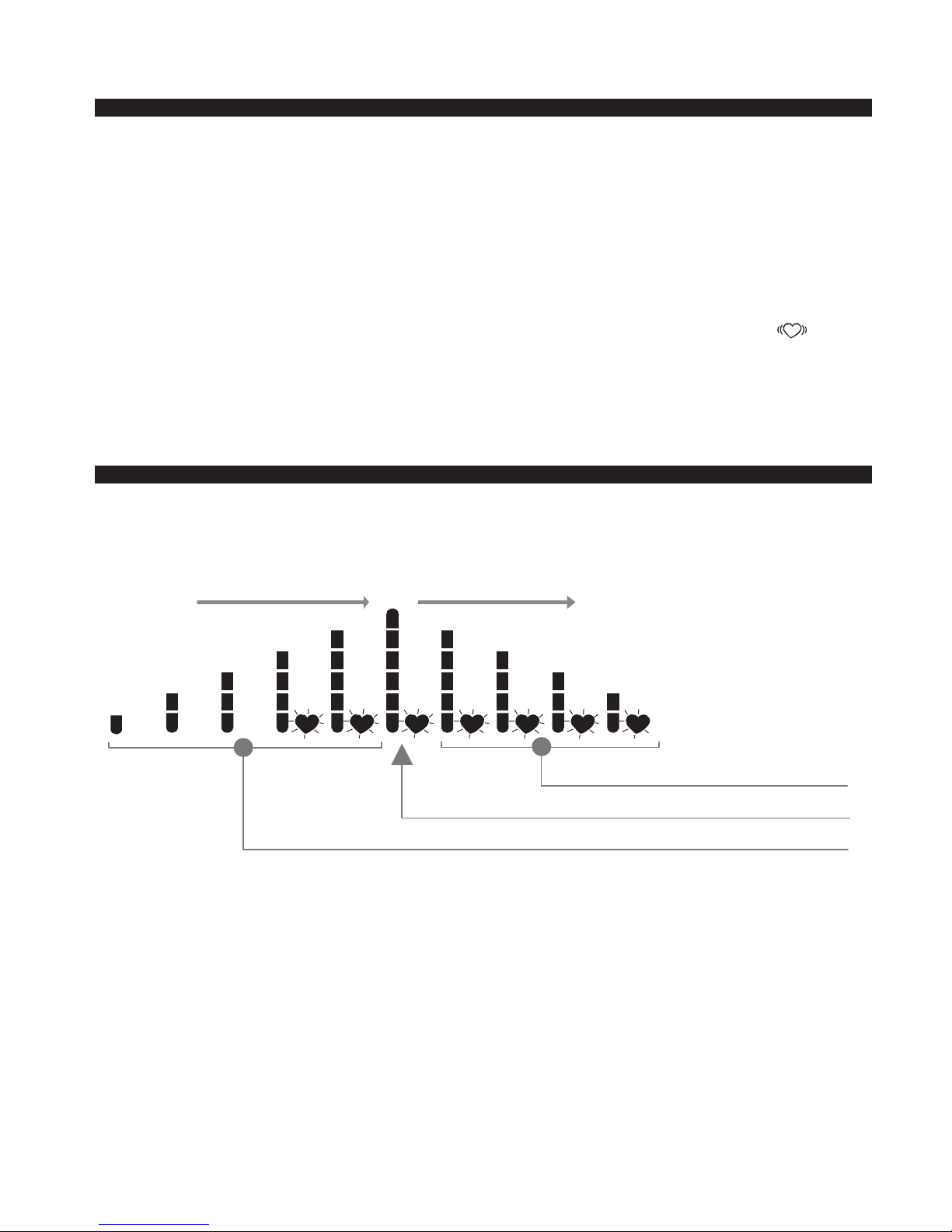

PRESSURE BAR INDICATOR.................................................................. E-19
TROUBLESHOOTING.............................................................................. E-20
MAINTENANCE..................................................................................... E-21
TECHNICAL DATA....................................................................... E-21 - E-24
CONTACT INFORMATION....................................................................... E-24
TABLE OF CONTENTS

E-5
A&D Medical (Toll-Free): 1-888-726-9966
PARTS IDENTIFICATION
Display
M
Displa
y
A
ir Hose
Cuff
Button
Index
AirSocket
Proper fit range
Artery position mark
DC jac
k
AC adapter Plug
AirConnector Plug
Battery Compartment
Battery Cover
SystolicPressure
Diastolic Pressure
Battery Indicator
(Irregular heartbeat symbol)
Pressure Bar Indicator
r
I.H.B. symbol
Communication mark
Heart Mark
START

E-6
A&D Medical (Toll-Free): 1-888-726-9966

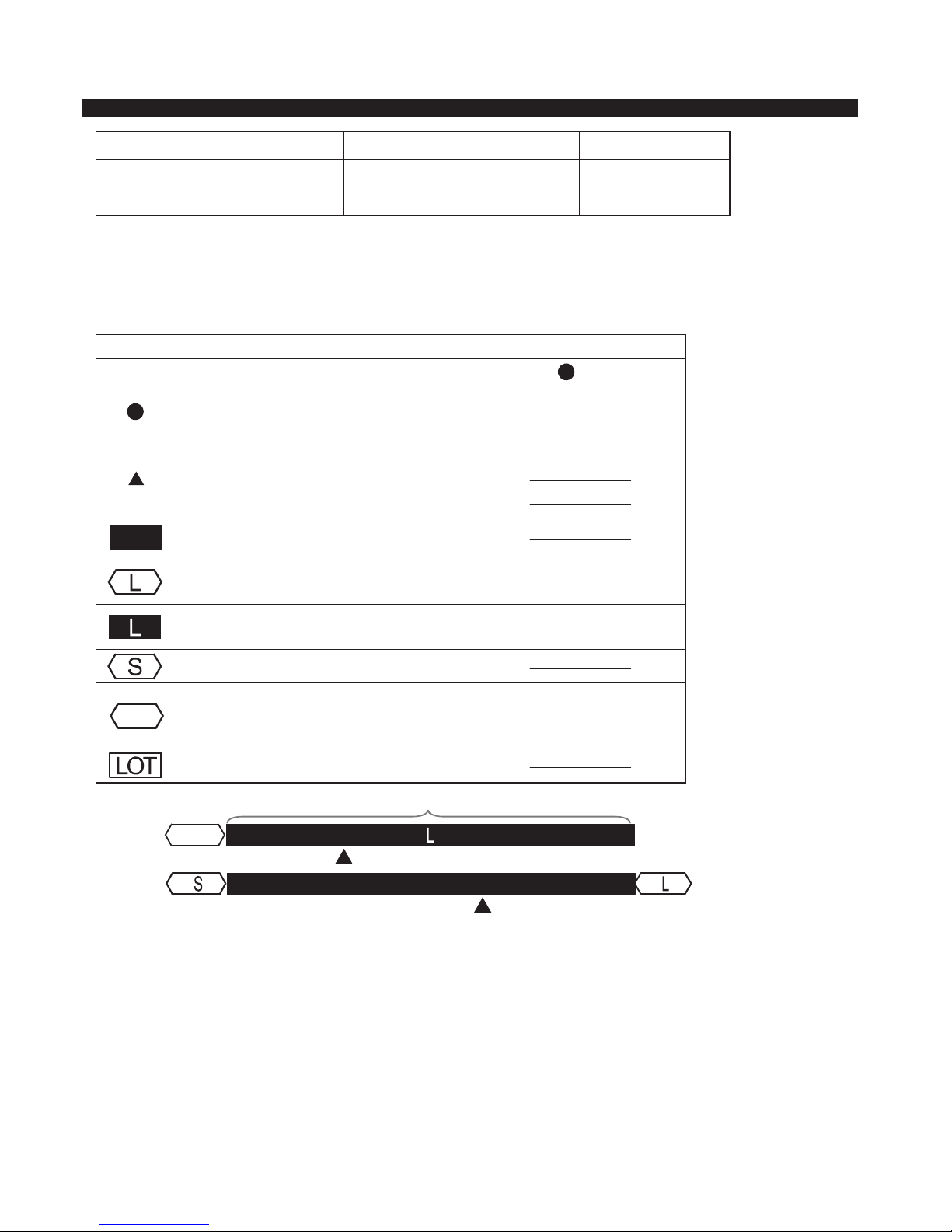

SYMBOLS
Full battery. The battery power
indicator during measurement.
Low battery. The battery power is
low when it blinks.
Pul display error. The pulse is not
detected correctly.
Symbols that appear on the display

E-7
A&D Medical (Toll-Free): 1-888-726-9966

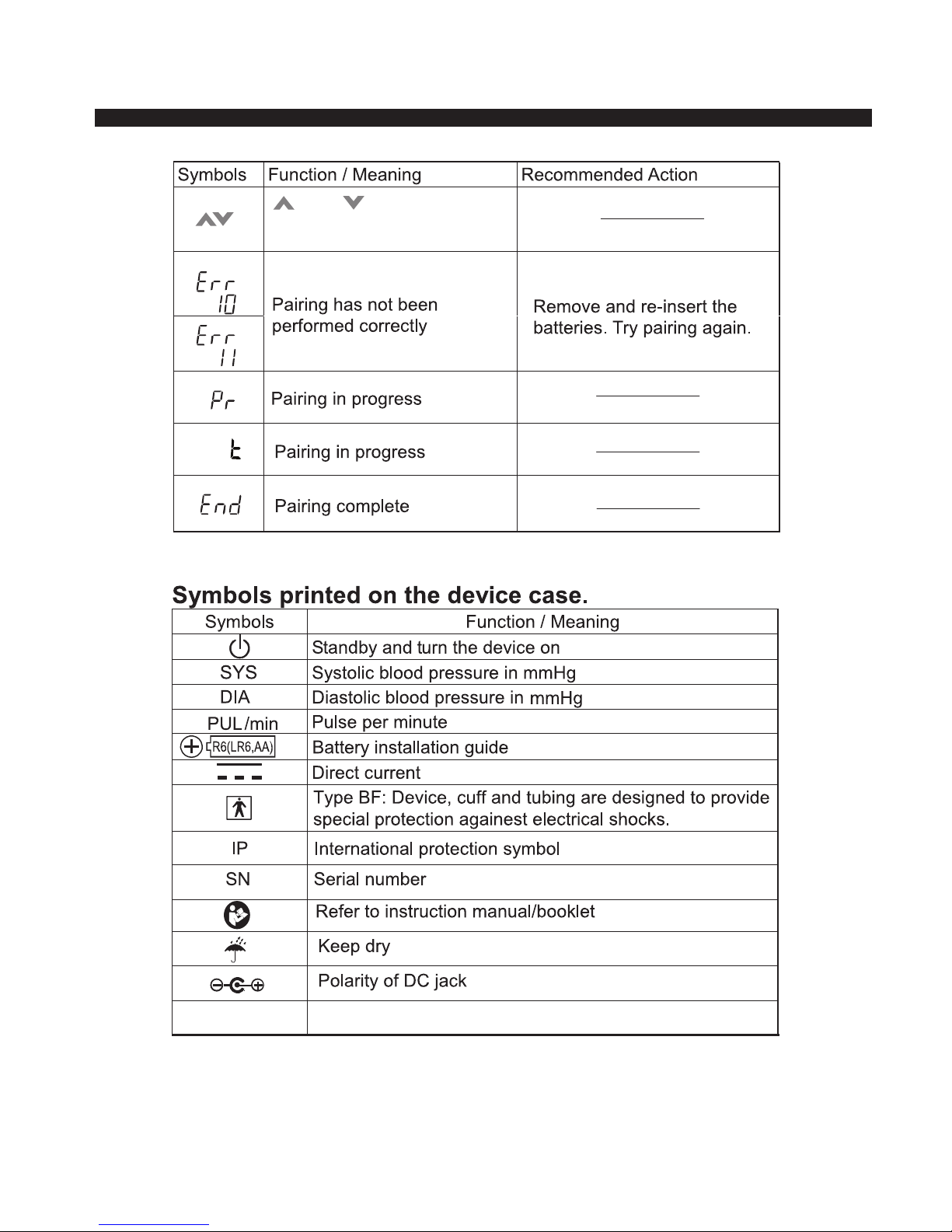

SYMBOLS
and are illuminated
alternately during
communication
BT Bluetooth Address
SE
.

E-8
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Installing/ Changing the batteries
1. Remove the battery cover.
2. Remove the used batteries from
the battery compartment when
changing them.
3. Insert new batteries into the
battery compartment as shown,
taking care that the polarities
(+) and (-) are correct.
4. Replace the battery cover. Use
only R6P, LR6 or AA batteries.
CAUTION
☞ Insert the batteries as shown in the battery compartment.
If installed incorrectly, the device will not work.
☞ When blinks on the display and the device indicates
that the battery needs to be replaced, replace all batteries
with new ones. Do not mix old and new batteries.
It may shorten the battery life, or cause the device to
malfunction. Replace the batteries two seconds or more after
the device turns off.
☞ If does not appear, then the batteries are completely
drained.
☞ The battery life varies with the ambient temperature and
may be shorter at low temperatures. Generally, four new AA
batteries will last approximately for one year when used twice
for measurement each day.
☞ Use the specified batteries only. The batteries provided with
the device are for testing the device performance and may
have a limited life.
☞ Remove the batteries if the device is not to be used for a
long time. The batteries may leak and cause a malfunction.
Step 1
Step 3
Step 4
Step 2

E-9
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Connecting the Air Hose
Connecting the AC Adapter
Wireless Function
Insert the air connector plug into the
air socket firmly.
Insert the AC adapter plug into
the DC jack. Then, insert the AC
adapter into an electrical outlet.
The AC adapter part # TB-233,
is sold separately.
☞
In the unlikely event that this monitor causes radio wave
interference to a different wireless station, change the location
where this monitor is used or stop use immediately.
☞
Be sure to use in a location where visibility between the two
devices that you want to connect is good. The connection distance
is reduced by the structure of buildings or other obstructions. In
particular, connection may be impossible when devices are used
on either side of reinforced concrete.
☞
Do not use Bluetooth
®
connection in the range of a wireless LAN
or other wireless devices, near devices that emit radio waves such
as microwaves, in locations where there are many obstructions, or
in other locations where signal strength is weak. Doing so may
result in frequent loss of connection, very slow communication
speeds and errors.
Air Socket
A
ir Connector Plug
A
ir Hose
DC Jack
A
C adapter Plug
When disconnecting the AC adapter from the electrical outlet, pull the
grasp and AC adapter body out of the outlet.
When disconnecting the AC adapter plug from the blood grasp and pull
the AC adapter plug out of the monitor.

E-10
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
☞
Using close to an IEEE802.11g/b/n wireless LAN device may
cause mutual interference to occur, which may result in reduced
communication speeds or which may prevent connection. In
this case, switch off the power supply to the device that is not
being used, or use the monitor in a different location.
☞
If the monitor does not connect normally when used near a
wireless station or broadcast station, use the monitor in a
different location.
☞
A&D Medical cannot accept liability for any damages incurred
due to impaired operation or data loss, etc. that occur through
the use of this product.
☞
This product is not guaranteed to connect to all Bluetooth
®
compatible devices.
This product is equipped with a Bluetooth
®
wireless function and can
connect to the following Bluetooth
®
4.0 devices.
• Apple iOS v6.0 or newer (iPhone 4s or newer; iPod
touch 5th generation; iPad 3, 4; iPad Air; iPad mini)
• Android support coming soon for Bluetooth Smart
Ready devices with Android v4.4 or newer.
Each device needs an application to receive data.
For connection methods, refer to the manual for each device.
To connect with your mobile device - download and install the
“A&D Connect” app:
Follow the instructions in the app to connect.
Bluetooth
®
Transmission

E-11
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
A Bluetooth
®
device needs to be paired with this blood pressure monitor
in order to communicate with that device. If this monitor is paired with a
receiver device from the start, measurement data is transmitted
automatically to the receiver device each time a measurement is made.
☞
Be sure to turn the power of all other Bluetooth
®
devices off when
pairing. Multiple devices cannot be paired at the same time.
If the receiver device cannot receive measurement data, try
pairing once again.
☞
Communication is possible with one of the receiver devices. If a
second receiver device is paired, the device other than the most
recently connected device will be unpaired to enable the new
device to be paired.
☞
Follow the steps on the next page to pair the monitor with a
Bluetooth
®
compatible receiver device. Also refer to the manual
of the receiver device. Please use a pairing wizard if one is
provided.
Tips for pairing
Connecting to a mobile device (Pairing)

E-12
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
1. Follow the instructions in the manual of the receiver device to switch it
to the pairable status. When pairing this monitor, place it as close as
possible to the receiver device to be paired with.
2. Install the batteries or connect the AC adapter.
Press and hold the "START" button until "Pr" is displayed,
then release the button.
The monitor will be in a state that can be found by the
receiver device for about one minute.
3. The monitor displays "End" to indicate that pairing is
complete.
4. If "Err 10" is displayed or pairing is failed, remove the
batteries or disconnect the AC adapter and try steps 1-3 again.
5. Follow the manual of the pairing receiver device to search for, select
and pair with this monitor.
Communication distance
The communication distance between this monitor and the receiver
device is about 33 feet (10 m). This distance is reduced by the conditions
in the surrounding environment, so be sure to check that the distance is
short enough for a connection to be made after measurement is complete.
Pairing procedure

E-13
A&D Medical (Toll-Free): 1-888-726-9966
In cases when the receiver device cannot receive measurement data,
the measurement data is temporarily stored in the monitor memory.
The data stored in the memory is transmitted the next time a
connection is successfully made to the receiver device. A total of 30 sets
of measurement data can be stored. When the amount of data exceeds
30 sets, the oldest data is deleted and the new data is stored. The
amount of data that can be stored temporarily may vary with the
application.
USING THE MONITOR
Time
This monitor has a built-in clock. The date and time a measurement
was taken is included in the measurement data.
The built-in clock is designed to be automatically adjusted by syncing
with the clock of a receiver device. Refer to the specifications of the
receiver device.
This monitor has no clock adjustment function.
Using the correct cuff size is important for an accurate reading. If the
cuff is not the proper size, the reading may yield an incorrect blood
pressure value.
The arm size is printed on each cuff.
The index and proper fit range, on the cuff, tell you if you are
applying the correct cuff. Refer to "Symbols printed on the cuff".
If the index points outside of the range, contact your local dealer to
purchase a replacement cuff.
The cuff is a consumable. If it becomes worn, purchase a new one.
Selecting the correct cuff
Transmitting Temporarily Stored Data

E-14
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Arm size: The circumference at the biceps.
Note: Model UA-651CNBLE is not designed to use a small cuff.
Symbols printed on the cuff.
Artery Position Mark
Set the mark on
the artery of the upper
arm or in line with the
ring finger on the
inside of the arm.
Index
REF Catalog number
Lot number
Proper fit range
Symbols Function / Meaning Recommended Action
Arm size Recommended Cuff Size Part Number
9.0"-14.6" (23 to 37 cm) Medium cuff UA-290
12.2"-17.7" (31 to 45 cm) Large cuff UA-291
M
M
M
M
Large cuff
Medium cuff
Proper t range for the medium cuff.
It's printed on the medium cuff.
Use the large cuff instead
of the medium cuff
Under range printed on the medium cuff
Over range printed on the large cuff.
Proper t range for the large cuff.
It's printed on the medium cuff.
Under range printed on the large cuff Use the medium cuff
instead of the large cuff

E-15
A&D Medical (Toll-Free): 1-888-726-9966
USING THE MONITOR
Applying the cuff

E-16
A&D Medical (Toll-Free): 1-888-726-9966
MEASUREMENT
Normal Measurement
, which turns the power off approximately one minute
after measurement.

E-17
A&D Medical (Toll-Free): 1-888-726-9966
MEASUREMENT
☞
Sit down in a comfortable position. Place the arm to be used
for the measurement on a table or other support so that the
center of the cuff will be at the same height as your heart.
☞
Relax for several minutes before measurement. If you are
excited or depressed by emotional stress, the measurement
will reflect this stress as a higher (or lower) than normal
blood pressure reading and the pulse reading will usually be
faster than normal.
Notes for accurate measurements:
Measurement with the Desired Systolic Pressure

E-18
A&D Medical (Toll-Free): 1-888-726-9966
MEASUREMENT
☞
Do not measure right after physical exercise or a bath. Rest for
twenty or thirty minutes before taking the measurement.
☞
Do not smoke or ingest caffeine at least 30 minutes prior to
measurement.
☞
This device bases its measurements on the heartbeat. If you
have a very weak or irregular heartbeat, the device may have
difficulty determining your blood pressure.
☞
Should the device detect a condition that is abnormal, it will
stop the measurement and display an error symbol. Refer to
the section "SYMBOLS" for the description of the symbols.
☞
This device is intended for use by adults only. Consult with
your physician before using this device on a child. A child
should not use this device unattended.
☞
Compare blood pressure taken at the same time each day.
☞
Sit comfortably on a chair. Rest your arm on the table. Do not
cross your legs. Keep your feet on the floor and straighten your
back.
☞
An individual's blood pressure varies constantly, depending on
what you are doing and what you have eaten, What you drink
can have a very strong and rapid effect on your blood pressure.
☞
Remove constricting clothing and place cuff on bare arm.
☞
Unless your physician recommends otherwise, use left arm to
measure pressure.
☞
Remain still and keep quite during measurement.

E-19
A&D Medical (Toll-Free): 1-888-726-9966
WHAT IS AN IRREGULAR HEARTBEAT
The UA-651CNBLE provides a blood pressure and pulse rate
measurement even when an irregular heartbeat occurs. An
irregular heartbeat is defined as a heartbeat that varies by 25%
from the average of all heartbeats during the blood pressure
measurement. It is important that you are relaxed, remain still
and do not talk during measurements.
Note: We recommend contacting your physician if you see this
symbol frequently.
The indicator monitors the progress of pressure during
measurement.
PRESSURE BAR INDICATOR
Measurement in progress
Inflation complete
Inflation in progress
Pressurizing Releasing air
