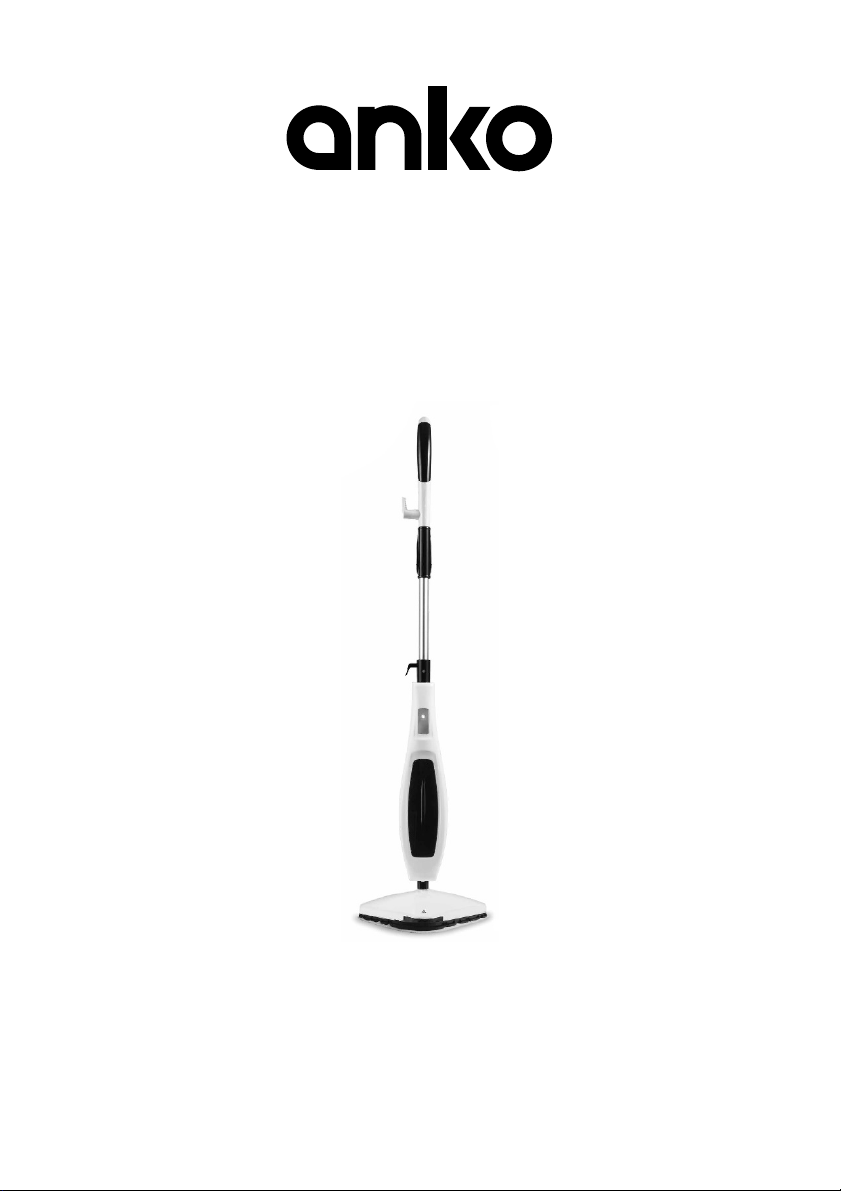

anko JC-230 User manual

Steam Mop
User Manual
Model No.: JC-230
Rev 1
READ AND SAVE THESE INSTRUCTIONS

Page 2of 16

Page 3of 16
1Warnings..................................................................................4
2Safety Direction.......................................................................4
3Recommended Floor Surfaces ..............................................5
4Transporting your Steam Mop ...............................................6
5Components ............................................................................6
6Assembly .................................................................................7
6.1 Adjustable Handle ................................................................ 8
7Micro Fibre Pad .......................................................................8
8Operation ................................................................................. 9
8.1 Using on carpets ................................................................ 10
9User Maintenance ................................................................. 10
9.1 Cleaning the Micro Fibre Pad ............................................ 11
9.2 Reduced Steam Flow.......................................................... 11
10 Completion and Storage ................................................... 12
10.1 Cleaning the Steam Mop .................................................... 13
11 Troubleshooting ................................................................ 13
12 Warranty Against Defect................................................... 15

Page 4of 16
1 Warnings
Before using this appliance, read and follow all warnings and instructions in this
manual, even if you are familiar with this product.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The liquid or steam must not be directed towards equipment containing electrical
components, such as power boards or the like.
DO NOT use in swimming pools, etc. containing water.
The appliance has to be unplugged after use and before cleaning and carrying out
user maintenance on the appliance.
2 Safety Direction
Please read this instruction manual carefully before first use. It is advisable to keep
this instruction manual for future reference.
DO NOT leave the appliance unattended when in use, hot or producing steam.
Take care that children cannot touch the appliance when the appliance is hot and
or producing steam, and make sure they cannot pull the mains cord.
DO NOT direct the steam towards persons, animals or equipment containing
electrical components, such as the interior of ovens.
To protect against the risk of electric shock, do not immerse the appliance, cord or
plug in water or other liquids.
The filling aperture (Water Fill Cap) must not be opened during use.
Take care as burns can occur from touching hot parts, hot water or steam.
DO NOT use near sinks, baths or showers containing water or running water.
Disconnect the plug from wall socket and let cool before changing the micro fibre
cleaning pad.

Page 5of 16
This appliance must be earthed. The use of an Earth Leakage Safety Switch is
highly recommended. If unsure, consult an electrician.
DO NOT use without the micro fibre cleaning pad fitted.
DO NOT store or use the appliance near or in high temperature areas.
DO NOT run over the power cord with the Steam Mop.
DO NOT use the appliance if the power cord is damaged. Do not repair by yourself.
ONLY for domestic use. Industrial or commercial use invalidates the warranty.
To avoid scalding, DO NOT touch hot surfaces or the steam nozzle on the bottom
during or just after use.
3 Recommended Floor Surfaces
This product can be used for cleaning floor surfaces such as sealed wooden
floors, ceramic tiles, granite, marble flooring, including some types of carpet
and Vinyl.
It is strongly advised to always test a section of the flooring material in an out-
of-sight area first to ensure the surface to be cleaned is not damaged by the
steam. Always follow manufacturer's cleaning instructions of the floor. If
unsure, DO NOT USE!
NOTE: This steam mop should not be used on surfaces with soft or heat
sensitive coatings like wax, enamels or oils, etc.
IMPORTANT:
DO NOT use on unsealed hardwood or unglazed ceramic surfaces.
Surfaces that are not properly sealed may be warped or damaged by exposure
to heat and moisture.
Care should also be taken when steaming sealed hardwood floors, as
prolonged exposure to steam in single spot may cause damage and
discoloration.
To avoid this, keep the Steam Mop in constant motion on these surfaces, and
place it an old towel or similar when finished.
Extremely rough textured floors may tear or damage the Microfibre Pad.

Page 6of 16
DO NOT use on windows, tables or other types of furniture or fixtures.
DO NOT add any other agents into the water tank, such as, rust removers,
odour counter reacting agents, alcohol, cleaners, solvents, detergents, etc. as
this may cause serious injury to the user and may damage the appliance and
floor surface.
4 Transporting your Steam Mop
To move your Steam Mop from room to room, unplug the unit and carry using
the handle.
Never pull or carry the Steam Mop by its cord.
5 Components
1
Indicator Light
7
Extension Lock
2
Power Cord and Plug
8
Carpet Slider
3
Water Filler Cap
9
Water Beaker
4
Water Tank
10
Steam Head
5
Micro Fibre Pad
11
Swivel Joint
6
Removable Handle
12
Main Body
1
2
5
4
3
6
8
9
10
11
12
7

Page 7of 16
6 Assembly
The handle needs to be assembled to the body when you receive your steam
mop.
•First, remove all the components from the packaging.
•Take the Handle and fit it into the hole located in the top of the Steam Mop
body and push down until it clips in place.
The Handle can be removed if need be for ease of storage.
•To remove, press the clip in and then pull the handle up and out.

Page 8of 16
6.1 Adjustable Handle

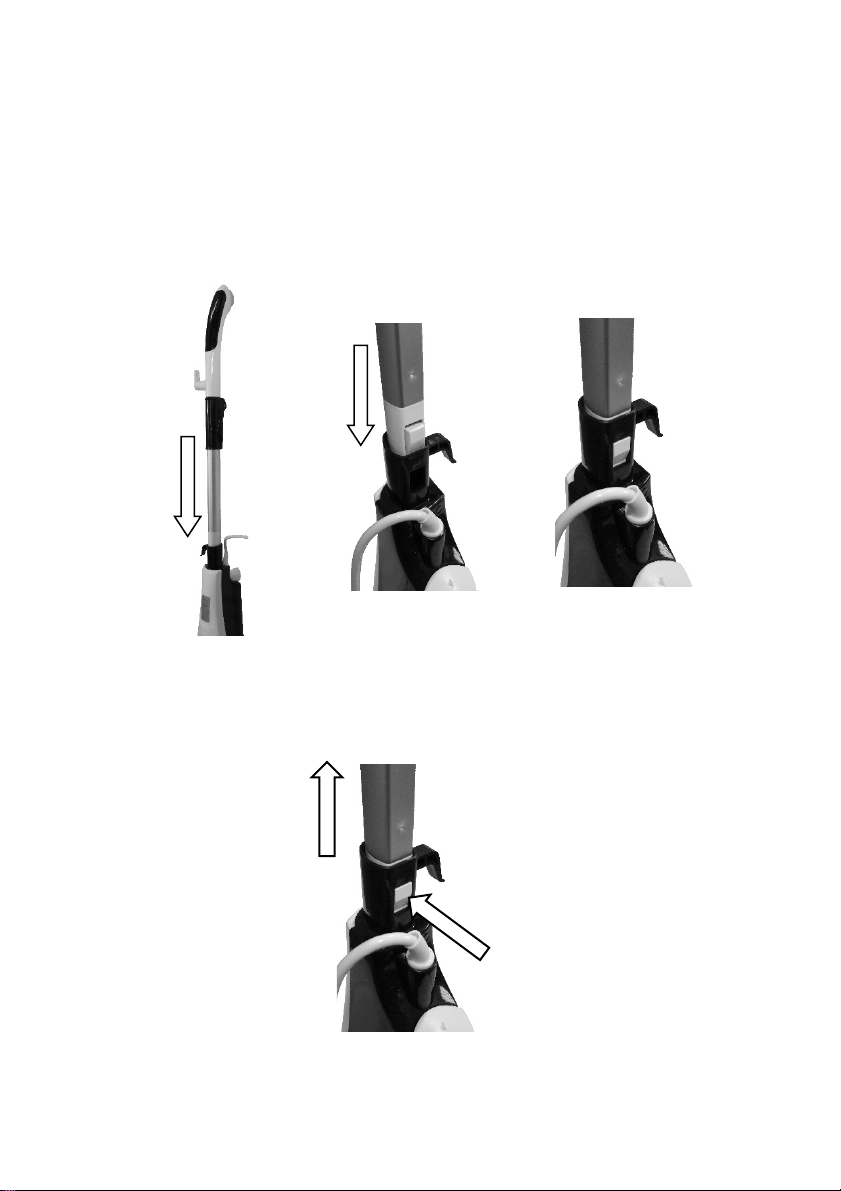

The Handle length can be adjusted to your desired length for comfort.
•To adjust, pull down the lever.
•Slide the handle out to your desired length and then close the lever to lock
in place.
7 Micro Fibre Pad
•To fit the Micro Fibre Pad, place the Micro Fibre Pad on the floor with the
“hook & loop” tabs facing up.
•Lift the steam mop up and position centrally over the Micro Fibre Pad and
then lower down applying a small amount of downward pressure.
•To remove the Micro Fibre Pad, ensure the steam mop is unplugged, empty
of water and cool, then grasp the edge of the micro pad and peel off.

Page 9of 16
8 Operation
Note: Ensure the Micro Fibre Pad is fitted before use. To prevent damage
to the floor never use the steam mop without the micro fibre pad.
•After fitting the Micro Fibre Pad, stand the steam mop upright.
•Open the water tank cap by pulling up on the tab.
•Fill the water tank to the “Max” mark (on the window) then refit the cap
securely.
•Ensuring the power cord is fully unwound, insert the plug into the power
point and switch on. The Indicator light on the front face of the Steam
Cleaner Body will illuminate and Flash.
•Allow 15 – 30 seconds (depending on the initial water temperature) for the
element to heat up.
NOTE: Read the section on “Recommended Floor Surfaces” prior to
use.
•Whilst in the upright “Park” position, the steam will not be generated.
To start the steam, pull the handle backward, ensuring the floor head
remains flat on the floor, and then start to push and pull the Steam Mop
over the floor as if you are vacuuming the floor.
Note: Tilting the handle back activates the water pump which in turn creates
the steam generation.
Note: A small amount of water may initially be ejected from the base when
heating starts. This is normal.

Page 10 of 16
•If you need to stop cleaning the floor, i.e. you need to move an object, or
the phone rings, and steam is still being ejected from the base, lift the
handle to the upright position until it locks inside the floor head. This stops
the water pump and stop the steam.
Note: Always switch off and unplug the appliance when refilling the water
tank, or when not in use.
IMPORTANT! Never allow the steam mop to rest in one spot while the
steam is on as this may damage the floor surface.
8.1 Using on carpets
This appliance is supplied with a Carpet Slider which allows you to use the
Steam Mop on carpets.
•To use this accessory, place the Carpet Slider on the carpet and then place
the Steam Mop Head (with Micro Pad fitted first) into the frame.
•Push and pull the Steam Mop over the carpet as if you are vacuuming the
floor.
•To remove the Carpet Slider, just lift the Steam Mop up and out of the
Slider.
•Take care when touching the Carpet Slider as it may be hot after use.
9 User Maintenance
WARNING: The appliance must be switched off and the plug must be removed
from the power point before any maintenance, cleaning or replacing the Micro
Fibre Pad.
NOTE: To maximise the performance of your steam mop, you should clean
the microfiber Pad regularly.

Page 11 of 16
9.1 Cleaning the Micro Fibre Pad
The Micro Fibre Pad must be cleaned regularly for best cleaning
performance.
Simply wash the Micro Fibre Pad in warm mild soapy water, rinse in clean
fresh cold water and let dry.
The Micro Fibre Pad may be washed in a washing machine on a Normal
Wash.
DO NOT scrub the Micro Fibre Pad or Tumble Dry.
9.2 Reduced Steam Flow
Should there be a build-up of scale etc. the flow of steam will be restricted
and there may be small particles of scale left of the floor surface.
The scale needs to be cleaned away as follows:
Disconnect from the power supply and wait for the appliance to fully
cool down.
Cleaning solution:
•Prepare a solution of 1/3 white vinegar and 2/3 tap water and add to the
water tank.
•Position and secure the mop over a sink. Ensure steam released from
the mop head is aimed into the sink and can’t do any harm to surrounding
surfaces, objects, pets or people, etc.
•Plug the unit in and wait for approx. 30 seconds for the unit to heat and
then tilt the handle back, so that it disengages from the floor head lock
position, to start the steam.
•Let the mop produce steam until the vinegar/water solution is used up.
•Repeat the above procedure as many times as necessary until a normal
steam flow rate is achieved.

Page 12 of 16
•After cleaning, the water tank and pipes etc. need flushing out with clean
water. To do this, fill the water tank with fresh clean water wait for approx.
30 seconds for the unit to heat and then tilt the handle back, so that it
disengages from the floor head lock position, to start the steam.Allow all
the water to be used up to ensure a good flush.
Note: After each lime scale removal we recommend performing a test clean
on a suitable isolated area to ensure that there is no debris left in the
system.
10 Completion and Storage
•After you have finished using the appliance, switch off and
unplug from the power point and allow the appliance to fully
cool down.
•When cool, empty the water tank.
•Remove the micro fibre pad and clean. (refer to User
Maintenance section)

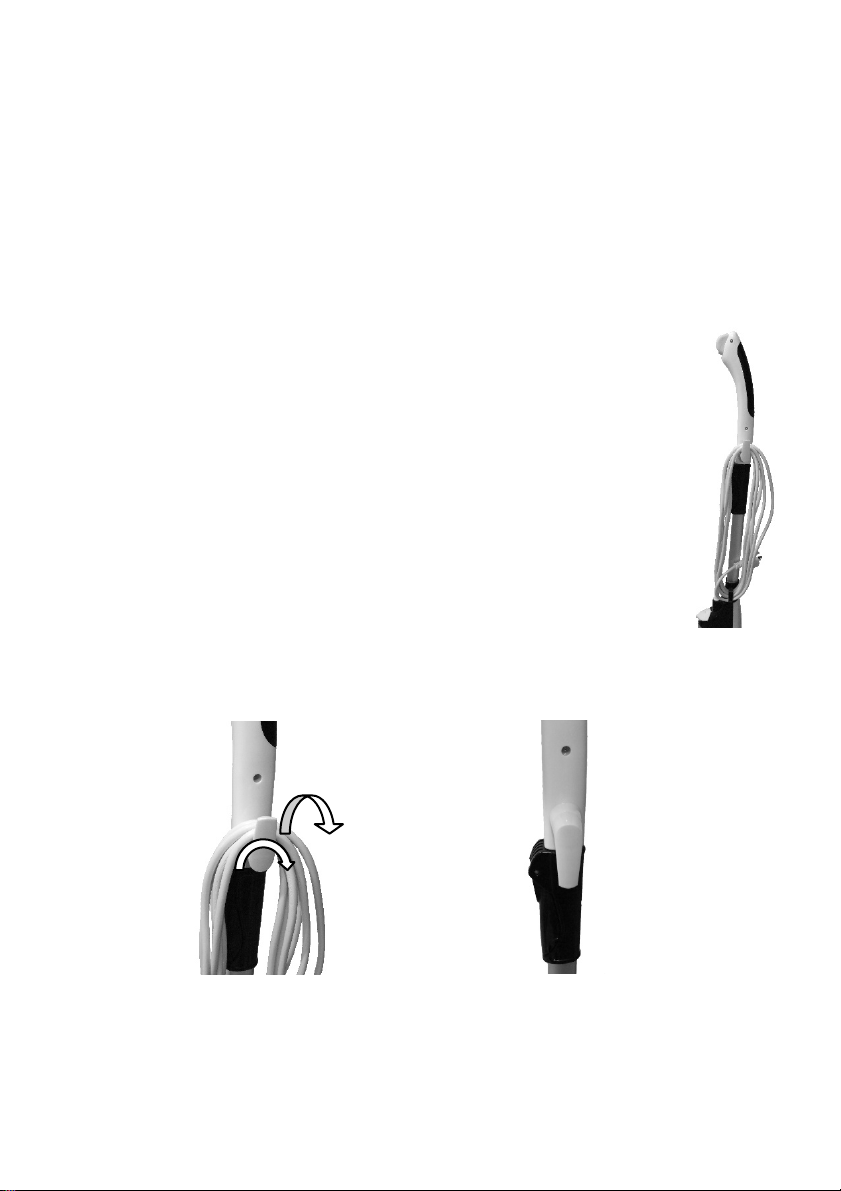

•Wind the power cord on to the side hooks as shown.
To quickly release the power cord, the top hook can be rotated to allow the
power cord to slip off as shown:

Page 13 of 16
10.1 Cleaning the Steam Mop
Do not clean the Steam Mop or components with petrol or any other
flammable liquids, solvents, etc.
Use only a moist cloth and mild detergent for cleaning the Steam Mop.
Clean only the outside of the Steam Mop.
After cleaning, wipe off the moisture with a dry cloth.
Do Not place in water to clean.
11 Troubleshooting
No Steam.
Power Not Switched On.
Water has not heated up
Handle has not been tilted
back far enough.
No water in the tank.
Blocked Steam Hole
Switch On at power point.
Allow approximately 20 – 30
seconds for the water to heat.
Tilt handle back ensuring the floor
head is still flat on the floor.
Add water to the water tank.
Clean the steam hole as described
under “User Maintenance”
A small amount of
water is ejected
instead of steam
This is normal when the
element is heating up.
This is normal
Indicator Light will
not come on. Power Not Switched On. Switch On at power point.
Indicator Light
flashing. Water is heating.
Allow water to heat for
approximately 20 – 30 sends
before use.

Page 14 of 16

Page 15 of 16
12 Warranty Against Defect
12 Month Warranty
Thank you for your purchase from Kmart.
Kmart Australia Ltd warrants your new product to be free from defects in
materials and workmanship for the period stated above, from the date of
purchase, provided that the product is used in accordance with
accompanying recommendations or instructions where provided. This
warranty is in addition to your rights under the Australian Consumer Law.
Kmart will provide you with your choice of a refund, repair or exchange
(where possible) for this product if it becomes defective within the warranty
period. Kmart will bear the reasonable expense of claiming the warranty.
This warranty will no longer apply where the defect is a result of alteration,
accident, misuse, abuse or neglect.
Please retain your receipt as proof of purchase and contact our Customer
Service Centre 1800 124 125 (Australia) or 0800 945 995 (New Zealand) or
alternatively, via Customer Help at Kmart.com.au for any difficulties with
your product. Warranty claims and claims for expense incurred in returning
this product can be addressed to our Customer Service Centre at 690
Springvale Rd, Mulgrave Vic 3170.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to
a major failure.
For New Zealand customers, this warranty is in addition to statutory rights
observed under New Zealand legislation.
IMPORTANT!
For all technical queries or difficulties in operating the product and for
spare parts, contact H.E. Group customer service 1300 105 888
(Australia) and 09 8870 447 (New Zealand).

Page 16 of 16
