Anolis ArcPower 48 Outdoor /W User manual

Version 1.
5

ArcPower 48 Outdoor
2
Table of contents
1. Safety instructions ...................................................................................................................................................... 3
2. Fixture exterior view ................................................................................................................................................... 4
3. Installation .................................................................................................................................................................. 5
3.1 Mounting the fixture ............................................................................................................................................ 5
3.2 Connection to the mains ...................................................................................................................................... 5
3.3 Wiring of the LED input connector ....................................................................................................................... 7
4. ArcPower 48 Outdoor (RGBW) - DMX protocol ......................................................................................................... 8
4.1 ArcPower 48 Outdoor (RGBA) - DMX protocol ..................................................................................................... 9
4.2 ArcPower 48 Outdoor (SmartWhite) - DMX protocol ........................................................................................ 11
4.3 ArcPower 48 Outdoor (Single colour) - DMX protocol ....................................................................................... 12
5. Control menu map .................................................................................................................................................... 13
6. Fixture menu ............................................................................................................................................................. 16
6.1 Fixture Address ................................................................................................................................................... 16
6.2 Fixture information ............................................................................................................................................. 16
6.3 Personality .......................................................................................................................................................... 17
6.4 Manual mode ...................................................................................................................................................... 18
6. 5 Test sequences................................................................................................................................................... 18
6.6 Stand-alone setting ............................................................................................................................................. 18
6.7 Special functions ................................................................................................................................................. 20
7. RDM .......................................................................................................................................................................... 22
8. Error messages ......................................................................................................................................................... 23
9. Wireless DMX operation ....................................................................................................................................... 23
10. Technical specifications .......................................................................................................................................... 23
11. Cleaning and maintenance ..................................................................................................................................... 25

ArcPower 48 Outdoor
3
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE POWERING OR INSTALLING YOUR ArcPower 48 Outdoor !
Save it for future reference.
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in
this manual.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual
or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
1. Safety instructions
DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT!
This fixture should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supplied, consult your authorized distributor or local power company.
Always disconnect the fixture from AC power before cleaning, removing or installing the fuses, or any part.
Do not overload wall outlets and extension cords as this can result in fire or electric shock.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the fixture and the power cord
from time to time.
Do not install the unit near naked flames.
During the operation the housing becomes hot (up to 80°C)
Refer servicing to qualified service personnel.
This fixture falls under protection class I. Therefore this fixture has to be connected to a mains socket outlet with
a protective earthing connection.
Do not connect this fixture to a dimmer pack.
Keep compustible materials at least 20 cm away from the fixture.
If the fixture has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on
immediately. The arising condensation water might damage your device. Leave the device switched off until it has
reached room temperature.
Avoid brute force when installing or operating the fixture.
The fixture was designed for outdoor use. This fixture must not be used for underwater installation.
When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust.
Avoid using the unit in locations subject to possible impacts.

ArcPower 48 Outdoor
4
The fixture body never must be covered with cloth or other materials.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
The fixture becomes very hot during operation. Allow the fixture to cool approximately 30 minutes prior to
manipulate with it.
Operate the fixture only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the fixture. Most damages are the result of unprofessional operation!
Do not attempt to dismantle or modify the unit.
Please consider that unauthorized modifications on the fixture are forbidden due to safety reasons!
Please use the original packaging if the fixture is to be transported.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock etc.
2. Fixture exterior view
1. Antenna (only wireless DMX version)
2. Control board with anti-vandal cover
3. Housing
4. Power/data input
5. LED input

ArcPower 48 Outdoor
5
3. Installation
Note
1. Before connecting a LED module, check its technical data in order to set the correct LED current and find
out if the LED module includes a temperature sensor. See the ArcPower 48 outdoor menu
“Personality”  “Load” and “Personality”  “Temp Sen”.
2. Do not overload the ArcPower 48 Outdoor.
3. Only one LED module with the temperature sensor can be connected to the ArcPower 48 Outdoor.
4. Mixing LED modules without temperature sensor and with temperature sensor is not allowed.
5. Max. length of connection cable between the ArPower 48 Outdoor and the LED unit should not exceed
20 metres.
3.1 Mounting the fixture

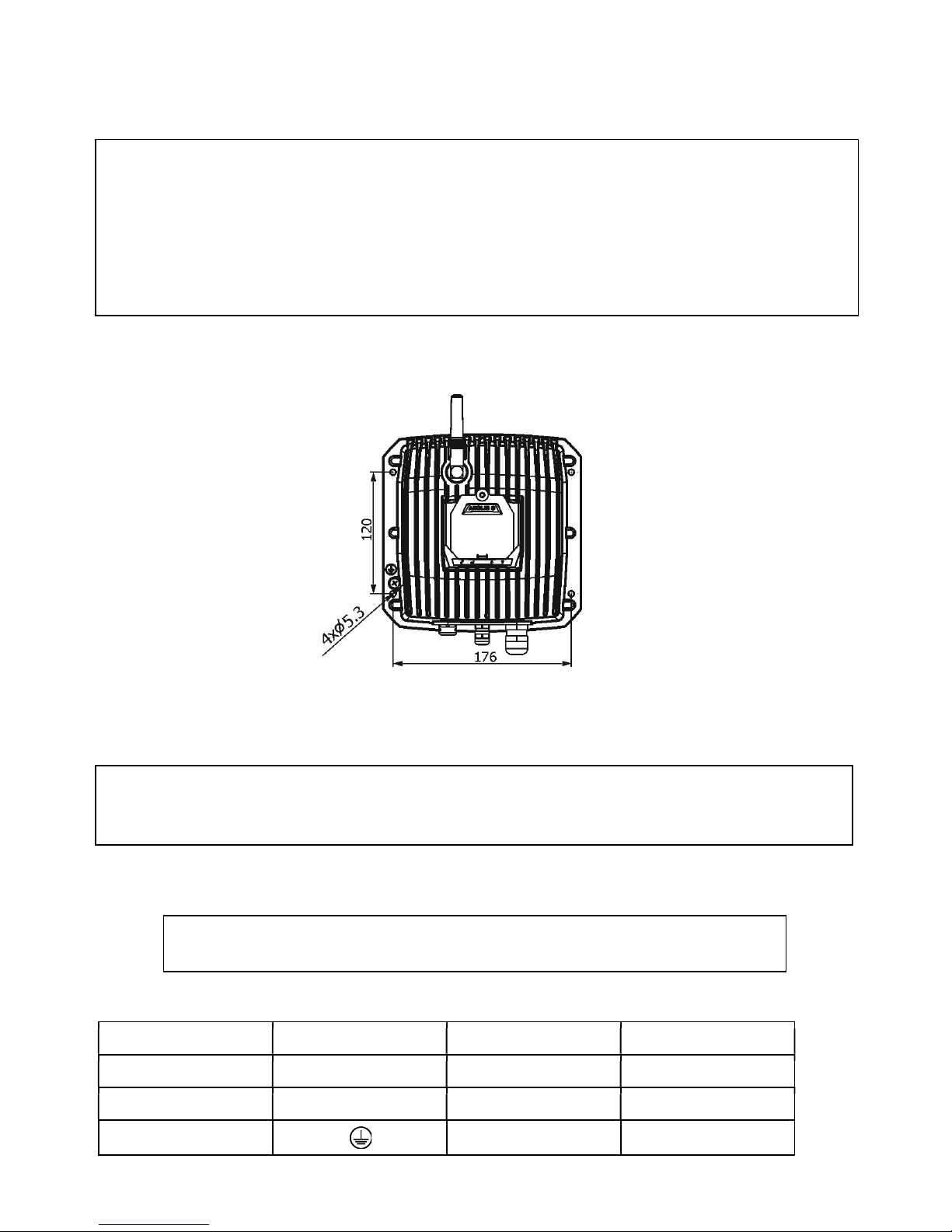

The ArcPower 48 Outdoor can be arranged in any position orientation.
Four holes with diameter of 5.3mm in the control unit are intended for mounting on a flat, non-flammable
surface. The length of the connection cable between the ArcPower 48 Outdoor and the LED unit should not
exceed 20 m (at 700mA load) or 80m (at 350mA load).
Warning for wireless DMX version of the ArcPower 48 Outdoor!
The fixture is supplied with the cap screwed on the antenna connector. This cap provides declared IP rating of the
fixture but when the cap is removed, the enclosed antenna must be installed on the fixture to keep declared IP
rating of the fixture!
3.2 Connection to the mains
Fixtures must be installed by a qualified electrician in accordance with all national
and local electrical and construction codes and regulation.
The ArcPower 48 Outdoor is equiped with with a 5-cored power/data cable. The 3 cores serve for the power
supply (3 x 1.5mm2 ) and next 2 shielded cores are intended for DMX connection as shown in the table.
Core
Connection
Core
Connection
B
lack
Live
Red
Data +
B
lue
Neutral
White
Data
-
Yellow/Green
Shielding
0

ArcPower 48 Outdoor
6
Connect the junction box acording to the tables below
Power connection
L
N
EU
Braun
Blue
Green/yellow
US
Black
White
Green
Do not overload the supply line and the connecting leads.
DMX connection
+
0
-
Data +
Data ground(shielding)
Data
-

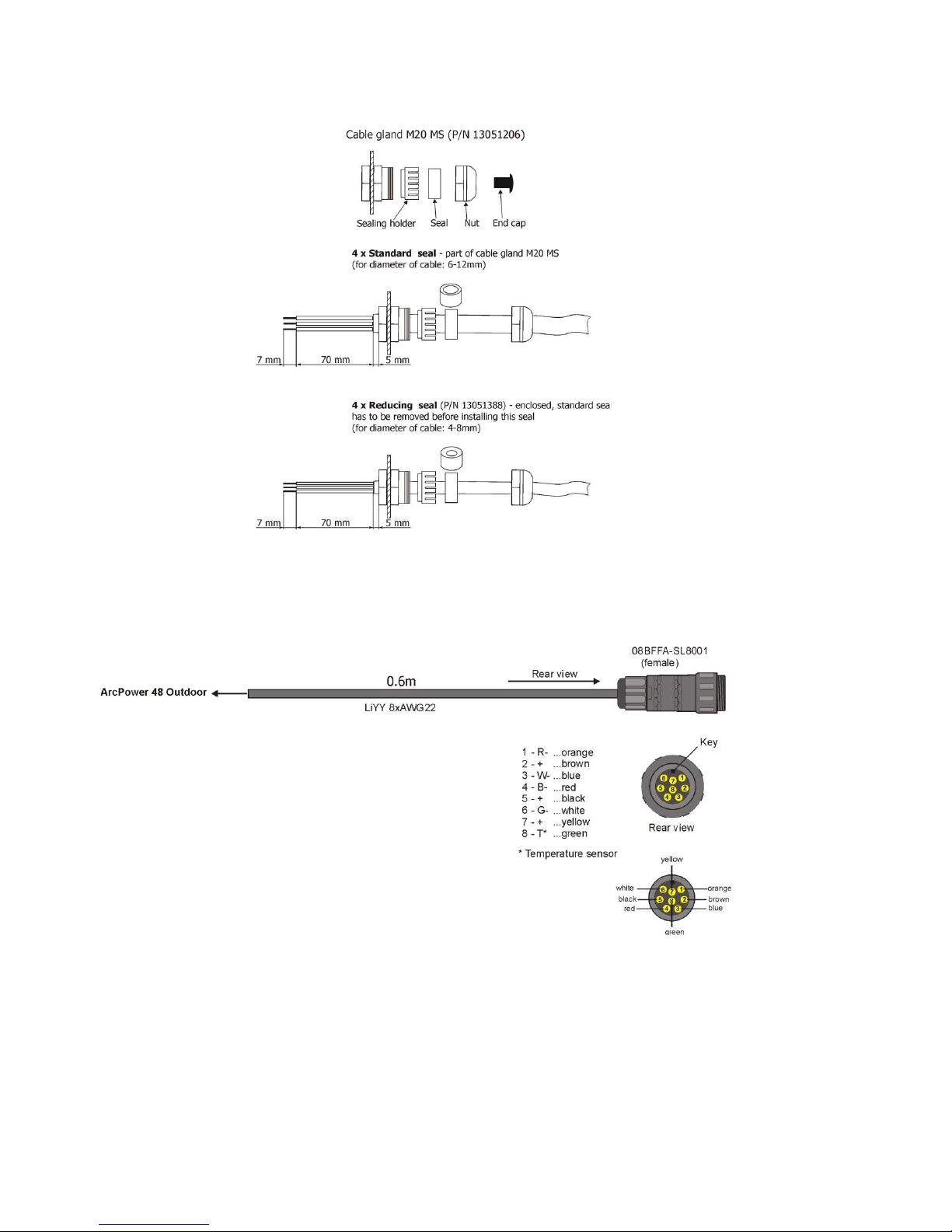

Remove end caps from cable glands before passing cables into the junction box. The four cable glands M20 with
standard seals serve for cable of diameter of 6-12mm, for smaller diameter of cable (4-8mm) you have to remove
original sealing from the cable gland M20 and use the enclosed reducing seal instead it. Four reducing seals for
diameter of cable 4-8mm (P/N 13051388) are enclosed.
Fully tighten cable gland nuts and check that cables are properly fastened in the cable glands.
Note: To keep declared IP rating, every cable gland has to be covered with the end cap if this cable gland is not
used for cable passing.
Screw the cover of the junction box and check that it is fully tighten.
ArcPower 48 Outdoor

ArcPower 48 Outdoor
7
3.3 Wiring of the LED input connector

ArcPower 48 Outdoor
8
4. ArcPower 48 Outdoor (RGBW) - DMX protocol
Version 1.1
Mode/Channel
Value Function Type of control
1
2
3
4
-
1
1
1
0 - 255
Red LEDs
Red LEDs saturation control (0-100%)
proportional
-
2
2
2
0 - 255
Green LEDs
Green LEDs saturation control (0-100%)
proportional
-
3
3
3
0 - 255
Blue LEDs
Blue LEDs saturation control (0-100%)
proportional
-
-
4
4
0 - 255
White LEDs
White LEDs saturation control (0-100%)
proportional
-
-
-
5
0
1-255
CT0
No function
Colour temperature correction (0-100%)
proportional
1
-
-
6
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 – 246
247
248-251
252-255
Virtual colour wheel
No function (for DMX mode 4)
White (R+G+B+W=full for DMX mode 1)
White 2700 K
White 2700 K (Halogen lamp mode)
White 3200 K
White 3200 K (Halogen lamp mode)
White 4200 K
White 5600 K
White 8000 K
Blue (Blue=full, Red+Green+White=0)
Red=0, Greenup,Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full, White=0)
Red=0, Green=full, Bluedown, White=0
Green (Red=0, Green=full, Blue =0, White=0)
Redup, Green=full, Blue=0, White=0
Yellow-green (Red=full, Green=full, Blue=0, White=0)
Red=full, Greendown, Blue=0, White=0
Red(Red=full, Green=0, Blue=0, White=0)
Red=full, Green=0, Blueup, White=0
Magenta (Red=full, Green=0, Blue=full, White=0)
Reddown, Green=0, Blue=full, White=0
Blue (Red=0, Green=0, Blue=full, White=0)
Rainbow effect with fade time (fast slow)
Rainbow effect without fade time (fast slow)
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
proportional
-
-
-
7
0-31
32-63
64-95
96-127
128-143
144-159
160-191
Shutter/ Strobe
Shutter closed
Shutter open
Strobe-effect from slow to fast
Shutter open
Opening pulses in sequences slow--> fast
Closing pulses in sequences fast --> slow
Shutter open
step
step
proportional
step
proportional
proportional
step

ArcPower 48 Outdoor
9
192
-
223
224-255
Random strobe
-
effects from slow to fast
Shutter open
proportional
step
2
-
-
8
0 - 255
Dimmer
Dimmer intensity from 0% to 100%
proportional
-
-
-
9
0 - 255
Dimmer fine
Fine dimmer intensity from low to high
Proportional
4.1 ArcPower 48 Outdoor (RGBA) - DMX protocol
Version 1.0
Mode/Channel
Value Function Type of control
1
2
3
4
-
1
1
1
0 - 255
Red LEDs
Red LEDs saturation control (0-100%)
proportional
-
2
2
2
0 - 255
Green LEDs
Green LEDs saturation control (0-100%)
proportional
-
3
3
3
0 - 255
Blue LEDs
Blue LEDs saturation control (0-100%)
proportional
-
-
4
4
0 - 255
Amber
LEDs
Amber LEDs saturation control (0-100%)
proportional
-
-
-
5
0
1-255
CT0
No function
Colour temperature correction (0-100%)
proportional
1
-
-
6
0
1-2
3
4-5
6
7-9
10-12
13-15
16
17-55
56
57 - 95
96
97 – 134
135
136 - 174
175
176 -214
215
216 – 246
247
Virtual colour wheel
No function (for DMX mode 4)
White (R+G+B+W=full for DMX mode 1)
White 2700 K
White 2700 K (Halogen lamp mode)
White 3200 K
White 3200 K (Halogen lamp mode)
White 4200 K
White 5600 K
White 8000 K
Blue (Blue=full, Red+Green+White=0)
Red=0, Greenup,Blue =full, White=0
Light Blue (Red=0, Green=full, Blue =full, White=0)
Red=0, Green=full, Bluedown, White=0
Green (Red=0, Green=full, Blue =0, White=0)
Redup, Green=full, Blue=0, White=0
Yellow-green (Red=full, Green=full, Blue=0, White=0)
Red=full, Greendown, Blue=0, White=0
Red(Red=full, Green=0, Blue=0, White=0)
Red=full, Green=0, Blueup, White=0
Magenta (Red=full, Green=0, Blue=full, White=0)
Reddown, Green=0, Blue=full, White=0
Blue (Red=0, Green=0, Blue=full, White=0)
step
step
step
step
step
step
step
step
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step
proportional
step

ArcPower 48 Outdoor
10
248
-
251
252-255
Rainbow effect with fade time
(fast

slow)
Rainbow effect without fade time (fast slow)
proportional
proportional
-
-
-
7
0-31
32-63
64-95
96-127
128-143
144-159
160-191
192-223
224-255
Shutter/ Strobe
Shutter closed
Shutter open
Strobe-effect from slow to fast
Shutter open
Opening pulses in sequences slow--> fast
Closing pulses in sequences fast --> slow
Shutter open
Random strobe-effects from slow to fast
Shutter open
step
step
proportional
step
proportional
proportional
step
proportional
step
2
-
-
8
0 - 255
Dimmer
Dimmer intensity from 0% to 100%
proportional
-
-
-
9
0 - 255
Dimmer fine
Fine dimmer intensity from low to high
Proportional
