Anritsu HD-1500 Series User manual

INSTRUCTION MANUAL
HANDHELD THERMOMETER
HD-1500 Series
4th edition Jul., 2018
AE-100236
ANRITSU METER CO., LTD.
2-4-5 Shimomeguro, Meguro-ku,
Tokyo 153-0064, Japan
Tel [phone]
Fax [phone]

Please observe the following matters to ensure safe and reliable
operation of products.
This product should not be used for any purpose except temperature
measurement.
Stop using as soon as any problems are discovered.
Do not take the unit apart or remodeling.
Use the specified battery cells or specifiedAC-adaptor.
Readings may fluctuate in environments subject to electromagnetic fields.
Avoid contact with input plugs in environments susceptible to static electricity.
※This product is not rechargeable model.
Please observe the following matters to guard the battery leakage, exothermic
reaction and ignition.
Do not throw away the battery cells in the fire, and avoid short between
electrodes.
Do not charge or heat.
Use the specified battery cells.
Set the battery cells correctly 「＋」and 「－」.
Remove the battery cells when the battery life is finished, or long time no using.
Do not mix old and new, or variety battery cells.
The battery life will be affected by the environmental temperature.
Windows is a registered trademark of Microsoft Corporation.
Excel is a registered trademark of Microsoft Corporation.
Caution
Warning
Concerning the battery cell
TO ENSURE SAFE AND RELIABLE OPERATION
Caution

Preface
Thank you for purchasing this product from ANRITSU METER CO., LTD.
We prepared this manual so that you can use this product with ease and confidence.
Please read this manual carefully and understand each functions of this product for
your safety and correct using.
Caution
■This contents and the specification of this product are subject to change without
notice.
■Reproduction in part or whole of any material from this booklet is prohibited by
low.
■We surely make this manual, however if there are any error or not clear, please
contact the place of purchase or us.
■We are not responsible for the consequences of using this product.
After-sales Service
ANRITSU METER CO., LTD. ships products after severe company’s inspection.
Should you find any failure resulting from poor material and workmanship or
accident during transportation, please contact the place of purchase or us.
We recommend that you may use the original packaging for this product when you
send it to us for repairing or periodical checkup. If you no longer have the original
carton, be sure to use plenty of wrapping to guard against damage during shipping.

CONTENTS
1. General................................................................................1
2. Unpacking ...........................................................................1
2. 1. Unpacking.......................................................................................................... 1
2. 2. Repacking........................................................................................................... 1
3. Name of Components............................................................2
3. 1. Name of Components........................................................................................ 2
3. 2. Display of all segments..................................................................................... 3
4. Preparation for Operation.....................................................4

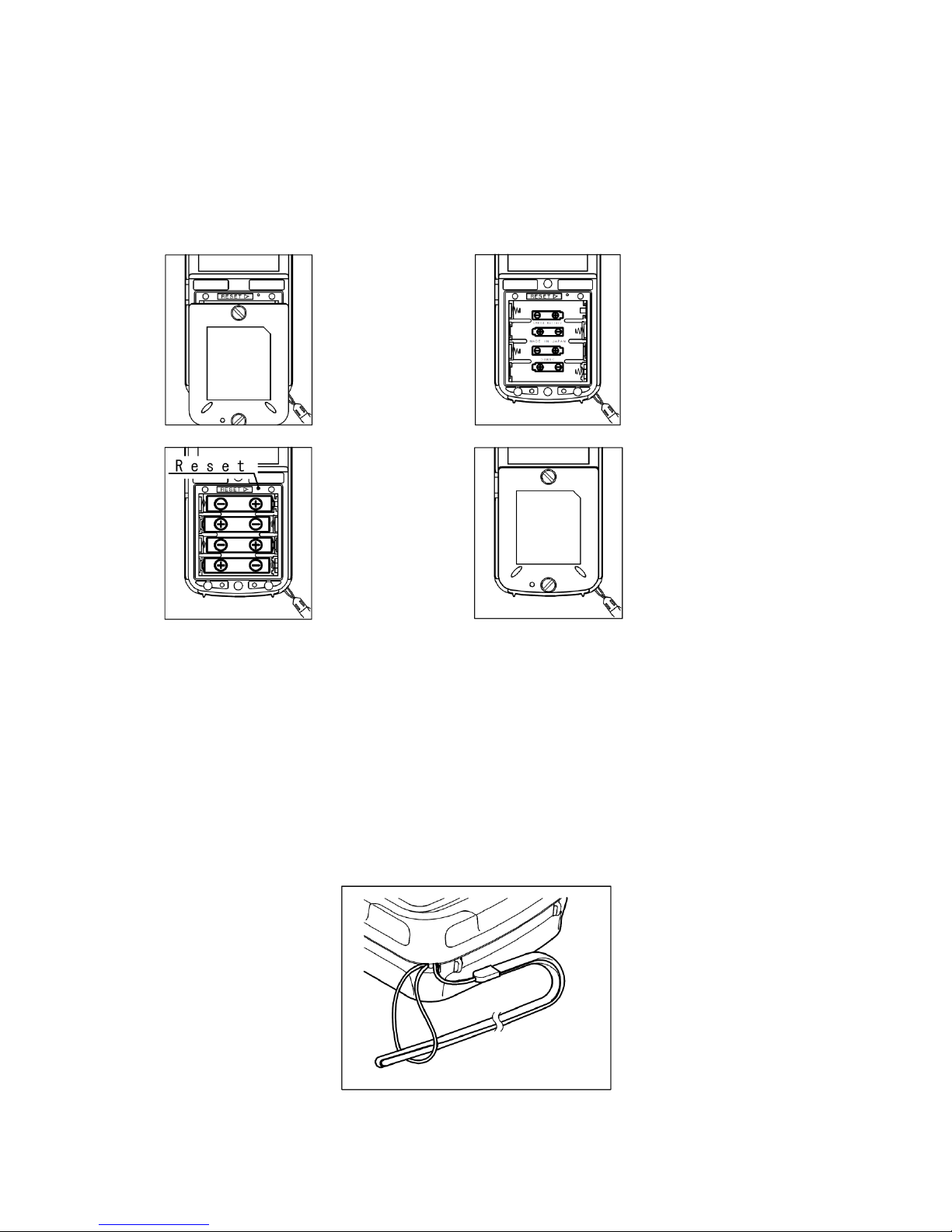

4. 1. Battery Installation........................................................................................... 4
4. 2. How to Use Hand Strap ................................................................................... 4

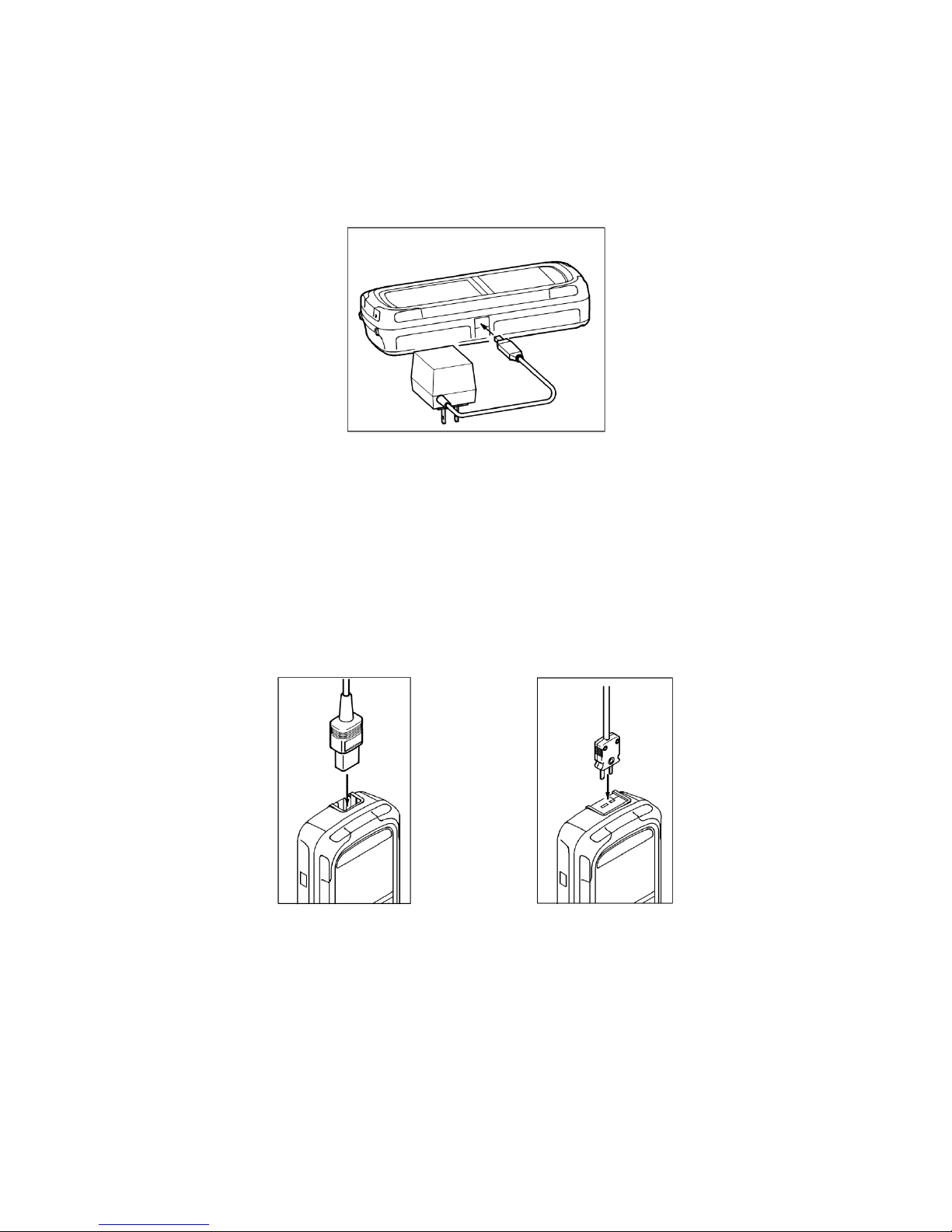

4. 3. AC-power Supply............................................................................................... 5
4. 4. Sensor Setting.................................................................................................... 5
4. 5. Soft case.............................................................................................................. 5
5. Operation ............................................................................6

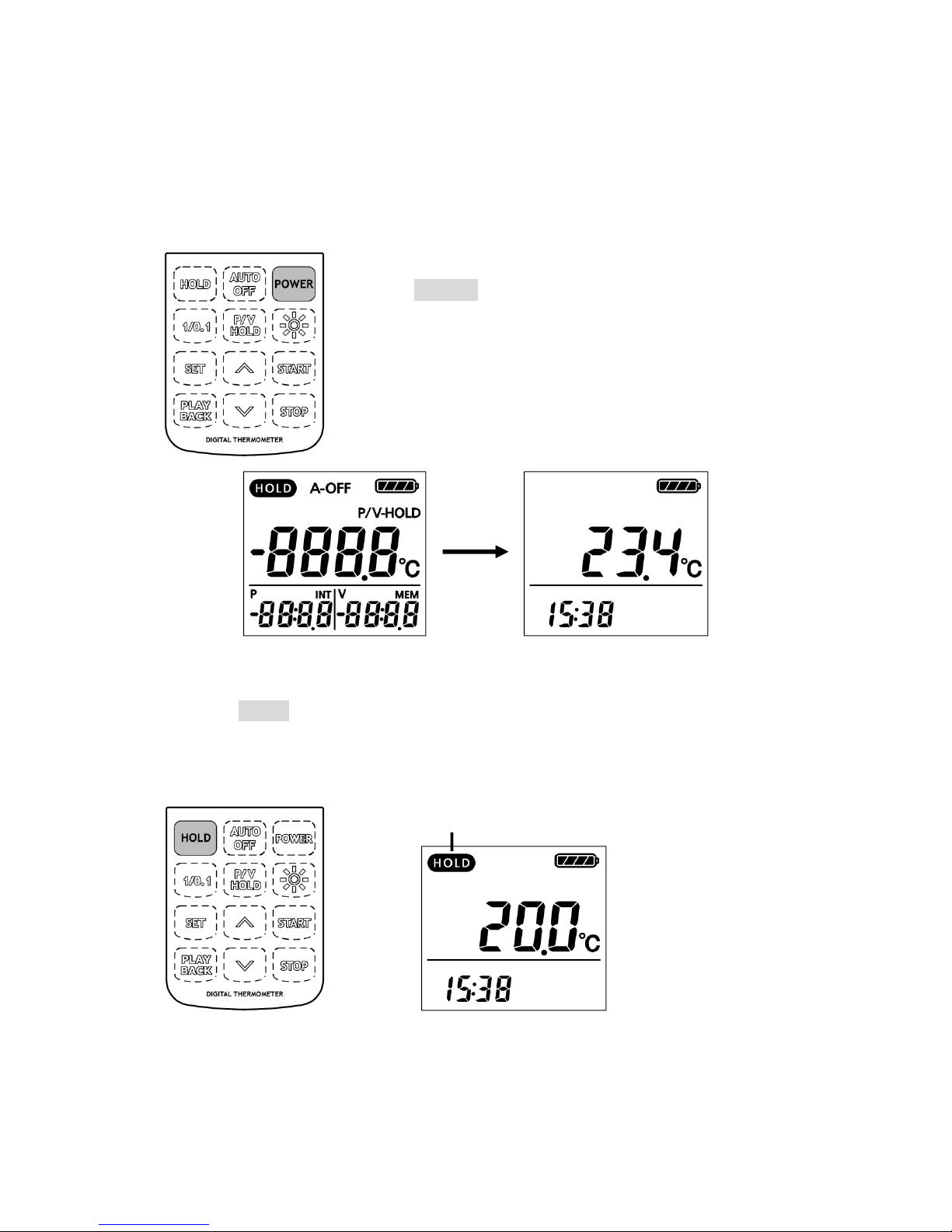

5. 1. Power ON／OFF............................................................................................... 6
5. 2. Hold..................................................................................................................... 6

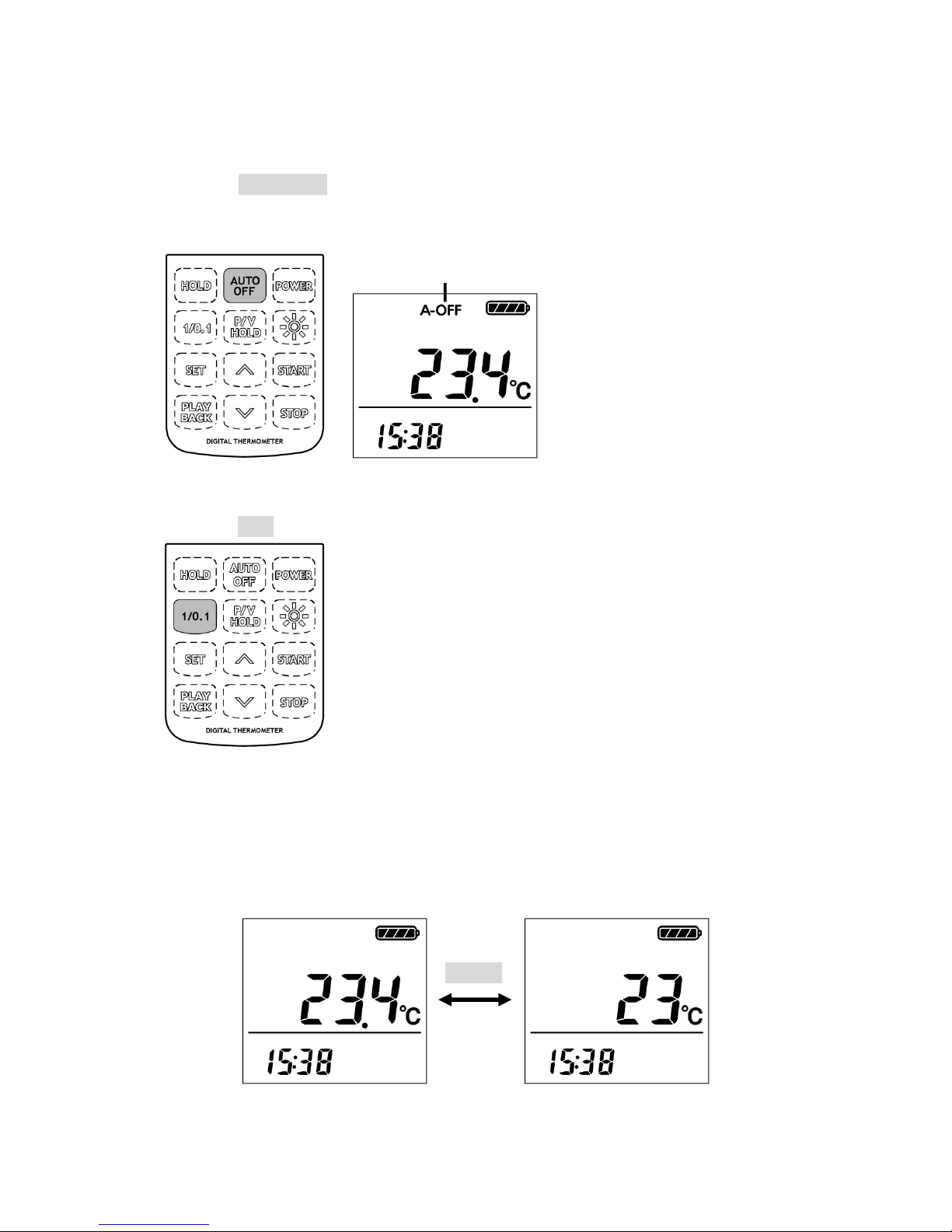

5. 3. Automatic Power OFF...................................................................................... 7
5. 4. Resolution change ............................................................................................. 7

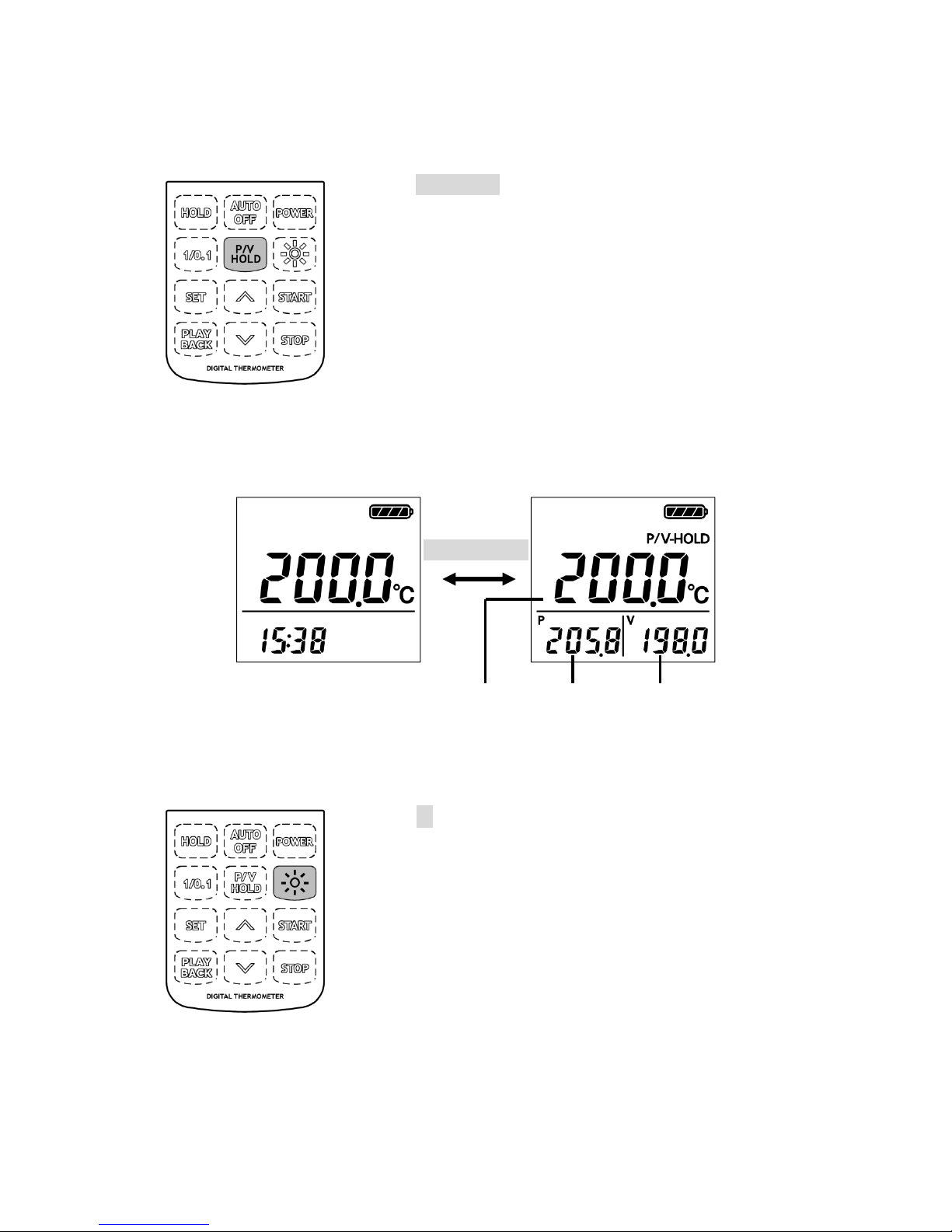

5. 5. P/V Hold.............................................................................................................. 8
5. 6. Backlight............................................................................................................. 8
6. Setting the clock...................................................................9
7. Memory Function...............................................................10
7. 1. Setting Interval................................................................................................ 10

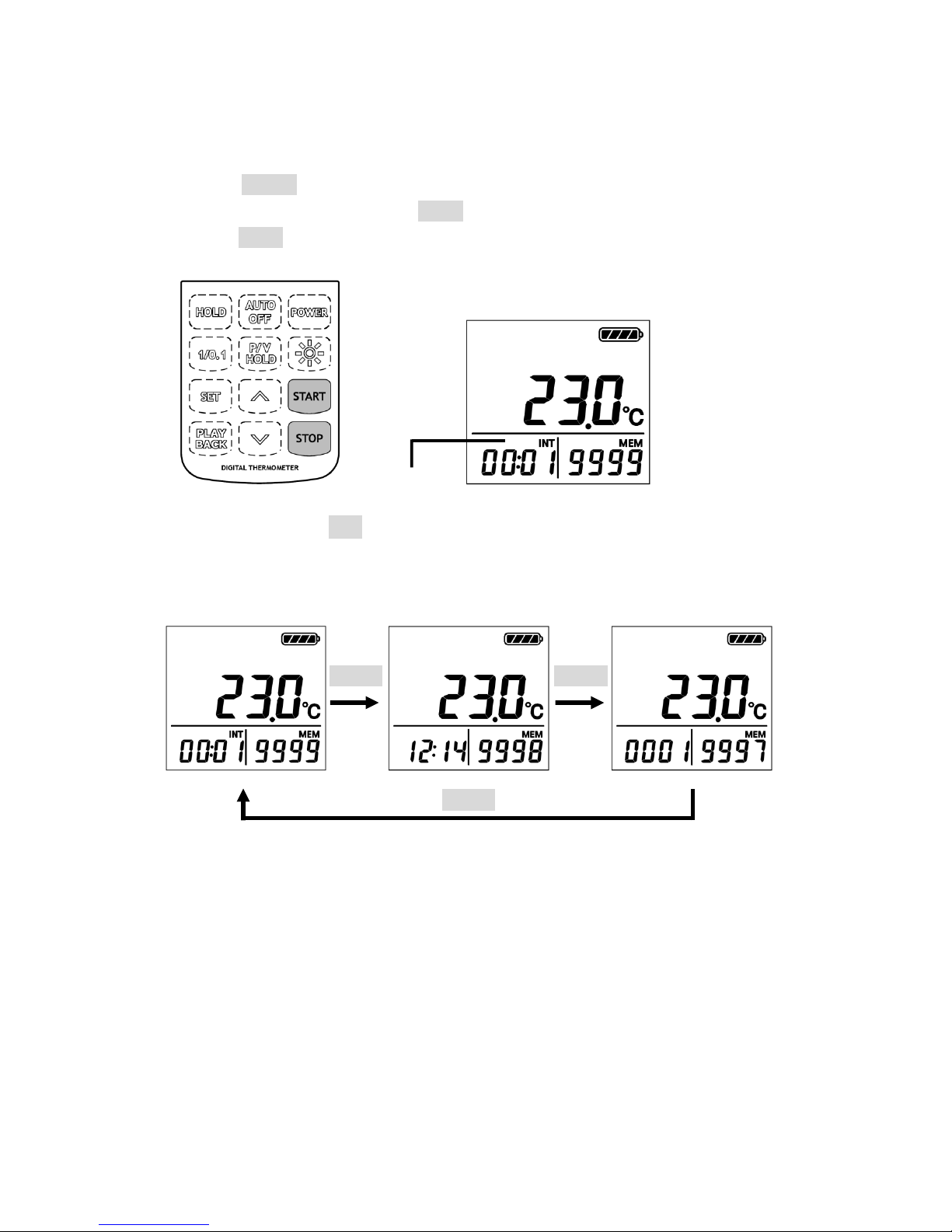

7. 2. Starting Memory Measurement ................................................................... 11
7. 3. Manual Measurement.................................................................................... 12
7. 4. Memory playback............................................................................................ 12
7. 5. Clearing Data................................................................................................... 13
8. Connecting the Measuring Instruments...............................14
9. AMS-100 (dedicated HD-15*0 application) ...........................14
9. 1. Installation....................................................................................................... 15
9. 2. Installing the USB Device Driver................................................................. 16
9. 3. Screen Configuration...................................................................................... 28
9. 4. Transferring Data............................................................................................ 28
9. 5. Using Data in Spreadsheet Software........................................................... 30

10. Default Configuration.........................................................32
11. Indicator of Battery remain.................................................32
12. Error Messages ..................................................................33
12. 1. Main Unit Error Messages ............................................................................ 33
12. 2. Software Error Messages............................................................................... 34
13. Uninstall ...........................................................................36
14. Maintenance......................................................................36
14. 1. Storage.............................................................................................................. 36
14. 2. Case cleaning ................................................................................................... 36
15. In case of Trouble ...............................................................37
16. Specification.......................................................................38

1
1. General
This handheld thermometer allows easy temperature measurement.
These general-purpose thermometers can be used for on-site temperature
measurement and various other applications.
A microprocessor is used for constant compensation of zero-point and full scale, thus
ensuring extremely stable, high precision measurement.
The memory function allows measurement data to be stored in memory and
transferred to a PC.
Stored data is retained indefinitely, even if the batteries of the main unit run out.
2. Unpacking
2. 1. Unpacking
Open the carton and the check that the following are provided. If any of them is
missing or out of order, please contact the place of purchase or us.
1. Main unit
2. Soft case
3. Hand strap
4. USB cable
5. CD-R (AMS-100)
6. AA-size alkaline battery cells
7. Instruction manual
8. Test Report
2. 2. Repacking
Use the original carton of the instrument for its transportation by mail or car. If the
original case is not available, carefully wrap the instrument in shock-absorbing
material (polystyrene form and the like). Wrapping material should be dry and free
of dust generation otherwise the instrument may be damaged.

2
3. Name of Components
3. 1. Name of Components
(MODEL: HD-1500)
①Sensor Input connector
②USB connector
③LCD Display
④Key switch panel
⑤AC-adaptor jack
⑥Battery housing
⑦Hand strap

3

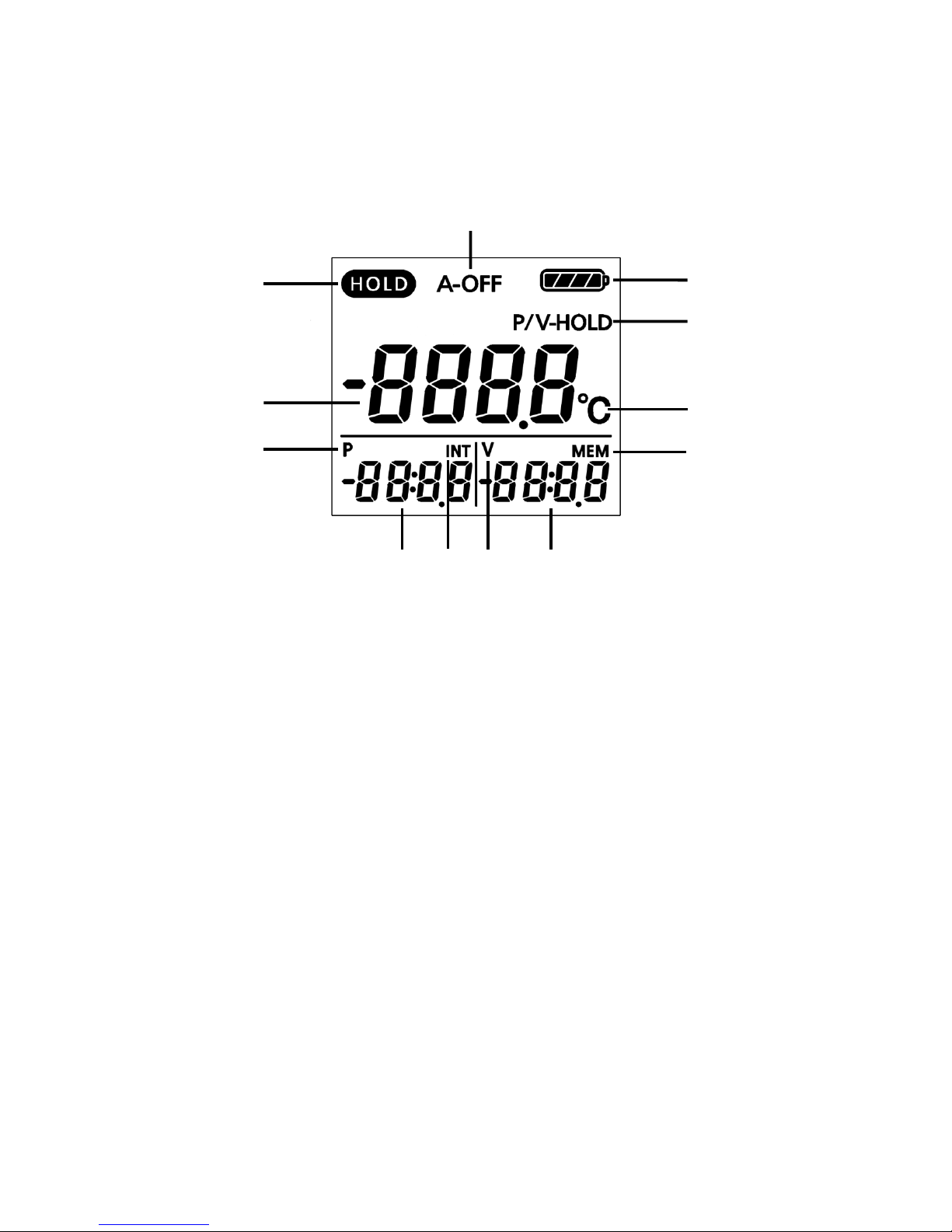

3. 2. Display of all segments
①Hold
②Auto power off
③Battery Indicator
④P/V hold
⑤Main Display
⑥Peak
⑦℃
⑧Memory
⑨Sub-display1
⑩Interval
⑪Valley
⑫Sub-display2
②
①
⑤
⑥
③
④
⑦
⑨
⑪
⑫
⑩
⑧
