ANTAIRA ARS-7235-5E-AC Series User manual

Antaira Technologies
ARS-7235-5E-AC Series
Industrial 5-Port Gigabit Ethernet with Dual Radio IEEE
802.11a/b/g/n/ac Wireless Access
Point/Client/Bridge/Repeater/Router
Quick Installation Guide
Version 1.0
(December 2021)
Tel: [phone]
Fax: [phone]
www.antaira.com
19020000000136
Package Check List
The package contains the following items:
Quick installation guide
ARS-7235-5E-AC(-T)
Wall mounting bracket set with screws
Set of antennas
Front Panel Layout
Top Panel View
ARS-7235-5E-AC series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(9~48VDC).
Product Overview
System Interface/Performance
All RJ45 ports support the auto MDI/MDI-X function
Embedded 5*10/100/1000Tx RJ45 ports
Qualcomm IPQ4029 SoC
WLAN supports 2.4G/5GHz Wi-Fi
Power Input & Connection
DC 9 to 48V redundant power, with a 6-pin removal terminal
block
It is recommended to use a UL listed industrial power supply
Operating Temperature
Standard operating temperature model: -10°C to 60°C
Extended operating temperature model: -35°C to 70°C
Case/Installation
IP30 protection
DIN-Rail and wall mount design
LED Indicators
LED Color Description
Power 1 Green
On Power input 1 is active
Off Power input 1 is inactive
Power 2 Green
On Power input 2 is active
Off Power input 2 is inactive
Fault Red
On Power input 1 or 2 is inactive
Off Preconfigured alarms are detecting failure
Wi-Fi Signal
Strength Green/Red
Red Less than 25% signal strength
Green LED 2 less than 50% signal strength
Green LED 3 less than 75% signal strength
Green LED 4 less than 100% signal strength
Diagnostics Red
Flashing Unit not ready / Boot sequence
Off Unit ready
ETH Port 0~4
(Upper LED)
Amber
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
ETH Port 0~4
(Lower LED)
Green
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDI-X)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
RJ45 Ethernet Port Pin Outs
Pins T568A Color T568B Color 10Base-T,
100Base-TX
1000
Base-T(X)
Pin 1 white/green stripe white/orange stripe Rx+ TP0+
Pin 2
green solid
orange solid
Rx-
TP0-
Pin 3 white/orange stripe white/green stripe Tx+ TP1+
Pin 4 blue solid blue solid unused TP2+
Pin 5 white/blue stripe white/blue stripe unused TP2-
Pin 6 orange solid green solid Tx- TP1-
Pin 7 white/brown stripe white/brown stripe unused TP3+
Pin 8
brown solid
brown solid
unused
TP3-

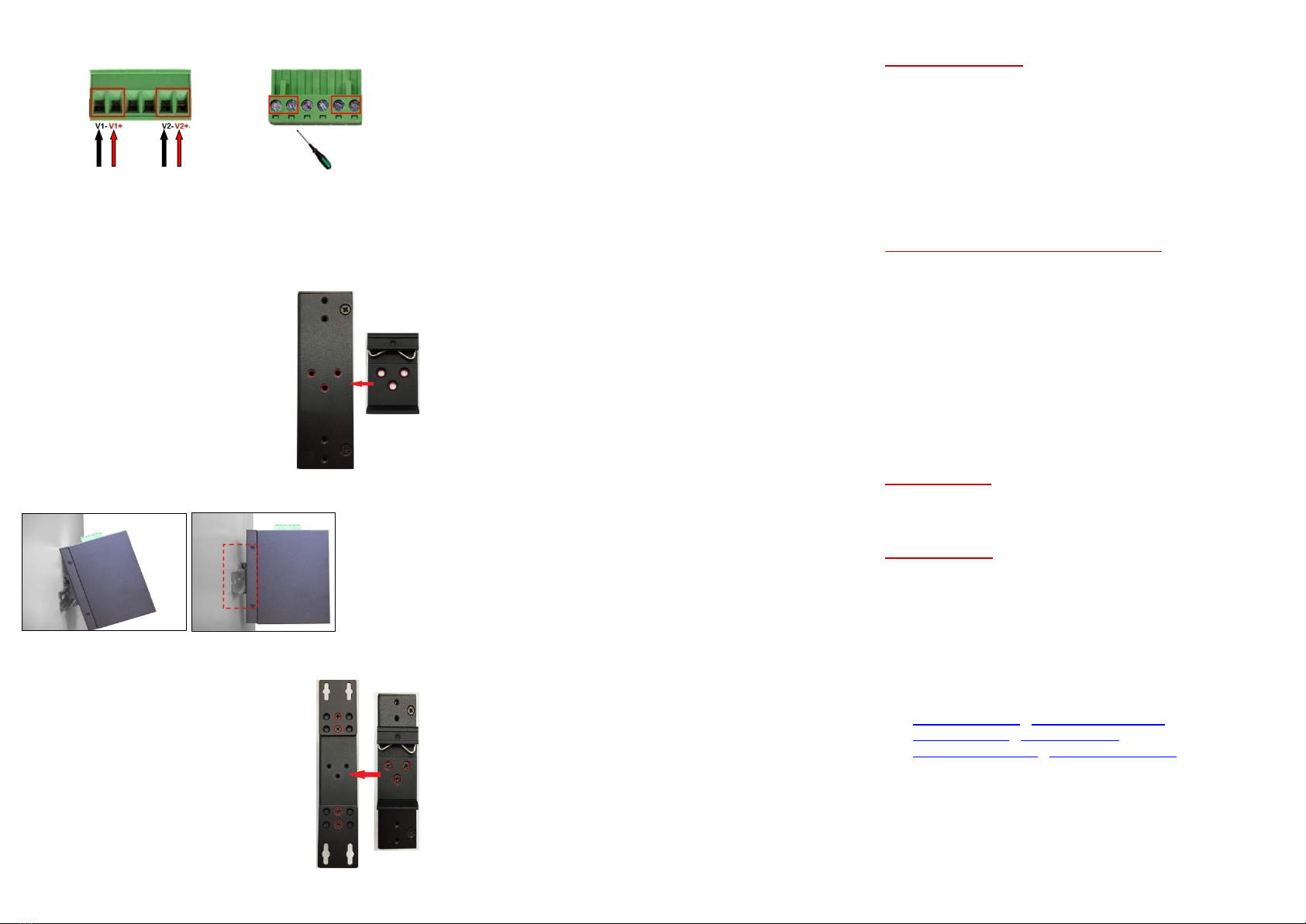

Power Input Wiring
Please follow the steps below to insert the power wire:
1. Insert the positive and negative wires into the PWR1
(V1+, V1-) and PWR2 (V2+, V2-) contacts on the
terminal block connector as shown below in Figure 1.
Reset Button
LED for Power 1, Power 2, and Fault
Grounding Screw
6-Pin Removal Terminal Block (Power Input)
Antenna
LED for Wireless Strength
ETH# 0~4 – 10/100/1000Tx RJ45
LED for Diagnostics
LED for Activity Status - 10/100Mbps
LED for Activity Status -
1000Mbps
Antenna

2. Tighten the wire-clamp screws to prevent the wires from
loosening, as shown below in Figure 2.
Figure 1Figure 2
Industrial Switch Mounting
DIN-Rail Mounting
The DIN-Rail bracket is pre-installed on the industrial Ethernet
switch from the factory. Please refer to Figure 3for a DIN-Rail
bracket installation reference.
Follow the steps below for installing the
industrial switch on the DIN-Rail track:
1. Insert the top of the DIN-Rail on to the
track as shown below in Figure 4.
2. Lightly pull down the bracket on to the
rail as shown below in Figure 5.
3. Check if the bracket is mounted tightly
on the rail.
4. To remove the industrial
Ethernet
switch from the rail, do the opposite
from the steps above.
Figure 4
Wall Mounting
Follow the steps below to mount the industrial
Ethernet switch using the wall mounting
bracket as shown below in Figure 6.
1. Remove the DIN-Rail bracket from the
industrial Ethernet switch by loosening
the screws.
2. Place the wall mounting brackets on the
top and bottom of the industrial Ethernet
switch.
3. Use the screws to screw the wall
mounting bracket on the industrial
Ethernet switch.
4. Use the hook holes at the corners of the wall mounting
bracket to hang the industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the opposite from the
steps above.
Field Maintenance and Service
If the device requires servicing of any kind, the user is
required to disconnect and remove it from its mounting. The
initial installation should be done in a way that makes this as
convenient as possible.
Voltage/power lines should be properly insulated as well as
other cables. Be careful when handling them so as to not trip
over.
Do not under any circumstance insert foreign objects of any
kind into the heat dissipation holes located in the different
faces of the device. This may not only harm the internal
layout, but might cause harm to user as well.
Do not under any circumstance open the device for any
reason. Please contact your dealer for any repair needed or
follow the instructions within the manual.
Warranty Policy
Warranty Conditions
Products supplied by Antaira Technologies are covered in this
warranty for sub-standard performance or defective
workmanship. The warranty is not, however, extended to goods
damaged in the following circumstances:
(a) Excessive forces or impacts
(b) War or an Act of God: wind storm, fire, flood, electric shock,
earthquake
(c) Use of unqualified power supply, connectors, or
unauthorized parts/kits
(d) Replacement with unauthorized parts
RMA and Shipping Costs Reimbursement
Customers shall always obtain an authorized "RMA" number
from Antaira before shipping the goods for repair or
replacement.
•Within the warranty period (based on the invoice date), all
parts and labor are free of charge to the customers.
•Customers are responsible for the cost of parts and labor, if
the products are out of warranty.
•For RMA service, customers are responsible for the shipping
expense for shipping the RMA unit(s) to Antaira. Antaira is
responsible for the shipping expense via a ground service
for the return repair/replace unit(s) back to customers.
Limited Liability
Antaira would not be held responsible for any consequential
losses from using Antaira’s product.
Warranty Period
5-Year Warranty
Antaira’s Customer Service and Support
•Antaira’s Technical Service & Support Centers:
+ 844-268-2472 (Antaira US Headquarter)
+ 48-22-862-88-81 (Antaira Europe Office)
+ 886-2-2218-9733 (Antaira Asia Office)
•Antaira’s Web Sites & Repair/Support Emails:
www.antaira.com / [e-mail]
www.antaira.eu / [e-mail]
www.antaira.com.tw / [e-mail]
*Any changes will be announced on the Antaira website.
Figure 3
Figure 6
Figure 5
