ANTAIRA LMP-0702G-SFP-24-V2 Series User manual

LMP-0702G-SFP-24-V2 Series
7-Port Industrial Gigabit PoE+ Light Layer 3 Managed Ethernet Switch,
w/4*10/100/1000Tx (30W/Port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots;
12~55VDC Power Input; Version 2 Hardware
Hardware Manual
Version 1.0
(June 2020)

ii
Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
© Copyright 2020 Antaira Technologies, LLC.
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are
the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2020 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC. may make improvements and/or changes to the product and/or specifications of the product described in
this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

iii
Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément
à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les
interférences nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de
l'énergie radiofréquence. Cela peut provoquer des interférences nuisibles aux communications radio si
l'équipement n'est pas installé et utilisé conformément aux instructions. Cependant, il n'y a aucune garantie
qu'aucune interférence ne se produira dans une installation particulière. Si cet équipement provoque des
interférences nuisibles à la réception radio ou télévision, ce qui peut être déterminé en éteignant puis en
rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les interférences par une ou plusieurs
des mesures suivantes:
• Réorientez ou déplacez l'antenne de réception.
• Augmentez la distance entre l'équipement et le récepteur.
• Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.
• Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
Attention: Tout changement ou modification non expressément approuvé par le bénéficiaire de cet appareil peut
annuler le droit de l'utilisateur à utiliser l'équipement.

iv
Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des
interférences radio, auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Industrial Ethernet Switches
Industrial Grade Gigabit PoE+ Managed Ethernet Switches
Hardware Manual
Version 1.0 (June 2020)
This manual supports the following models:
• LMP-0702G-SFP-24-V2
• LMP-0702G-SFP-24-T-V2

v
Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
Table of Contents
1. Introduction ...........................................................................1
1.1 Product Overview.............................................................................1
1.2 Product Software Features...............................................................1
1.3 Product Hardware Features .............................................................2
1.4 Package Contents............................................................................2
1.5 Safety Precaution .............................................................................3
2. Hardware Description............................................................4
2.1 Physical Dimensions ........................................................................4
2.2 Front Panel.......................................................................................5
2.3 Top View...........................................................................................5
2.4 LED Indicators..................................................................................6
2.5 Reset Button.....................................................................................7
2.6 Ethernet Ports...................................................................................7
2.7 Cabling .............................................................................................8
2.8 Wiring the Power Inputs ...................................................................9
2.9 Wiring the Fault Alarm Contact ......................................................10
2.10 Grounding Note..............................................................................11
3. Mounting Installation...........................................................12
3.1 DIN-Rail Mounting..........................................................................12
3.2 Wall Mounting.................................................................................13
4. Hardware Installation ..........................................................14
4.1 Installation Steps............................................................................14
4.2 Maintenance and Service...............................................................15
5. Technical Specifications.....................................................16

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
1
1. Introduction
All Antaira industrial managed switches come with a pre-installed “user-friendly” web console
interface, which allows users to easily configure and manage the units, whether one is using a serial
console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple
Network Management Protocols (SNMP).
1.1 Product Overview
Antaira Technologies’ LMP-0702G-SFP-24-V2 series is a 7-port industrial Gigabit PoE+ managed
Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af for a
maximum of 30W/port, 1*10/100/1000Tx Ethernet port, and 2*100/1000Fx fiber connection. The
LMP-0702G-SFP-24-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a
user-friendly web management console design. It supports the ring network redundancy function
using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol
that has a <50ms network recovery time. The advanced network filtering and security functions, such
as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase
determinism and improve network management for remote SCADA systems or control networks.
The LMP-0702G-SFP-24-V2 series is IP30 rated and DIN-rail mountable. There are also two wide
operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an
extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for
industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory
automation, security surveillance, ITS and any other outdoor or harsh environment.
1.2 Product Software Features
◼Network Redundancy
• STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
◼Network Management
• Web UI based management, SNMP v1/v2/v3, Serial Console
• Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, Diffserv
• IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
2
• IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024group
• Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP, HTTPS,
SSH/SSL, TFTP
• MODBUS TCP for SCADA system integration
◼Port Configuration
• Status, statistics, mirroring, rate limiting, event syslog
◼Event Handling
• Event notification: Cold/Warm Start, Power Failure, Authentication, SNMP trap and
Fault Alarm Relay Output
◼Software Upgrade via TFTP and HTTP
◼Configuration Backup –USB Port
1.3 Product Hardware Features
◼System Interface and Performance
• All RJ45 ports support Auto MDI/MDI-X Function
• Embedded 4*10/100/1000Tx (PSE: 30W/Port) RJ45 ports, 1*10/100/1000Tx RJ45 port,
and 2*100/1000 SFP slots
• Store-and-forward switching architecture
• 8K MAC address table
• Supports 9.6Kbytes Jumbo Frame
• 4Mbits memory buffer
◼Power Input
• DC 12~55V redundant, with a 6-pin removal terminal block, with SELV output certified by
UL61010-2-201
• It is recommended to use a UL listed industrial power supply
◼Operating Temperature
• Standard operating temperature model: -10°C to 65°C
• Extended operating temperature model: -40°C to75°C
◼Case/Installation
• IP30 protection
• DIN-Rail and wall mount design
• Installation in pollution degree 2 environment
1.4 Package Contents
➢ 1 –LMP-0702G-SFP-24(-T)-V2
➢ 1 –Quick Installation Guide

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
3
➢ 1 –Wall mounting bracket set with screws
➢ 1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm
➢ 1 –RJ45 to DB9 serial console cable
1.5 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un
dispositif de protection sur l'entrée d'alimentation. Les spécifications
matérielles, les ports, les informations de câblage et l'installation du
câblage du commutateur Ethernet industriel seront décrits dans ce
manuel d'utilisation.
Warning Labels
The caution label means that you should check the certain information on user manual when working with
the device. (Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations sur le manuel
d'utilisation lorsque vous travaillez avec l'appareil. (Montré dans la Figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
4
2. Hardware Description
2.1 Physical Dimensions

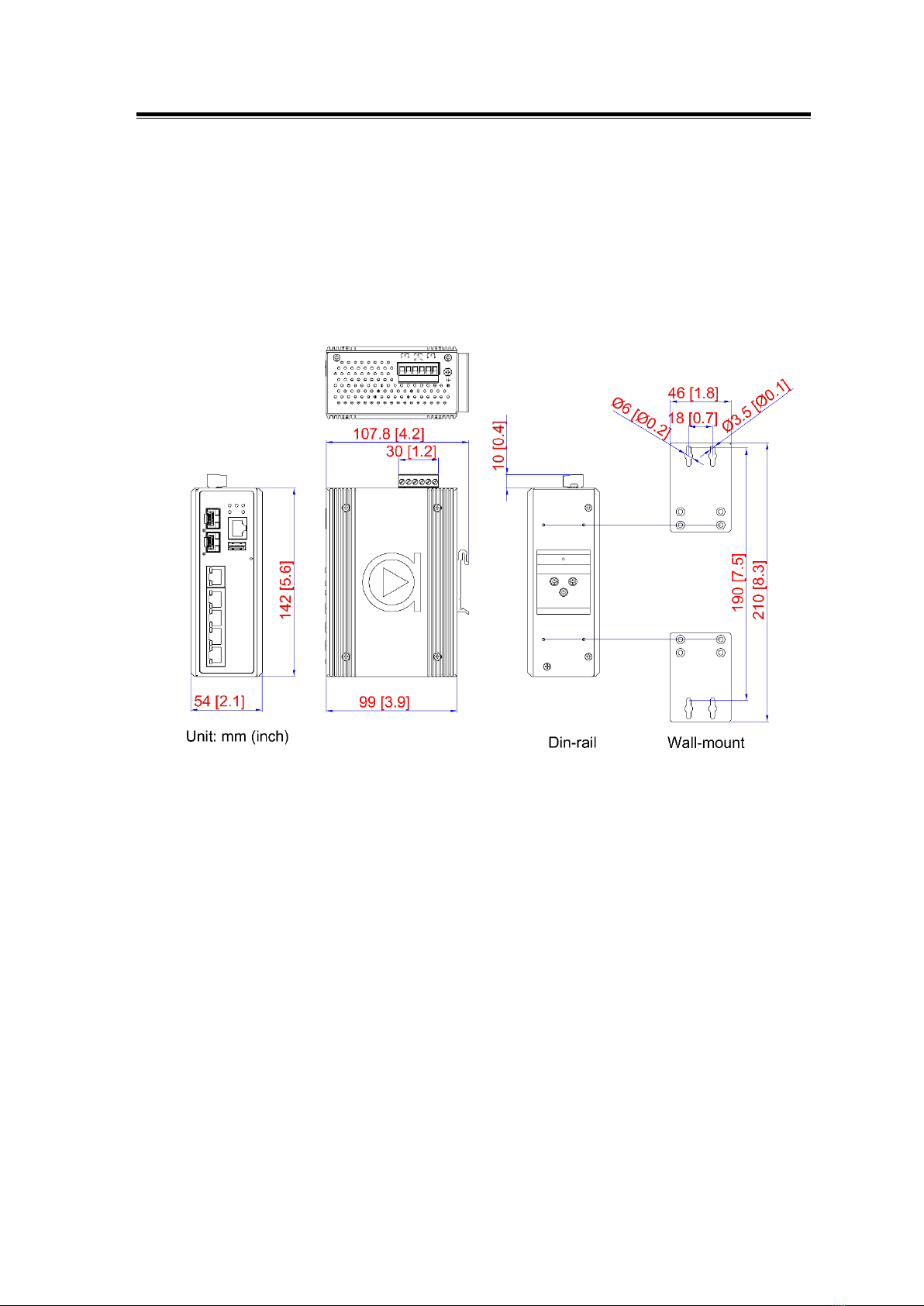

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0702G-SFP-24-V2 series:
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1
LMP-0702G-SFP-24-V2 Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
5
2.2 Front Panel
The front panel of the LMP-0702G-SFP-24-V2 series industrial gigabit PoE+ managed Ethernet
switch is shown below in Figure 2.2.
Figure 2.2 - The Front Panel of LMP-0702G-SFP-24-V2 Series
2.3 Top View
Figure 2.3, below, shows the top panel of the LMP-0702G-SFP-24-V2 series switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs
(48~55VDC).
Figure2.3
Top Panel View of LMP-0702G-SFP-24-V2 Series
Reset Button
LED for Power 1, Power 2, Fault, Master,
and Ring
Console Port
USB for Configuration
6-Pin Removal Terminal Block
Grounding Screw
LAN Port# 5 LED for Link/Activity Status
10/100
LAN Port# 5 LED for Link/Activity Status
1000
6-Pin Removal Terminal Block
Grounding Screw
SFP Port# 6~7 –100/1000
SFP Port# 6~7 LED for
Link/Activity Status 100/1000
LAN# 1~5 –10/100/1000Tx RJ45
LAN# 1~4 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~4 LED for PoE Status

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
6

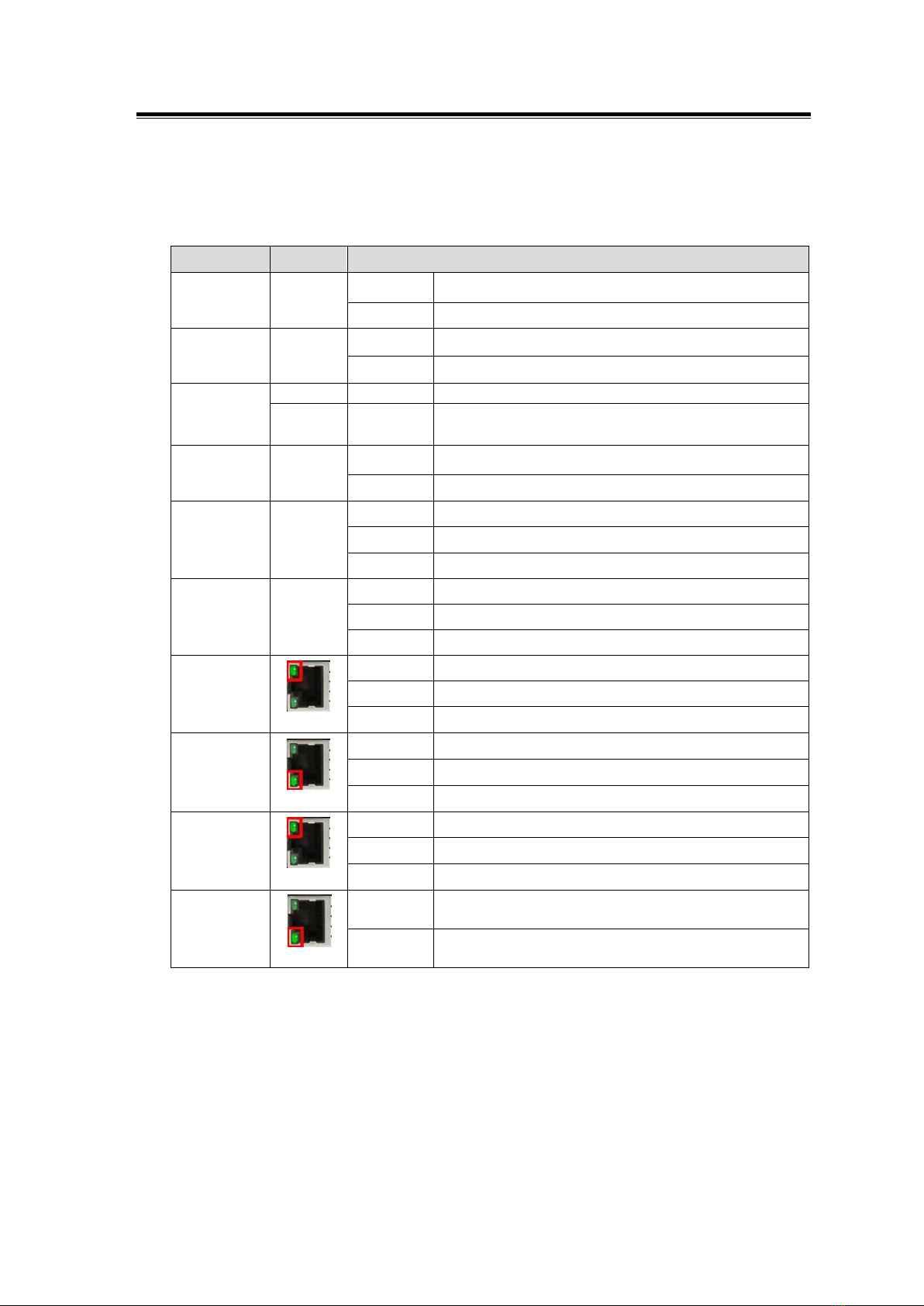

2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Fault
Green
On
No event happened
Red
Off
1. Power input 1 or 2 is inactive
2. Port link-down / Broken
Master
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
ERPS Ring Network is active
Flashing
ERPS Ring Network works abnormally or misconfigure
Off
ERPS Ring Network is not active
SFP Port 6~7
Green:
1000Mbps
Amber:
100Mbps
On
Connected to Network, 100/1000Mbps
Flashing
Network is active
Off
Not connected to network
LAN Port 5
(Upper LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 5
(Lower LED)
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~4
(Upper LED)
Green
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~4
(Lower LED)
Green
On
Supplying power to the powered-device
Off
Not connected to a powered-device
Table 2.1 - LED Indicators for LMP-0702G-SFP-24-V2 Series
Note: "P1" is the abbreviation for "Power 1", “P2”is for “Power 2”, “LNK”is for “Link”, and "ACT" is for
"Activity".

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
7
2.5 Reset Button
There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps
users to reboot, restore default, or save start-up configurations by pressing the button for
different seconds. Please refer to Table 2.2 for the timing and function.
Seconds
Function
Fault LED
0s < t (press time) < 4s
Reboot the switch
LED is flashing with green color
4s < t (press time) < 8s
Restore factory default
LED is flashing with green and red color
8s < t (press time)
Backup configuration to USB
(startup-config)
LED is flashing with red color
Table 2.2 –Reset Button Functions
2.6 Ethernet Ports
• RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T connections. Auto MDI means that the switch can connect to another switch or
workstation without changing the straight-through or crossover cabling. See the figures below for
straight-through and crossover cabling schematics.
• RJ-45 Pin Assignments
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
Table 2.3 - RJ45 Pin Assignments
Note: The “+” and “-”signs represent the polarity of the wires that make up each wire pair.
All ports on this industrial Ethernet switch support automatic MDI operations. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, and other
switches or hubs. With straight-through cabling, pins 1, 2, 3, and 6 are at one end of the cable
and are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table
below (Table 2.4) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pin outs.

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
8
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.4 - Ethernet Signal Pin
The following figures show the cabling schematics for straight-through and crossover.
2.7 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable
between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328
ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and
classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme IEC-
60825-1 et classé comme produit laser de classe 1.
Figure 2.4 - Straight-Through Cables Schematic Figure 2.5 - Crossover Cables Schematic

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
9

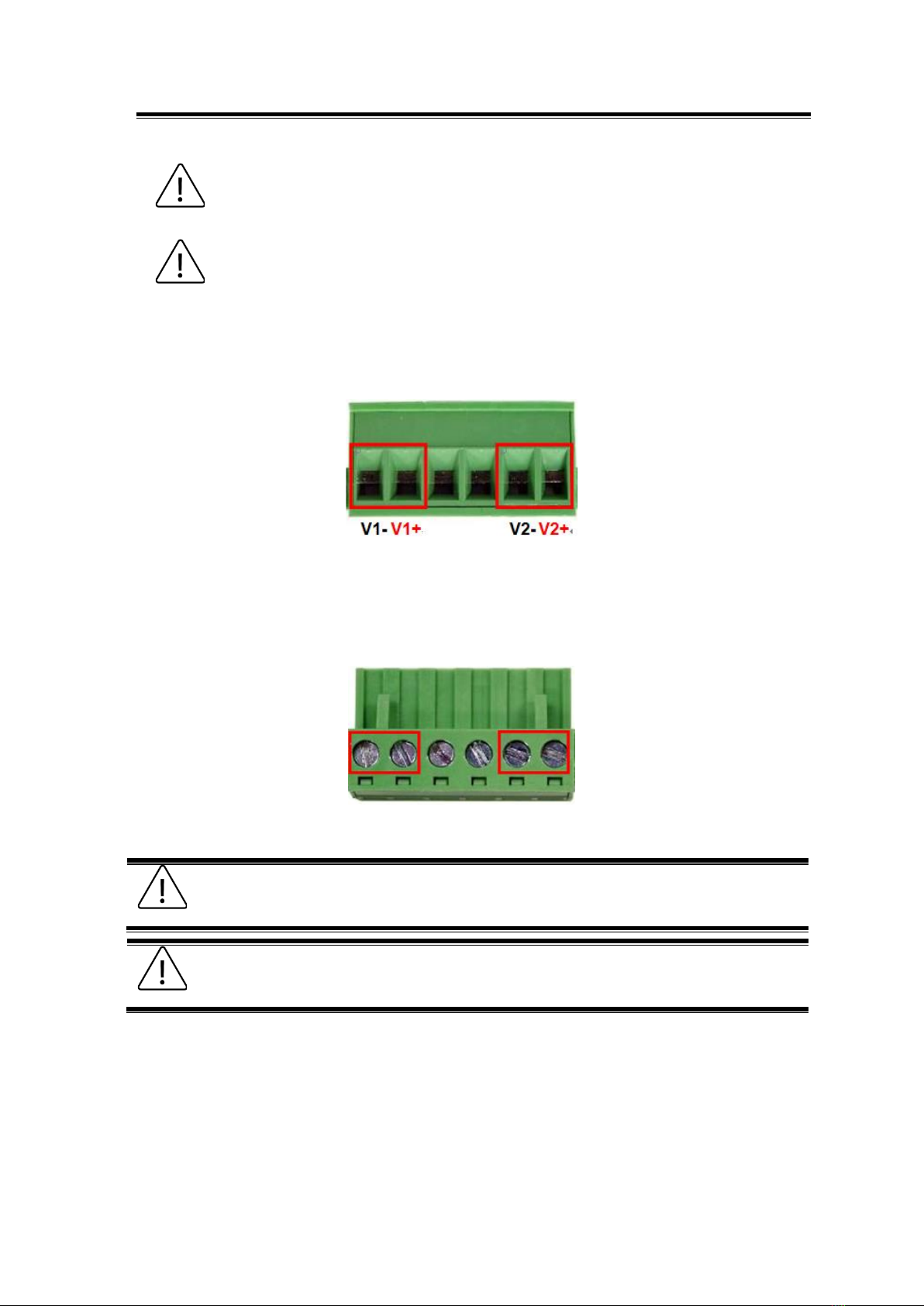

2.8 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in
Figure 2.7.
Caution:
•Only use copper conductors, 125°C, tighten to 5 lbs.
•The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
•Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
•Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
Figure 2.7
Power Terminal Block
Figure 2.6
Power Terminal Block

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
10

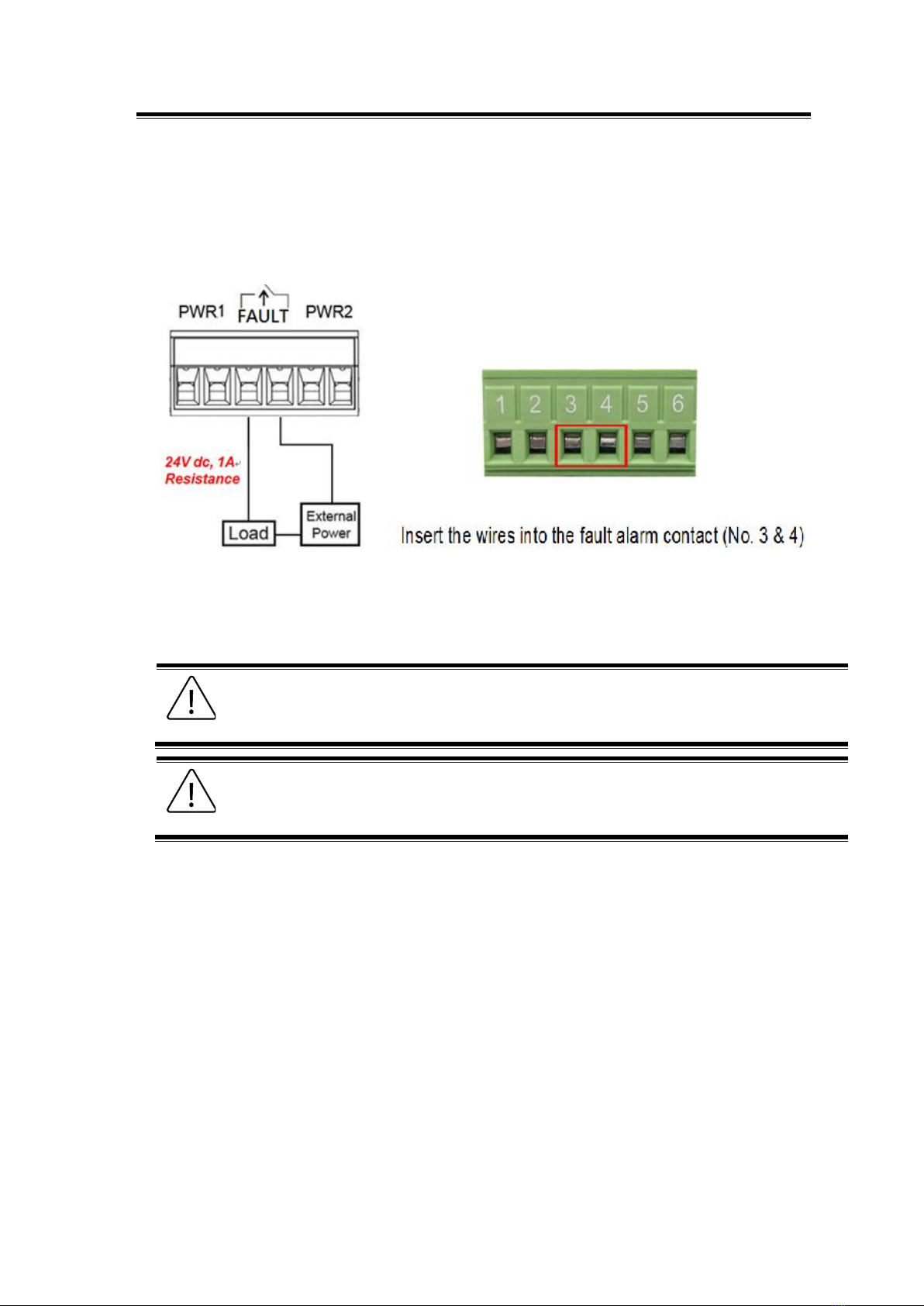

2.9 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in
Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link
failure (managed industrial switch only) and form a normal open circuit. An example is shown below
in Figure 2.8.
Caution:
•The wire gauge for the terminal block should range between 12 ~ 24 AWG.
•If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to
eliminate power fault alarm.
Attention:
•Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
•Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à
5 et les broches 2 à 6 pour éliminer l'alarme de panne de courant.
Figure 2.8
Wiring the Fault Alarm Contact

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
11
2.10 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The grounding screw symbol is shown blow in Figure 2.15.
Figure 2.15 - Grounding screw symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique.

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
12

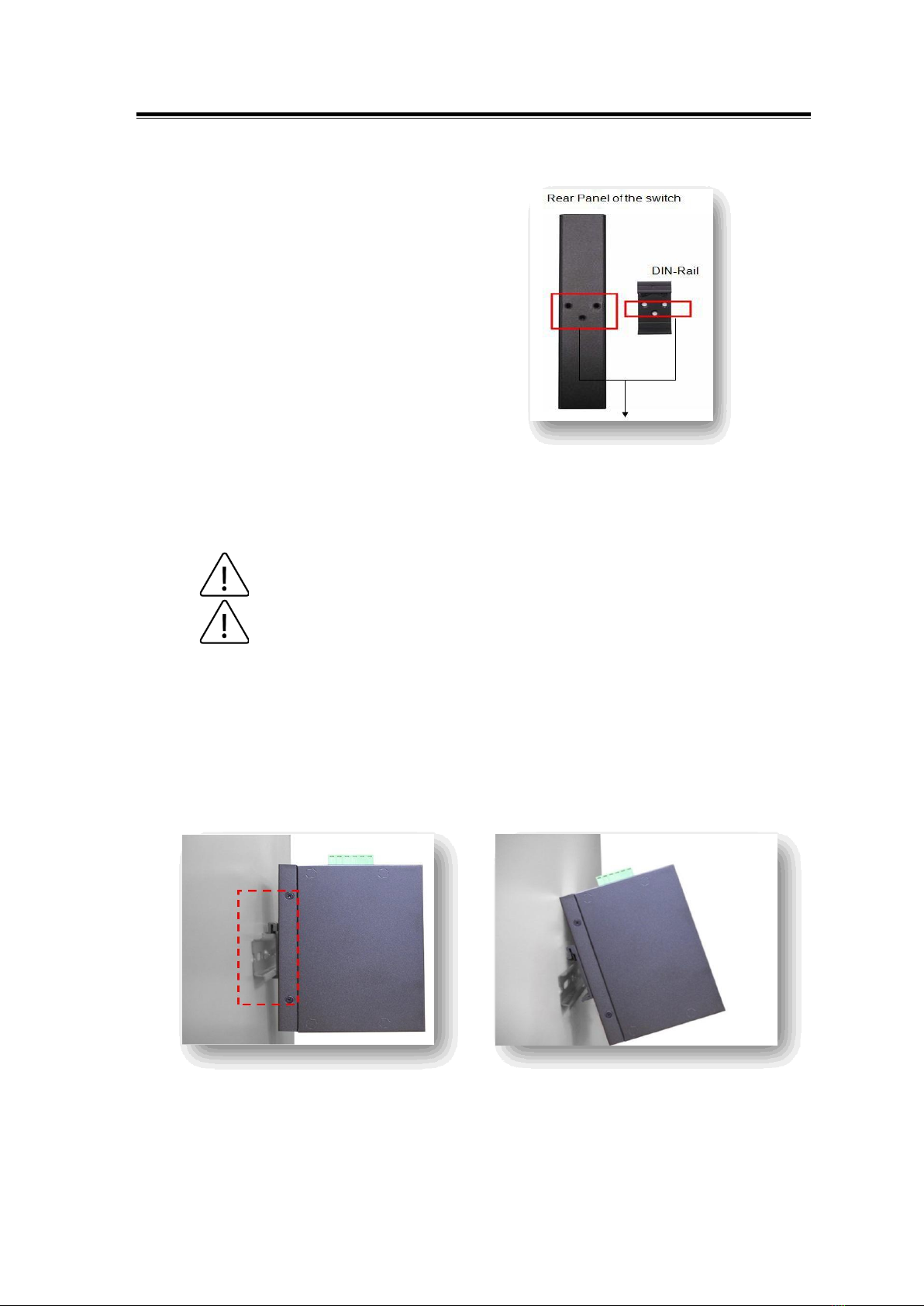

3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial
Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see
Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3,5 pouces-livres.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
Figure 3.2
Insert the Switch on the DIN-Rail
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.1
TheRear SideoftheSwitchand DIN-
Rail Bracket

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
13

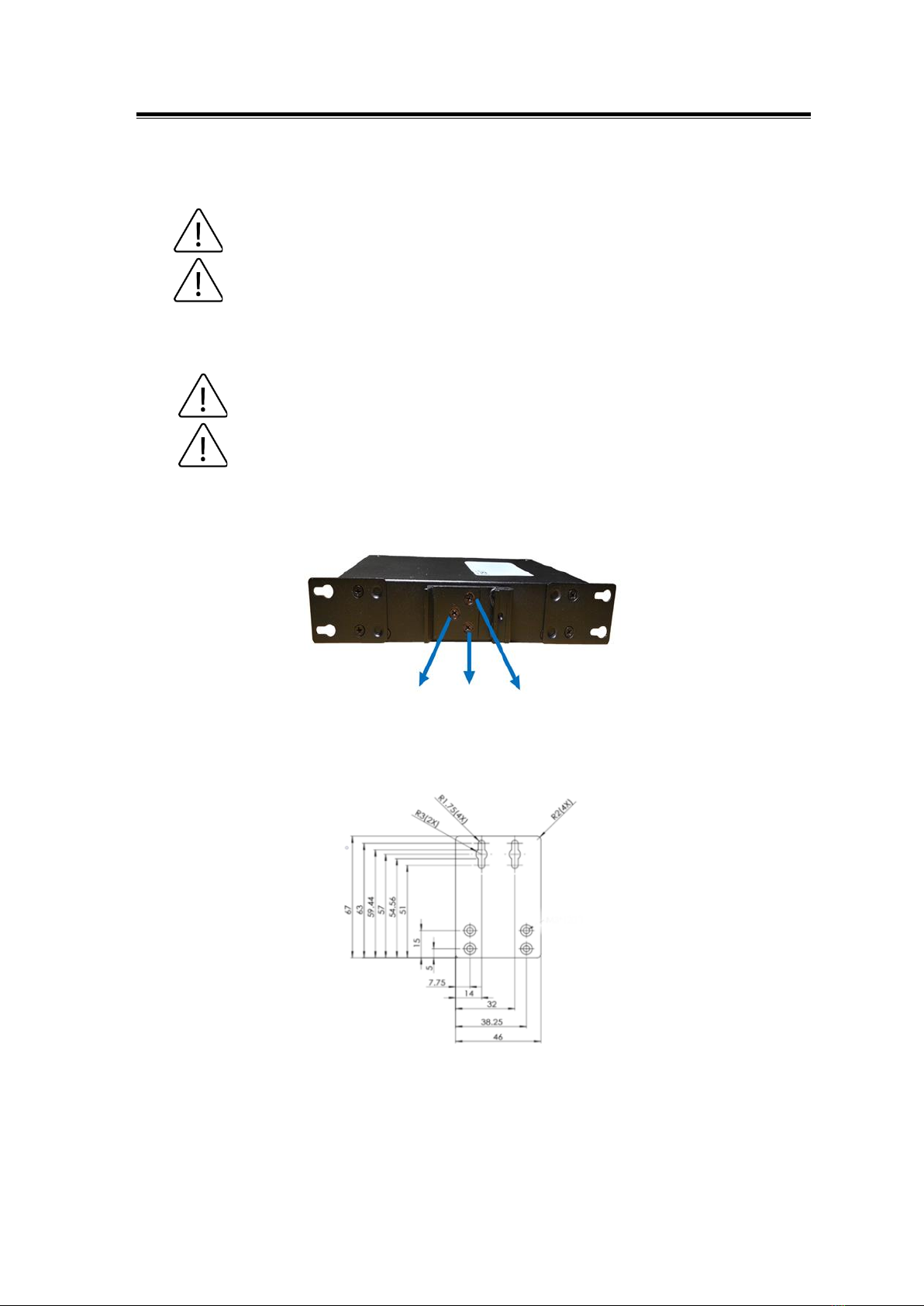

3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as
shown below in Figure 3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by looseningthe screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3,5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4
Remove DIN-Rail Bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
14
4.Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s LMP-0702G-SFP-24-V2 series:
Caution: This device is intended for use indoor.
Attention: Cet appareil est destiné à être utilisé à l'intérieur.
Caution: The device is intended to be installed in an industrial control enclosure and
panel.
Attention: L'appareil est destiné à être installé dans une armoire de commande et un
panneau industriels.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
• If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
• If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
• If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
• Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
• Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies - Industrial EthernetSwitches
LMP-0702G-SFP-24-V2 Series Hardware Manual V1.0
15
4.2 Maintenance and Service
• If the device requires servicing of any kind, the user is required to disconnect and remove it from its
mounting. The initial installation should be done in a way that makes this as convenient as possible.
• Voltage/Power lines should be properly insulated as well as other cables. Be careful when handling
them so as to not trip over.
• Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes
located in the different faces of the device. This may not only harm the internal layout, but might
cause harm to user as well.
• Do not under any circumstance open the device for any reason. Please contact your dealer for any
repair needed or follow the instructions within the manual.
• Clean the device with dry soft cloth.
