ANTAIRA LMX-0601G-SFP Series User manual

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.0
i
LMX-0601G-SFP Series
6-Port Industrial Gigabit Managed Ethernet Switches
5*10/100/1000Tx and 1*100/1000 SFP Slot,
12~48VDC Power Input
User Manual
Version 1.0

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
ii
© Copyright 2014 Antaira Technologies, LLC
All Rights Reserved
This document contains information, which is protected by copyright. Reproduction, adaptation or translation
without prior permission is prohibited, except as allowed under the copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the
registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered
trademarks of their respective owners.
Notice: Copyrights © 2014 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or
translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the
copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but
not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,
LLC may make improvements and/or changes to the product and/or specifications of the product described in this
manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or
typographical errors found in this guide. Changes are periodically made to the information contained herein and
will be incorporated into later versions of the manual. The information contained is subject to change without prior
notice.

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
iii
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause
harmful interference to radio communications if the equipment is not installed and used in accordance with the
instructions. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's
authority to operate the equipment.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
Industrial Ethernet Switches
Industrial Grade Gigabit Managed Ethernet Switches
User Manual
Version 1.0 (November 2014)
This manual supports the following models:
LMX-0601G-SFP
LMX-0601G-SFP-T
This document is the current official release manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
iv
Table of Contents
1. Introduction................................................................. 1
1.1Product Overview............................................... 1
1.2 Product Software Features ................................ 1
1.3 Product Hardware Features............................... 2
1.4 Package Contents.............................................. 2
1.5 Safety Precaution............................................... 2
2. Hardware Description................................................. 3
2.1 Physical Dimensions.......................................... 3
2.2Front Panel......................................................... 4
2.3 Top View............................................................ 4
2.4LED Indicators.................................................... 5
2.5Ethernet Ports..................................................... 6
2.6 Cabling............................................................... 8
2.7 Wiring the Power Inputs................................... 10
2.8 Wiring the Fault Alarm Contact........................ 11
3.Mounting Installation ................................................ 12
3.1DIN-Rail Mounting............................................ 12
3.2Wall Mounting................................................... 13
4.Hardware Installation................................................ 14
4.1Installation Steps.............................................. 14
5.Web Management...................................................... 15
5.1 Web Console Configuration............................. 15
5.1.1 About Web-Based Management................. 15

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
v
5.2 Basic Setting.................................................... 16
5.2.1 System Information..................................... 16
5.2.2 Admin &Password....................................... 17
5.2.3 IP Setting..................................................... 18
5.2.4 System Time............................................... 19
5.3Port Management ............................................. 20
5.3.1 Port Status .................................................. 20
5.3.2 Port Configuration....................................... 20
5.5 ERPS ............................................................... 22
5.5.1 ERPS Status............................................... 23
5.5.2 ERPS Configuration.................................... 23
5.5.3 Before Configuring ERPS........................... 25
5.6 Spanning Tree ................................................. 32
5.6.1 RSTP Status ............................................... 33
5.6.2 RSTP Configuration.................................... 33
5.6.3 MSTI Status ................................................ 35
5.6.4 MSTI Configuration..................................... 36
5.7. 802.1Q VLAN.................................................. 38
5.7.1 802.1Q VLAN Settings................................ 38

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
vi
5.7.2 802.1Q VLAN Settings................................ 39
5.8. IGMP Snooping............................................... 39
5.8.1IGMP Settings ............................................. 40
5.8.2IGMP Snooping Status Table...................... 41
5.9 QoS (Traffic Prioritization)................................ 41
5.9.1 QoS Classification....................................... 42
5.9.2 CoS Mapping .............................................. 43
5.9.3 ToS Mapping............................................... 44
5.10Port Mirroring.................................................. 45
5.11 SNMP.......................................................... 46
5.11.1SNMP Agent.............................................. 46
5.11.2SNMP Trap Setting ................................... 47
5.12System Warning............................................. 48
5.12.1Syslog Setting ........................................... 48
5.12.2System Event Log...................................... 49
5.12.3SMTP Setting ............................................ 50
5.12.4Event Selection ......................................... 51
5.12.5Fault Alarm................................................ 51
5.13MAC Table...................................................... 52

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
vii
5.13.1 MAC Address Table.................................. 52
5.13.2 MAC Table Configuration ......................... 52
5.14 Maintenance .................................................. 53
5.14.1 Upgrade .................................................... 53
5.14.2 Reboot....................................................... 54
5.14.3 Default....................................................... 54
5.15Configuration.................................................. 54
5.15.1 Save..................................................... 55
5.15.2Backup & Store ......................................... 55
5.15.3 Auto Load & Backup................................. 56
5.16 Logout ......................................................... 57
6.Command Line Interface Management ................... 57
6.1 About CLI Management................................. 57
7. Technical Specifications.......................................... 74

Antaira Industrial Ethernet Switches
LMP-0601G-SFP Series User Manual V1.0
1
1. Introduction
Antaira Technologies’ industrial managed switches come with a pre-installed “user friendly” web
console interface, which allows users to easily configure and manage the units, whether one is using
a serial console and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or
simple network management protocols (SNMP).
1.1 Product Overview
Antaira’s LMX-0601G-SFP series is a 5-port industrial Gigabit managed Ethernet switch that is
embedded with 5*10/100/1000Tx Ethernet ports and 1*100/1000 dual rate SFP slot for fiber
connection. This series is a fully manageable industrial Ethernet switch with a pre-loaded Layer
2 network management web console that supports a low voltage redundant power input range
from 12~48VDC with a voltage booster. This product series is IP30 rated, DIN-rail mountable,
and has two wide operating temperature models for either a standard temperature range ( STD:
-10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). It also provides high
EFT and ESD protection for any industrial networking application within factory automation, ITS,
power/utility, water wastewater, and any other outdoor or harsh environment.
1.2 Product Software Features
Network Redundancy
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
Network Management
Web UI based management, SNMP v1/v2, Serial Console
Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, Diffserv
IEEE802.1q VLAN, port-based VLAN support
IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group
Supports RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, SSH/SSL,
TFTP.
Port Configuration
Status, statistics, mirroring, rate limiting, event syslog
Event Handling
Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP
trap and Fault Alarm Relay Output
Software Upgrade via TFTP and HTTP

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
2
Configuration Backup –USB Port
1.3 Product Hardware Features
System Interface and Performance
All RJ-45 ports support Auto MDI/MDI-X Function
Embedded 5*10/100/1000Tx Ethernet ports, and 1*100/1000 SFP slot
Store-and-forward switching architecture
8K MAC address table
Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
Power Input
DC 12~48V redundant with a 6-pin removal terminal block
One user programmable alarm relay contact
Operating Temperature
Standard operating temperature models: -10°C to 70°C
Extended operating temperature models: -40°C to 75°C
Case/Installation
IP-30 protection metal housing
Installation in pollution degree to environment
DIN-Rail and wall mount design
1.4 Package Contents
1–LMX-0601G-SFP series: 5-Port industrial managed Ethernet switch, with 5*10/100/1000Tx,
and 1*100/1000 SFP Slot
1-Product CD
2-Wall mounting brackets and screws
1-RJ45 to DB9 Serial Console cable
1-DC cable –18 AWG & DC jack 5.5x2.1mm
1.5 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
3
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0601G-SFP series: 6-port
industrial managed Ethernet switch with 5*10/100/1000Tx, and 1*100/1000 SFP slot; 12~48VDC
power input. (W x D x H) is 46mm x 99mm x 142mm
Figure2.1
LMX-0601G-SFP Series Physical Dimensions

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
4
2.2 Front Panel
The front panel of the LMX-0601G-SFP series industrial managed Ethernet switches is shown
below in Figure 2.2.
2.3 Top View
Figure 2.3, below, shows the top panel of the LMX-0601G-SFP series switch that is
equipped with one 6-pin removal terminal block connector for dual DC power inputs
(12~48VDC).
Figure 2.2 - The Front Panel of LMX-0601G-SFP Series
Figure2.3
Top Panel View of LMX-0601G-SFP Series

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
5
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Powerinput1is active
Off
Powerinput1isinactive
P2
Green
On
Powerinput2is active
Off
Powerinput2isinactive
Fault
Green
On
System is ready
Off
System is booting
Red
On
Fault Alarm
Off
System is in normal state
Owner
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
Ring Network is active
Off
Ring Network is not active
LAN Port 1~ 5
(Left LED)
Green
On
Connected to network, 1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~ 5
(Right LED)
Green
On
Networking is active, 100/10Mbps
Flashing
Networking is active
Off
Not connected to network
Fiber Port 6
LNK/ACT
(SFP Slot)
Green
On
Connected to Network
Flashing
Networking is active
Off
Not connected to network
Table 2.1
LED Indicators for LMX-0601G-SFP Series

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
6
2.5 Ethernet Ports
RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX,
and 1000Base-T connections. Auto MDI/MDIX means that the switch can connect to another
switch or workstation without changing the straight-through or crossover cabling. See the figures
as below for straight-through and crossover cabling schematics.
RJ-45 Pin Assignments (Table 2.2)
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can
use straight-through cables (see figure below) for all network connections to PCs, servers, other
switches or hubs. With straight-through cable pins 1, 2, 3, and 6, at one end of the cable are
connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below
(Table 2.3) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI and MDI-X port pin outs.
Note
“+” and “-” signs represent the polarity of the wires that make up each wire pair.
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.2 - RJ45 Pin Assignments

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
7

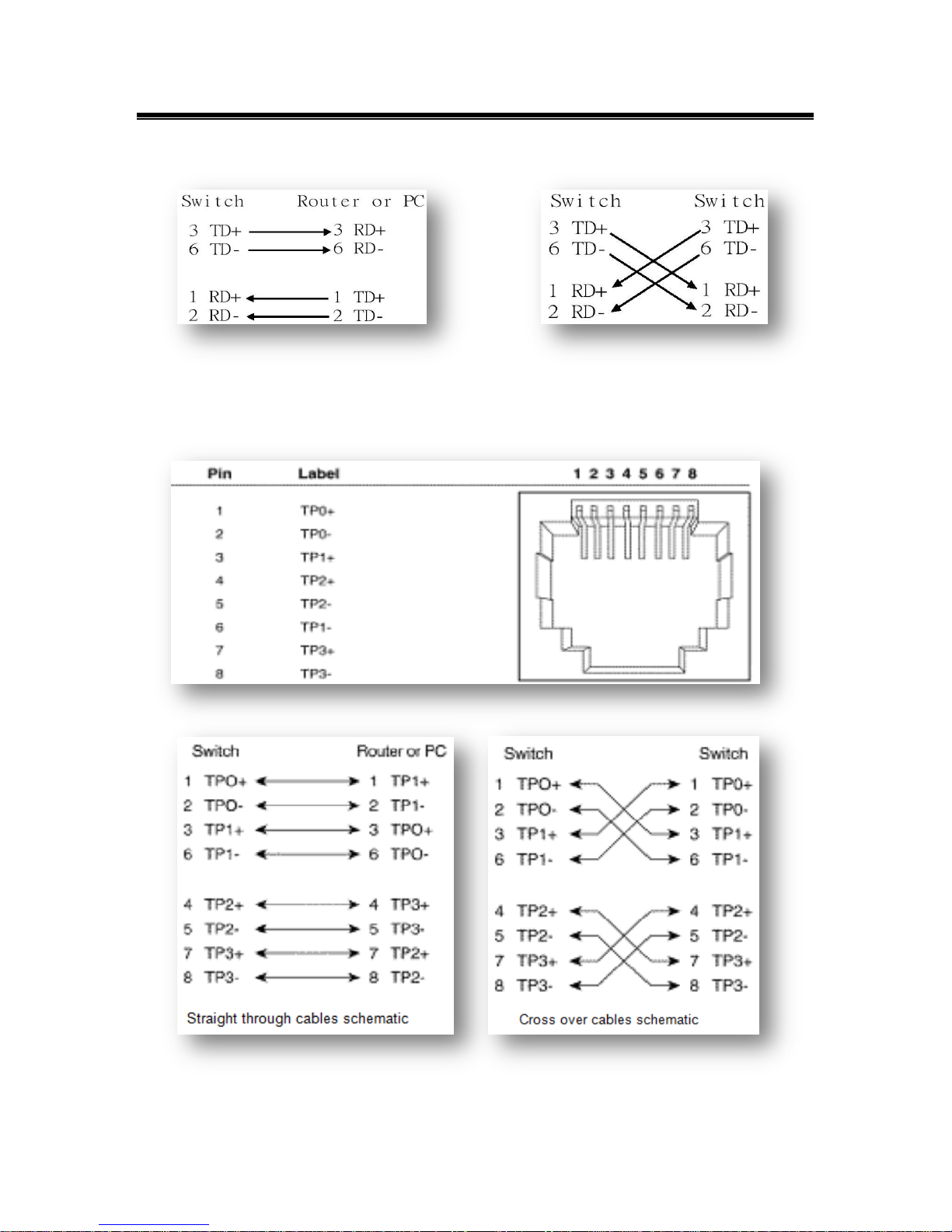

The following figures show the cabling schematics for straight-through and crossover.
The following figures show the 10/100/1000 Ethernet RJ-45 pin outs.
Figure 2.4 Straight-through Cable Schematic Figure 2.5 Crossover Cable Schematic
Figure 2.7: Straight through cables schematic Figure 2.8: Cross over cables schematic
Figure 2.6: RJ45 Ethernet Port Pin Outs

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
8
2.6 Cabling
Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded
twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX
standard (e.g. Category 5, 5e, or 6). The cable between the equipment and the link partner
(switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
Fiber segment –port 6: dual rate (100/1000) SFP slot. The small form-factor pluggable
(SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
To connect the transceiver and LC cable, please follow below steps:
First, insert the SFP transceiver module into the SFP slot as shown below in Figure
2.9. Notice that the triangle mark is at the bottom of the SFP slot. Figure 2.10 shows
SFP transceiver module was inserted.
Figure 2.9 - Transceiver to the SFP Module
Figure 2.10 - Transceiver Inserted

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
9
Second, insert the fiber cable of the LC connector into the transceiver as shown
below in Figure2.11.
To remove the LC connector from the transceiver, please follow the steps
shown below:
Press the upper side of the LC connector from the transceiver and pull it out to
release as shown below in Figure 2.12.
Push down the metal clasp and pull the transceiver out by the plastic part as
shown below in Figure 2.13.
Figure 2.11 - LC Connector to the Transceiver
Figure 2.12 - Remove LC Connector
Figure 2.13 - Pull Out from the SFP Module

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
10
2.7 Wiring the Power Inputs
Please follow the steps below to insert the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure 2.6.
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure
2.7.
Note
Only use copper conductors, 60/75°C, tighten to 5lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Figure 2.7 - Power Terminal Block
Figure 2.6 - Power Terminal Block

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
11
2.8 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below
in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link
failure (managed industrial switch only) and forma normally open circuit. An application example
for the fault alarm contact is shown below in Figure 2.8.
Note
The wire gauge for the terminal block should range between 12 ~ 24AWG
Figure 2.8 - Wiring the Fault Alarm Contact

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
12
3. Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial
Ethernet switch from the factory. If the DIN-Rail
is not on the industrial Ethernet switch, please
see Figure 3.1 to learn how to install the DIN-
Rail on the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial
Ethernet
switch from the rail, do the opposite from the above steps.
Figure 3.1
The Rear Side of the Switch and DIN-Rail Bracket
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.2
Insert the Switch on the DIN-Rail

Antaira Industrial Ethernet Switches
LMX-0601G-SFP Series User Manual V1.0
13
3.2 Wall Mounting
Follow the steps below to mount the industrial
Ethernet
switch using the wall mounting bracket as
shown below in Figure 3.4.
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions
Figure 3.4
Remove DIN-Rail Bracket from the Switch
