1
1. Introduction
All Antaira industrial managed switches come with a pre-installed “user-friendly” web console
interface, which allows users to easily configure and manage the units, whether one is using a serial
console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple
Network Management Protocols (SNMP).
1.1 Product Overview
Antaira Technologies’ LMP-0602-XX-V2 series is a 6-port industrial PoE+ managed Ethernet
switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a maximum of
30W/port and 2*100Fx fiber connections. The LMP-0602-XX-V2 is a fully manageable Layer 2
Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports
the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS
(Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced
network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP,
and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote
SCADA systems or control networks.
The LMP-0602-XX-V2 series is IP30 rated and DIN-rail mountable. There are also two wide
operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an
extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for
industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory
automation, security surveillance, ITS and any other outdoor or harsh environment.
1.2 Product Software Features
 Network Redundancy
➢ STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for
network redundancy
 Network Management
➢ Web UI based management, SNMP v1/v2/v3, Serial Console
➢ Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,
broadcast storm control, Diffserv
➢ IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
2
➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256group
➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,
HTTPS, SSH/SSL, TFTP
➢ MODBUS TCP for SCADA system integration
 Port Configuration
➢ Status, statistics, mirroring, rate limiting, event syslog
 Event Handling
➢ Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP
trap and Fault Alarm Relay Output
 Software Upgrade via TFTP and HTTP
 Configuration Backup –USB Port
1.3 Product Hardware Features
 System Interface and Performance
• All RJ45 ports support Auto MDI/MDI-X Function
• Embedded 4*10/100Tx (PSE: 30W/Port) RJ45 Ports and 2*100Fx (SC/ST) fiber ports
with multi-mode (2km) or single-mode (30km)
• Store-and-forward switching architecture
• 8K MAC address table
• Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC
 Power Input
• DC 48~55V redundant, with a 6-pin removal terminal block
• It is recommended to use a UL listed industrial power supply
 Operating Temperature
• Standard operating temperature model: -10°C to 70°C
• Extended operating temperature model: -40°C to 75°C
 Case/Installation
• IP30 protection
• DIN-Rail and wall mount design

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
3
1.4 Package Contents
 1 –LMP-0602-XX(-T)-V2
 1 –Quick Installation Guide
 1 –Wall mounting bracket set with screws
 1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm
 1 –RJ45 dust cover set
 1 –RJ45 to DB9 serial console cable
1.5 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection
device on the power supply input. The industrial Ethernet switch’s
hardware specs, ports, cabling information, and wiring installation will be
described within this user manual.
Warning Labels
The caution label means that you should check the certain information on user manual when working
with the device. (Shown in Figure 1.1)
Figure 1.1 - Caution Label
Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
4
2. Hardware Description
2.1 Physical Dimensions
Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0602-XX-V2 series:
(W x D x H) is 54mm x 99mm x 142mm
Figure 2.1
LMP-0602-XX-V2 Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
5
2.2 Front Panel
The front panel of the LMP-0602-XX-V2 series industrial PoE+ managed Ethernet switch is shown
below in Figure 2.2.

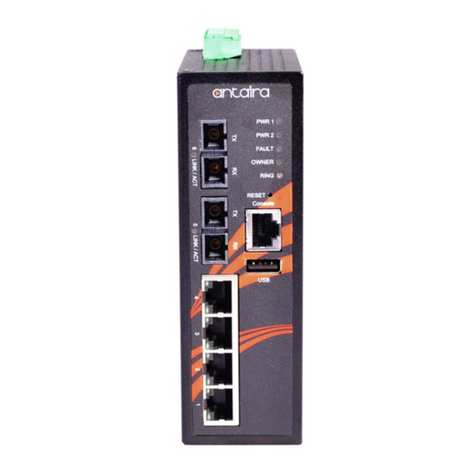

Figure2.2
The Front Panel of LMP-0602-XX-V2 Series
2.3 Top View
Figure 2.3, below, shows the top panel of the LMP-0602-XX-V2 series switch that is equipped
with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC).
Figure2.3
Top Panel View of LMP-0602-XX-V2 Series
6-Pin Removal Terminal Block
Grounding Screw
Reset Button
LAN# 1~4 LED for
Link/Activity Status
10/100Mbps
LAN# 1~4 LED for
PoE Status
LED for Power 1, Power 2, Fault, Master, and Ring
Console Port
USB for Configuration
Fiber Port# 5~6 LED for
Link/Activity Status
100
LAN# 1~4 –10/100 RJ45
Fiber Port# 5~6 –100
6-Pin Removal Terminal Block
Grounding Screw

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
6
2.4 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that
display the power status and network status. Each LED indicator has a different color and has
its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
Fault
Green/Red
Green
Preconfigured alarms are not detecting failure
Red
Preconfigured alarms are detecting failure
Off
Switch is in the process of booting
Owner
Green
On
ERPS Owner Mode (Ring Master) is ready
Off
ERPS Owner Mode is not active
Ring
Green
On
Ring Network is active
Off
Ring Network is not active
Fiber Port 5~6
Link/ACT
Green
On
Connected to Network, 100Mbps
Flashing
Network is active
Off
Not connected to network
LAN Port 1~4
(Upper LED)
Green
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 1~4
(Lower LED)
Green
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
Table 2.1 - LED Indicators for LMP-0602-XX-V2 Series
Caution: "P1" is the abbreviation for "Power ", “P2”is for “Power 2”, “LNK”is for “Link”, and
"ACT" is for "Activity".

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
7
2.5 Reset Button
There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps
users to reboot, restore default, or save running configurations by pressing the button for
different seconds. Please refer to Table 2.2 for the timing and function.
Seconds
Function
1
Save running configuration to USB
4-6
Reboot the switch
7 or more
Restore factory default
Table 2.2 –Reset Button Functions
2.6 Ethernet Ports
 RJ-45 Ports
RJ-45 Ports (Auto MDI/MDIX) : The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T connections. Auto MDI means that the switch can connect to another switch or
workstation without changing the straight-through or crossover cabling. See the figures below for
straight-through and crossover cabling schematics.
 RJ-45 Pin Assignments
Pin Number
Assignment
1
Rx+
2
Rx-
3
Tx+
6
Tx-
Table 2.3 - RJ45 Pin Assignments
Note: The “+” and “-”signs represent the polarity of the wires that make up each wire pair.
All ports on this industrial Ethernet switch support automatic MDI operations. Users can use
straight-through cables (see figure below) for all network connections to PCs, servers, and other
switches or hubs. With straight-through cabling, pins 1, 2, 3, and 6 are at one end of the cable
and are connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table
below (Table 2.4) shows the 10BASE-T/100BASE-TX/1000BASE-T MDI port pinouts.

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
8
Pin MDI-X
Signal Name
MDI Signal Name
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table 2.4 - Ethernet Signal Pin
The following figures show the cabling schematics for straight-through and crossover.
Figure 2.4
Straight-Through Cable Schematic
Figure 2.5
Crossover Cable Schematic
2.7 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The
cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than
100 meters (328 ft.) in length.
2.8 Wiring the Power Inputs
Please follow the steps below when inserting the power wire.
1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-)
contacts on the terminal block connector as shown below in Figure2.6.
Figure 2.6 - Power Terminal Block
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7.
Figure 2.7 - Power Terminal Block

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
9
Note:
Only use copper conductors, 60/75 ° C , tighten to 5lbs.
• The wire gauge for the terminal block should range between 18~20AWG .
Caution:
• The wire gauge for the terminal block should range between 12 ~24AWG
2.10 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference
(EMI). Run the ground connection from the ground screw to the grounding surface prior to
connecting devices. The grounding screw symbol is shown blow in Figure 2.15.
Figure 2.15 - Grounding screw
Caution: Using a shielded cable achieves better electromagnetic compatibility.

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
10
3.Mounting Installation
3.1 DIN-Rail Mounting
The DIN-Rail is pre-installed on the industrial
Ethernet switch from the factory. If the DIN-Rail is
not on the industrial Ethernet switch, please see
Figure 3.1 to learn how to install the DIN-Rail on
the switch.
Follow the steps below to learn how to hang the industrial Ethernet switch.
1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
2. To remove the DIN-Rail bracket, do the opposite from step 1.
3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN-
Rail on to the track as shown below in Figure 3.2.
4. Lightly pull down the bracket on to the rail as shown below in Figure3.3.
5. Check if the bracket is mounted tightly on the rail.
6. To remove the industrial Ethernet switch from the rail, do the opposite from the above steps.
Figure 3.2
Insert the Switch on the DIN-Rail
Figure 3.3
Stable the Switch on DIN-Rail
Figure 3.1
TheRearSideoftheSwitchandDIN-Rail Bracket

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
11
3.2 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as
shown below in Figure 3.4.
Caution: “Wall” means industrial control panel wall
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by looseningthe screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet
switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
Figure 3.4
Remove DIN-Rail Bracket from the Switch
Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5
Wall Mounting Bracket Dimensions

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
12
4.Hardware Installation
4.1 Installation Steps
This section will explain how to install Antaira’s LMP-0602-XX-V2 series:
Caution: This device is intended for use indoor and at altitudes up to 2000 meters.
Caution: The device is intended to be installed in an industrial control enclosure and panel.
Installation Steps
1. Unpack the industrial Ethernet switch from the original packing box.
2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch.
• If the DIN-Rail is not screwed on the industrial Ethernet switch, please refer to the
DIN-Rail Mounting section for DIN-Rail installation.
• If you want to wall mount the industrial Ethernet switch, please refer to the Wall
Mounting section for wall mounting installation.
3. To hang the industrial Ethernet switch on a DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the industrial Ethernet switch and then the power LED light will turn on.
• If you need help on how to wire power, please refer to the Wiring the Power Inputs
section.
• Please refer to the LED Indicators section for LED light indication.
5. Prepare the twisted-pair, straight-through category 5 cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into switch’s Ethernet port and on the other side into the
networking device’s Ethernet port, e.g. switch PC or server. The Ethernet port’s (RJ-45) LED
on the industrial Ethernet switch will turn on when the cable is connected to the networking
device.
• Please refer to the LED Indicators section for LED light indication.
7. When all connections are set and the LED lights all show normal, the installation is complete.

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
13
4.2 Maintenance and Service
• If the device requires servicing of any kind, the user is required to disconnect and remove it from its
mounting. The initial installation should be done in a way that makes this as convenient as possible.
• Voltage/Power lines should be properly insulated as well as other cables. Be careful when handling
them so as to not trip over.
• Do not under any circumstance insert foreign objects of any kind into the heat dissipation holes
located in the different faces of the device. This may not only harm the internal layout, but might
cause harm to user as well.
• Do not under any circumstance open the device for any reason. Please contact your dealer for any
repair needed or follow the instructions within the manual.
• Clean the device with dry soft cloth.
5. Technical Specifications
Table 5.1 has the technical specifications for Antaira’s LMP-0602-XX-V2 series:
Technology
L2 Switching
Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking,
GARP/GVRP, Loop Guard, Link Aggregation static/LACP,
BPDU guard, Error disable recovery, IGMPv2 snooping, MLD
snooping, IGMP filtering, IPMC throttling / filtering leave proxy,
DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching
DHCP option82, static routes
QoS
802.1p Queueing, Input priority mapping, Storm control for
Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port
egress shaper, Queue egress shaper, DiffServ (DSCP), Tag
remarking, Scheduler mode
Power Saving
ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Network Redundancy
STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Configuration
Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
System / Diagnostics
Dual Image Protection, PING, PING6
Switch Properties
Back-Plane (Switching
Fabric)
Non-blocking
Priority Queues
8
Processing Type
Store and Forward
Flow Control
IEEE 802.3x flow control, back pressure flow control
Transfer Rate
14,880pps for Ethernet Port

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
14
148,800pps for Fast Ethernet Port
Memory Buffer
4Mbits
Jumbo Frame
9.6Kbytes
MAC Table Size
8K
VLAN Group
4095
IGMP Group
1024
Port Interface
Ethernet Port
4*10/100Base-TX, auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
Fiber Port
2*100Base-FX SC/ST type connector
RS232 Serial Console
1*RS232 in RJ45
LED Indicators
System: Power 1, Power 2, Master, Ring, Fault
Ethernet Ports: Speed/Link/Active
Fixed Fiber: Link/Active
Protection
Network Cable
10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-
ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-
ohm (100m)
Mechanical
Characteristics
Housing
Metal, IP30 protection
Dimensions
54 x 142 x 99 mm (W x H x D)
Weight
Unit: 1.9 lbs
Shipping: 2.7 lbs
Mounting
DIN-Rail, Wall-mount (Optional)
Power Requirement
Input Voltage
48~55VDC Redundant Input
Power Connection
1 removable 6-contact terminal block
Relay Contact
24VDC, 1A resistive
Overload Current
Protection
Present
Reverse Polarity
Protection
Present
PoE Pin Assignment
V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI Alternative A)
PoE Power Output
25W @ 48VDC (per PoE port)
30W @ 51~55VDC (per PoE port)
Power Consumption
7.5W
Environment Limits
Operating
Temperature
STD: -10°C to 70°C

Antaira Technologies - Industrial EthernetSwitches
LMP-0602-XX-V2 Series Hardware Manual V1.1
15
EOT: -40°C to 75°C
Storage Temperature
-40°C to 85°C
Ambient Relative
Humidity
5% to 95%, (non-condensing)
Regulatory
Approvals
EMI
FCC Part 15 Subpart B Class A, CE EN55022/EN61000-6-4
Class A
EMS
CE EN55024/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8
Free Fall / Shock /
Vibration
IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green
RoHS Compliant
Certifications
FCC, CE
Warranty
5 Years
Table 5.1 - LMP-0602-XX-V2 Series Technical Specifications
Antaira Customer Service and Support
(Antaira US Headquarter) + 844-268-2472
(Antaira Europe Office) + 48-22-862-88-81
(Antaira Asia Office) + 886-2-2218-9733
Please report any problems to Antaira:
www.antaira.com / [email protected]
www.antaira.eu / [email protected]
www.antaira.com.tw / [email protected]w
Any changes to this material will be announced on the Antaira website.
