ANTAIRA LNP-C501G-SFP-bt Series User manual

LNP-C501G-SFP-bt Series
5-Port Industrial Compact Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch,
with 4*10/100/1000Tx (90W/Port) and 1*100/1000 SFP Slot
Hardware Manual
Version 1.0
(July 2022)

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
© Copyright 2022 Antaira Technologies, LLC
All rights reserved
This document contains information, which is protected by copyright. Reproduction, adaptation, or translation without
prior permission is prohibited, except as allowed under copyright laws.
Trademark Information
Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows, and the Windows logo are the
trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered
trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered trademarks of their
respective owners.
Notice: Copyrights © 2022 by Antaira Technologies, LLC. All rights reserved. Reproduction, adaptation, or translation
without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under copyright laws.
Disclaimer
Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but not
limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies, LLC may
make improvements and/or changes to the product and/or specifications of the product described in this manual, without
prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this
guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of
the manual. The information contained is subject to change without prior notice.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause harmful interference to
radio communications if the equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority
to operate the equipment.
Avertissement FCC
Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la
partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre les interférences
nuisibles dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie radiofréquence.
Cela peut provoquer des interférences nuisibles aux communications radio si l'équipement n'est pas installé et utilisé
conformément aux instructions. Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une
installation particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce qui
peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer de corriger les
interférences par une ou plusieurs des mesures suivantes:
●Réorientez ou déplacez l'antenne de réception.
●Augmentez la distance entre l'équipement et le récepteur.
●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est connecté.
●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.
CE Mark Warning
This is a Class-A product. In a domestic environment, this product may cause radio interference in which case the user
may be required to take adequate measures.
Avertissement de marque CE
Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des interférences radio,
auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.
Industrial Ethernet Switches
Industrial Grade Unmanaged PoE++ Ethernet Switches
Hardware Manual
Version 1.0 (July 2022)
The manual supports the following models:
●LNP-C501G-SFP-bt
●LNP-C501G-SFP-bt-T

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
This document is the current official release hardware manual. Please check our website (www.antaira.com) for any
updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
Table of Contents
1 Overview 1
1.1 Product Hardware Features 1
1.2 Package Contents 1
1.3 Safety Precaution 2
2 Hardware Description 3
2.1 Physical Dimensions 3
2.2 Front View Panel 4
2.3 LED Indicators 4
2.4 PoE Port LED Indicators 6
2.5 DIP Switch 8
2.6 Relay Contact Alarm Warning 9
2.7 Ethernet Ports 9
2.8 Cabling 10
2.9 Wiring the Power Inputs 11
2.10 Wiring the Fault Alarm Contact 12
2.11 Grounding Note 13
3 Mounting Installation 14
3.1 Wall Mounting 15
4 Hardware Installation 17
4.1 Installation Steps 17
4.2 Maintenance and Service 18
4.3 Troubleshooting 18
5 Technical Specifications 19

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
1 Overview
Antaira Technologies’ LNP-C501G-SFP-bt series is a compact 5-port industrial gigabit PoE++ unmanaged Ethernet switch.
The small form factor of this metal IP40 rated design is 50% smaller which allows for a more versatile implementation.
The LNP-C501G-SFP-bt series is equipped with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum
of 90W/port and 1*100/1000Tx SFP port. The LNP-C501G-SFP-bt series can handle high bandwidth applications in tight
spaces. The LNP-C501G-SFP-bt series supports high EFT & ESD protection through the redundant power inputs that
support reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable
orientations and provides operating temperature range models in STD: -10°C to 65°C and EOT: -40°C to 75°C. This is an
industrial grade unit applicable for networking applications in factory automation, ITS, power/utility, water wastewater
treatment plants, or any application that needs a compact solution.
1.1 Product Hardware Features
System Interface and Performance
- All RJ45 ports support Auto MDI/MDI-X Function
- Embedded 4*10/100/1000Tx RJ45 ports with bt PoE (90W/Port) and 1*100/1000 SFP slot
- Store-and-forward switching architecture
- 8K MAC address table
Power Input
- DC 48~55V redundant, with a 6-pin removal terminal block
- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage) and the power
supply should comply with UL 61010-1 & UL 61010-2-201
Operating Temperature
- LNP-C501G-SFP-bt: -10°C to 65°C
- LNP-C501G-SFP-bt-T: -40°C to 75°C
Case / Installation
- IP30 protection metal housing
- Wall-mount design
- Installation in a Pollution Degree 2 industrial environment
1.2 Package Contents
- LNP-C501G-SFP-bt(-T)
- Quick Installation Guide
- Wall mounting bracket set with screws
1

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
- DC cable - 18AWG & DC jack 5.5 x 2.1mm**Wire: White (+) / Black (-)
- Dust cover set
1.3 Safety Precaution
Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within
this hardware manual.
Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur l'entrée
d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et l'installation du câblage du
commutateur Ethernet industriel seront décrits dans ce manuel d'utilisation.
Warning Labels
The caution label means that you should check certain information on the user manual when working with the device.
(Shown in Figure 1.1)
Étiquettes d'avertissement
L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation lorsque vous
travaillez avec l'appareil. (Illustré à la figure 1.1)
Figure 1.1 - Caution Label
Figure 1.1 - Étiquette de mise en garde
Figure 1.2 - Hot Surface Warning Label
Figure 1.2 - Étiquette d'avertissement de surface chaude
2

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2 Hardware Description
2.1 Physical Dimensions

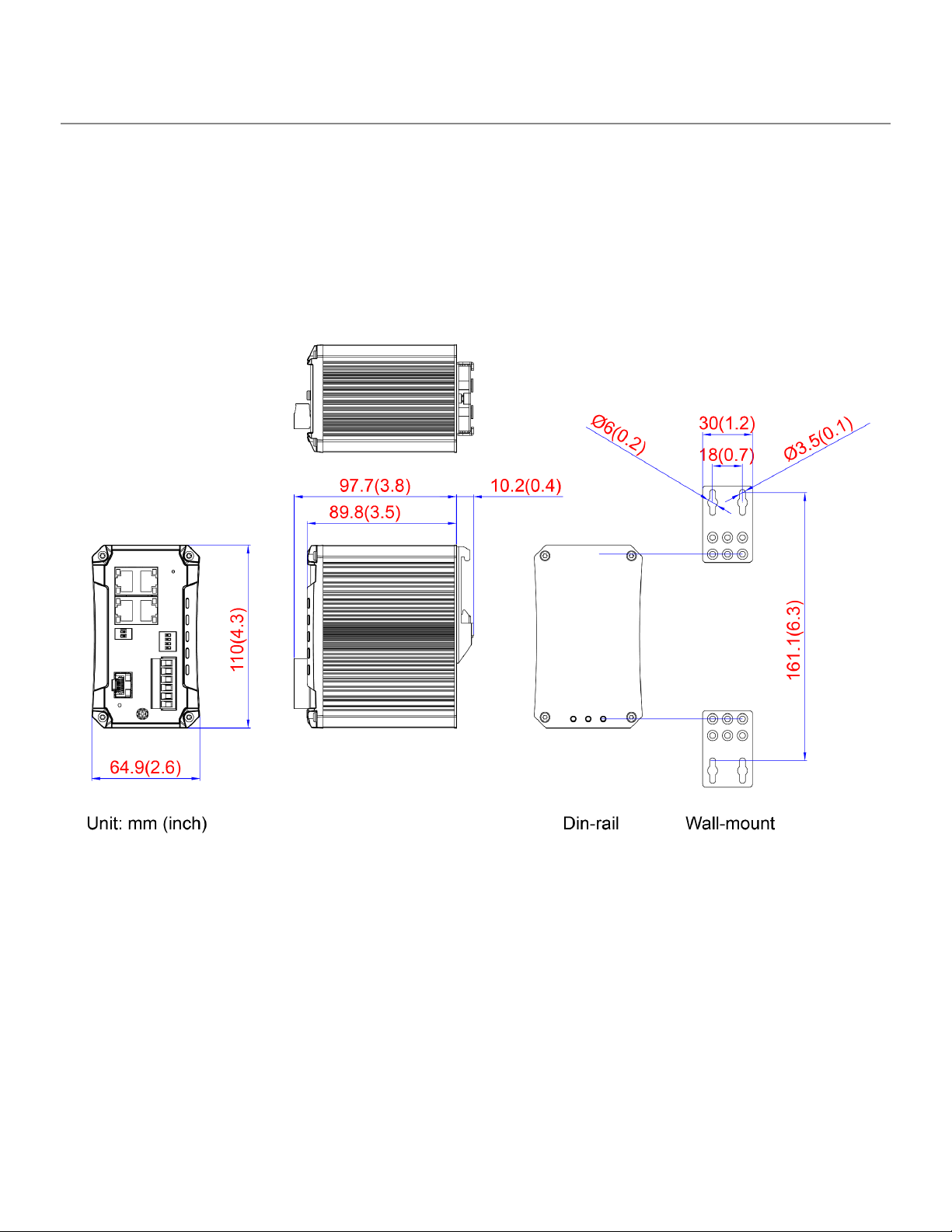

Figure 2.1, below, shows the physical dimensions of this product series:
(W x D x H) is 64.9mm x 89.8mm x 110mm
Figure 2.1 - Physical Dimensions
3

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2.2 Front View Panel
Figure 2.2, below, shows the front panel of the product series:
Figure 2.2 - Front View Panel

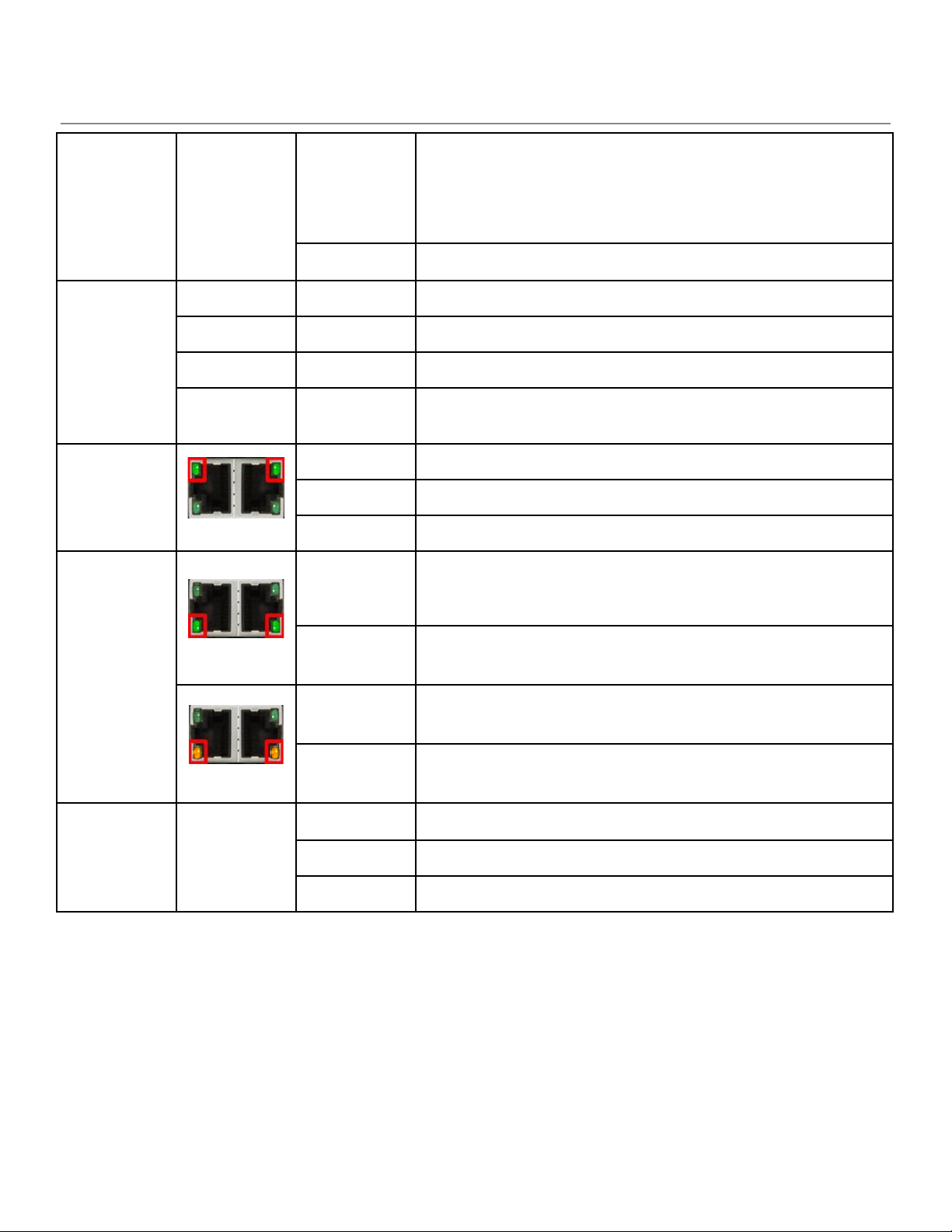

2.3 LED Indicators
There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and
network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
LED
Color
Description
P1
Green
On
Power Input 1 is active
Off
Power Input 1 is inactive
P2
Green
On
Power Input 2 is active
Off
Power Input 2 is inactive
Fault
Red
On
Any of the listed trigger events occurs, (will trigger relay)
1. Power 1 is inactive
2. Power 2 is inactive
4

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
3. Total PoE loading is >100% PoE Budget
4. PoE over current per port
5. Cable short per port occurs in PD that has been normally
powered
6. One of the channels in Dual PD fail
Off
No events occur
PoE Load
Off
Off
PoE Load ≤50%
Blue
On
PoE Load 51~70%
Red & Blue
On
PoE Load 71~90%
Blue & Red
(Red flashing)
On
PoE Load 91~100%
LAN Port 2~5
LNK/ACT
(Upper LED)
Green
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Off
Not connected to network
LAN Port 2~5
PoE Mode
(Lower LED)
Green
On
IEEE 802.3bt connection
(Single Signature PD Class 5~8/Dual Signature PD Channel Class
1~5)
Off
No powered-device attached or power supplying fails
Amber
On
IEEE 802.3af/at connection
(Single Signature PD Class 0~4)
Off
No powered-device attached or power supplying fails
SFP Port
LNK/ACT
Speed
Green
On
Connected to network, 100 or 1000Mbps
Flashing
Networking is active
Off
Not connected to network
Table 2.1 - LED Indicators
Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”.
5

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2.4 PoE Port LED Indicators
The LED light indicators on the PoE copper port can help the user know if and when an event immediately occurs or is
happening. When the event is happening, you can verify the event from the Dual-color LED status. If the port has recovered
from an event, you can verify the event from the blinking frequency of the PoE LED (5 seconds as a cycle).

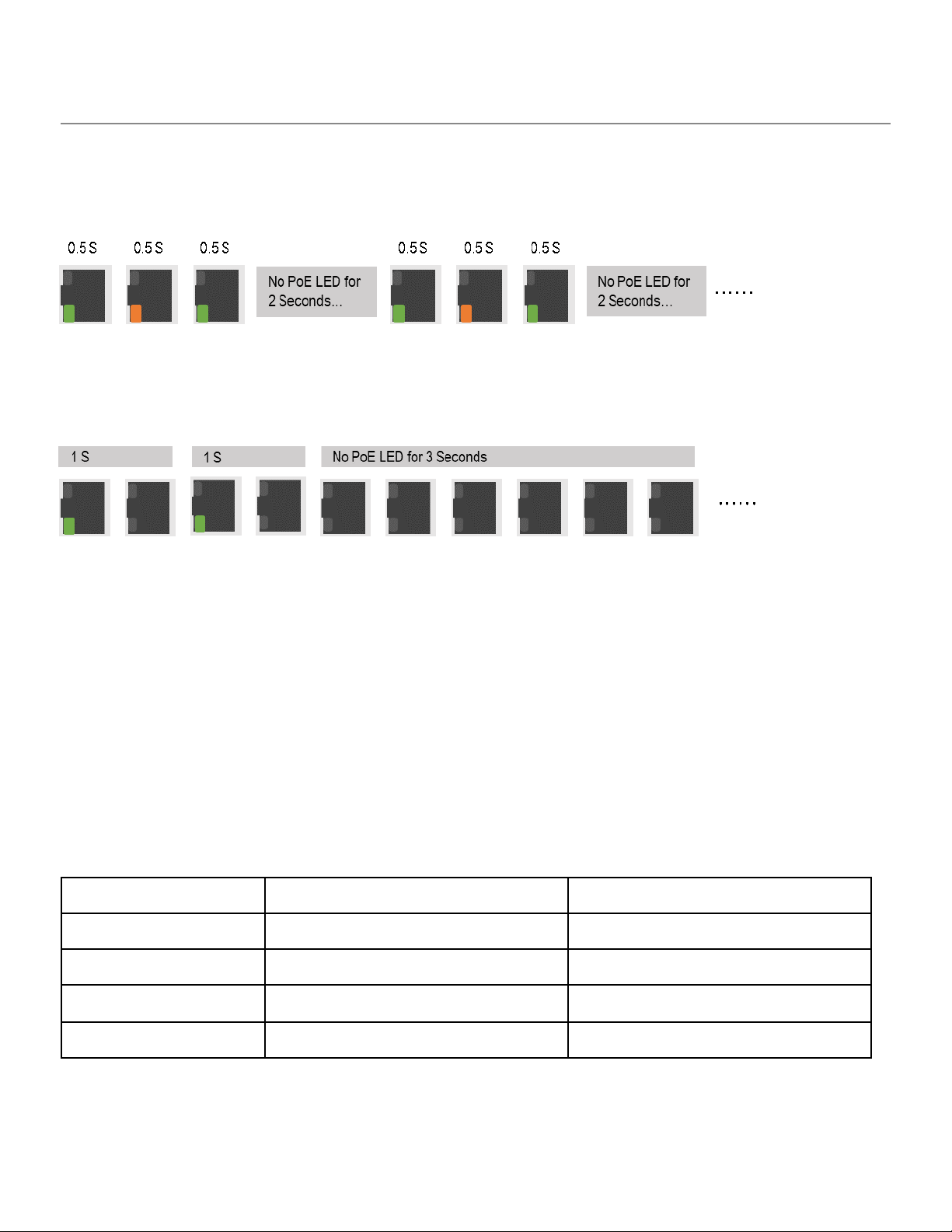

Power Budget Exceeded Event
When the total PoE budget is overloaded (>100%), the PoE port of the lowest priority PoE port will be shut down. The PoE
LED of the port will act cyclically as below until the port is recovered from the event:
Figure 2.3 - PoE Budget Overloaded LED Sequence
After the PoE port is recovered from the PoE budget overload event, the PoE LED of the port will act cyclically as below
until the event indicator is clear manually:
Figure 2.4 - PoE Budget Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
PoE Port Over Current Event (PoE Port Overload Event)
When the current limit of the specific PoE port is exceeded, the PoE power will be shut down. The PoE LED of the port will
act cyclically as below until the port is recovered from the event:
Figure 2.5 - PoE Over Current LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
6

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
After the PoE port is recovered from the PoE Port Over Current event, the PoE LED of the port will act cyclically as below
until the event indicator is clear manually:
Figure 2.6 - PoE Over Current Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
Cable Short Event
When the working PD encounters a cable short event, the PoE port LED will act cyclically as below until the port is
recovered from the event:
Figure 2.7 - PoE Cable Short LED Sequence
After the PoE port is recovered from the Cable Short event, the PoE LED of the port will act cyclically as below until the
event indicator is clear manually:
Figure 2.8 - PoE Cable Short Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
7

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
Dual PD Fail Event
When one channel of the connected dual PD is failed, the failed channel will be shut down and the active channel will still
supply PoE to the connected PD. The PoE Port LED will act cyclically as below until the port is recovered from the event:
Figure 2.9 - PoE Dual PD Failed LED Sequence
After the PoE port is recovered from the Dual PD Fail event, the PoE LED of the port will act cyclically as below until the
event indicator is clear manually:
Figure 2.10 - PoE Dual PD Recovering LED Sequence
**IEEE 802.3af/at: Amber
**IEEE 802.3bt: Green
*Note:
1. The system will automatically retry to recover from the event failure every 20 seconds.
2. To clear the warning PoE Indicator of the recovered port, please replug the port cable or reopen the PoE function of the
port via DIP switch (≥ 2 sec.)
2.5 DIP Switch
The 4-pin DIP switch on the front panel of the Ethernet switch works as the PoE controller for PoE port 2~5.
ON (Default)
OFF
DIP Switch 1
Enable Port 2 PoE function
Disable Port 2 PoE function
DIP Switch 2
Enable Port 3 PoE function
Disable Port 3 PoE function
DIP Switch 3
Enable Port 4 PoE function
Disable Port 4 PoE function
DIP Switch 4
Enable Port 5 PoE function
Disable Port 5 PoE function
Table 2.2 - PoE Switch Functions
8

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
The 2-pin DIP switch is used to enable/disable PD Remote Reset Technology (PRRT) and control SFP speed.
ON
OFF (Default)
DIP Switch 1
Enable PRRT Function
Disable PRRT Function
DIP Switch 2
Control SFP speed at 100Mbps
Control SFP speed at 1Gbps
Table 2.3 - DIP Switch Functions
Note: The device will reboot when the dip switch setting is changed.
2.6 Relay Contact Alarm Warning
2-pin 1*24VDC@1A resistive normal open on 6-pin terminal block.
The relay contact alarm will be triggered when any one of the listed events occurs.
Key trigger event 1: Power 1 or Power 2 is inactive
Key trigger event 2: PoE total loading > 100% PoE output budget
Key trigger event 3: PoE over current per port
Key trigger event 4: Cable short per port
Key trigger event 5: One of the channels in Dual PD fail
* Note:
When the relay is triggered because of event 2~5, the relay contact alarm will update the status every 30 seconds. If there
is no event happening for 30 seconds, the relay contact alarm will be turned off. If the user disables the failed PoE port by
removing the cable or DIP switch manually, the relay will be recovered immediately.
2.7 Ethernet Ports
●RJ45 Ports
RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or
crossover cabling. See the figures below for straight-through and crossover cabling schematics.
●RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / RX+
3 / TX+
1 / RX+
1 / TX+
9

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2 / RX-
6 / TX-
2 / RX-
2 / TX-
3 / TX+
1 / RX+
3 / TX+
3 / RX+
6 / TX-
2 / RX-
6 / TX-
6 / RX-
Table 2.4 - 10/100Base-T(X) RJ45 Pin Assignments
Crossover Cable
Straight Through Cable
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
Pin Number / Signal
1 / TP0+
3 / TP1+
1 / TP0+
1 / TP1+
2 / TP0-
6 / TP1-
2 / TP0-
2 / TP1-
3 / TP1+
1 / TP0+
3 / TP1+
3 / TP0+
4 / TP2+
7 / TP3+
4 / TP2+
4 / TP3+
5 / TP2-
8 / TP3-
5 / TP2-
5 / TP3-
6 / TP1-
2 / TP0-
6 / TP1-
6 / TP0-
7 / TP3+
4 / TP2+
7 / TP3+
7 / TP2+
8 / TP3-
5 / TP2-
8 / TP3-
8 / TP2-
Table 2.5 - 1000Base-T RJ45 Pin Assignments
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
2.8 Cabling
Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch
and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both
telecommunication and data communication applications.
Caution: Please employ an optional optical transceiver (SFP/Fixed Fiber) that complies with IEC 60825-1 and
classified as Class 1 laser product.
Attention: Veuillez utiliser un émetteur-récepteur optique en option (SFP/fibre fixe) conforme à la norme IEC
60825-1 et classé comme produit laser de classe 1.
10

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2.9 Wiring the Power Inputs
Caution: Please follow the steps below when inserting the power wire.
Attention: Veuillez suivre les étapes ci-dessous lors de l'insertion du câble d'alimentation.

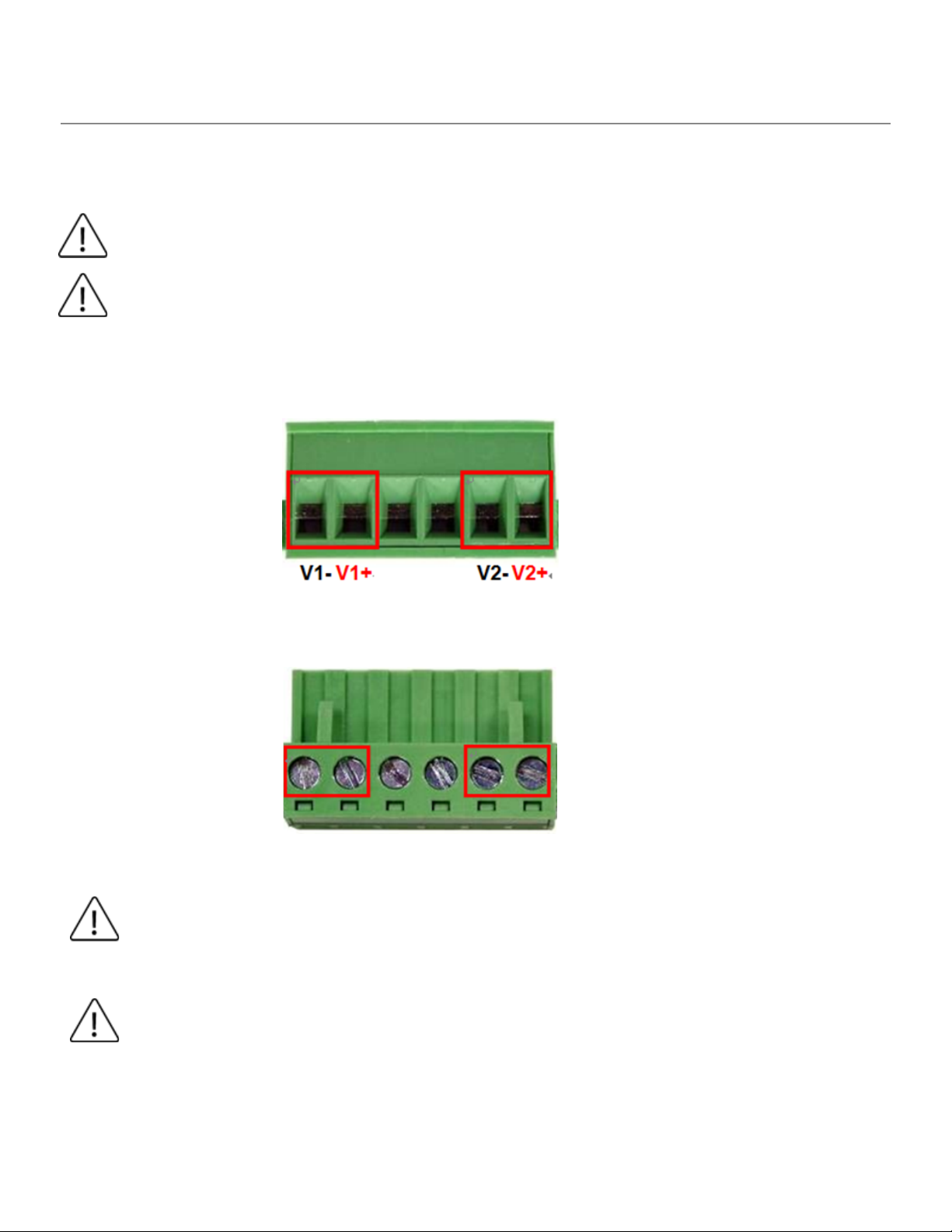

1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block
connector as shown below in Figure 2.11.
Figure 2.11 - Power Terminal Block
2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.12.
Figure 2.12 - Power Terminal Block
Caution:
Only use copper conductors, 125°C, tighten to 5 lbs.
The wire gauge for the terminal block should range between 18~20 AWG.
Attention:
Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb.
Le calibre des fils du bornier doit être compris entre 18 et 20 AWG.
11

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2.10 Wiring the Fault Alarm Contact
The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.13. By
inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch
only), and form a normally open circuit. An example is shown below in Figure 2.13.
Figure 2.13 - Wiring the Fault Alarm Contact
Caution:
The wire gauge for the terminal block should range between 12 ~ 24 AWG.
If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm.
Attention:
Le calibre des fils du bornier doit être compris entre 12 et 24 AWG.
Si vous n'utilisez qu'une seule source d'alimentation, connectez les broches 1 à 5 et les broches 2 à 6 pour
éliminer l'alarme de panne de courant.
12

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
2.11 Grounding Note
Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground
connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is
shown below in Figure 2.14.
Figure 2.14 - Grounding Screw Symbol
Caution: Using a shielded cable achieves better electromagnetic compatibility.
Attention: L'utilisation d'un câble blindé permet une meilleure compatibilité électromagnétique
13

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0
3 Mounting Installation
3.1 Wall Mounting
Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure
3.4.
Caution: “Wall” means industrial control panel wall
Attention: “Wall” signifie mur de panneau de commande industriel
1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws.
2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
3. Use the screws to screw the wall mounting bracket on the industrial Ethernet switch.
Caution: The torque for tightening the screws on the device is 3.5 in-lbs.
Attention: Le couple de serrage des vis sur l'appareil est de 3.5 pouces-livres.
4. Use the hook holes at the corners of the wall mounting bracket to hang the industrial Ethernet switch on the wall.
5. To remove the wall mount bracket, do the opposite from the steps above.
14

Antaira Technologies - Industrial Ethernet Switches
LNP-C501G-SFP-bt Series - Hardware Manual - v1.0

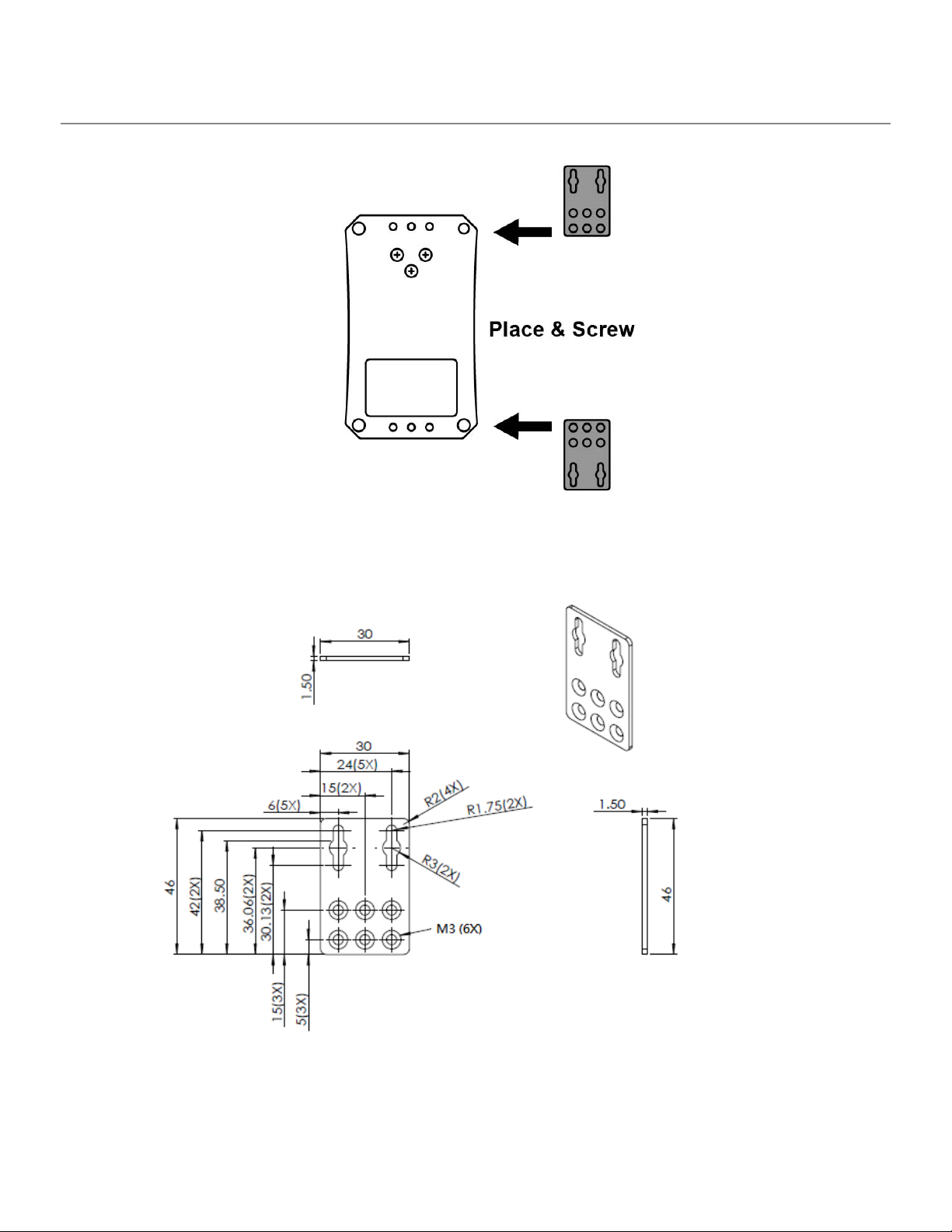

Below, in Figure 3.5 are the dimensions of the wall mounting bracket.
Figure 3.5 - Wall Mounting Bracket Dimensions
15
