Anthem AVM 2 User manual

OPERATING MANUAL
SOFTWARE VERSION 1.1x
UPDATES: www.sonicfrontiers.com
LAST
SLEEP
INPUT
FRT CTR
D
I
R
E
C
T
PIP SWAP MOVE
SSP INPUT SOURCES
MAIN
DISC1 DISC2 TAPE FM/AM
TV SAT VCR AUX
REC
SSP
MAIN ZONE2 TV VCR
CD DVD SAT AUX
VOL CH/PRE-SET
DYN EFFECT
ON SCREEN DISPLAY
FM/AM PRE-SETS
TONE BYPASS
BASS
EXIT
INFO
GUIDE SEEK
TUNE
SETUP
MENU
BALANCETREBLE
SOURCE SEEK
L
E
A
R
N
1
ENTERMUTE
23
456
78
0
9
SELECT
SUR SUB/
LFE
S
T
A
T
U
S
S
S
P
O
F
F
SSP
AVM
OPERATING MANUAL

Copyright © 2000, Sonic Frontiers International. The information contained
herein may not be reproduced in whole or in part without our express written permission.
ANTHEM™ and SONICFRONTIERS™ are trade marks of SONIC FRONTIERS INTERNATIONAL.
MOTOROLA™ is a trade mark of Motorola, Inc.
PHASTLINK™is a trade mark of PHAST Corporation.
Manufactured under license from Dolby Laboratories.
“Dolby®,” “Pro Logic”, and the double-D symbol are trade marks of Dolby Laboratories.
Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All right reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending.
“DTS®” and “DTS Digital Surround®”, are trademarks of Digital Theater Systems, Inc.
Copyright 1996 Digital Theater Systems, Inc. All rights reserved.

SECTION PAGE
1. INTRODUCTION 1
1.1 About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Receiving and Unpacking the AVM 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2.1 Packing List 1
1.3 Important Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3.1 Before Operating Your AVM 2 2
1.3.2 Outdoor Antenna Grounding 2
1.3.3 Mains Fuse Type 2
1.3.4 Supply Power Requirements 2
1.3.5 In-Use Notices 3
1.3.6 Cleaning 3
1.3.7 Servicing 3
1.3.8 Non-Use Periods 3
1.4 Packing Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. QUICK START 4
2.1 Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Connector Diagrams and Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.1-a CD Player or CD Transport to AVM 2 (Digital) 6
2.2.1-b CD Player to AVM 2 (Analog) 6

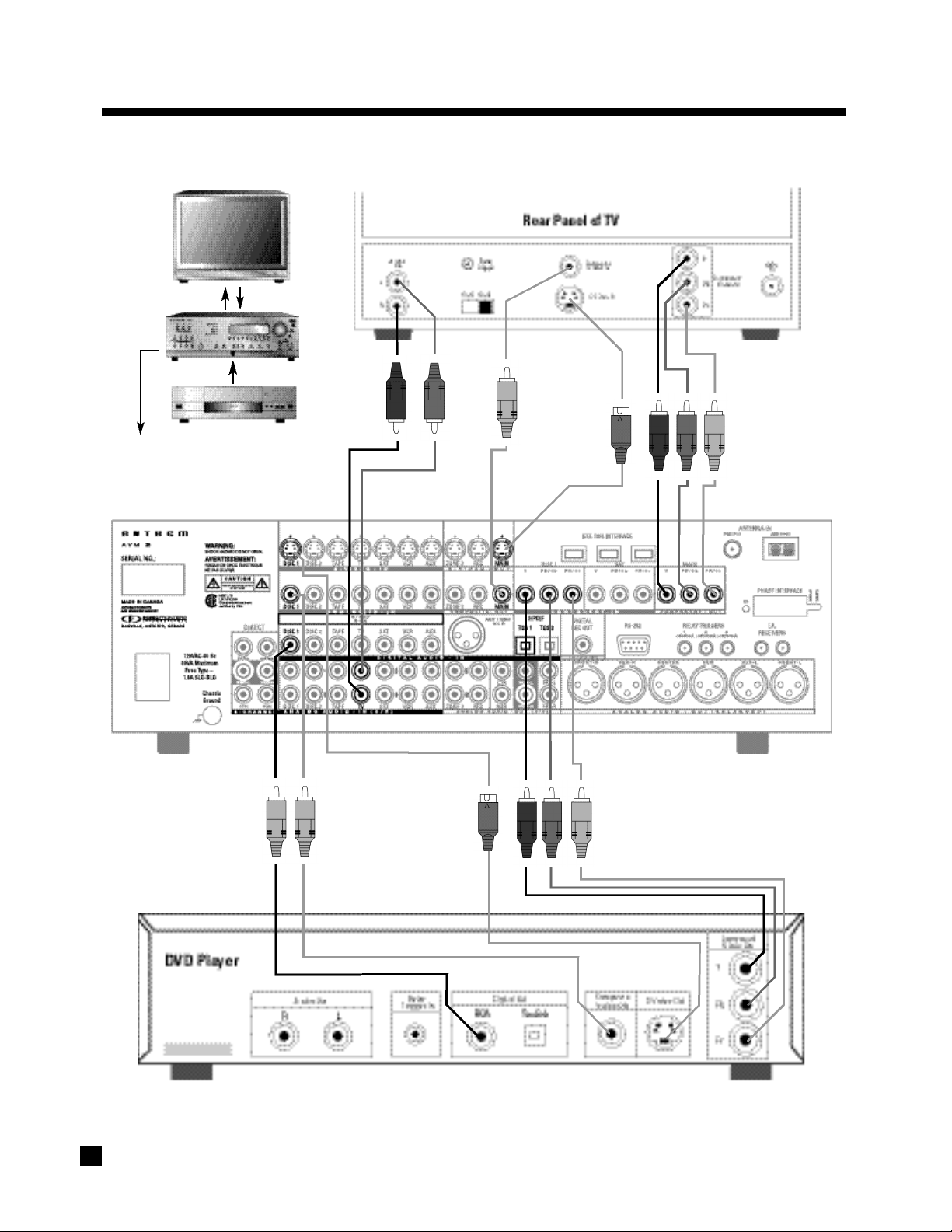

2.2.2 DVD Player and TV to AVM 2 7

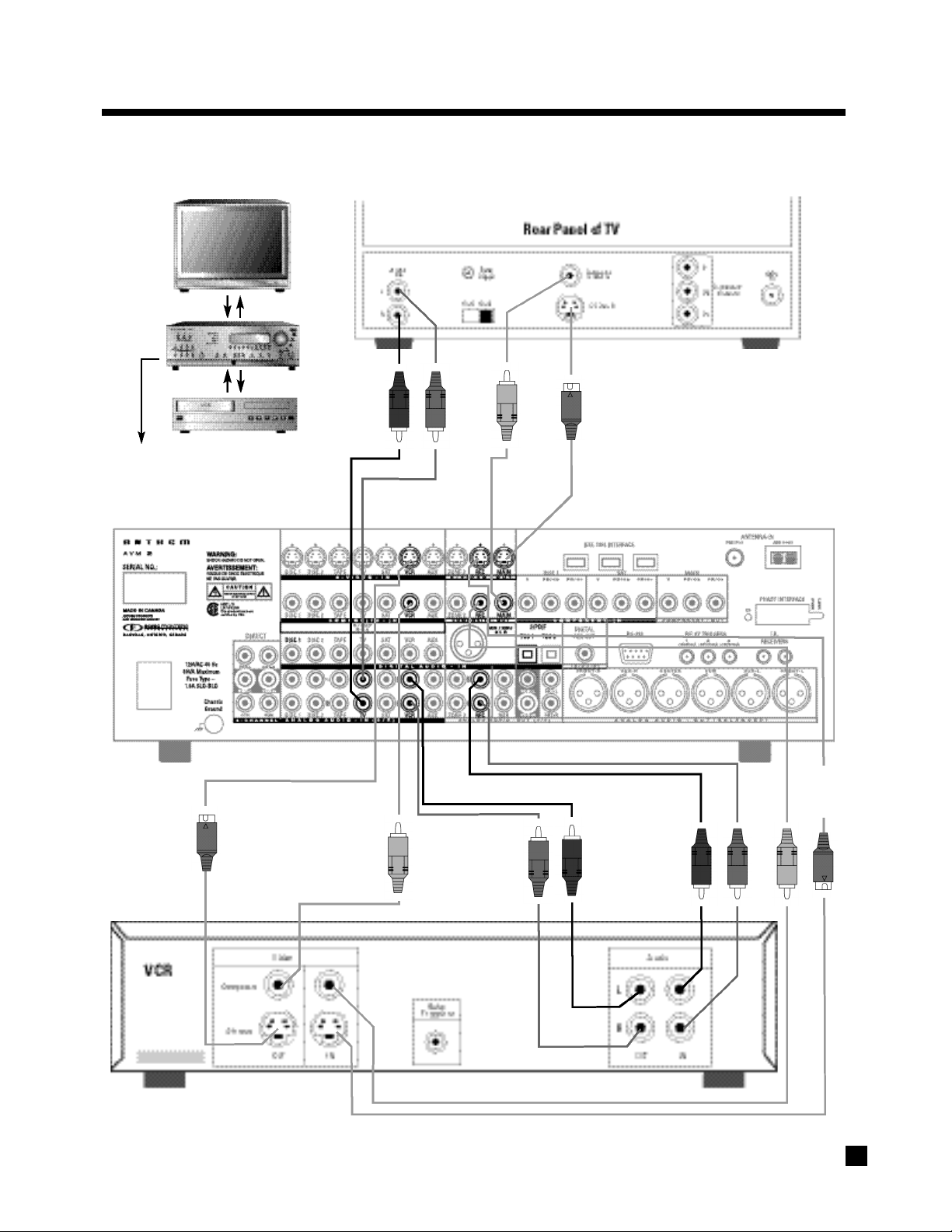

2.2.3 VCR and TV to AVM 2 8
2.2.4-a AVM 2 to Amplifier and Powered Subwoofer (RCA) 9
2.2.4-b AVM 2 to Amplifier and Powered Subwoofer (XLR) 10
2.3 Surround System Speaker Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3. PANELS / DISPLAYS / REMOTE LAYOUT 12
3.1-aFront Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1-bFront Panel LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Rear Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Remote Control Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. CONNECTIONS 16
4.1 Connecting Power To The AVM 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Audio Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2.1 Digital Audio Inputs / Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2.2 Analog Audio Inputs 16
4.2.3 Left / Right Analog Audio Inputs 17
4.2.4 Direct / 6-Channel Analog Audio Input 17
4.2.5 Analog Audio Outputs 17
4.3 Video Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.3.1 Composite Video 18
4.3.2 S-Video 18
4.3.3 Component Video 20
4.4 I.R. Receivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5 Relay Triggers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6 AM/FM Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
TABLE of CONTENTS

5. FRONT PANEL OPERATION 21
5.1 Zone / Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.2 Power On / Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 Path Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.4 Master Control Knob. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5 Source Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.1 Copying the MAIN Source to ZONE2 or REC 22
5.5.2 Down-Mixing Dolby Digital 5.1 to 2-Channel Stereo 22
5.5.3 Direct Input 23
5.5.4 FM/AM Tuner 23
5.6 Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.7 Balance Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.8 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.9 Bass / Treble Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.9.1 Tone Bypass 25
5.10 Effects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.11 Dolby Digital Dynamics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.12 LCD Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.13 Status / Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6. REMOTE CONTROL OPERATION 28
6.1 Powering the AVM 2 ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.2 Path Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.2.1 Copying the MAIN Source to ZONE2 or REC 29
6.3 Source Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.3.1 Source Seek 29
6.4 Direct FM/AM Station Entry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.5 Time Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.6 Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.7 Controlling Other Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.7.1 Entering Manufacturer’s Codes 30
6.7.2 Searching For a Code 30
6.7.3 Volume Lock 30
6.7.4 Learning Function 31
Limitations on Learning 31
Teaching a Key 32
Deleting a Learned Code 32
6.8 Teaching the AVM 2 Remote Control to Touchpad Remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7. ADVANCED SET-UP 33
7.1 How to Enter the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.2 How to Navigate and Make Changes to Setup Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3 How to Exit the Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

7.4 Anthem AVM 2 Setup Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.4.1 Rename Sources 35
7.4.2 Audio In Format–MAIN 35
7.4.3 Speaker Configuration 37
7.4.4 Listener Position 40
7.4.5 Speaker Level Calibration 40
7.4.6 Volumes 42
7.4.7 Time/Timers 43
7.4.8 Triggers/IR/RS-232 46
7.4.9 Display/Selection Time 48
7.4.10 Save/Restore Settings 50
7.4.11 Lockout/Passwords 51
8. SOFTWARE UPDATING 53
8.1 Software Version Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
8.2 Software Updating Via Your Dealer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
8.3 Software Updating via Your Computer and the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Warranty 55
Appendix A – Universal Remote Control Codes 57
Specifications 60
Big Pictures of Front and Rear Panels Inside Back Cover

1
Thank you for purchasing the Anthem AVM 2 Surround Sound Processor.
Sonic Frontiers International (SFI) has been manufacturing high-quality, high-end audio equipment for over
a decade. In that time, SFI has built an enviable reputation for products that can recreate the passion music
lovers experience when attending a live musical performance. Sonic Frontiers and Anthem products allow
audiophiles to almost “be there” each and every time they sit and enjoy their music and surround sound
systems in the comfort of their home. SFI provides all this with the highest level of craftsmanship,
sophisticated circuit designs, superior quality parts and materials, modern intuitive ergonomics and stylish
industrial design.
The AVM 2 is a state-of-the-art three path, A/V Preamplifier / Surround Sound Processor with built-in FM/AM
Tuner. It is designed to provide high-end sound and video for both music, home theater and multi-room
applications.
1.1 ABOUT THIS MANUAL
Section 1 contains important handling and safety information on installation and maintenance. Section 2
contains a Quick Start Guide which shows you how to connect most popular components to the AVM 2 and
get up and running in a matter of minutes. Section 3 describes the Front Panel, Rear Panel and Remote
Control layouts of the AVM 2, while Section 4 describes connections in detail. To learn how to operate the
AVM 2 from the Front Panel Controls read Section 5. Remote Control operation has a few differences; they
are explained in Section 6. To fully explore all the possibilities of the AVM 2, we strongly recommend that you
go through the complete setup procedure as explained in Section 7. Future Software Updating is explained
in Section 8, followed by the Warranty, Universal Remote Control Codes and complete Specifications.
Reading this manual in its entirety will give you a complete understanding of the full array of features and
functions of this highly advanced audio/video component.
1.2 RECEIVING AND UNPACKING THE AVM 2
The AVM 2 is shipped in a reinforced shipping box. Please keep this box for any future shipment. Check that
you have received everything in the Packing List below. Report any discrepancies to your dealer as soon as
possible. Fill in and mail the Warranty Registration Card within thirty days of purchase.
1.2.1 PACKING LIST
• AVM 2 Audio/Video Surround Sound Processor
• Power Cord
• AM Loop Antenna
• FM Antenna
•300-ohm to 75-ohm FM Antenna Adapter
• Remote Control
• 2 ‘AA’ Batteries
• Operating Manual
• Warranty Registration Card
1.3 IMPORTANT SAFETY INFORMATION
•The Front Panel power switches are secondary only; they do not disconnect the AVM 2 from the AC
power line, therefore there is always voltage present inside your AVM 2. The use of an adequate
and approved surge arrester is highly recommended.
•The following safety instructions must be observed whenever the AVM 2 is operated, moved, or
serviced. Failing to comply with any of these instructions or with any precaution or warning
contained in this Operating Manual is in direct violation of the standards of design, manufacture,
and intended use of the equipment.
1. INTRODUCTION

•Neither Anthem, Sonic Frontiers International, our agents, or any related party assume any liability
whatsoever for the user’s failure to comply with any or all of these requirements.
1.3.1 BEFORE OPERATING YOUR AVM 2
•Do not connect power to the AVM 2 if there are signs of damage to any part of its exterior surface.
•Situate the AVM 2 away from heat sources such as radiators, heat registers, stoves, or other any
appliances (including power amplifiers) that produce heat.
• Allow two inches (or more) of unobstructed air space above the ventilation slots in the top cover of
the AVM 2. Do not obstruct bottom vents by removing the rubber feet or operating the AVM 2
directly on a carpet, sofa, bed, or similar surface.
•Do not place the AVM 2 in a bookcase or component rack without adequate ventilation.
•Install the AVM 2 in a stable location. Do not mount to a wall or from a ceiling.
•Do not use the AVM 2 near water or a wet environment. Do not expose to rain or moisture.
1.3.2 OUTDOOR ANTENNA GROUNDING
•If an outside antenna or cable system is connected to the AVM 2, the antenna or cable system must
be grounded to provide some protection against voltage surges and built-up static charges. The
following diagram contains requirements according to the National Electrical Code:
1.3.3 MAINS FUSE TYPE
Use a 1.0 Amp 5mm slow blow fuse only. This is not a user serviceable item (see section 1.3.7).
1.3.4 SUPPLY POWER REQUIREMENTS
The AVM 2 can operate from any single phase AC power source that supplies between 105V and 130V at a
frequency of 60 Hz.
The AVM 2 uses a polarized power cord with one blade wider than the other so that it only fits into the outlet
one way. If the plug cannot be fully inserted with no blade exposed, reverse the plug and try again. If it still
does not fit, you have an obsolete outlet – contact an electrician to replace it.
1. INTRODUCTION continued …
2
Ground Clamp
Electric
Service
Equipment
Antenna Lead-In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System
(NEC Art. 250, Part H)NEC: NATIONAL ELECTRICAL CODE

To prevent risk of shock or fire, do not overload wall outlets, extension cords, or convenience receptacles.
Please note that the power transformer primary cannot be changed from a North American to a European or
Asian standard.
1.3.5 IN-USE NOTICES
•Use only the power supply cord with double insulation as supplied.
•Disconnect the power cord from the AVM 2 before connecting or disconnecting any components.
•Fuses are not a user serviceable item (see section 1.3.7).
• Do not remove the top cover.
•Do not alter or modify the AVM 2 in any way.
1.3.6 CLEANING
Unplug the AVM 2 from the wall outlet before cleaning. A regular dusting with a soft, non-abrasive cloth will
generally keep the finish of the faceplate and chassis looking new. Do not allow any liquid to come in contact
with the AVM 2; it may run onto the internal electronic circuitry and cause damage that is not covered under
warranty.
1.3.7 SERVICING
Do not attempt to open or perform any repairs to the AVM 2. There are no adjustments inside the AVM 2 that
can be made by the user, nor are there any user serviceable parts inside. Refer servicing to qualified service
personnel only.
1.3.8 NON-USE PERIODS
To prevent damage from power line surges and lightning strikes, unplug the AVM 2 from the power outlet,
outside antenna, and cable system when left unused for an extended period of time.
1.4 PACKING MATERIALS
Please retain the shipping box and all packing material. They are custom designed to prevent shipping
damage from occurring. Do not ship or transport the AVM 2 in anything other than the original box and
packing material.
1. INTRODUCTION continued …
3

2. QUICK START
While the AVM 2 is certainly a massive component with enough features and connections to make your head
spin, setup and operation are also very intuitive! With your AVM 2 in front of you, browse through the illustrations
in this section showing several quick system hookups. It’s as simple as following the lines in the connection
diagrams to and from each component.
All of these quick system hookup examples work with the Factory Default settings; none require the
Advanced Setup configuration. Just ‘plug & play’! However, references to the Advanced Setup section are
included to make you aware of the tremendous versatility of the AVM 2.
Even though this section makes it easy to get everything hooked up, for the best sound possible you will still have
to calibrate your systeminthe Setup Menu as outlinedin Advanced Setup (section7). Please do not overlookthis
important system calibration procedure.
2.1 QUICK START GUIDE – Before you start, make sure all components are unplugged.
To connect a CD Player, DVD Player, TV, VCR, Amplifier(s), and Powered Subwoofer to the AVM 2:
•CD (Digital) to AVM 2 (see 2.2.1-a)
Connect the CD Player’s Digital Out (RCA-S/PDIF) to the AVM 2’s DISC2 Digital Audio-IN.
•CD (Analog) to AVM 2 (see 2.2.1-b)
Connect CD Player’s L/R Audio Out (RCA) to any analog input you wish. For this example
connect to the AVM 2’s AUX L/R Audio-IN.
•DVD Player to AVM 2 (see 2.2.2)
Video: Connect the DVD Player’s Composite Video Out (RCA) to the AVM 2’s DISC1 Composite-IN.
Audio: Connect the DVD Player’s Digital Out (RCA-S/PDIF) to the AVM 2’s DISC1 Digital Audio-IN.
•AVM 2 to TV (see 2.2.2 or 2.2.3)
Video: Connect the AVM 2’s Composite-Out / MAIN (RCA) to the TV’s Composite Video Input.
Audio: Connect the TV’s L/R Audio Out (RCA) to the AVM 2’s TV Analog Audio-IN.
•VCR to AVM 2 (see 2.2.3)
Video: Connect the VCR’s Composite Video Out (RCA) to the AVM 2’s VCR Composite-IN.
To Record:Connect the AVM 2’s Composite-Out /REC (RCA)tothe VCR’s Composite Video Input.
Audio: Connect the VCR’s Left/Right Audio Out (RCA) to the AVM 2’s VCR Analog Audio-IN.
To Record: Connect the AVM 2’s L/R Audio Out / REC (RCA) to the VCR’s Analog Audio-IN.
•AVM 2 to Amplifier(s) (see 2.2.4-a or b)
Connect the AVM 2’s Front-L, Front-R, Sur-L, Sur-R and Center (RCA or XLR) Analog Audio-
Out to the Power Amplifier(s)’s Front-L, Front-R, Sur-L, Sur-R and Center Audio Inputs.
Follow amplifier manufacturer’s instructions for connecting speakers.
•AVM 2 to Powered Subwoofer (see 2.2.4-a or b):
Connect the AVM 2’s Sub (RCA) Analog Audio-Out to the Powered Subwoofer’s Line/Low
Level Input (RCA).
Reconnect the power to all components and then turn them on. To turn on the AVM 2 press the POWER –
MAIN button on the front panel.
4

To Watch a DVD:
• Press DISC1 Source on the front panel of the AVM 2.
•Switch the TV’s Video Input to the one that the AVM 2 Composite-Out is plugged into.
•Place a DVD into the DVD Player and press play. You should see the picture on your TV and hear
sound from your speakers. Use the AVM 2 Master Control Knob on the front panel to adjust volume.
To Watch a Video Tape:
• Press VCR Source on the front panel of the AVM 2.
•Switch the TV’s Video Input to the one the AVM 2 composite-out is plugged into.
•Insert a tape into the VCR Player and press play. You should see the picture on your TV and hear
sound from your speakers. Use the Master Control Knob on the front panel to adjust volume.
To Listen to a CD:
• Press either the DISC2 Source (Digital-In S/PDIF) or AUX Source (Analog-In Left/Right) on the front
panel of the AVM 2.
•Place a CD into the CD Player and press play. You should hear music coming from your speakers.
Use the Master Control Knob on the front panel to adjust volume.
Note about Digital and Analog Inputs:
• DISC1, DISC2 and SAT are factory default set for Digital Input, whereas TAPE, TV, VCR, and AUX
are factory default set for Analog (Left/Right) Inputs. You can however, change any of these to
either Digital or Analog as required. In addition, the Digital Input can also be changed from RCA
to Toslink or XLR. To make these changes see section 7.4.2.
Note about On-Screen Display:
•The On-Screen Display is factory default set for Composite-Out. This can be changed to
S-Video or turned off. To make these changes see section 7.4.9 menu 9.b.
Note about Your Speakers:
•The AVM 2 allows you to enter information about how many speakers you have in your system,
their relative size, and their distance from your listening position. This speaker setup information
is important in directing audio signals optimally, ensuring you get the best quality sound from your
system. Please see sections 7.4.3, 7.4.4, and 7.4.5.
2.2 CONNECTOR DIAGRAMS AND DESCRIPTIONS
The following pages of illustrations contain a variety of standard cable/connectors that are used to connect
components to your AVM 2. Here’s what they are, what they look like, and what they are used for:
5
2. QUICK STARTcontinued …
Analog Left
Channel
RCA Black or
White RCA Red RCA Yellow
or Brown
5-Pin
Mini DIN Toslink XLR Female XLR Male
1/4” Stereo Plug
Analog Right
Channel Digital S/PDIF or Composite Video
S-Video Digital Audio
S/PDIF Analog Balanced or Digital AES/EBU Analog Balanced or Digital AES/EBU
Headphone
3.5mm
Mono Mini Plug
Relay Trigger
IR Receiver
RCA Green -
Component Y
RCA Blue -
Component Pb/Cb RCA Red - Component Pr/Cr

6
2. QUICK STARTcontinued …
2.2.1-b CD Player to AVM 2 (Analog)
Amplifier(s)
2.2.1-a CD Player or CD Transport to AVM 2 (Digital)
Amplifier(s)
NOTE: XLR or Toslink
use is OPTIONAL (see
sections 4.2.1 and 7.4.2)

2.2.2 DVD Player and TV to AVM 2
7
2. QUICK STARTcontinued …
Amplifier(s)
NOTE: S-Video or
Component Video
use is OPTIONAL
(see sections
4.3 and 7.4.9)
NOTE: S-Video or
Component Video
use is OPTIONAL
(see sections
4.3 and 7.4.9)

8
2.2.3 VCR and TV to AVM 2
2. QUICK STARTcontinued …
Amplifier(s)
NOTE: S-Video
use is OPTIONAL
(see sections
4.3 and 7.4.9)
NOTE: S-Video
use is OPTIONAL
(see sections
4.3 and 7.4.9)
NOTE: S-Video
use is OPTIONAL
(see sections
4.3 and 7.4.9)
NOTE:
Audio/Video
Record Out/In
Connections
are OPTIONAL

Follow amplifier manufacturer’s complete hook-up instructions to
connect amplifier outputs to matching speakers.
9
2.2.4-a AVM 2 to Amplifier and Powered Subwoofer (RCA)
2. QUICK STARTcontinued …

10
2. QUICK STARTcontinued …
2.2.4-b AVM 2 to Amplifier and Powered Subwoofer (XLR)
Follow amplifier manufacturer’s complete hook-up instructions to
connect amplifier outputs to matching speakers.

11
1. Front-Left Speaker
2. Front-Right Speaker
3. Center Channel Speaker
4. Surround-Left Speaker (Diffuse Type – drivers on both sides with ‘null’ facing the listening area.)
5. Surround-Right Speaker (Diffuse Type – drivers on both sides with ‘null’ facing the listening area.)
6. Subwoofer
For optimal results, the size of the speakers and the distance of each speaker to the listening position should
be entered in the Setup Menu of the AVM 2 (see sections 7.4.3, 7.4.4, and 7.4.5 )
2.3 SURROUND SYSTEM SPEAKER PLACEMENT
This illustration shows the typical speaker placement for a 6-channel surround system, also known as a 5.1
channel system, the ‘.1’ channel being the LFE (Low Frequency Effect). The Front-Left, Center, and Front-Right
speakers are directed toward the listener from the front while the Left and Right Surround speakers are posi-
tioned to the sides or behind the listener.
2. QUICK START continued …

12
3.1-a FRONT PANEL LAYOUT
The front panel of the AVM 2 has the MASTER CONTROL KNOB, selection buttons, an LCD display, status indicator LED’s, and
the Headphone jack .
• See section 5 for complete information on Front Panel Operation.
1– Zone / Path Selection
2– Mode / Surround Decoder Indicators
3–LCDDisplay
4– FM/AM Station Preset Selection
5– FM/AM Tuning / Setup Menu Navigation
6– Master Control Knob (Volume, FM/AM Tune,
Function Adjustment, Setup Menu Adjustment)
7– Speaker / Headphones Selection for
Level / Bass / Treble / Balance Adjustments
8–Subwoofer Level / LFE Level Selection
for Adjustment
9–Power On / Stand-By Selection (MAIN / ZONE2)
10 – Status / Setup Menu (press and hold for 3 seconds)
11 – Mute
12 – Dolby Digital Dynamics Selection
13 – Tone Bypass
14 – Balance Selection for Adjustment
15 – Bass / Treble Selection for Adjustment
16 –Front Panel Remote Control IR Sensor
17 – Front Panel Brightness Selection
18 –Dolby Pro-Logic / Effects / 96 kHz Stereo Selection
19 – Headphone Jack
20 –Source Selection (Direct – press twice)
3. PANELS/DISPLAY/REMOTE LAYOUT
181920 17 16 15 14 13 12 11 10 9
8
7
5 64321

3.1-b FRONT PANEL LCD DISPLAY
Here are two examples of the Front Panel LCD Display presentations:
MAIN Display
1–Source Selection (see section 5.5).
2–Audio-In Format (see section 7.4.2) or Sleep Indicator if engaged (see section 6.6).
3–Zone / Path that the information on the display refers to (see sections 5.1, 5.3).
4– Volume Setting. When MAIN or ZONE2 are muted, “Muted” flashes instead of the current volume
setting (see section 5.8).
5–Mode / Effects (if the source is FM/AM, then the tuned station appears).
FM/AM Display
1–Source+Band. The tuner has three FM bands (FM1, FM2, and FM3) and one AM band. The number
after the selected band is the preset station (see section 5.5.4).
2–Mode for FM. Displays “St” when in stereo, “HB” when Hi-Blend is selected, or “Mn” when in mono
or mono is selected (see section 5.5.4).
3–Seek when tuning FM/AM stations (see section 5.5.4).
4–Zone / Path (see sections 5.1, 5.3).
5– Volume Setting. When MAIN or ZONE2 are muted, “Muted” flashes instead of the current volume
setting (see section 5.8).
6– Currently tuned FM/AM frequency to the nearest 0.1 MHz for FM and to nearest 10 kHz for AM
(see section 5.5.4).
3. PANELS/DISPLAY/REMOTE LAYOUT continued …
13
54
32
1
54
3
132

14
1–7 Composite Video RCAInputs
2– 7 S-Video Inputs
3–3 Composite Video RCA Outputs
4– 3 S-Video Outputs
5–3 IEEE 1394 Interface Port provisions*
6–2 Component Video RCAInputs (3 Jacks/ea)
7–Component Video RCA Output (3 Jacks)
8– FM and AM Antenna Inputs
9–PHASTLINK RJ45 Interface Port provision*
10 –2 Infra Red (IR) 3.5mmInputs
11 – 3 Relay Trigger 3.5mm Outputs (Assignable)
12 – MAIN Analog Audio Balanced XLR Output (6 Jacks)
13 – RS-232 Interface Port (Bi-Directional)
14 –Digital Audio RCA S/PDIF Record Output
15 – 2 Digital Audio Toslink Inputs (Assignable)
16 –MAIN Analog Audio RCA Output (6 Jacks)
17 –REC Analog Audio Stereo RCA Output (L/R Jacks)
18 –ZONE2 Analog Audio Stereo RCA Output (L/R Jacks)
19 –Digital Audio AES / EBU Input (Assignable)
20 –7 Analog Audio Stereo RCA Inputs (L/R Jacks)
21 –7 Digital Audio RCA S/PDIF Inputs
22 – Analog Audio 6-Channel Direct RCA Input (6 Jacks)
23 – Ground Terminal
24 – Power Cord Connection
3.2 REAR PANEL LAYOUT
The Rear Panel of the AVM 2 contains all connections, such as the Audio and Video Inputs and Outputs, the FM/AM Antenna
Inputs, AC Power connection and the RS-232 port which allows upgrading of the internal operating Software as well as control
of the AVM 2 by external devices.
•See section 4 for complete information on Rear Panel Connections.
*Interface card requires installation by a qualified dealer.
3. PANELS/DISPLAY/REMOTE LAYOUT continued …
222324 21 19 1820 131415 121617
6 8
9
10
72 4 5
13
11

15
3.3 REMOTE CONTROL LAYOUT
1– IR Transmitter (front face)
2– Transmission Indicator LED (red)
3– AVM 2 Power ON when MAIN or ZONE2 is selected
Power ON/OFF for other components (see #4)
Note: This does not turn the AVM 2 off (see #31)
4– Zone/Path/Component ‘Personality’ Selection
5– FM/AM Station Preset Selection (6)
6– Tone Bypass Selection
7–Dolby Pro-Logic / Effects / 96 kHz Stereo Selection
8– Dolby Digital Dynamics Selection
9– FM/AM Pre-set Station Up
10 – FM/AM Pre-set Station Down
11 – Status
12 – Center Channel Selection for Adjustment
13 –Back / Exit for Setup Menu
14 –Subwoofer Level / LFE Level Selection
for Adjustment
15 – Setup Menu (Press & Hold for 3 seconds)
16 – Source Seek
17 – Balance Selection for Adjustment
18 –REC Path Selection (Must be in MAIN – see #4)
19 –Source Selection 8 Keys – 9 inputs (Direct – press twice)
20 –MAIN Source copy to ZONE2 or REC
21 – Bass Selection for Adjustment
22 – Treble Selection for Adjustment
23 – Surround Channels Selection for Adjustment
24 –FM/AM Seek / Setup Menu Navigation /
Bass/Treble Adjustment
25 –34FM/AM Tune / Setup Menu Navigation /
Balance Adjustment
26 – Select Function in Setup Menu
27 –Front Channels / Headphones Selection for Adjustments
28 – Volume Down
29 – Sleep Timer Selection
30 – Volume Up
31 – AVM 2 Power OFF when MAIN or ZONE2 is selected
32 – Mute
33 –Front Panel / LCD Display Brightness Selection
34 – On-Screen
35 – Learn (for customization of remote)
•See section 6 for complete information on operation of the Remote Control.
3. PANELS/DISPLAY/REMOTE LAYOUT continued …
2
1
3
4
6
7
8
11
16
17
18
19
35
20
34
26
31
23
21
27
28
33
29
22
12
13
14
15
9
5
10
25
24
30
32
