FONESTAR M-203 User manual

M-203
MICROPHONE WITH
ZONE SE ECTOR
EN Instruction Manual

- 2-
We take this opportunity to thank you for buying this product.
We recommend you read the instruction manual before switching on the machine and follow the instructions
that are given. Keep the manual for future reference.
SECURITY AND THE ENVIRONMENT
E ECTRICA SECURITY
Check that the current in the mains connection where the machine is to be installed corresponds to the
power supply of the machine.
To avoid damaging the equipment, electrical shocks, fire or physical injury when you connect or disconnect
the equipment from the power supply, pull the plug firmly out of the mains socket holding the plug, never the
cable.
Always do this with dry hands.
Keep the power supply cable far from sources of heat. Do not put heavy objects on top of it or change it.
Clean dust and dirt off the power supply cable regularly.
Do not open the machine; you could get an electric shock.
CAUTION
While installing the machine, make sure it is switched off and unplugged.
Do not open the machine. Touching the internal parts is dangerous and you could receive an electric shock.
The machine must not be splashed or dripped on. Never place recipients with liquid inside on the machine.
Do not place anything inside the machine.
OCATION
Place the equipment on a horizontal surface with enough space around it to allow ventilation.
Avoid direct sunlight, heat sources and excessive dust.
Do not place the machine near magnetic fields or static electricity.
Do not use surfaces which vibrate or receive impact.
Do not pile machines on top of one another.
VENTI ATION
Never block or cover the ventilation slits on the machine.
Do not expose it to direct sunlight or place it near sources of heat.
PERIODS OF INACTIVITY
When the machine is not going to be used for a long period of time, disconnect it from the mains.
If you are using an adapter, take into account that it will continue using electricity even if the machine is
switched off. If it is not going to be used for a long period of time, disconnect it from the mains.
THE ENVIRONMENT
To save energy, switch the machine off when you are not going to use it for a long time. The machine could
contain substances that are harmful to the environment or human health. To minimize the effect of these
substances the machine must be correctly managed and recycled when you decide to dispose of it.
When you dispose of it remember: it cannot be thrown into a conventional rubbish bin.
If it contains or uses batteries, these must be disposed of separately.
The machine (without batteries) must be disposed of correctly. Put it in a container specially intended for the
collection of electronic and electrical appliances, at the dump or hand it over to the dealer when you purchase
similar equipment, so that the dealer can dispose of it correctly (at no added cost).
EN

- 3-
SIGNIFICANCE OF THE SYMBOLS ON THE MACHINE*
The symbol formed by the expression “Class 1 laser product” written in a rectangle
indicates that visible or invisible laser radiation could be produced. Avoid direct exposure
to the laser.
The symbol formed by a ray of lightening inside a triangle shows that the machine has
connection terminals or a circuit with areas with a current which could cause an electric
shock, even in normal working conditions.
The symbol formed by an exclamation mark in a triangle shows that the instruction manual
must be referred to for information on how the machine works and its use.
The symbol formed by one square inside another square shows that the machine has
double electrical insulation.
The European Community symbol shows that the machine complies with the current
European Union legislation, as well as its transposition to local legislation.
The symbol of a rubbish bin crossed out and over a horizontal line shows that when the
product is disposed of it must be done properly, placing it in a special selective electronic
and electrical equipment container or through a dealer when purchasing a similar product,
at no additional cost. It also shows that the machine was put on the market after 13th
August 2005 (European Community Directive 2002/96/CE of Electrical and Electronic
recycling, and its Spanish equivalent R.D.208/2005).
In accordance with what is set out in the aforementioned decree, FONESTAR is registered
in the RAEE (Registro de Aparatos Eléctricos y Electrónicos) in a special section REI
(Registro de establecimientos Industriales), with the entry number 001851.
The symbol RoHS (Restriction of Hazardous Substances) shows that the product has been
designed and manufactured restricting the use of certain dangerous materials (Directive
2011/65/EU on the restriction of certain dangerous substances in electrical and electronic
appliances, and its transferal to the Spanish regulations, R.D.219/2013).
*It is possible that some of these symbols do not appear on the machine.
EXEMPTION OF LIABILITY
The characteristics of the equipment and the content of the manual can change without forewarning.
FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the
information supplied in this instruction manual, and specifically disclaims any implied liability for marketability
or fitness for any other use.
All rights reserved by FONESTAR, S.A.
EN

EN
- 4-
DESCRIPTION
- Microphone with zone selector for priority paging and chimes, for the MXZ-2036 model multizone
mixer/preamplifier. Allowing playback of a pre-recorded message.
- 6–zone selection.
- For connecting to the system using a Cat. 5 cable.
-The compact zone system MXZ accepts up to 6 M-203 microphones.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- MIC: microphone input, X R connector.
2.- LINK: ED connection indicator. This indicator lights up when voice announcements are being sent or
the alarm used from the M-203 model microphone to the mixer/preamplifier model MXZ-2036.
3.- PO ER: system on ED indicator.
4.- ALARM: alarm push button. If this is pressed down for 2 seconds, playback is activated for the message
stored in position 3 of the mixer MXZ-2036 memory and it is transmitted in the active zones (if the mixer
is set in NORMAL mode) or in all zones (if the mixer is set in ALARM mode). The message is played
continuously until it is deactivated by pressing the ALARM button again.
5.- ZONE 1 to ZONE 6: activation or deactivation controls for each of the output zones. If the ED indicator
is alight, it shows that the corresponding zone is active.
6.- ALL CALL: general call control, to activate or deactivate the selection of all zones simultaneously. If the
ED indicator is alight, it shows that the general call control is active.
7.- TALK: call button. For activating chimes and opening the microphone for paging in the active zones.

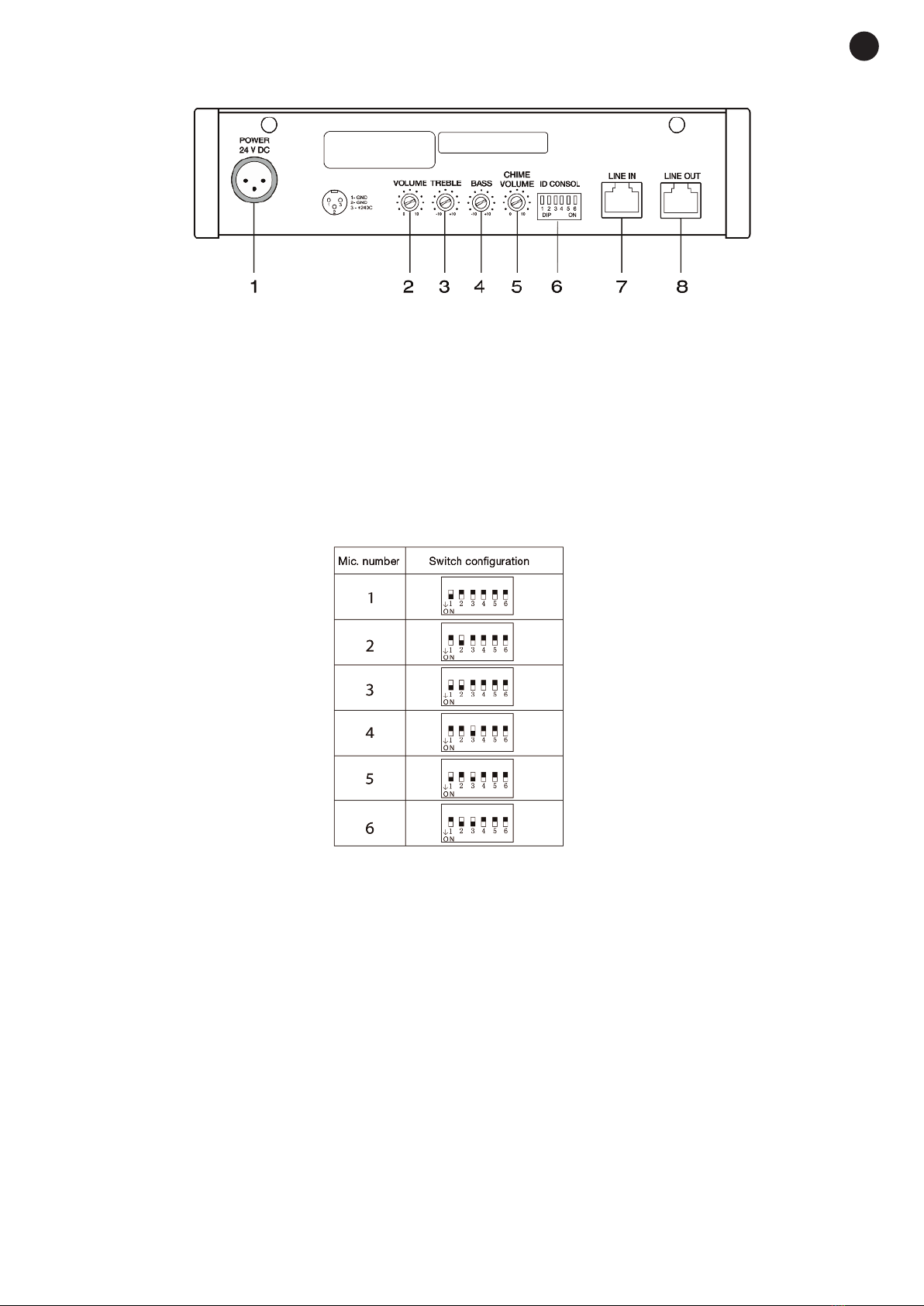

BACK PANEL
1.- PO ER 24 V DC: socket for 24 V DC power supply connection. The model MXZ-2036 mixer supplies
power through the cat. 5 cable. The 24 V DC external supplier must be connected if the distance is over
50 m.
2.- VOLUME: control for regulating the output volume.
3.- TREBLE: to strengthen or weaken the treble frequencies ±10 dB.
4.- BASS: to strengthen or weaken the bass frequencies ±10 dB.
5.- CHIME VOLUME: chime volume control.
6.- ID CONSOL: set up switches for the number of microphones in the system (from 1 to 6). If you use
more than one microphone in the system, you must select a different number for each microphone.
7.- LINE IN: data and audio line input connector from the mixer model MXZ-2036.
8.- LINK OUT: output connector for connecting the following microphone with zone selector model M-203.
- 5-
EN

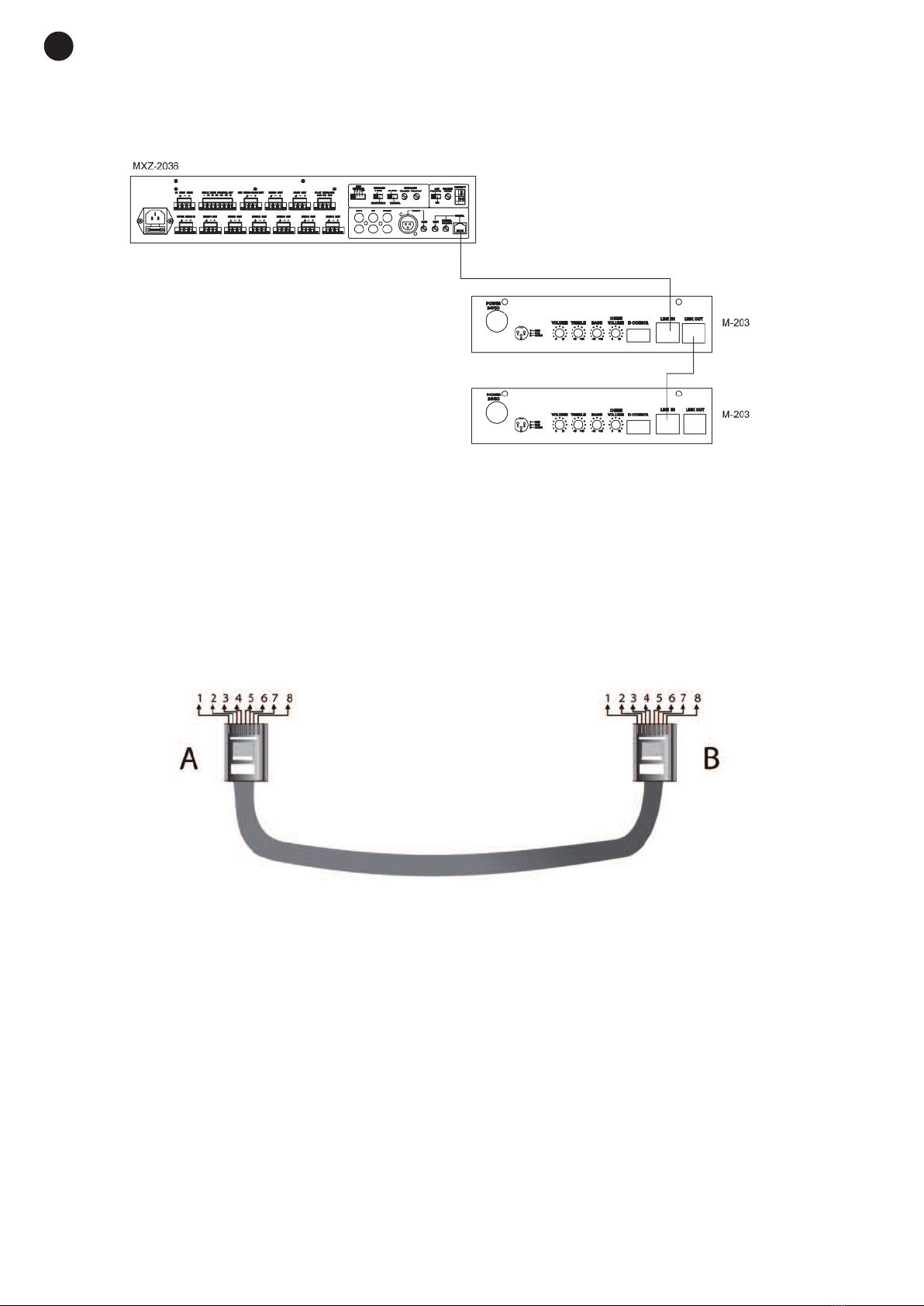

CONNECTION
Make the connections with the amplifier and all the audio system components switched off and disconnected
from the power supply.
To connect the microphone to the mixer model MXZ-2036 a Cat. 5 type control cable is used. This cable is
connected to the CONSO output on the mixer model MXZ-2036 and to the INE IN input of the first M-203
microphone.
In the case of there being more than one microphone, these are connected in cascade through the INK
OUT output of the first one towards the INE IN of the second.
Once the connections have been made in accordance with your needs, connect the equipment to the mains
and switch them on. After use, do not forget to switch the equipment off and disconnect it from the mains.
CONTROL CABLE
The cable used to connect the microphone to the P.A. system or several microphones in cascade must be
Cat. 5 cable. This cable has 8 conductors that must be connected in direct mode (1-1, 2-2, 3-3, etc.) and both
ends must have RJ-45 (8P8C) connectors.
For example, you could use the following colour coding:
1-Blue
2-Blue/White
3-Brown
4-Brown/White
5-Orange
6-Orange/White
7-Green
8-Green/White
The numbering for the different cables is shown on the front of the RJ-45 connector.
- 6-
EN

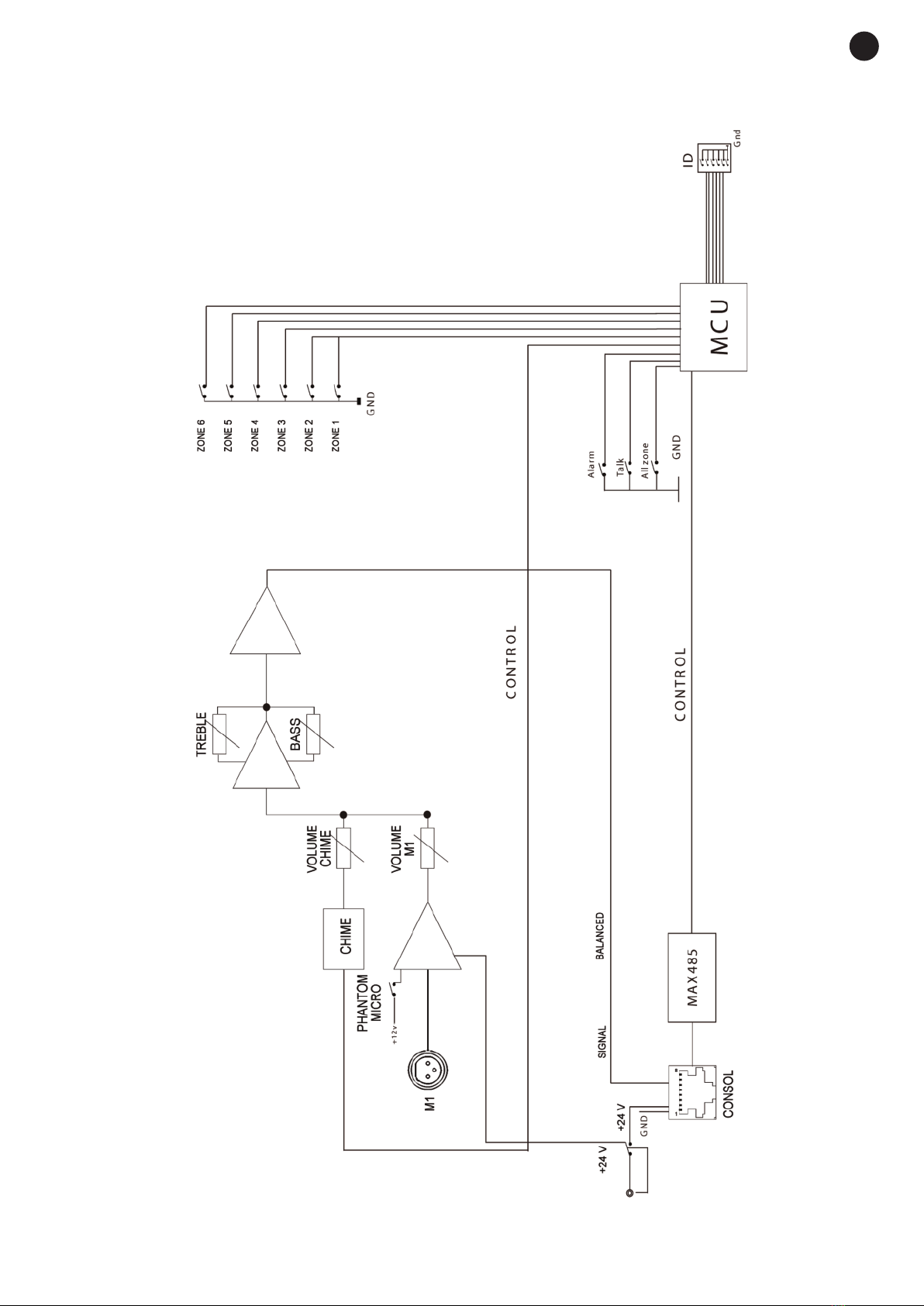

BLOCK DIAGRAM
- 7-
EN

SPECIFICATIONS
M-203
CHARACTERISTICS Microphone with 6-zone selector.
Chimes.
Paging and pre-recorded messages in the mixer MXZ-2036.
MICROPHONE Electret condenser with gooseneck
INPUTS 1 balanced mic., X R 600 Ω 5 mV
1 zone selector mic., RJ-45
OUTPUTS 1 zone selector mic, RJ-45
PHANTOM 12 V
CABLE Cat 5 cable, for distances of over 100 m
PO ER SUPPLY 24 V DC, 0.2 A, power supply through the mixer/preamplifier or local
power supply
DIMENSIONS Microphone with gooseneck: 440 mm height
Base: 200 x 55 x 120 mm depth
ACCESSORIES Cat 5e connector cable, RJ-45
24 V DC power supply connector
Windshield
- 8-
EN

DECLARATION OF CONFORMITY
FONESTAR SISTEMAS S.A.
Poligono Trascueto s/n
39600 Revilla de Camargo, Cantabria (Spain)
Declares, under its responsibility, that the following equipment:
Description: Microphone with zone selector
Brand: FONESTAR
Model: M-203
complies with the European Community directives 2004/108/CE on Electromagnetic Compatibility
and 2006/95/CE on ow Voltage.
Santander, 13th January 2014
Juan Vallejo
Technical Engineer, Sales Department
