Antrica ANT-36000A User manual

!
of 137
!
1080p60&HD&Decoder&
H.264&Decoder!
!
!
User Manual ver.1.0
!
ONVIF 1080P60 H264 Video Decoder

Safety Precaution
•Make sure to turn off the power before installing the video server.
•Do not install under the direct sunlight or dusty areas.
•Make sure to use the product within the temperature and humidity
specified in the specification.
•Do not operate the product innerness of vibrations or strong magnetic
fields.
•Do not put electrically conducting materials into the ventilation holes.
•Do not open the top cover of the products. It may cause a failure or
electric shock on the components.
•To prevent from overheating, make sure to keep the distance at 10cm
from the ventilation holes.
•Make sure proper voltage is used before connecting power.!
of 237
We appreciate you purchasing video server.
Before installing the product, please read the following with care.

1. Introduction
About this manual
This user manual provides information on installation setup and operation of the video server, as well
as troubleshooting tips.
FEATURES
This Video Decoder is an IP Decoder for various forms of video streaming (RTSP MPEG TS RTMP
ONVIF) Supporting HDMI 3G HD-SDI and Composite video outputs. A 100 camera spot monitor
function is provided either sequencing or remote controlled.
VIDEO
-Up to 1920x1080 @ 60 fps Decode
-Highly efficient compression algorithm, H.264 & MJPEG support
-Wide range of transmission rates: 32kbps - 16mbps
-Various transmission modes: CBR, VBR
-Motion detection
AUDIO
-Multi-Transmission Mode: Uni-directional Mode (IP-server to Client PC or Decoder / Client PC to
Decoder to IP-server), Bi-directional Mode.
NETWORK
-Fixed IP & Dynamic IP (DHCP) support
-1:1, 1:N support
-Multicasting
-Automatic transmit rate control according to network conditions
-Onvif, PSIA compliant
SERIAL DATA
-RS-485 support
-Data pass-through mode: Serial data communication between Encoder - Decoder
USB
-Connection to internal or external USB storage for remote access, recording and playback.
USER INTERFACE
-Diagnose and upgrade through dedicated program called True Manager
-System configuration using Internet Explorer
-
HIGH RELIABILITY
-Reliability embedded system
-System recovery by dual watch-dog functions
of 337

Product and Accessories
of 437
!
!
!
!
QUICK START MANUAL
POWER ADAPTER AND CABLE
SCREWS
BRACKETS

SYSTEM CONNECTIONS
Video Decoder operates in one mode; Decoder Video server systems can be connected in either 1 to 1
fashion where one encoder is connected to one decoder or 1 to many fashion where one encoder is
connected to many decoders.
Following charts shows data status of video, audio and serial data.
The system mode is defined by the video communication and the system mode is capable of single
directional transmission of audio and bi directional serial data.
TOPOLOGY
Generally the encoder and decoder are connected in 1 to 1 mode to support specific situations, 1 to multiple
connections is also supported.
1:1 CONNECTION (UNIDIRECTIONAL TRANSMISSION).
The most
commonly used configuration is 1 to 1 connection. An encoder is installed at a site where video
images can be transmitted and a decoder is installed at a location to receive and view the video images on
monitors. Audio and serial data are transferred in either direction.
A decoder and encoder can be connected by setting the encoders address at the decoders remote IP.
1:N CONNECTION (MULTIDIRECTIONAL TRANSMISSION).
System Mode
Video
Audio
Serial Data
Decoder
Receive
Transmit/Receive
Transmit/Receive
of 537
!
Site
!
Remote Centre (Decoder)
!
!
Remote Centre
or
or
or
Site

In this configuration, a site can be monitored from many remote centre locations. Maximum connections
would be limited by the network bandwidth.
Functionally, the VMS (Video Management System) software can replace the decoder.
MULTICAST MODE
In the network supporting multicast mode, if multicast is setup as a system protocol, you can use bandwidth
efficiently regardless of the number of decoders. In 1:N connection, a large number of decoders can receive
audio and video data from a decoder by using a single streaming transmission.
RELAYING
In this arrangement, video and audio can be retransmitted from a centre to another centre. The arrangement
is useful when the network bandwidth at the site is limited while there is more than one centre wanting to
monitor the site.
VMS (VIDEO MANAGEMENT SYSTEM)
VMS (Video Management System) is a Windows based remote monitoring program to access
multiple decoders for real-time monitoring or control of the decoder. Please refer to VMS User
Manual for more information on VMS.
of 637
!
Site
Centre 1 (Decoder)
!
Site
Site
!
Remote Centre
VMS
Remote Centre (Decoder)

2. Installation
Check if it works
Once the power is supplied to the Decoder it will start booting. The system will boot up to an operating mode
after approximately 40-60seconds. The green LED on the Ethernet port will flash indicating the system is
ready.
Software provided called True Manager allows you to check the IP address and other network details of the
camera. Please refer to the True Manager manual for instructions on how to find the IP address of the
device. and if required changing it.
These LEDs show that the Decoder has started without connecting to a input source. Once a input
source is connected, the colour of “LINK” LED will be turned to green and the “DATA” LED will blink
as video and/or audio data transmissions occur.
of 737
!
PWR
STATUS
LINK
Red
Green
Blinking
DATA
OFF
Decoder
LED Display

DESCRIPTION OF LED
System status can be monitored with LED display.
LED
State
Description
PWR
Off
Red
Power off
Power on
STATUS
Green blinking
Red
Normally operating
System failure: Needs diagnostics
LINK
Off
Green
Red blinking
Orange
No connection to remote system
Connected to the remote system
Decoder only: trying to connect
Illegal connection (unsupported
combination of system modes)
DATA
Green
Red
Off
Data transmission in progress
Data loss
No data transmission
of 837

3. System Operation
REMOTE VIDEO MONITORING
There are two ways to monitor video when the centre system and IP camera / Decoder are connected. In
order for proper operation, an IP address must be set accordingly. Please refer to True Manager Manual
enclosed with product for further details.
Default ID: admin
Default Password: 1234
VIDEO MONITORING USING INTERNET EXPLORER
Open Internet Explorer and enter Decoders IP address. The system will ask for confirmation to install Active-
X control. Once authorised, Internet Explorer will start to display the images from the Decoder as shown
below.
Default IP Address: http://192.168.10.100
of 937

VIDEO SELECT
Select the video stream to be viewed: primary, secondary, tertiary or quartic streaming. This camera is
capable of dual streaming; primary streaming and secondary streaming.
Video will be displayed according to the resolution set on video configuration. If dual streaming (“Use Dual
Encode” Menu Video page) is not activated, secondary video is not available.
VIEW SIZE
Adjust the size of the screen.
Screen size if initially adjusted according to the compression resolution. Click on 50% icon and the while
screen size will be reduced to half size.
DIGITAL ZOOM
Control the Digital zoom on the screen
The more the camera zooms in, the smaller the square of control panel is. Position of the image can be
changed by moving the position of the square. If you press x1, the screen will return to normal size.
of 10 37

PTZ CONTROL (OPTICAL ZOOM & DIGITAL ZOOM BUILT-IN THE CAMERA
Control PTZ and PTZ Control Panel is used for controlling external PTZ devices when external PTZ devices
are connected through serial port. It is possible to make zooming control by Zoom in/out buttons of PTZ
control panel (in order to use digital zoom, select Digital Zoom On in camera tab).
-Stop
Stop on-going action
-Focus Near, Focus Far, Auto Focus
Adjust the focus of the lens
SELECT PRESET
Set preset position and move to the specific preset position.
-Go To
Move to the selected preset entry if the preset entry is set.
-Set
Set the current position to the selected preset entry.
-Clear
Delete the selected preset entry.
of 11 37

SENSOR INPUT AND ALARM OUTPUT
Display the status of the sensor in real time.
This camera supports one sensor input. When the sensor of the camera is working, the sensor light turns red
Operate the alarm device by pressing the number icon. This camera supports one alarm output. A number
icon indicates status of the alarm device.
SNAPSHOT
Capture video images and store them as BMP or JPEG files.
TALK
Transfer audio from PC’s mic to the camera.
FILE RECORD
Recording to an AVI file on Live View page is available. AVI files are generated in specified folder or in a
specified file name on the pc where web browser is running.
1. Press “Set” button to select a folder or create a new folder. Enter the file name on a filename field.
2. Press “Start” button to start recording.
3. Press “Stop” button to stop recording.
4. An AVI file name “IP Address_hh_mm_ss” or “File name_IP Address_hh_mm_ss” will be generated in
the specified folder depending on where the path specified folder or a prefix of the file name.
of 12 37

DISPLAY BUFFER
Set the number of video frames to be buffered before being displayed on web browser. Larger value results
in smoother video by sacrificing the latency. A setting of 10 ~ 15 frames can be used generally for most
situations.
VIDEO MONITORING WITH DECODER SYSTEM
Once camera’s IP address is set in the remote IP address section of the decoder, the decoder system will
connect to the camera and start receiving the video images. Normally, a monitor connected to the decoder
will display video images.
Initialise of IP Address
If a system IP address is lost the system can be reset to the system default IP address using the reset button
in the back of the Decoder.
1. While the system is in operation, press the reset button for more than 5 seconds.
2. The system will reboot automatically.
3. Once the system reboots, IP address will be set to the system default as below
REMOTE CONFIGURATION
Using Web Browser
Remote setting is available by using web browser. Enter IP address of camera and then a live view screen
appears as below. Press Setup button located in the upper right of the monitoring screen to go to the server
setup. For Remote Setting. user should be authorised higher than manager level.
The configurations are grouped into 9 categories: Video & Audio, Image, Network, Event, Record, Device,
PTZ, System, User. Leaving the page without pressing Apply button, any changes in the page will be
discarded.
IP Mode
Fixed IP
IP address
192.168.10.100
Subnet Mask
255.255.255.0
Gateway
192.168.10.1
Base Port
2222
HTTP Port
80
of 13 37

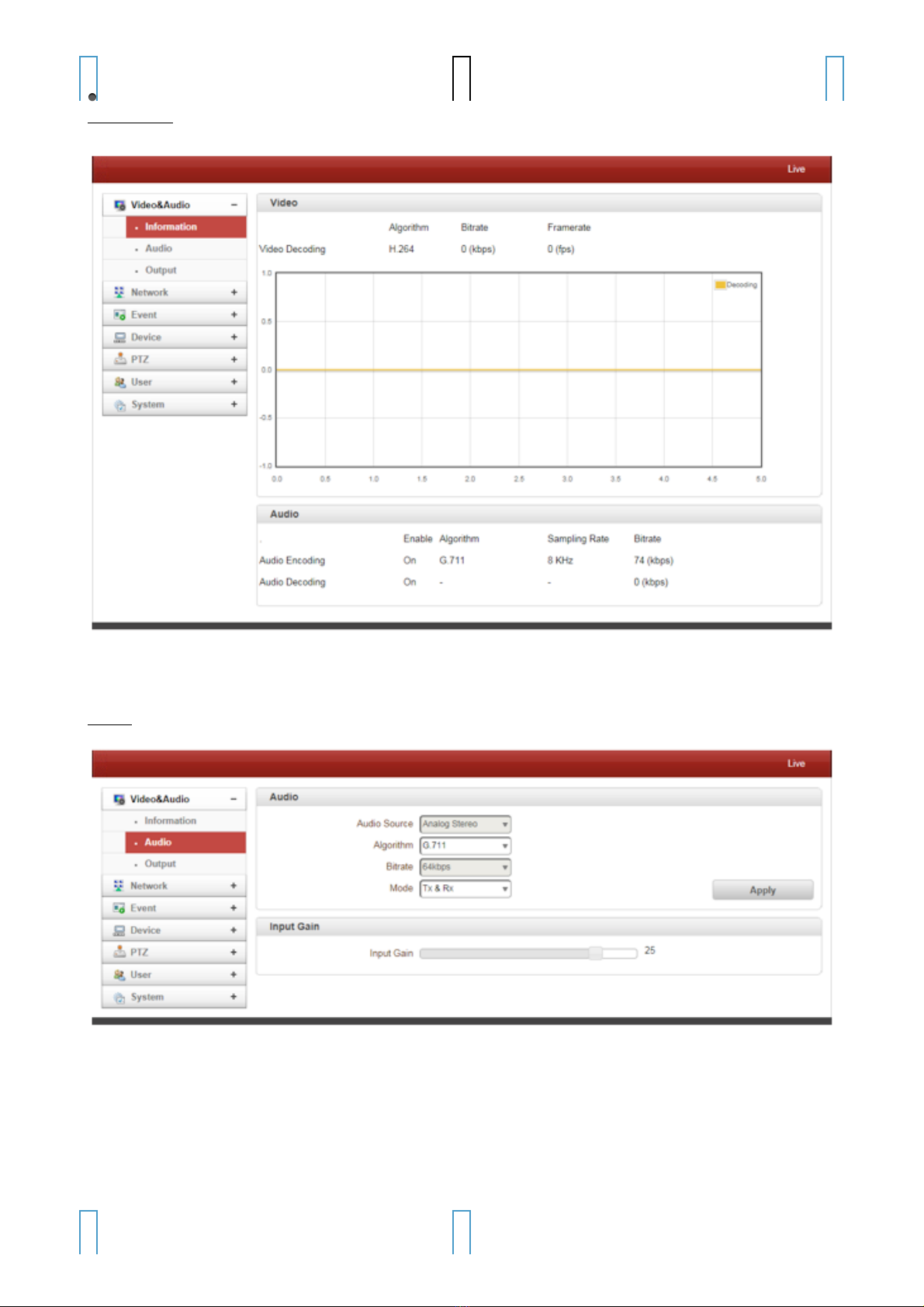

VIDEO & AUDIO
Information
The information provides current information regarding the settings for Video and Audio.
Audio
of 14 37

-AUDIO SOURCE
Select the audio source: Analog stereo
-ALGORITHM
Select the audio algorithm: G.711 or AAC.
G.711 and AAC from client to server direction are supported. Thus, bidirectional audio communication is
supported.
-SAMPLE RATE
The camping rate defines the number of samples per unit of time taken from a continuous signal to make a
discrete signal.
-BIT RATE
Select the bitrate between 64kbps and 128kbps when AAC is selected.
The sampling rate is fixed to 8KHz and 32Hz for G7.11 and AAC respectively.
Note that when camera is connected to decoder, the decoder’s audio algorithm should be set identically to
transmit audio properly.
-MODE
Select audio operation mode:
-INPUT GAIN
Set audio input gain from 0 to 31
Output
Mode
Action
Off
No operation
Tx-Only
Transmit only
Rx-Only
Receive only
Tx & Rx
Transmit and Receive
of 15 37

-OUTPUT FORMAT
Select the format of output when Enable Preview is selected.
-BUFFERING
Set the number of video frames to be buffered. Larger value results in smoother video by sacrificing the
latency. A setting of 10 ~15 frames can be used generally for most situation.

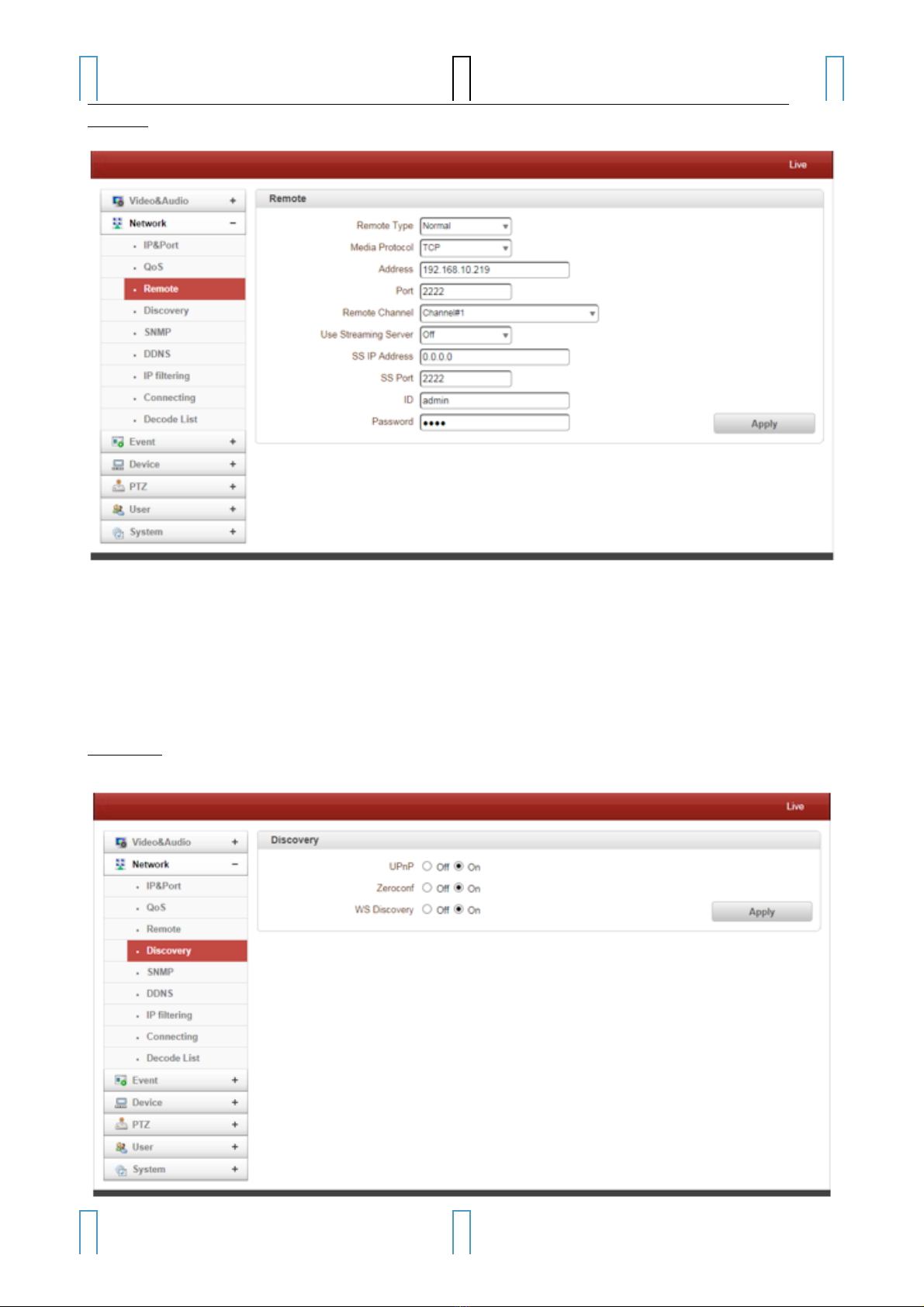

NETWORK
IP & PORT
of 16 37

-LOCAL
Select the IP mode: Fixed IP or DHCP.
Depending on the selected modem further configuration items come as follows;
Please ask IP address information from ISP provider or Network Manager.
-DNS
•Obtain DNS server address automatically.
Get DNS server automatically when IP mode is DHCP.
•Use the following DNS server address
Enter the DNS server IP address: Primary or Secondary DNS server.
Domain name system (DNS) is a database system that translate a computers fully qualified domain name
into and IP address. Networked computers use IP addresses to locate and connect to each other, but IP
addresses can be difficult to remember. For example, on the web, it’s much easier to remember the domain
name ‘www.amazon.com’ than it is to remember its corresponding IP address ‘207.171.166.48’.
-IPV6
•IPV6 Address: Enter the designated ipv6 address.
•IPV6 Subnet prefix length: Enter the bit number of ipv6 subnet.
•IPV6 Default Gateway: Enter the designated IPV6 gateway.
•IPV6 Link Local: Display IPV6 Link Local.
-Port
•Base Port (1025 ~ 65535)
Enter the Base Port number.
Network base port is used for communication with remote clients. In order for camera and remote systems to
connected, the port number must be identically configured in camera side client side.
•HTTP Port (80, 1025-65535)
Enter HTTP port used for web-based connection.
•HTTPS Ports (443, 1025 - 65535)
•Enter HTTPS port used for secured HTTP connection,
•RTSP Port (554, 1025 -65535)
Enter RTSP port used for RTSP-based connection. The default RTSP port is 554.
RTSP (Real Time Streaming Protocol) is a standard for media between server and client.
IP Mode
Selection
Description
Fixed IP
Local IP
Fixed IP Address
Local Gateway
Gateway IP Address
Local subnet
Subnet Mask
DHCP
N/A
N/A
of 17 37

-Multicast
The Multicast menu is used for configuring the multicast IP address to which media stream is delivered when
a client such as a decoder, VMS or NVR software is connected in multicast mode.
The multicast IP address selection range is between 224.0.0.0 and 239.255.255.255. The selection can be
used only when media protocol is set to Multicast.
QOS
-QoS
Qos is the overall performance of a telephony or computer network, particularly the performance seen by the
users of the network.
of 18 37

Remote: This is where you setup the details of the Camera or Encoder you wish the Decoder to
Decode.
-Remote type
Normal: Normal connection with Antrica IP Cameras via base port.
RTSP: RTSP connection with RTSP stream via RTSP port.
RTMP: RTMP connection with RTMP stream via RTSP port.
MPEG-TS: Decode Mpeg-TS stream specific port user defined
ONVIF: Decode streaming from onvif device. User should get a profile list from onvif device.
Discovery
of 19 37

-UPNP
By the setting UPNP to on, it allows the discovery by clients according to UPNP (Universal Plug and Play)
protocol.
-Zeroconf
By setting Zeroconf to ON, it allows the discovery by the clients according to zeroconf protocol.
-WS Discovery
Discovery function based on web service is enabled. It allows the discovery by the client SW which is
supporting Onvif.
SNMP
Setup for using SNMP (Simple Network Management Protocol). It is compatible to both SNMPv1 and
SNMPvec. Settings for SNMP are as following;
-SNMP Listen Port (0, 1025 ~ 65535)
The port is for connecting external device when system operates as a SNMP client. SNMP is not used by
setting 0 value.
-SNMP Trap Destination IP
Set SNMP Trap destination IP.
-SNMP Trap Destination Port (0, 162, 1025 ~ 65535)
Set the SNMP Trap Destination Port. SNMP is not used by setting 0 value.
of 20 37
