AoFrio Network Pro ONE User manual
2
Contents
Section
Pages
Warnings 3-4
Introduction
5
What you need
6
Key steps
7
Plan where to place the Network Pro ONE within the cooler
8
Mount the Network Pro ONE 9-10
•
Screw mounting 10
•
Tape mounting 10
Connect to the power supply 11-13
•
Use the LEDs to confirm operation 13
Configure Network Pro ONE and pair with the SCS Controller 14-23
•
QR Code provides options for configuration timing 15
•
Cradle app – before you start 16
•
Option A: Cradle app - Program Screen 16
•
Option B: Cradle app - Update Cooler Screen 17
•
Option C: OTA Commissioning 18
•
Option D: Field app 19
o
Configure Network Pro ONE using Field app 20-21
o
Configuration troubleshooting 22
o
Test 1-1 pairing with Field app verification 23
o
Verification troubleshooting 24
Technical Specifications
25
3
Warnings
Warnings Important do’s and don’ts:
Installation
The Network Pro ONE is mains electricity powered. Therefore
it should only be installed in a suitable location within the cooler,
and by an installer with appropriate qualifications in the country
of installation.
The Network Pro ONE must only be installed and configured
by trained and authorized staff. Please follow the instructions
provided in this Guide otherwise the warranty may be void.
•
Only authorised and appropriately
qualifed staff should install the Network
Pro ONE.
•
Mount the Network Pro ONE and the
power connector in an environment
that is not subject moisture or high
humidity.
USB-C port
Do not connect anything to the USB-C port. The port is a
non-standard USB-C and is only intended to be used by
AoFrio during manufacturing. Connecting anything to this port
may damage the product and void the product warranty.
•
Do not connect anything to the USB-C port.
No serviceable parts
There are no serviceable parts inside the Network Pro ONE. Do
not attempt to open the housing. Opening of the electronics
housing, altering, or modifying the Network Pro ONE may
invalidate the warranty and damage the device.
•
There are no serviceable parts inside the
Network Pro ONE.
•
Do not open the housing.
Fit for purpose
The Network Pro ONE must only be used for the purposes
and functions described in this manual. While AoFrio may
provide technical support on suitable applications and
configurations of the Network Pro ONE (where such a
relationship may exist), no liability, responsibility or risk is
accepted in determining if the Network Pro ONE is fit for
purpose for any particular application. No liability,
responsibility or risk is accepted by AoFrio for the operational
function of any particular installation or configuration.
•
The Network Pro ONE must only
be used for the purposes described
in this manual.
Cellular connection, ownership, and activation
The Network Pro ONE requires a cellular connection, either
LTE-M or 2G to set up and upload data to the Cloud.
A cellular connection might not be available in all locations. The
presence of LTE does not guarantee LTE-M signal being
available. LTE-M is intended for low bandwidth Internet of
Things (IoT) products where LTE is for mobile high bandwidth
applications.
Because this device is shipped in a non-active state, ownership
is established as part of the setup process where AoFrio adds
the device and owner to its database. Permission to manage
pairing with other AoFrio hardware can be granted through
User Roles within AoFrio’s User Manager software.
To use AoFrio’s Field app as part of the configuration process,
the Network Pro ONE feature needs to be activated for the
database that you are working in.
•
The Network Pro ONE requires a clear
cellular connection
•
Each device needs to be registered with
AoFrio as part of setup and activated to the
correct database
•
Pairing requires additional user role
permissions through User Manager.
4
Warnings continued
Warnings Important do’s and don’ts:
Correct disposal
The Network Pro ONE is subject to EU Directive 2012/19/
EU (WEEE) for e-waste. It may also be subject to other
national legislation for the safe disposal of e-waste.
The Network Pro ONE must not be disposed of in municipal
collections, it must be disposed of through an approved WEEE
collection point. Alternatively, Network Pro ONE returned to an
4uthorized AoFrio distributor at the end of its working life.
Penalties may be applicable for incorrect disposal, as specified
by national legislation.
The device contains a lithium battery. This may be hazardous if
incinerated or physically damaged. The circuit board may contain
hazardous substances which could affect health and the
environment if disposed of incorrectly.
Once the device’s battery is depleted, remove the device from
equipment and dispose of it according to local requirements.
Leaving Network Pro ONE installed in the equipment presents
risks due the potential for battery housing corrosion leading to
chemical leakage.
•
The Network Pro ONE must not be
disposed of in municipal collections; it
must be disposed of through an
approved e-waste collection point.
•
Safety warning: The Network Pro ONE
devices contain a lithium battery. This
may be hazardous if incinerated or
physically damaged.
•
Do not leave an old Network Pro ONE
installed in field equipment after it has
reached its end of life.
Chemicals
The Network Pro ONE must not be exposed to any liquids,
solvents, or chemicals, as this may damage the housing and
lead to unsafe operation. Exposure to such chemicals
invalidates the warranty.
•
Do not expose to liquids.
•
Any installation should be adequately
assessed by the customer to meet the
applicable end product standards for
Hydrocarbon refrigerant environments.
Temperature
The Network Pro ONE must not be subjected to temperatures
outside its specified temperature limits.
Exceeding these ranges in operation, installation, transportation,
or storage, will invalidate the warranty and may damage
electronic circuits and housing components, leading to premature
failure.
•
Do not expose to high or low
temperatures.
Vibration and impact
The unit must be installed in such a way as to be protected from
vibration and impact during operation. Exposure
to impact and mechanical shock, either in operation, installation,
transportation, or storage, may damage electronic circuits and
housing components, leading to premature failure, and may
cause the Network Pro ONE to become unsafe. Damage caused
by impact is not covered by warranty.
•
Do not drop or install the Network Pro
ONE in locations with vibration.
•
Mount the Network Pro ONE and its
power connector in an environment
that is not subject to movement.
Continuous development
AoFrio undertakes to continuously develop and improve
products and services. The design and specification of Network
Pro ONE and contents of this manual are subject to change
without notice. While every endeavour is made to ensure that all
specifications and documents are current and complete, AoFrio
accepts no liability, responsibility, or risk due to omissions or
changes caused by continuous improvement and design
changes.
•The design and specification of the
Network Pro ONE is subject to change
and new firmware may be released
without notice.
5
Introduction

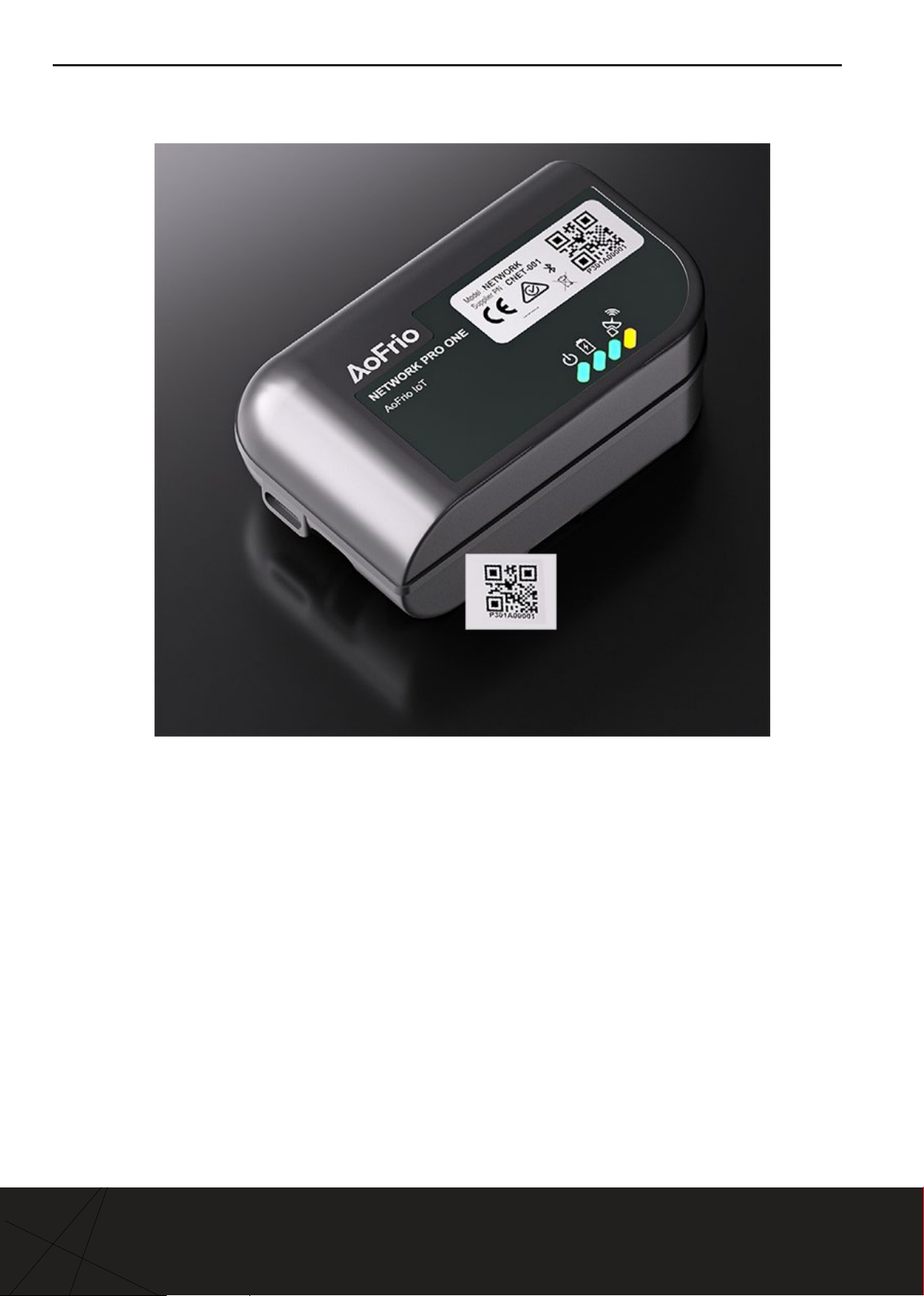

The Network Pro ONE is one of the communications devices in the AoFrio IoT ecosystem. It provides real-time
automated one-to-one data acquisition from an AoFrio IoT device (SCS Controller, Monitor or Click) installed in an
asset or equipment in the field, adding a cellular connectivity option to the existing portfolio of data acquisition
solutions provided by AoFrio.
Connectivity over the cellular network eliminates the need for cooler owners to make site visits to acquire data from
their cooler fleet. (NB. Throughout this manual we use “cooler” as the asset type and “SCS Controller” as the AoFrio
IoT device.)
Network Pro ONE is equipped with 2 different types of radio connectivity:
•
Bluetooth – The device is fully compatible with the AoFrio IoT system and uses Bluetooth to acquire data from
the SCS Controller it is paired with.
•
Cellular connectivity – A global cellular module provides connectivity using LTE Cat M1 with 2G fallback.
Cellular SIMs are installed at the time of manufacture and the data plan is managed by AoFrio unless an
alternative arrangement has been made.
Battery
Each device has a rechargeable internal battery that is used for backup if the external power supply is removed. The
battery life is approximately 12 hours during which time the Network Pro ONE will continue to operate fully as though
still connected to its external power supply.
Location Reporting
Wi-Fi positioning is used to help determine the location of the Network Pro ONE, and therefore the cooler it is
installed into. NOTE: Network Pro ONE is not able to establish a Wi-Fi connection to transfer data.
6

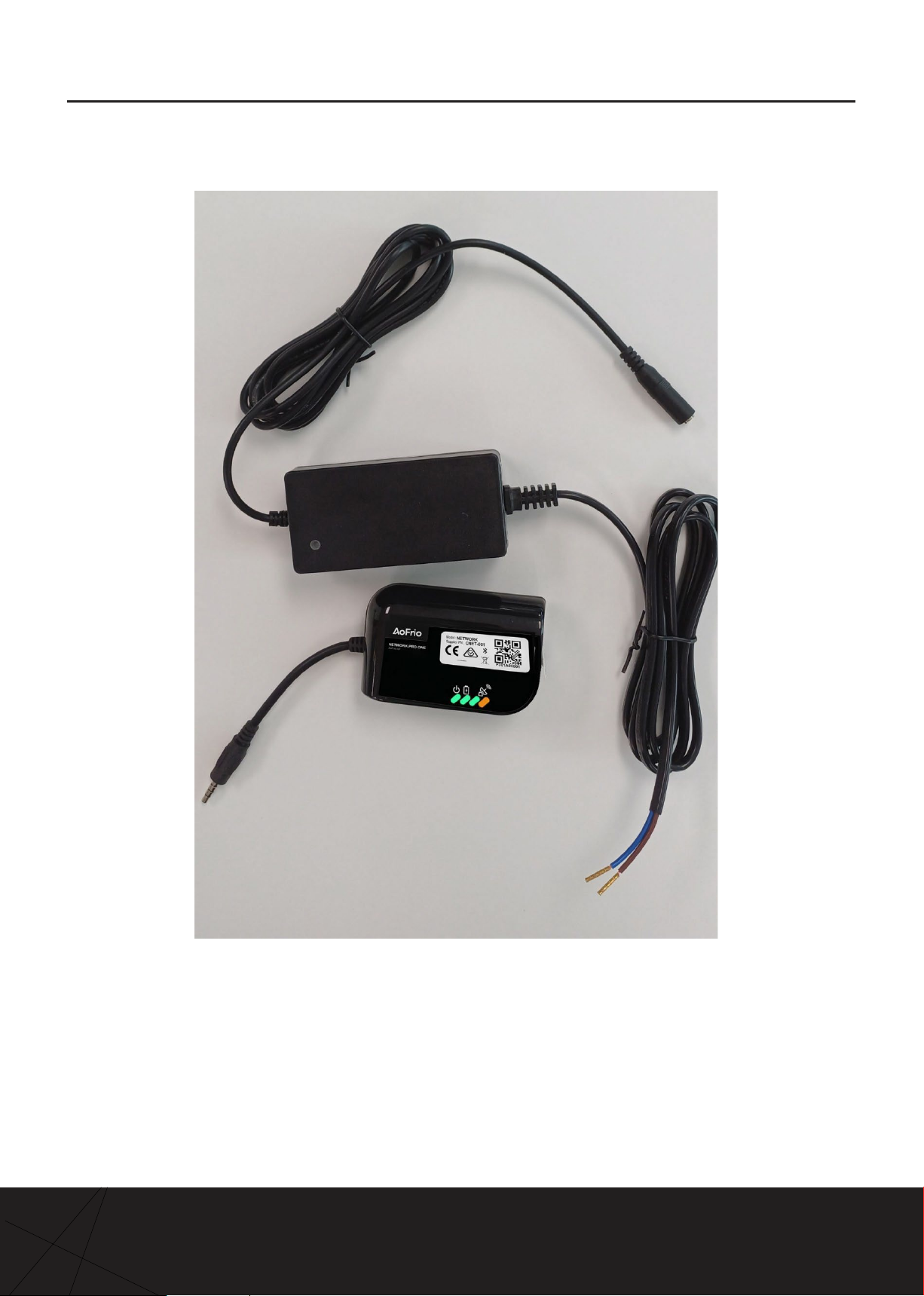

What you need
•
AoFrio Network Pro ONE
•
AoFrio AC to DC power supply
•
Hardware (screws, cable ties, tape etc) to mount the Network Pro ONE and AC/DC power supply
7
Key steps
These are the key steps when installing a Network Pro ONE in a new build. The order may change depending on the
selected pairing option. For more detail see the section Configure Network Pro ONE and pair with the SCS
Controller
Plan where to mount the Network Pro device within the cooler
Pair the Network Pro ONE with the SCS Controller
Mount the Network Pro ONE
Connect to the power supply
Pair the Network Pro ONE with the SCS Controller
Use the LEDs to confirm operation
(Optional) Test 1-1 pairing with Field app verification
8
Plan where to mount the Network Pro ONE within the cooler
While the mounting location can vary widely depending on the asset type (e.g., Open Deck cooler, Bottle cooler, Ice
cream chest freezer), we would recommend the following:
•
Ensure the device will be in a position to successfully use Bluetooth to pair with the SCS Controller
housed inside the cooler.
•
Mount the device at or near the top of the cooler to improve connection strength to a Cellular
Network (LTE-M or 2G) for data upload to the Cloud. This is especially relevant when paired with an
SCS Controller that may be mounted closer to the equipment’s motor or compressor.
•
Identify a suitable AC connection point. The Network Pro ONE should connect to a suitable point of
the AC mains supply within the cooler. Ideally the Network Pro ONE will be no further than 2.5 meters
from the AC connection point inside the cooler.
9
Mount the Network Pro ONE
Things to avoid
Avoid mounting the device where it is fully surrounded by metal surfaces as this may prevent
successful communications.
Avoid external mounting on the side or back of a cooler where the device can be damaged during cooler
movement.
Avoid mounting the device inside a cold or warm space as this will impact the communications
and device battery. The mounting location must be an area where the temperature is maintained
between 0°C (32°F) and 40°C (104°F).
Avoid mounting in areas where there is a high risk of condensation or moisture.
Avoid mounting the power supply at or near a heat source. The power supply mounting location
must be an area where the temperature is maintained between -10°C (14°F) and 40°C (104°F).
Recommended actions
Mount the device inside the cabinet. While mounting can vary depending on cooler type, in most
situations we recommend that the Network Pro ONE is mounted inside the cabinet, but not in a place where
it is fully enclosed by metal.
Mount the device behind plastic paneling or a grid as these are less likely to interfere with
communications.
Mount the device where it is out of sight from customers to minimize the risk of theft or tampering.
Mount the device at or near the top of the cooler to ensure the best connection strength to a Cellular
Network (LTE-M or 2G) for data upload to the Cloud.
Use the supplied screws and/or the double-sided tape to ensure secure mounting on metal or plastic
surfaces. We also recommend that you use cable ties to secure the power cable in place.
Position the device to avoid debris and moisture ingress from above. It doesn’t matter if the device is
horizontal or vertical, but the tail should be facing down or to the left, to avoid ingress through the USB-C
port.
If you plan to configure the device after you have completed the cooler build, make sure you remove and
store the additional supplied QR code sticker from the device separately so you can scan it later.
Secure the power supply and power cables using cable ties and/or double-sided tape to avoid damage
during transport and operation of the cabinet.
The power supply is supplied with open ends on the AC cable. We recommend that you terminate the AC
cable with an appropriate connector to allow easy integration with the cabinet AC wiring.
.
10
Screw mounting
1. Pull out the screw mounting tabs from the bottom of the device.
2. Mark and drill pilot holes.
3. Using a screwdriver, tighten the two screws to secure the device to the
surface.
Tape mounting
1. Ensure the mounting surface and the back of the device are clean and dry.
2.
Stick the adhesive pad to the back of the device.
3. Firmly press the device into position, ensuring it is secured to the surface.
11
WARNING: Do not attempt to power Network Pro ONE using the USB-C connector, as it may permanently
damage the device. The interface is not a standard USB-C.
Connect to the power supply
The Network Pro ONE system is supplied with an AC to DC power adaptor which must be connected to a 100-240V
AC, 50/60Hz power source. The power adaptor outputs 5V DC via the 3.5mm connector to power the Network Pro
ONE device. Note that the Network Pro ONE will remain in a deep sleep mode until the power is connected. Once
connected to power the device will turn on and also start charging its internal back up battery.
12
Make the connection
Step
1. Before or after mounting, plug the
3.5mm connector from Network Pro
ONE into the supplied cable.
2.
Check that the plug is inserted all the
way in.
3.
Wire the AC side of the power supply
to the cooler mains using your
preferred connectors. 100-240V AC,
50/60Hz
4.
(Optional) Secure the position of the
device and cables with cable ties to
avoid unplugging when the cooler is
moved.
13
Use the LEDs to confirm operation
Network Pro ONE is equipped with 4 LEDs, numbered 1 through 4 from left to right with behaviour as described below.
When you switch on mains power – you will be able to use these 4 LEDs to test power and cellular connections. Note that
this step doesn’t test the connection or association with the other device inside the cooler. If you are running the device
from the battery alone, only LED 3 and 4 will be active.
LED Purpose Behaviour
LED 1
External power status
•
ON = good input voltage (between 4.6V and 6.4V)
•
OFF = no external power, or outside allowed
range
LED 2
Battery charging status
•
ON = battery charging
•
OFF = battery not charging
The
LED will slowly flash (5 seconds on, 1 second off) while
the devices is charging, and the battery level is not high
enough yet to turn on the module.
When the battery is fully charged the LED may turn off.
LED 3 Cellular module power status
•
ON = cellular module on
•
OFF= cellular module off
LED 4
Cellular network connectivity
status
Slow short flash - searching for cellular network
Slow long flash - connected to a cellular network, idle
Fast flash - connected to a cellular network, sending data
Troubleshooting with LEDs
Problem Observed Possible Cause Possible Solution
No LEDs are on No power to the device Check that the cooler power is on.
Check that the 3.5mm plug is fully
pushed into the jack.
Swap the power supply.
LED 2 is not on,
meaning that the
battery is not
charging
Battery might be fully charged
No issue. This is normal behaviour
LEDs 3 and 4 are off
The cellular module is not being powered - the
Network Pro ONE may be in a low power state OR
The battery has not charged enough to allow
successful communications. This can take up to
10mins after powering the device.
Wait 10mins for the battery to
charge if needed. LEDs 3 and 4 will
show activity once the battery
voltage is sufficiently charged.
14
Configure Network Pro ONE and pair with the SCS Controller
Choose your preferred set up option
There are a number of options for OEMs to configure and set up the association with an SCS Controller when installing
a Network Pro ONE into a new cooler. Each OEM should review the options and select the one that best suits their
manufacturing and supply process:
Option Advantages Requirements
Option A: Cradle app -
Program Screen
•
Best choice when building for a specific
customer order and the SCS Controller
and Network Pro ONE are paired together
before they are installed.
•
No extra configuration step to add a
Network Pro ONE
•
Internet connection in
production line
•
OEM will need to know, at the
time of production:
o
Bottler
o
Asset #
o
Cooler Serial
Option B: Cradle app -
Update Cooler Screen
•
Best choice when the SCS Controller and
Network Pro are fitted at different stages
on the manufacturing line
•
No need to power up the SCS to update
with the pairing information
•
Internet connection in
production line
•
OEM will need to know at the
time of production:
o
Bottler
o
Asset #
o
Cooler Serial
Option C: Over-The-Air
Commissioning
•
Best choice when building to stock AND
when Bottler/Asset # not known at the
time of manufacturing.
The OEM must provide AoFrio with
a CSV file with the following
information for each dispatched
cooler:
•
Bottler
•
Cooler Serial
•
Asset #
•
SCS Controller Serial
•
Network Pro ONE Serial
Option D: Field app
•
Best choice when configuring a small
quantity of units, or when either the
Network Pro ONE or SCS Controller
needs to be replaced and re-paired. Field
app can also be used to test the operation
of the system
•
Need to use a mobile device to
use Field app
•
Requires OEM to have Bottler
access.
•
Need to power up the SCS
Controller
Each of these options are detailed on the following pages.
In the case of Cradle app or Field app, this installation manual explains the process of associating a Network Pro ONE with
an SCS Controller assuming the user has previous knowledge on the use of the selected tool.
Please refer to the following user manuals if required:
•
Cradle app user manual
•
Field app user manual
15
QR Code provides options for configuration timing
If you mount the Network Pro ONE in a location that isn’t easily accessible for later scanning of its QR code, AoFrio has
supplied a duplicate QR code sticker which can be attached to a more accessible location on the outside of the cooler.
16
Cradle app
Before you start
•
Network Pro ONE features are available in version 2.18 or later of the Cradle app. Check the Cradle app version
from the menu within the app and download the latest version if required.
•
The Network Pro ONE does NOT need to be plugged in to proceed with configuration.
•
Your computer needs an active Internet connection to perform this configuration.
•
You will need a scanner that can read both barcodes and QR codes.
Option A: Cradle app - Program Screen
The Cradle app - Program Screen provides the OEM with the opportunity to configure the Network Pro ONE and make
the 1-to-1 pairing with the SCS Controller during the same configuration process already used for the SCS Controller.
Step Detail
1 Go to the Settings screen and select an Owner from the dropdown under Set IDs.
2 Select checkboxes for:
•
Scan Serial
•
Scan Asset Number
•
Scan Network Pro
and other optional values as required.
3 While programming the SCS Controller, scan the QR code for the Network
Pro ONE serial # (either on the device or the supplied sticker) into the
corresponding field.
Once all the values have been scanned, the association between the SCS Controller and the Network Pro ONE will be sent
to AoFrio’s Cloud. The Network Pro ONE is now ready to be installed into the same cooler as the SCS.
The Network Pro ONE will receive the association once it’s activated and connected next time it’s powered up.
17
Option B: Cradle app - Update Cooler Screen
In some scenarios where the SCS Controller and Network Pro ONE are fitted at different stages on the manufacturing line,
or the decision to add a Network Pro ONE to an asset might come at a later stage, the Cradle app - Update Cooler
Screen can be used to configure the 1-to-1 pairing between the Network Pro ONE and the SCS Controller.
Before starting
To use this method, the cooler Serial Number will have to have been written into the SCS Controller through the Cradle app
at an earlier stage. Refer to the Cradle app manual for more detail.
Step Details
1 Go to the Update Cooler screen and click Settings.
2 Check the Network Pro Serial # checkbox and click Save Settings to
confirm the changes.
3 Go to the Update Cooler screen and scan the Serial number of the
cooler you want to pair the Network Pro ONE with.
On the same screen, scan the Network Pro ONE serial number, then click
Save to confirm the changes.
Once all the values have been scanned, the association between the SCS Controller and the Network Pro ONE will be sent
to AoFrio’s Cloud.
The Network Pro ONE is now ready to be installed into the same cooler as the SCS.
The Network Pro ONE will receive the association once it’s activated and connected next time it’s powered up.
18
Option C: OTA Commissioning
Sometimes an OEM might not know all the information required to make the system work properly until the time of
dispatching a cooler to a bottler. For this scenario AoFrio provides a way of configuring the pairing between the SCS
Controller and the Network Pro ONE over-the-air.
For this process to work the OEM will have to send AoFrio a CSV file with the following information for each cooler.
•
Bottler
•
Cooler Serial
•
Asset #
•
SCS Controller Serial
•
Network Pro ONE Serial
Note:
•
The SCS Controller will still have to go through the Cradle process currently used by the OEM to upload firmware,
parameter file and Cooler Serial #.
•
If the Asset # is not provided the AoFrio cloud will set it to the SCS Controller Serial.
19
Option D: Field app
About Field app
Although primarily intended for use at the field and not by the OEM, the Field app can also be used to configure the
pairing between the Network Pro ONE and the SCS Controller.
To use Field app, you will need the correct access permissions assigned to your Role by AoFrio's support team in the
AoFrio User Manager software. If your Role type does not include Network Pro ONE permissions, you will not have
access to this feature.
The user will also require Bottler access level to be able to properly do the configuration.
Before you start
•
Network Pro ONE features are available in version 5.28 or later of the
Field app. Check the Field app version from the menu within the app
and download the latest version if required.
•
Get the Network Pro ONE ready for installation. The Network Pro ONE
does NOT need to be plugged in to proceed with the configuration.
•
The SCS Controller you are planning to associate the Network
Pro ONE with needs to be fully configured and powered. If you are
installing a new SCS Controller, please refer to the SCS Controller
manual first.
•
Your mobile device needs an active Internet connection to perform
this configuration.
Download Field app
Use these QR codes to download AoFrio’s Field app or visit the iOS store or Google Play to find the downloads.
Apple Store Google Play
20
WARNING: Power should not be applied to the Network Pro ONE until step #5.
Configure Network Pro ONE using Field app
In this process we are pairing a Network Pro ONE with an SCS Controller already set up inside a bottle cooler.
Step
Details
1. Select the SCS Controller to connect to from the list of visible devices. This list is
filtered
by your activation permission, so devices you are not authorized to connect to
will not display
Then
select CONNECT to connect to the SCS Controller inside the cooler.
2. Open the main menu then select SCS SETUP
3. Click EDIT in the relevant row to add details for the ASSET #, COOLER MODEL,
and
MANUFACTURER SERIAL #.
NOTE:
Leaving the ASSET # field empty means the device will not be tracked.
Continued…
Other manuals for Network Pro ONE
2
Table of contents
