OPD-1086B User Manual
1
OPD-1086B Display
User Manual
Release Date Revision
Jun. 2013 V1.0
® 2013 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: [phone] Fax: [phone] E-mail: [email protected] URL: www.aplex.com.tw

OPD-1086B User Manual
2
Warning!___________________________________
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions manual, it may cause interference to radio communications.
It has been tested and found to comply with the limits for a ClassA computing device pursuant to
FCC Rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Disclaimer
This information in this document is subject to change without notice. In no event shall Aplex Technology
Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or
misuse of information in this document or in any related materials.
Electric Shock Hazard –Do not operate the machine with its back cover removed. There are
dangerous high voltages inside.

OPD-1086B User Manual
3
Table of Contents______________________
Warning!…………………………………………………………………………….……..….2
Disclaimer………………………………………………………………….…………………2
Chapter 1 Getting Started
1.1 Features………………………………………………..………….………….4
1.2 Specifications…………………………………………....……………...….4
1.3 Dimensions…………………………………...………………………….…5
1.4 Brief Description...................................................................................7
1.5 Display Mode……………………………………………………………….8
Chapter 2 OSD
2.1 Front Panel Controls……………………………………………….…..…….9
2.2 OSD Controls…………………..…………………………………………..10

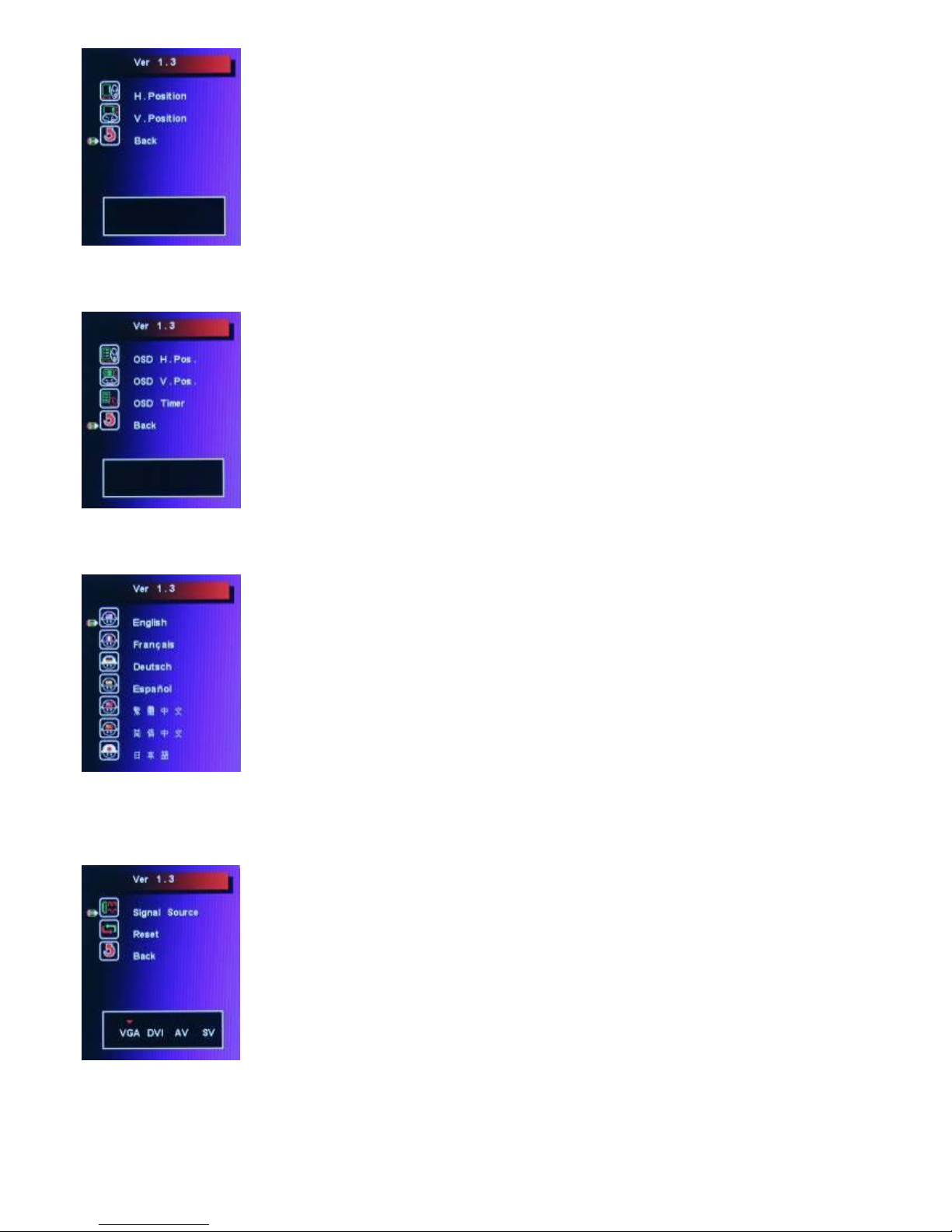

2.3 Main Menu…..………..……………………………………………………..11
2.4 AD Board (VA-3600) OSD Functions…….………………………………13
Chapter 3 Control Board
3.1 Introduction to Touch Screen Controller board…………………………..14
3.2 Windows 2000/XP/2003/Vista Universal Driver Installation for PenMount
6000Series…………………………………..……………….…………….14
Figures
Figure 1.1: Dimensions of OPD-1086B……………………………………….5
Figure 1.2: Front View of OPD-1086B………………………………………….7
Figure 1.3: Rear View of OPD-1086B………………………………………….7

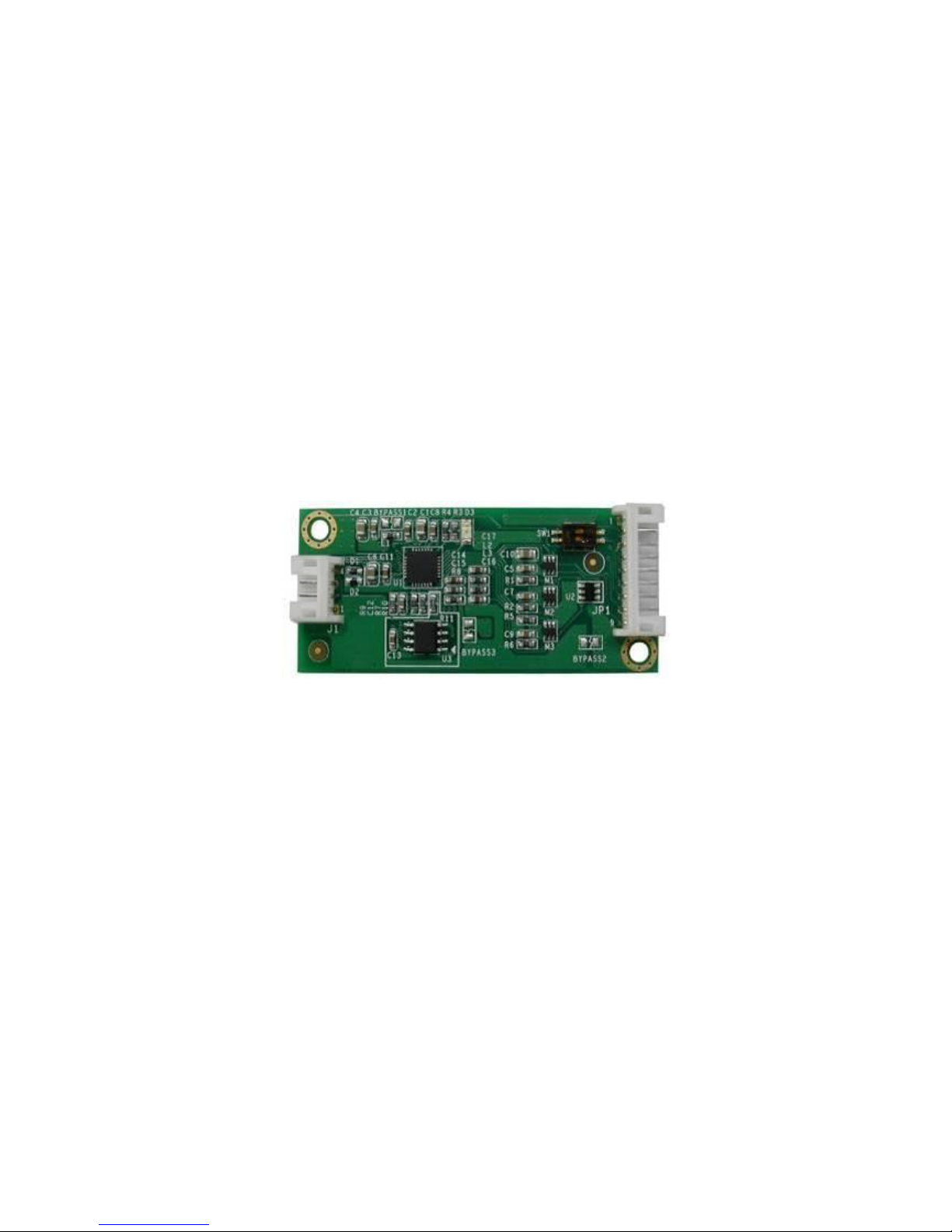

Figure 3.1: Bird Eye’s View of Control Board………………………………14

OPD-1086B User Manual
4
Chapter 1_____________________________
1.1 Features
LED backlight
Steel Chassis
Resistive touch screen (optional)
VGA in input , 12V DC power jack
DVI-I, RCA, S-Video (optional)
11~32V power (optional)
1.2 Specifications
Display
●Display: 8”color TFT LCD display
●Maximum resolution: 800 x 600
●Maximum colors: 16.2M
●Luminance: 350 cd/m²
●Viewing angle: 125/140
●Backlight life: 40,000 hours
●OSD control: Yes
●Touch screen: resistive touch
Mechanical
●Construction: steel chassis
●Mounting: Panel Mount/VESA Mount 75 x 75
●OSD on the rear side
●Dimensions:199 (W) x 148(H) x 42 mm (D)
●Weight: TBD
Environmental
●Operating temperature: 0 to 50℃(32 to 122℉)
●Storage temperature: -20 to 60℃(-4 to 140℉)
●Relative humidity: 10 to 95% @40℃, non-condensing, without touch screen
●Vibration: 1G peak, 10~150Hz
●Shock: 15G peak acceleration (11 msec.duration)
●EMC: CE, FCC Class A

OPD-1086B User Manual
5
1.3 Dimensions

OPD-1086B User Manual
6
Figure 1.1: Dimensions of OPD-1086B

OPD-1086B User Manual
7
1.4 Brief Description of OPD-1086B
OPD-1086B is a 8”TFT LCD monitor that comes with viewing angle of 125 (H) degrees and 140 (V)
degrees, and more outstanding features, thus giving you the best in monitoring and control
applications. The front panel of the display monitor is sealed with gasket for NEMA 4/IP 65 rating
when it is panel-mounted in a NEMA rated cabinet or enclosure. It is to be equipped with a resistive
touch screen.
Figure 1.2: Front View of OPD-1086B
Figure 1.3: Rear View of OPD-1086B

OPD-1086B User Manual
8
1.5 Display Mode
Display Mode
Hori. Sync (KHz)
Vert. Sync. (Hz)
35
56
SVGA 800 x 600
38
60
48
72
47
75

OPD-1086B User Manual
9
Chapter 2_____________________________
2.1 Front Panel OSD Functions
Auto Adjust Up/Left Down/Right Power
Menu/Entry Power Indicator
Power switch: To turn ON or OFF the power
Shift the icon to the right side or shift it up
Shift the icon to the left side or shift it down
Menu: To enter OSD menu for related icon and item.
Auto Button: One-touch auto adjustment
1.) Getting into Burn-in Mode
Before setting into a burn-in mode, first disconnect the AC power cord. Then press (don’t let them go)
the buttons until the AC power cord is connected and the “RGB” appears on the top left corner
of your screen. Now it can be put into the burn-in mode for changing colors.
2.) Getting Out of Burn-in Mode
Before getting out of the burn-in mode, please first disconnect the AC power cord. Then press the
button (If not workable, press the button and don’t let them go) until the AC power cord is
connected. Please don’t let your fingers go until the AC power cord is connected again and the
wording of “RGB”appears on the top left corner of your screen, and wait for 3 seconds. Under the
non-signal entry situation, if is seen, exit is thus successfully made.
Cable Not Connected

OPD-1086B User Manual
10
2.2 OSD Controls
To make any adjustment, select the following:
1. Press (Menu) to show the OSD menu or disable the OSD menu.
2. Select the icon that you wish to adjust with the ( / or +/-) key in the menu.
3. Press (Menu) and then choose the item with the ( / or +/-) key.
4. Press (Menu) and then adjust the quality with the ( / or +/-) key.
1.) If the “RGB”is still on the top left corner of the screen, press to enter “Miscellaneous”and
choose “Reset”, and then Yes, and press . When the screen goes black, disconnect power
and repeat the above steps.
2.) If the “RGB”is not found, disconnect the AC power cord first. Then press the buttons
(don’t let them go) until the AC power cord is connected, and wait for 2 to 3 seconds. When
“RGB”appears, repeat the above steps.
3.) Functions of OSD Keys
