AQUATROL AQT-56ST User manual

AQT56
POWERFLO SERIES
SERVICE MANUAL
CONTROL VALVES

Products Checking List 3
General Residential Installation Check List 4
AQT-56ST Softener Timer Control Valve Start-up Procedures 5
AQT-56FT Filter Timer Control Valve Start-up Procedures 6
AQT-56SM Meter Control Valve Start-up Procedures 7
Water Conditioner Flow Diagrams 8
AQT-56ST Softener Time Control Valve Drive Assembly 12
Time Control Valve Drive Assembly Parts List 13
AQT-56SM Softener Meter Control Valve Drive Assembly 14
Meter Control Valve Drive Assembly Parts List 15
Control Valve Assembly 16
Control Valve Assembly Parts List 17

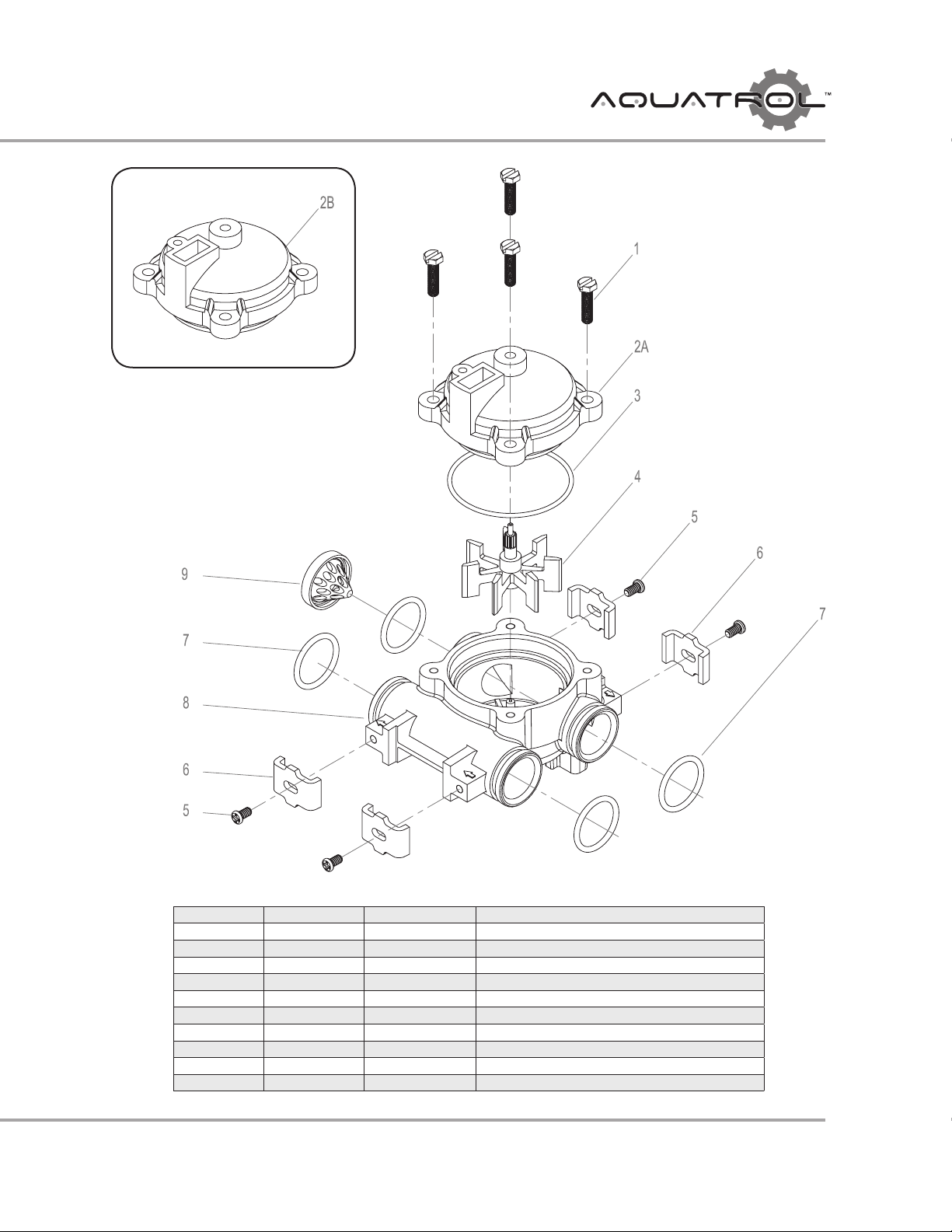

Meter Assembly and Parts list 18

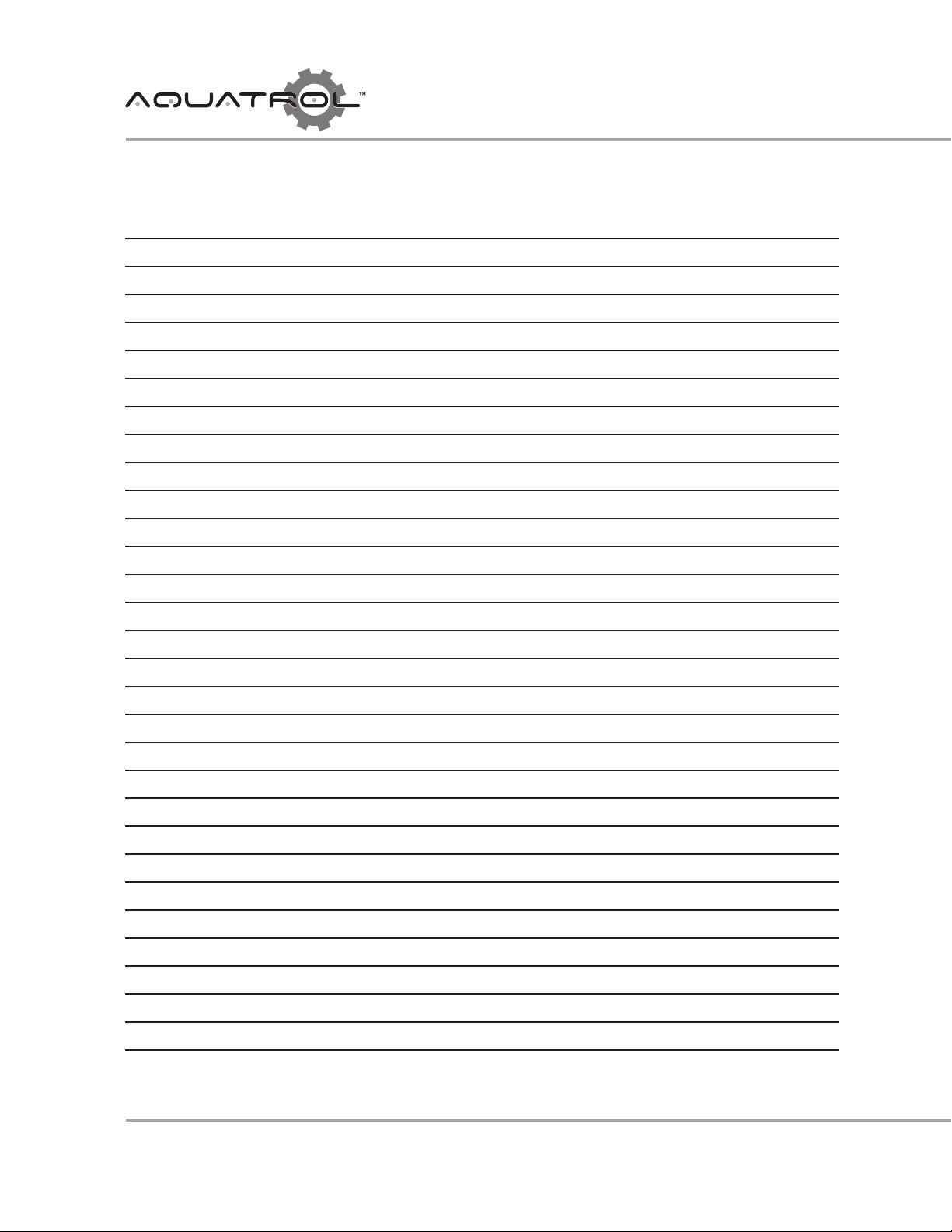

Notes 19
TABLE OF CONTENTS
AQUATROL | P.O. Box 2235 Chino Hills, CA 91709 • USA
CONTROL VALVES

Page 3
CONTROL VALVES
MODEL AQT-56
Product Check List
Products series check
AQT-56ST (Softener timer) AQT-56SM (Softener timer) AQT-56FT (Filter timer)
AQT-56FM (Filter meter)
Other Model: _________________
Electric motor
110V/60Hz 220V/50Hz 220V/60Hz
24V/60Hz 220V/60Hz Other Model: _________________
Flow Meter
2100 Gallon/Plastic (8T) 120v/60Hz 220v/60z
Yoke
3/4" NPT Plastic 1" NPT plastic
Injector nozzle/throat
#0 Red #1 Natural #2 Blue
#3 Yellow
B.L.F.C
0.125 GPM 0.25 GPM 0.5 GPM
D.L.F.C
1.2 GPM 1.5 GPM 2.0 GPM
2.4 GPM 3.0 GPM 3.5 GPM
4.0 GPM 5.0 GPM
Piston & Valve Position Dial
Standard LW (Low Water) Filter (for Filter Valve Only)
Power Cord & Plug
CN US UK
EU JP Other: _______________________
Input Power: ____________________
Parts chosen will be installed into the valve as default.

Page 4
CONTROL VALVES
General Residential
Installation Check List
General Valve Installation Procedure
Note: Install the water softener with the inlet, outlet and drain connections made according to manufacturer’s recommendations and to
meet applicable plumbing codes.
1. Locate the softener tank close to a drain where you wish to install the unit. Note: Be sure the tank is level and on a rm base.
2. Perform all plumbing according to local plumbing codes.
• Use a 1/2" minimum pipe size for the drain.
• Use a 3/4" drain line for backwash ow rates that exceed 7 gpm or length that exceeds 20' (6 m).
3. Cut the 1" distributor tube (1.050 O.D.) ush with top of each tank.
Note: Only use silicone lubricant.
4. Lubricate the distributor O-ring seal and tank O-ring seal. Screw the valve on to the tank.
5. Use only Teon tape on the drain tting. Solder joints near the valve must be done before connecting any piping to the valve. Always
leave at least 6" (152 mm) between the valve and solder joints when soldering pipes that are connected to the valve. Failure to do this
could cause damage to the valve.
6. Be sure the oor under the brine tank is clean and level.
7. Add water until there is approximately 1" (25 mm) of water above the grid plate. If a grid is not utilized, ll to the top of the air check in
the brine tank. Do not add salt to the brine tank at this time.
8. On units with a bypass, place in Bypass position.
•Turn on the main water supply.
•Open a cold soft water tap nearby and let water run a few minutes or until the system is free of foreign material (usually solder)
resulting from the installation. Close the water tap when water runs clean.
9. Place the bypass in the In Service position and let water ow into the mineral tank. When water ow stops, slowly open a cold water
tap nearby and let water run until air is purged from the unit. Then close tap.
10. Plug the valve into an approved power source
Water Pressure Minimum 25 PSI
Electrical Supply Uninterrupted AC. Check voltage compatibility
Existing Free of any deposits or build-ups inside pipes
Softener Locate close to drain and connect according to plumbing codes
Bypass Valves Always provide for bypass valve if unit is not equipped with one
CAUTION
Do not exceed 120 PSI water pressure
Do not exceed 100°F water temperature
Do not subject unit to freezing conditions

Page 5
CONTROL VALVES
MODEL AQT-56ST
Installation & Start-Up Procedure
Model: AQT-56ST
1. Manually index the softener control into the In Service position and let water ow into the resin tank. When the water ow stops,
open a softened water tap until all air is released from the lines. Then close tap.
Note: Manually dial the various regeneration positions by turning the knob on the front of the control until the indicator shows that
the softener is in the desired position.
2. Manually index the control to the Backwash position and allow water to ow at the drain for 3 or 4 minutes.
3. Remove back cover plate.
4. Make sure that the salt dosage is set as recommended by the manufacturer. If necessary, set salt according to the setting instruction
sheet. Manually index the control to the Brine Fill position and allow the brine tank to ll to the top of the air check.
5. Manually index the control to the Brine Draw position and allow the control to draw water from the brine tank until it stops.

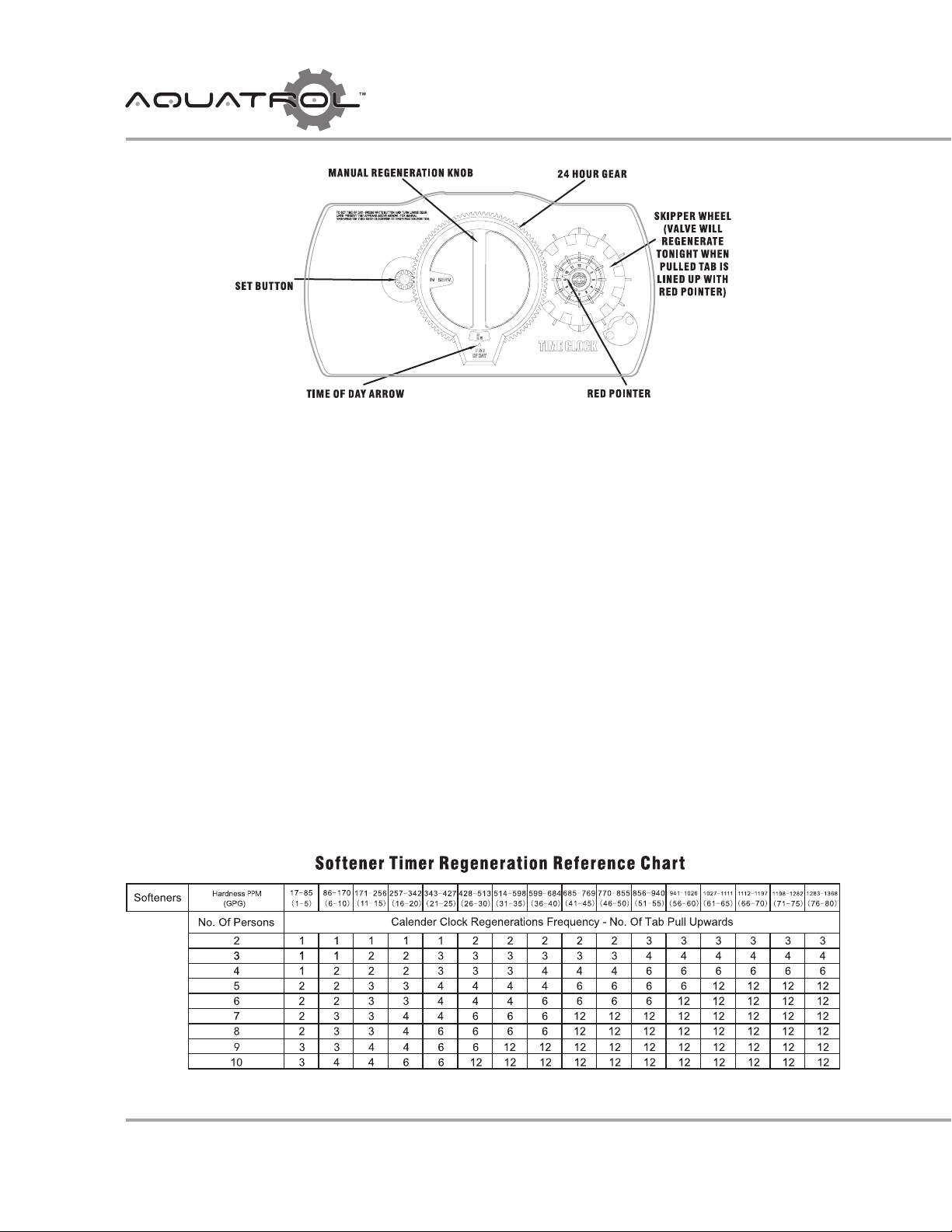

6. Plug in the electrical cord and look in the sight hole in the back of the motor to see that it is running. Set the days that regeneration is
to occur by sliding tabs on skipper wheel upward .
•Each tab is one day.
•Finger at red pointer is tonight.
•Moving clockwise from red pointer, pull or push ngers to obtain the desired regeneration schedule.
7. Manually advance the control to the beginning of the Brine Fill position and allow the control to return to the In Service position
automatically.
8. Fill the brine tank with salt.
9. Replace back cover on the control.
10. Make sure that any bypass valving is left in the normal In Service position.
BLUE TIME

Page 6
CONTROL VALVES
Model: AQT-56FT
Before Plugging in the Unit
1. Open a treated water tap down stream of the lter.
2. Manually index the lter to the In Service position and allow the mineral tank to ll by slowly opening the main water supply valve.
Any bypass should be in the In Service position.
Note: The water owing from the downstream tap is cloudy and/or contains media nes as well as air. Allow the water to run until it
appears clean and free of air.
3. When a steady clean ow appears at the tap, close the tap and the main water supply valve and allow the lter media bed to settle for
15–20 minutes.
4. Manually index the lter to the Backwash position.
5. To prevent a sudden surge of water and air, partially open the main water supply valve so that the ow at the drain of the lter is
approximately 1 gpm (3.7 Lpm). The water at the drain is cloudy again and/or contains media nes as well as air. Allow water to ow at
the drain until it appears clean and free of air.
6. Continue to open the water supply valve until it is completely open. Allow water to ow at the drain until all media nes are washed
out of the lter.
7. Manually index the lter to the In Service position, and again open the downstream tap. Check to be sure that the water ows clear.
If necessary, allow water to ow until all media nes are gone. If the tap is equipped with an aerator check that is not plugged with
media nes and pipe scale.
8. Plug in the electrical cord and look in the sight hole in the back of the motor to see that it is running. Set the days that regeneration is
to occur by sliding tabs on skipper wheel upward .
•Each tab is one day.
•Finger at red pointer is tonight.
•Moving clockwise from red pointer, pull or push ngers to obtain the desired regeneration schedule.
9. Set time of day by pushing blue button and spin the 24-hour gear until the present time of day is visible above the time of day arrow
AQT-56FT Meter Filter Valve
Start-up Procedures
BLUE TIME

Page 7
CONTROL VALVES
Model: AQT-56SM
1. Manually index the softener control to the In Service position and let water ow into the resin tank. When the water ow stops, open a
softened water tap until all air is released from the lines. Then close tap.
Note: The various regeneration positions may be dialed manually by turning the knob on the front of the control until the indicator
shows that the softener is in the desired position.

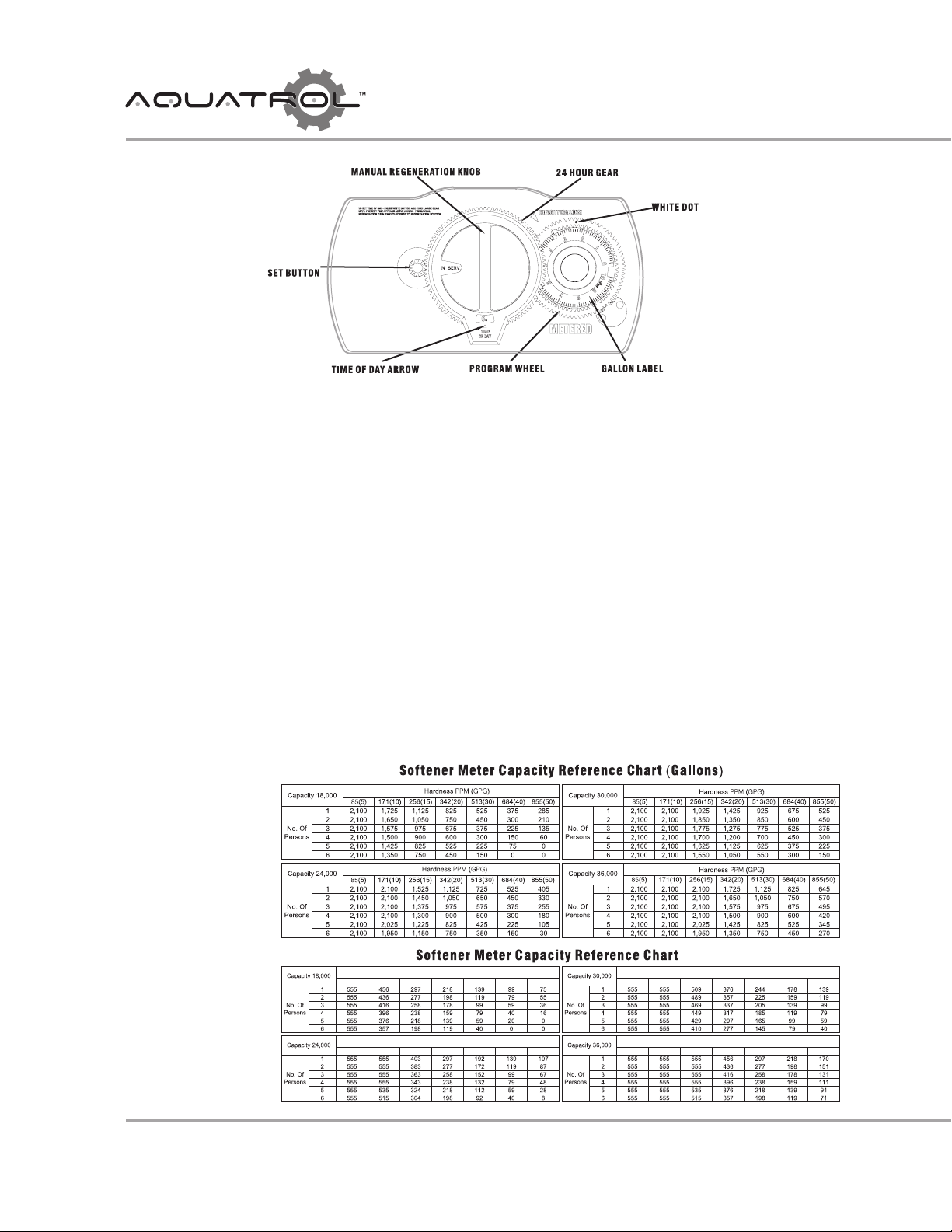

2. Set water usage program wheel :Calculate the gallon capacity of the system by dividing the system capacity by the raw water
hardness. Next subtract the necessary reserve requirement by multiplying the number of people in the house by 75 gallons (1
US gallon=3.785 L) per day. Set the gallons available at the small white dot on program wheel gear. The capacity arrow denotes
remaining gallons exclusive of xed reserve. The table below is also a quick reference to determine the gallons used before each
regeneration.
3. Rotate program wheel counterclockwise until it stops at Regeneration position.
4. Manually index the control to the Backwash position and allow water to ow at the drain for 3 or 4 minutes.
5. Remove back cover plate.
6. Make sure than the salt dosage is set as recommended by the manufacturer. Manually index the control to the Brine Fill position and
allow the brine tank to ll to the top of the air check.
7. Manually index the control to the Brine Rinse position and allow the control to draw water from the brine tank until it stops.
8. Plug in the electrical cord and look in the sight hole in the back of the motor to see that it is running.
9. Manually advance the control to the beginning of the Brine Fill position and allow the control to return to the In Service position
automatically.
10. Fill the brine tank with salt.
11. Replace back cover on
the control. Be sure
cable is not pinched
between cover and
housing.
12. Make sure that any
bypass valving is left in
the normal In Service
position.
AQT-56SM Meter Control Valve
Start-Up Procedure
( Liters )
BLUE TIME

Page 8
CONTROL VALVES

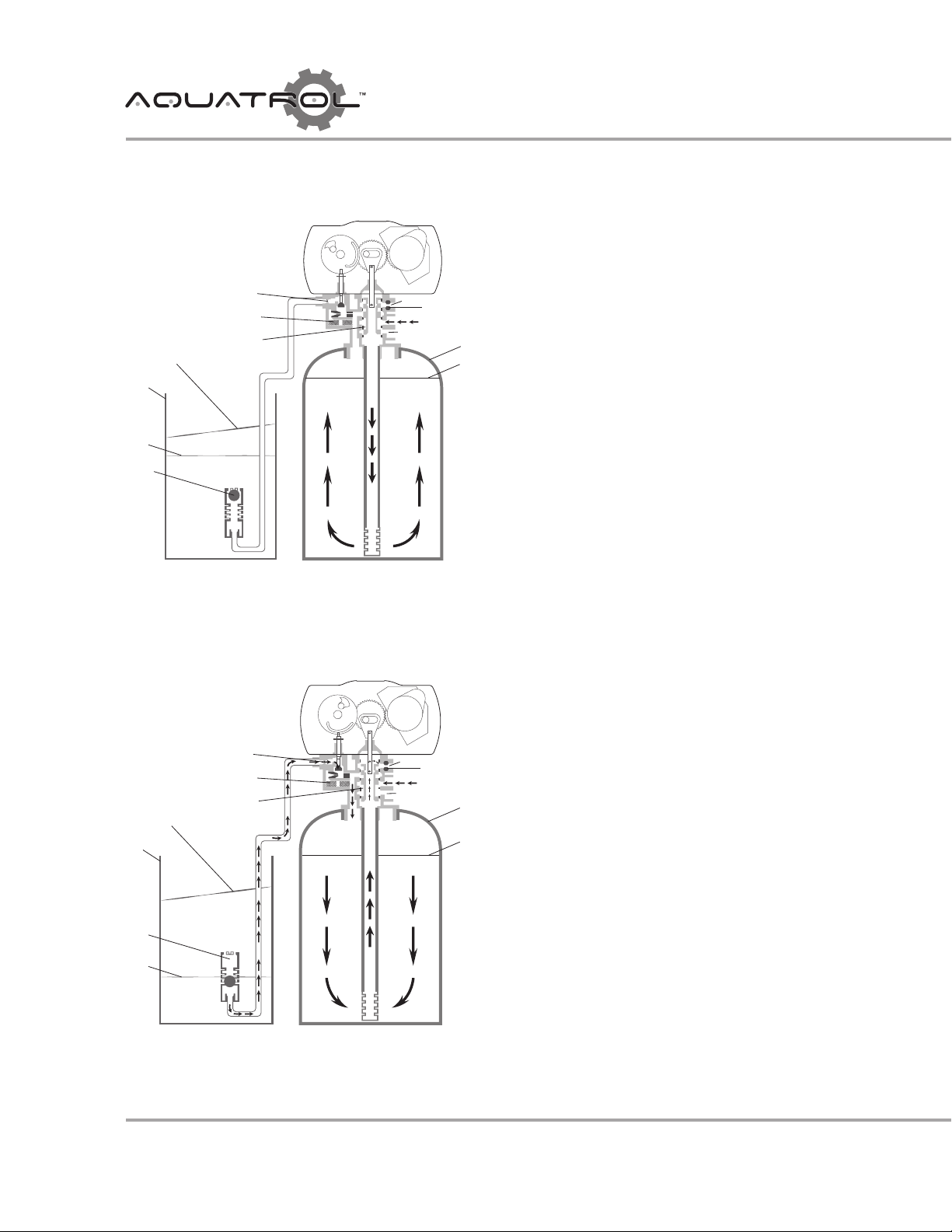

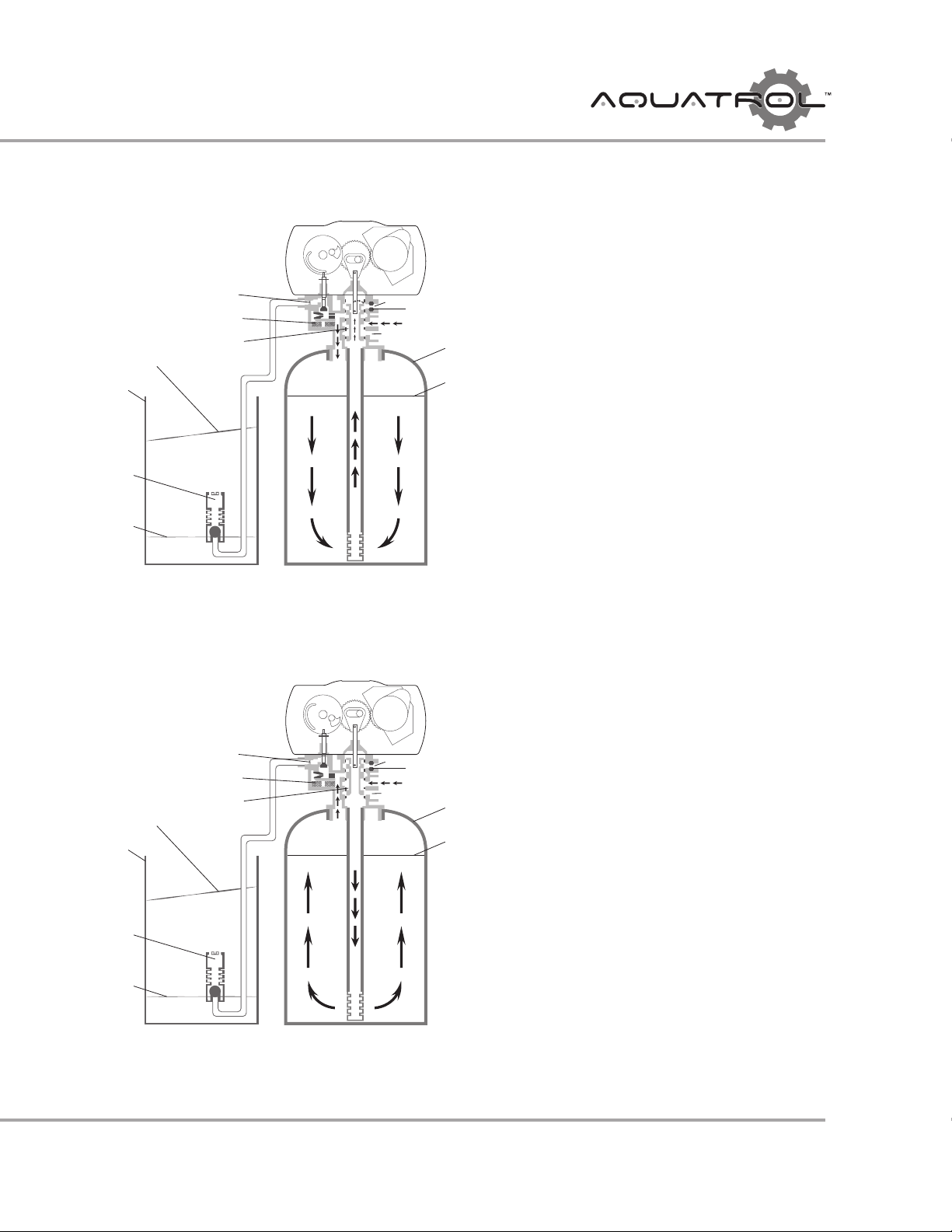

Water Conditioner
Flow Diagrams
1) Service Position
Hard water enters unit at valve inlet and ows down
through the mineral in the mineral tank. Conditioned water
enters center tube through the bottom distributor, then
ows up through the center tube, around the piston, and
out the outlet of the valve.
2) Preliminary Rinse Position
Slow rinse of the resin bed. Water ows down through the
resin bed, up the bottom distributor and out the drain.
Air Check
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Resin Level
Brine Level
Air Check
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level
Brine Level

Page 9
CONTROL VALVES
Water Conditioner
Flow Diagrams
3) Backwash Position
Hard water enters unit at valve inlet, ows through piston,
down center tube, through bottom distributor, up the
through the mineral, around the piston and out the drain
line. Water is passed through the resin bed in the opposite
direction of normal ow, which ushes suspended matter
out of the resin tank. Backwashing also loosens the resin
bed which becomes compacted during the softening (in
service) cycle.
4) Brine Position (Softeners Only)
Hard water enters unit at valve inlet, ows up into injector
housing and down through nozzle and throat to draw brine
from the brine tank, brine ows down through mineral
and enters the center tube through the bottom distributor
and out through the drain line. The resin beads are washed
with the strong solution of salt water which is called the
brine solution. Since the resin beads prefer calcium and
magnesium ions.
Air Check
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level
Brine Level
Air Check
Brine Level
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level

Page 10
CONTROL VALVES
Water Conditioner
Flow Diagrams
5) Slow Rinse Position (Softeners Only)
After all the brine has been drawn from the brine tank,
hard water continues to enter through the valve inlet, ows
around the lower piston groove and through the nozzle
and throat, down through the resin and into the distributor,
then up through the center tube, at last through the center
hole in the piston and out the drain.
6) Rapid Rinse Position (Second Backwash
Position)
The resin bed rinsed to remove excess brine solution from
the tank and the resin beads are the ready to produce
soft water again. Hard water enters unit at valve inlet,
ows through piston, down center tube, through bottom
distributor, and up through the mineral, around the piston
and out the drain line.
Air Check
Brine Level
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level
Air Check
Brine Level
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level

Page 11
CONTROL VALVES
Water Conditioner
Flow Diagrams
7) Settling Rinse Position
Slow rinse of the resin bed. Water ows down through the
resin bed up the bottom distributor and out the drain.
8) Brine Tank Fill Position (Softeners Only)
Hard water enters unit at valve inlet, ows up through the
injector housing, through the brine valve to rell the brine
tank. Valve is now delivering soft water to the home. Raw
water is relling the brine tank to make brine solution for
the next regeneration.
Note: Regeneration
When the valve is in regeneration, raw water is being
passed to service until rapid rinse is complete.
Air Check
Brine Level
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level
Air Check
Brine Level
Salt Level
Enjector
Piston
Flow Control
Flow Control
Resin Tank
Brine Tank
Inlet
Outlet
Drain
Resin Level

Page 12
CONTROL VALVES
AQT-56ST Time Control
Valve Drive Assembly
AQT-56ST Time Control Valve Drive Assembly

Page 13
CONTROL VALVES
Item No. Quantity Part No. Description
1 1 A-15613 Front Cover
2 1 A-S0001 Housing Assembly
3 1 A-13018 Idler Pointer
4 1 A-13312 Spring Idler
5 1 A-13017 Idler Gear
6 1 A-13164 Drive Gear
7 2 A-14457 Spring, Detent, Main Gear
8 4 A-13300 Ball
9 1 A-13170 Main Gear and Shaft
10 6 A-13296 Screw
11 1 A-15650 Motor Mounting Plate
12 1 Motor
13 3 A-11384 Screw, Motor mtg. and Ground wire
14 1 A-15614 Back Cover
15 1 A-12037 Washer
16 1 A-60514-01 Brine Cam Assembly, 7-30 lbs
1 A-66114 Brine Cam Assembly, 4-6 kg
1 A-60514 Brine Cam Assembly, 3.5-15 lbs
17 1 Electrical Cord
18 1 A-13547 Strain Relief
19 1 A-15678 Front Label
20 1 A-13011 Cycle Actuator Gear
21 1 A-19205 24-hour Gear Assembly, Silver
22 1 A-16715 Vale Position Dial, Filter
1 A-14176 Vale Position Dial, Standard
23 1 A-13864 Skipper Wheel Ring
24 2 A-13311 Spring, Detent, Skipper Wheel
25 1 A-14381 Skipper Wheel Assembly, 12-Day
26 1 A-13014 Regeneration Pointer
27 1 A-02107 Screw, Skipper Wheel Assembly
28 1 A-14177 Knob, Manual Regeneration
29 1 A-15151 Screw
30 1 A-15677 Knob Label
Time Control
Valve Drive Assembly Parts List
*
*
* For more options please refer to Page 3

Page 14
CONTROL VALVES
AQT-56SM Meter Control Valve Drive Assembly
AQT-56SM Meter Control
Valve Drive Assembly

Page 15
CONTROL VALVES
Meter Control
Valve Drive Assembly Parts List
Item No. Quantity Part No. Description
1 1 A-15613 Front Cover
2 1 A-S0001 Housing Assembly
3 1 A-13018 Idler Pointer
4 1 A-13312 Spring Idler
5 1 A-13017 Idler Gear
6 1 A-13164 Drive Gear
7 2 A-14457 Spring, Detent, Main Gear
8 2 A-13300 Ball
9 1 A-13170 Main Gear and Shaft
10 1 A-15650 Motor Mounting Plate
11 7 A-13296 Screw
12 1 Motor
13 3 A-11384 Screw, Motor mtg. and Ground Wire
14 1 A-15614 Back Cover
15 1 A-14043 Cable Assembly
16 1 A-14253 Spring Retainer
17 1 A-14276 Spring
18 1 A-13831 Clutch, Drive Pinion
19 1 A-56206 Drive Pinion, Program Wheel
20 1 A-12037 Washer
21 1 A-60514-01 Brine Cam Assembly, 7-30lbs
1 A-66114 Brine Cam Assembly, 4-6kg
1 A-60514 Brine Cam Assembly, 3.5-15lbs
22 1 Electrical Cord
23 1 A-13547 Strain Relief
24 1 A-15679 Front Label
25 1 A-13802 Cycle Actuator Gear
26 1 A-19205 24-hour Gear Assembly, Silver
27 1 A-15478 Valve Position Dial, Filter
1 A-14176 Valve Position Dial, Standard
28 1 A-A0007 Program Skipper Wheel Assembly, 10600gal
1 A-A0006 Program Skipper Wheel Assembly, 2100gal
29 1 A-13806 Program Wheel Retainer
30 1 A-13953 Cover Label
31 1 A-14177 Knob, Manual Regeneration
32 1 A-15151 Screw, Knob
33 1 A-15677 Knob Label
*
*
* For more options please refer to Page 3

Page 16
CONTROL VALVES
Control Valve
Assembly
Backwash Filter Injector Option

Page 17
CONTROL VALVES
Item No. Quantity Part No. Description
1 3 A-02001 Screw
2 2 A-02002 Screw-Drive Retainer
3 1 A-13546 End Plug Retainer
4 1 A-13363 Washer
5 1 A-13296 Screw
6 1 A-13001 Piston Rod Assembly
7 1 A-13446 End Plug Assembly
8 1 A-12953 Piston Retainer
9 1 A-10696 Piston Pin
10 1 A-13852 Piston, Filter
1 A-13247 Piston, Softener
11 5 A-13242 Seal
12 4 A-14241 Spacer
13 1 A-61400-12 Valve Body Assembly
14 4 A-13305 O-ring, Adapter Coupling
15 2 A-19228 Adapter Coupling
16 2 A-13255 Adapter Clip
17 2 A-13314 Screw, Adapter Coupling
18 1 Yoke, Plastic
19 1 A-13304 O-ring, Distributor Tube
20 1 A-12281 O-ring, Top of Tank
21 1 A-13308 Brine House Barb, Straight
1 A-56011 Brine House Barb, 90 Elbow
22 1 A-13173 DLFC Button Retainer Assembly
23 1 DLFC Button
24 1 A-13245 BLFC Button Retainer
25 1 BLFC Button
26 1 A-12977 O-ring, BLFC
27 1 A-13244 BLFC Fitting
28 1 A-12767 Screen, Brine Line
29 1 A-10332 BLFC Tube Insert
30 1 A-10330 BLFC Ferrule
31 1 A-10329 BLFC Fitting Nut
32 2 A-13315 Screw Injector Mounting
33 1 A-13166 Injector Cover
34 1 A-13303 O-ring, Injector Cover
35 1 Injector Nozzle
36 1 Injector Throat
37 1 A-10227 Screen, Injector
38 1 A-13163 Injector Body
39 2 A-13301 O-ring Injector
40 1 A-13497 Air Disperser
41 1 A-12638 O-ring, Drain
42 1 A-13302 O-ring
43 1 A-13167 Brine Valve Spacer
44 1 A-01003 O-ring, Brine Valve
45 1 A-13165/A-12550 Brine Valve Cap Assembly
46 1 A-11973 Spring, Brine Valve
47 1 A-13172/A-12626 Brine Piston Assembly
48 1 A-16098 Washer, Brine Valve
49 1 A-11981-01 Retaining Ring
50 1 A-13918 BLFC, Plug
51 1 A-13857 Brine Valve,Plug
*For more options please refer to Page 3
*
*
*
*
*
Control Valve
Assembly Parts List

Page 18
CONTROL VALVES
Item No. Quantity Part No. Description
1 4 A-02082 Screw
2A 1 A-66120A Meter Cover Assembly, 10600gal
2B 1 A-66120B Meter Cover Assembly, 2100gal
3 1 A-13847 O-ring, Meter Cover Assembly
4 1 A-12204A Impeller
5 4 A-13314 Screw, Adapter Clip
6 4 A-13255 Adapter Clip
7 4 A-13305 O-ring, Meter Body
8 1 A-12201 Meter Body
9 1 A-14613 Flow Straightener
Meter Assembly
And Parts List

Page 19
CONTROL VALVES
NOTES:

AQUATROL | P.O. Box 2235 Chino Hills, CA 91709 • USA
www.aquatroltech.com
CONTROL VALVES
