AQUATROL POWERFLO Series User manual

AQT390
POWERFLO SERIES
SERVICE MANUAL
CONTROL VALVES

General Residential Installation 4
AQT-390 Timer Start-up Setting Procedures 5
AQT-390 Timer Delay Start-up Setting Procedures 6
Regeneration Cycle Program Setting Procedures 7
Water Conditioner Flow Diagrams 8
Dimensional Drawings 11
Body Valve Assembly 12
Body Valve Assembly Parts List 13
DLFC Assembly 14
DLFC Assembly Parts List 15
Upper Control Drive Assembly 16
Upper Control Drive Assembly Parts List 17
Lower Control Drive Assembly 18
Lower Control Drive Assembly Parts List 19
180 Brine System Assembly 20
180 Brine System Assembly Parts List 21
Troubleshooting 22
Wiring Diagram 24
Notes 25
TABLE OF CONTENTS
AQUATROL | P.O. Box 2235 Chino Hills, CA 91709 • USA
CONTROL VALVES

Page 4
CONTROL VALVES
General Residential
Installation
Installation Instructions
1. Place the softener tank where you want to install the unit making sure the unit is level and on a rm base.
(Maximum 7 feet apart for twin units.)
2. All plumbing should be done in accordance with local plumbing codes. The pipe size for the drain line should be the same size as the
drain line ow control female connection. Water meters are to be installed on soft water outlets. Twin units with (1) one meter shall be
installed on common soft water outlets of units.
3. Solder joints near the drain must be done prior to connecting the Drain Line Flow Control tting. Leave at least 6" between the DLFC
and solder joints when soldering when the pipes are connected on the DLFC. Failure to do this could cause interior damage to the
DLFC.
4. Teon tape is the only sealant to be used on the drain tting. The drain from twin units may be run through a common line.
5. Make sure that the oor is clean beneath the salt storage tank and that it is level
6. Place approximately 1" of water above the grid plate (if used) in your salt tank. Salt may be place in the unit at this time.
7. On units with by-pass, place in by-pass position. Turn on main water supply. Open a cold soft water tap nearby and let run a few
minutes or until the system is free from foreign material (usually solder) that may have resulted from the installation.
8. Place the by-pass in service position.
9. Manually index the softener control into "service" position and let water ow into the mineral tank. When water ow stops, open a
cold water tap nearby and let run until air pressure is relieved.
10. Electrical: All electrical connections must be connected according to codes. Use electrical conduit if applicable. Remote meter system
wiring diagrams are on page 26.
11. Plug into power supply
Water Pressure Minimum 25 PSI
Electrical Supply Uninterrupted AC. Check voltage compatibility
Existing Free of any deposits or build-ups inside pipes
Softener Locate close to drain and connect according to plumbing codes
Bypass Valves Always provide for bypass valve if unit is not equipped with one
CAUTION
Do not exceed 120 PSI water pressure
Do not exceed 110°F water temperature
Do not subject unit to freezing conditions

Page 5
CONTROL VALVES

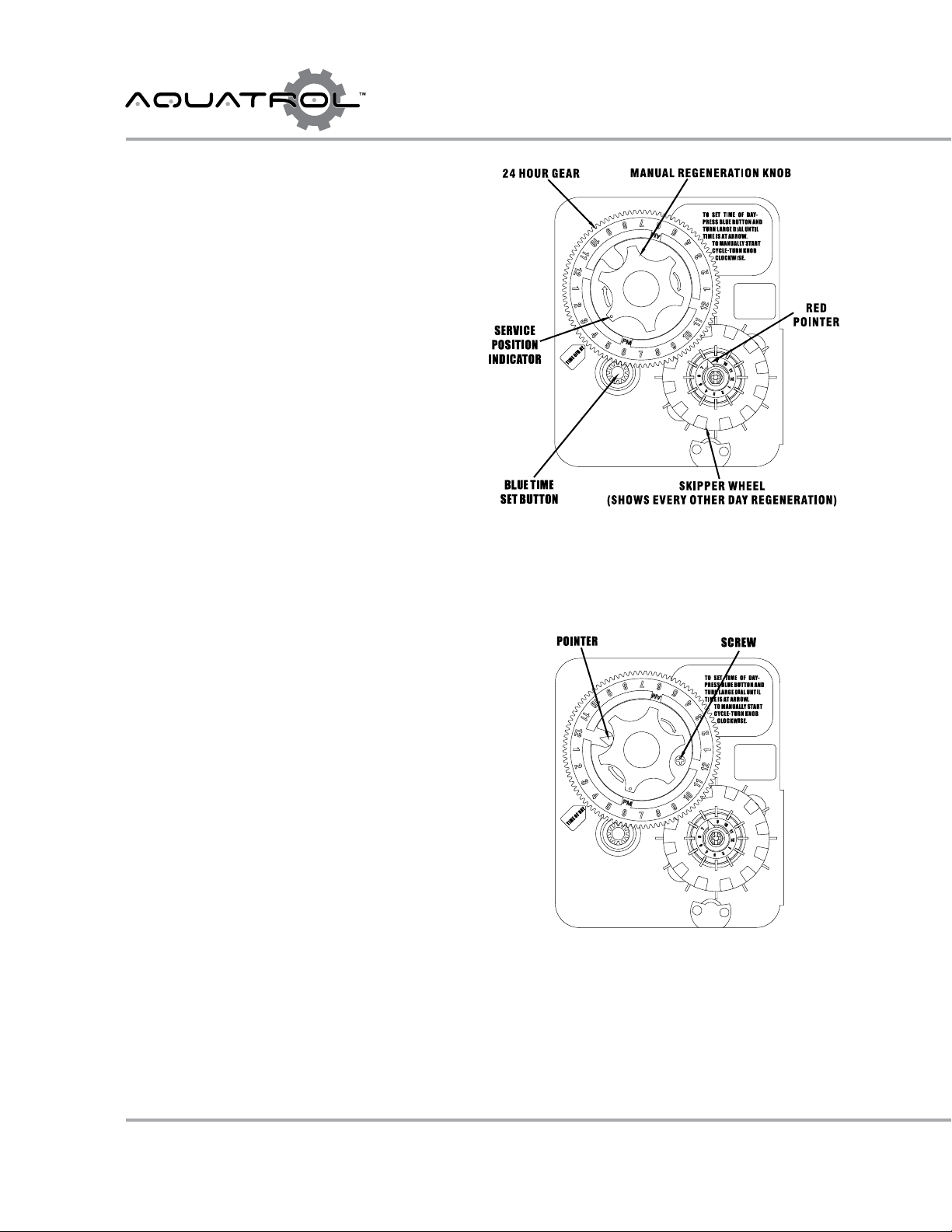

AQT-390 Timer
Start-up Setting Procedures
How To Set Days On Which Water Conditioner Is To
Regenerate:
Rotate the skipper wheel until the number "1" is at the red pointer.
Set the days that regeneration is to occur by sliding tabs on the
skipper wheel outward to expose trip ngers.
Each tab is one day. Finger at red pointer is tonight.
Moving clockwise from the red pointer, extend or retract ngers to
obtain the desired regeneration schedule.
How To Set The Time Of Day:
Press and hold the blue button in to disengage the drive gear.
Turn the large gear until the actual time of day is at the time of day
pointer.
Release the blue button to again engage the drive gear.
How To Manually Regenerate Your Water Condi-
tioner At Any Time:
Turn the manual regeneration knob clockwise.
This slight movement of the manual regeneration knob engages
the program wheel and starts the regeneration program.
The black center knob will make one revolution in the following
approximately three hours and stop in the position shown in the
drawing.
Even though it takes three hours for this center knob to complete
one revolution, the regeneration cycle of your unit might be set
only one half of this time.
In any event, conditioned water may be drawn after rinse water
stops owing from the water conditioner drain line.
How To Adjust Regeneration Time:
1. Disconnect the power source.
2. Locate the three screws behind the manual regeneration knob
by pushing the blue button in and rotating the 24 hour dial
until each screw appears in the cut out portion of the manual
regeneration knob.
3. Loosen each screw slightly to release the pressure on the time
plate from the 24 hour gear.
4. Locate the regeneration time pointer on the inside of the 24
hour dial in the cut out.
5. Turn the plate so the desired regeneration time aligns next to
the raised arrow.
6. Push the blue button in and rotate the 24 hour dial. Tighten
each of the three screws.
7. Push the blue button and locate the pointer one more time to
ensure the desired regeneration time is correct.
8. Reset the time of day and restore power to the unit.

Page 6
CONTROL VALVES
AQT-390 Timer Delay
Start-up Setting Procedures
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract the necessary reserve requirement and set the appropriate gallons available opposite
the small white dot on the program wheel. Note, drawing shows 10,000 gallon setting. The capacity (gallons) arrow denotes remaining
gallons exclusive of the calculated reserve.
Note: To set meter capacity at initial start-up, either:
1. Rotate the manual regeneration knob one full revolution.
or
2. Rotate the program wheel manual clockwise and align white dot with capacity arrow.
This procedure must be followed any time the program wheel setting is changed.
How To Set The Time Of Day:
Press and hold the white button in to disengage the drive gear.
Turn the large gear until the actual time of say is opposite of the time of day pointer.
Release the white button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner At Any Time:
Turn the manual regeneration knob clockwise one "click".
This slight movement of the manual regeneration knob engages the program wheel and starts the regeneration program.
The black center knob will make one revolution in the following approximately three hours and stop in the position shown in the drawing.
Even though it takes three hours for this center knob to complete one revolution, the regeneration cycle of your unit might be set for only
on half of this time.
In any event, conditioned water may be drawn after rinse water stops owing from the water conditioner drain line.
Immediate Regeneration Times:
These timers do not have a 24 hour gear. Setting the gallons on the program wheel and manual regeneration procedure are the same as
previous instructions.
NOTE:
To set meter capacity
rotate manual knob
1-360º revolution to
set the gallons.

Page 7
CONTROL VALVES
Regeneration Cycle
Program Setting Procedures
How To Set The Regeneration Cycle Program:
The regeneration cycle program on your water conditioner has been factory preset, however, portions of the cycle or program may be
lengthened or shortened in time to suit local conditions.

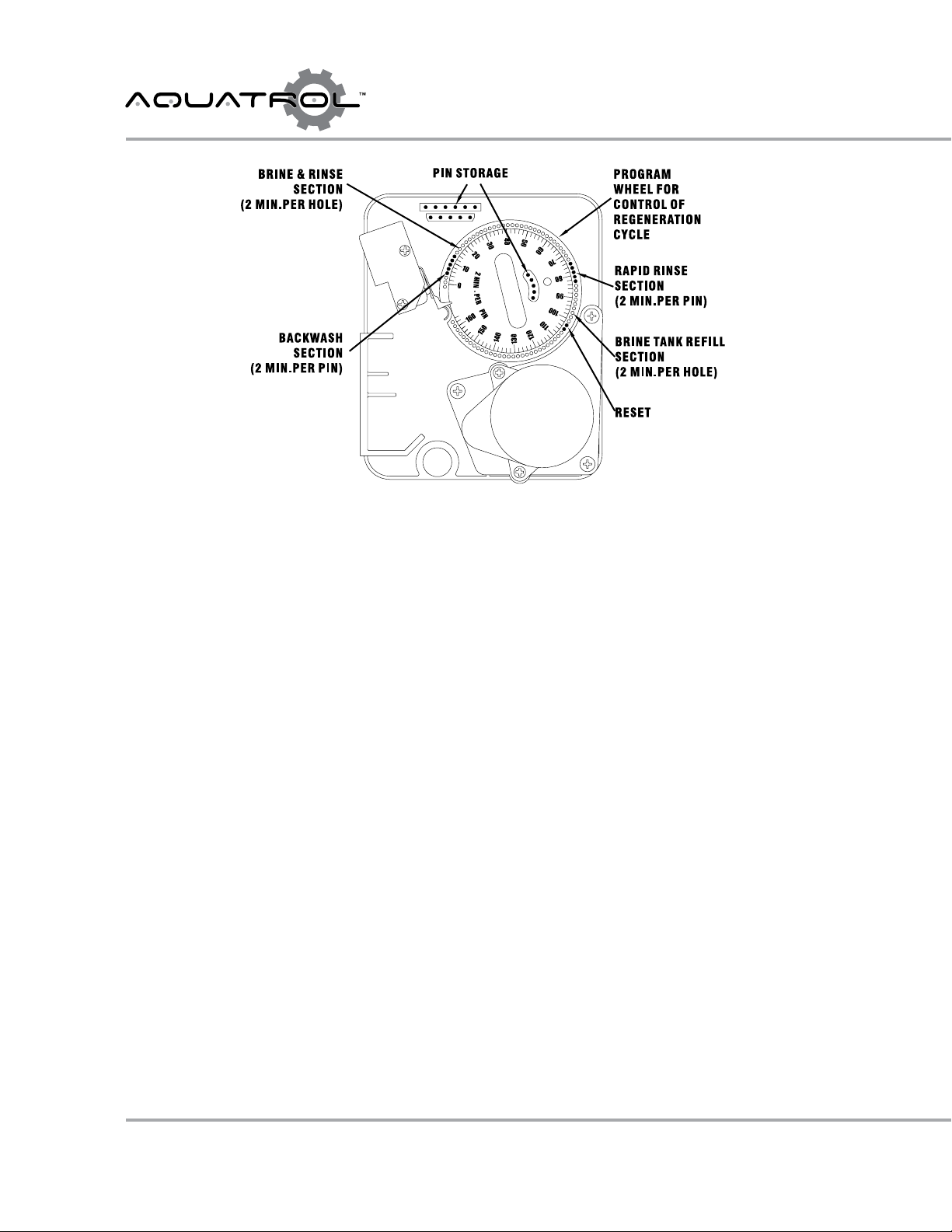

Timer Setting Procedure:
How To Change The Length Of The Backwash Time:
The program wheel as shown in the drawing is in the service position. As you look at the numbered side of the program wheel, the group
of pins starting at zero determines the length of time your unit will backwash.
For example: If there are six pins in this section, the time of backwash will be 12 min. (2 min. per pin). To change the length of backwash
time, add or remove pins as required. The number of pins times two equals the backwash time in minutes.
How To Change The Length Of Brine And Rinse Time:
The group of holes between the last pin in the backwash section and the second group of pins determines the length of time that your
unit will brine and rinse (2 min. per hole).
To change the length of brine and rinse time, move the rapid rinse group of pins to give more or fewer holes in the brine and rinse section.
Number of holes times two equals brine and rinse time in minutes.
How To Change The Length Of Rapid Rinse:
The second group of pins on the program wheel determines the length of time that your water conditioner will rapid rinse (2 min. per pin)
To change the length of rapid time, add or remove pins at the higher numbered end of this section as required. The number of pins times
two equals the rapid rinse time in minutes.
How To Change The Length Of Brine Tank Rell Time:
The second group of holes in the program wheel determines the length of time that your water conditioner will rell the brine tank (2 min.
per hole).
To change the length of rell time, move the two pins at the end of the second group of holes as required.
The regeneration cycle is complete when the outer micro-switch is tripped by the two pin set at the end of the brine tank rell section.
The program wheel, however, will continue to rotate until the inner micro-switch drops into the notch on the program wheel.

Page 8
CONTROL VALVES
Water Conditioner
Flow Diagrams
1) Service Position
Hard water enters unit at valve inlet and ows down
through the mineral to the bottom. Conditioned water
ows up through the distributor tube, around the piston
and out the outlet.
2) Backwash Position
Hard water enters unit at valve inlet and ows through
the service adapter piston for by-pass, and up through the
coupling to regenerate valve inlet. Flow continues through
the regeneration valve piston - down the distributor tube -
through the bottom distributor and up through the mineral
- around the piston and out the drain. If optional no hard
water by-pass piston is used, water ow to service outlet
is prevented by an extension on the service outlet until
the end of the rapid rinse cycle or brine tank rell cycle,
depending on option chosen.
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
Service Outlet
Regeneration
Valve
Service
Valve
Inlet
Inlet
Resin Level
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
No Hard Water By-Pass
Regeneration
Valve
Service
Valve
Inlet
Resin Level
Service Outlet

Page 9
CONTROL VALVES
Water Conditioner
Flow Diagrams
3) Brine Position
Hard water enters unit at valve inlet - ows through injector
nozzle and throat to draw brine from the brine tank. Brine
ows down through the mineral and into the bottom
distributor - up the distributor tube, around the piston and
out the drain.
4) Slow Rinse Position
Hard water enters unit at valve inlet - ows through injector
nozzle and throat - down through the mineral - into the
bottom distributor - up the distributor tube - around the
piston and out through the drain line.
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
Regeneration
Valve
Service
Valve
Inlet
Resin Level
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
Regeneration
Valve
Service
Valve
Inlet
Resin Level

Page 10
CONTROL VALVES
Water Conditioner
Flow Diagrams
5) Rapid Rinse
Hard water enter unit at inlet valve - ows through the
regeneration valve directly down through the mineral into
the bottom distributor and up through the center tube -
around the piston and out the drain.
6) Brine Tank Fill Position
Hard water enters unit at valve inlet - ows through nozzle
and through throat to brine valve to rell the brine tank.
Inlet ows also continues down through mineral to the
bottom distributor. Conditioned water ows up through
the distributor tube, around the piston and out the outlet.
Note: An option is available to keep service valve in by-pass
position until the end of brine tank rell cycle.
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
Regeneration
Valve
Service
Valve
Inlet
Resin Level
Air Check
Brine Level
Salt Level
Brine Tank
Resin Tank
Drain
Service Outlet
Regeneration
Valve
Service
Valve
Inlet
Inlet
Resin Level

Page 11
CONTROL VALVES
Dimensional
Drawings

Page 12
CONTROL VALVES
Body Valve
Assembly
1
3
10
11 19
18
7
4
2
17
16
15
14
13
12
9
8
6
5

Page 13
CONTROL VALVES
Body Valve
Assembly Parts List
Item No. Quantity Part No. Description
1 1 A-60106-00 Piston HW, AQT-315, AQT-390 Upper
2 1 A-60107-00 Piston HW, AQT-390 Lower
3 1 A-60131 Seals & Spacers, AQT-315, AQT-390 Upper
4 2 A-40118 Screw, Body
5 1 A-15114 Body, Valve, AQT-390 Upper
6 1 A-16074 Coupling Assembly
7 1 A-15112 Seal, Valve Body-Adapter
8 1 A-16088 Plug, 2" NPT
9 1 A-16067-02 Valve Body, Lower, 3"
10 1 A-60132 Seals & Spacers, AQT-390 Lower
11 1 A-60107-10 Piston NHW, AQT-390 Lower
12 12 A-16517 Hex Bolt, Flange
13 1 A-16800 O-Ring
14 1 A-16345 O-Ring
15 1 A-16482 Flange Segment, (2 pcs)
16 1 A-16484 O-Ring
17 1 A-16483 Flange Ring
18 12 A-18619 Washer
19 12 A-16346 Nut

Page 14
CONTROL VALVES
DLFC
Assembly
A-60711
DLFC, 2” NPT
DLFC Buttons
(4 X DLFC)

Page 15
CONTROL VALVES
DLFC
Assembly Parts List
* DLFC Button / Washer Options (x 4, can be mixed)
A-17942 DLFC Washer, 5 gpm
A-17943 DLFC Washer, 8 gpm
A-17944 DLFC Washer, 9 gpm
A-16529 DLFC Washer, 10 gpm
A-16735 DLFC Washer, 12 gpm
A-16736 DLFC Washer, 15 gpm
A-16528 DLFC Washer, 20 gpm
A-16737 DLFC Washer, 25 gpm

Page 16
CONTROL VALVES
Upper Control Drive
Assembly
3
748
A-16046
KIT
910 11 12
13
14
15
16
17
18
19
20
21
25
26
9
27
23
28
30
31
32 33 34
29
35
36
37
1
6
23 22
24
2
4
5
2

Page 17
CONTROL VALVES
Item No. Quantity Part No. Description
1 1 A-17470 Cable Guide, Meter
2 1 A-17470-00 Screw Cap
3 2 A-16346 Nut, Timer
4 5 A-11225 Screw
5* 1 Timer, Mechanical
6 3 A-10016S Screw, Motor Mounting
7 1 A-15120-01 Motor, Bracket
8 4 A-11224 Hex Bolt, Motor Bracket
9 2 A-16052 Bushing
10 1 A-11898 Retainer
11 1 A-16047 Connecting Link
12 1 A-11709 Pin-drive Link
13 1 A-11774 Retaining Ring
14 1 A-16050 Retaining Ring
15 1 A-16046 Drive Gear, Kit (includes #10 - #16), 315/390
16 1 A-16048 Drive Bearing
17 1 A-60240 Valve Cover
18 1 A-60240 Screw, Cover
19 1 A-60240 Transparent Panel
20 1 A-60240 Washer
21 1 A-60240 Screw
22 1 A-16052-1 Bushing, Cam
23 2 A-16051 Retaining Ring
24 1 A-16494-03 Cam
25 4 A-10231 Hex Bolt, Bracket, Brine Valve
26 1 A-16053 Bracket, Brine Valve
27 1 A-16059 Washer, SS
28 1 A-17797 Bracket, Switch Mounting 315/390
29 1 A-11381 Roll Pin
30 3 A-10302 Insulator, Switch
31 3 A-10218 Switch
32 2 A-40080 Screw, Switch
33 1 A-30018F Motor 24V, AQT-275, 285, 290 Up, 315, 390 Up & Low
34 1 A-16045-3G Drive Pinion, Motor 3rd Gen.
35 1 A-19304 Back Plate
36 4 A-11235 Nut
37 1 A-07190F Transformer, 24V, 60Hz, for Mechanical and NX
Upper Control Drive
Assembly Parts List

Page 18
CONTROL VALVES
Lower Control Drive
Assembly
1
2
3
45 6 7
8
9
10
11
12
13 14
15
16
17
18
19
20
21
12
22
23
24
25
26
27
28
29 30 31
32
A-16046
KIT

Page 19
CONTROL VALVES
Item No. Quantity Part No. Description
1 4 A-11235 Nut
2 1 A-19305 Back Plate, 390 Lower
3 1 A-16086 Motor, Bracket, 390 Lower
4 3 A-11225 Screw
5 1 A-11898 Retainer
6 1 A-16047 Connecting Link
7 1 A-11709 Pin-drive Link
8 1 A-11774 Retaining Ring
9 1 A-16050 Retaining Ring
10 1 A-16046 Drive Gear, Kit (includes #10 - #16), 315/390
11 1 A-16048 Drive Bearing
12 2 A-16052 Bushing
13 4 A-11224 Hex Bolt, Motor Bracket
14 1 A-60240 Valve Cover
15 1 A-60240 Screw, Cover
16 1 A-60240 Transparent Panel
17 1 A-60240 Washer
18 1 A-60240 Screw
19 1 A-16494-03 Cam
20 4 A-10231 Hex Bolt, Bracket, Brine Valve
21 1 A-16053 Bracket, Brine Valve
22 1 A-16059 Washer, SS
23 1 A-16051 Retaining Ring
24 1 A-17797 Bracket, Switch Mounting 315/390
25 1 A-10302 Insulator, Switch
26 1 A-10218 Switch
27 2 A-11805 Screw, Switch
28 1 A-30018F Motor 24V, AQT-275, 285, 290 Up, 315, 390 Up & Low
29 1 A-16045-3G Drive Pinion, Motor 3rd Gen.
30 1 A-11381 Roll Pin
31 3 A-10016S Screw, Motor Mounting
32 1 A-18691 Connector, Back Plate, Lower 390
Lower Control Drive
Assembly Parts List

Page 20
CONTROL VALVES
180 Brine System
Assembly
2
6.2
5
3
8
7
6.1
5
4
3
1
9
10
11
Injector*
# 6.1
# 6.2
12
13
14
15
16
PN 1 - 14 -------- A-60277 --- Brine Valve, Short Stem, Less BLFC, 1”for AQT-315 & AQT-390
PN 10 - 14 ------ A-60036 --- Inyector Body, 1”for AQT-315 & AQT-390
