arcelik KF 839 DGI User manual

285450068
Built
BuiltBuilt
Built-
--
-In Oven
In OvenIn Oven
In Oven
KF 839 DGI
KF 839 DGIKF 839 DGI
KF 839 DGI

Please read this user manual irst!
Please read this user manual irst!Please read this user manual irst!
Please read this user manual irst!
Dear Customer,
Thank you or purchasing this Arçelik product. We hope that you get the best results rom your product
which has been manu actured with high quality and state-o -the-art technology. There ore, please read
this entire user manual and all other accompanying documents care ully be ore using the product and
keep it as a re erence or uture use. I you handover the product to someone else, give the user manual
as well. Follow all warnings and in ormation in the user manual.
Remember that this user manual is also applicable or several other models. Di erences between models
will be identi ied in the manual.
Explanation of symbols
Throughout this user manual the ollowing symbols are used:
Important in ormation or use ul hints
about usage.
Warning o hazardous situations with
regard to li e and property.
Warning o electric shock.
Warning o
risk o ire.
Warning o hot sur aces.

3/EN
TABLE OF CONTENTS
1 Important instructions and warnin s
for safety and environment 4
General sa ety ................................................ 4
Electrical sa ety .............................................. 4
Product sa ety ................................................ 5
Intended use .................................................. 6
Sa ety or children .......................................... 6
Compliance with AEEE regulation and disposal o
waste products ........................................ 7
Package in ormation ....................................... 7
2 General information 8
Overview ....................................................... 8
Package contents ........................................... 8
Technical speci ications .................................. 9
3 Installation 10
Be ore installation ........................................ 10
Installation and connection ........................... 13
Future Transportation ................................... 14
4 Preparation 15
Tips or saving energy .................................. 15
Initial use ..................................................... 15
Time setting ................................................ 15
First cleaning o the appliance ...................... 16
Initial heating .............................................. 16
5 How to operate the oven 17
General in ormation on baking, roasting and
grilling .................................................. 17
How to operate the electric oven .................. 17
Operating modes ......................................... 18
Using the oven clock.................................... 19
Using the keylock ........................................ 20
Using the clock as an alarm ......................... 20
Cooking times table ..................................... 21
How to operate the grill ................................ 21
Cooking times table or grilling ..................... 22
6 Maintenance and care 23
General in ormation ..................................... 23
Cleaning the control panel ........................... 23
Cleaning the oven........................................ 23
Removing the oven door .............................. 23
Removing the door inner glass ..................... 24
Replacing the oven lamp .............................. 25
7 Troubleshootin 26

4/EN
1 Important instructions and warnin s for safety and environment
This section contains sa ety
instructions that will help protect rom
risk o personal injury or property
damage. Failure to ollow these
instructions shall void any warranty.
General safety
•This appliance can be used by
children aged rom 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack o experience
and knowledge i they have been
given supervision or instruction
concerning use o the appliance
in a sa e way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
•Installation and repair procedures
must always be per ormed by
Authorized Service Agents. The
manu acturer shall not be held
responsible or damages arising
rom procedures carried out by
unauthorized persons which may
also void the warranty. Be ore
installation, read the instructions
care ully.
•Do not operate the product i it is
de ective or has any visible
damage.
•Control that the product unction
knobs are switched o a ter every
use.
Electrical safety
•I the product has a ailure, it
should not be operated unless it
is repaired by the Authorized
Service Agent. There is the risk o
electric shock!
•Only connect the product to a
grounded outlet/line with the
voltage and protection as
speci ied in the “Technical
speci ications”. Have the
grounding installation made by a
quali ied electrician while using
the product with or without a
trans ormer. Our company shall
not be liable or any problems
arising due to the product not
being earthed in accordance with
the local regulations.
•Never wash the product by
spreading or pouring water onto it!
There is the risk o electric shock!
•ever touch the plug with wet
hands! Never unplug by pulling on
the cable, always pull out by
grabbing the plug.
•The product must be unplugged
during installation, maintenance,
cleaning and repairing procedures.
•I the power connection cable or
the product is damaged, it must
be replaced by the manu acturer,

5/EN
its service agent or similary
quali ied persons in order to avoid
a hazard.
•The appliance must be installed
so that it can be completely
disconnected rom the network.
The separation must be provided
either by a mains plug, or a
switch built into the ixed
electrical installation, according to
construction regulations.
•Rear sur ace o the oven gets hot
when it is in use. Make sure that
the electrical connection does not
contact the rear sur ace;
otherwise, connections can get
damaged.
•Do not trap the mains cable
between the oven door and rame
and do not route it over hot
sur aces. Otherwise, cable
insulation may melt and cause
ire as a result o short circuit.
•Any work on electrical equipment
and systems should only be
carried out by authorized and
quali ied persons.
•In case o any damage, switch o
the product and disconnect it
rom the mains. To do this, turn
o the use at home.
•Make sure that use rating is
compatible with the product.
Product safety
•The appliance and its accessible
parts become hot during use.
Care should be taken to avoid
touching heating elements.
Children less than 8 years o age
shall be kept away unless
continuously supervised.
•Never use the product when your
judgment or coordination is
impaired by the use o alcohol
and/or drugs.
•Be care ul when using alcoholic
drinks in your dishes. Alcohol
evaporates at high temperatures
and may cause ire since it can
ignite when it comes into contact
with hot sur aces.
•Do not place any lammable
materials close to the product as
the sides may become hot during
use.
•During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
•Keep all ventilation slots clear o
obstructions.
•Do not heat closed tins and glass
jars in the oven. The pressure
that would build-up in the tin/jar
may cause it to burst.
•Do not place baking trays, dishes
or aluminium oil directly onto the
bottom o the oven. The heat
accumulation might damage the
bottom o the oven.
•Do not use harsh abrasive
cleaners or sharp metal scrapers

6/EN
to clean the oven door glass since
they can scratch the sur ace,
which may result in shattering o
the glass.
•Do not use steam cleaners to
clean the appliance as this may
cause an electric shock.
•Use the shelves as described in
"How to operate the electric
oven".
•Do not use the product i the ront
door glass removed or cracked.
•Oven handle is not towel dryer.
Do not hang up towel, gloves, or
similar textile products when the
grill unction is at open door.
•Always use heat resistant oven
gloves when putting in or
removing dishes into/ rom the hot
oven.
•Ensure that the appliance is
switched o be ore replacing the
lamp to avoid the possibility o
electric shock.
For the reliability o the ire o the
product;
•Make sure the plug is itting to
socket as well or not cause to
spark.
•Do not use damaged or cutted or
extension cable except the
original cable.
•Make sure that not whether liquid
or moisture on the socket is
pluged to product .
Intended use
•This product is designed or
domestic use. Commercial use
will void the guarantee.
•This appliance is or cooking
purposes only. It must not be
used or other purposes, or
example room heating.
•This product should not be used
or warming the plates under the
grill, drying towels, dish cloths etc.
by hanging them on the oven
door handles. This product should
also not be used or room heating
purposes.
•The manu acturer shall not be
liable or any damage caused by
improper use or handling errors.
•The oven can be used or
de rosting, baking, roasting and
grilling ood.
•Service li e o your product is 10
years. Manu acturer shall provide
the required spare parts or the
product to per orm as de ined
during this period.
Safety for children
•Accessible parts may become hot
during use. Young children should
be kept away.
•The packaging materials will be
dangerous or children. Keep the
packaging materials away rom
children. Please dispose o all
parts o the packaging according
to environmental standards.

7/EN
•Electrical products are dangerous
to children. Keep children away
rom the product when it is
operating and do not allow them
to play with the product.
•Do not place any items above the
appliance that children may reach
or.
•When the door is open, do not
notnot
not
load any heavy object on it and do
not
notnot
not allow children to sit on it. It
may overturn or door hinges may
get damaged.
Compliance with AEEE re ulation
and disposal of waste products
•This product does not contain
harm ul and orbidden materials
described in the "Directive on the
Restriction o the Use o Certain
Hazardous Substances in Waste
Electrical and Electronic
Equipment" (AEEE) issued by the
T.R. Ministry o Environment and
Urbanization.
Complies with the AEEE Directive.
•This product has been
manu actured with high quality
parts and materials which can be
reused and are suitable or
recycling. There ore, do not
dispose the product with normal
domestic waste at the end o its
service li e. Take it to a collection
point or the recycling o electrical
and electronic equipment. Please
consult your local authorities to
learn the nearest collection point.
Help protect the environment and
natural resources by recycling
used products. Be ore disposing
o the product, cut o the power
cable plug and make the door
lock (i any) unusable to avoid
dangerous conditions to children.
Packa e information
•Packaging materials o the
product are manu actured rom
recyclable materials in
accordance with our National
Environment Regulations. Do not
dispose o the packaging
materials together with the
domestic or other wastes. Take
them to the packaging material
collection points designated by
the local authorities.

8/EN
2 General information
Overview
1
Control panel
2
Wire shel
3
Tray
4
Handle
5
Door
6
Fan motor (behind steel plate)
7
Lamp
8
Top heating element
9
Shel positions
1
Function knob
2
Digital timer
3
Thermostat knob
4
Thermostat lamp
Packa e contents
Accessories supplied can vary depending on
the product model. Not every accessory
described in the user manual may exist on
your product.
1. User manual
User manualUser manual
User manual
2. Oven tray
Oven trayOven tray
Oven tray
Used or pastries, rozen oods and big
roasts.
3. Cake tray
Cake trayCake tray
Cake tray
Used or pastries such as cookies and
biscuits.
4. Wire Shel
Wire ShelWire Shel
Wire Shel

9/EN
Used or roasting and or placing the ood to
be baked, roasted or cooked in casserole
dishes to the desired rack.
Technical specifications
Voltage / requency
220
-
240 V ~ 50 Hz
Total power consumption
2.4kW
Fuse
min. 16 A
Cable type / section
H05VV
-
FG
3 x 1,5 mm
2
Cable length
max. 2 m
External dimensions (height / width / depth)
455 mm/594 mm/567 mm
Installation dimensions (height / width / depth)
**450 or 460 mm/560 mm/min. 550 mm
Main oven
Multi unction oven
Multi unction ovenMulti unction oven
Multi unction oven
Energy e iciency class
#
A
Inner lamp
15
–
25
W
Grill power consumption
2.2 kW
#
Basics: In ormation on the energy label o electrical ovens is given in accordance with the EN 50304
standard. Those values are determined under standard load with bottom-top heater or an assisted heating
(i any) unctions.
**
See.
Installation, page
10
.
Technical speci ications may be changed
without prior notice to improve the quality o
the product.
Figures in this manual are schematic and
may not exactly match your product.
Values stated on the product labels or in the
documentation accompanying it are
obtained in laboratory conditions in
accordance with relevant standards.
Depending on operational and
environmental conditions o the product,
these values may vary.

10/EN
3 Installation
Re er to the nearest Authorised Service Agent or
installation o the product. Make sure that the
electric and gas installations are in place be ore
calling the Authorised Service Agent to have the
product ready or operation. I not, call a quali ied
electrician and itter to have the required
arrangements made. The manu acturer shall not
be held responsible or damages arising rom
procedures carried out by unauthorized persons
which may also void the warranty.
Preparation o location and electrical
installation or the product is under
customer’s responsibility.
DANGER:
The product must be installed in
accordance with all local electrical
regulations.
DANGER:
Prior to installation, visually check i the
product has any de ects on it. I so, do
not have it installed.
Damaged products cause risks or your
sa ety.

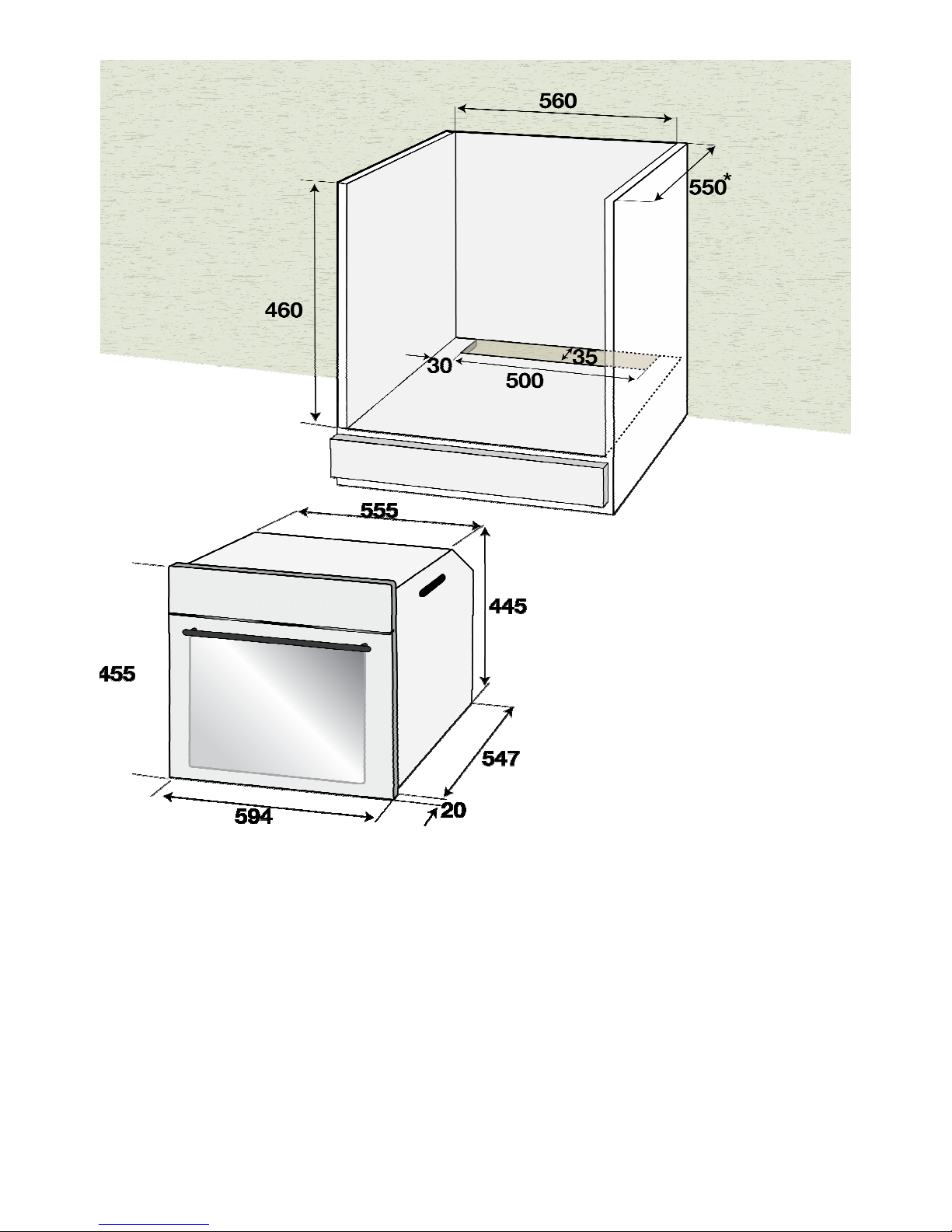

Before installation
The appliance is intended or installation in
commercially available kitchen cabinets. A sa ety
distance must be le t between the appliance and
the kitchen walls and urniture. See igure (values
in mm).
•Sur aces, synthetic laminates and adhesives
used must be heat resistant (100 °C
minimum).
•Kitchen cabinets must be set level and ixed.
•I there is a drawer beneath the oven, a
shel must be installed between oven and
drawer.
•Carry the appliance with at least two
persons.
Do not install the appliance next to
re rigerators or reezers. The heat emitted
by the appliance will lead to an increased
energy consumption o cooling appliances.
The door and/or handle must not be used
or li ting or moving the appliance.
I the appliance has wire handles, push the
handles back into the side walls a ter
moving the appliance.
