Archgard 31-LS-GT User manual

ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-3346-01
August 7, 2020
English and French Installation Manuals available through
your local dealer or visit our website at:
www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre
site web: www.archgard.com
INSTALLER:
LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER:
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION MANUAL
After removing the parts from packaging, inspect them to ensure
that no damage has occurred. Please report any damage
immediately to your authorized Archgard dealer.
Only kits supplied by the manufacturer may be used.
MODELS:
31-LS-GT Grand Timber
31-LS-WW Weathered Wood
Log Sets
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any phone in
your building
• Immediately call your gas supplier from a neighbors phone.
• Follow the gas suppliers instructions
• If you can not reach your gas supplier, call the re
department
Installation and service must be performed by a ualied
installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property
damage, personal injury or loss of life.
For installation in 345-DVTE31LN-1
(see the Installation, Operation, and
Maintenance Manual included with the replace)
IMPORTANT
Please review and understand the information in this manual in
full PRIOR to beginning your installation.

2
Installation
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.
The Archgard pan burner bed and ber logs are designed to give a realistic re package, and created to look the same as the day they
were originally installed even after many years of use. Care must be given when rst installing the logs, and if removed for servicing, as
they can be damaged or broken if not handled properly.
After opening the log set package, inspect the logs to ensure that no damage has occurred inside the package. Please report any
damage immediately to your Authorized Archgard Dealer.
Gas and vent connection must be made before installing the embers and logs on the pan burner.
CAUTION: DO NOT block pilot opening with embers or glass media material.
NOTE: Improper placement of logs and embers may cause soot accumulation on the internal parts and glass. This is not covered under
warranty. Do not use broken or damaged logs.

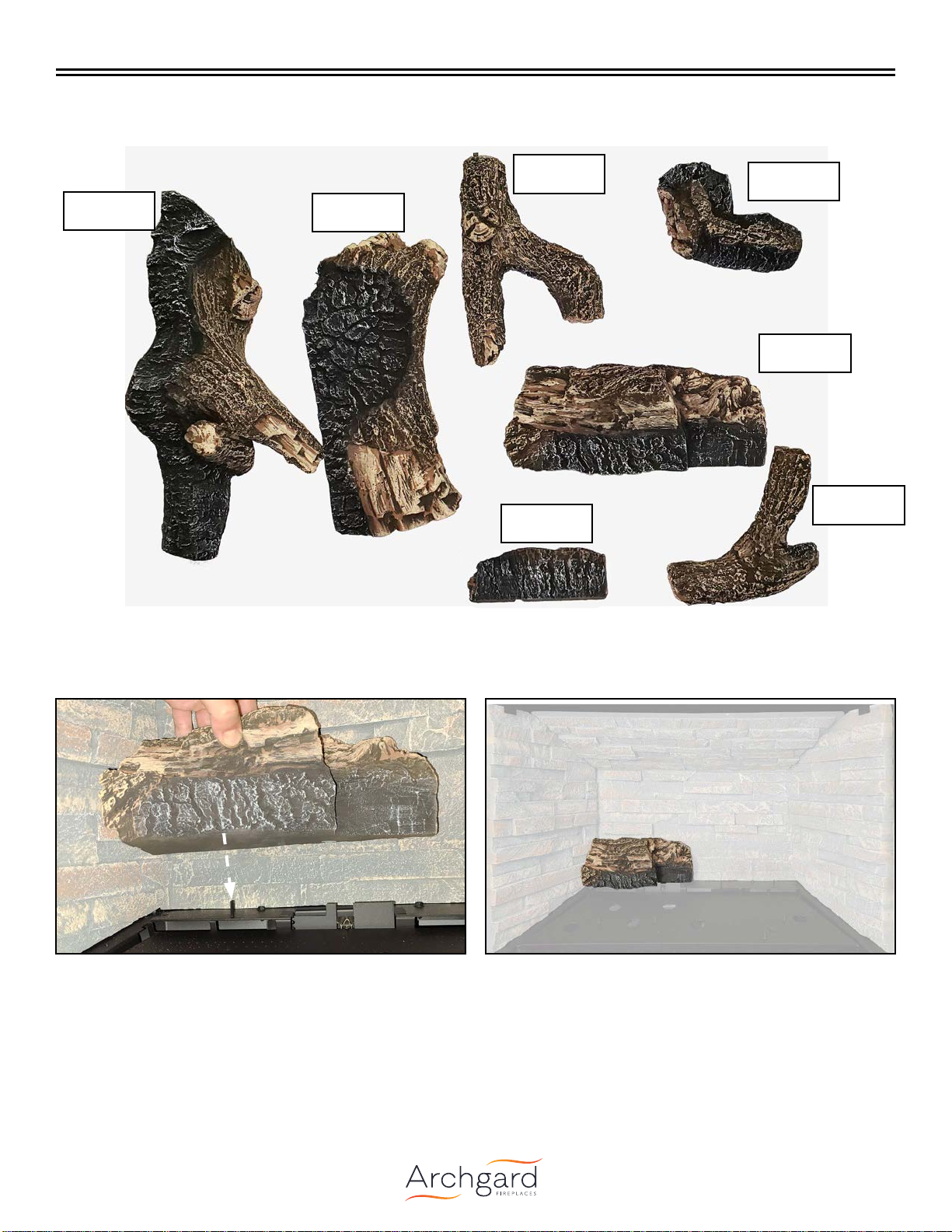

Overview
Many of the logs use the locator pins located on the burner to position the logs. There are holes in the bottom of the log to help align
them to the unique position on the burner.
IMPORTANT: Embers should be placed so as not to completely block burner ports.
Locator Pins
NOTE: Installing the ber logs in any other position other than shown will result in ame impingement causing sooting of the logs, brick
liner and ceramic glass viewing area.
Figure 01:

3
Installation
Grand Timber Log Set (345-DVTE31LN-1)

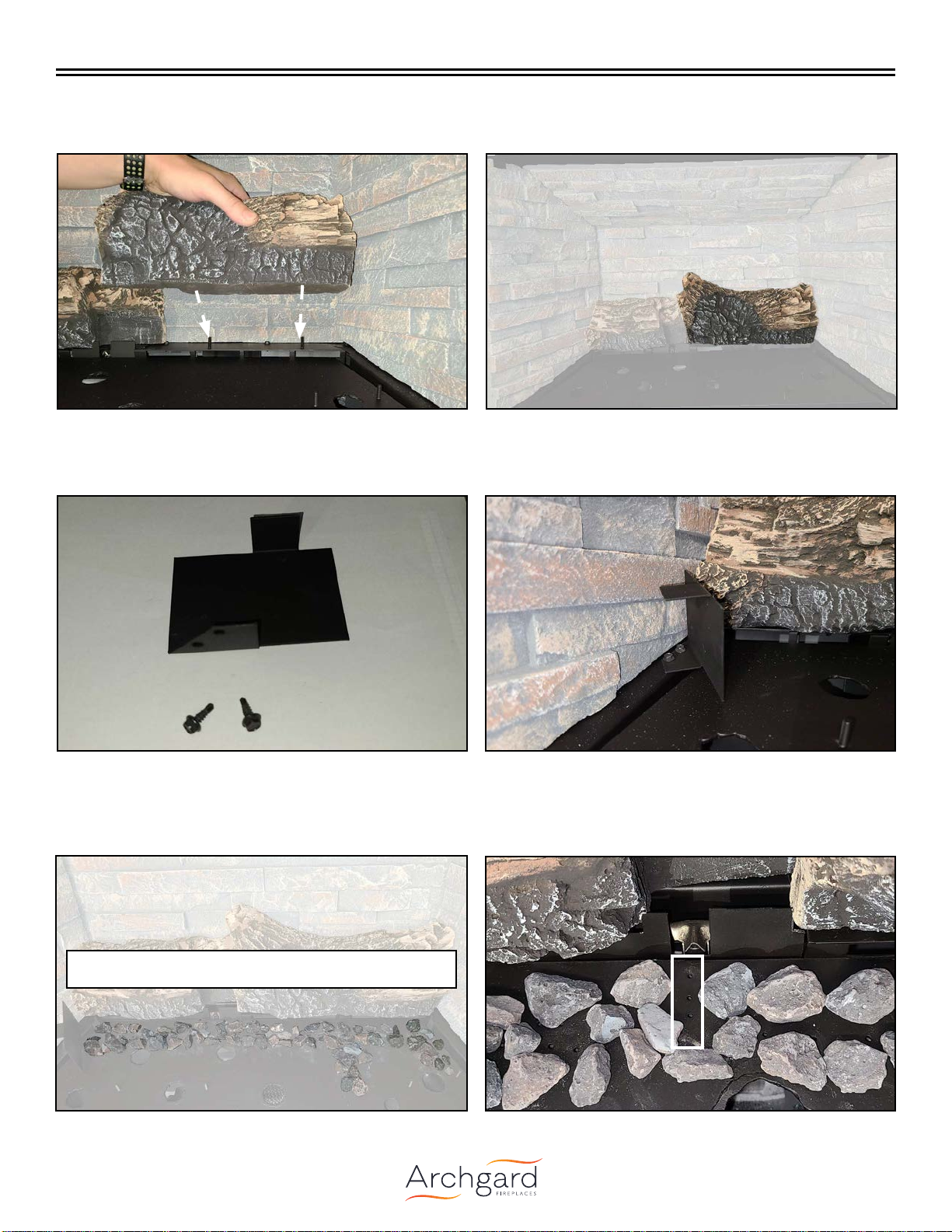

Step 1: Place Log 01 on the pin the left, rear corner of the rebox.
Log 02
Figure 02:
Figure 03: Figure 04:
Log 04
Log 05
Log 06
Log 07
Log 01
Log 03

4
Installation
Figure 05: Figure 06:
Step 4: Spread some embers along the back side of the burner.
Do not place embers with a at edge down as it may block burner
ports.
Figure 07:
Figure 10:
Figure 08:
Keep the embers away from the pilot opening. Do NOT block the
ports immediately in front of the pilot.
Figure 09:
Step 2: Place Log 02 on other two pins in the back of the rebox.
Step 3: Install the log bracket in the holes on the left side of the burner using the two (2) black tek screws included in the manual bag.
DO NOT block the gap at the back of the burner as this
supplies secondary air to the replace.

5
Installation

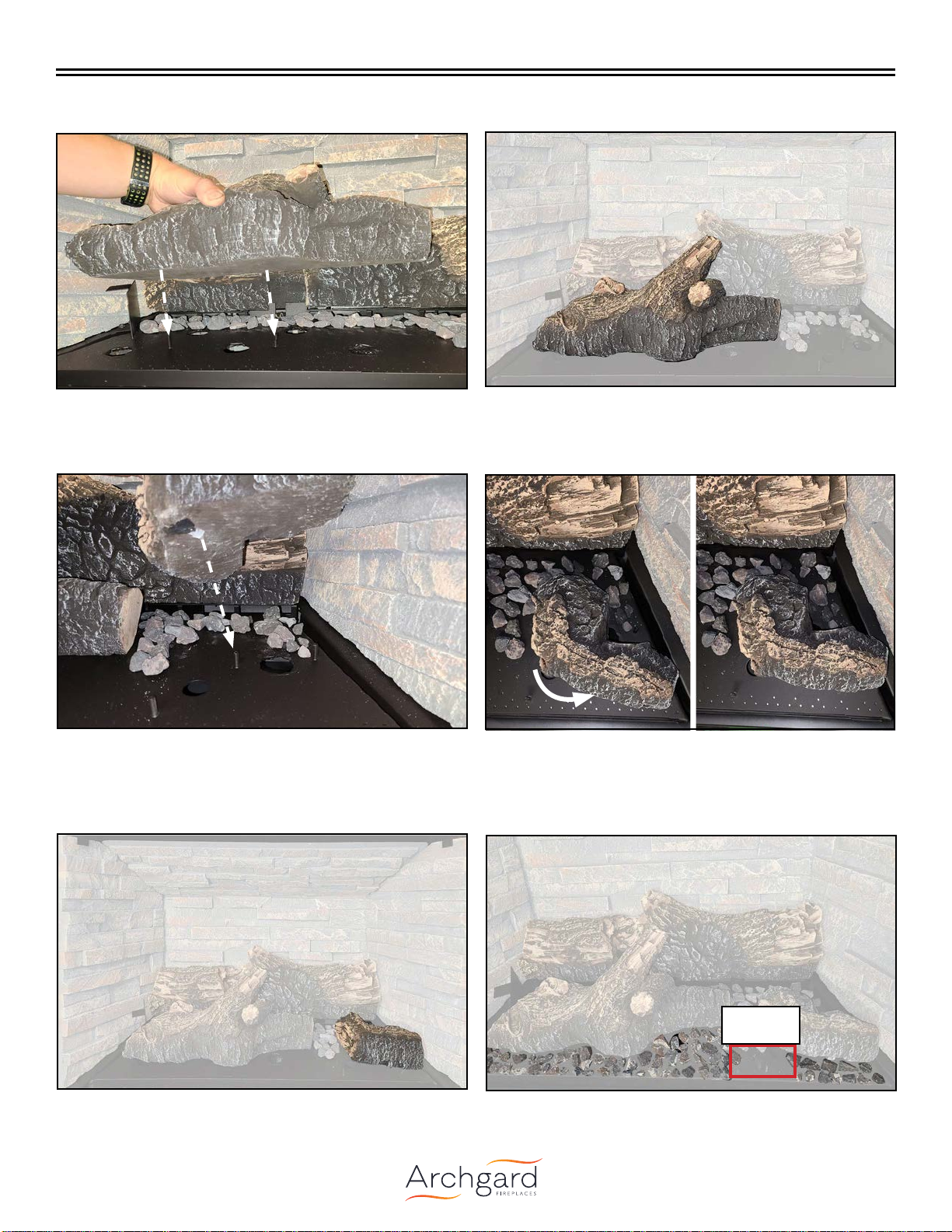

Step 5: Place Log 04 toward the left side of the rebox, using the two pins for alignment.
Step 6: Place Log 05 on the pin to the right of Log 03. After it's placed, rotate the log until it contacts the pin on the right side of the
burner.
Step 7: Spread some embers along the front of the burner. Leave
some space where Log 07 will rest. Do not place embers with a
at edge down as it may block burner ports.
Figure 12:
Figure 13:
Figure 11:
Figure 14:
Figure 15: Figure 16:
Log 05 in place.
Leave clear
for now.

6
Installation
Figure 18: Figure 19:

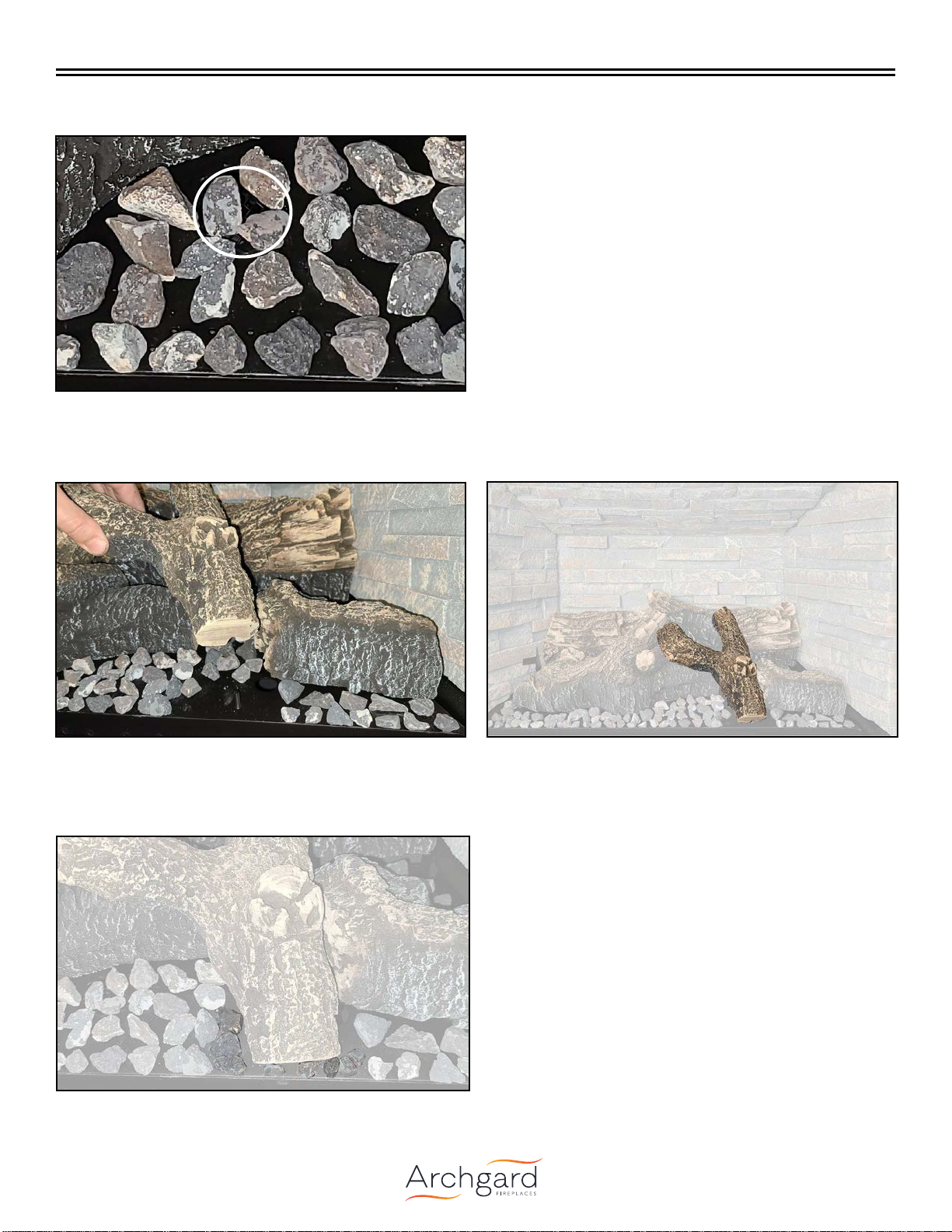

Step 8: Place the end of Log 07 on the pin at the front of the burner. The top of Log 05 will rest on Log 02 and Log 04.
Step 9: Add embers around the bottom of Log 07.
Figure 20:
Figure 17:
The port with screen mesh may be covered with embers -
ensure the entire port is not blocked.

7
Installation
Step 10: Log 06 rests on Log 01 and Log 03.
Figure 21:
Log 06 in place.
Figure 22:
Step 11: Log 03 rests on Log 02 and Log 04.
Figure 23:
Platinum Ember Placement
Step 1: Remove embers from the bag. Be sure to follow handling
instructions on the bag. Separate embers by pulling apart.
Embers may be attened or separated into smaller pieces to
achieve any desired look.
Step 2: Place the embers randomly throughout the re bed,
taking care to avoid burner openings.
Figure 24:
Log 03 in place.
Figure 25: Figure 26:
Platinum embers provide a brighter glow than the black embers. When using a mixture of both the rebox will be lled with a natural
glow. Note: DO NOT block burner openings with platinum embers or any other material.

8
Installation
Part # Item Description Qty Part # Item Description Qty
31-LS-GT Log Set 1 Set 31-LS-GT-5 Log 5 1
31-LS-GT-1 Log 1 1 31-LS-GT-7 Log 7 1
31-LS-GT-2 Log 2 1 31-LS-GT-6 Log 6 1
31-LS-GT-3 Log 3 1 310-0020 Black Embers (2 cup bag) 1
31-LS-GT-4 Log 4 1 310-0019 Platinum Embers (1 bag) 1
WARNING Never use unapproved burner media such as rock wool or similar material. The use of unapproved burner
media may cause damage or injury and will void product warranty.
Figure 27:
Log 01 Log 02
Log 03
Log 04 Log 05
Log 06
Log 07
Grand Timber Logset Overview

9
Installation
Weathered Wood Log Set (345-DVTE31LN-1)
Log 01 Log 02
Log 03
Log 04
Log 05
Log 06
Log 07
Step 1: Place Log 01 on the pin the left, rear corner of the rebox.
Figure 29: Figure 30:
Figure 28:

10
Installation
Figure 31: Figure 32:
Step 4: Spread some embers along the back side of the burner.
Do not place embers with a at edge down as it may block burner
ports.
Figure 33: Figure 34:
Keep the embers away from the pilot opening.
Figure 35:
Step 2: Place Log 02 on other two pins in the back of the rebox.
Step 3: Install the log bracket in the holes on the left side of the burner using the two (2) black tek screws included in the manual bag.
Figure 36:

11
Installation

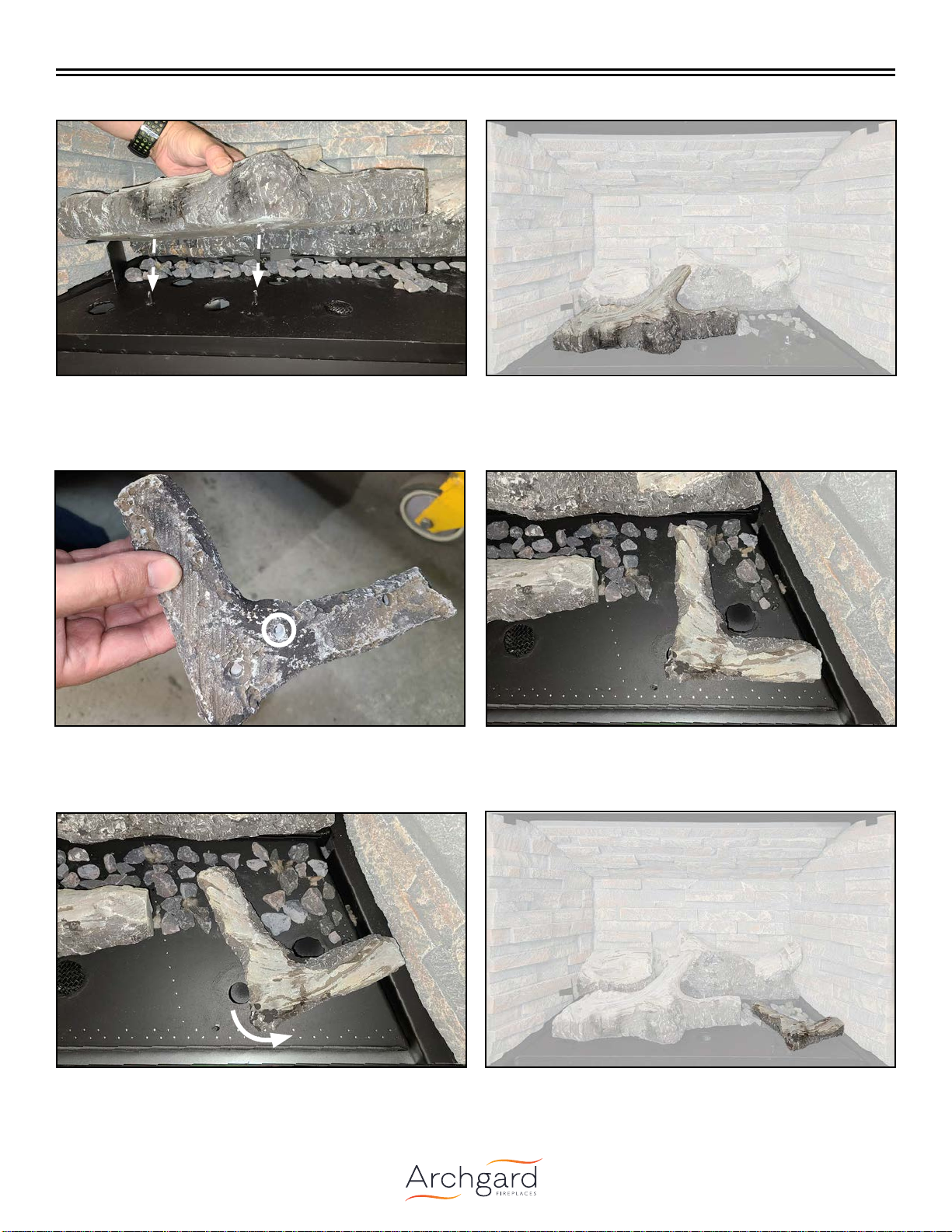

Step 5: Place Log 04 on the two pins on the left side of the burner.
Figure 37: Figure 38:
Step 7: Log 05 will have multiple holes on the bottom. Use the
hole highlighted in Figure 39.
Figure 39:
Step 8: Place Log 05 on the right side of the burner.
Figure 40:
Step 9: Twist Log 05 until the right side contacts the pin in the
right side of the burner.
Figure 41:
Log 05 in place.
Figure 42:

12
Installation
Step 10: Place some embers along the front of the burner. Do not
place embers with a at edge down as it may block burner ports.
Figure 43:
The port with screen mesh may be covered with embers -
ensure the entire port is not blocked.
Figure 44:
Step 11: Place the end of Log 07 on the pin at the front of the burner. The top of Log 05 will rest on Log 02 and Log 04.
Figure 45: Figure 46:
Figure 47:
Step 12: Add embers around the bottom of Log 07.

13
Installation
Figure 48:
Step 13: Log 06 rests on Log 01 and Log 04.
Figure 49:
Log 06 in place.
Figure 50:
Step 14: Log 03 rests on Log 02 and the right side of the burner.
Figure 51:
Log 03 in place.
Platinum Ember Placement
Step 1: Remove embers from the bag. Be sure to follow handling
instructions on the bag. Separate embers by pulling apart.
Embers may be attened or separated into smaller pieces to
achieve any desired look.
Step 2: Place the embers randomly throughout the re bed,
taking care to avoid burner openings.
Figure 52: Figure 53:
Platinum embers provide a brighter glow than the black embers. When using a mixture of both the rebox will be lled with a natural
glow. Note: DO NOT block burner openings with platinum embers or any other material.

14
Installation
Part # Item Description Qty Part # Item Description Qty
31-LS-WW Log Set 1 Set 31-LS-WW-5 Log 5 1
31-LS-WW-1 Log 1 1 31-LS-WW-6 Log 6 1
31-LS-WW-2 Log 2 131-LS-WW-7 Log 7 1
31-LS-WW-3 Log 3 1 310-0020 Black Embers (2 cup bag) 1
31-LS-WW-4 Log 4 1 310-0019 Platinum Embers (1 bag) 1
WARNING Never use unapproved burner media such as rock wool or similar material. The use of unapproved burner
media may cause damage or injury and will void product warranty.
Figure 54:
Log 01 Log 02
Log 04 Log 05
Log 07
Log 06
Log 03
Weathered Wood Logset Overview
