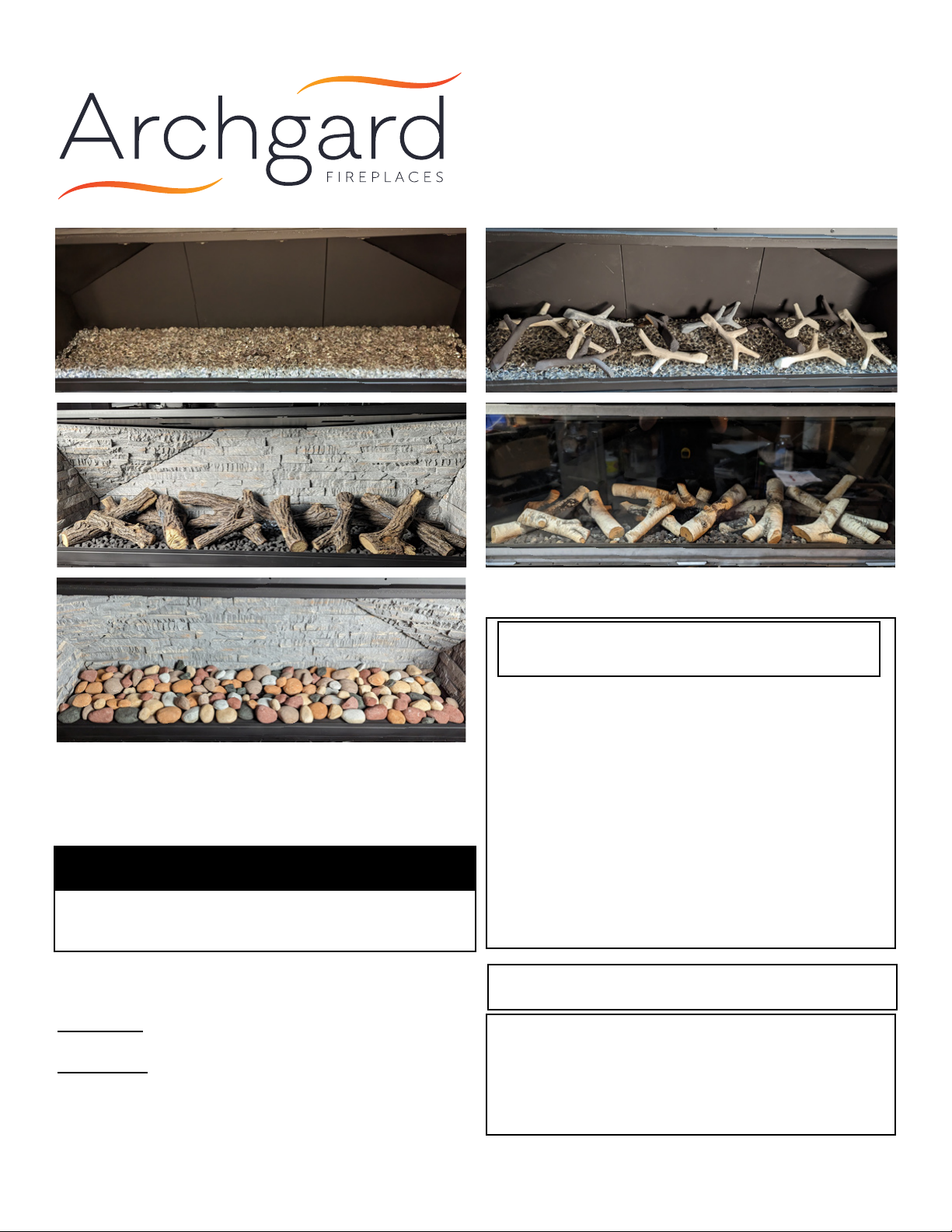

Archgard Burner Media User manual

ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-0282-01
June 2, 2023
English and French Installation Manuals available through
your local dealer or visit our website at:
www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre
site web: www.archgard.com
INSTALLER:
LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER:
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION MANUAL
After removing the parts from packaging, inspect them to ensure
that no damage has occurred. Please report any damage
immediately to your authorized Archgard dealer.
Only kits supplied by the manufacturer may be used.
Burner Media
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance
• Do not touch any electrical switch; do not use any phone in
your building
• Immediately call your gas supplier from a neighbors phone.
• Follow the gas suppliers instructions
• If you can not reach your gas supplier, call the re
department
Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property
damage, personal injury or loss of life.
For installation in 50-DVTE36CN-1
(see the Installation, Operation, and
Maintenance Manual included with the replace)
IMPORTANT
Please review and understand the information in this manual in
full PRIOR to beginning your installation.

2

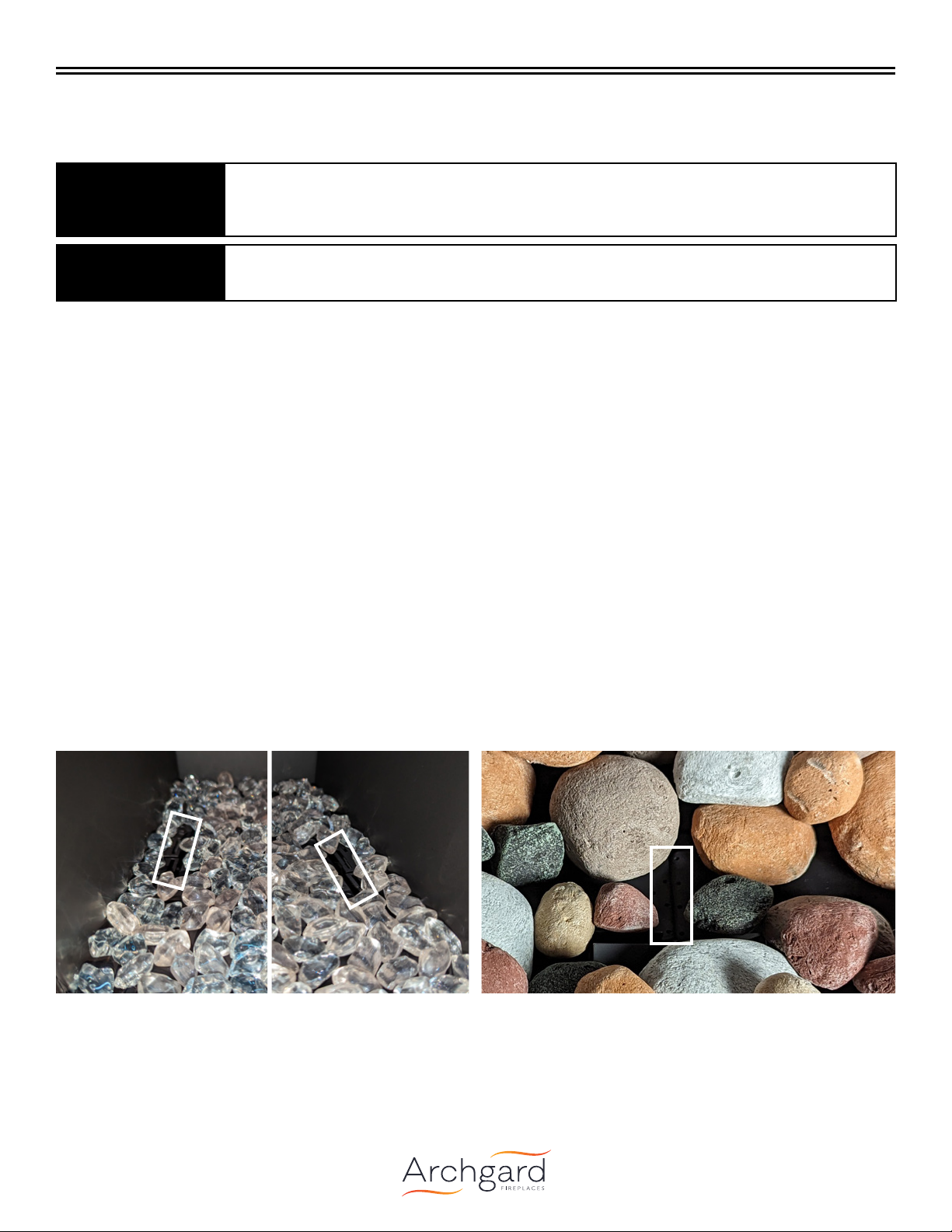

General Information
WARNING
Failure to position the burner media in accordance with the this manual, or failure to use only parts
specically approved with this appliance, may result in property damage or personal injury. Never use
unapproved burner media such as rock wool or similar material. The use of unapproved burner media may
cause damage or injury and will void product warranty.
1.0 Important Information
Gas and vent connection must be made before installing burner media.
Before you begin:
• Ensure the replace is OFF and cool before servicing the replace
• Ensure the gas supply is turned OFF and disconnect the power supply (including backup batteries)
• Remove barrier screen or decorative front*
• Remove the valve blind (recommended)*
• Remove glass door*
* See the Installation, Operation, and Maintenance Manual included with the replace.
CAUTION: DO NOT block pilot opening with burner media.
NOTE: Improper placement of burner media may cause soot accumulation on the internal parts and glass. This is not covered under
warranty. Do not use damaged media.
The Kojin 50 o󰀨ers dozens of potential media installation combination options. Burner media may be mixed, and silhouette logs may be
placed in almost any conguration or used with any media type.
There are only few common restrictions:
1. The secondary air channels on the left and right side of the burner may not be blocked.
2. The pilot opening must not be blocked
3. If placing Silhouette logs, they should not be placed directly on the burner ports - use the logs to bridge the burner instead.
4. The Grand Timber and Silver Birch log sets must be installed as shown.
5. Only use approved burner media.
Figure 1.0.01: Secondary Air Openings
IMPORTANT
When burner media around the pilot shield take care to not block the pilot opening. Failure to keep
the opening clear of media will cause a delayed ignition. Media should also be placed so they do not
completely block burner ports. DO NOT block secondary air gaps at the sides of the burner.
Figure 1.0.02: Do not block pilot
The following information applied for all media installation options.

3
Installation
Gas and vent connection must be made before installing burner media.
CAUTION: DO NOT block pilot opening with burner media.
NOTE: Improper placement of burner media may cause soot accumulation on the internal parts and glass. This is not covered under
warranty. Do not use damaged media.

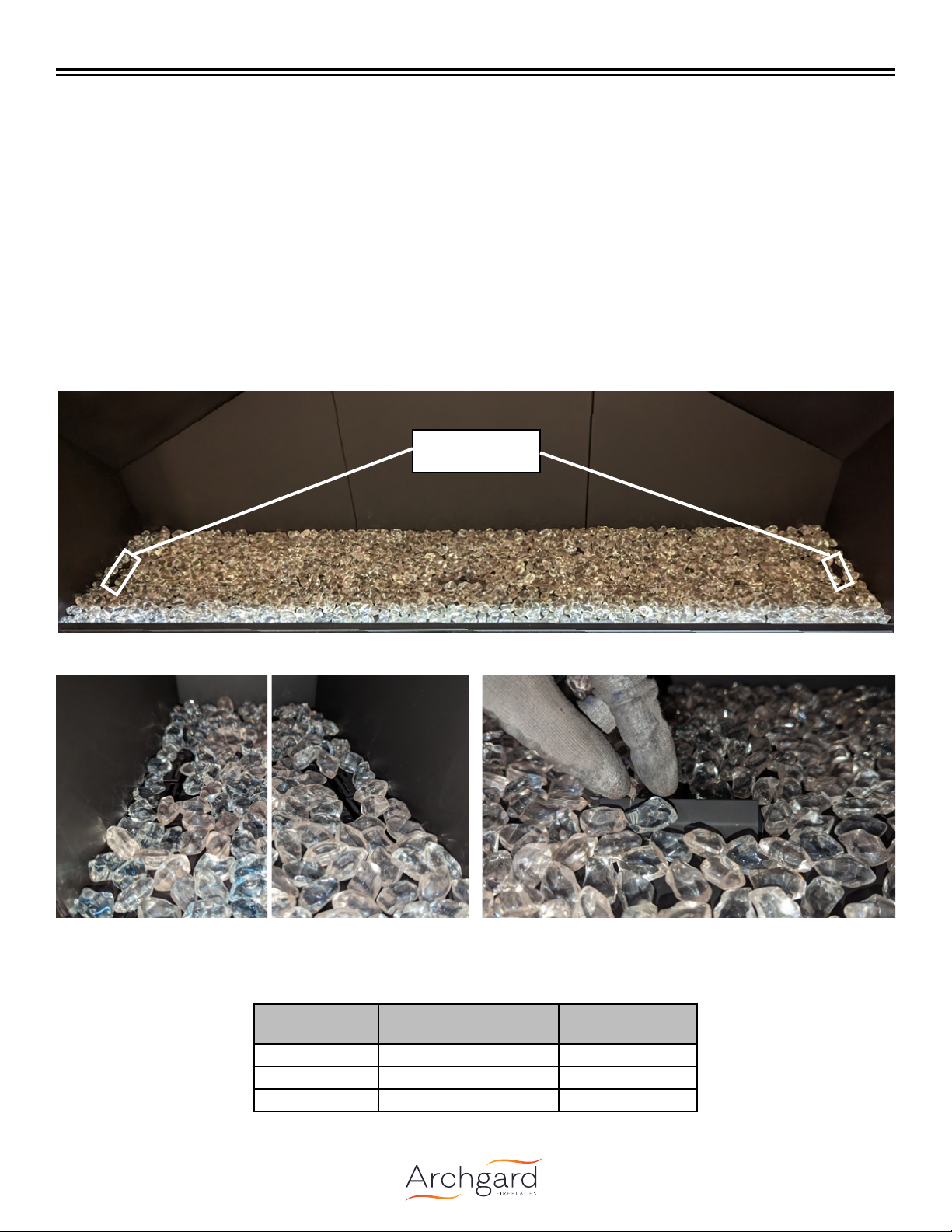

The following images show installation of Clear White Fire Beads. The installation steps are the same no matter which re bead option
is being installed.
Place the burner media over the the entire burner in a single, staggered layer. Do not block the air openings in the ends of the burner
as shown in Figure 2.1.01 and Figure 2.1.02. To cover the pilot shield, place an extra layer along the front of the pilot shield as shown
in Figure 2.1.03.
2.0 Burner Media
Figure 2.1.01:
Do Not Block
Figure 2.1.02: Secondary Air Openings Figure 2.1.03: Covering the Pilot Shield
Fire Beads come in 35 oz bags.
Kit Part Number Description Quantity of bags
per Fireplace
999-FB-CW35 Clear White Fire Beads 5 bags
999-FB-JB35 Jet Black Fire Beads 4 bags
999-FB-A35 Amber Fire Beads 4 bags
2.1 Fire Beads

4
Installation
Gas and vent connection must be made before installing burner media.
CAUTION: DO NOT block pilot opening with burner media.
NOTE: Improper placement of burner media may cause soot accumulation on the internal parts and glass. This is not covered under
warranty. Do not use damaged media.

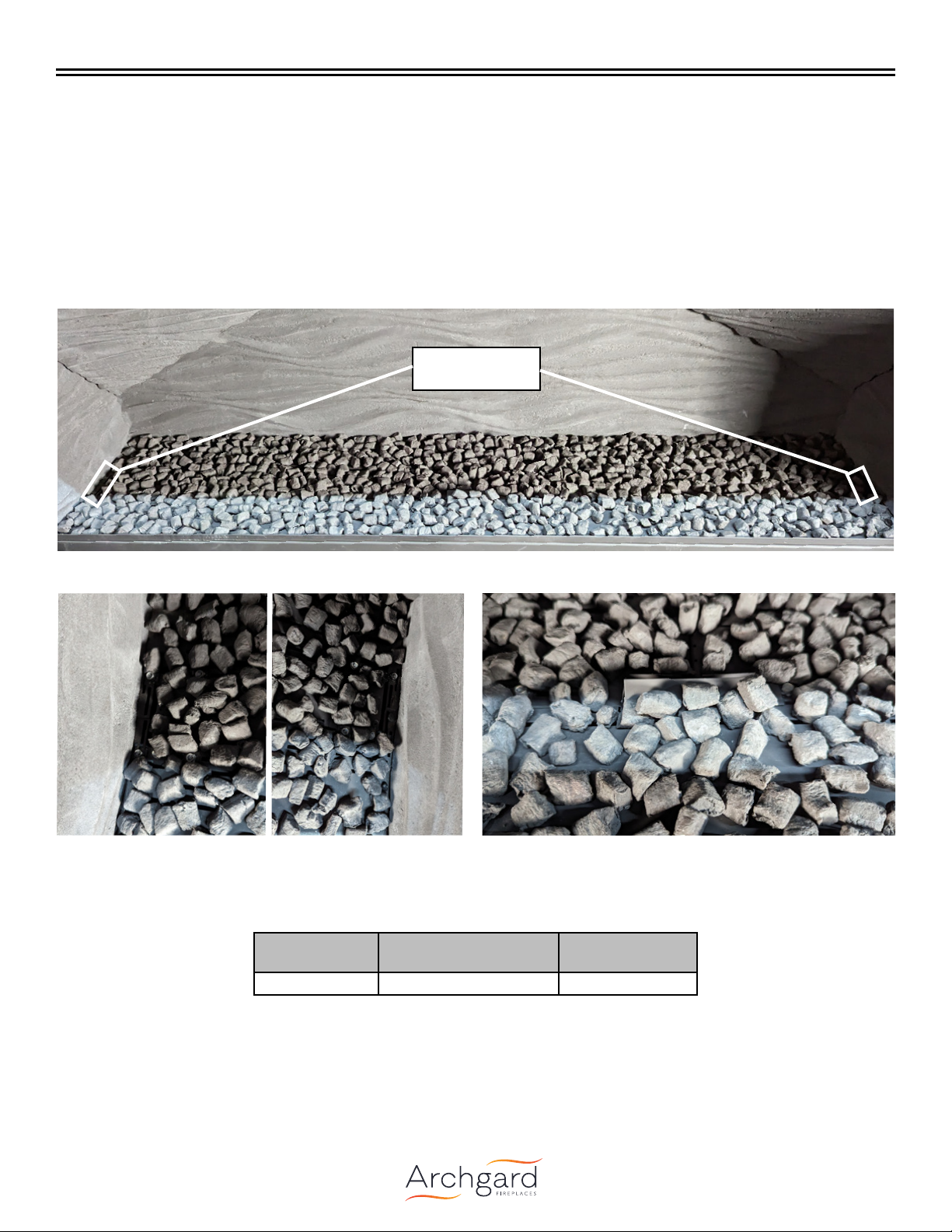

Place the burner media over the the entire burner in a single, staggered layer. Do not block the air openings in the ends of the burner
as shown in Figure 2.2.01 and Figure 2.2.02. To cover the pilot shield, place an extra layer along the front of the pilot shield as shown
in Figure 2.2.03.
Figure 2.2.01:
Do Not Block
Figure 2.2.02: Secondary Air Openings Figure 2.2.03: Covering the Pilot Shield
Black Embers come in 2 cup bags.
Kit Part Number Description Quantity of bags
per Fireplace
310-0020 Black Embers (2 cup bag) 9 bags
2.2 Black Embers

5
Installation

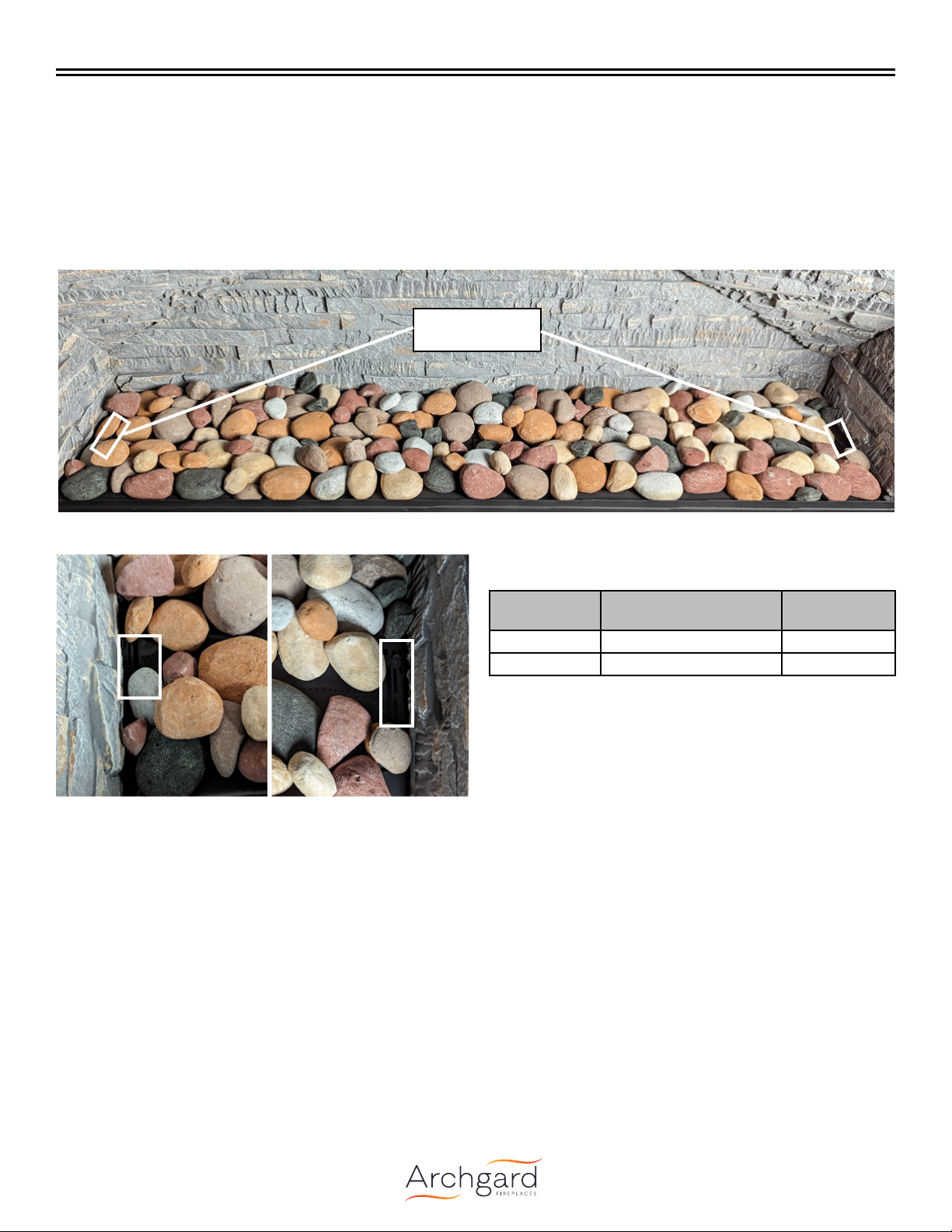

2.3 River Rocks
The following images show installation of Mississippi River Rocks. The installation steps are the same for the Santa Cruz River Rocks.
Starting with the larger rocks, place the rocks over the the entire burner in a single, staggered layer. Go back to ll in spaces with the
medium sized stones. Repeat for the smallest size. Do not block the air openings in the ends of the burner as shown in Figure 2.3.01
and Figure 2.3.02.
Note: Rocks may need to be adjusted to avoid excessive sooting. Do not block burner ports with at sides of rocks.
Figure 2.3.01:
Do Not Block
Figure 2.3.02: Secondary Air Openings
River Rock Set Part Numbers:
Kit Part
Number Description Quantity of kits per Fireplace
31-RR Mississippi River Rocks 2
31-RRG Santa Cruz River Rocks 2
Note: A mixture of river rock kits may be used to create a greater
variety in stone colors. Install one of each kit in the color pattern
of your choosing.

6
Installation

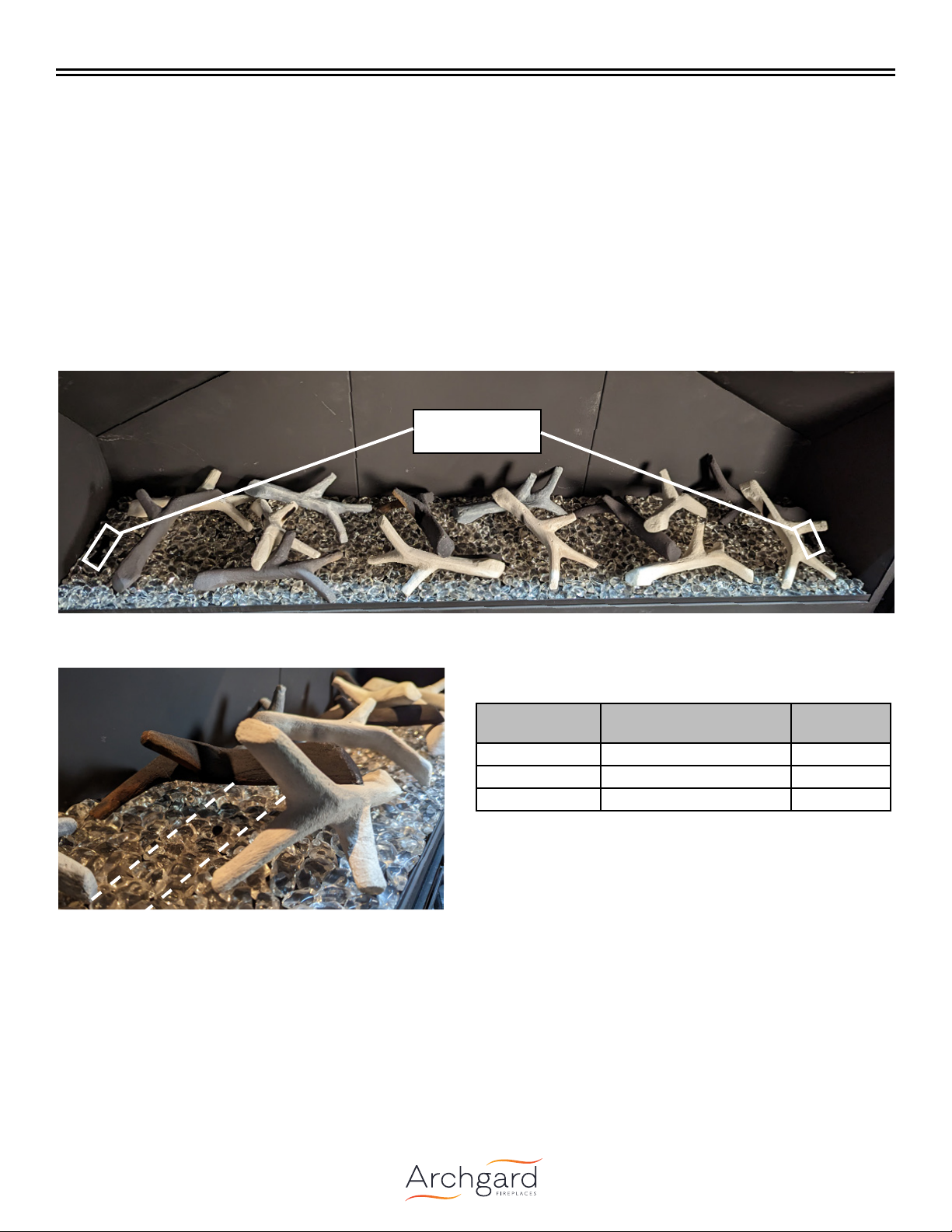

3.0 Silhouette Log Set
Figure 3.0.01:
Do Not Block
Silhouette Log Sets may be used to customize the look of your burner media The logs are available in white, black, and grey. Each set
includes two (2) logs. A maximum of 14 logs may be installed in any color combination. There is no minimum.
Care must be given when handling the logs as they can be damaged or broken if not handled properly. After opening the log set
package, inspect the logs to ensure that no damage has occurred inside the package. Please report any damage immediately to your
authorized Archgard dealer. Do not use broken or damaged logs.
Glass media, black embers, or river rocks should be installed prior to placing Silhouette Logs.
Randomly place the logs as desired. The logs may cross the ame, however, they should be placed in a way that they bridge the
burner. Do not place logs directly over the burner (see Figure 3.0.02).
Note: Logs may need to be adjusted to avoid excessive sooting.
Silhouette Log Set Part Numbers:
Kit Part Number Description Quantity of
logs per kit
2-LS-SW White Silhouette Log Set 2
2-LS-SG Grey Silhouette Log Set 2
2-LS-SB Black Silhouette Log Set 2
Figure 3.0.02: Use logs to bridge the burner.

7
Installation
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.

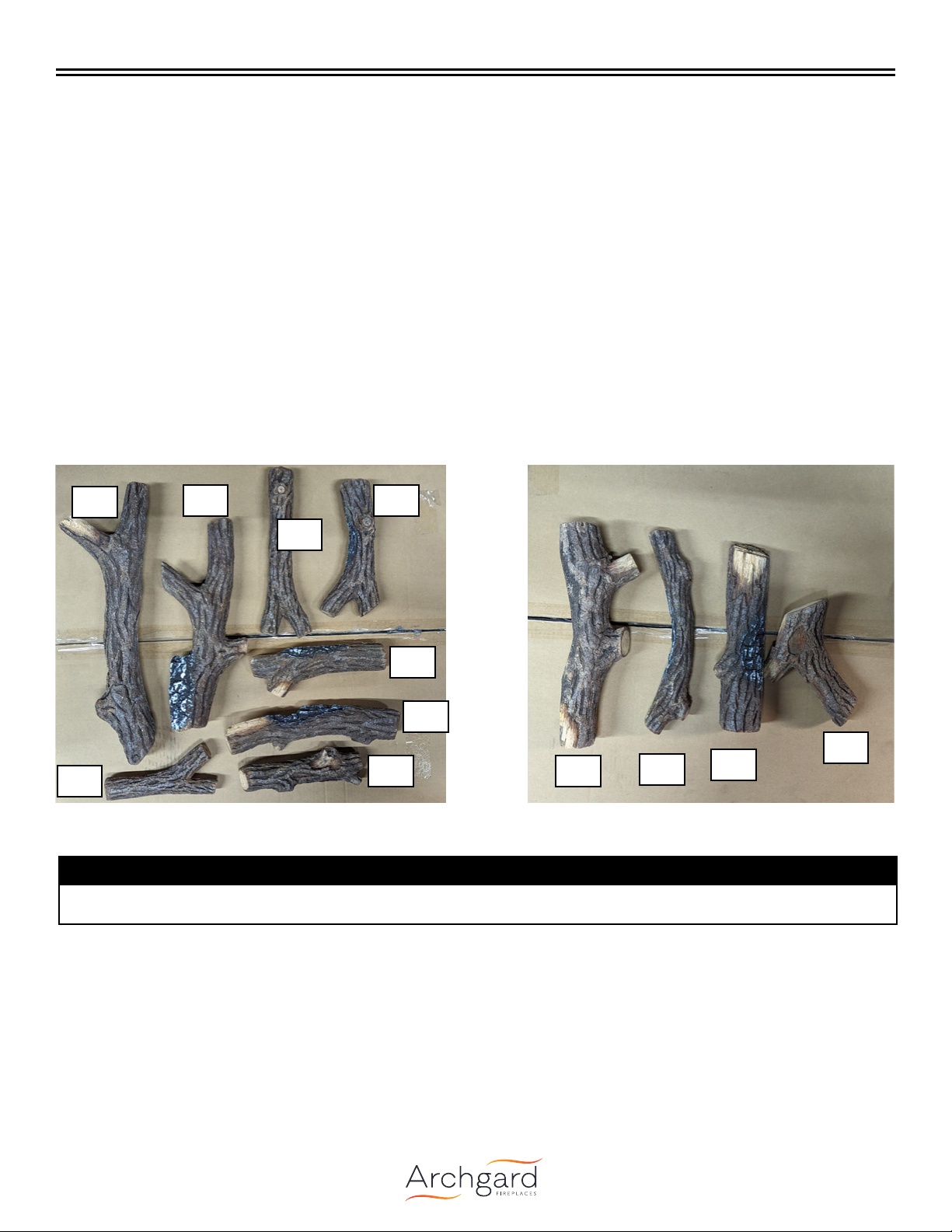

The following instructions show the installation of the Grand Timber Log Set with Black Embers. The process is the same if installing the
Grand Timber Log Set with Glass Beads or the Silver Birch Log Set. The premium log sets may be installed with River Rocks, however,
we recommend only using the small and medium sized rocks.
Premium log sets must be placed in the orientation shown. They cannot be placed randomly.
Care must be given when rst installing the logs, and if removed for servicing, as they can be damaged or broken if not handled
properly.
After opening the log set package, inspect the logs to ensure that no damage has occurred inside the package. Please report any
damage immediately to your Authorized Archgard Dealer.
NOTE: Improper placement of logs and embers may cause soot accumulation on the internal parts and glass. This is not covered under
warranty. Do not use broken or damaged logs.
IMPORTANT: Embers should be placed so as not to completely block burner ports.
1A 2A
3A
4A
5A
6A
7A
8A 1B 2B 3B
4B
Figure 4.1.02: 999-LS-GTBFigure 4.1.01: 999-LS-GTA
4.0 Premium Log Sets
4.1 Grand Timber Log Set

8

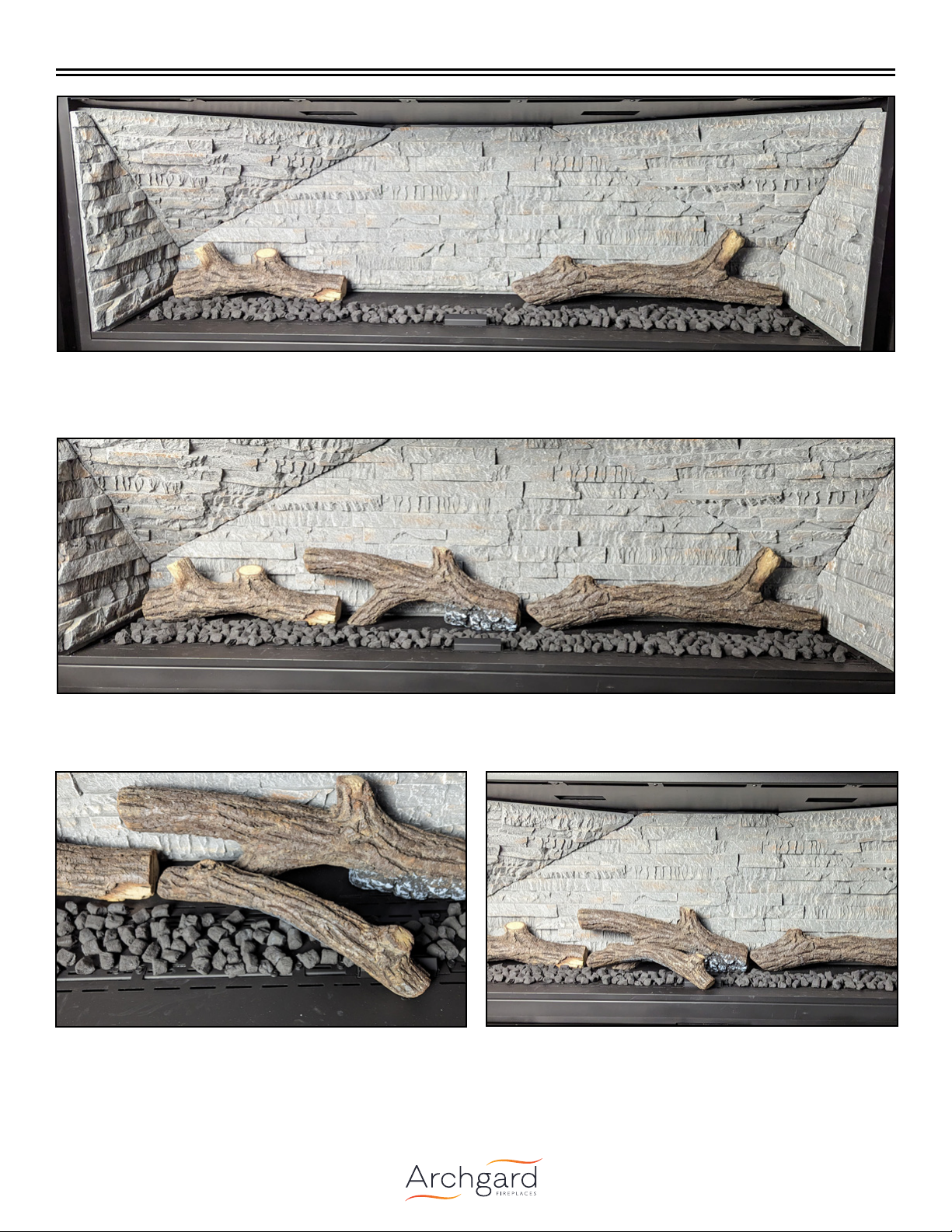

Installation

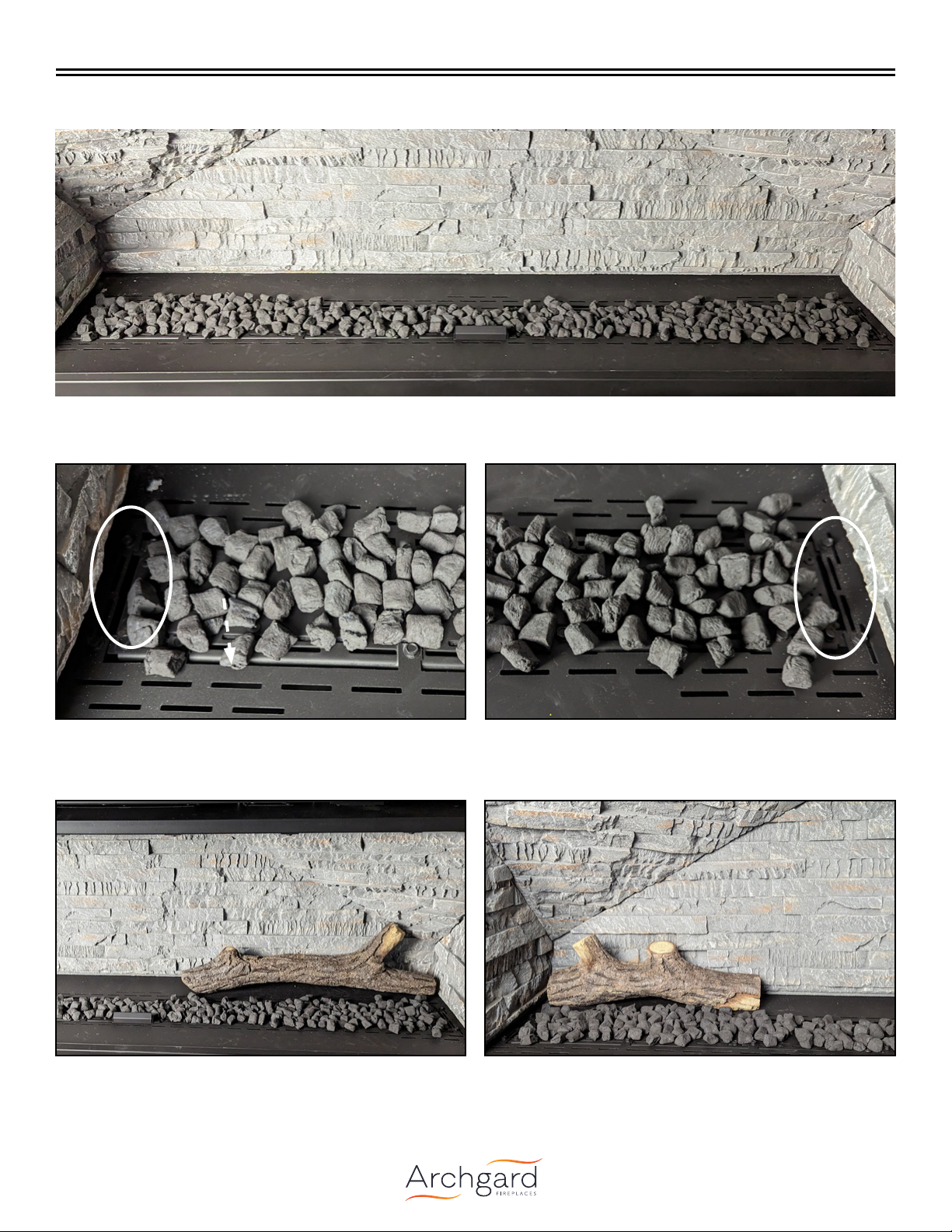

Step 1: Place media along the burners. Do not place media on the burner surround yet.
Figure 4.1.03:
Figure 4.1.04: Figure 4.1.05:
Note: Do not block the secondary air openings at each end of the burner.
Figure 4.1.06: Figure 4.1.07:
Step 2: Place Log 1A in the right, rear corner of the rebox as
shown.
Step 3: Place Log 1B in the left, rear corner of the rebox.

9
Installation
Figure 4.1.08: Logs 1A and 1B in place.
Step 5: Log 2B spans the burner with the back end between Log 1B and Log 2A.
Figure 4.1.09:
Figure 4.1.10:
Step 4: Place Log 2A in the middle.
Figure 4.1.11:

10
Installation
Step 6: Place Log 3A as shown with the single end on top of Log 1A and the split end in front of the burner.
Step 7: Log 3B rests on Log 1B with the front edge toward the front of the burner.
Figure 4.1.13:
Figure 4.1.14:
Figure 4.1.12:
Figure 4.1.15:
Figure 4.1.16: Figure 4.1.17:
Step 8: Place Log 4A on Log 1A with the branched end toward the front of the burner.

11
Installation

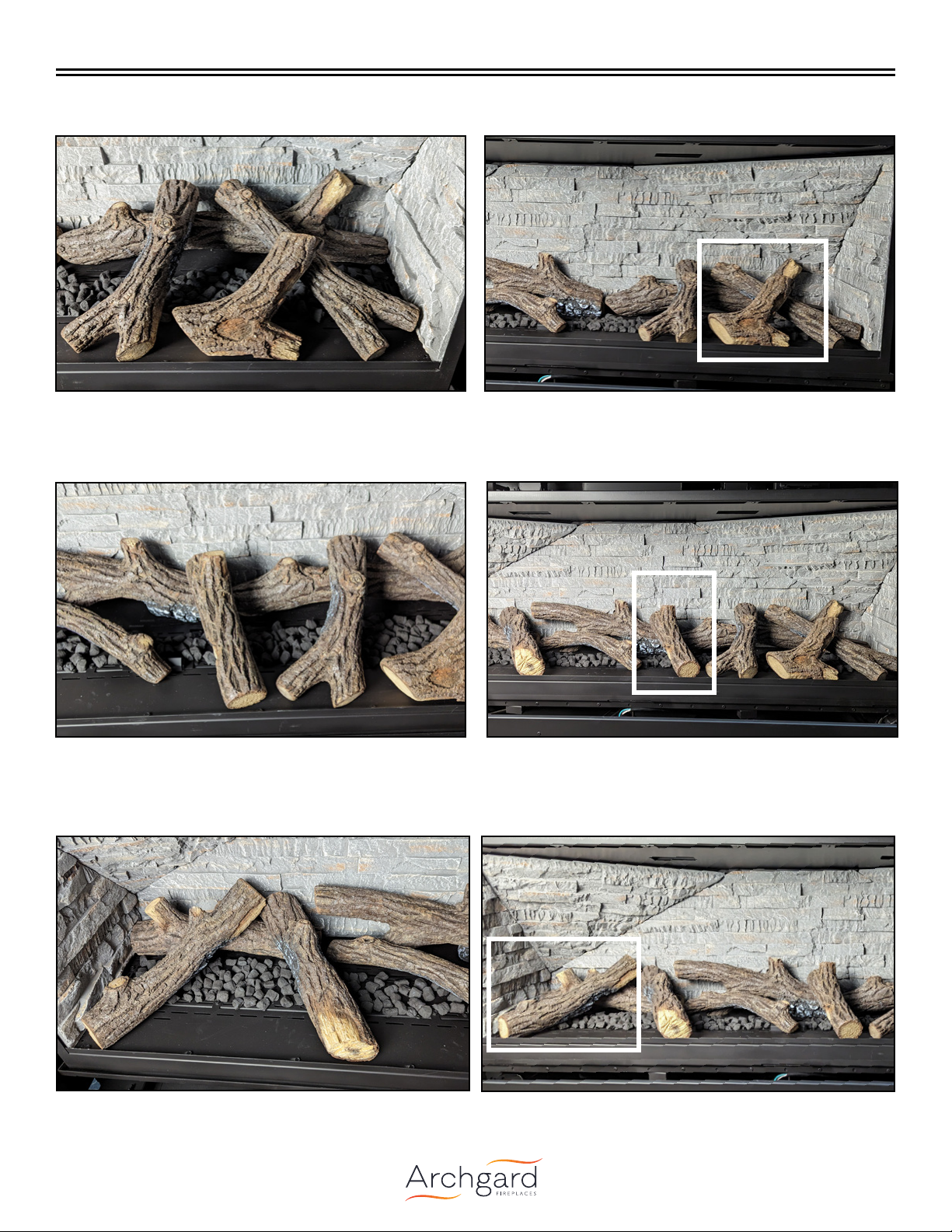

Figure 4.1.20: Figure 4.1.21:
Step 10: Place the back of Log 5A where Log 1A and Log 2A meet. The front of the log aligns toward the front of the burner.
Step 11:Place Log 6A with the back on top of Log 1B and the front aligned at the front of the burner.
Figure 4.1.22:
Figure 4.1.18:
Step 9: Place Log 4B toward the front of the burner with the longer branch resting on Log 3A.
Figure 4.1.19:
Figure 4.1.23:

12
Installation
Step 13: Place the split end of Log 8A on top of Log 2B with the front edge aligned at the front of the burner.
Figure 4.1.26: Figure 4.1.27:
Step 12: Place Log 7A with one end on Log 6 and the split end aligned toward the front of the burner.
Figure 4.1.24: Figure 4.1.25:
Figure 4.1.28:
Step 14: Spread Black Embers along the burner surround and logs in an even layer. Do not block the secondary air openings as shown
in Figure 5.0.04 and Figure 5.0.05.

13
Installation
Figure 4.1.29:
Part # Item Description Qty Part # Item Description Qty
999-LS-GTA Log Set A 1 Set 999-LS-GTB Log Set B 1 Set
999-LS-GTA-1 Log 1A 1999-LS-GTB-1 Log 1B 1
999-LS-GTA-2 Log 2A 1999-LS-GTB-2 Log 2B 1
999-LS-GTA-3 Log 3A 1999-LS-GTB-3 Log 3B 1
999-LS-GTA-4 Log 4A 1999-LS-GTB-4 Log 4B 1
999-LS-GTA-5 Log 5A 1
999-LS-GTA-6 Log 6A 1
999-LS-GTA-7 Log 7A 1
999-LS-GTA-8 Log 8A 1310-0020 Black Embers (2 cup bag) 5
1A
2A
1B
2B
3A
3B
4B4A
5A
6A
7A
8A

14
Installation
Silver Birch Log Set information coming soon!
4.2 Silver Birch Log Set
