Archgard 27-DVIM22N-2 User manual

27-DVIM22N-2
GAS FIRED VENTED ROOM HEATER
(DIRECT VENT)
S/N 260051 AND UP
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-1227-01
June 29 2016
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
This appliance may be installed in an aftermarket permanently
located, manufactured home (USA only) or mobile home where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING: If the information in these instructions is not
followed exactly, a re or explosion may result, causing
property damage, personal injury or loss of life.
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not light any appliance
• Do not touch any electrical switch: do not use any phone in
your building.
• Immediately call your gas supplier from a neighbors phone.
• Follow the gas suppliers instructions.
• If you can not reach your gas supplier, call the re
department.
Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property
damage, personal injury or loss of life.

2
TABLE OF CONTENTS
Introduction 3
Safety Information 4
Appliance Certication 5
Installation Codes 5
Specications 5
High Altitude Installation 5
Rating Plate Label 6
State of Massachusetts Requirements 7

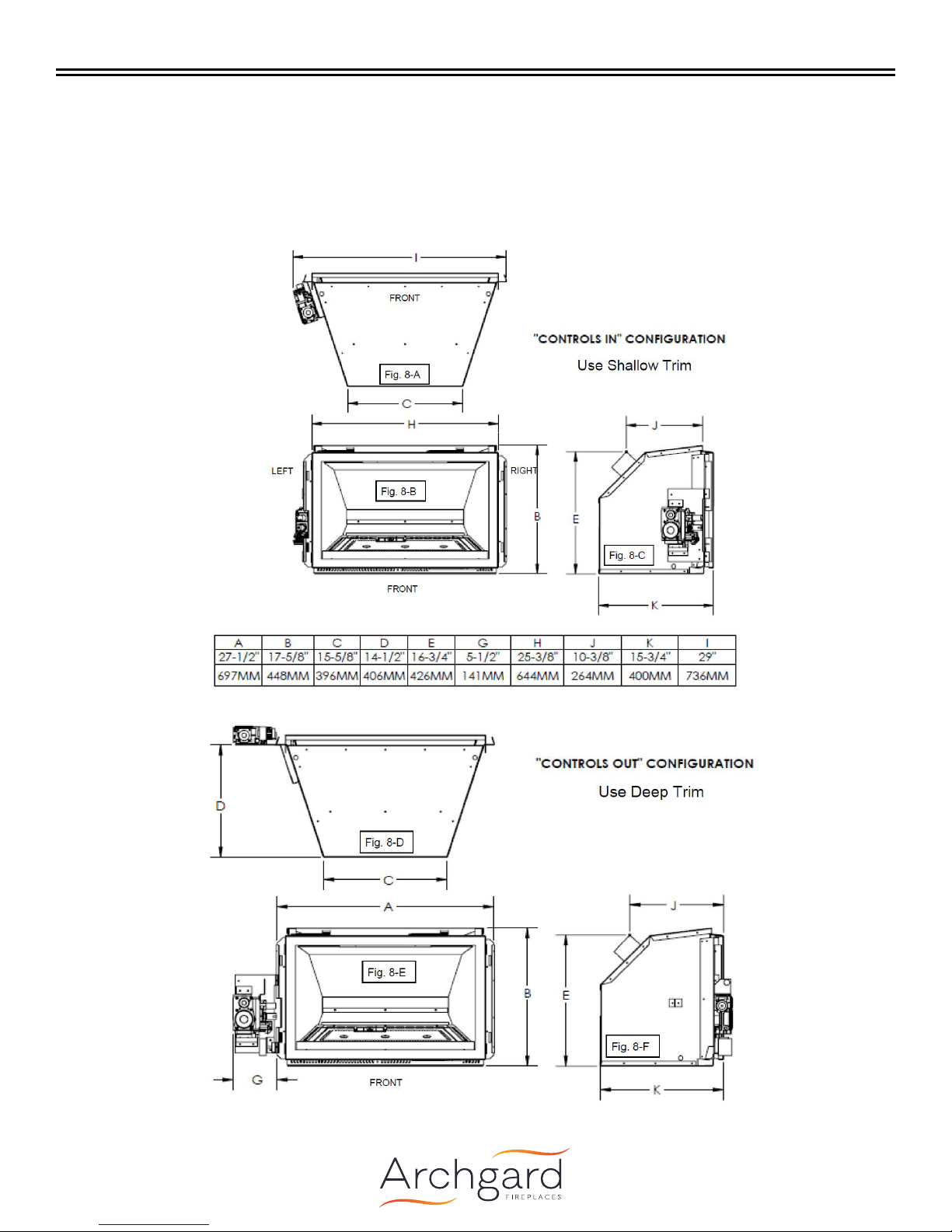

Congure the Fireplace 8
Control Panel Locations 8
Minimum Fireplace Opening Dimensions 9
Masonry Fireplace 9
Sealing the Vent 9
Factory Built (metal) Wood Burning Fireplace
Opening Requirements 10
Clearances 11
Hearth Clearances 11
Mantle Clearances 12
Sidewall Clearances 12
Gas Connections 13
Conversion Kit Instructions 14
Prepare the Fireplace 14
Pilot Conversion 14
Convert the Gas Valve 15
Complete the Conversion 15
Appliance Description 16
Leveling the 27-DVIM22N-2 16
Front Level 16
Rear Level 16
Electrical Connections 16
Venting Instructions 17
Approved Terminations 17

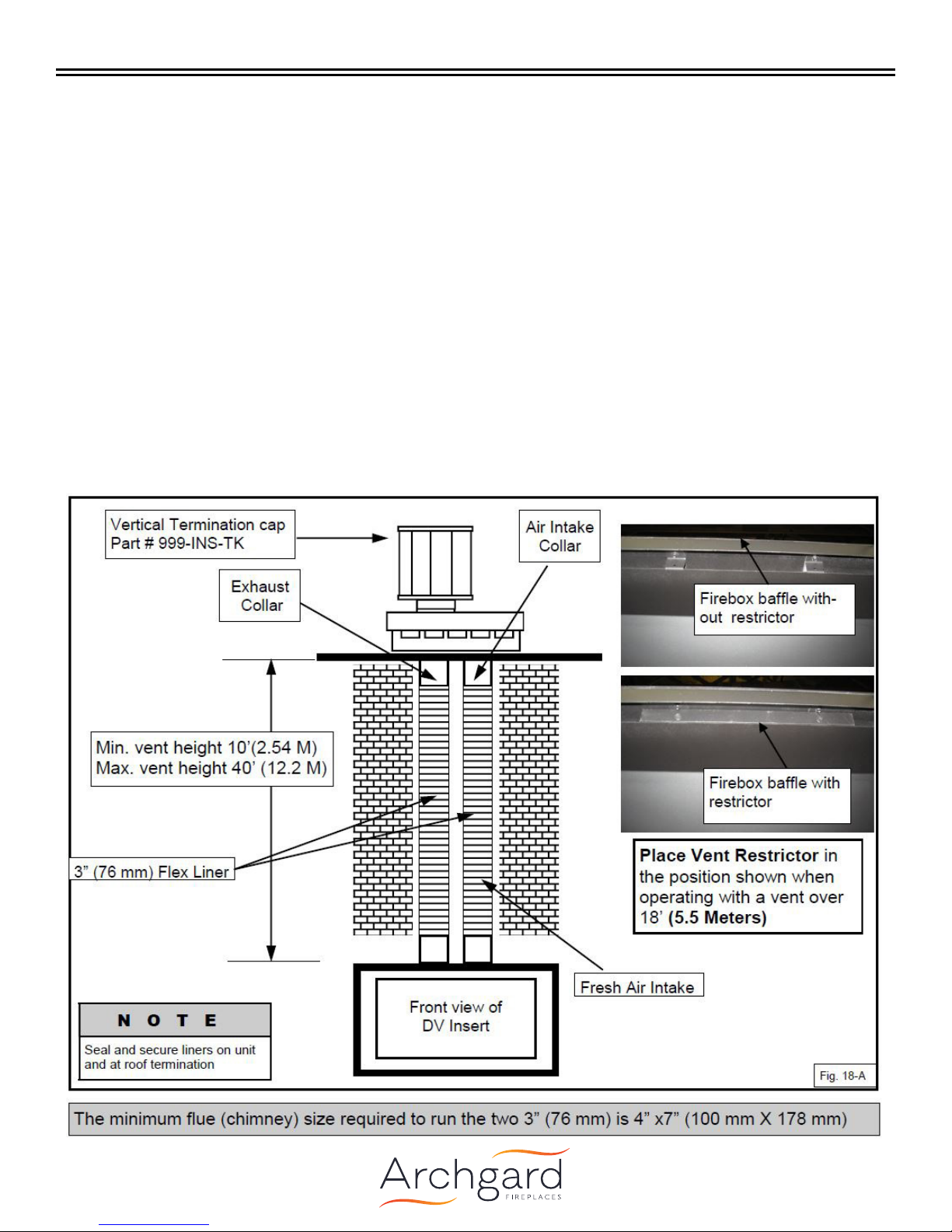

Venting Instructions 999-INS-TK 18
Optional Wall Switch or Thermostat 19
Fan Wiring Diagram 19
Surround Installation 20
Log Placement 21
Locator Pins 21
Ember Placement 24
Complete Log Set 25
Glass Door Installation and Removal 26
Safety Barrier Installation 27
Final Installation Check 28
Initial Operation 28
Operation 29
First Fire 29
Lighting Instructions - Caution 29
Lighting Instructions on Rating Plate 30
Maintenance 31
Cleaning the Appliance 31
Servicing Under Warranty 32
Adjusting Primary Air 32
Checking Inlet / Outlet Gas Pressure 33
Checking and Adjusting Pilot 33
Replacing Comfort Blower 34
To Access From the Front 34
To Access From the Back 34
Troubleshooting 35
Replacement Parts List 36
Frequently Asked Questions 37
Archgard Limited Warranty 38

3
General Information
Introduction
Thank You and Congratulations for choosing an Archgard Gas Fireplace!
The 27-DVIM22-2 is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest
technology and manufactured to the highest quality. It is our aim to provide you with an appliance that brings many trouble-free years of
reliable service.
Some of the many features of your 27-DVIM22N-2 are:
• Heater Classication The 27-DVIM22N-2 is classied as a heating appliance. Therefore, it uses Direct Vent safety
technology and it is suitable for continuously operated zone heating.
• High E󰀩ciency The 27-DVIM22N-2 has one of the highest e󰀩ciencies of any Direct Vent gas insert, which means
that it is less expensive to operate.
• Adjustable Fan Speed Each 27-DVIM22N-2 comes complete with an adjustable speed temperature controlled circulation
fan.
• Adjustable Flame The ame aesthetics and heat output can be adjusted to suit the owner’s liking and heating needs.
• Solid Construction The 27-DVIM22N-2 is mainly constructed of 16 and 18 gauge galvanized and aluminized coated
steel for long life and durability.
• Optional Accessories Check with your Authorized Archgard Dealer for a full complement of decorative accessories to suit
your home’s décor and your tastes.
• Millivolt Control System The gas control system is “thermostat” ready for any optional millivolt wall thermostat or wireless
remote control.

4
General Information
Safety Information
FOR YOUR SAFETY
Do not install or operate your Archgard 27-DVIM22N-2 without reading and understanding this manual. Any installation or operational
deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous.
CAUTION
• This appliance must be installed by a qualied gas installer and the installation must conform to the installation codes.
• Provide adequate clearance around air openings. Never obstruct front openings.
• Ensure adequate clearances for proper operation and servicing of the appliance.
• This appliance must be properly connected to an approved venting system and must not be connected to a chimney ue serving
a separate solid fuel burning appliance.
• Provide adequate clearance around the intake and exhaust openings
ATTENTION
We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the National
Fireplace Institute® (NFI) as NFI Gas Specialists.
Due to high temperatures, the appliance should be located out of tra󰀩c and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to a replace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out
of the room and away from hot surfaces.
Clothing or other ammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.
Installation and Repair should be done by a qualied service person. The appliance should be inspected before use and at least annu-
ally by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding materials,
etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance are kept clean.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and
to replace any part of the control system and any gas control which has been under water.

5
General Information
Appliance Certication
This appliance was listed by LABTEST Certication Inc to the following USA and Canadian gas appliance standards.
• ANSI Z21.88-2014/CSA 2.33-2014 Vented Gas Fireplace Heaters
• CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes
• CSA P.4.1-09 testing method for measuring annual replace e󰀩ciency.
The listing label is attached to the appliance on the bottom right side of the appliance. A copy is shown on page 6.
Please contact Archgard Industries Ltd., if you have any questions regarding the certication of this appliance.
Installation Codes
This appliance must be installed by a qualied gas appliance installer. The installation must conform with the local codes or, in the
absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54, or the Natural Gas and Propane Installation
Code CSA-B149.1 in Canada.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
National Electrical Code ANSI/NFPA No. 70, or the Canadian Electrical Code CSA C22.1.
A manufactured home or mobile home OEM installation must conform with the Manufactured Home Construction and safety Standard,
Title 24 CFR, Part 3280, or, when such a standard is not applicable, the Standard for Manufactured Home Installations, ANSI/NCSBCS
A225.1, or Standard for gas Equipped Recreational Vehicles and Mobile Housing, CSA Z240.4.
Specications
Natural Gas (NG) Propane (LP)
Manifold Pressure 3.5 - 1.6 in. W.C. (0.9 kPa) 10.0 - 6.4 in. W.C. (2.5 kPa)
Min. Supply Pressure
Max. Supply Pressure
5 in. W.C. (1.2 kPa)
14 in. W.C. (3.5 kPa)
11.0 in. W.C. (2.8 kPa)
14 in. W.C. (3.5 kPa)
Orice Size #43 DMS (2.25 mm dia) #54 DMS (1.36 mm dia)
Nominal Input Rating 15,000 - 22,400 BTU/h (4.5 - 6.56kW) 16,500 - 21,000 BTU/h (4.8 -6.15kW)
Electrical Rating 120 VAC, 60Hz less than 2 A. 120 VAC, 60Hz less than 2 A.
Gas Control SIT 820 Nova SIT 820 Nova
Altitude 0 - 4,500 ft. (0 - 1372 M) 0 - 4,500 ft. (0 - 1372 M)
Primary Air Opening 1/4” (6 mm) OPEN FULLY OPEN
High Altitude Installation
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must be properly de-rated and installed ac-
cording to local codes, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or
Installation Code, CAN/CGA-B149, in Canada.

6
General Information
Rating Plate Label
SAMPLE

7
General Information
State of Massachusetts Requirements
(G1-0813-54)
5.08: Modications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part
for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination
is less than seven (7) feet above nished grade in the area of the venting, including but not limited to decks and porches, the following
requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gastter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-
up is installed on the oor level where the gas equipment is to be installed. In addition, the installing plumber or gastter shall observe
that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling,
building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner
to secure the services of qualied licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent oor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have
a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery
operated carbon monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provi-
sions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
3. SIGNAGE. A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height
of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or
equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR
OF ALL OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the instal-
lation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provi-
sions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopt-
ed by the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling,
building or structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equip-
ment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the ue gases, but identies
"special venting systems", the following requirements shall be satised by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list
and detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instruc-
tions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the
completion of the installation.
For the State of Massachusetts, installation and repair must be done by a plumber or gastter licensed
in the Commonwealth of Massachusetts.
For the State of Massachusetts, exible connectors shall not exceed 36 inches in length.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with
NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.
For the State of Massachusetts the appliances individual shut – o󰀨 must be a t-handle type valve.

8
Installation
Congure the Fireplace
Control Panel Locations
The control panels can be mounted in the following di󰀨erent ways. They are shipped in the “Controls In” conguration. They can be
moved to the “Controls Out” conguration by removing the two mounting screw on each side and swinging the panels out and re-
installing the screws. They can also be disconnected and placed remotely within the limits of the gas connections and electrical wiring
making sure to place them away from any heat source over 150 degrees Fahrenheit or 65 degrees Celsius.

9
Installation
Minimum Fireplace Opening Dimensions
Masonry Fireplace
WARNING
This replace has been designed to be installed into a Masonry or Factory Build Wood Burning Fireplaces ONLY. Never attempt to
install the appliance into a combustible enclosure.
If the information in these instructions are not followed exactly, a re or explosion may result causing property damage, personal
injury or loss of life.
Sealing the Vent
Secure the exible liner at the top of the replace and at the
termination. DO NOT use silicone as this will void the ame sensor
warranty. Use mil-pac or other non silicone sealant and three (3)
screws or gear clamps to seal the liner at each end.

10
Installation
Factory Built (metal) Wood Burning Fireplace Opening Requirements
INSTALLER NOTES
The installer must mechanically attach a marking (supplied in the manual bag) to the inside of the rebox of the replace into which
the gas replace insert is installed indicating that it has been altered and is no longer suitable for burning the original fuel unless the
removed parts are reinstalled
Cutting of any sheet-metal parts of the replace, in which the gas replace insert is to be installed, is prohibited unless following the
directions below.
If the factory-built replace has no gas access hole (s) provided, an access hole of 1 1/2” (38.1 mm) or less may be drilled through the
lower sides or bottom of the rebox in a proper workmanship-like manner. This access hole must be plugged with non-combustible
insulation after the gas supply line has been installed.
The replace ue damper (A) must be fully blocked open or removed for installation of the gas replace insert.
The replace and replace chimney must be clean and in good working order and constructed of non-combustible materials. The
chimney cleanouts must t properly.
Refractory (G & I), glass doors (F), screen rails & screen mesh (E) and log grates (B) can be removed from the replace before
installing the gas replace insert.
Smoke shelves (C) and ba󰀪es (D) may be removed if attached by mechanical fasteners. Trim panels must not seal ventilation open-
ings in the replace.
NOTE
The metal oor of the rebox may be removed only if the following is strictly adhered to.
The metal oor (J) may be removed to allow additional room for installation of the insert. If the oor is removed the insert must be
placed directly on the metal base of the metal replace. Under no circumstance can it be placed directly on a combustible
material.
ATTENTION
Any parts that are removed must be saved and reinstalled if the insert is ever removed.

11
Installation
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.
WARNING
Any hearth extending out in front of the insert must not
have any portion above 7” below the bottom of the unit
made from combustible materials. This includes any type
of framing underneath a non-combustible material such
as tile, marble or stone. Any material below 7” can be
combustible.
NOTE
All specied clearances must be maintained from the top
surface of carpeting, tile, etc.
CAUTION
This appliance is designed for use in any masonry or factory-built, wood-burning replace. It cannot be enclosed by combustible
material and used as a built-in gas replace.
NOTE
If existing wood replace hearth protection is removed it
must be replaced by a non-combustible hearth protection
7” thick, extending a minimum of 16” (406 mm) from the
front of the replace insert or have a minimum 7” (178 mm)
clearance below the level of the bottom of the insert.
NOTE
All specied clearances must be maintained from the top
surface of carpeting, tile, etc.
Clearances
Hearth Clearances

12
Installation
Mantle Clearances
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.
NOTE
Mantle depth of less than 1” is not considered a mantle
Sidewall Clearances

13
Installation
Gas Connections
Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas
type you are using. The gas type markings are located on the certication label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be provided. All gas connections must be
checked for gas leaks.
Have your gas supplier or a qualied gas tter run a gas supply line into the replace. The line must be properly sized and tted ac-
cording to the installation codes. Immediately upstream of the supply connection, the tter shall provide an accessible manual shut-o󰀨
valve. When connecting the supply line to the gas valve, the installer shall brace the gas valve to ensure that the gas valve is not
moved from its bracket. If the valve is not braced when the supply line is connected, the valve may be moved and cause a “break” in
the main burner supply line. Such damage is not covered by the manufacturer’s warranty.
CAUTION
The appliance and its individual shuto󰀨 valve must be disconnected from the gas supply piping system during any pressure-testing
of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance must be isolated from the gas supply piping system
by closing its individual manual shuto󰀨 valve during any pressure-testing of the gas supply piping system at test pressures equal
to or less than 1/2 psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve. Such damage is not covered by the
manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 5” W.C. (1.2 kPa) and a maximum of 14” W.C. (3.5 kPa). The orice is a #43
DMS (2.25mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 22,400 BTU/hr (9.6 kW)
4500 ft (1372 M) and above. 22,400 BTU/hr (9.6 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11” W.C. (2.8 kPa) and a maximum of 14” W.C. (3.5 kPa). The orice is a #54
DMS (1.36 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 21,000 BTU/hr (9.02 kW)
4500 ft. (1372 M) and above. 21,000 BTU/hr (9.02 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orice size you require.
To do this, reduce the background ow rate, time the meter.
INSTALLERS NOTE
THE INPUT RATING SHOULD BE CHECKED ON INITIAL START-UP OF THIS APPLIANCE.
Light the replace and take another reading after 15 minutes of operation.
Check with your gas supplier for the gas BTU content at your elevation.
Input is the rate of ow multiplied by the heating value of the gas (3600 x Caloric Value) divided by the time (in seconds) it takes for (1)
rotation of the 1 cubic foot dial on the meter.
Adjust the manifold pressure so that the unit does not operate above the rated input.

14
Installation
Conversion Kit Instructions
WARNING
The conversion kit shall be installed by a qualied service agency in accordance with the manufacturers instructions and all
applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly,
a re, explosion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. The qualied
service agency is responsible for proper installation of this kit.
The installation is not proper and complete until operation of the converted appliance is checked as specied in the instructions
supplied with the kit. Refer to appliance owner’s manual or product data plate for proper inlet and manifold pressure adjustments and
orice sizing.
IMPORTANT
This replace is Natural gas ready. If converting to LP gas, follow instructions below.
KIT NUMBERS: 27-CKMLP for LP gas and 27-CKMNG for Natural Gas
KIT INCLUDES:
1- Gas conversion label (303-0128)
1- Burner orice (301-0068) (#54 DMS for LPG) (#43 DMS for NG)
1- Instruction Sheet
1- SIT 820 Valve conversion regulator c/w instructions & gas type label (0.907.202) LPG
(0.907.201) NG
FOR YOUR SAFETY
SHUT OFF GAS SUPPLY AND ELECTRICAL POWER TO FIREPLACE BEFORE BEGINNING THE GAS CONVERSION
Prepare the Fireplace
• Remove the surround, glass door assembly, logs/media and brick/panels (if applicable).
• Remove the burner side brackets and the front ember ledge. The ledge lifts up and out.
• Remove burner. Three screws along the top edge of the burner secure it to in place.
Remove the burner orice using a 1/2” wrench. Replace with the orice supplied with the
conversion kit. Use a small amount of pipe sealant on the threads of the orice holder.
Pilot Conversion
Using a 7/16” wrench and loosen the pilot hood
1/4 turn. Slide the tab at the bottom of the orice
hood all the way so the red side (propane) with
the hole in it is showing. Tighten the pilot hood
back up so that it is lined up with the two probes
on both sides of the pilot assembly.

15
Installation
WARNING
This conversion kit shall be installed by a qualied service agency in accordance with the manufacturer's instructions and all
applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly,
a re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualied
service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the
appliance is checked as specied in the manufacturer's instructions supplied with the kit.
Convert the Gas Valve
On the SIT valve, use an Allen key or a slotted screwdriver to
remove and discard the three pressure-regulator mounting screws
the pressure regulator tower and the spring diaphragm assembly.
IMPORTANT
Ensure that the rubber gasket is properly positioned and
install the new modulating pressure regulator assembly
to the valve using the screws provided in the conversion
package.
A󰀩x Archgard Manufacturer’s label (part # 303-0128) in a
conspicuous location. We suggest a location close to the gas
control valve.
Install the LP identication label
to the valve (found in kit).
Complete the Conversion
Turn on the gas and electrical supplies.
Turn on the replace so the burner is on
Check for leaks at all connections.
Test inlet and outlet pressure. Visually check pilot ame. Flame should envelope top of the ame sensor and extend forward onto the
burner. To adjust pilot turn the pilot adjustment screw on the control valve clockwise to decrease or counter clockwise to increase pilot
ame.
Turn replace o󰀨
A󰀩x gas type label to the rating plate label. (Bottom right side, under the door frame of insert on pull chain)
Complete the conversion label and a󰀩x to valve assembly plate.
Re-install the burner, brick, logs, embers and door (per the instructions starting on page 21).
IMPORTANT
For high altitude installations above 4500 ft (1372 meters), consult local gas distributor or the authority having jurisdiction for proper
de-rating methods.

16
Installation
Appliance Description
Leveling the 27-DVIM22N-2
Front Level
Located slightly in from the front edge of the replace is the new
leveling feature. Leveling bolts can be installed to enable you
to raise the front of the rebox if necessary. If you need higher
adjustment you only need to change to a longer bolt. If no rise is
required simply leave empty.
Rear Level
Before placing the appliance into the replace, check the hearth of the replace to see if it is level with the front of the replace. If it is
not, measure the depth of the hearth. Loosen the three screws of the leveling “L” bracket at the back of the appliance. Lower it to the
measurement obtained and tighten the screws.
Electrical Connections
The 27-DVIM22N-2 comes complete with an thermally controlled variable speed fan equipped with a solid state speed control.
Do not cut or remove the grounding prong from this plug.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI / NFPA 70, or the Canadian Electrical code, CSA C22.1.

17
Installation
Venting Instructions
WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result
in carbon monoxide (CO) poisoning and possible death. The appliance must not be connected to a chimney ue serving a
separate solid fuel burning appliance.
CAUTION
Only 3” (76mm) double wall aluminum ex liner and approved vent terminals are to be used for this appliance.
Approved Terminations
Manufacturer Vertical Termination Termination Adapter
Archgard 999-INS-TK N/A
Dura Vent 980 - Co-Axial Cap (requires adapter)
991 - Co-Axial High Wind (requires adapter) 923GK (Co-Axial to Co-Linear)
ICC/Excel
IVT - Co-Linear
VT - Co-Axial (requires adapter)
SVT- Co-Axial (requires adapter)
N/A
CTA or CAA (Co-Axial to Co-Linear)
CTA or CAA (Co-Axial to Co-Linear)
Ameri-vent DVC - Co-Axial Cap (requires adapter) DCAT (Co-Axial to Co-Linear)
ATTENTION
NO OTHER VENTING SYSTEM OR COMPONENTS MAY BE USED. Follow manufacturer instructions for installation of termination.
This appliance is designed for dual 3” (76 mm) double wall aluminum ex liner, running the entire length of the chimney.
The ue length must be a minimum of 10’ (3.05 M) and a maximum of 40’ (12.2 M)
The exhaust vent restrictor provided with this appliance must only be used by installing it onto the front of the ba󰀪e when the
vent height is over 18’ (5.5 M) if required.
The minimum (chimney) ue size is 4” x 7” (102 mm X 178 mm).
Masonry chimneys may take various contours which the exible liner will accommodate, however, keep the exible liner as straight as
possible, avoiding unnecessary bending but at all times keep a minimum of 3” (76 mm) inside bend radius.
The Air Intake Flex Liner must be connected to the inlet air
collars of the termination cap and the appliance.
The Exhaust Flex Liner must be connected to the exhaust
collars of the termination cap and the appliance.
The Air intake and Exhaust connections are marked on
the gas appliance. See picture.
DO NOT REVERSE THESE CONNECTIONS
CAUTION
To ensure that the venting is not accidentally obstructed
or punctured, the damper of the host replace must be
permanently disabled by either complete removal of the
damper, or by being fully blocked open, for the installation
of a gas replace insert. The 27-DVIM22N-2 requires (2) exible ue
liners:
INLET Collar - 3” (76 mm) diameter
OUTLET Collar - 3” (76 mm) diameter

18
Installation
Venting Instructions 999-INS-TK
Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK
Install the termination cap being sure to provide su󰀩cient space (around and on top) so as not to impede the ow of air,
both into and out of the cap. This cap is only to be used for non combustible installations. Do not recess into the top of the
chimney.
1. Mark each end of one liner with “Air Intake”.
2. Mark each end of the second liner with “Exhaust”.
3. Pull the liner through the chimney.
4. Install the ashing.
5. Seal and attach the liner marked “Air Intake” to the vent terminal pipe marked “Air Intake” with the collar clamp provided.
6. Seal and attach the liner marked “Exhaust” to the vent terminal pipe marked “Exhaust” with the collar clamp provided.
7. Seal and attach the end of the ex marked “Air Intake” to the collar marked “Air Intake” on the appliance with the collar clamp
provided with the unit.
8. Install exhaust vent restrictors provided with the unit if required. Seal and attach the end of the ex marked “Exhaust” to the collar
marked “Exhaust” on the appliance.
9. Caulk all joints using a high temperature sealant such as milpac. DO NOT USE SILICONE SEALANTS. Use of silicon sealants
voids the warranty of the pilot assembly.
NOTE: The vertical termination cap must be sealed to the liner with suitable high temperature sealant, such as milpac and with the
hose clamps fasteners provided. DO NOT USE SILICONE SEALANTS (Use of silicon sealants voids the warranty of the pilot
assembly) The liners must form a complete connection from the appliance ue collars to the vertical termination cap.

19
Installation
Optional Wall Switch or Thermostat
If a wall mounted switch or a wall mounted thermostat is desired, Archgard recommends that the device be wired as shown in the
diagram below.
NOTE: Archgard Industries does not manufacture or sell any type of wall switch or wall thermostat and will not extend warranty to them.
Thermostat/wall switch wire table
Recommended max length for two wires.
Wire Size Max. Length
14 GA. 50’ (15.24 M)
16 GA. 32’ (9.75 M)
18 GA. 20’ (6.9 M)
20 GA. 12’ (3.65 M)
22 GA. 9’ (2.74 M)
PILOT ASSEMBLY
AELECTRODE N/A
BTHERMOPILE # 308-0056
CPILOT HOOD N/A
DTHERMOCOUPLE # 308--0122
Fan Wiring Diagram
The fan disc is factory set to close the circuit to the fan
speed control at 1100 F (430 C) and will turn o󰀨 the fan
when the temperature falls below 800 F (270 C).
The 27-DVIM22 comes complete with:
• Temperature activated fan - (#RF-305-0024)
• Solid State speed control. - (#305-0013)
• 6ft power cord
NOTE: This appliance, when installed, must be
electrically grounded in accordance with local codes
or, in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.

20
Installation
Surround Installation
Surround options available are dependent upon the control panel conguration. (See Control Panel Locations regarding conguration.)
Shallow surround options are not available on a unit with ‘Controls Out’ conguration.
Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the replace and slide the excess ue
liner material back onto the chimney. Before the appliance is fully recessed into the replace, attach the surround onto the appliance.
Attach the surround to the appliance at the locations shown by lining up the tabs on the surround with the slots on the unit. Make sure
the surround drops down and fully engages. Then nish with the wiring connection to the on/o󰀨 switch on the side of the trim. Now fully
“seat” the unit into its nal position.
Care must be taken that Trim Panels or Surrounds shall not seal ventilation openings in the replace.
