Archgard Optima 70-2 Owner's manual

200-0162
March 2007
USERS’ INSTALLATION
OPERATION and
MAINTENANCE MANUAL
Optima 70 - 2
Gas Fired Vented Room
Heater (Direct Vent)
For use with natural gas or propane*
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
Installer: Please leave this manual with the appliance owner for future reference
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
*Conversion kit required for Propane use
WARNING: If the information in this manual is not
followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
∗ Do not try to light any appliance.
∗ Do not touch any electrical switch; do not use
any phone in your building.
∗ Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
∗ If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.

5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for resi-
dential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven
(7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satis-
fied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equip-
ment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed
on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the
side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed
professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monox-
ide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Ap-
proved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Prod-
uct Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special
venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and de-
tailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the
installation.
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery
back up in the same room where the gas appliance is installed.
For the State of Massachusetts the appliances individual shut – off must be a t-handle type valve.

INTRODUCTION
Congratulations on choosing an Archgard fireplace!
The Optima 70 is one of the most advanced direct vent fireplace heaters available. It is solidly
designed using the latest technology and manufactured to the highest quality. It is our aim to
provide you with an appliance with many trouble free years of reliable service.
The following are just some of the many features within your new gas fireplace:
• Heater Classification. The Optima 70 is classified as a heating appliance.
In conjunction with an optional thermostat, the Optima 70 can
be operated continuously for zone heating.
• High Efficiency. The Optima 70 has one of the highest efficiencies of any gas
fireplace, which means that it is less expensive to operate.
• Adjustable Fan Speed. Heat circulation fan can be fully adjusted from high, medium
or low speeds to suit your comfort level.
• Adjustable Flame. The flame aesthetics and heat output can be adjusted to suit
your heating needs.
• Solid Construction. The Optima 70 is constructed mainly of 14 and 18 gauge
galvanized and aluminized steel for long life and durability.
• Millivolt Control System. The gas control system is “thermostat” ready for any optional
millivolt wall thermostat or wireless remote control.
Please read the manual carefully prior to installation and operation of the appliance.
Proper installation, operation and maintenance of the appliance will provide you with
many years of enjoyment. We recommend you record the following information:
Fireplace Model Number
Fireplace Serial Number
Date of Installation
Type of Gas Used by the Fireplace
Dealer’s Name

CONTENTS
Caution and Safety Instructions 5
Appliance Certification, Installation Codes and Specifications 6
Gas Connections 7
Appliance Dimensions and Clearance to Combustibles 8
Mantle Clearances 9
Framing Dimensions 10
Locating Gas Fireplace and Vent Terminal Locations 11
Allowable Termination Locations 12
Approved Vent Components and Venting Connection 13
Venting - Termination Restrictor Placement 14
Venting - Vertical Termination Chart 15
Venting - Vertical Termination using Simpson Dura-Vent Pipe Only 16 - 17
Venting - Vertical Termination using Flex Gas Liner 18
Venting - Horizontally using Flexible Direct Vent Systems 19 - 20
Venting - Horizontally using Simpson Dura-Vent Direct Vent Systems 21 - 23
Electrical Connections (Fan System) and Fan Wiring Diagram 24
Log Placement (FiberFlame Log Set) 25 - 29
Optional Wall Switch, Thermostat or Remote Control. Suggested wiring. 30
Final Installation Check and Initial Operation 31
First Fire and Lighting Instructions (CAUTION) 32
Lighting Instructions on Rating Plate 33
Glass Door Removal and If your Glass Breaks 34
Optional Bay Door Installation Instructions 35
Optional Gold Bay Window Strips Installation Instructions 36
Louver (grill) instructions 37
Optional Surround Kit Instructions 38
Troubleshooting Guide 39 - 40
Maintenance and Cleaning the Appliance 41
Servicing Under Warranty & Adjusting Primary Air Shutter 42
Adjusting Primary Air Shutter (Continued) Changing Main Burner Orifice 43
Checking Inlet/Outlet gas pressures, Adjusting Pilot and Convertible Pilot Orifice 44
Replacing Convection Blower (Fan) 45
Valve Tray Assembly and parts list 46
Parts List - FiberFlame Logs & Burner Bed Assembly 47
Replacement Parts List 48
Warranty 49
Frequently asked questions about gas your gas fireplace 50
Warranty Registration Card 51
• Optima 70 pictured on the front cover is shown with Optional Brass Surround
(Part # GATK-38/65/70) and Louvers Brass & Black (Part # MFLKH-65/70)

Optima 70 - 2 5
Due to high temperatures, the appliance should be located out of traffic and away from furniture
and draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.
Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating.
Installation and Repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding materials, etc. It is
imperative that the control compartments, burners and circulating air passageways of the
appliance are kept clean.
CAUTION
FOR YOUR SAFETY - Do not install or operate your Archgard Optima 70 Direct Vent Gas
Fireplace without reading and understanding this manual. Any installation or operational
deviation from this instruction manual voids the Archgard Industries Warranty and may prove
hazardous.
This appliance must be installed by a qualified gas installer and the installation must conform to
the installation codes.
Provide adequate clearance around air openings of the appliance.
Never obstruct front openings.
Provide adequate clearances for proper operation and servicing of the appliance.
This appliance must be properly connected to an approved venting system and must not be
connected to a chimney flue serving a separate solid fuel burning appliance.
SAFETY

Optima 70 - 2 6
SPECIFICATIONS
This appliance is tested and safety approved under the following US and Canadian gas
appliance standards:
- ANSI Z21.88-2002/CSA 2.33-2002, Vented Gas Fireplace Heaters,
- CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes
Please contact Archgard Industries Ltd., if you have any questions regarding the certification of
this appliance.
APPLIANCE CERTIFICATION
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer.
The installation must conform with the local codes or, in the absence of local codes, with the
current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/
CGA-B149, in Canada. Electrical connections and grounding must conform with local code, or
current National Electrical code, ANSI/NFPA No. 70-1987, in the US and in Canada, the
current Canadian Electrical Code, CSA C22.1.
Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. W.C. (0.4 - 0.9 kpa) 6.3-10.0 in. W.C. (1.6 - 2.5 kPa)
Min. Supply Pressure
Max Supply Pressure 4.5 in. w.c. (1.2 kPa)
14.0 in. w.c. (3.5 kPa) 11.0 in. w.c. (2.8 kPa) 14.0 in. w.c. (3.5 kPa)
Orifice Size #37 DMS (2.65 mm dia.) #52 DMS (1.62 mm dia.)
Nominal Input Rating 20,100 - 30,000 BTU/hr
(5.9 - 8.8 kW) 23,000 - 30,000 BTU/hr (6.7 - 8.8 kW)
Output (Fan On) @ Max.
Rating 22,500 BTU/hr (6.6 kW) 23,100 BTU/hr (6.8 kW)
Output (Fan Off) @ Max.
Rating 22,500 BTU/hr (6.6 kW) 23,100 BTU/hr (6.8 kW)
Altitude 0-4500 ft (0 - 1372 M) 0 - 4500 ft (0 - 1372 M)
Primary Air Opening FULLY OPEN FULLY OPEN
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372m) above sea level, the appliance must be
properly de-rated and installed according to local codes, in the absence of local codes, with the
current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/
CGA-B149, in Canada.

Optima 70 - 2 7
Before connecting the appliance to the gas supply line, double check that the appliance you
have purchased is designed for the gas type you are using. The gas type markings are located
on the certification label and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be
provided. All gas connections must be checked for gas leaks.
GAS CONNECTIONS
Have your gas supplier or a qualified gas fitter run a gas supply line into the fireplace.
The line must be properly sized and fitted according to the installation codes. Immediately
upstream of the supply connection, the fitter shall provide an accessible manual shut-off valve
and a 1/8” (3mm) NPT plugged tapping accessible for connection to a test gauge. When
connecting the supply line to the gas valve, the installer shall brace the gas valve to ensure that
gas valve is not moved from its bracket. If the valve is not braced when the supply line is
connected, the valve may be moved and cause a “break” in the main burner supply line. Such
damage is not covered by the manufacturer’s warranty.
CAUTION: The appliance and its individual shutoff valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test-pressures in excess of
1/2 psig (3.5 kPa). The appliance must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure-testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig (3.5 kPa). Failure to do so will damage
the appliance’s gas valve. Such damage is not covered by the manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 4.5” W.C. (1.1 kPa) and a maximum of
14 W.C. (3.5 kPa). The orifice is a #37 DMS (2.64 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 30,000 BTU/hr (8.8 kW)
4500 ft (1372 M) and above. 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11” W.C. (2.8 kPa) and a maximum of
14” W.C. (3.5 kPa). The orifice is a #51 DMS (1.70 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 30,000 BTU/hr (8.8 kW)
4500 ft. (1372 M) and above. 30,000 BTU/hr (8.8 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orifice size you require
NOTE: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST RUNNING
THIS APPLIANCE. To do this, reduce the background flow rate, time the meter, light the
fireplace and take another reading after 15 minutes of operation. Check with your gas supplier
for the gas BTU content at your elevation. Input is the rate of flow multiplied by the heating
value of the gas (cubic feet/hour x BTU per cubic feet). Adjust the manifold pressure so that
the unit does not operate above the rated input.

Optima 70 - 2 8
APPLIANCE DIMENSIONS
BACK 0” to stand-offs
SIDES 0” to stand-offs
TOP 0” to stand-offs
BOTTOM 0”
ADJACENT SIDE WALL 1” (25 mm) to side of faceplate
MANTLE see diagram
VENT 1” (25 mm) to outside side and bottom surface,
2” (50 mm) to outside top surface.
CLEARANCES TO COMBUSTIBLES
DIMENSIONS
A 31” (787 mm)
B 6” (152 mm)
C 3” (76 mm)
D 29 ¾” (756 mm)
E 38” (965 mm)
F 38” (965 mm)
G 21 ½” (545 mm)
H 39 ¾” (1010 mm)
I 6 ½” (164 mm)
J 16 ¼” (412 mm)
SIDE VIEW
A
B
C
D
E
TOP VIEW
F
G
I
J
H
FRONT VIEW

Optima 70 - 2 9
MANTLE CLEARANCE
NOTE:
Low profile wooden crowns and moldings above the unit are not considered as mantles.
I.E. 1” (25 mm) or less protrusions on the upper mantle facing are acceptable.
6” (152 mm) projection
Mantle may start 39” (990
mm) and above
Minimum Height from Top of Surround:
14” (356 mm) from front top of appliance to a
6” (152 mm) mantle
Minimum Height
From Bottom of Appliance:
45” (1143 mm) with a
6” (152 mm) mantle
Combustible mantle allowed in shaded area. Mantle extension may be increased 1” (25 mm)
for each additional 1” (25 mm) increase in clearance height.

Optima 70 - 2 10
FRAMING DIMENSIONS
C
B
C
A B
* This dimension allows the top of
the fireplace to slide under. If
more rigidity is required, a stud
may be added to the back of the
fireplace top nailing flange after
the fireplace is installed.
Dimensions
A * 38” (965 mm)
B 16-1/4” (412 mm)
C 38” (965 mm)
TERMINATION
FRAMING
H
I
NOTE: Be sure to include
1/4” (6 mm) rise per 12” (305
mm) of horizontal length
DIMENSIONS
H 11” (279 mm)
I 10” (254 mm)
D
E
F
G
DIMENSIONS
D 39-1/8”” (994 mm)
E 27-5/8”” (700 mm)
F 37-3/4” (959 mm)
G 55-1/4” (1403 mm)
CORNER FRAMING

Optima 70 - 2 11
NOTE:
See venting chart for maximum and minimum vertical/horizontal venting configurations.
LOCATING GAS FIREPLACE
This appliance must be installed in any location that is free of plumbing, electrical wiring and
heating or air conditioning ducts. Select a location that is accessible for venting.
See ALLOWABLE TERMINATION LOCATIONS listed in this manual.
VENT TERMINATION LOCATIONS
1. See ALLOWABLE TERMINATION LOCATIONS and establish a suitable vent termination
location.
2. In heavy snowfall areas make sure the vent termination is located where it can not be
blocked by snowfall and snow and from snow-removal equipment.
3. Locate the vent termination away from plants, bushes or any other object near the vent
termination that will interfere or obstruct the air flow around it.
4. DO NOT recess vent termination into walls, sidings or planters.
5. Vent terminations located below 7ft (2.13 M) from grade level or anywhere that it can be
a burn hazard to the public, such as patios and balconies, must be protected with an
approved termination cage. If using Archgard Venting System order (Part # C-1).
The fireplace may be installed in any location that maintains proper clearances to combustibles, air
conditioning ducts, electrical wiring and plumbing. Select a location that is accessible for venting See
section Allowable Termination Locations listed in this manual. When the appliance is installed directly
on carpeting, vinyl tile or other combustible materials, other than wood flooring, the appliance must be
installed on metal or wood panel extending the full width and depth of the appliance.

Optima 70 - 2 12
ALLOWABLE TERMINATION LOCATIONS
Canadian Installations (1) US Installations (2) Canadian Installations (1) US Installations (2) A= Clearance above grade, veranda, porch, deck, or balcony 12 inches (30 cm) 12 inches (30 cm) J= Clearance to non-mechanical air
supply inlet to building or the combustion air inlet o any other appliance
12 inches (30 cm) 9 inches (23 cm)
B= Clearance to window or door that may be opened 12 inches (30 cm) 12 inches (30 cm) K= Clearance to a mechanical
air supply inlet 6 feet (1.83 m) 3 feet (91 cm) above if
within 10 feet (3 m) hori-
zontally
C= Clearance to permanently closed window * * L= Clearance above paved
sidewalk or paved driveway located on public property
7 feet (2.13 m) + *
D= Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61 cm) from the center line of the terminal
* * M= Clearance under veranda,
porch, deck, or balcony 12 inches (30 cm) ++ *
E= Clearance to unventilated soffit * * F= Clearance to outside corner * * G= Clearance to inside corner * * H= Clearance to each side of center line extended above meter/regulator assembly
3 feet (91 cm) within a
height 15 feet (4.5 m) above
the
meter/regulator assembly
*
L= Clearance to service regulator vent outlet 3 feet (91 cm) *
(1) In accordance with the current CSA B149.1, National Gas and Propane Installation Code (2) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code (+) A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings and serves both dwellings (++) Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor. (*) For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, “Clearances shall be in accordance with local installation codes and the requirements of the gas supplier.”

Optima 70 - 2 13
APPROVED VENT COMPONENTS
PART # DESCRIPTION
TVK-1 Archgard Flex Vent Kit with 36” (914 mm) vent length (includes TK-1)
TVK-2 Archgard Flex Vent Kit with 60” (1.52 M) vent length (includes TK-1)
TK-1 Archgard Horizontal termination head only
C-1 Archgard Safety Cage for Horizontal termination head (TK-1)
VSD-1 Archgard Vinyl siding deflector
SDA-1 Adapter, Flex to Simpson Dura-Vent
SDA-3 Adapter, Appliance to Simpson Dura-Vent
DV-GS Simpson Dura-Vent venting system
For best and safe venting performance, here are some general venting rules:
• Use only Archgard or Simpson Dura-Vent direct vent systems and components.
• Maintain a minimum of 1” (25mm) clearance to combustibles from the outside
surfaces of vertical vents and minimum of 1” (25mm) sides and bottom, and 2” (50mm)
from top surfaces of horizontal vents.
• Observe any local code restrictions, if any, regarding the installation of this type of gas
appliance.
• Observe the venting charts given in this manual.
• Use vent spacers between the inside 4” (101mm) and outside 7” (178mm) vents at every
3 ft (915mm) intervals (Archgard Direct Vent System ONLY).
• Never slope horizontal vents downwards, towards the vent termination.
• Maintain a minimum 1/4” rise (6mm) for every linear foot (305mm) of horizontal vent.
• Terminate (Horizontally) the vent only with an approved vent termination supplied by
Archgard Part # TK-1 or Simpson Dura-Vent Termination Cap.
• Terminate (Vertically) the vent only with Simpson Dura-Vent Vertical Termination Cap.
• Support horizontal vents every 3 ft (914 mm) to prevent sagging.
VENTING CONNECTION
The appliance will not function without being connected to a proper venting system.
This appliance may only use direct vent system supplied by Archgard, or Simpson Dura-Vent
direct vent systems with the appropriate adaptor dependent upon the venting guidelines within
this manual.
Please strictly follow the venting instructions for optimum performance from the
appliance and to avoid sooting and / or service calls.
NOTE: Only venting components listed below are approved for the Optima 70

Optima 70 - 2 14
VENTING - RESTRICTOR PLACEMENT
NOTE: Vent restrictors are designed to reduce vertical stack action
for vent terminations which will reduce the velocity of incoming com-
bustion air and not adversely affect the standing pilot or the efficiency
of the appliance.
RESTRICTOR PLACEMENT FOR ROOFTOP VENTED APPLICATIONS ONLY
WARNING: These restrictors are only to be installed in the vent system if the vent exceeds 10’ in
vertical height. Restrictor Number 1 below is required if the vent system is between 10’-18’ and Re-
strictor Number 2 below is required if the vent system exceeds 18’. Installing them under any
other circumstances may cause hazardous venting conditions and may result in personal
injury, property damage or death.
NOT FOR USE IN SIDEWALL VENTED APPLICATIONS

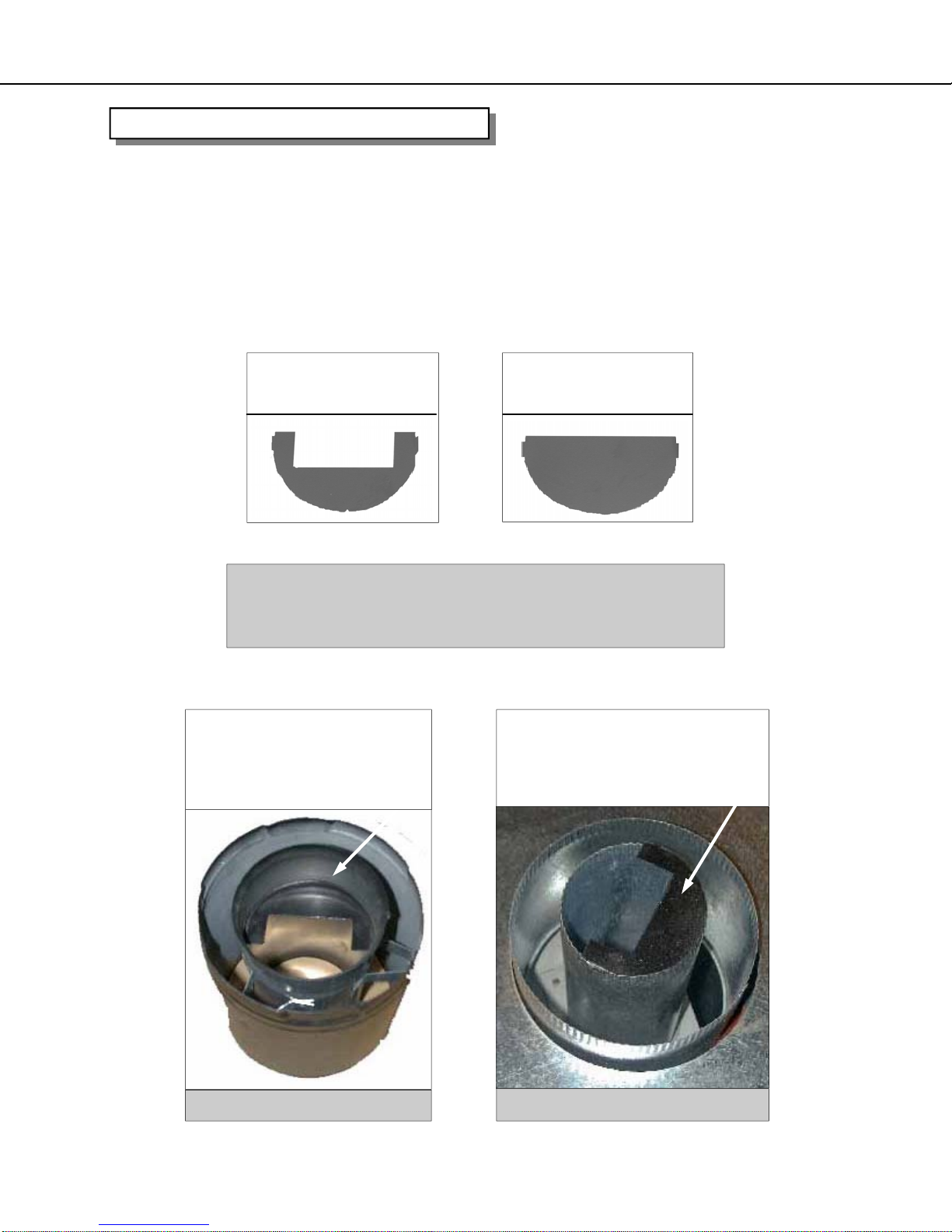

Restrictor Number #1
Rooftop Venting Above
Ten Feet (10’)
Restrictor Number #2
Rooftop Venting Above
Eighteen Feet (18’)
Simpson Dura-Vent
Simpson Dura-Vent
With Simpson Dura-Vent, locate
the restrictor in the exhaust
section fitting into the formed lip.
Archgard System
Archgard System
In the Archgard system, the restrictors
are placed on the exhaust outlet on
the appliance.

Optima 70 - 2 15
VENTING - VERTICAL TERMINATION CHART
• Chart is for one 90° bend, with a 1/4” (6 mm) minimum vertical rise per running foot of
horizontal length.
• For each additional 90° or two 45°, add one foot of vertical height.
• Maximum three 90º bends, or equivalent allowed in the system.
• Minimum 2 ft (610 mm) straight length between bends.
The appliance will not function without being connected to a proper venting system.
This appliance may only use direct vent system supplied by Archgard, or Simpson Dura-
Vent direct vent systems with Archgard SDK-3 adapter.
Please strictly follow the venting instructions for optimum performance
from the appliance and to avoid sooting and/or service calls.
V
E
R
T
I
C
A
L
H
E
I
G
H
T
1.22 1.83 2.44 3.05 3.66 Meters
Note: See instructions on
page 14 for restrictor placement.
Feet
VENTING ABOVE ROOF OF THE HOUSE USING A VERTICAL TERMINATION
Use Simpson Dura-Vent listed direct vent system caps for all vertical vent termination
applications (through the roof).
7.93 M
7.32 M
6.71 M
6.10 M
5.49 M
4.88 M
4.27 M
3.66 M
3.05 M
2.44 M
1.83 M
1.22 M
610 mm
Note: No Installations are
permitted outside of this
range.

Optima 70 - 2 16
1. Maintain 1” (25mm) clearance (air space) to combustibles when passing through ceilings,
walls, roof, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air
spaces with insulation. Check page 15 (Venting Chart) for the maximum vertical rise of
the venting system.
2. Set the gas appliance in its desired location. Drop a plum bob down from the ceiling to
the position of the appliance flue exit, and mark the location where the vent will penetrate
the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the
hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the
roof. NOTE: you may wish to relocate the appliance to avoid cutting load-bearing mem-
bers.
3. A Firestop spacer must be installed in the floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling cut a 10” (254mm) square hole. Frame the hole as shown
Fig. 1. and install the firestop.
4. Assemble the desired lengths of pipe and elbows as outlined in the Venting Chart, nec-
essary to reach from the Appliance adaptor (SDA-3). Ensure that all Simpson Dura-Vent
and/or flexible gas liners are connected and sealed accordingly.
5. Cut a hole in the roof centered on the small drill hole placed in the roof as outlined in
Step 2.
6. The hole should be of sufficient size to meet the minimum requirements for each com-
bustibles of 1” (25mm). Slip the flashing under the shingles (shingles should overlap half
of the flashing) as per Fig.2.
7. Continue to assemble pipe lengths and/or flexible gas venting.
8. Ensure vent is vertical and secure the base of the flashing to the roof with roofing nails;
slide storm collar over the section and seal with a mastic.
9. Install the vertical termination cap by twist-locking it.
NOTE:
• Apply high temperature sealant to inner and outer pipe on every Simpson Dura-Vent
twist-lock joint. See Fig. 3.
10” (254mm)
square hole
framing
firestop
spacer
Fig. 1 Fig. 2
Female
Locking
Lugs
Male
Locking
Lugs
Fig. 3
Sealant
VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE ONLY
The Optima 70 can be vented vertically using Simpson Dura-Vent Direct Vent System. To vent
using Simpson Dura-Vent exclusively, you must use the Archgard SDA-3 Adaptor and connect
the (SDA-3) adaptor to the top of flue outlet on the Optima 70 gas fireplace.

Optima 70 - 2 17
NOTE:
• Galvanized pipe is desirable above the roof-
line due to its higher corrosion resistance.
Continue to add pipe sections throughout the
flashing until the height of the vent cap meets
the minimum height requirements specified in
Fig. 5. or local codes.
• For steep roof pitches, the vertical height
must be increased. A poor draft, or down
drafting can result in high wind conditions,
trees or neighbor's roof lines. In these cases
increasing the height may solve a drafting
problem. REMEMBER to check that you are
within the maximum vertical height restric-
tions, and are placing the appropriate vent
restrictors as outlined in the venting chart
within this manual.
• Any storage spaces or closets which the vent
must pass through must be enclosed.
Flat to 7/12 2 Feet 0.61 Meters
Over 7/12-8/12 2 Feet 0.61 Meters
Over 8/12-9/12 2 feet 0.61 Meters
Over 9/12-10/12 2.5 Feet 0.76 Meters
Over 10/12-11/12 3.25 Feet 1.00 Meters
Over 11/12-12/12 4 Feet 1.22 Meters
Over 12/12-14/12 5 Feet 1.52 Meters
Over 14/12-16/12 6 Feet 1.83 Meters
Over 16/12-18/12 7 Feet 2.13 Meters
Over 18/12-20/12 7.5 Feet 2.29 Meters
Over 20/12-21/12 8 Feet 2.44 Meters
Roof Pitch Minimum Vent Height
Vertical Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
Round Support
Box/wall Thimble
Length of Pipe
Length of Pipe
SDA-3 adaptor
VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE ONLY
Simpson Dura-Vent venting
components are listed on page 22
Typical Vertical venting
configuration using Simpson
Dura-Vent Direct Vent System
Fig. 5
H-represents vent
height
H

Optima 70 - 2 18
The Optima 70 can be used with flexible 4” & 7” (101mm & 178mm) gas liner, and terminate
through the roof using Simpson Dura-Vent by using an SDA-1 (Adaptor, Flex to Simpson Dura-
Vent).
• Refer to the venting chart before considering vertical termination.
• Check the Allowable Termination Locations chart within this manual.
CONNECTING THE SDA-1 ADAPTOR TO FLEX & SIMPSON DURA-VENT
Clearance to combustible material and fire-stops
shall be installed as required by local codes and in
the absence of local codes, in accordance with the
local enforcing authority.
VENTING - VERTICAL TERMINATION using FLEX GAS LINER
FLEXIBLE PIPE CONNECTIONS
1. The intake pipe shall be
securely fastened to the
appliance and to the terminal
and all joints shall be secured
using a minimum of 3 screws
evenly spaced around the pipe.
2. Approximately 1” (25mm)from
the end of the 4” (101mm) pipe
outlet at the appliance and at
the 4” (101mm) terminal inlet
apply a bead of high tempera-
ture silicone approximately
1/4” (6mm) wide. Slide the
4” (101mm) pipe onto the
appliance and secure with 3
screws evenly spaced to the
outlet. Repeat the procedure at
the terminal inlet.
3. Install a vent spacer between
the outer and the inner liner to
maintain clearances. Spacers
shall be installed at every
change of direction and every
3” (76mm).
4. See Fig. 1 & 2 to determine
where to place the SDA-1
adaptor, and connect the SDA-
1 adaptor as shown in Fig. 3.
5. Follow all vertical venting direc-
tions as outlined in the Vertical
termination sections.
Connecting the SDA-1 Adaptor
Slide the 4” (101mm) flex pipe over the 4” (101mm) section of
the SDA-1 Adaptor, and secure with a bead of high tempera-
ture silicone and three screws. Repeat the process for the
7” (178mm) liner. Follow with Simpson Dura-Vent Pipe and
guidelines for installation as outlined within this manual
Flex to Roofline
4” & 7”
(101 mm &
178 mm)
Flex Liner
RTK-1
(991) Term
Head or
Simpsons
Dura-Vent
Term. Head
4” & 7”
(101 mm &
178 mm)
Flex Liner
SDA-1
Adaptor
Simpson
Dura-Vent
System
Flex to Ceiling
RTK-1
(991) Term
Head or
Simpsons
Dura-Vent
Term. Head
SDA-1
Adaptor

Optima 70 - 2 19
PART # DESCRIPTION
TVK-1 Flex Vent Kit with 36” (914 mm) vent length (includes TK-1)
TVK-2 Flex Vent Kit with 60” (1.52 M) vent length (includes TK-1)
TK-1 Horizontal termination head only
C-1 Safety Cage for Horizontal termination head (TK-1)
VSD-1 Vinyl siding deflector
VENTING - HORIZONTALLY USING FLEXIBLE DIRECT VENT SYSTEMS
The Optima 70 can be vented Horizontally by using the Archgard Direct Vent System
of flexible pipe
VENT KIT COMPONENTS (TVK-1)
Horizontal Termination
Cap
7” (mm) & 4” (100mm)
flexible liner
(compressed)
Sleeve Firestop
Sealant
Screws
Spring spacers
NOTE: Pitch the flexible pipe up towards the
Horizontal Termination Cap
VENT ASSEMBLY
4” exhaust vent
with spring spacers Fully assembled Flexible
Direct Vent System
4” and 7” flex pipe
(100 mm x 173 mm)
Firestop
Sleeve (Wall Thimble)
Archgard Horizontal
termination cap

Optima 70 - 2 20
1. Place the Optima 70 in the framing. Locate the centerline of the termination and mark the
wall. Cut an 11” x 10” (279mm x 254mm) hole in the wall. NOTE: a 2” (50mm) x 1-
1/2” (13mm) around the 7” (178mm) liner is required. See Fig. 1 for termination framing.
2. Locate the Horizontal termination head and the 4” (101mm) flexible exhaust pipe, and
“DRY” slip the exhaust pipe over the 4” (101mm) exhaust port on the termination head.
Un-slip the “DRY” connection and apply high temperature sealant to the 4” (101mm) flexi-
ble exhaust port and reattach to the 4” (101mm) exhaust connection on the termination
head and fasten with three screws on the pre-drilled locations. Repeat this same process
with the 7” (178mm) flexible liner.
3. Locate the wall sleeve and cut to the thickness of the wall and slip it through the wall.
4. Locate the Firestop and secure in place with 4 screws.
5. Pull/Straighten the inner 4” (101mm) exhaust pipe to its maximum capacity and “wrap” the
spring spacers at every change of direction. And every 3ft (914mm) if longer lengths of
flexible liner is used. Next pull the 7” (178mm) intake liner over the 4” (101mm) exhaust
liner. NOTE: take care when “pulling/stretching out the liners, inspect for “breaks” in the
liners or in the termination head. Any “breaks in the venting system will cause poor flame
and improper combustion.
6. Slip the assembled liner and termination head through the wall sleeve and make sure the
termination cap faces up and fasten the termination head to the wall with 4 screws pro-
vided with the kit. NOTE: If installing the termination head to vinyl or wood siding a Vinyl
Siding Deflector (VSD-1) is required. The VSD-1 must be set on top of the horizontal ter-
mination cap (fin side out) and then the two screws holding the termination cap are used
to secure the termination head and VSD-1.
7. Apply high temperature sealant over the fireplace’s inner exhaust collar and slip the
4” (101mm) inner flexible exhaust liner down over it and attach the connection with three
screws.
8. Repeat with the 7” (178mm) liner.
9. Apply a bead of all weather silicone (not provided) around the termination head & house
to prevent water from entering in.
INSTALLATION PROCEDURES ARCHGARD DIRECT VENT (FLEX) SYSTEM
VENTING - HORIZONTALLY USING FLEXIBLE DIRECT VENT SYSTEMS
NOTES:
• If installing a Vinyl Siding Deflector (VSD-1)
attach the VSD-1 to the front top of the
horizontal termination head “fin side out” to
ensure the termination head is not re-
cessed into the siding.
• Horizontal sections of pipe MUST be sup-
ported every 3’ (914mm).
• Spacers shall be installed at every change
of direction and every 3’ (914mm) if using
additional flexible pipe.
IMPORTANT: Do not locate termination head where excessive snow or ice build up may occur.
Check termination head area after every snow fall, and clear if necessary to prevent blockage.
If using snow blowers, make sure snow is not directed at the termination head.
NOTE: Be sure to include 1/4”
(6mm) rise per foot of
horizontal length.
Termination Framing
11” (279 mm)
10”
(254 mm)
Fig. 1.
