Archos TV+ User manual

Dear Customer,
Thank you for choosing this ARCHOS product. We hope that you will enjoy
using it and that it will give you satisfaction for many years to come.
Please do register your product on our website (www.archos.com/register) to
ensure that you get access to our help line, to the ARCHOS Content Portal,
and the TV Program Guide.
Wishing you the best multimedia experience,
The ARCHOS Team.
All the information contained in this manual was correct at the time of
publication. However, as we are often updating and improving our prod-
ucts, your device’s software may have a slightly different appearance or
modied functionality than presented in this manual.
ENGLISH
Please visit www.archos.com/manuals to download the latest version of this manual.
TV+
ENGLISH USER MANUAL Version 1.0
Entertainment way

MANUAL V1.0
TV+ TABLE OF CONTENTS > P. 2
Table Of COnTenTs
sTarTing up...........................................................................................4
DESCRIPTION OF THE ARCHOS DEVICE. . . . . . . . . . . . . . . . . . . . . . . . . . 4
CONNECTING THE ARCHOS TO YOUR TV . . . . . . . . . . . . . . . . . . . . . . . . . 7
THEINSTALLATIONWIZARD ..................................9
TURNINGTHEARCHOSON/OFF................................9
USINGTHEARCHOSINTERFACE..............................10
PRODUCTCARE...........................................11
1. playing VideO .................................................................................12
1.1 BROWSING THROUGH YOUR VIDEOS . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2VIDEOPLAYBACK.......................................13
1.3VIDEOPLAYERSETTINGS.................................15
1.4RECORDINGVIDEO......................................16
1.5 PLAYING YOUR PC’S SHARED VIDEOS. . . . . . . . . . . . . . . . . . . . . . . 16
2. playing MusiC...............................................................................17
2.1 BROWSING THROUGH YOUR MUSIC FILES. . . . . . . . . . . . . . . . . . . . 17
2.2MUSICPLAYBACK ......................................18
2.3MUSICPLAYERSETTINGS ................................20
2.4PLAYLISTS............................................22
2.5 RECORDING ANALOGUE AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.6 PLAYING YOUR PC’S SHARED MUSIC . . . . . . . . . . . . . . . . . . . . . . . 24
3. Viewing phOTOs ..........................................................................26
3.1 BROWSING THROUGH YOUR PHOTOS. . . . . . . . . . . . . . . . . . . . . . . . 26
3.2PHOTOVIEWER.........................................27
3.3PHOTOVIEWERSETTINGS................................29
3.4PLAYINGASLIDESHOW..................................29
3.5 VIEWING PHOTOS WHILE LISTENING TO MUSIC . . . . . . . . . . . . . . . 30
3.6 PLAYING YOUR PC’S SHARED PHOTOS . . . . . . . . . . . . . . . . . . . . . . 30
4. using The file brOwser .......................................................31
4.1NAVIGATION...........................................31
4.2 USING THE FILE BROWSER WHILE LISTENING TO MUSIC . . . . . . . . 33
4.3USINGTHEPDFREADER .................................33
5. using The wifi feaTures ....................................................35
5.1BROWSINGTHEWEB....................................35
5.2 PLAYING YOUR PC’S SHARED MEDIA FILES . . . . . . . . . . . . . . . . . . 37
5.3 THE ARCHOS CONTENT PORTAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
TABLE OF CONTENTS CONTINUED ON NEXT PAGE...

MANUAL V1.0
TV+ TABLE OF CONTENTS > P. 3
6. Transferring files..................................................................41
6.1USBHOSTCONNECTION .................................41
6.2 BROWSING OTHER COMPUTERS ON THE NETWORK . . . . . . . . . . . . 42
6.3 CONNECTING THE ARCHOS TO A COMPUTER . . . . . . . . . . . . . . . . . 43
7. Main seTTings............................................................................. 46
7.1“SOUND”SETTINGS.....................................46
7.2“TVSETTINGS”.........................................47
7.3“APPEARANCE”SETTINGS................................48
7.4“NETWORK”SETTINGS ..................................49
7.5 “LANGUAGE AND REGION” SETTINGS . . . . . . . . . . . . . . . . . . . . . . . 52
7.6“TVCONTROL”SETTINGS ................................53
7.7“CLOCK”SETTINGS.....................................53
7.8 “FIRMWARE AND PLUG-INS” SETTINGS . . . . . . . . . . . . . . . . . . . . . 54
7.9UPDATINGTHEFIRMWARE ...............................54
7.10“SYSTEM”SETTINGS...................................55
8. TV reCOrding: hardware seTup ..................................58
8.1CONNECTIONPRINCIPLES................................58
8.2 CONNECTING A TUNER TO YOUR ARCHOS. . . . . . . . . . . . . . . . . . . . 58
8.3 CONNECTING WITH A TV ONLY (NO EXTERNAL TUNER) . . . . . . . . . 61
9. The TV prOgraM guide..........................................................62
9.1 WHAT’S REQUIRED TO USE THIS FUNCTION? . . . . . . . . . . . . . . . . . 62
9.2 ACTIVATING THE TV PROGRAM GUIDE ONLINE . . . . . . . . . . . . . . . . 62
9.3 TRANSFERRING THE PROGRAM DATA TO THE ARCHOS . . . . . . . . . 63
9.4 CONFIGURING THE TV CONTROL SETTINGS . . . . . . . . . . . . . . . . . . 63
9.5 SCHEDULING YOUR RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
10. OTher reCOrding funCTiOns..........................................68
10.1THE“TVSCHEDULER”..................................68
10.2 RECORDING VIDEO MANUALLY . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
10.3 RECORDING AUDIO MANUALLY . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
10.4EDITINGYOURRECORDINGS.............................71
TrOubleshOOTing ..........................................................................74
RESTARTING / RESETTING YOUR ARCHOS . . . . . . . . . . . . . . . . . . . . . . 74
SYSTEMRECOVERY........................................74
REPAIRANDFORMATTINGTOOLS.............................75
TeChniCal speCifiCaTiOns........................................................77
TeChniCal suppOrT infOrMaTiOn ..........................................................................79

MANUAL V1.0
TV+ STARTING UP > P. 4
sTarTing up

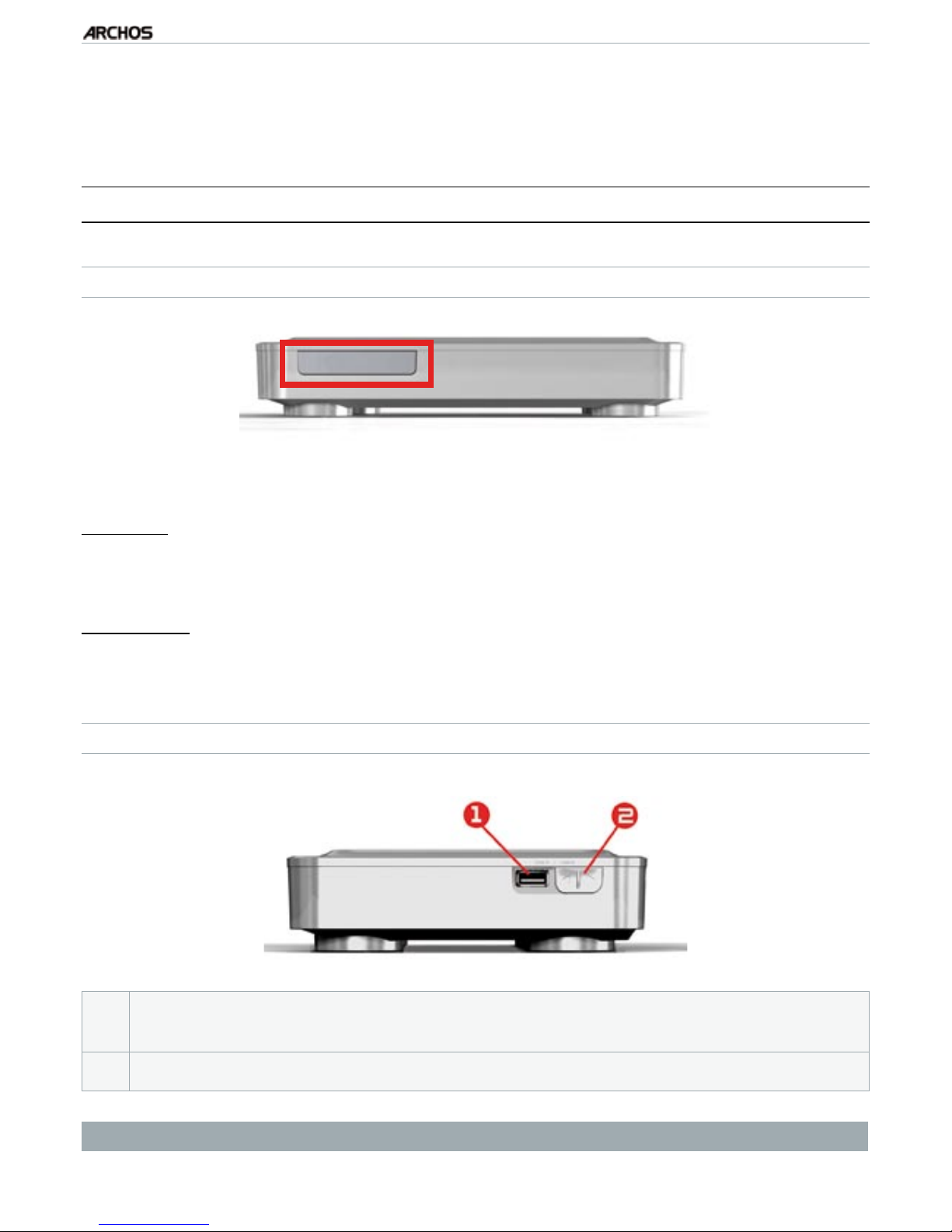

desCripTiOn Of The arChOs deViCe
LED INDICATORS
The LED indicators are located on the front of the device, on the left side:
Red light:
light on: the ARCHOS is in standby mode.
ashing: the ARCHOS is starting.
Green light:
light on: the ARCHOS is on.
CONNECTORS
On the right side of the device:
1.
USB A Connector (for USB Host) to connect a compatible USB device such as
a USB Flash key, a digital camera or a portable media player.
2.
USB B Connector (with optional cable): to connect the ARCHOS to a computer.
See Transferring Files to learn how to transfer les to/from another USB device.
•
•
•

MANUAL V1.0
TV+ STARTING UP > P. 5
On the back of the device:
3.
Reset button: ONLY use this button if you need to restart the InstallationWizard.
When you press this button, the ARCHOS will restart and a message will pop up
to conrm the relaunch of the wizard. If you do not respond within 10 seconds,
the wizard will be automatically relaunched. See: The Installation Wizard .
ATTENTION: if you use the reset button and relaunch the wizard, no
data will be erased but your TV connection settings will be lost, and you
will have to set them up again through the wizard.
4. SPDIF Out*:
to connect to an amplier that has an SPDIF audio input (such as
a ‘home cinema’).
5. Audio/Video inputs and outputs:
to connect to the Audio and Video con-
nectors of your TV (and tuner), using the supplied cables. Audio/Video inputs
and outputs available: RGB**, Component (YPbPr)*, Composite Video**, S-
Video***, Stereo Analog Audio.
Check the manual of yourTV (and tuner) to see what types of connectors your
device has.
6. Ethernet connector*:
you can plug an Ethernet cable to connect to the
Internet and to your local network.
7. DC in:
to connect the included power adapter.
In the event that your ARCHOS freezes or does not respond anymore,
disconnect the power adapter, wait for 15 seconds and reconnect it.
When the red LED indicator stops blinking, press the Power button on
the supplied remote control to turn on your device.
8. HDMI Out*:
to connect to a television that has an HDMI input (such as an ‘HD
Ready’ TV).
* requires optional cable(s)
** US: requires optional cable(s)
*** Europe: requires optional cable(s)

MANUAL V1.0
TV+ STARTING UP > P. 6
THE REMOTE CONTROL
You will need the remote control in order
to control your ARCHOS TV+.
Your ARCHOS device has an infrared re-
ceiver located on the front of the device,
on the left side (next to the LED indica-
tors). Point the supplied remote control
towards the infrared receiver.
•
•
1.
This part of the remote control is used for the Web Browser.
Use the direction pad to move the cursor that appears on the screen.
Pressing this button will activate 2 modes at the same time:
the “left button lock” mode: the direction pad will act as if you
moved a mouse while holding its left button at the same time. It will
allow you, for example, to use sliders or other dragging controls.
the navigation buttons, at the top right, will allow you to move from
one link/eld to another (normally they scroll the page up/down).
Press again to disable these 2 modes.
-
-
This button is like a mouse’s left button. Depending on where you are in
the interface, it will allow you to open a link, execute a function, etc.
This button is like a mouse’s right button. Depending on where you are
in the interface, pressing this button will display a contextual menu.
2.
These are the main buttons:
Navigation buttons: move from one item to another
Enter/Accept or Play/Pause/Resume
Exit button: Escape/Back/Stop
Up Accelerator button: High-speed fast forward, list scrolling or zoom in

MANUAL V1.0
TV+ STARTING UP > P. 7
Down Accelerator button: High-speed fast rewind, list scrolling or zoom out
Menu button: Display a text description of the available menu icons
Switch the display of the image between the ARCHOS and a tuner (not
in HDMI output mode), if you have connected one to the ARCHOS’ in-
put connectors. See TV Recording: Hardware Setup.
Power button: Turn the ARCHOS on/off
Volume buttons: Increase/decrease volume
Mute sound
Tab button: Tab between available screens
3.
The keyboard can be used to enter a Web address, write an e-mail, name/re-
name a folder, etc:
Caps Lock key
Green Alt key: enable the keys’ green secondary functions
Blue Alt key: enable the keys’ blue secondary functions
Shift key
delete character before cursor
In order to type one of the green/blue secondary characters in capital letters
(é, è, ç, etc.), press Caps Lock, then Alt green/blue, and press the correspond-
ing key.
COnneCTing The arChOs TO yOur TV
Connection Diagram for Europe:

MANUAL V1.0
TV+ STARTING UP > P. 8
Connection Diagram for North America: *
* North America: If your TV does not have an S-video input connector, use a
standard male/male RCA cable (on the yellow video jack) instead of the sup-
plied S-video cable.
Connect the ARCHOS’ outputs to your TV’s inputs as shown above. If you have an
HDMI cable, you can connect it now.
Connect the included power adapter to the jack labeled dC-in on the back of the
ARCHOS.
Then plug the other end of the power adapter into an available wall socket.
The rst time you connect the power adapter, the ARCHOS will start automati-
cally. The red LED indicator will start blinking while the device is starting. When
the ARCHOS is on, the green LED will light up.
Use only the supplied ARCHOS power adapter as other adapters may damage
this device (even if they give the same voltage rating).
Make sure that your TV is switched to the AV input which the ARCHOS is con-
nected to (on the back of the TV).
Once the ARCHOS turns on (green light), your device will cycle between three
different video output modes in order for you to select the correct one. Wait until
you see an image in color on your TV (this may take up to 30 seconds), and press
OK on the remote control.
Then follow the on-screen instructions (Installation Wizard) to nish installing the
ARCHOS.
See TV Recording: Hardware Setup to learn how to connect a tuner to the ARCHOS
in order to schedule a TV recording (manually or via the TV Program Guide).
1.
2.
3.

4.
5.
6.

MANUAL V1.0
TV+ STARTING UP > P. 9
The insTallaTiOn wizard
The Installation Wizard will help you congure the main functions of the ARCHOS.
If you ever need to relaunch the Installation Wizard, press the reset button. The
ARCHOS will restart and a message will pop up to conrm the relaunch of the
wizard. If you do not respond within 10 seconds, the wizard will be automatically
relaunched.
ATTENTION: if you use the reset button and relaunch the wizard, no data will
be erased but your TV connection settings will be lost, and you will have to set
them up again through the wizard.
NAVIGATING INSIDE THE WIZARD
In the different screens of the wizard, use the up/down navigation buttons on the
remote control to highlight a parameter.
Use the left/right buttons to select a different setting for a parameter.
When you have nished adjusting your settings, use the navigation buttons to high-
light “Next” and press OK on the remote control to move on to the next screen.
If you want to go back to a previous screen, select “Previous”.
CONFIGURING THE WIFI/ETHERNET CONNECTION
At the end of the Installation Wizard, in the “Network” screen, you are invited to
congure your WiFi/Ethernet connection.
Choose “WiFi”, “Ethernet Cable” (standard Ethernet cable not supplied) or
“None”, based on the way you want to connect to the Internet (or local network).
If you do not have access to the Internet, select “None”.
See “Network” Settings .
Turning The arChOs On/Off
Press the Power button on the remote control to turn on your ARCHOS or put
it into standby mode.
The green LED indicator, on the front of the device, lights up when the device is
on. The red LED lights up when the device is in standby mode.
•
•
•
•
•
•
•
•
•
•
•

MANUAL V1.0
TV+ STARTING UP > P. 10
In the event that your ARCHOS freezes or does not respond anymore, discon-
nect the power adapter, wait for 15 seconds and reconnect it. When the red
LED indicator stops blinking, press the Power button on the supplied remote
control to turn on your device.
using The arChOs inTerfaCe
INTERFACE DESCRIPTION
Status Bar
In the top right corner of the screen, the status
bar indicates the ‘network connection’ status
(WiFi or Ethernet), the volume level and the cur-
rent time of your device.
•
Tabs
In the top left corner of the screen, the tabs area
shows other available applications and screens. They
vary, depending on where you are in the interface.
When there is only one tab available, the Tab icon in
the top left corner is grayed out.
•
•
Contextual Menu
In the lower right corner of the screen, the contextual menu area
shows the menu icons.The available options will vary, depending on
where you are in the interface.
In the Home screen, choose the “Settings” menu item to access the
main settings of your ARCHOS.
In the Home screen, the “Resume” menu item allows you to resume
the last-played music or video le, if it was interrupted before the end.
If the “Resume” menu icon does not appear, it means that no music
or video le playback can be resumed.
•
•
•
Home Screen
This is the main screen of your ARCHOS, showing
its main functions.
•
