AREBOS AR-HE-SD58B User manual

User’s Manual – AREBOS Solar Shower
1
Solar shower
AR-HE-SD58B
Please follow all security measures in this user’s manual to ensure a secure use.
Thank you for trusting in AREBOS.

User’s Manual – AREBOS Solar Shower
2
List of contents
1.Safety instructions ..............................3
1.1 Explanation of the symbols................................... 3
1.2 General instructions.............................................. 3
2.Parts list..............................................4
3.Assemble instructions .........................5
4.Use .....................................................6
4.1 Initial set up of the shower ................................... 6
4.2 Winterization ........................................................ 6
5.Technical specifications.......................7
6.Disposal instruction ............................7
6.1 Disposal of the packaging ..................................... 7
6.2 Disposal of waste equipment................................ 7

User’s Manual – AREBOS Solar Shower
3
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
1.Safety instructions
1.1 Explanation of the symbols
1.2 General instructions
•Chose a position for the shower where solar irradiation is a high as possible.
•Attach the shower to a concrete slab or a wooden foundation using the four threaded
sleeves, four screws and four washers.
•Do not use road salt or other antifreeze, which might damage the shower. If you do use
antifreeze, your warranty will be void.
•Recommended water pressure: 3.5 bar
•In order to avoid scald, always set the shower handle on cold water (blue) before taking a
shower.
•Children should always be supervised by adults so that they do not scald themselves.
•Water temperature can reach up to 60°C at high solar irradiation. In order to avoid scald,
make sure that shower handle is always set on cold water (blue) before taking a shower. That
is why children should always be supervised by adults when using the shower so that they do
not scald themselves
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
Caution! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the manual well!
Caution! Hot surface!
Caution! Hot water!

User’s Manual – AREBOS Solar Shower
4
2.Parts list

User’s Manual – AREBOS Solar Shower
5
3.Assemble instructions
1. Choose a location which will receive as much sunlight as possible.
2. Mount the shower base to concrete slab or wood base with four bolts and nuts. Using a
wrench is recommended (Fig. 1).
3. Attach shower head to extension pipe. Then connect extension pipe to the upper tube with
an adjust nut. Do not use a wrench (Fig. 2).
NOTE: Do not forget gaskets when connection the shower head and extension pipe.
4. Put 0-Ring on the slot of the lower tube (Fig. 3).
5. Lift upper tube on lower tube (Fig. 3).
6. Turn locking ring clockwise to securely connect upper tube to lower tube (Fig. 3).
NOTE: Handle and shower head need to face the same direction.

User’s Manual – AREBOS Solar Shower
6
4.Use
4.1 Initial set up of the shower
1. Turn the handle to FULL ON HOT position.
NOTE: Filling in the water with the handle on the “full on hot” position ensures no air pockets
are trapped in shower.
2. Attach garden hose to hose connector. Turn on water supply to the garden hose to fill the
shower. It will take 4-6 minutes to fill up the shower.
3. When water flows from shower head, turn handle off. Turning the handle off makes the
water begin to heat up in the tubes.
4. Depending on the sunlight and outside temperature, the shower will take about two hours to
fully heat up water.
5. Water temperature in shower can reach up to 60°C in strong sunshine.
•WARNING: To avoid scald, pay attention to turn the handle to COOL WATER (blue) position
before using the shower. Then set to desired temperature.
4.2 Winterization
1. Turn off and disconnect garden hose.
2. Open the handle to “full on hot” position and allow water to drain from hose connector
(approximately 8-10 minutes).
NOTE: Do not tough or turn handle while draining the water, otherwise water will stop
draining out.
3. Turn locking ring counter clockwise to unthread upper tube and lower tube.
4. Unbolt lower tube and pour remaining water out of the tube.
5. Clean and dry the shower parts.
6. Store the shower indoors in a dry place during winter season. Prevent the shower from
frostbite.
NOTE:
•Do not use salt or other anti-freezing methods.
•Recommended water pressure: 3.5 bars.
•Always start your shower from cool to avoid injury.
•When initially using the shower please let water run for several minutes and clean the
inner parts of the shower with running water in order to get rid of plastic and oil smell.

User’s Manual – AREBOS Solar Shower
7
5.Technical specifications
Model
AR-HE-SD58B
Tank capacity
35 l
Max. Water temperature
60°C
Material
Plastic chromed
Size mounting plate of the shower
7.09 x 5.71 in (18 x 14.5 cm)
Height of the shower head
76.8 in (195 cm)
Height of the shower
86.6 in (220 cm)
Diameter shower head
5.9 in (15 cm)
Water pressure
3.5 bar
Net weigth
19.90 lbs (9.0 kg)
Colour
Black
6.Disposal instruction
6.1 Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
6.2 Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
•At the end of the long life of your article, please dispose of the valuable raw materials for proper
disposal so that proper recycling can take place. If you are not sure how to proceed, the local
waste disposal companies or recycling centers are happy to help.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s Manual – AREBOS Solar Shower
8
EU Declaration of Conformity
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: AREBOS Solar Shower
Model Nr.: AR-HE-SD58B
Art. Nr.: 4260199760024
If the product has any modification not allowed by us, this declaration loses its validity.
Tested acc. to:
EU Standard
2001/95/EC

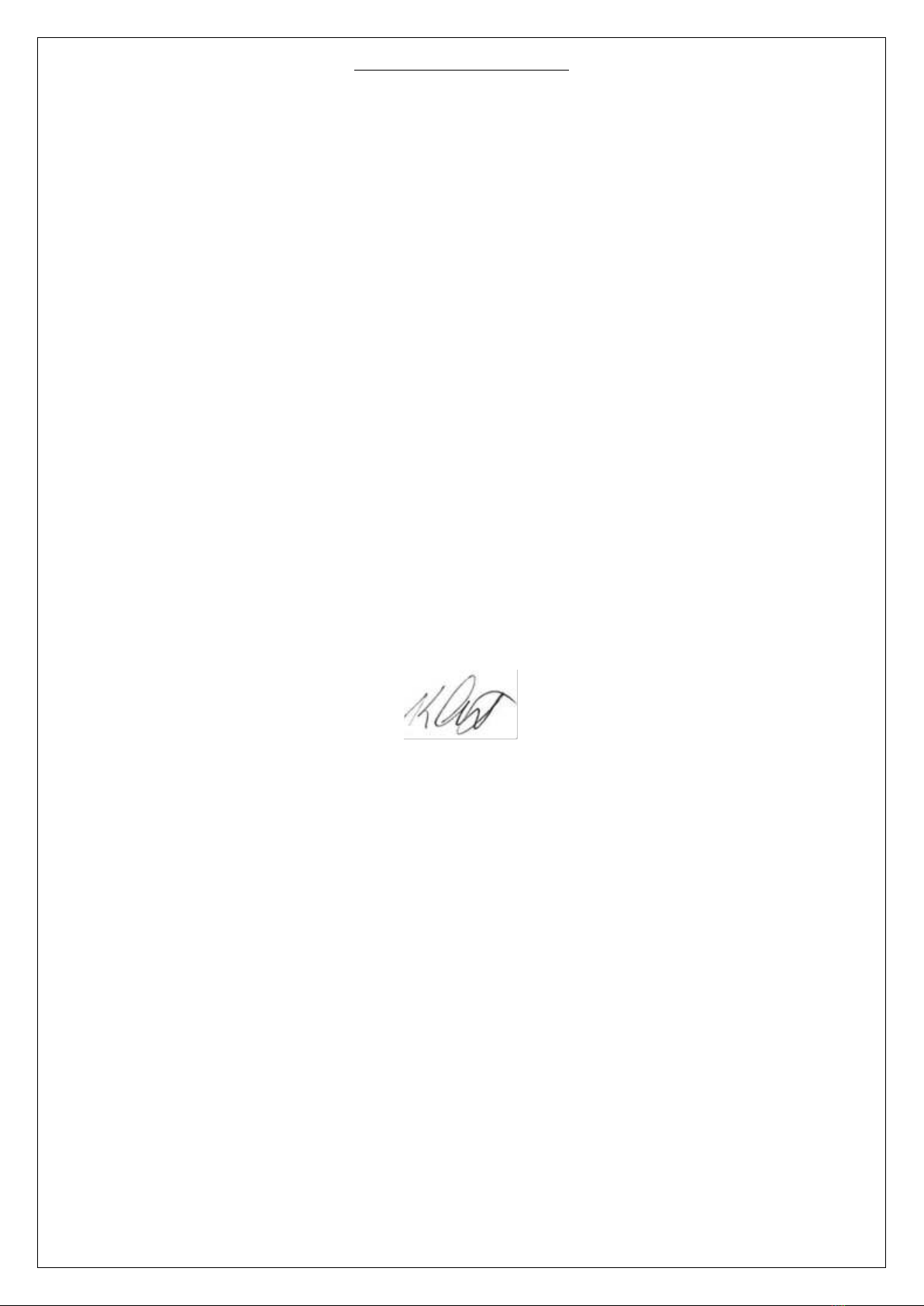

Date/Manufacturer Signature/Location: Würzburg, 28/05/2020
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
