AREBOS AR-HE-RRG500W User manual

Original manual –AREBOS Pipe cleaning device
1
Pipe cleaning device
AR-HE-RRG500W
Please follow all security measures in this user’s manual to ensure a secure use.
Thank you for trusting AREBOS.

Original manual –AREBOS Pipe cleaning device
2
List of content
1. Safety instructions.................................................3
1.1 Explanation of the symbols ............................................ 3
1.2 General safety instructions............................................. 4
1.3 Safety instructions for handling electrical equipment.... 4
1.4 Residual risks .................................................................. 5
2. Commissioning ......................................................5
3. Delivery and usage ................................................6
4. Control and inspection...........................................8
5. Technical data........................................................9
6. Disposal instructions..............................................9
6.1 Disposal of the packaging ............................................... 9
6.2 Disposal of old equipment.............................................. 9
6.3 Meaning of the “garbage can” symbol ........................... 9

Original manual –AREBOS Pipe cleaning device
3
Please read and safe these instructions. Read through this user’s manual carefully before using this
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
1.Safety instructions

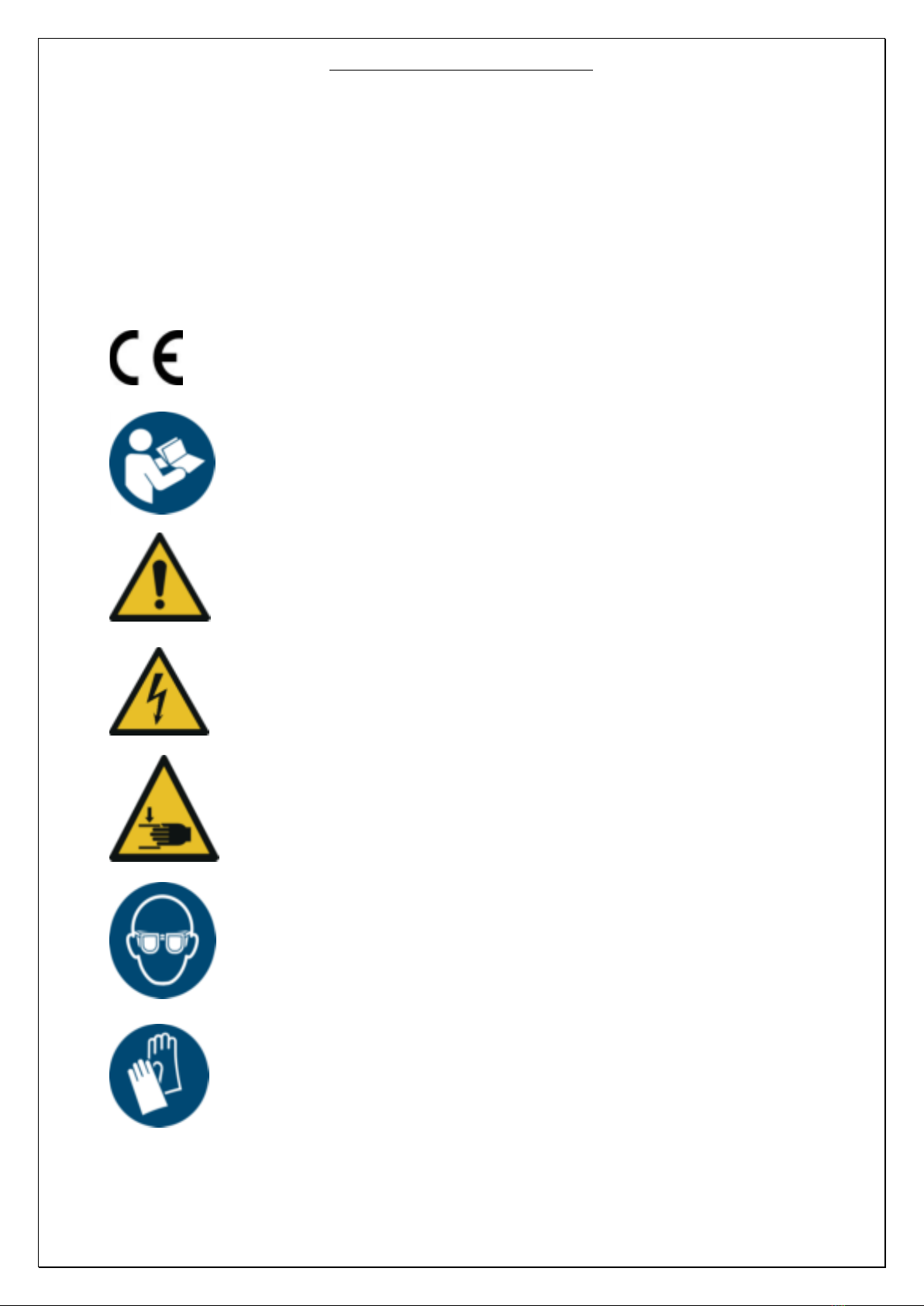

1.1 Explanation of the symbols
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
Warning of electrical voltage!
Warning! Danger of crushing hands!
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Take special care when using this article.
Warning! Wear safety glasses!
Warning! Wear protective gloves!

Original manual –AREBOS Pipe cleaning device
4
1.2 General safety instructions
•Keep your workspace in order. Disorder in the work area can result in accidents.
•This equipment is not intended for use by persons (including children) with limited physical,
sensory or mental abilities or for lack of experience and/or knowledge, unless they are
supervised or instructed by a person responsible for their safety how to use the equipment.
Children are not allowed to play with the device.
•Take environmental influences into account. Do not expose power tools to rain. Do not use
power tools in a damp or wet environment.
•Do not use power tools where there is a risk of fire or explosion.
•Ensure that the working area is well lit.
•Protect yourself from electric shock. Avoid body contact with earthed parts (e.g. pipes,
radiators, electric cookers, refrigerators).
•Do not overload your power tool. You work better and safer in the specified power range.
•Wear suitable clothing. Do not wear wide clothing or jewelry, they may be caught by moving
parts. When working outdoors, non-slip footwear is recommended. Wear a hair net for long
hair.
•Use protective equipment. Wear protective goggles. Use a breathing mask for dust-
generating work.
•Do not use the cable for purposes for which it is not intended. Do not use the cable to
disconnect the plug or carry the device. Protect the cable from heat, oil and sharp edges.
•Disconnect the plug from the outlet. When not using the power tool, before maintenance
and when changing tools such as saw blades, drills, milling cutters.
•Avoid unintentional start-up. Make sure that the switch is switched off when the plug is
plugged into the socket.
•Use extension cords for outdoor use. Only use extension cords that are approved for this
purpose and marked accordingly outdoors.
•Be attentive. Pay attention to what you are doing. Go to work with common sense. Do not
use the power tool if you are not concentrated.
•Check the power tool for possible damage. Before continuing to use the power tool, carefully
inspect protective devices or slightly damaged parts to ensure that they are functioning
properly and in accordance with their intended purpose.
•Check that the moving parts function correctly and are not jammed or that parts are
damaged. All parts must be correctly assembled and meet all conditions to ensure proper
operation of the power tool.
•Only connect to sockets with earthing contact. The machine may only be operated via an
earth-leakage circuit breaker with max. 10- 30 mA rated residual current. Observe the
specified mains voltage.
1.3 Safety instructions for handling electrical equipment
•Wear rubber boots (insulation) during cleaning.
•The spiral must be completely removed from the basket before the machine is switched on.
•Before inserting the mains plug into the power connection, make sure that the switch of the
pipe cleaning machine is set to 0 or OFF/OFF.
•When using electrical equipment, always observe the specified mains voltage.
•Select the appropriate tool for the respective blockage and the pipe diameter to be cleaned
to avoid hooking the tool into the blockage and ejecting the spiral out of the pipe.
•Clean only sewage pipes, chimneys, wells etc. with this machine and its accessories to
prevent damage.
•Do not change any tools by grinding or similar to prevent damage to the pipes/pipe bends.
•Use a camera system to detect the cause of blockage in the pipe.

Original manual –AREBOS Pipe cleaning device
5
1.4 Residual risks
•Even if all safety instructions are observed, there are the following residual risks: Spiral can
overturn (form a loop if the working arc is too large) This can result in clamping. In addition,
the spiral can jump out of the pipe under tension - risk of injury!
•The pipe cleaning machines may only be used for cleaning pipes with a diameter of 32 mm to
100 mm.
Attention! The pipe cleaning machines are only designed for short-term operation and must
therefore only be in continuous operation for a maximum of 15 minutes! This device may
only be used as specified.
2.Commissioning
•Insert the plug of the pipe cleaning device into a suitable socket. Make sure the switch is in
the "OFF" position. To loosen the blockage, use only the smallest drill of the diameter and
drill out the blockage first. When the blockage is open and the water is slowly draining off,
drill the blockage completely with the largest possible adapted drill bit. If the blockage is
loosened, a thorough rinse is recommended.
•If present, the pipe wall should be cleaned with a chain drill using running water. Depending
on the blockage, different tools can be attached to the spiral. Select a suitable attachment
and attach it to the spiral. Make sure that the attachment engages correctly in the holder.
The attachment can only be removed using a screwdriver. The attachment may only be
changed if the spiral is not in the device.
•To release the spiral, the side lever must be at the top. You can now simply pull the spiral out
of the unit.
•To be able to use the pipe cleaning device, the white plastic sleeve must be inserted
correctly. Please check the fit of the sleeve before each use. Push the spiral through the
device until the drill comes out of the front of the device.
•The spiral must be carefully guided manually until it is blocked in the pipe. To do this, the
handle must be in the rest position. In this position, the spiral will not rotate, allowing the
spiral to move back and forth within the tube. Use gloves to guide the spiral.
•Position the device a maximum of 50 cm in front of the opening of the pipe to be cleaned.
Insert the spiral into the tube until you feel a counter pressure and the blockage in the tube
is reached. Pull the spiral a further piece out of the device until a working sheet has formed.
Make sure that the working sheet is not too large. Risk of injury!
•Now set the switch to the forward rotation position and actuate the hand lever. If the spiral
has penetrated so far into the pipe that there is no more bend, then form a new working
bend. Repeat this procedure until the blockage has been released.
•If it is difficult to move, it can help to let the spiral turn backwards briefly. The clockwise and
counterclockwise rotation prevents the spiral from sticking. The tool can be released from
the blockage by moving the spiral back and forth and turning it clockwise and
counterclockwise. As soon as the blockage is released or the pipe is cleaned, pull the spiral
back out of the pipe by hand. Make sure that no water or dirt enters the unit.
•Turn off the appliance's switch when the work is finished and disconnect the appliance from
the mains.
•Never change the attachment tool while the spiral is inside the appliance.

Original manual –AREBOS Pipe cleaning device
6
3.Delivery and usage
1. Spiral cable in drum
2. Pipe cleaning device (motor)
3. Spring spiral in receptacle
4. Spiral attachment
5. Tool
6. Cutting attachment
7. Gloves

Original manual –AREBOS Pipe cleaning device
7
Spade cutter
Four blade saw tooth cutter
- To feel what is causing the constipation.
- For finding cables or lost spiral parts.

Original manual –AREBOS Pipe cleaning device
8
Grease cutter
Spiral saw tooth cutter
Disconnect the spiral cables / attachments (1,4 and 6)
•To disconnect the spiral cable (1) or the attachments (4 + 6) on the connectors, insert the
disconnect tool (5) into the hole and use it to press down the push button. Solving is now
possible. If necessary, clean the connection and re-oil.
Connecting the spiral cables / attachments (1,4 and 6)
•To connect the spiral cable (1) or the attachments (4 + 6) to the connectors, push the clean
and lightly oiled part without the push button with the beveled side onto the connector with
the push button. If necessary, press down the push button with the separating tool.
4. Control and inspection
•A visual inspection must be carried out before the pipe cleaning device is put into operation
to detect damage, lose or missing parts and worn parts. The pipe washer must be inspected
immediately if it has been overloaded or subjected to a severe impact. The inspection should
be carried out by a specialist.
•An annual inspection of the pipe cleaning equipment is recommended. Defective parts must
be replaced immediately. If this is not possible, the unit must not be put back into operation.

Original manual –AREBOS Pipe cleaning device
9
•Apply lubricants to all moving parts regularly. Check the cleaner regularly for rust, cracks and
corrosion. Clean the affected areas with an oily cloth. If it is necessary to scrap the cleaner,
please recycle it. Take care of your tools.
•Check the extension cables regularly. Replace them if they are damaged. Keep handles dry,
clean and free of grease and oil.
5. Technical data
Power
500 W
Mains voltage
230 V, 50 Hz
For pipes with a diameter of
20 - 100 mm
Rotations per minute
Up to 400
3 Spiralkabel in Aufnahmedose
Ø 0,9 cm Länge 1 x 5 m
1 Spiralkabel in Trommel
Ø 1,6 cm Länge 4 x 5 m
4 Spiralaufsätze
1x Ø 1,6 cm x 14 cm geschlossen
1x Ø 1,6 cm x 14 cm offen
1x Ø 1,6 cm x 10 cm (1 x Verdickung auf Ø 3 cm)
1x Ø 1,6 cm x 13 cm (2 x Verdickung auf Ø 3 cm)
6. Disposal instructions
6.1 Disposal of the packaging
•Please refer to the guidelines and standards for appropriate disposal of the packaging valid in
your region. In part, the package may consist of plastic bags - watch this respect, with special
care to ensure that this is not out of the reach of children. There is a risk of suffocation!
6.2 Disposal of old equipment
•Old equipment must be disposed of in accordance with the guidelines and regulations of the
local waste disposal department.
6.3 Meaning of the “garbage can”symbol
Protect our environment, electrical appliances do not belong in the household
waste. Use the collection points provided for the disposal of electrical
appliances and hand in your electrical appliances which you will no longer be
using. This will help avoiding the potential effects of incorrect disposal on the
environment and human health. You thus make your contribution to the
recovery, recycling and other forms of recovery of waste electrical and
electronic equipment. Information on where to dispose of your equipment can
be obtained from your local authorities.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

Original manual –AREBOS Pipe cleaning device
10
EU Declaration of Conformity
We, the
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany
Hereby declare that the devices described in the following comply with the relevant, fundamental
safety and health requirements of the EU directives due to their design and construction as well as in
the versions marketed by us.
Product name: Arebos Pipe cleaning device
Article number: 4260627420896
Model number: AR-HE-RRG500W
If the device is modified without our consent, this declaration of conformity loses its validity.
Tested according to:
EU-Norm: EN 60745-2-21
Date/Signature Manufacturer/Location: Würzburg, 12.03.2020
Signature:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Representative of this User Manual/Technical Data:
Dipl.-Inform. (Univ.) Korhan Canbolat, Managing Director
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
97074 Würzburg
You can find the return address in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
The court of entry in the commercial register is Würzburg, HRB 10082
WEEE-Reg.-Nr. DE 61617071
