AREBOS AR-HE-MT51PT User manual

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
1
Multifunction tool 5 in 1 (Premium)
AR-HE-MT51PT
Please follow all security measures in this user’s manual to ensure a secure use.
Thank you for trusting AREBOS.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
2
List of contents
1. Safety instructions.................................................3
1.1 Explanation of the symbols ............................................ 3
1.2 Safety rules..................................................................... 5
2. Parts list ................................................................6
3. Intended Use .........................................................7
4. Commissioning ......................................................7
4.1 Before use ...................................................................... 7
4.2 Refuelling........................................................................ 7
5. Assembly ...............................................................9
6. Use of included attachments & cutting tools........14
6.1 Petrol engine brushes................................................... 14
6.2 Mowing with grass trimmer ......................................... 15
6.3 Hedge shears ................................................................ 15
6.4 Raised pushbutton........................................................ 15
7. Maintenance .......................................................16
7.1 Regular inspections ...................................................... 16
7.2 Replace and clean spark plug ....................................... 16
7.3 Cleaning the air filter .................................................... 17
7.4 Cleaning/replacing the fuel filter.................................. 17
7.5 Adjusting the carburettor (idle speed) ......................... 17
8. Troubleshooting ..................................................18
9. Technical data .....................................................19
10. Disposal instruction ...........................................20
10.1 Disposal of the packaging ........................................... 20
10.2 Disposal of waste equipment ..................................... 20
10.3 Meaning of the "dustbin" ........................................... 20

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
3
Please read and safe these instructions. Read through this user’s manual carefully before using this
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product or
property. Please retain instructions for future reference.
1.Safety instructions
1.1 Explanation of the symbols
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
Wear a head protection!
Warning! Wear ear protection!
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Warning! Wear safety glasses!
Take special care when using this article!
Restrict the use of certain hazardous substances in heavy metals, brominated
flame retardants and and plasticisers to protect human health and the
environment.
Warning! Hot surface

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
4
Warning! Wear protective gloves!
Warning! Wear protective gloves!
Warning! Wear protective clothing!
Warning! Flammable material!
Pay attention to flying stones!
Pay attention to pedestrians!
Do not touch the utility pole!

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
5
1.2 Safety rules
•Read the instruction manual carefully before using the unit. This applies in particular to the
safety instructions. Otherwise you may injure yourself or damage the device.
•Keep the instructions for use for future reference. If you pass the device on to third parties
for use, be sure to also hand over these instructions for use.
•Only use the device as described in this manual. Any other use is considered improper and
may result in property damage or even personal injury.
•This device may not be used by persons who are not familiar with the operating instructions,
children under the age of 16 or persons who are under the influence of alcohol, drugs or
medication, tired or ill.
•All persons with limited physical, mental or sensory abilities may only use the machine under
supervision.
•The warranty for this device expires with:
-improper handling
-Non-observance of the operating instructions
-Repairs by third parties, unauthorized specialists
-Installation and replacement of non-original spare parts
-improper use
-Failure of the electrical system to comply with electrical regulations and VDE regulations
•Only persons who have been instructed in the use of the tool and are therefore aware of the
dangers involved may work on the tool.
•Clean the machine completely, especially the fuel tank and the air filter. After using the
machine, all fuels must be removed.
•Never touch the drill while the machine is running. If it is necessary to replace the protection
or the drilling tool, be sure that the machine and the drilling tool have come to a standstill.
•The machine must be switched off before changing the working area of the machine.
•If the machine is defective, do not allow it to continue running.
•When starting or operating the machine, never touch hot parts such as the exhaust, the
ignition cables or the spark plug.
•After the machine is stopped, the exhaust is still hot.
•Never place the machine near flammable materials (dry grass, flammable gases or flammable
liquids, etc.).
•Pay particular attention to the fact that the ground may be slippery when operating in the
rain or immediately after the rain.
•If you fall to the ground, release the throttle immediately.
•Take care not to drop the machine or hit it against obstacles.
•Before adjusting or repairing the machine, be sure that the machine is stopped and the spark
plug connector is disconnected.
•If the machine is to be stored for an extended period of time, drain fuel from the fuel tank
and carburetor, clean the parts, place the machine in a safe place and ensure that the
machine has cooled down completely.
•Perform continuous checks to ensure safe and efficient operation of the machine. For a
Please note the sound power level.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
6
complete check, please contact a specialist workshop.
•Keep the machine away from fire or sparks.
•Be careful when using the machine. There is a risk of kickback and recoil.
2. Parts list
Part number
Designation
1
motor drive unit
2
locking
3
stop switch
4
handle
5
throttle
6
high caliper
7
oil pump
8
hedge shears
9
adjusting lever
10
cutting unit
11
1m extension 9-tooth
12
motor scythe attachment
13
thread bobbin
14
cutting blades

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
7
3. Intended Use
•Motor brush (use the cutting knife):
Cutting of light wood, strong weeds and undergrowth.
•Lawn trimmer (use the thread bobbin with cutting thread):
Cutting lawns, grass areas and light weeds.
•Hedge shears:
Cutting hedges, bushes and shrubs
•High-pedestal:
branch-removal work on trees
•Attention: The Multitool is not suitable for extensive sawing work and tree felling. Do not
saw materials other than wood. Any other use not expressly permitted in this manual may
result in damage to the machine and constitutes a serious hazard to the user. It is imperative
that you observe the safety instructions given in this manual.
•The Multitool must not be used for the following purposes:
-For cleaning sidewalks
-As a shredder for shredding tree and hedge sections.
-For levelling ground elevations such as molehills.
4. Commissioning
4.1 Before use
•Open the packaging and carefully remove the device.
•Remove the packaging material and any packaging and transport locks (if present).
•Check the scope of delivery for completeness.
•Check the device and accessories for transport damage.
•If possible, keep the packaging until the warranty period expires.
•Before use, familiarize yourself with the device using the operating instructions.
•Attention! The device and packaging material are not children's toys! Children must not play
with plastic bags, foils or small parts! There is a danger of swallowing and suffocation!
•Before each start-up, check the device for
•Tightness of the fuel system.
•Perfect condition and completeness of the protective devices and the cutting device.
•Tight fit of all screw connections.
•Smooth running of all moving parts.
•Before each start-up, check the device for
-Tightness of the fuel system.
-Perfect condition and completeness of the protective devices and the cutting device.
-Tight fit of all screw connections.
-Smooth running of all moving parts.
4.2 Refuelling
•The device is operated with a mixture of petrol (lead-free) and two-stroke engine oil.
•Warning: Never use pure petrol in your engine. This will cause permanent engine damage!
•Never use a fuel mixture that has been stored for more than 90 days.
•Do not use old or dirty petrol.
•Keep the fuel tank dust-free and avoid water getting into the tank.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
8
•Sometimes overloading will cause misfiring which is normal. If the misfire is audible under
normal load, we recommend replacing the fuel.
•Do not overfill the tank (see figure max. level).
•After refuelling, check that the filler cap is properly closed. Avoid spilling gasoline!
•Use petrol with a maximum ethanol content of 10%.
•Petrol: octane rating at least 91 RON, lead-free
•When handling petrol and oil, increased attention should be paid. Smoking and open fire are
not permitted (danger of explosion).
•Do not fill leaded petrol, diesel or other non-approved fuels.
•Do not use petrol with an octane number lower than 91 RON. This can lead to serious engine
damage due to increased engine temperatures.
•If you work continuously at high revs, use gasoline with a higher octane rating.
•For environmental reasons, the use of unleaded petrol is recommended.
•Use only two-stroke engine oil for air-cooled engines.
•Caution: Use only designated and approved containers for transporting and storing fuel. Add
the correct amount of petrol and 2-stroke oil to a mixing bottle. Then shake the container
well. Never use oil for 4-stroke engines or water-cooled 2-stroke engines. This can
contaminate the spark plug, block the exhaust air part or glue the piston ring. Also do not use
fuel mixtures that have not been used for a month or longer. This may clog the carburettor
or affect engine operation. Put any remaining fuel in an airtight container and keep it in a
dark, cool room.
•Caution: Do not use a 2-stroke oil that recommends a mixing ratio of 100:1.
•Mix the fuel mixture according to the fuel mixing table.
Mixing process: 40 parts petrol to 1-part oil
- Example: 1 l petrol: 0.025 l 2-stroke oil
5 l of petrol: 0.125 l of 2-stroke oil.
Mixing procedures
40 parts petrol to 1-part oil
Example:
1 liter petrol
0.025 liters 2-stroke oil
5 liters petrol
0,125 liters 2-stroke oil
•Warning! Watch out for the exhaust fumes! Always switch off the engine before refueling.
Never pour petrol into the appliance while the engine is running or hot. There is a risk of fire!
Refuel only outdoors or in well-ventilated rooms. Make sure that no fuel or chain oil gets into
the ground (environmental protection). Use a suitable surface.
Filling up with petrol:
•Attention! Danger of injury! Gasoline is explosive!
•Refuel the device only outdoors or in adequately ventilated rooms.
•Clean the area around the filling area. Contamination in the tank will cause malfunctions.
•Shake the tank with the fuel mixture again before filling it into the tank.
•Open the fuel filler cap (B) carefully so that any excess pressure can be reduced. (Fig.19)
•Carefully fill the fuel mixture up to the lower edge of the filler neck.
•Close the fuel filler cap (B) again. Make sure that the fuel filler cap closes tightly.
•Clean the fuel filler cap and its surroundings.
•Check the tank and fuel lines for leaks. Before starting the engine, move at least three metres
away from the fuel station.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
9
Draining gasoline:
•Make sure that no fuel or chain oil gets into the ground. Use a suitable surface.
•Empty the tank only outdoors or in well-ventilated rooms.
•Hold a drip tray under the fuel drain plug.
•Unscrew the tank cap and remove it.
•Drain the petrol/oil mixture completely.
•Screw the tank cap back on by hand.
5. Assembly

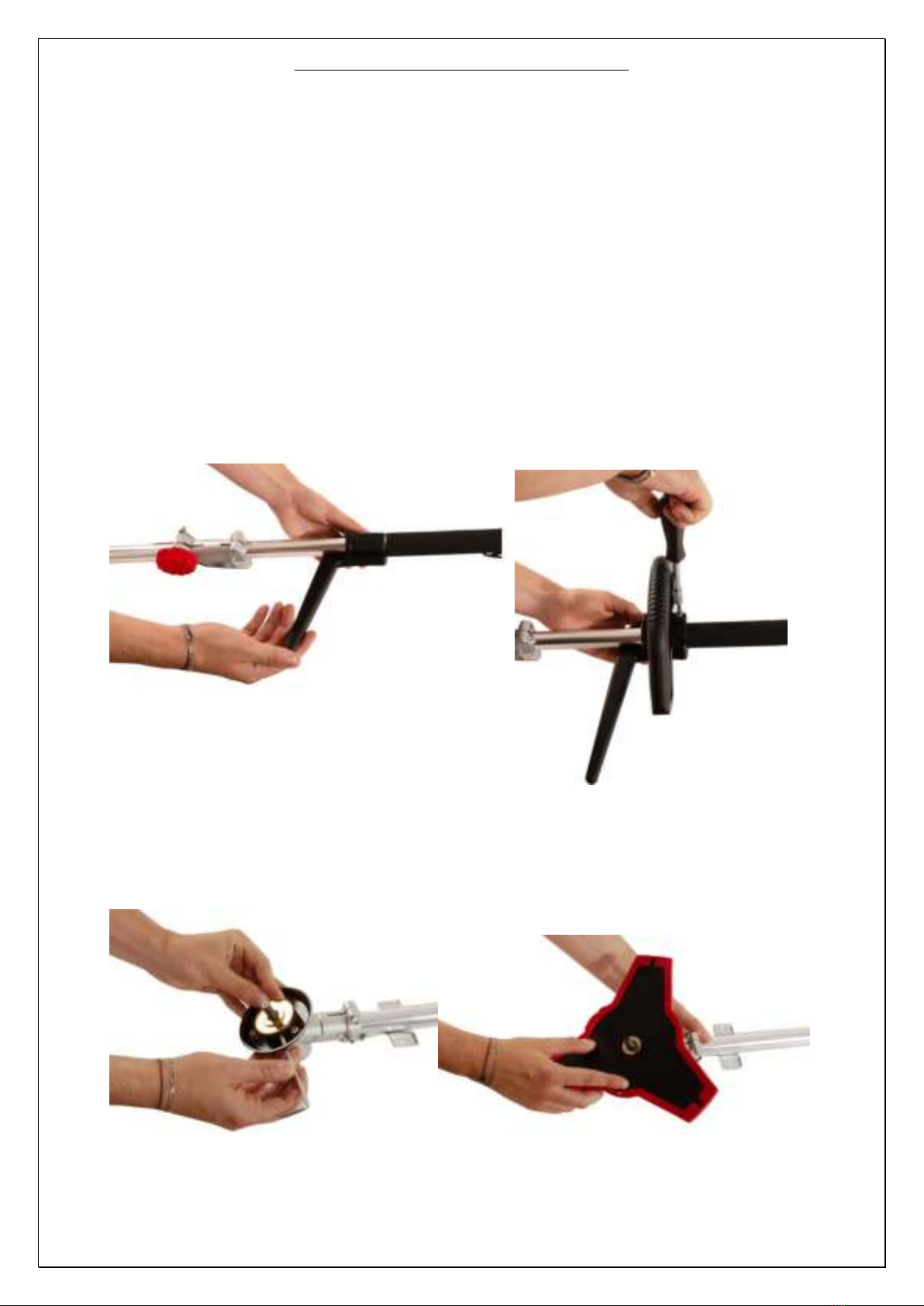

•Mount the handle to the machine: loosen the screws at first until you have made a
comfortable adjustment of the risers. Place the lower half of the handle on the rubber holder
provided and hold it tight. Insert the upper half of the handle to fit and tighten the screws
and nuts.
•Place the cut-off wheel with the serrations pointing downwards into the attachment and
hold it in place with a hexagon key by simultaneously passing it through the hole on the
attachment wheel (silver) and through the hole on the cut-off wheel (gold). A hexagon key
can then be removed.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
10

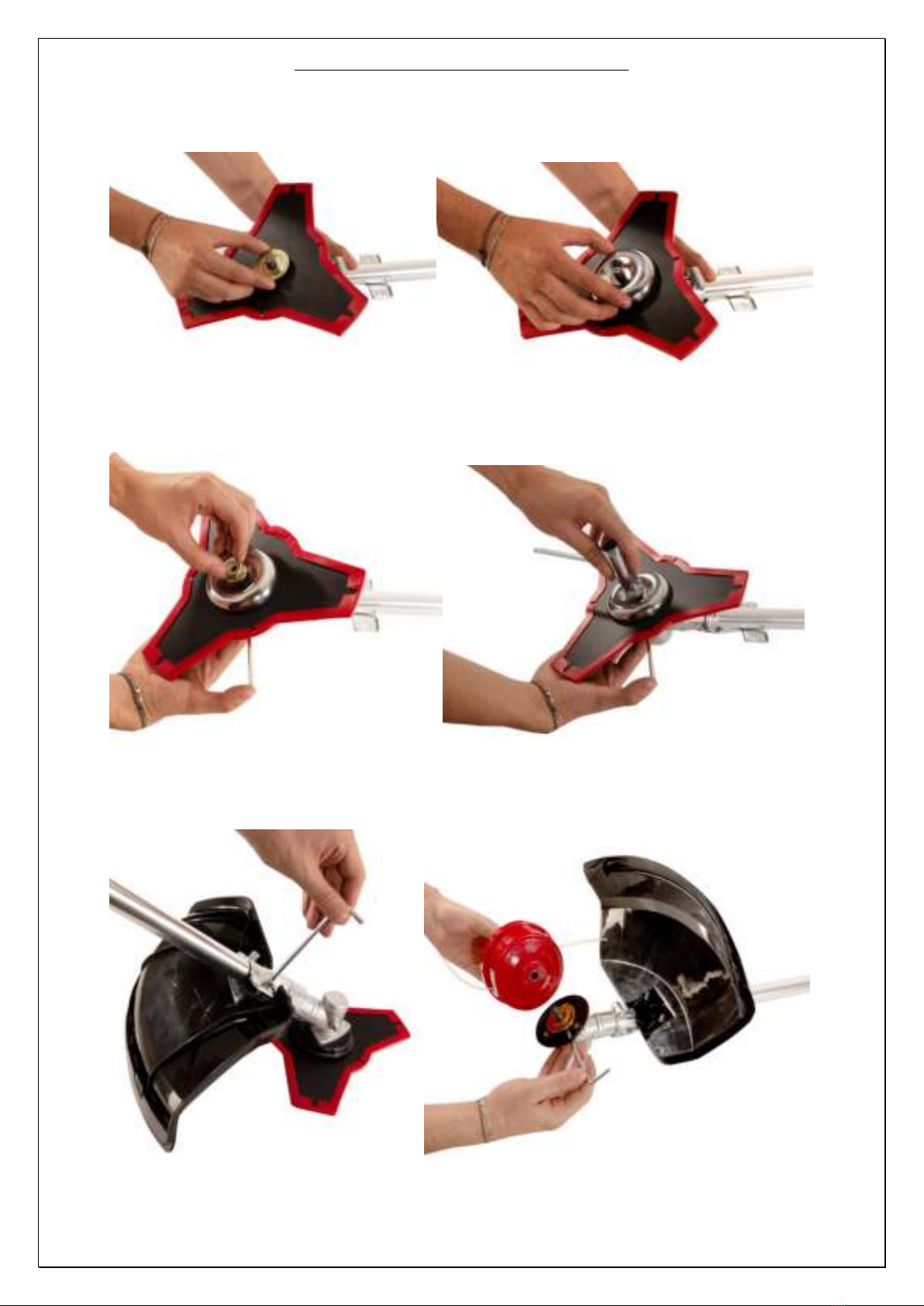

•Place the cutting disc (golden) on the rotor blade as shown. Place the bell on the rotor blade.
•Attention: Left-hand thread! Turn the nut to the left to tighten. Tighten the left-hand thread
as shown using the supplied Allen key.
•Fix the protective shield facing downwards with screws and a hexagon key. Attach serrated
cut-off wheel (golden) to the rod head and fix with hexagon key. This can then be removed.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
11
•Then screw the bobbin attachment to the left onto the thread, hexagon wrench can then be
removed. In the next step, pull the fixing bolt to make the joint flexible.
•Now press the two black levers with thumb and index finger each with pulled fixing bolt to
couple the snap device of the gear wheel. Adjust the attachment rod by turning it. Keep both
levers pressed to bring the attachment rod into the desired starting position. Then remove
the red plastic protection on both sides to use the unit.
•Remove the protective cap at the end of the rod before coupling to the motor. Loosen the
adjustment screw with the supplied slotted screwdriver.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
12
•Insert the chain into the furrows of the saw blade and place the chain on the wheel from
behind, making sure that the saw blade engages under the wheel at a slightly inclined angle.
•Engage the hole of the saw blade in the adjusting screw and hold it in this position. Tighten
the adjustment screw from the other side.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
13
•Place the red plastic housing over the saw blade as shown using the nut.
•Changing the thread bobbin: Open the bobbin case by pressing in at the marked point and
unscrewing the cover. Then remove the cover of the bobbin case.
•Make sure that the bobbin threads do not cross each other.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
14
•Insert the spring in the middle again and place the nut washer on it. Adjust the threads as
desired and allow them to protrude laterally through the openings provided.
6.Use of included attachments & cutting tools
6.1 Petrol engine brushes
•When the machine is switched off, first familiarize yourself with operation and guidance
when working with a petrol engine scythe for the first time.
•Always hold the petrol engine scythe by the handles with both hands.
•Hold the handle with your right hand and the handle with your left hand.
•Attention: The cutting tool will continue to rotate for a short time after the throttle has been
released.
•Always ensure that the engine is idling properly so that the cutting tool does not rotate when
the throttle is not depressed. (see Maintenance)
•If you always work at high speed, you will have the best cutting result.
•Move the machine from left to right and back again with an even, curved movement. Then
cut the next path.
•Attention: Always return the machine to its starting position before cutting the next web!
•When working, knock against a stone or tree, turn off the engine and pull out the spark plug
connector before inspecting the petrol engine brush for damage.
•Attention: Be particularly careful when working in difficult terrain and on slopes. Cut
gradually on tall grass to avoid overloading the machine. First cut the tips, then work your
way forward step by step.
•Note: When using metal cutting tools, there is always a risk of kickback if the tool hits a solid
obstacle (stones, trees, branches, etc.). The tool is thrown back against the direction of
rotation.
•For wild growth and scrub, "dip" the hedge trimmer from above. This chops the material to
be cut.
•Attention: The blade runs after! Do not brake the blade with your hand!
•Keep the knife / cutting unit of the motor scythe away from the feet.
•Attention: Proceed with particular caution when using this technique, because the greater
the distance between the cutting tool and the ground, the greater the risk that the material
to be cut and foreign objects will move to the side.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
15
6.2 Mowing with grass trimmer
•Use the thread cassette to obtain a clean cut even on uneven edges, fence posts and trees.
•Carefully guide the trimming thread towards an obstacle and cut with the thread tip around
the obstacle. If the trimming thread comes into contact with stones, trees or walls, the
thread will fray or break prematurely.
•Never replace the plastic thread with a metal wire - risk of injury!
6.3 Hedge shears
•Keep the hedge trimmer at a safe distance from the body with both hands.
•The maximum cutting diameter depends on the type of wood, age, moisture content and
hardness of the wood.
•Therefore, shorten very thick twigs to the appropriate length with pruning shears before
cutting the hedge.
•First cut the sides of the hedges and then the top edge.
•Cut the hedge from bottom to top.
•Cut the hedge trapezoid. This will prevent the lower part of the hedge from being burned due
to a lack of light.
•Tension a guide along the length of the hedge if you want to trim the top edge of the hedge
evenly.
•Cut in multiple passes when heavy pruning is required.
•Be sure to remove any foreign objects (e.g. wire) from the hedge, as they can damage the
hedge trimmer blades.
•Attention! The knives run after! Do not brake the knives with your hand!
•To reduce the risk of accidents caused by the hedge trimmer, observe the following points:
-Never cut bushes or woods with a diameter of more than 2 cm.
-Avoid contact with metal bodies, stones, etc.
-Check the hedge trimmer regularly for damage. Never use damaged hedge trimmers
again.
-If there is a noticeable imbalance, the hedge trimmer must be replaced.
6.4 Raised pushbutton
Precautions during the sawing procedure
•For safety reasons, never stand under the branch you wish to saw off. In general, it is
advisable to place the branch saw at an angle of 60° to the branch.
•Hold the saw firmly with both hands during the cutting process and always ensure a balanced
position and a good standing position.
•Never try to use your tool with one hand. Losing control of your tool can result in serious or
fatal injury. Never work on a ladder, tree branch, or other unsafe surface.
•Do not saw strong branches in one cut, but always in several steps.
•To cut, attach the saw chain to the branch.
•Apply slight pressure to guide the machine, but do not overload the motor.
•Before cutting, clear the working area of any disturbing branches and undergrowth. Then
create a retreat area away from where cut branches can fall and remove all obstacles. Keep
the working area clear and remove the cut branches immediately. Pay attention to your
location, the wind direction and the possible fall direction of the branches. Place all other
tools and equipment at a safe distance from the branches to be cut, but not in the retreat
area.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
16
7.Maintenance
7.1 Regular inspections
•Attention: Always wear protective gloves when working on and around cutting tools. When
not in use, during transport or storage, always fit transport protection to all cutting tools.
Always switch off the engine and remove the spark plug connector before carrying out
maintenance or cleaning work.
•Do not spray the unit with water. This will damage the engine.
•Do not clean the unit with running water or high-pressure cleaners.
•Clean the unit with a cloth, a hand brush, etc.
•Use a damp cloth to clean the plastic parts. Do not use cleaning agents, solvents or sharp
objects.
•Keep the handles free of oil and grease.
•Make sure that the ventilation slots for the motor cooling are free (danger of overheating).
•Also keep the cooling fins for the cylinder free of dust and dirt.
•For technical reasons, wet grass and weeds wrap themselves around the drive axle under the
cutting guard during the course of work. Remove this as otherwise the motor will overheat
due to excessive friction.
•Please note that the following information refers to normal use. Under certain circumstances
(prolonged daily work, heavy dust exposure, etc.) the specified intervals may be shortened
accordingly.
•Before starting work, after filling the tank, after impact or "dropping": Check cutting tools
for tight fit, general visual inspection for cracks and damage. Replace damaged or blunt
cutting tools immediately, even if there are minor hairline cracks.
•Weekly inspection: gear lubrication (also as required).
•If necessary:
-tighten accessible fastening screws. You will avoid excessive wear and damage to the
unit if you follow the instructions in this manual.
-sharpening cutting tools
-gear lubrication
7.2 Replace and clean spark plug
•Do not touch the spark plug or spark plug connector while the engine is running. Danger of
burns! Wear protective gloves!
•Regularly check the spark plug and the distance between the electrodes. Proceed as follows:
-Allow the engine to cool down.
-Remove the spark plug connector from the spark plug.
-Unscrew the spark plug using the spark plug wrench supplied.
-The distance between the electrodes must be 0.6 - 0.7 mm.
-In case of excessive wear of the electrode or very heavy incrustation, the spark plug must be
replaced with one of the same type. Strong incrustation of the spark plug can be caused by:
Too much oil in the petrol mixture, poor oil quality, outdated petrol mixture or clogged air
filter.
-Turn the spark plug completely into the thread by hand. Avoid tilting the spark plug.
-Tighten the spark plug with the spark plug wrench supplied. However, do not tighten too
much.
-When using a torque wrench, the tightening torque is 12-15 Nm.
-Insert the spark plug connector correctly onto the spark plug.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
17
•Replace the spark plug:
-every 100 hours or 1x a year (depending on which case occurs first)
-if the insulation body is damaged
-with strong electrode erosion
-for heavily soiled or oily electrodes
7.3 Cleaning the air filter
•Dirty air filters reduce engine performance due to insufficient air supply to the carburettor.
Dust and pollen block the pores of the foam filter. Regular checks are therefore essential.
•Warning! Never let the engine run if the air filter element is not inserted!
•Clean the air filter regularly from dust and dirt in order
-Start-up problems
-Loss of performance
-to prevent high fuel consumption.
•Clean the air filter approx. every eight operating hours. More often in particularly dusty
conditions.
•Move the choke lever upwards to prevent dirt from entering the carburettor.
•Loosen the air filter cover and remove the sponge filter element. Replace the air filter cover
so that nothing falls into the air duct.
•Wash the air filter in lukewarm soapy water. Do not blow or blow out dirt particles, there is a
risk of eye injury!
•Let the air filter dry well and reinsert it.
•Damaged air filters must be replaced immediately.
7.4 Cleaning/replacing the fuel filter
•Check the fuel filter if necessary. A dirty fuel filter obstructs the fuel supply.
•Open the fuel filler cap and pull the fuel filter with a wire hook through the opening.
➔Slight soiling:
-Pull the fuel filter off the fuel line and clean the filter with cleaning petrol.
➔Heavy soiling:
-Replace the fuel filter.
7.5 Adjusting the carburettor (idle speed)
•The carburettor is factory set to the correct idle speed so that the correct fuel-air mixture is
supplied to the engine.
•In the following cases the carburettor (idle speed) must be corrected:
•Speed too high (engine continues to idle)
•irregular running or lack of acceleration (idle speed too low)
•Adaptation to weather conditions, temperatures
•Incorrect carburettor adjustment will result in serious engine damage! Never continue
working with the unit.
•Contact a specialist workshop and have a carburettor adjustment carried out.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
18
8.Troubleshooting
The device does not start.
- Air filter dirty.
- Fuel filter blocked.
- Lack of fuel supply.
- Fuel line fault.
- Starting device is defective.
- Engine has sunk.
- Spark plug connector not
plugged on.
- No ignition spark.
- Motor defective.
- Carburettor defective.
- Clean/replace air filter.
- Clean or replace fuel filter.
- Fill it up.
- Check fuel line for kinks or
damage.
- Check launch device.
- Remove spark plug, clean
and dry; then pull the starter
cable several times; reinstall
spark plug.
- Check spark plug connector
for correct seating.
- Clean or replace spark plug.
- Check ignition cable for
damage.
- Check engine.
- Check carburretor.
The device starts up and
dies.
- Incorrect carburettor setting.
- Check idle speed.
Motor starts, but cutting
tool remains stationary.
- Cutting tool blocked.
- Internal error.
- Coupling defective.
- Switch off the motor and
remove the object.
- Check drive shaft and
gearbox.
- Check coupling.
Device stutters (works with
interruptions).
- Carburettor is set incorrectly.
- Spark plug is sooty.
- On/off switch defective.
- Check idle speed.
- Clean or replace spark plug.
- Contact Service Center.
Smoke development.
- Incorrect fuel mixture.
- Carburettor is set incorrectly.
- Using a two-stroke mixture
with a 40:1 power ratio.
- Check idle speed.
Device does not operate at
full power.
- Machine is overloaded.
- Air filter is dirty.
- Carburettor is set incorrectly
- Silencer clogged.
- Do not press with force
during mowing/trimming.
- Clean or replace air filter.
- Check idle speed.
- Check exhaust.
The brush cutter does not
work at full power.
- Cutting knife blunt or
damaged.
- Cut material too high (device
overload).
- Sharpen or replace cutting
blades.
- Cut grass gradually.
Cutting thread is not guided
to
- Thread bobbin empty.
- Replace thread bobbin.
The high caliper does not
saw, pluck or vibrate.
- Chain tension too high.
- Chain blunt, incorrectly
mounted or worn.
- Check and adjust chain
tension.
- Have the chain sharpened,
reassemble or replace.

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
19
Saw chain gets hot or saw
chain lubrication does not
work.
- No oil in the tank.
- Oil supply line blocked.
- Chain tension too high.
Chain blunt.
- Refill with oil.
- Clean oil supply line.
- Adjusting the chain tension.
- Have the chain sharpened
again or replace it.
9.Technical data
Model
AR-HE-MT51PT
Tank capacity
900 ml
Weight
27 lbs (12.4 kg)
Fuel
Petrol/Oil mixture 40:1 with 2-stroke oil
Drive shaft
9-tooth shaft
Engine type
2-Stroke
Power
2.2 kW
Chainsaw sword
11.81 in (30 cm)
Cubic capacity
52 ccm
Rotations per minute
9000
Petrol-oil mixture
1:40
Total length string trimmer
70.9 in (180 cm)
Total length with hedge trimmer attachment
90.6 in (230 cm)
Total length with branch saw
84.7 in (215 cm)
Measured sound power level (LWA)
107.7 db (A)
Guaranteed sound power level (LWA)
113 db (A)
EG-Typ-Approval number
E24*2016/1628*2018/989SHB1/P*0138*00

User’s manual – AREBOS Multifunction tool 5in1 (Premium)
20
10. Disposal instruction
10.1 Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
10.2 Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
10.3 Meaning of the "dustbin"
Protect our environment; electrical appliances do not belong in household waste.
Use the provided for the disposal of electrical equipment collection points and
enter your electrical and electronic equipment that you no longer use. They help
ensure that the potential effects of incorrect disposal on the environment and
human health to be avoided. So, do your part to recycle, recycling and other
forms of recovery of waste electrical and electronic equipment. Information on
where the devices are disposed of, please contact your local authorities or local
Governments.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg
