AREBOS AR-HE-MF17000W User manual

User’s Manual – AREBOS Wall Chaser
1
Wall Chaser
AR-HE-MF17000W
Please follow all security measures in this user´s manual to ensure a secure use.
Thank you for trusting in AREBOS.

User’s Manual – AREBOS Wall Chaser
2
List of contents
1. Safety Instructions.................................................3
1.2 Intended use................................................................... 4
1.3 General safety instructions for power tools ................... 4
1.3.1 Work area safety....................................................... 4
1.3.2 Electrical safety ......................................................... 4
1.3.3 Personal safety.......................................................... 4
1.4 Power tool use and care................................................. 5
1.5 Service ............................................................................ 5
1.6 Cut-off machine safety warnings.................................... 5
1.7 Further safety instructions for abrasive cutting-off
operations ............................................................................ 6

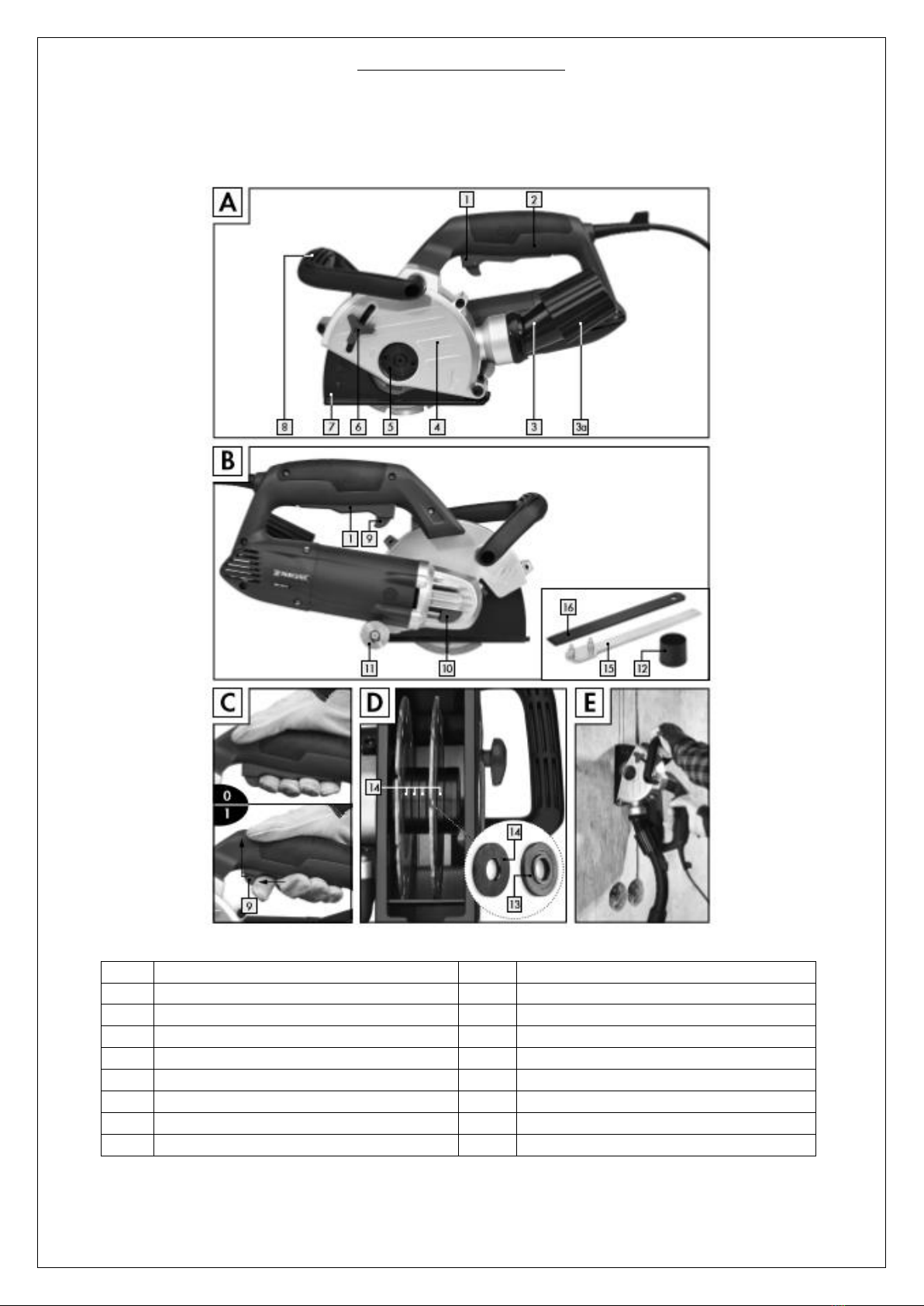

2. Parts List ...............................................................8
3. Installation ............................................................9
3.1 Setting the groove depth................................................ 9
3.2 Installing the dust extraction adapter ............................ 9
4. Use........................................................................9
4.1 Switching ON/OFF .......................................................... 9
4.2 Installing and adjusting the cutting width of the diamond
cutting discs.......................................................................... 9
4.3 Handling the wall chaser .............................................. 10
4.4 Replacing the batteries................................................. 10
5. Cleaning and Maintenance ..................................10
6. Technical Specifications.......................................11
7. Disposal instruction.............................................12
7.1 Disposal of the packaging............................................. 12
7.2 Disposal of waste equipment ....................................... 12
7.3 Meaning of the "dustbin" ............................................. 12

User’s Manual – AREBOS Wall Chaser
3
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/ or damage to product or
property. Please retain instructions for future reference.
1.Safety Instructions
1.1 Symbolerklärung
By means of a CE marking, it can be recognized that a product complies with the
legal requirements of European legal standards and therefore may be traded
within the European Community.
This product must not be disposed of with household waste!
Protected housing (protection class II)!
Warning! Wear ear protection!
Warning! Read the safety instructions carefully. Failure to follow the safety
precautions could result in serious injury or damage. Keep the operating
instructions in a safe place.
Warning! Wear safety glasses!
This product has been tested and certified by TÜV Rheinland.
The symbol "GS" stands for tested safety. Products marked with this
symbol comply with the requirements of the German Product Safety Act
(ProdSG).

User’s Manual – AREBOS Wall Chaser
4
1.2 Intended use
•The wall chaser (normative cut-off machine), in the following also referred to as device, in
conjunction with an approved industrial dust extractor, is intended to cut or slit primarily
mineral materials, e.g. concrete or masonry when firmly applied with the guide sled without
the use of water. Any other uses, and/or modifications to the appliance, are deemed to be
improper usage and may result in serious physical injury. Not for commercial applications.
1.3 General safety instructions for power tools
•WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
•Save all warnings and instructions for future reference.
•The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1.3.1 Work area safety
•Keep work area clean and well lit. Cluttered or dark areas invite accidents.
•Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
•Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
1.3.2 Electrical safety
•Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
•Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
•Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
•Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
•When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
•If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
1.3.3 Personal safety
•Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
•Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions
will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on invites accidents.
•Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.

User’s Manual – AREBOS Wall Chaser
5
•Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
•Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
•If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
1.4 Power tool use and care
•Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
•Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and / or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally.
•Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
•Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
1.5 Service
•Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
1.6 Cut-off machine safety warnings
•The guard provided with the tool must be securely attached to the power tool and positioned for
maximum safety, so the least amount of wheel is exposed towards the operator. Position
yourself and bystanders away from the plane of the rotating wheel. The guard helps to protect
operator from broken wheel fragments and accidental contact with wheel.
•Only use diamond-tip cutting discs with your power tool. Just because an accessory can be
attached to your power tool, it does not assure safe operation.
•The rated speed of the accessory must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can break and fly apart.
•Wheels must be used only for recommended applications. For example: do not grind with the
side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
•Always use undamaged wheel flanges that are of correct diameter for your selected wheel.
Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage.
•Do not use worn down reinforced wheels from larger power tools. Wheels intended for a larger
power tool are not suitable for the higher speed of a smaller tool and may burst.
•The outside diameter and the thickness of your accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
•The arbour size of wheels and flanges must properly fit the spindle of the power tool. Wheels
and flanges with arbour holes that do not match the mounting hardware of the power tool will

User’s Manual – AREBOS Wall Chaser
6
run out of balance, vibrate excessively and may cause loss of control.
•Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If power
tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting
and installing the wheel, position yourself and bystanders away from the plane of the rotating
wheel and run the power tool at maximum no load speed for one minute. Damaged wheels will
normally break apart during this test time.
•Wear personal protective equipment. Depending on application, use face shield, safety goggles
or safety glasses. As appropriate, wear dust mask, hearing protectors and shop apron capable of
stopping small abrasive or workpiece fragments. The eye protection must be cap-able of
stopping flying debris generated by various operations. The dust mask or respirator must be
capable of filtrating particles generated by your operation. Prolonged exposure to high intensity
noise may cause hearing loss.
•Keep bystanders a safe distance away from work area. Anyone entering the work area must
wear personal protective equipment. Fragments of workpiece or of a broken wheel may fly away
and cause injury beyond immediate area of operation.
•Hold the power tool by insulated gripping surfaces only, when performing an operation where
the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live” and could give the operator
an electric shock.
•Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or
snagged and your hand or arm may be pulled into the spinning wheel.
•Never lay the power tool down until the accessory has come to a complete stop. The spinning
wheel may grab the surface and pull the power tool out of your control.
•Do not run the power tool while carrying it at your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the accessory into your body.
•Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing
and excessive accumulation of powdered metal may cause electrical hazards.
•Do not operate the power tool near flammable materials. Sparks could ignite these materials.
•Do not use accessories that require liquid coolants. Using water or other liquid coolants may
result in electrocution or shock.
1.7 Further safety instructions for abrasive cutting-off operations
Kickback and related warnings

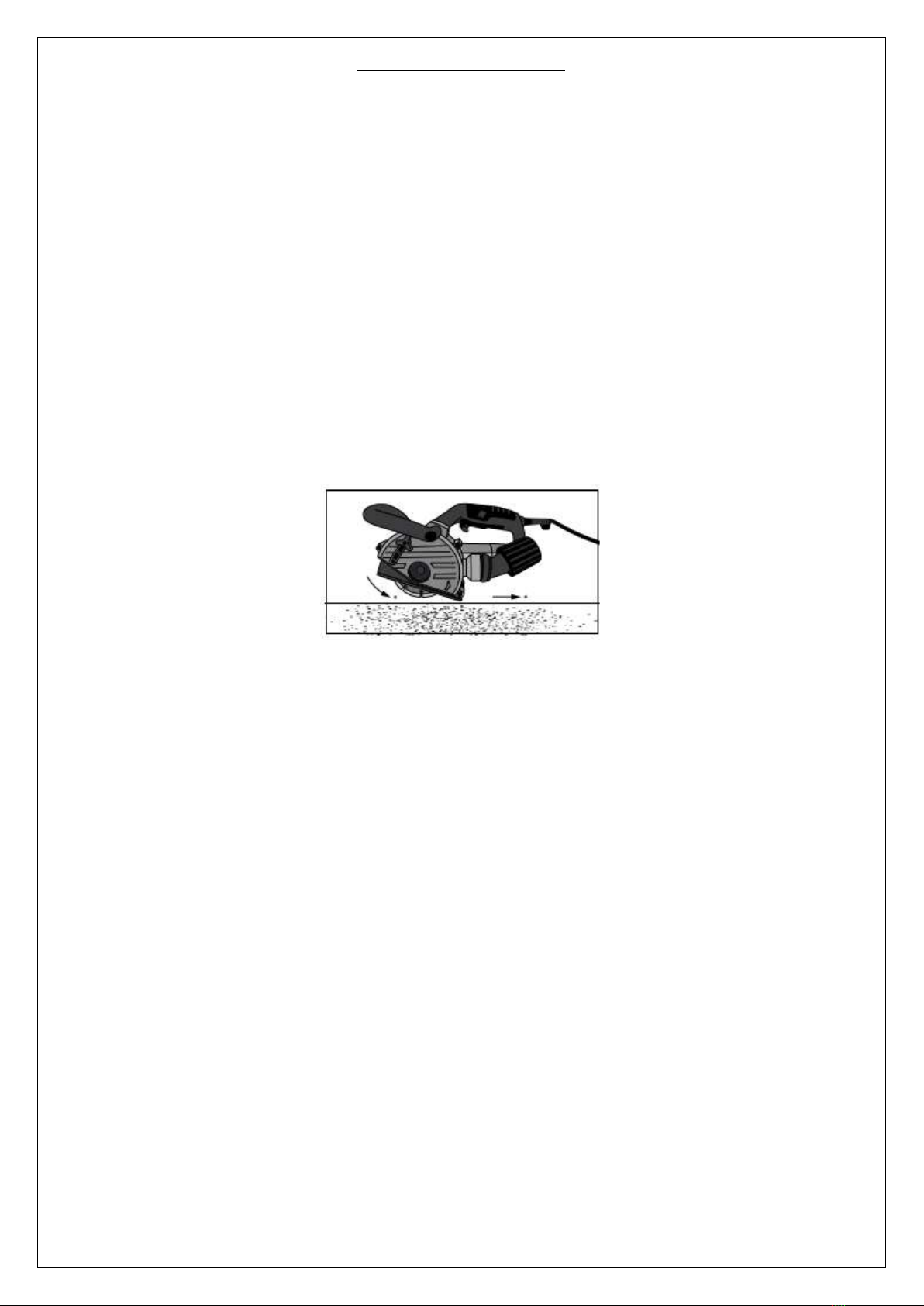

•Kickback is a sudden reaction to a pinched or snagged rotating wheel. Pinching or snagging
causes rapid stalling of the rotating wheel which in turn causes the uncontrolled power tool to be
forced in the direction opposite of the wheel’s rotation at the point of the binding.
•For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel
that is entering into the pinch point can dig into the surface of the material causing the wheel to
climb out or kick out. The wheel may either jump toward or away from the operator, depending
on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break
under these conditions. Kickback is the result of power tool misuse and / or incorrect operating
procedures or conditions and can be avoided by taking proper precautions as given below.
•Maintain a firm grip on the power tool and position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or
torque reaction during start-up. The operator can control torque reactions or kickback forces, if
proper precautions are taken.
•Never place your hand near the rotating accessory. Accessory may kickback over your hand.
•Do not position your body in line with the rotating wheel. Kickback will propel the tool in
direction opposite to the wheel’s movement at the point of snagging.
•Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and

User’s Manual – AREBOS Wall Chaser
7
cause loss of control or kickback.
•Do not attach a saw chain, woodcarving blade, segmented diamond wheel with a peripheral
gap greater than 10 mm or toothed saw blade. Such blades create frequent kickback and loss of
control.
•Do not “jam” the wheel or apply excessive pressure.Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or
binding of the wheel in the cut and the possibility of kickback or wheel breakage.
•When wheel is binding or when interrupting a cut for any reason, switch off the power tool
and hold the power tool motionless until the wheel comes to a complete stop. Never attempt
to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur.
Investigate and take corrective action to eliminate the cause of wheel binding.
•Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted
in the workpiece.
•Support panels or any oversized workpiece to minimize the risk of wheel pinching and
kickback. Large workpieces tend to sag under their own weight. Supports must be placed under
the workpiece near the line of cut and near the edge of the workpiece on both sides of the
wheel.
•Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
Supplementary instructions
•Approved cutting wheel designs: diamond set, disc diameter 125 mm, disc thickness max. 2.2
mm
•Always wear a dust mask!
•Always wear ear protection!
Original accessories/tools
•Use only the accessories and attachments detailed in the operating instructions, or those
which are compatible with the device

User’s Manual – AREBOS Wall Chaser
8
2.Parts List
No
Description
No
Description
1
ON-/OFF-switch
9
Switch lock
2
Handle
10
Spindle lock
3
Dust extraction adapter
11
Roller
4
Union nut
12
Reducer
5
Protective cover
13
Centring flange
6
Adapter flange (with lefthand thread)
14
Spacers
7
Depth stop
15
Face pin wrench
8
Additional handle
16
Chisel

User’s Manual – AREBOS Wall Chaser
9
Scope of Delivery
•1x Wall chaser
•2x Cutting discs (preinstalled)
•1x Face pin wrench
•1x Extraction adapter (preinstalled)
•1x Reducer (for use with the extraction adapter and a size ∅32 mm vacuum hose)
•1x Chisel
•1x Instructions for use
3.Installation
3.1 Setting the groove depth
•Loosen set screw (6)
•Set the depth stop (7) to the desired depth.
•Tighten set screw (6)
3.2 Installing the dust extraction adapter
•Slide the pegs of the extraction adapter (3) into the slots of the dust extraction connection.
•Turn the extraction adapter (3) to lock.
•Loosen union nut (3a).
•Insert the tube of the extraction unit far enough into the opening on the union nut (3a).
•Tighten union nut (3a).
4.Use
4.1 Switching ON/OFF
•NOTE: Always switch on the device before bringing into contact with the material and only
then apply the device to the work piece. The wall grinder features electronic smooth start-
up. The motor‘s start-up is delayed.
Switching the unit on:
•Activate the switch lock (9) (see Fig. C). Then press the ON / OFF switch (1).
Switching the device off:
•Release the ON/OFF switch (1).
4.2 Installing and adjusting the cutting width of the diamond cutting discs
•Loosen set screw (6).
•Slide the depth stop (7) up.
•Press and hold the spindle lock (10).
•Use the face pin wrench (15) to loosen the adapter flange (5).
•Remove the adapter flange (5).
•Set the desired cutting width with the number of spacers (14). Be sure to use the centring
flange (13) as the top spacer.
NOTE: You may choose from various spacers. Please note, the total number of spacers
between the cutting discs and the thickness of the cutting discs yield the groove width.

User’s Manual – AREBOS Wall Chaser
10
Tighten the adapter flange with the face pin wrench (15). When doing so, hold the spindle
lock.
NOTE: When setting a cutting width smaller than the maximum, you must use the spacers on
the clamping collar side, as the clamping collar alone cannot secure the discs due to the
thread length on the spindle (see. Fig. D).
NOTE: Always replace diamond cutting discs in pairs.
4.3 Handling the wall chaser (see Fig. E)
ATTENTION! This device is only suitable for dry cuts!
-Use a cable detector to check walls for hidden electrical-, gas- and water lines before
using the wall chaser.
-Select the desired groove width.
-Apply the roller (11) of the device onto the brick wall.
-Now switch on the device and immerse into the brick wall until the depth stop (7)
touches.
-Now cut the groove into the brick wall, noting the cutting direction. The device must be
rotating in the opposite direction. The device can otherwise erratically be pushed out of
the cut.
-At the end of the groove swing the device out of the groove and only then switch off the
device.
-Now remove the ridge created between the two grooves with a chisel (16).
-Do not work on materials containing asbestos!
4.4 Replacing the batteries
•Open the lid of the battery compartment. Replace two battery cells at the same time. Then,
close the battery compartment again.
•Exclusively use batteries with 1.5 V size AAA for the laser of the wall grinder.
5.Cleaning and Maintenance
•WARNING: RISK OF INJURY!
•Switch the device off and pull the plug out of the mains socket before carrying out any work
on the device.
-Always keep the device clean, dry and free of oil or grease.
-Use a dry cloth to clean the housing.
•WARNING: If the connection cable needs to be replaced, this repair must be performed by
the manufacturer or a representative to prevent safety hazards. Grinding tools must be
handled and transported with care. Grinding tools have to be stored in such a way that they
are not exposed to mechanical damage or damaging environmental influences.
•Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call
centre.

User’s Manual – AREBOS Wall Chaser
11
6.Technical Specifications
Model
AR-HE-MF1700W
Mains voltage
230 V∼50 Hz
Power input
1350 W
Rated no load speed
9000 rpm
Disc ø
125 mm
Mounting hole
22.2 mm
Groove depth
0–30 mm
Groove width
8–26 mm
Thread
M14
Thread type
Left-hand thread
Protection class
II
Noise level LpA
97.6 dB(A)
Uncertainty KpA
3 dB
Sound power level LWA
112.88 dB(A)
Uncertainty KWA
3 dB
Weight
4.05 kg
Noise and vibration
•Noise and vibration ratings were determined according to EN 60745.
Wear ear protection.
•Exposure to noise can cause hearing loss.
•The total vibration (vector sum of three directions) is calculated in accordance with EN
60745. Declaration of vibration emission value (Cutting concrete slab):
-Main Handle: 6.417 m/s²
-Auxiliary Handle: 4.258 m/s²
-Uncertainty K = 1.5 m/s²
•WARNING: The vibration emission value specified was measured according to a standardised
testing method and may vary depending on the method the power tool is being used, and in
exceptions be higher than the specified value. The vibration emission value specified can be
used to compare power tools. The vibration emission value specified can also serve as a
preliminary assessment of the impact.

User’s Manual – AREBOS Wall Chaser
12
7.Disposal instruction
7.1 Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
7.2 Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
7.3 Meaning of the "dustbin"
Protect our environment; electrical appliances do not belong in household
waste. Use the provided for the disposal of electrical equipment collection
points and enter your electrical and electronic equipment that you no longer
use. They help ensure that the potential effects of incorrect disposal on the
environment and human health to be avoided. So, do your part to recycle,
recycling and other forms of recovery of waste electrical and electronic
equipment. Information on where the devices are disposed of, please contact
your local authorities or local Governments.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s Manual – AREBOS Wall Chaser
13
EU Declaration of Conformity
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 10 –11, 97074, Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: AREBOS Wall Chaser
Model Nr.: AR-HE-MF1700W
Art. Nr.: 426019975684
If the product has any modification not allowed by us, this declaration loses its validity.
Machinery Directive (2006 / 42 / EC)
EU Low Voltage Directive (2006 / 95 / EC)
Electromagnetic Compatibility (2004 / 108 / EC)
RoHS Directive (2011 / 65 / EU)
Applicable harmonized standards: EN 60745-1/A11:2010 EN 60745-2-22:2011 EN 55014-1/A2:2011
EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 EN 61000-3-3:200
Date/Manufacturer Signature/Location: Würzburg, 22 October 2020
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
