Please follow all security measures in this user’s manual to ensure a secure use.

User’s Manual –AREBOS Spotter 800 W
2
List of contents
1. Safety instructions.................................................3
1.1 Generalities .................................................................... 3
1.2 Electricity........................................................................ 3
1.3 Protection of eyes and body........................................... 3
1.4 Smokes and Gas.............................................................. 4
1.5 Fire.................................................................................. 4
1.6 Electromagnetic Compatibility ....................................... 4
1.7 Before you start.............................................................. 4
2. Technical specifications .........................................5
3. Parts list ................................................................5
4. Use........................................................................6
4.1 Note................................................................................ 6
4.2 Meson function .............................................................. 6
4.3 Straight pad function...................................................... 7
4.4 Wavy line function.......................................................... 8
4.5 Nails function.................................................................. 8
4.6 Shrinking function .......................................................... 9
5. Disposal instruction.............................................10
5.1 Disposal of the packaging ............................................. 10
5.2 Disposal of waste equipment ....................................... 10
5.3 Meaning of the "dustbin" ............................................. 10

User’s Manual –AREBOS Spotter 800 W
3
Please read and save these instructions. Read through this user’s manual carefully before using
product. Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/ or damage to product or
property. Please retain instructions for future reference.
1.Safety instructions
•Before installing and using the product, please read carefully the following recommendations
of safety in order to avoid accidents to the users and damages of the welding process.
•We can’t be responsible for the damages occurred to persons or things, which derive from
the use of the machine in following circumstances:
- Modification or neutralization of safety elements
- Non-respect of the recommendations written in the manual instruction.
- Modification of the characteristics on the product
- Use of the accessories, which are different from the ones delivered by us.
- Non-respect of the regulating and particular dispositions where the machine is settled.
1.1 Generalities
•Before disassembling the product’s body, plug out the lead cable.
•The operators must have the appropriate qualification.
•The operations of servicing can only be controlled by qualified technicians.
•The operator is responsible for respect of the car manufacturers recommendations,
concerning the protection of electrical and electronic procedures (car computer, car radio,
alarm, air bag, etc.)
•Before an operation of servicing, the power supply with compressed air must be cut off and
loaded off.
•The electrodes, arms, and the other secondary conductors can reach a very high temperature
and remain hot very long after having stopped the machine. Be careful: high risk of burns.
•It is necessary to make a regular preventive maintenance.
1.2 Electricity
•Check that the unity must be connected to the earth coupler and that the connection to the
earth is in good condition.
•Check that the work bench is connected to the earth coupler.
•Make sure that the operator has no contact with the metal parts to be welded without any
protection or with wet clothes.
•Avoid to be in contact with the welding part.
•Don’t make spot welding operations in very wet areas or on a wet floor.
•Don’t weld with worn out cables. Check that there is no default with the isolation with
stripped cables or with loose connections.
•Switch off the unit before replacing the electrodes.
•Before controlling or repairing, please disconnect the unit directly to the level of the plug.
1.3 Protection of eyes and body
•During the welding process, the process must be protected from the eventual flashes of the
electrical arc with protection clothes like leather gloves, welding aprons, safety shoes,
welding helmets or glasses for filtering radiations and projections. As well during operations
of rubbing and hammering, the operator must protect his eyes.
•Don’t keep rings, watches, or jewellery, which are current lead and can create burns.

User’s Manual –AREBOS Spotter 800 W
4
•All the protection board must be in good condition and maintained in place.
Never look at an arc of welding without any protection of your eyes.
Protect the environment near the product against projections and reflections.
1.4 Smokes and Gas
•Welding operations can cause the emission of toxic smokes and harmful metallic dusts. Use
the device in a sheltered place equipped with smoke aspirators.
The operator must wear an anti-smoke mask.
The welding material must be degreased and cleaned in order to limit the toxic gas during
the welding process.
1.5 Fire
•Check that the sparks don’t cause fire especially near inflammable material.
•Check that fire extinguishers are not too far from the operator.
•Leave the product in a place with air movers.
•Don’t weld neither on containers of combustibles and lubricants, even empty, nor on
containers with inflammable material.
•Don’t weld in an atmosphere full with inflammable gas or fuel steam.
1.6 Electromagnetic Compatibility
Near the spot welding, check:
-there is neither no other power supply cable nor control lines, nor phone cables, nor radio or
TV reception appliances, nor watches, nor mobile phones, nor magnetic cards, nor
computers or any other electronic appliance.
-there is in the surroundings (minimum 3 meters of each point of the product) no persons
using active medical appliances (pacemakers, acoustic prosthetics).
Make supplementary protections if other products are used in the same environment.
1.7 Before you start
It is the operator´s responsibility to comply with the following:
•Inspect all power supply leads, plugs and all electrical connections for wear and/or damage.
•An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution
board; we also recommend that an RCD (Residual Current Device) is used with all electrical
products.
•Before use, inspect the insulation on the appliance cable and check the appliance and plug
before connecting to the main supply.
•Also inspect power supply sockets, extension leads and connectors regularly.
•Ensure that the voltage marked on the appliance is the same as the electrical power supply
to be used.
•Do not carry the appliance by its power lead.
•Extension lead reels: when a cable extension lead reel is used it should be fully unwound
before connection. We recommend the cable reel has an RCD fitted. Be sure that the
capacity of the cable reel is suitable for the product.
•Wear safety goggles and welding gauntlets.
•Ensure there are no flammable materials near the area of work.
•The welder creates strong magnetic fields; this may interfere with certain watches and
similar devices. If you have a pacemaker, consult a doctor before using the stud welder or
approaching the area where the stud welder is in use.
•Make sure the welder does not get wet or is used in wet conditions. Must be used inside.
•Do not let the welder be used by untrained persons.

User’s Manual –AREBOS Spotter 800 W
5
•When not in use, stud welder should be stored in a dry, secure location.
•If there is doubt about electrical safety, consult a qualified electrician.
2.Technical specifications
Model
AR-HE-SP800W
Input power
800 W
Input voltage
1ph 100-120V 60Hz oder 1ph 200-240V 50Hz
Output voltage
4 V
Max current
1600 A
Welder weight
9.9 lbs (4.5 kg)
Total weight
35.3 lbs (16 kg)

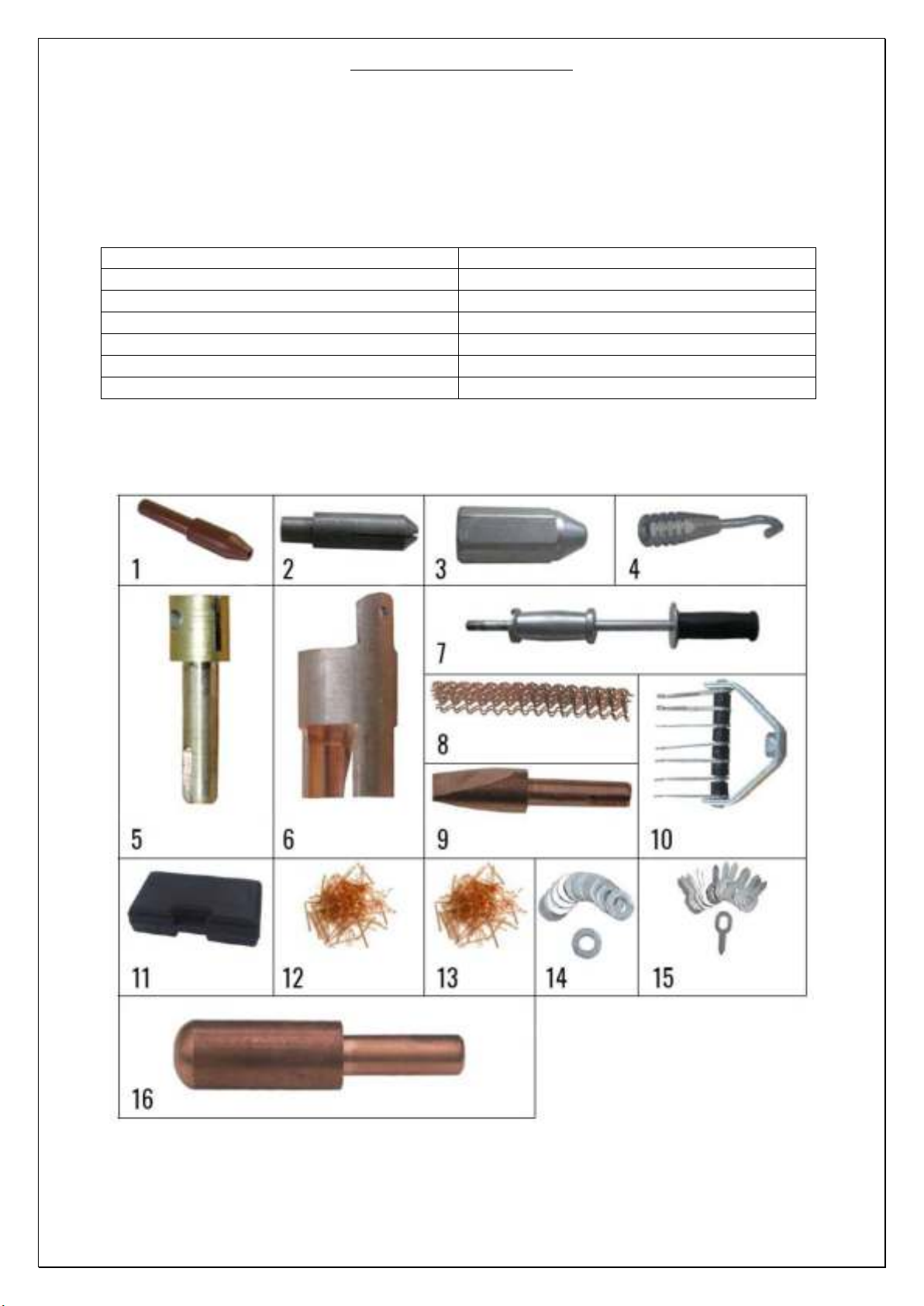

3.Parts list

User’s Manual –AREBOS Spotter 800 W
6
1. 1x Nails electrode
2. 1x Nails lock (in)
3. 1x Nails lock (out)
4. 1x Pads pulling hook head
5. 1x Meson Electrode
6. 1x Straight Pad Electrode
7. 1x Multi-functional pulling hammer
8. 20x Wavy-wires
9. 1x Wavy-wire electrode
10. 1x Multi-hook heads
11. 1x Package box
12. 500x Nails 0.0984 in (2.5 mm)
13. 500x Nails 0.0787 in (2 mm)
14. 50x Meson Pads
15. 50x Straight Pads
16. 1x Shrinking electrode
4.Use
4.1 Note
•Worn electrodes must be replaced.
•Reduce the pressure on the welding surface only after you have released the gun switch,
otherwise this will prematurely break the circuit, resulting in a weak weld and excessive
sparking.
4.2 Meson function
•The meson function is suitable for single point welding.
•Before using this feature, keep the spot to be welded clean, bright and free of paint, rust or
grease so that the pads can make good contact with the iron plate.
•Install the Meson electrode (5) on the welding gun. To do this, place the meson pad (14) on
the electrode, press it perpendicular to the iron, and press the gun switch. Now you can start
welding.
•After welding, attach the multi-function pulling hammer (7) - on which the hook head (4) is
attached - to the pad and pull firmly.
•Perform this procedure several times, then replace the hook head (4) with the multi-hook
head (10) to pull on all attached pads at the same time.
•Once the dent is dented, release it from the attached pads.

User’s Manual –AREBOS Spotter 800 W
7
4.3 Straight pad function
•This function is also intended for single point welding, especially for single dents and a large
area of dents.
•Before using this feature, keep the spot to be welded clean, bright and free of paint, rust or
grease so that the pads can make good contact with the iron plate.
•Install the Straight Pad electrode (6) on the welding gun, place the straight pad (15) on the
electrode, push it perpendicular to the iron, and press the gun switch. Now you can start
welding.
•After welding, attach the multi-function pulling hammer (7) - on which the hook head (4) is
attached - to the pad and pull firmly.
•Perform this procedure several times, then replace the hook head (4) with the multi-hook
head (10) to pull on all attached pads at the same time.
•Once the dent is dented, release it from the attached pads.
•

User’s Manual –AREBOS Spotter 800 W
8
4.4 Wavy line function
•The Wave line function is for example for the bulging of long and narrow dents.
•Keep the area to be welded clean, bright and free of paint, rust or grease, so that the pads
can come into good contact with the iron plate.
•Install the waveguide electrode (9) on the welding gun, place the waveguide (8) horizontally
on the dent and weld the waveguide loops individually to the dent.
•Mount the multi-hook head (7) on the multi-function hammer (10) and then stick it to the
shaft holes. Now you can remove the dent by pulling firmly.
4.5 Nails function
•The Nail function is especially for single point dents.
•Keep the spot to be welded clean, bright and free of paint, rust or grease, so that the pads
can come into good contact with the iron plate.
•Then install the nail electrode (1) on the welding gun, place the nails (12 or 13 as needed) on
the electrode, press it perpendicular to the iron and press the gun switch.
•If the nail is well welded, remove the hook head (4) from the multifunctional hammer (7) and
replace it with the nail lock (3). Insert the nails (12/13) into the lock, fix it and pull it hard
until the dent is dented.

User’s Manual –AREBOS Spotter 800 W
9
4.6 Shrinking function
•The shrink function levels out excess sweat residue which, for example, remains when
buckling dents.
•To do this, install the shrinking electrode (16) on the welding gun, press it perpendicular to
the iron and press the gun switch.
•Now the residues are removed.

User’s Manual –AREBOS Spotter 800 W
10
5.Disposal instruction
5.1 Disposal of the packaging
•Please make reference to the guidelines and standards for appropriate disposal of the packaging
valid in your region. In part, the package may consist of plastic bags - watch this respect, with
special care to ensure that this is not out of the reach of children. There is a risk of suffocation!
5.2 Disposal of waste equipment
•Equipment must be disposed of in accordance with the rules and regulations of the local waste
disposal.
5.3 Meaning of the "dustbin"
Protect our environment; electrical appliances do not belong in household
waste. Use the provided for the disposal of electrical equipment collection points
and enter your electrical and electronic equipment that you no longer use. They
help ensure that the potential effects of incorrect disposal on the environment
and human health to be avoided. So, do your part to recycle, recycling and other
forms of recovery of waste electrical and electronic equipment. Information on
where the devices are disposed of, please contact your local authorities or local
Governments.
Our customer service number: [phone]
Canbolat Vertriebs GmbH • Gneisenaustraße 10-11 • 97074 Würzburg

User’s Manual –AREBOS Spotter 800 W
11
EU Declaration of Conformity
We,
Canbolat Vertriebs GmbH, Gneisenaustraße 10-11, 97074 Würzburg, Germany,
Hereby declare that the product named below, seen its design and construction as well as according
to our sales, has been complied with the relevant and basic health and safety EU-requirements.
Name of the product: Spotter 800W
Model Nr.: AR-HE-SP800W
Art. Nr.: 4260551587320
If the product has any modification not allowed by us, this declaration loses its validity.
Tested acc. to:
EU Standard:
EN 60974-11:2011
EN 61000-3-2:2015
EN 61000-3-3:2014
EN 60974-10:2016
EN 62135-2:2015
EN 62135-1:2016
Date/Manufacturer Signature/Location: Würzburg, 30.11.2018
Identification of the signatory:
Korhan Canbolat, head of the company
Authorised representative for the technical documentation:
Korhan Canbolat
Office address:
Canbolat Vertriebs GmbH
Gneisenaustraße 10-11
D-97074 Würzburg
Return address can be found in the imprint: https://www.arebos.de/impressum/
VAT identification number: DE 263752326
Court of the Commercial Register is Würzburg, HRB 10082
WEEE Reg.-No. DE 61617071
