Areca ARC-1886-8I User manual

www.areca.com.tw
Tri-Mode RAID Adapters
ARC-1886-8I / 8X / 8X8I / 16I
Quick Installation Guide
Checklist
Inspect tri-mode RAID adapter from the package. If it appears
damaged, or if any items of the contents listed below are
missing or damaged, please contact your dealer or distributor.
Step 1: Unpack
1 x Low-profile bracket
1 x Tri-mode RAID adapter in an ESD-protective bag
1 x ARC-1886 series quick installation guide
•
•
•
Step 2: Power PC/Server Off
Remove the mounting screw and existing bracket from the
rear panel behind the selected PCIe 4.0 slot. Align the
gold-fingered edge on the card with the selected PCIe 4.0
slot. Press down gently but firmly to ensure that the card is
properly seated in the slot. Then, screw the bracket into the
computer chassis.
Step 3: Install the Tri-Mode RAID Adapters
Step 4: Mount the Drives
You can connect the PCIe/SAS/SATA drives to the adapter
through direct cable and backplane solutions.
(1). In the direct connection:
The SAS/SATA/NVMe drives are directly connected to tri-mode
RAID adapter PHY port with proper storage connection cables.
(2) In the backplane solution:
The SAS/SATA/NVMe drives are directly connected to system
backplane or through a PCIe switch/expander board. The
number of SAS/ SATA/NVMe drives is limited to the number of
slots available on the backplane. Some backplanes support
daisy chain expansion to the next backplanes.
Step 5: Install Storage Connection Cable
Step 8: Power up the System
Please refer to Appendix B of user manual.
Step 7: Adding a CBM Backup Module (Optional)
Step 6: Connect Monitor Port - LAN Port
User can remote manage the RAID adapter without adding
any user specific software (platform independent) via
standard web browsers directly connected to the RJ45 LAN
port.
Step 9: Install the Adapter Driver
Step 10: Install ArcHTTP Proxy Server (Optional)
Step 11: Configure RAID Set & Volume Set
• Driver installation usually takes places as part of operating
system installation. Please refer to Chapter 4 “Diver
Installation” of the user manual for the detailed installation
procedure.
ArcHTTP has to be installed for GUI RAID console (MRAID
storage manager) to run. It is used to launch the web browser
MRAID storage manager. It also runs as a service or daemon
in the background that allows capturing of events for mail and
SNMP traps notification. The on-board RJ45 LAN port [Step 6]
can provide the same function as above.
Follow the steps below to install the ArcHttp utility.
1. Download ArcHttp proxy server (or MRAID software) from
Areca website:
2. Follow the steps on the user manual to complete the
installation
If you need additional information about installation and
start-up of this function, see the ArcHTTP Proxy Server
Installation section in Chapter 5 of the user manual. For SNMP
agent function, please refer to Appendix C of the user manual.
For a new system:
In an existing system:
• To install the adapter driver into the existing operating
system. For the detailed installation procedure, please refer
to the Chapter 4 “Driver Installation” of the user manual.
You can create and configure a RAID adapter using any of
these tools:
• McBIOS RAID Manager
— BIOS-based menus and keyboard navigation.
• MRAID Storage Manager
— Web browser firmware-based manager, which is accessible via
the web browser installed on your operating system. It can be
launched through ArcHttp utility or onboard LAN port.
https://www.areca.com.tw/support/downloads.html
SFF-8612 or SFF-8654 are the preferred connectors to use for
NVMe backplane or multiprotocol backplanes based on the
SFF-TA-1001 universal bay definition (UBM).The preferred I/O
connector for server legacy SAS/SATA backplanes is the
internal SFF-8087/8643 connector. For backplane connector
supporting, please refer to the system backplane manual and
choose the proper cable from Section 2.4 Storage Connection
Cables for installation of user manual.

www.areca.com.tw Quick Installation Guide
2700-1M1886-0010

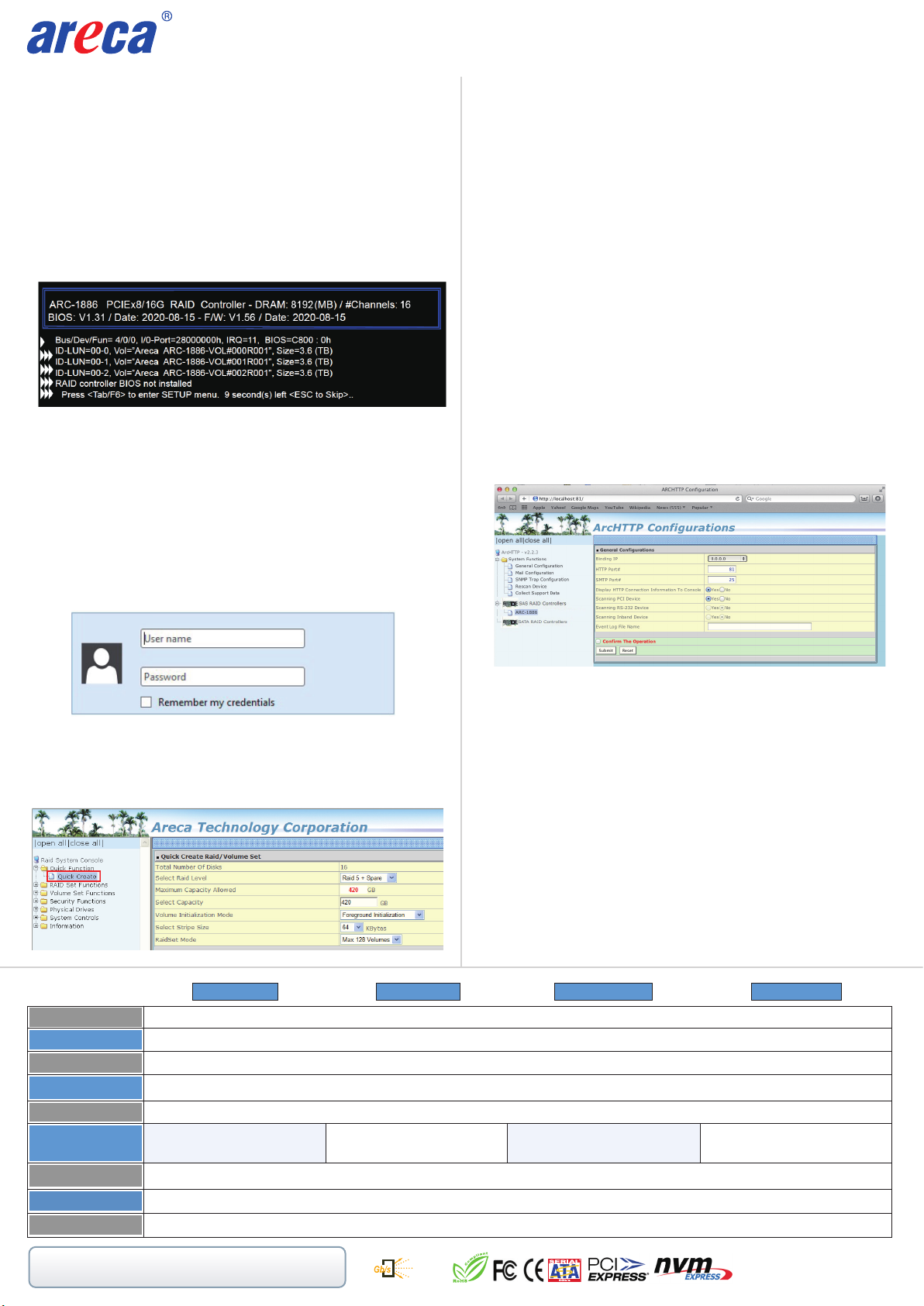

Product Features
Form Factor
I/O Processor
Driver Connector
On-Board Cache
Drive Support
Enclosure Ready
CBM
ARC-1886-8I ARC-1886-8X8I ARC-1886-16IARC-1886-8X
LP-MD2: 64.41(H) x 167.65(L) mm
Management
Dual Core Tri-Mode RAID-on-Chip 1.6GHz
Host Bus Type PCIe 4.0 x 8 Lanes
8GB on-board DDR4-2666 SDRAM
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
1 x SFF-8654 [x8]
SGPIO, Serial Bus, Fault Header ,SMP, SES2 and UBM
In-Band: PCIe / Out-of-Band: LCD, LAN Port
TEL:[phone] FAX: [phone]
Technical Support: [email protected] Sales: [email protected]
Serial
Attached
SCSI
12
2 x SFF-8644 [x4] 1 x SFF-8654 [x8]
2 x SFF-8644 [x4]
2 x SFF-8654 [x8]
ARC-1886-CBM
※Method 2: MRAID Manager From LAN Port
User can remote manage the ARC-1886 series without adding any
user specific software (platform independent) via standard web
browsers directly connected to the RJ45 LAN port. You can find
controller Ethernet port default IP address in McBIOS RAID
manager “System Information” option. Launch the Web Browser-
based MRAID storage manager by entering http://[IP Address]
in the web browser.
Type the User Name and Password. The RAID adapter default
User Name is “admin” and the Password is “0000”. After entering
the user name and password, click the button to access the
MRAID storage manager.
1. Power on your computer. When prompted, press Tab or F6.
2. The McBIOS RAID manager window appears showing a selection
dialog box listing the RAID adapters, select your adapter, then
press Enter to show the McBIOS RAID manager message.
3. Follow the McBIOS RAID manager to complete the configuration.
•
•
If you need more detail information, please download user manual from the website below:
• https://www.areca.com.tw/products/trimode-1886.html
• https://www.areca.com.tw/support/downloads.html
※Method 1: McBIOS RAID Manager (Not For Mac User)
The McBIOS RAID manager is a menu-driven program, residing
in the firmware, which allows you to scroll through various menus
and sub-menus and select among the predetermined configuration
options.
2. When you double-click on the “ArcHTTP64”, it shows all RAID
adapters available on the system and create an individual RAID
adapter icon located on left column of the “ArcHTTP Configura-
tions” screen.
3. Locate “ARC-1886 Web Management” and launch the selected
MRAID storage manager.
See chapter 6 of ARC-1886 user manual for information on
customizing your RAID volumes using MRAID storage manager.
※Method 3: MRAID Storage Manager From ArcHTTP
1. Start ArcHTTP– Browser Edition:
(1) In Windows, right-click on “Start” menu and choose
“Programs”. Clicking “MRAID” program icon starts the
ArcHTTP utility (From the Start menu, choose Programs >
MRAID > ArcHTTP).
(2) On a Mac, there is one MARID icon showing on your desktop.
This icon is for you to start up the ArcHTTP utility.
See the chapter 6 of Web Browser-based Configuration on the
user manual detailing the MRAID storage manager to customize
your RAID configuration.
Click on the “Quick Create” in the main menu, your volume is
automatically configured based on the number of disks in your
system. You can create a RAID set associated with exactly one
volume set.
4. Type the User Name and Password when the login page prompt.
The RAID adapter default User Name is “admin” and Password
is “0000”. After logging in, the MRAID storage manager process
starts.
5. Click on the “Quick Create” in the main menu, your volume is
automatically configured based on the number of disks in your
system. You can create a RAID set associated with exactly one
volume set.
