Arestech BPC-3040 User manual

User Manual
BPC-3040
Fanless Compact Embedded Box PC
with Intel® Apollo Lake Pentium® N4200 Processor

2
User Manual
Record of Revisions
Version
Issue Date
Descriptions
Made By
1.0
2021/07/30
First Release
Derek

3
User Manual
Copyright
The documentation and the software included with this product are copyrighted by Arestech
Cooperation Co., Ltd. All rights are reserved. No part of this manual may be reproduced, copied,
translated, or transmitted in any form or by any means without the prior written permission of
Arestech Cooperation Co., Ltd. Information provided in this manual is intended to be accurate and
reliable.
Trademark Acknowledgement
Brand and product names are registered trademarks of their respective owners.
Disclaimer
Arestech reserves the right to make changes, without notice, to any product described or contained
in this manual to improve design and/or performance. Applications that are described in this
manual are for illustration purposes only. Arestech makes no representation or guarantee that such
application will be suitable for the specified use without further testing or modification. This
manual might include unintentional typographical or technical errors. Arestech will periodically
correct such erroneous files and incorporate these corrections into the new version of the manual.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s manual,
please contact the local distributor.
Product Warranty (2 Years)
Arestech warrants to you, the original purchaser, that each of its products will be free from defects
in materials and workmanship for two years from the invoice date. This warranty does not apply to
any products which have been repaired or altered by persons other than repair personnel authorized
by Arestech, or which have been subject to misuse, abuse, accident, or improper installation.
Arestech assumes no liability under the terms of this warranty as a consequence of such events.
When a defect is discovered, please obtain an RMA (return merchandize authorization) from our
website, which allows us to process your return more quickly. The returned product must be properly
packaged in its original packaging to obtain warranty service.

4
User Manual
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must
be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. For safety reasons, the equipment should be opened only by qualified service personnel. If one
of the following situations arises, get the equipment checked by service personnel:
◼The power cord or plug is damaged.
◼Liquid has penetrated into the equipment.
◼The equipment has been exposed to moisture.
◼The equipment does not work well, or you cannot get it to work according to the user
manual.
◼The equipment has been dropped and damaged.
◼The equipment has obvious signs of breakage.
14. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE
MAY GO BELOW -20°C (-4°F) OR ABOVE 55°C (131°F). THIS COULD DAMAGE THE
EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
15. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

5
User Manual
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from damage:
1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on
it. Don't touch any components on the CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The sudden rush of power as you
connect a jumper or install a card may damage sensitive electronic components.

6
User Manual
Contents
Chapter 1. General Introduction....................................................................................7
1.1 I/O Arrangement .....................................................................................................7
1.2 Internal Interfaces .................................................................................................12
1.3 Mechanical Dimensions.........................................................................................14
Chapter 2. System Setup .............................................................................................15
2.1 Power Installation Procedure................................................................................15
2.2 Installing 2.5" HDD and Swappable HDD Bracket .................................................17
2.3 Installing Memory and Internal Expansion Device................................................18
2.4 Installing mini-PCIe Card........................................................................................19
Chapter 3. BIOS Setting...............................................................................................21
3.1 Main.......................................................................................................................22
3.2 Advanced ...............................................................................................................23
3.2.1 TPM Configuration......................................................................................24
3.2.2 Super IO Configuration...............................................................................25
3.2.3 Hardware Monitor......................................................................................26
3.2.4 S5 RTC Wake Configuration........................................................................27
3.2.5 CPU Configuration ......................................................................................28
3.2.6 SATA Configuration.....................................................................................29
3.2.7 OS Selection................................................................................................30
3.3 Chipset...................................................................................................................31
3.4 Security ..................................................................................................................33
3.5 Boot .......................................................................................................................34
3.6 Exit .........................................................................................................................35
Main Menu.......................................................................

7
User Manual
Chapter 1. General Introduction

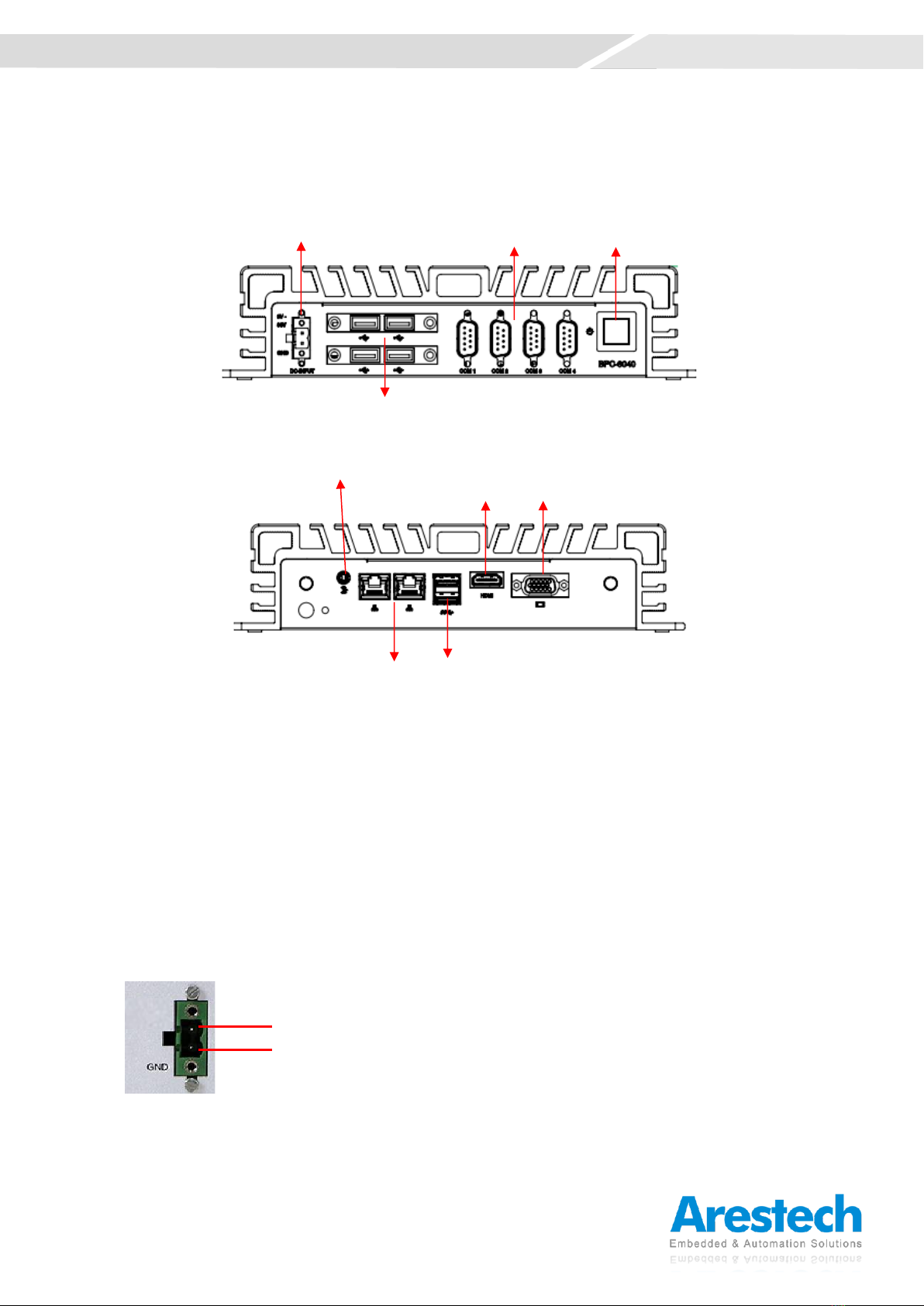

1.1 I/O Arrangement
◼Power Button
Press this button to turn on the system.
The LED is on when the system is operating.
The LED keeps blinking when the system is in S1 sleep state.
The LED is off when the system is in S3/S4 sleep state or powered off (S5).
◼DC 9~36V Power Input Connector
This system supports DC 9-36V power input. The connector must be connected to DC 9-36V
power adaptor. After plugging in the phoenix connector, be sure to fasten the two screws to
lock the connector.
2
1
9-36V
Power input 9-36V
COM 1~4
Power Button
USB3.0
LAN
HDMI
VGA
USB2.0
Line Out

8
User Manual
◼VGA Port
◼Audio Port
Green connector means LINE OUT.
◼HDMI Port
This port can be connected to an HDMI monitor.
1 x HDMI 1.4 port supports a maximum resolution of 3840 x 2160 @ 30 Hz.
Pin
Definition
Pin
Definition
1
TMDS Data2+
2
TMDS Data2 Shield
3
TMDS Data2 -
4
TMDS Data1+
5
TMDS Data1 Shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 Shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock-
13
Reserved
14
Reserved
Pin
Definition
1
GND
2
Vin+ (9-36V DC)
Pin
Definition
Pin
Definition
1
RED
9
VCC
2
GREEN
10
GND
3
BLUE
11
NC
4
NC
12
DAT
5
GND
13
HSYNC
6
GND
14
VSYNC
7
GND
15
CLK
8
GND
15
5
11
1

9
User Manual
15
SCL
16
SDA
17
DDCGround
18
+5 V Power
19
Hot Plug Detect
10
ML_Lane3[p]
20
DP_PWR
◼LAN Port
This port can be connected to Ethernet via RJ-45 connector.
10/100BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
NC
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
NC
4
NC
8
NC
1000BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
BI_D2-
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
BI_D3+
4
BI_D2+
8
BI_D3-
Activity/Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
SPEED LED
Status
Description
Off
10Mbps connection
Green
100Mbps connection
Orange
1Gbps connection

10
User Manual
◼USB 3.0 Port
Pin
Definition
1
+5
2
USB-
3
USB+
4
GND
5
StdA_SSRX-
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX-
9
StdA_SSTX+
Basically, USB3.0 supports 900mA @ 5 V.
◼ANT
These are reserved holes for SMA connectors of antennas. When a customer selects a 4G or a
Wi-Fi module, they will need the ANT hole for plugging in a SMA connector.
◼COM1 (RS-232/422/485), COM 2/3/4(RS-232)
(RS-232)
Pin
Definition
Pin
Definition
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
9
RI/5V/12V
5
GND

11
User Manual
(RS-422)
Pin
Definition
Pin
Definition
1
TX-
6
N/A
2
TX+
7
N/A
3
RX+
8
N/A
4
RX-
9
RI/5V/12V
5
GND
(RS-485)
Pin
Definition
Pin
Definition
1
RTX-
6
N/A
2
RTX+
7
N/A
3
N/A
8
N/A
4
N/A
9
RI/5V/12V
5
GND
◎ NOTE: THE PARAMETERS OF COM1 CAN BE SET BY JUMPER SETTING.

12
User Manual
1.2 Internal Interfaces
◼SATA Connector
Pin
Definition
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
◼SATA Power Connector
Pin
Definition
1
+5V
2
GND
3
GND
4
+12V
◼mini-PCIe Slot
1 x full-size mini-PCIe (PCIe x1 + USB2.0 ) slot with SIM holder.

13
User Manual
◼M.2 Slot
1 x 2242 M key SATA III.

14
User Manual
1.3 Mechanical Dimensions

15
User Manual
Chapter 2. System Setup
2.1 Power Installation Procedure
◼Connect Power Cord

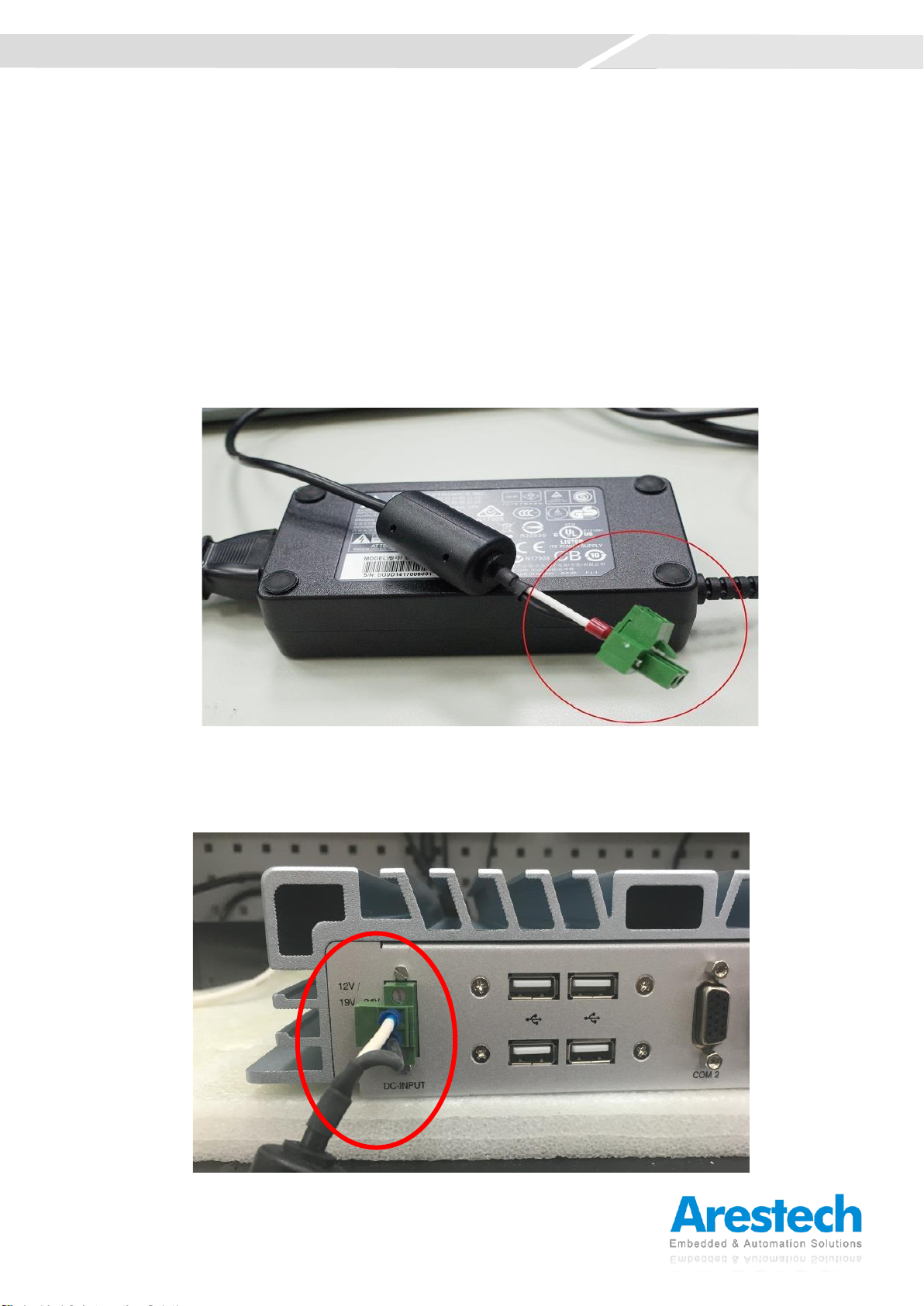

This box pc can support wide-range DC input (9-36V). Be sure to hold the power cord by the
plug end only. Please follow the steps below to connect the power cord:
1. Connect the male end (Phoenix connector) of the power cord to the DC input connector of
BPC-3040 and lock it up.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.
3. Connect the Phoenix connector terminal to the system's power input connector.

16
User Manual
WARNING:
1. AFTER PLUGGING IN THE PHOENIX CONNECTOR, BE SURE TO FASTEN THE TWO
SCREWS TO LOCK THE CONNECTOR.
2. WHITE CABLE STANDS FOR 12V, BLACK CABLE STANDS FOR GND. MAKE SURE THE
CONNECTOR IS PLUGGED IN WITH CORRECT DIRECTION.
◼Connect Keyboard and Mouse
Connect the mouse and keyboard to the USB connectors of BPC-3040.
◼Turn on Power
The power button is located at the right side of the front cover of the box pc.

17
User Manual
2.2 Installing 2.5" HDD and Swappable HDD Bracket
◼Step 1: Unfasten the 8 screws on the chassis and open the bottom cover.
◼Step 2: Unfasten the SATA cable and SATA power cable on the HDD/SSD.
◼Step 3: Unfasten the 4 screws on the HDD/SSD bracket.
◼Step 4: Install another HDD/SSD and fasten all screws.
◎ NOTE: THE BRACKET ONLY SUPPORTS 7MM HDD/SSD.

18
User Manual
2.3 Installing Memory and Internal Expansion Device

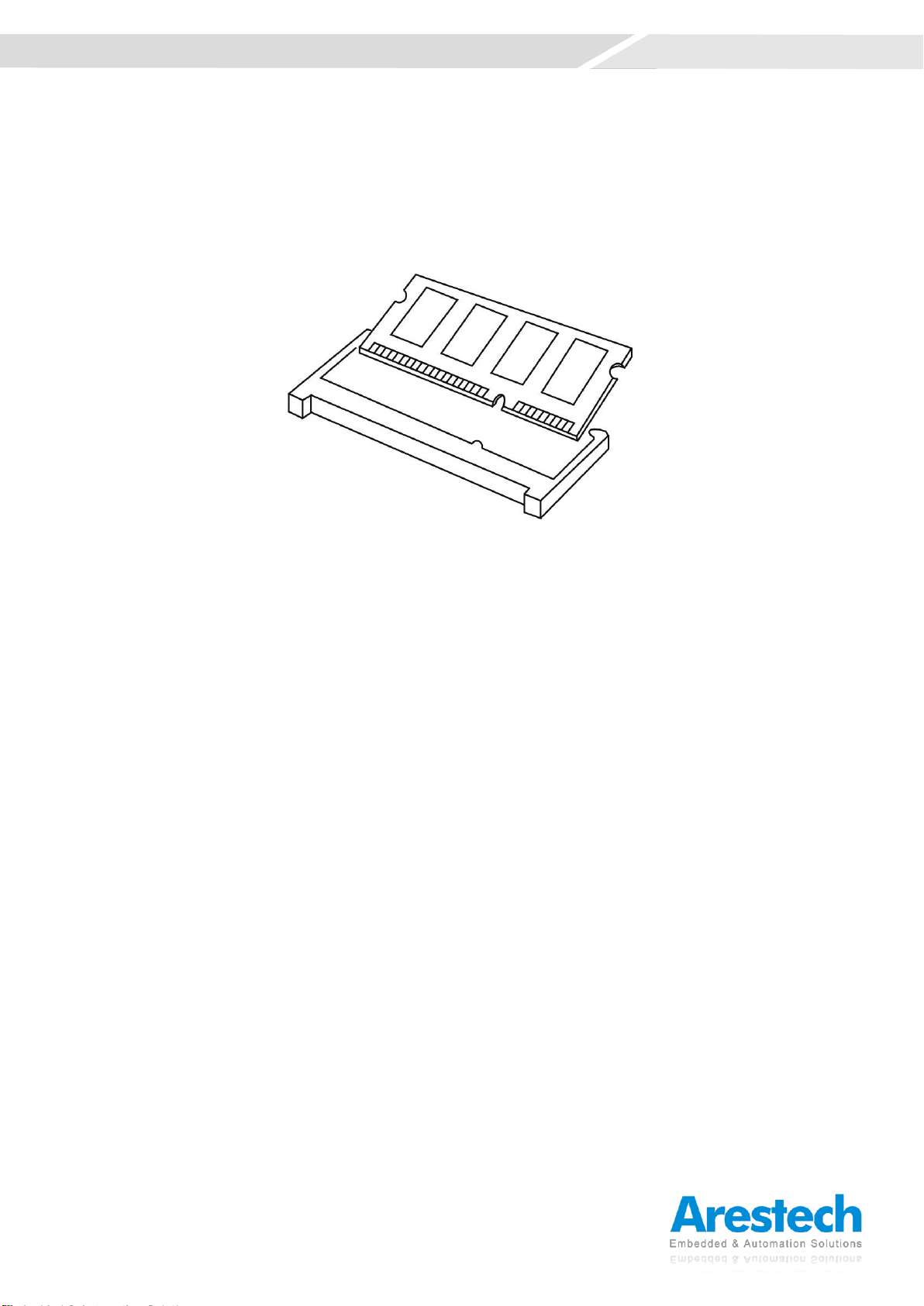

This box pc provides one 204-pin DDR3L SO-DIMM slot, supporting single channel DDR3L SDRAM
only.
◼Step 1: The notch on the SO-DIMM should be lined up with the slot key.
◼Step 2: Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap
back, and the SO-DIMM is properly hold in place.

19
User Manual
2.4 Installing mini-PCIe Card
Expansion Slots mini-PCIe
There is 1x full mini-PCIe slot and 1x M.2 2242 M key slot.
◼mPCIe /m-SATA Placement
◼M.2 Placement

20
User Manual
◼Installing An Expansion Card
1. Before installing the expansion card, please make sure that the power supply is switched
off or the power cord is unplugged. Please read the documentation of the expansion card
and make necessary hardware settings for the card before you start the installation.
2. Remove the system unit cover.
3. Align the card connector with the slot and press firmly until the card is completely hold in
place.
4. Fasten the card to the chassis with screws.
5. Put the system cover back on.
