Arestech PPC-Z103PW User manual

User Manual
PPC-Z103PW
10.1" IP66/69K Stainless Steel 316
Projected Capacitive Panel PC
with Intel® Pentium™ N4200 Processor

2
User Manual
Record of Revisions
Version
Issue Date
Descriptions
Made By
1.0
2021/09/16
First Release
Derek

3
User Manual
Copyright
The documentation and the software included with this product are copyrighted by Arestech
Cooperation Co., Ltd. All rights are reserved. No part of this manual may be reproduced, copied,
translated, or transmitted in any form or by any means without the prior written permission of
Arestech Cooperation Co., Ltd. Information provided in this manual is intended to be accurate and
reliable.
Trademark Acknowledgement
Brand and product names are registered trademarks of their respective owners.
Disclaimer
Arestech reserves the right to make changes, without notice, to any product described or contained
in this manual to improve design and/or performance. Applications that are described in this
manual are for illustration purposes only. Arestech makes no representation or guarantee that such
application will be suitable for the specified use without further testing or modification. This
manual might include unintentional typographical or technical errors. Arestech will periodically
correct such erroneous files and incorporate these corrections into the new version of the manual.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s manual,
please contact the local distributor.
Product Warranty (2 Years)
Arestech warrants to you, the original purchaser, that each of its products will be free from defects
in materials and workmanship for two years from the invoice date. This warranty does not apply to
any products which have been repaired or altered by persons other than repair personnel authorized
by Arestech, or which have been subject to misuse, abuse, accident, or improper installation.
Arestech assumes no liability under the terms of this warranty as a consequence of such events.
When a defect is discovered, please obtain an RMA (return merchandize authorization) from our
website, which allows us to process your return more quickly. The returned product must be properly
packaged in its original packaging to obtain warranty service.

4
User Manual
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must
be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. For safety reasons, the equipment should be opened only by qualified service personnel. If one
of the following situations arises, get the equipment checked by service personnel:
◼The power cord or plug is damaged.
◼Liquid has penetrated into the equipment.
◼The equipment has been exposed to moisture.
◼The equipment does not work well, or you cannot get it to work according to the user
manual.
◼The equipment has been dropped and damaged.
◼The equipment has obvious signs of breakage.
14. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE
MAY GO BELOW -20°C (-4°F) OR ABOVE 55°C (131°F). THIS COULD DAMAGE THE
EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
15. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

5
User Manual
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from damage:
1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on
it. Don't touch any components on the CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The sudden rush of power as you
connect a jumper or install a card may damage sensitive electronic components.

6
User Manual
Contents
Chapter 1. General Introduction....................................................................................7
1.1 I/O Arrangement .....................................................................................................7
1.2 Mechanical Dimensions.........................................................................................10
Chapter 2. System Setup .............................................................................................11
2.1 VESA Mount...........................................................................................................11
2.2 Yoke Mount ...........................................................................................................12
2.3 Wall Mount............................................................................................................13
Chapter 3. BIOS Setting...............................................................................................14
3.1 Main.......................................................................................................................15
3.2 Advanced ...............................................................................................................16
3.2.1 TPM Configuration......................................................................................17
3.2.2 Super IO Configuration...............................................................................18
3.2.3 Hardware Monitor......................................................................................19
3.2.4 S5 RTC Wake Configuration........................................................................20
3.2.5 CPU Configuration ......................................................................................21
3.2.6 SATA Configuration.....................................................................................22
3.2.7 OS Selection................................................................................................23
3.3 Chipset...................................................................................................................24
3.4 Security ..................................................................................................................26
3.5 Boot .......................................................................................................................27
3.6 Exit .........................................................................................................................28
Main Menu.......................................................................

7
User Manual
Chapter 1. General Introduction
1.1 I/O Arrangement
◼Power Button
Press this button to turn on the system.
The LED is on when the system is operating.
The LED keeps blinking when the system is in S1 sleep state.
The LED is off when the system is in S3/S4 sleep state or powered off (S5).
◼Touch On/Off Button
Press this button to turn on the capacitive touch.
◼Pressure Relief Valve (Pressure Balance Element)
It can quickly discharge moisture and pressure, keep the internal pressure of the
machine balanced, and effectively prevent the invasion of water and dust.
◼DC 9~36V Power Input (M12 Connector, 5 Pin Female)

8
User Manual
This system supports DC 9~36V input power voltage. The connector must be connected to DC 9
to 36V power adaptor.
◼LAN Port (M12 Connector, 8 Pin Female)
◼USB2.0 Port (M12 Connector, 8 Pin Female)
Each USB2.0 port supports 500mA @ 5 V.
◼COM Port (COM 1: RS-232/422/485) (M12 Connector, 8 Pin Female)
Users can change the configuration of COM1 by using jumper setting.
Pin
RS-232
RS-422
RS-485
1
DCD
TX-
D-
2
RXD
TX+
D+
3
TXD
RX-
4
DTR
RX+
5
GND
GND
GND
6
DSR
7
RTS
8
CTS
Pin
Definition
1
VCC
2
VCC
3
GND
4
GND
5
N/A
Pin
Definition
Pin
Definition
1
TX_D1+
5
BI_D3-
2
TX_D1-
6
RX_D2-
3
RX_D2+
7
BI_D4+
4
BI_D3+
8
BI_D4-
Pin
Definition
Pin
Definition
1
+5
5
+5
2
D-
6
D-
3
D+
7
D+
4
GND
8
GND

9
User Manual
◼VGA Port
Pin
Definition
Pin
Definition
1
RED Gnd
7
BLUE
2
RED
8
GREEN GND
3
SDA
9
GREEN
4
GND
10
HS
5
GND
11
SCL
6
BLUE GND
12
VS

10
User Manual
1.2 Mechanical Dimensions

11
User Manual
Chapter 2. System Setup
2.1 VESA Mount
There are three VESA mount dimensions on the back cover: 75 x 75 mm and 100 x 100 mm. Fasten
four M4 screws to mount the monitor to a VESA Stand.
◎ NOTE: THE LENGTH OF VESA MOUNT SCREW CANNOT EXCEED 6MM.

12
User Manual
2.2 Yoke Mount
Fix the machine by the M6 screw holes of the yoke mount shown below.
Please first fasten the M6 screw indicated as (1) below, and then fasten the M6 screw indicated as
(2) below. The viewing angle can be adjusted 15o back and forth.

13
User Manual
2.3 Wall Mount
Fix the machine by the M6 screw holes of the wall mount shown below.
Please first fasten the M6 screw indicated as (1) below, and then fasten the M6 screw indicated as
(2) below. The viewing angle can be adjusted 15o back and forth.

14
User Manual
Chapter 3. BIOS Setting
The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel®
processors. The BIOS provides critical low-level support for a standard device such as disk drives,
serial ports, and parallel ports. It also adds virus and password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system. The BIOS provides a setup utility
program for specifying the system configurations and settings. The BIOS ROM of the system stores
the setup utility.
When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key
immediately allows you to enter the setup utility. When you enter the BIOS setup utility, the top of
the screen has a menu bar with the following selections:
◼Main: To set up the system time/date information
◼Advanced: To set up the advanced UEFI features
◼H/W Monitor: To display current hardware status
◼Security: To set up the security features
◼Boot: To set up the default system device to locate and load the operating system
◼Exit: To exit the current screen or the UEFI setup utility
Use ← key or → key to choose the selections on the menu bar.
Use <Enter> key to get into the sub screen or an item.
Use ↓key or↑key to move the curs or down or up to select items.
Use <Exit> key to exit the current screen.

15
User Manual
3.1 Main
◎ NOTE: TO CLEAR CMOS, PLEASE SHORT THE TWO PINS INDICATED BELOW.

16
User Manual

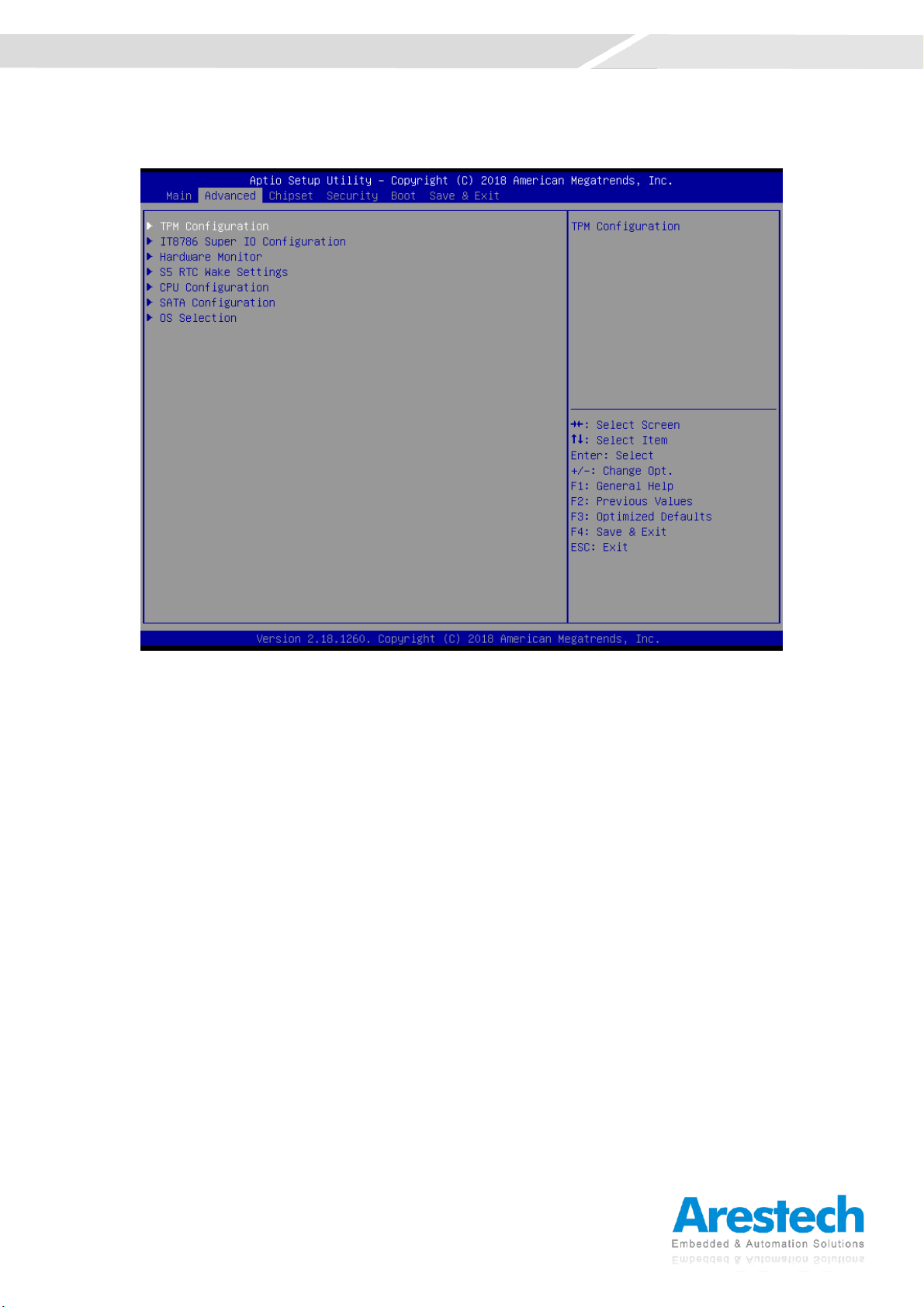

3.2 Advanced

17
User Manual
3.2.1 TPM Configuration
◼fTPM
This item allows users to enable or disable the fTPM.
◼Trusted Computing
This item allows users to enable or disable the Security Device Support.

18
User Manual

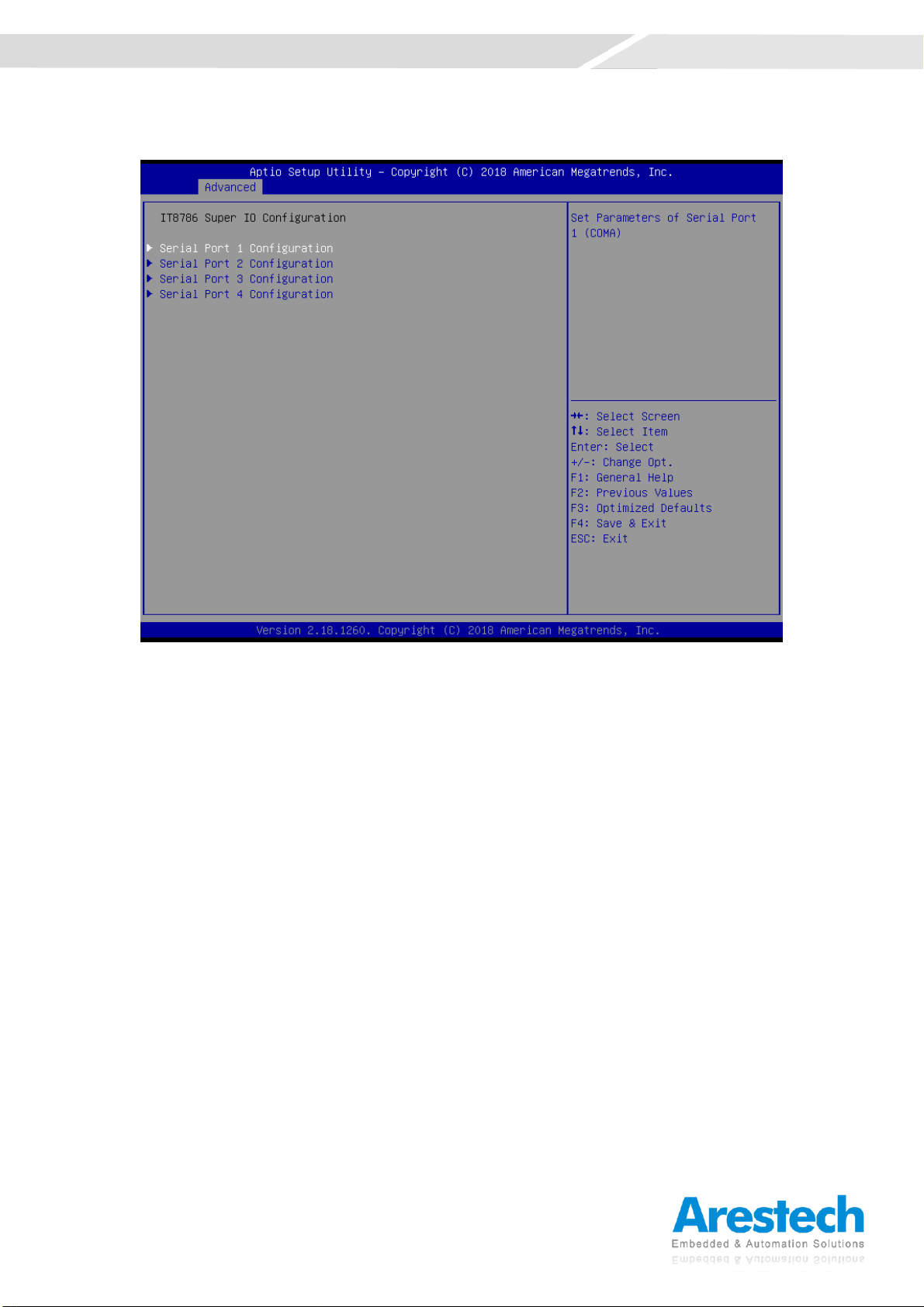

3.2.2 Super IO Configuration
◼COM1 Configuration
This item allows users to enable or disable COM1.
◼COM2 Configuration
This item allows users to enable or disable COM2.
◼COM3 Configuration
This item allows users to enable or disable COM3.
◼COM4 Configuration
This item allows users to enable or disable COM4.

19
User Manual
3.2.3 Hardware Monitor
◼CPU Fan Fail Warning
This item allows users to enable or disable the CPU Fan Fail Warning.
◼CPU Fan Speed Control
This item allows users to set CPU Fan Speed as [Normal] or [Full Speed].

20
User Manual
3.2.4 S5 RTC Wake Configuration
◼Wake System from S5
This item allows users to set Fixed Time or disable System wake on alarm event. Select Time
System will wake on the hr:: min::sec:: specified.
