Chapter 1. General Introduction
1.1 I/O Arrangement
◼Power Button
Press this button to turn on the system.
The LED is on when the system is operating.
The LED keeps blinking when the system is in S1 sleep state.
The LED is off when the system is in S3/S4 sleep state or powered off (S5).
◼DC 9~36V Power Input Connector
This system supports DC 9-36V power input. The connector must be connected to DC 9-
36V power adaptor. After plugging in the phoenix connector, be sure to fasten the two
screws to lock the connector.
Power input 9-36v
Com 2/3/4
GPIO
USB 2.0
Power Button
COM1
LAN
HDMI
Mic In
USB3.1 Gen 2
Line Out
2
1
9-36V

8
User Manual
Pin
Definition
1
GND
2
Vin+ (9-36V DC)

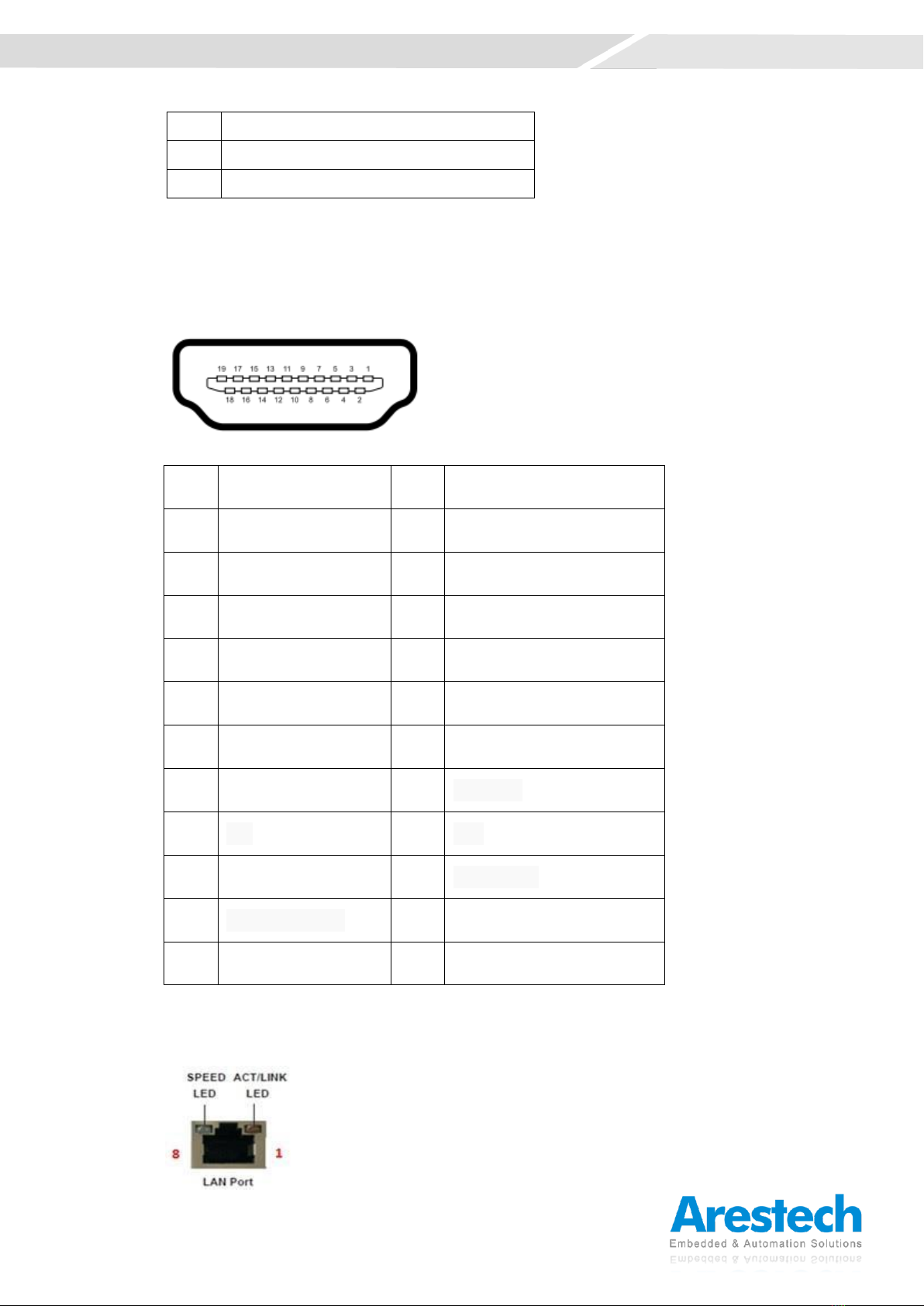

◼HDMI Port
This port can be connected to an HDMI monitor.
2 x HDMI 1.4 ports support a maximum resolution of 4096 x 2304 @ 24Hz.
Pin
Definition
Pin
Definition
1
TMDS Data2+
2
TMDS Data2 Shield
3
TMDS Data2 -
4
TMDS Data1+
5
TMDS Data1 Shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 Shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock-
13
Reserved
14
Reserved
15
SCL
16
SDA
17
DDCGround
18
+5 V Power
19
Hot Plug Detect
10
ML_Lane3[p]
20
DP_PWR
◼LAN Port
This port can be connected to Ethernet via RJ-45 connector.

9
User Manual
10/100BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
NC
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
NC
4
NC
8
NC
1000BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
BI_D2-
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
BI_D3+
4
BI_D2+
8
BI_D3-
Activity/Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
SPEED LED
Status
Description
Off
10Mbps connection
Green
100Mbps connection
Orange
1Gbps connection

10
User Manual
◼USB 3.1 Gen 2 Port
Pin
Definition
1
+5
2
USB-
3
USB+
4
GND
5
StdA_SSRX-
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX-
9
StdA_SSTX+
Basically, USB3.1 Gen 2 supports 900mA @ 5 V
◼COM 1 (RS-232/422/485); COM 2 / 3 / 4 (RS-232)
Users can change the configuration of COM1 by using BIOS setup utility.
Pin
RS-232
RS-422
RS-485
1
DCD
TX-
D-
2
RXD
TX+
D+
3
TXD
RX-
4
DTR
RX+
5
GND
GND
GND
6
DSR
7
RTS
8
CTS
9
RI/5V/12V
RI/5V/12V
RI/5V/12V
◎NOTE: PLEASE REFER TO CHAPTER 3, BIOS SETTING - 3.2.5 IT8786 Super IO
Configuration.
◼Audio Port
Green connector means LINE OUT, and pink connector means MIC IN.

11
User Manual
◼Digital I/O Ports (Optional)
Guide:
1. DI ports have default high (3.3V) voltage. Users have to input a low (GND) voltage to
give a trigger signal.
2. Users can define high (3.3V) or low (GND) voltage by themselves for the output DO
ports.
3. VCC port always provides DC high (5V) voltage.
4. GND port always provides DC low (GND) voltage.
◼ANT
These are reserved holes for SMA connectors of antennas. When a customer selects a 4G
or a Wi-Fi module, they will need the ANT hole for plugging in a SMA connector.
1
GPO_1
2
GPO_2
3
GOP_3
4
GPO_4
5
GOI_1
6
GOI_2
7
GOI_3
8
GOI_4
9
SMB_CLK
10
SMB_DATA
11
+5V
12
GND
1
5
11
15

12
User Manual
1.2 Internal Interfaces

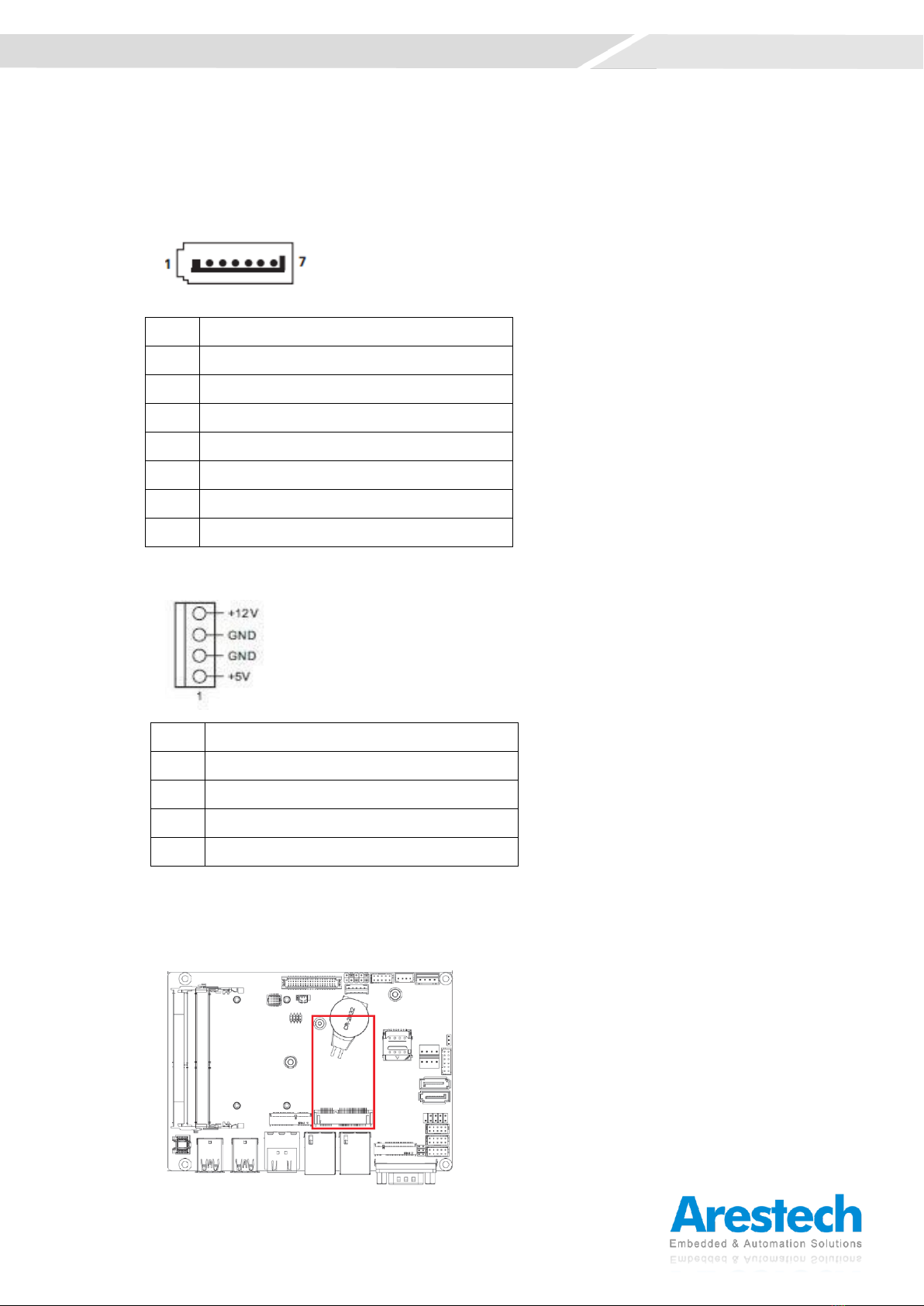

◼SATA Connector
◼SATA Power Connector
◼mini-PCIe Slot
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0), supporting 3G/4G module mini
cards.
Pin
Definition
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
Pin
Definition
1
+5V
2
GND
3
GND
4
+12V

13
User Manual
◼M.2 Slot
1x 2230 M.2 E-Key (PCIe x1, USB 2.0 for Wi-Fi modules.)
1 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

14
User Manual
1.3 Mechanical Dimensions

15
User Manual
Chapter 2. System Setup
2.1 Power Installation Procedure
◼Connect Power Cord

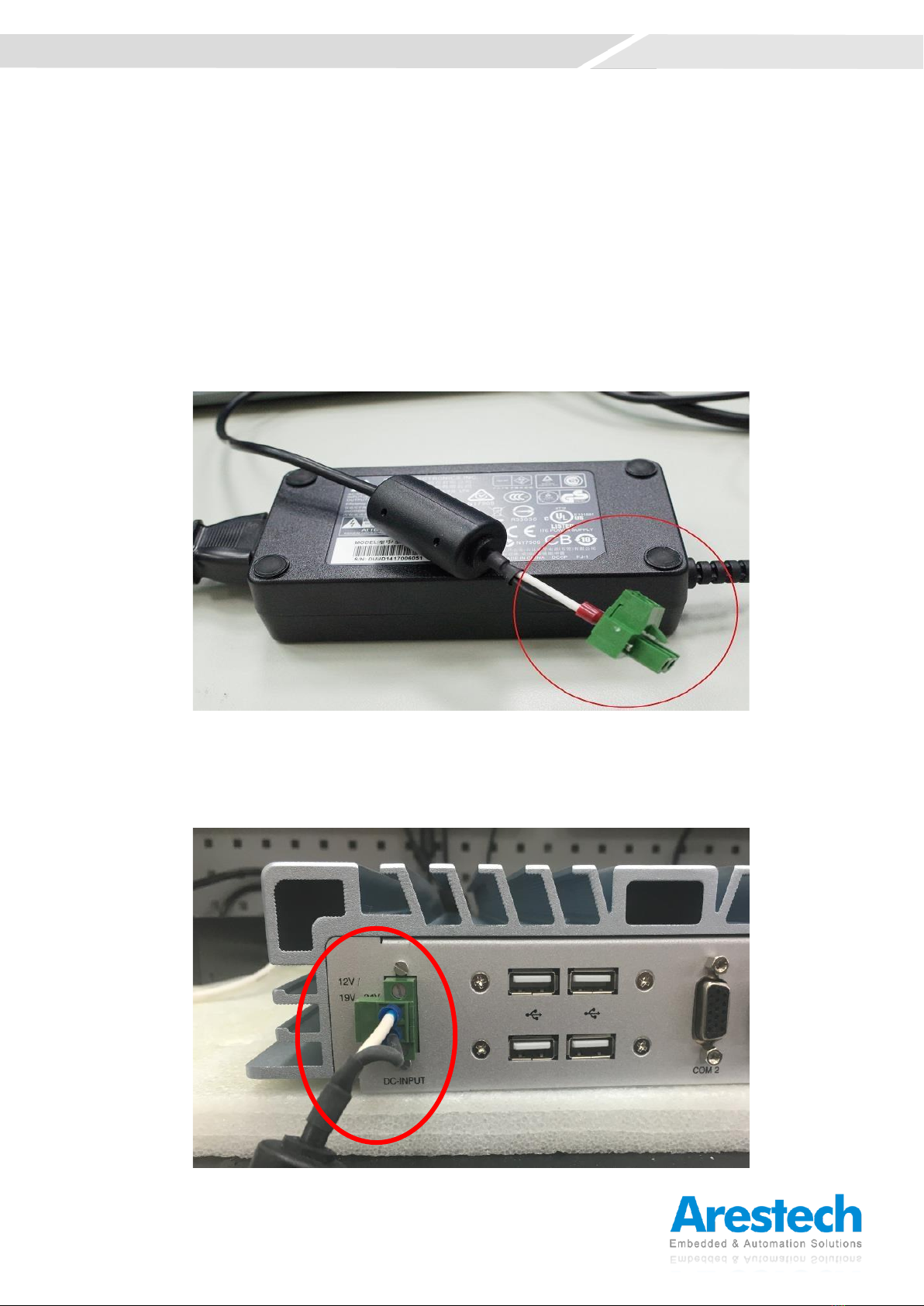

This box pc can support wide-range DC input (9-36V). Be sure to hold the power cord by
the plug end only. Please follow the steps below to connect the power cord:
1. Connect the male end (Phoenix connector) of the power cord to the DC input
connector of
BPC-3080 and lock it up.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.
3. Connect the Phoenix connector terminal to the system's power input connector.

16
User Manual
WARNING:
1. AFTER PLUGGING IN THE PHOENIX CONNECTOR, BE SURE TO FASTEN THE TWO
SCREWS TO LOCK THE CONNECTOR.
2. WHITE CABLE STANDS FOR 12V, BLACK CABLE STANDS FOR GND. MAKE SURE THE
CONNECTOR IS PLUGGED IN WITH CORRECT DIRECTION.
◼Connect Keyboard and Mouse
Connect the mouse and keyboard to the USB connectors of BPC-3080.
◼Turn on Power
The power button is located at the right side of the front cover of the box pc.

17
User Manual
2.2 Installing 2.5" HDD and Swappable HDD Bracket
◼Step 1: Unfasten the 8 screws on the chassis and open the bottom cover.
◼Step 2: Unfasten the SATA cable and SATA power cable on the HDD/SSD.

18
User Manual

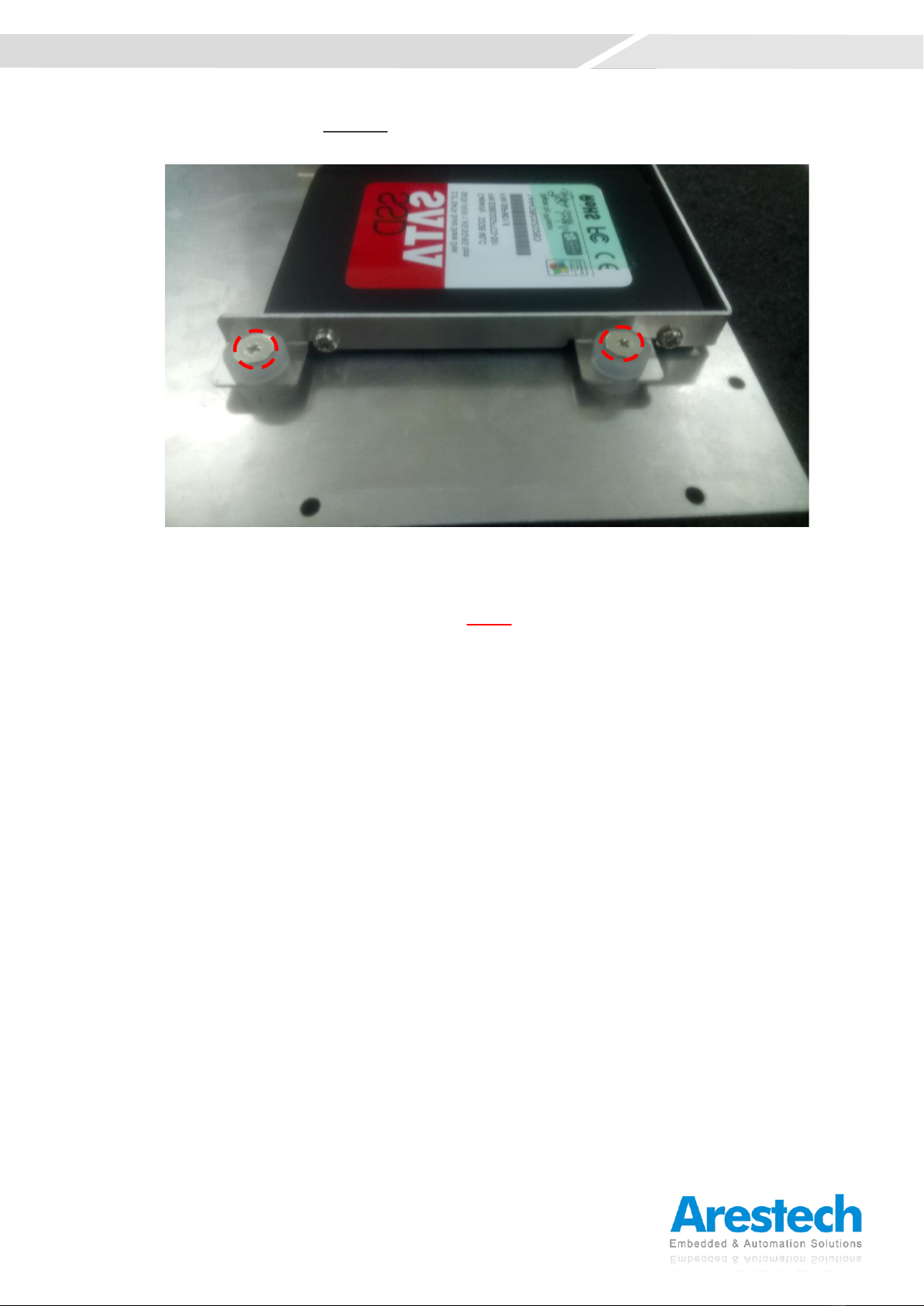

◼Step 3: Unfasten the 4 screws on the HDD/SSD bracket.
◼Step 4: Install another HDD/SSD and fasten all screws.
◎ NOTE: THE BRACKET ONLY SUPPORTS 7MM HDD/SSD.

19
User Manual

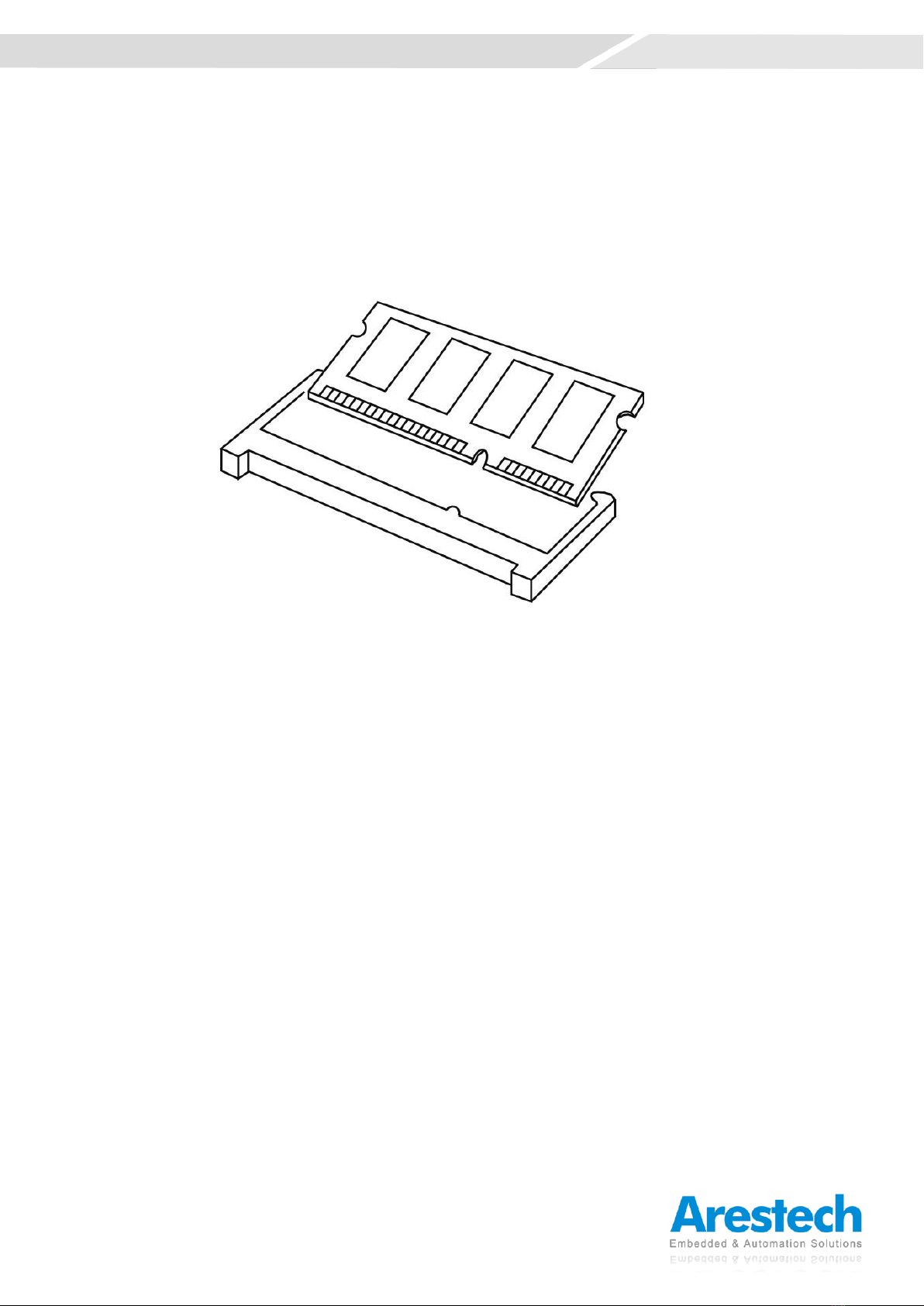

2.3 Installing Memory and Internal Expansion Device
This box pc provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, supporting dual
channel DDR4 SDRAM only.
◼Step 1: The notch on the SO-DIMM should be lined up with the slot key.
◼Step 2: Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully
snap back, and the SO-DIMM is properly hold in place.

20
User Manual
2.4 Installing mini-PCIe Card and M.2 Device
Expansion Slots (mini-PCIe ,M.2 E Key 2230, and M Key 2280)
There is 1x mini-PCIe slot, 1x M.2 E key 2230 slot, and 1x M key 2280 slot on this motherboard.
◼mPCIe Placement
1x full mini-PCIe with PCIe x1, USB 2.0, and SIM holder.
◼M.2 E Key 2230 Placement
1x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wi-Fi modules.
◼M.2 M Key Placement
1x M.2 (Key M, 2242/2260/2280) with SATA3 for SSD.
