Arestech BPC-3072 User manual

User Manual
BPC-3072
Fanless Compact Embedded Box PC
with 7th generation Intel® Core™ i5/i3 Kabylake-U Processor

2
User Manual
Record of Revisions
Version
Issue Date
Descriptions
Made By
1.0
2021/08/02
First Release
Derek

3
User Manual
Copyright
The documentation and the software included with this product are copyrighted by Arestech
Cooperation Co., Ltd. All rights are reserved. No part of this manual may be reproduced, copied,
translated, or transmitted in any form or by any means without the prior written permission of
Arestech Cooperation Co., Ltd. Information provided in this manual is intended to be accurate and
reliable.
Trademark Acknowledgement
Brand and product names are registered trademarks of their respective owners.
Disclaimer
Arestech reserves the right to make changes, without notice, to any product described or contained
in this manual to improve design and/or performance. Applications that are described in this
manual are for illustration purposes only. Arestech makes no representation or guarantee that such
application will be suitable for the specified use without further testing or modification. This
manual might include unintentional typographical or technical errors. Arestech will periodically
correct such erroneous files and incorporate these corrections into the new version of the manual.
Technical Support and Assistance
If there is a problem with your product and you are unable to get a solution from the user’s manual,
please contact the local distributor.
Product Warranty (2 Years)
Arestech warrants to you, the original purchaser, that each of its products will be free from defects
in materials and workmanship for two years from the invoice date. This warranty does not apply to
any products which have been repaired or altered by persons other than repair personnel authorized
by Arestech, or which have been subject to misuse, abuse, accident, or improper installation.
Arestech assumes no liability under the terms of this warranty as a consequence of such events.
When a defect is discovered, please obtain an RMA (return merchandize authorization) from our
website, which allows us to process your return more quickly. The returned product must be properly
packaged in its original packaging to obtain warranty service.

4
User Manual
Safety Instructions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use
liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must
be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may
cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the
power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid
damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. For safety reasons, the equipment should be opened only by qualified service personnel. If one
of the following situations arises, get the equipment checked by service personnel:
◼The power cord or plug is damaged.
◼Liquid has penetrated into the equipment.
◼The equipment has been exposed to moisture.
◼The equipment does not work well, or you cannot get it to work according to the user
manual.
◼The equipment has been dropped and damaged.
◼The equipment has obvious signs of breakage.
14. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE
MAY GO BELOW -20°C (-4°F) OR ABOVE 55°C (131°F). THIS COULD DAMAGE THE
EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.
15. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD
USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

5
User Manual
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the products from damage:
1. To avoid electrical shock, always disconnect the power from your PC chassis before you work on
it. Don't touch any components on the CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The sudden rush of power as you
connect a jumper or install a card may damage sensitive electronic components.

6
User Manual
Contents
Chapter 1. General Introduction....................................................................................7
1.1 I/O Arrangement .....................................................................................................7
1.2 Internal Interfaces .................................................................................................12
1.3 Mechanical Dimensions.........................................................................................14
Chapter 2. System Setup .............................................................................................15
2.1 Power Installation Procedure................................................................................15
2.2 Installing 2.5" HDD and Swappable HDD Bracket .................................................17

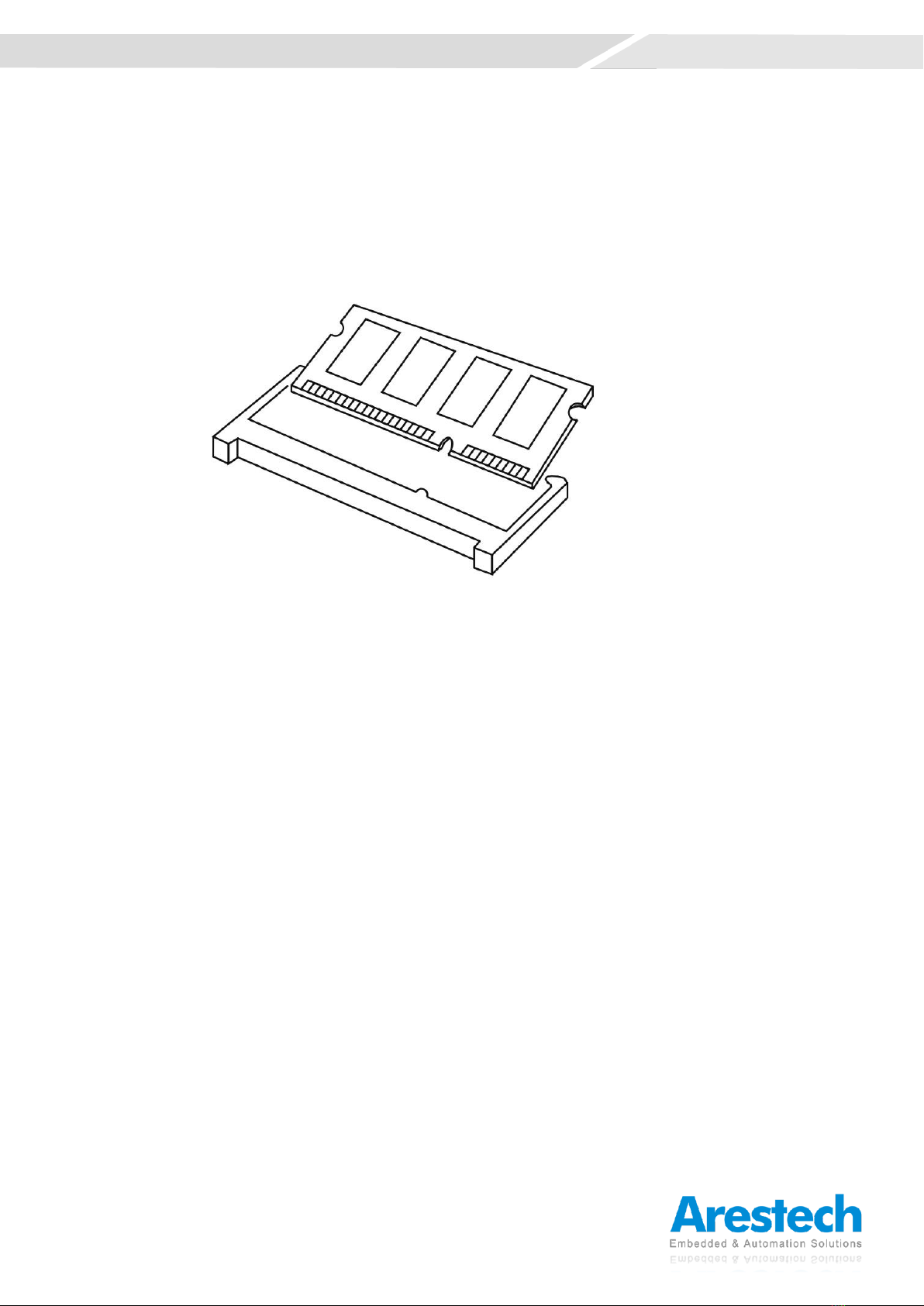

2.3 Installing Memory and Internal Expansion Device................................................18
2.4 Installing mini-PCIe Card and M.2 Device..............................................................19
Chapter 3. BIOS Setting...............................................................................................20
3.1 Main...............................................................................................................................21
3.2 Advanced .......................................................................................................................22
3.2.1 CPU Configuration ......................................................................................23
3.2.2 SATA and RST Configuration.......................................................................24
3.2.3 Hardware Monitor......................................................................................25
3.2.4 IT8786 Super IO configuration....................................................................26
3.2.5 RTC Wake Settings......................................................................................27
3.2.6 CSM Configuration......................................................................................28
3.4 Security ..................................................................................................................32
3.5 Boot .......................................................................................................................33
3.6 Exit .........................................................................................................................34
Main Menu.......................................................................

7
User Manual
Chapter 1. General Introduction
1.1 I/O Arrangement
◼Power Button
Press this button to turn on the system.
The LED is on when the system is operating.
The LED keeps blinking when the system is in S1 sleep state.
The LED is off when the system is in S3/S4 sleep state or powered off (S5).
◼DC 9~36V Power Input Connector
This system supports DC 9-36V power input. The connector must be connected to DC 9-36V
power adaptor. After plugging in the phoenix connector, be sure to fasten the two screws to
lock the connector.
Power Input 9-36V
COM 2/3/4
GPIO
USB 2.0
Power Button
COM 1
LAN
HDMI
Mic In
USB3.0
Line Out
2
1
9-36V

8
User Manual

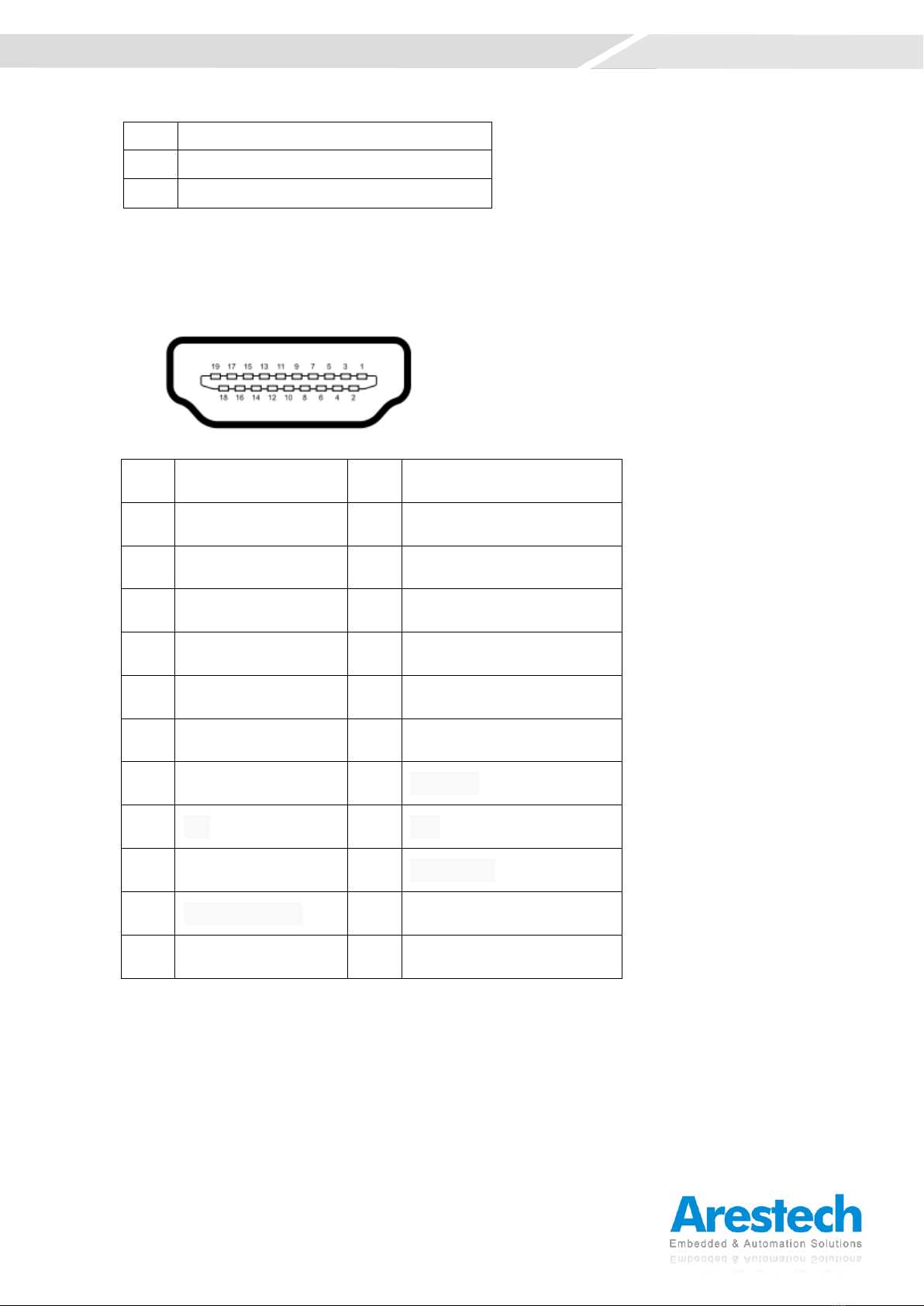

◼HDMI Port
This port can be connected to an HDMI monitor.
2x HDMI 2.0 ports support a maximum resolution of 4096 x 2160 @ 60 Hz.
Pin
Definition
Pin
Definition
1
TMDS Data2+
2
TMDS Data2 Shield
3
TMDS Data2 -
4
TMDS Data1+
5
TMDS Data1 Shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 Shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock-
13
Reserved
14
Reserved
15
SCL
16
SDA
17
DDCGround
18
+5 V Power
19
Hot Plug Detect
10
ML_Lane3[p]
20
DP_PWR
◼LAN Port
This port can be connected to Ethernet via RJ-45 connector.
Pin
Definition
1
GND
2
Vin+ (9-36V DC)

9
User Manual
10/100BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
NC
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
NC
4
NC
8
NC
1000BASE-T:
Pin
Definition
Pin
Definition
1
TX_D0+
5
BI_D2-
2
TX_D0-
6
RX_D1-
3
RX_D1+
7
BI_D3+
4
BI_D2+
8
BI_D3-
Activity/Link LED
Status
Description
Off
No Link
Blinking
Data Activity
On
Link
SPEED LED
Status
Description
Off
10Mbps connection
Green
100Mbps connection
Orange
1Gbps connection
◼USB 3.0 Port

10
User Manual
Basically, USB3.0 supports 900mA @ 5 V

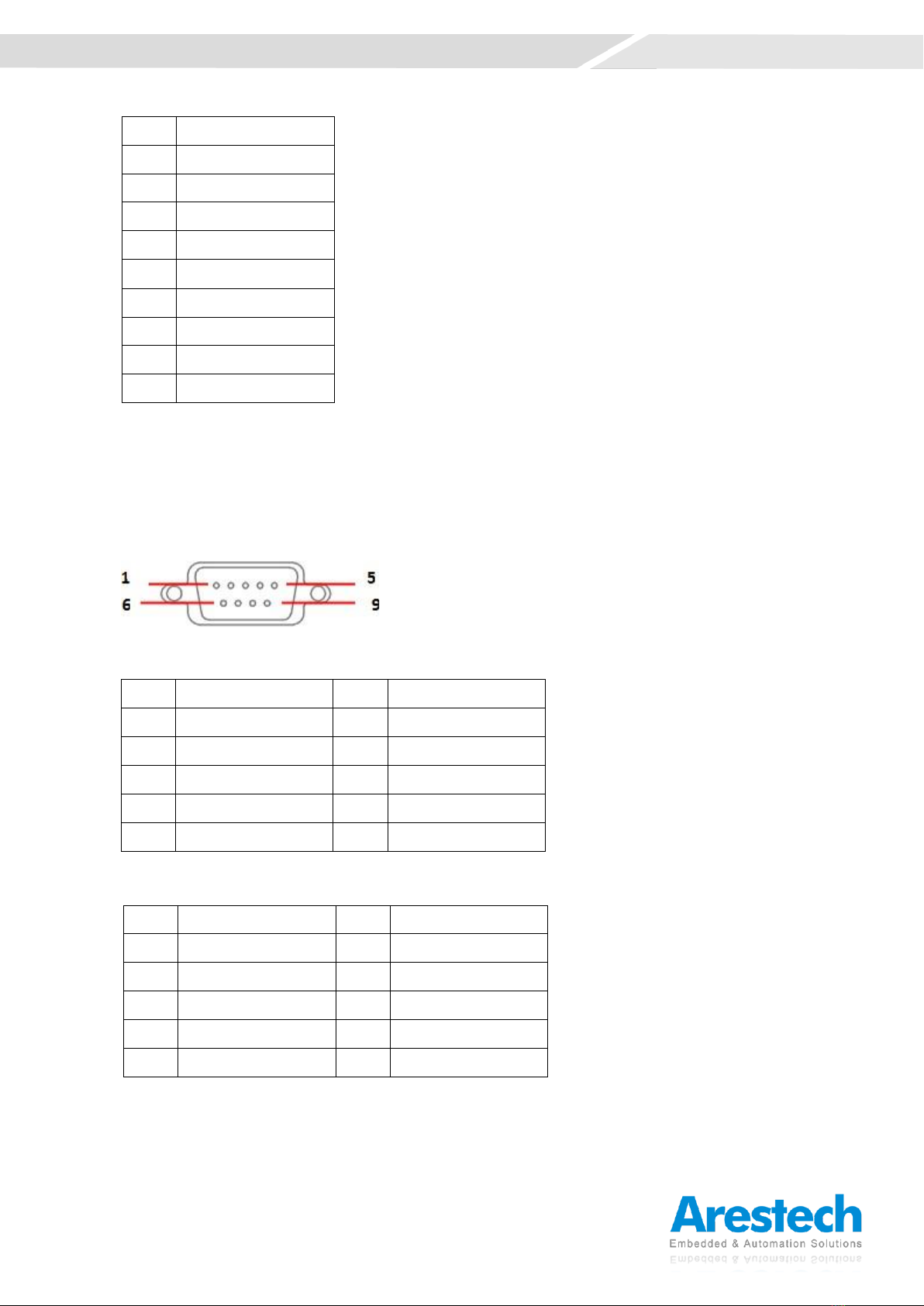

◼COM 1 (RS-232/422/485), COM 2 / 3 / 4 (RS-232)
Users can change the configuration of COM1 by using BIOS setup utility.
◎ NOTE: PLEASE REFER TO CHAPTER3 BIOS SETTING - IT8786 SUPER IO CONFIGURATION
(RS-232)
Pin
Definition
Pin
Definition
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
9
RI/5V/12V
5
GND
(RS-422)
Pin
Definition
Pin
Definition
1
TX-
6
N/A
2
TX+
7
N/A
3
RX+
8
N/A
4
RX-
9
RI/5V/12V
5
GND
Pin
Definition
1
+5
2
USB-
3
USB+
4
GND
5
StdA_SSRX-
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX-
9
StdA_SSTX+

11
User Manual
(RS-485)
Pin
Definition
Pin
Definition
1
RTX-
6
N/A
2
RTX+
7
N/A
3
N/A
8
N/A
4
N/A
9
RI/5V/12V
5
GND
◼Audio Port
Green connector means LINE OUT, and pink connector means MIC IN.
◼Digital I/O Port (Optional)
Guide:
1. DI ports have default high (3.3V) voltage. Users have to input a low (GND) voltage to give a
trigger signal.
2. Users can define high (3.3V) or low (GND) voltage by themselves for the output DO ports.
3. VCC port always provides DC high (5V) voltage.
4. GND port always provides DC low (GND) voltage.
◼ANT
These are reserved holes for SMA connectors of antennas. When a customer selects a 4G or a
Wi-Fi module, they will need the ANT hole for plugging in a SMA connector.
1
GPO_1
2
GPO_2
3
GOP_3
4
GPO_4
5
GOI_1
6
GOI_2
7
GOI_3
8
GOI_4
9
SMB_CLK
10
SMB_DATA
11
+5V
12
GND
1
5
11
15

12
User Manual
1.2 Internal Interfaces
◼SATA Connector
Pin
Definition
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
◼SATA Power Connector
Pin
Definition
1
+5V
2
GND
3
GND
4
+12V

13
User Manual

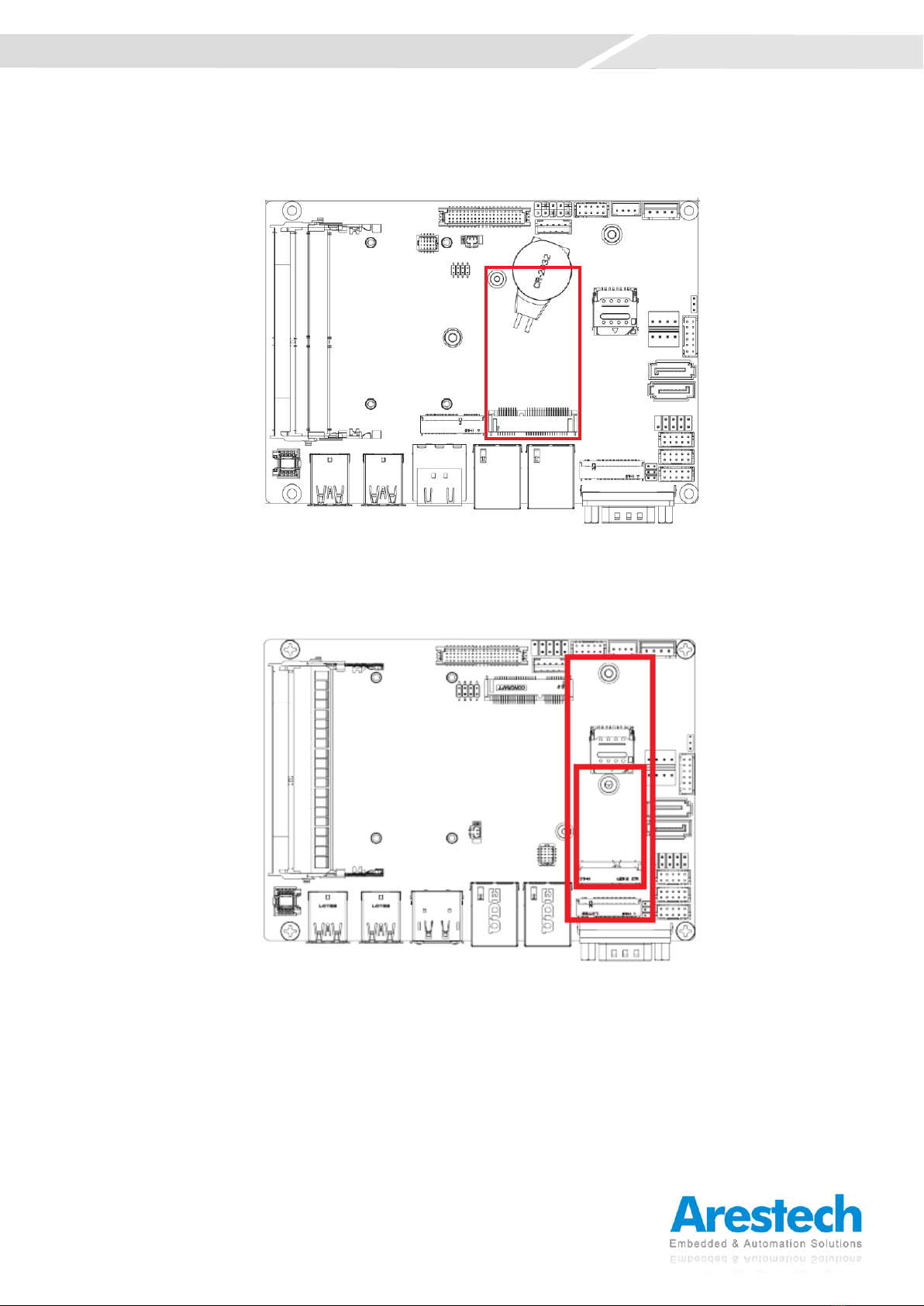

◼mini-PCIe Slot
1x full-size mini-PCIe with SIM slot (PCIe x1 + USB2.0), supporting 3G/4G module mini cards.
◼M.2 Slot
1x 2230 M.2 E Key (PCIe x1, USB 2.0 for Wi-Fi modules)
1x 2280 M.2 M Key (PCIe x4, SATA 6Gb/s)

14
User Manual
1.3 Mechanical Dimensions

15
User Manual
Chapter 2. System Setup
2.1 Power Installation Procedure
◼Connect Power Cord
This box pc can support wide-range DC input (9-36V). Be sure to hold the power cord by the
plug end only. Please follow the steps below to connect the power cord:
1. Connect the male end (Phoenix connector) of the power cord to the DC input connector of
BPC-3072 and lock it up.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.
3. Connect the Phoenix connector terminal to the system's power input connector.

16
User Manual
WARNING:
1. AFTER PLUGGING IN THE PHOENIX CONNECTOR, BE SURE TO FASTEN THE TWO
SCREWS TO LOCK THE CONNECTOR.
2. WHITE CABLE STANDS FOR 12V, BLACK CABLE STANDS FOR GND. MAKE SURE THE
CONNECTOR IS PLUGGED IN WITH CORRECT DIRECTION.
◼Connect Keyboard and Mouse
Connect the mouse and keyboard to the USB connectors of BPC-3072.
◼Turn on Power
The power button is located at the right side of the front cover of the box pc.

17
User Manual
2.2 Installing 2.5" HDD and Swappable HDD Bracket
◼Step 1: Unfasten the 8 screws on the chassis and open the bottom cover.
◼Step 2: Unfasten the SATA cable and SATA power cable on the HDD/SSD.
◼Step 3: Unfasten the 4 screws on the HDD/SSD bracket.
◼Step 4: Install another HDD/SSD and fasten all screws.
◎ NOTE: THE BRACKET ONLY SUPPORTS 7MM HDD/SSD.

18
User Manual
2.3 Installing Memory and Internal Expansion Device
This box pc provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, supporting dual
channel DDR4 SDRAM only.
◼Step 1: The notch on the SO-DIMM should be lined up with the slot key.
◼Step 2: Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap
back, and the SO-DIMM is properly hold in place.

19
User Manual
2.4 Installing mini-PCIe Card and M.2 Device
Expansion Slots (mini-PCIe, M.2 2230 E Key and 2280 M Key)
There is 1x mini-PCIe slot, 1x M.2 2230 E key slot, and 1x 2280 M key slot on this motherboard.
◼mPCIe Placement
1x full mini-PCIe with PCIe x1, USB 2.0, and SIM holder.
◼M.2 2230 E Key Placement
1x M.2 2230 E key with PCIe x1 and USB 2.0 for Wi-Fi module.
◼M.2 M key Placement
1x M.2 (M Key, 2242/2260/2280) with SATA3 for SSD.
◼Installing An Expansion Card
1. Before installing the expansion card, please make sure that the power supply is switched
off or the power cord is unplugged. Please read the documentation of the expansion card
and make necessary hardware settings for the card before you start the installation.
2. Remove the system unit cover.
3. Align the card connector with the slot and press firmly until the card is completely hold in
place.
4. Fasten the card to the chassis with screws.
5. Put the system cover back on.

20
User Manual
Chapter 3. BIOS Setting
The BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel®
processors. The BIOS provides critical low-level support for a standard device such as disk drives,
serial ports, and parallel ports. It also adds virus and password protection as well as special support
for detailed fine-tuning of the chipset controlling the entire system. The BIOS provides a setup utility
program for specifying the system configurations and settings. The BIOS ROM of the system stores
the setup utility.
When you turn on the computer, the BIOS is immediately activated. Pressing the <Del> key
immediately allows you to enter the setup utility. When you enter the BIOS setup utility, the top of
the screen has a menu bar with the following selections:
◼Main: To set up the system time/date information
◼Advanced: To set up the advanced UEFI features
◼H/W Monitor: To display current hardware status
◼Security: To set up the security features
◼Boot: To set up the default system device to locate and load the operating system
◼Exit: To exit the current screen or the UEFI setup utility
Use ← key or → key to choose the selections on the menu bar.
Use <Enter> key to get into the sub screen or an item.
Use ↓key or↑key to move the curs or down or up to select items.
Use <Exit> key to exit the current screen.
