ARGON18 KRYPTON PRO 333A User manual
Valid for MY2021 Krypton Pro 333A
Revision 1.0 - 09.27.2020
Valid for MY2021 Krypton GF-IST 334A
Revision 1.0 - 09.27.2020
1. Tools Needed and First Aid Kit ..........................2
2. Frameset Inspection ...................................3
...................4
4. Bike Fitting ...........................................5
4.1. Sizing Chart .......................................6
4.2. Min/Max Seat Post Insertion ........................7
4.3. Stack Height Adjustment ...........................8
4.4. Stem Compression Cap and Over-Stack Spacer .......9
4.5. Cutting the Fork’s Steerer Tube ....................10
4.6. Headset Installation...............................11
5. Rear Derailleur Hanger Adjustment ....................12
6. Cable and Housing Routing - Electronic Shifting.........13
7. Cable and Housing Routing - Mechanical Shifting .......17
8. Stem Assembly .......................................21
9. Seat Post Collar Assembly .............................28
10. Seat Post Assembly ..................................29
11. Chain Catcher .......................................30
12. Fender bracket .....................................31
13. Frameset Parts’ SKU and Description ..................32
Annex A. Stem Swap Kits ................................35
Annex B. Tips for Traveling with a Bike Box ................36
For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,
particularly carbon parts, need extra care when assembled. These components must be installed using a torque wrench to
make sure every bolt is at the right torque setting to prevent damage.
My Krypton Pro / Krypton GF-IST
Date of purchase:
Retailler:
Size:
Serial Number:
Table of Contents
1
2
Tools needed for assembly
1. Bearing Cup Press (Park Tool HHP-2)
2. Allen Key Set
3. Grease
4. Utility Pick Set (Park Tool Item #UP-SET)
5. Clean Rags
6. Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2)
7. Cables and Housing Cutter
8. Carbon Fiber Assembly Paste
9. Threadlocker (Loctite #242)
10. Torque Wrench
First Aid Kit: Essential parts to always have on hand
IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!
1. Spare rear derailleur hanger:
2. Seat post clamp
SKU: 80801
1. Tools Needed & First Aid Kit
SKU: 80832
(Direct mount option if utilized)
SKU: 80802
3
BEFORE ASSEMBLING YOUR NEW MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:
1. Frameset parts checklist (see Frameset Parts’ SKU and Description p.31-34)
2. All the necessary bolts (refer to Frameset Parts’ SKU and Description, p.31-34)
WHEN ASSEMBLING YOUR NEW MAKE SURE YOU FOLLOW THIS PROCEDURE:
3. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)
4. For reference, check serial number and write it on p.1
5. For optimal shifting performance, use a dropout alignment gauge to make sure that the drive-side dropout is straight
IMPORTANT:
Parts installed on frameset Torque Nm
1Front derailleur hanger Riveted - - -
2 Chain suck guard Glued - - -
3 Seatpost Collar M5 Screw (1x) Socket head 4Nm Grease
4 Seatpost head M5 Screws (2x) Socket head 4.5Nm Grease
5 Water bottle cage screws M5 Screws (4x) Socket head 3Nm Grease
6 Removable CS cable stopper M3 Screws (2x) Flat head 1.0 -1.5Nm Grease
7 Rear derailleur hanger M4 Screw (1x) Flat head 2Nm Loctite
8 Small chain catcher M5 Screw (1x) Socket head 3Nm Nylok
9 Headset cap screw M4 Screw (1x) Flat head 0.5-1.0Nm Dry
10 Console cap screw M4 Screws (2x) Flat head 0.5-1.0Nm Dry
11 Stem’s steerer clamp screw M5 Screws (2x) Socket head 5 Nm Grease
12 Stem’s handlebar clamp screw M5 Screws (2x) Socket head 5 Nm Grease
13 HS Compressor cap screw M5 Screw (1x) Flat head 3 Nm Grease
14 HS Expander’s wedge screw Custom expander (1x) 6mm Allen socket 10 Nm Grease
Brakes
The frame and fork are
compatible with either 140mm or 160mm disc rotors. Adapters might
• Rear mount thickness: 25mm
Tire Clearance
The biggest tires that can be installed must be no wider than 34mm
be no wider than 30mm (28c).
Seat Post
27.2mm
Seat Post Collar
31.8mm
Bottom Bracket
Stem
Handlebar clamp size: Ø31.8mm
No more than 30mm of spacer can be placed between the stem and
the top cap of the 3D system. The headset expander plug must be
automatically cancel any warranty claim against the manufacturer.
Headset cap:
When uninstalling the headset cap, you
need to rst loosen the headset cap,
remove the HS cap screw and remove
the fork from the frame. Then you need
to pinch the rear section the headset
cap and lift the rear section upward.
This will release the headset cap from
the frame.
4
5
Consult your authorized Argon 18 Dealer to assure a proper t that takes into account your personal specications.
• Using the Sizing Chart (p.6), determine the required frame size based on your saddle height measurement. Where two frame sizes
are suggested, you can choose depending on your prefered stack, reach and stand-over clearance.
• The seat post might need to be cut-to-size depending on your required saddle height. Refer to Min/Max Seat Post Insertion
instructions (p.7).
• Using the Sizing Chart’s Stack and Reach columns (p.6), determine the required 3D system headset size (0mm, 15mm or 30mm)
based on your recommended handlebar position.
• Each Krypton Pro / Krypton GF-IST frameset include a size specic stem:
• If the handlebar reach needs to be adjusted to acheive your
required position, the other stem lengths are available separately.
Refer to the Annex A. Stem Swap Kits instructions (p.35).
STEM SIZES PROVIDED ON FRAMESET SIZES
70mm XXS
80mm XS
90mm S
100mm M
110mm L and XL
120mm
6
With 0 mm Headset With 15 mm Headset With 30 mm Headset
ACCC
61 XXS 75.5 49.6 51.9 35.9 53.3 35.3 54.7 34.8 4 -1.5
62 XXS 75.5 49.6 51.9 35.9 53.3 35.3 54.7 34.8 3 -2.5
63 XXS 75.5 49.6 51.9 35.9 53.3 35.3 54.7 34.8 2 -3.5
64 XXS/XS 75.5 / 74.9 49.6 / 51.6 51.9 / 53.9 35.9 / 36.9 53.3 / 55.3 35.3 / 36.4 54.7 / 56.7 34.8 / 35.9
65 XXS/XS 75.5 / 74.9 49.6 / 51.6 51.9 / 53.9 35.9 / 36.9 53.3 / 55.3 35.3 / 36.4 54.7 / 56.7 34.8 / 35.9
66 XS 74.9 51.6 53.9 36.9 55.3 36.4 56.7 35.9 1.5 -4.5
67 XS 74.9 51.6 53.9 36.9 55.3 36.4 56.7 35.9 0.5 -5.5
68 XS/S 74.9 / 74.3 51.6 / 53.7 53.9 / 55.9 36.9 / 37.9 55.3 / 57.3 36.4 / 37.4 56.7 / 58.8 35.9 / 37.0
69 XS/S 74.9 / 74.3 51.6 / 53.7 53.9 / 55.9 36.9 / 37.9 55.3 / 57.3 36.4 / 37.4 56.7 / 58.8 35.9 / 37.0
70 S 74.3 53.7 55.9 37.9 57.3 37.4 58.8 37.0 0 -6
71 S 74.3 53.7 55.9 37.9 57.3 37.4 58.8 37.0 -1 -7
72 S/M 74.3 / 73.7 53.7 / 55.8 55.9 / 58.0 37.9 / 38.8 57.3 / 59.4 37.4 / 38.3 58.8 / 60.8 37.0 / 37.9 -8 / -5
73 S/M 74.3 / 73.7 53.7 / 55.8 55.9 / 58.0 37.9 / 38.8 57.3 / 59.4 37.4 / 38.3 58.8 / 60.8 37.0 / 37.9 -9 / -6
74 M 73.7 55.8 58.0 38.8 59.4 38.3 60.8 37.9 -1.5 -7
75 M 73.7 55.8 58.0 38.8 59.4 38.3 60.8 37.9 -2.5 -8
76 M 73.7 55.8 58.0 38.8 59.4 38.3 60.8 37.9 -3.5 -9
77 M/L 73.7 / 73.1 55.8 / 58.0 58.0 / 60.1 38.8 / 39.7 59.4 / 61.5 38.3 / 39.2 60.8 / 62.9 37.9 / 38.8
78 M/L 73.7 / 73.1 55.8 / 58.0 58.0 / 60.1 38.8 / 39.7 59.4 / 61.5 38.3 / 39.2 60.8 / 62.9 37.9 / 38.8
79 L 73.1 58.0 60.1 39.7 61.5 39.2 62.9 38.8 -4 -9.5
80 L 73.1 58.0 60.1 39.7 61.5 39.2 62.9 38.8 -4.5 -10.5
81 L/XL 73.1 / 72.5 58.0 / 60.4 60.1 / 62.4 39.7 / 40.7 61.5 / 63.9 39.2 / 40.2 62.9 / 65.3 38.8 / 39.8
82 L/XL 73.1 / 72.5 58.0 / 60.4 60.1 / 62.4 39.7 / 40.7 61.5 / 63.9 39.2 / 40.2 62.9 / 65.3 38.8 / 39.8
83 XL 72.5 60.4 62.4 40.7 63.9 40.2 65.3 39.8 -5 -10.5
84 XL 72.5 60.4 62.4 40.7 63.9 40.2 65.3 39.8 -6 -11.5
85 XL 72.5 60.4 62.4 40.7 63.9 40.2 65.3 39.8 -7 -12.5
Stack and Reach are measured on top of the headset cap.
Substract 1cm to stack value to compare to a traditional frame.
Add 0,3cm to reach value to compare to a traditional frame.
*Drops are measured with size specic -6° stem
A
B
C
D
E
Saddle
Height

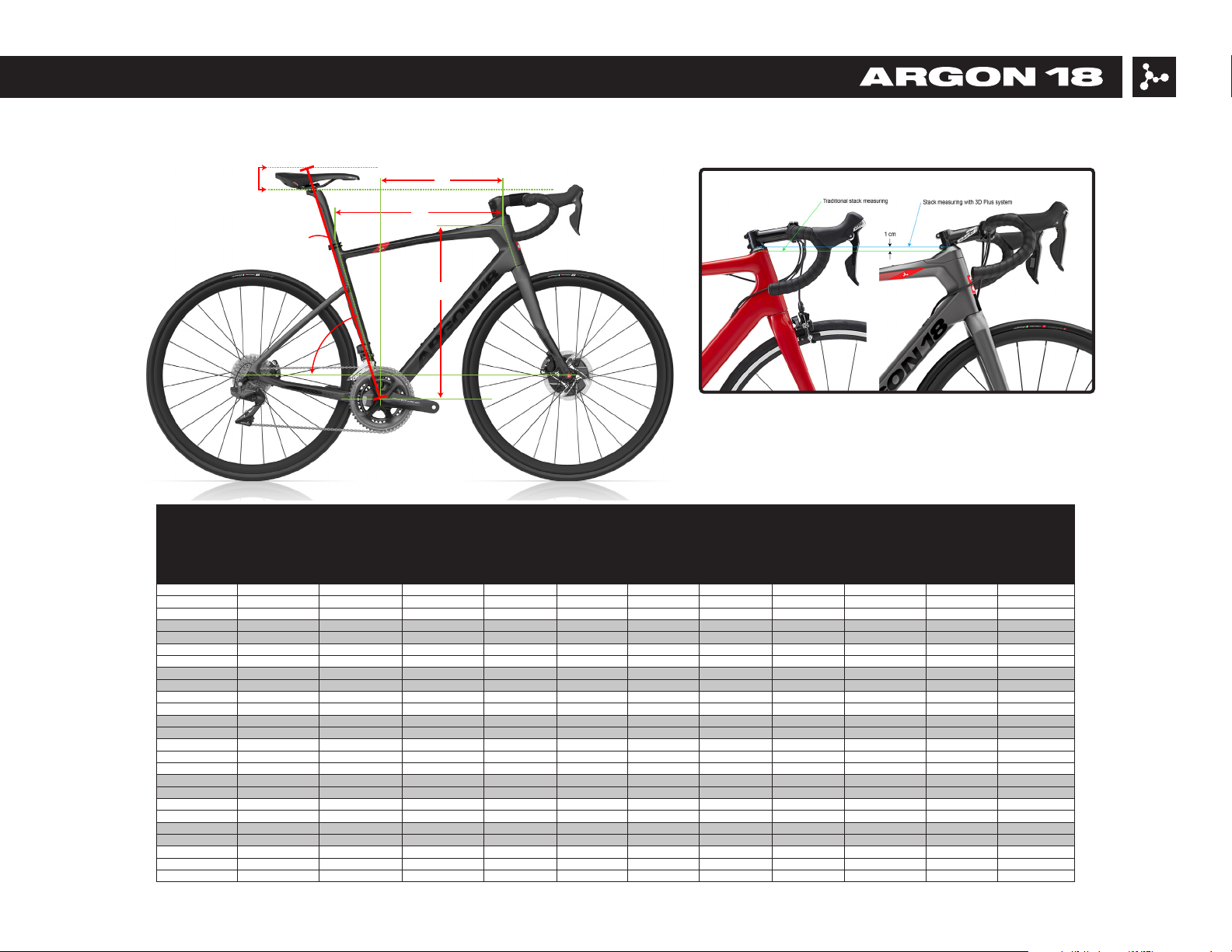

Sizing Chart: Krypton Pro
Saddle
Height (cm)
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
Suggested
Size
XXS
XXS
XXS
XXS / XS
XXS / XS
XS
XS
XS / S
XS / S
S
S
S / M
S / M
M
M
M
M / L
M / L
L
L
L / XL
L / XL
XL
XL
XL
Seat Tube
Angle (°)
A
75.5
75.5
75.5
75.5 / 74.9
75.5 / 74.9
74.9
74.9
74.9 / 74.3
74.9 / 74.3
74.3
74.3
74.3 / 73.7
74.3 / 73.7
73.7
73.7
73.7
73.7 / 73.1
73.7 / 73.1
73.1
73.1
73.1 / 72.5
73.1 / 72.5
72.5
72.5
72.5
Top Tube
(cm)
B
50
50
50
50 / 52
50 / 52
52
52
52 / 54
52 / 54
54
54
54 / 56
54 / 56
56
56
56
56 / 58
56 / 58
58
58
58 / 60.5
58 / 60.5
60.5
60.5
60.5
Stack
(cm)
C
51
51
51
51 / 53
51 / 53
53
53
53 / 55
53 / 55
55
55
55 / 57
55 / 57
57
57
57
57 / 59
57 / 59
59
59
59 / 61.5
59 / 61.5
61.5
61.5
61.5
Reach
(cm)
D
36
36
36
36 / 37
36 / 37
37
37
37 / 38
37 / 38
38
38
38 / 39
38 / 39
39
39
39
39 / 40
39 / 40
40
40
40 / 41
40 / 41
41
41
41
Minimum
Drop (cm)
E
5
4
3
2 / 4.5
1 / 3.5
2.5
1.5
0.5 / 2.5
-0.5 / 1.5
0.5
-0.5
-1.5 / 1
-2.5 / 0
-1
-2
-3
-4 / -1.5
-5 / -2.5
-3.5
-4.5
-5.5 / -3
-5.5 / -3
-5
-6
-7
Maximum
Drop (cm)
-1
-2
-3
-4 / -1.5
-5 / -2.5
-3.5
-4.5
-5.5 / -3.5
-6.5 / -4.5
-5.5
-6.5
-7.5 / -5
-8.5 / -6
-7
-8
-9
-10 / -7.5
-11 / -8.5
-9.5
-10.5
-11.5 / -9
-12.5 / -10
-11
-12
-13
*Drops are measured with a 90mm/-6° stem
7
NOTE: THE ABOVE IMAGE IS FOR VISUAL REFERENCE OF SEATPOST INSERTION ONLY
Refer to the supplied table for details on Saddle Height and SeatPost insertion limits.
i. The correct frame size must be determined according to the saddle height limits.
A. Minimum Saddle Height
D. Maximum Saddle Height
ii. Depending on the size of the frame and the desired saddle height, the SeatPost might need to be cut.
B. Maximal insertion depth in the Frame’s SeatTube.
C. Required SeatPost cut length to be able to adjust the Saddle Height at the Minimum position.
- Adjust the SeatPost cut length in accordance with your desired Saddle Height.
- Example: - For a desired Saddle Height of 600mm on a XX-Small Krypton Pro/ GF-IST Frame
- The required minimum SeatPost Cut length is: 90 - (600-560) = 50mm
E. Minimal insertion depth in the Frame’s SeatTube.
B
A
C
E
D
B
A
C
E
D
Size
Saddle
H Min
ST Max
Insert SP Cut Saddle
H Max
SP Min
Insert
mm mm mm mm mm
A B C D E
XX-Small 560 170 90 740 80
X-Small 590 200 60 770 80
Small 625 235 25 805 80
Medium 660 260 0 840 80
Large 695 300 0 875 80
X-Large 730 315 0 910 80
8
Note: Validate the required Stack Height before
proceeding with the cable routing.
• A total of 60mm of stack adjustment is possible.
• Using the Sizing Chart’s Stack and Reach columns
(p.6), determine the required 3D system headset
size (0mm, 15mm or 30mm) based on your
recommended handlebar position.
• 30mm of proled spacers are provided to ne-
tune your position:
(2x) Spacer 5mm (7.7)
(2x) Spacer 10mm (7.8)
1. Spacers must be installed with the
This feature ensure proper alignement with
the stem and between each spacer.
2. Open and slide-on the required spacers over the
front side of the steerer. Integrated tabs also guide
the spacers on the steerer tube’s front rib.
3. Twist-lock each spacer over the steerer tube
and stack them up between the headset Stack
Compressor (a.) and the Stem’s 1st Spacer (7.3).
7.8
7.7
a.
7.3
9
The Krypton Pro / Krypton GF-IST comes with two
dierent Stem Caps:
for a slick integration:
• Proled Top Compression Cap (7.5)
• Flat Head Screw M5x25mm (7.6)
to keep an
extra length of fork steerer tube until your t is
conrmed.
• Flat eccentric compressor cap* (a.)
• Flat Head Screw M5x50mm* (b.)
• Eccentric Top Spacer (7.9)
*parts of the Argon18 HeadSet No.30/Kit2 (4.4)
10
To assemble the Krypton Pro / Krypton GF-IST Stem with the Integrated
Top Compression Cap (7.5), the fork’s steerer tube must be cut-to-size.
1. Conrm your desired stack height and stem height position.
2. Mark the top-back-end of the stem’s carbon body (7.1).
3. Mark the cut line 3-4mm lower than the stem’s top-back-end mark.
4. Cut the fork’s steerer tube using a standard steerer tube cutting jig
and a carbon-specic blade.
5. File down the cut end of the steerer to make sure it is free of burr.
HEALTH & SAFETY WARNING
The carbon bers can easily become a ne dust during cutting or
mechanical nishing and can then be released into the surrounding
atmosphere. These micro bers if uncontrolled have a potential to stick
into human skin or the mucous membranes causing irritation.
You should also work in a well-ventilated space away from electrical
equipment. Carbon ber is conductive; if airborne carbon ber dust or
o-cuts penetrate into electrical switches or equipment, short circuits or
electric shock may occur.
When cutting carbon ber composite, minimise dust or particulate
generation by:
• wet processing of the material;
• using non-powered hand tool.
Steps of assembly
1. Insert the headset plastic sleeve into the top on the headtube. (apply grease)
2. Insert the required headset column, 0, 15 or 30mm, in the headset plastic sleeve. (apply grease)
3. Insert bottom bearing on the fork.
4. Slide the fork in the head tube of the frame.
5.
Install top bearing in the headset column. (apply grease)
6. Install conical compressor ring.
7. Install stack compressor.
8. Apply grease on the headset seal to avoid any noise.
9. Install the corresponding headset cap to complete the assembly.
10. Fix the cap with the M4 at head screw.
11
Like on almost all Argon 18 bikes you will benet of the 3D system, on the
Krypton Pro / GF-IST you can benet of 3 positions: 0mm, 15mm and 30mm.
0mm 15mm 30mm
12
1. Select the correct rear derailleur hanger depending on the type of derailleur
that you have.
a. Direct mount
b. Regular mount
2. Make sure to align the rear derailleur hanger.
3. Use Derailleur Hanger Alignment Gauge like Park Tool Item #DAG-2.
For any assistance, visit Park Tool’s website:
www.parktool.com/product/derailleur-hanger-alignment-gauge-dag-2
a
b
13
Rear derailleur cable and rear brake housing must be routed
above the BB carbon sleeve. Red line: brake cable/housing / Yellow line: derailleur cable/housing
14
Depending of the type of assembly, you will
have to select the correct parts.
Tip: No matter the type of assembly you will
choose, always pass the brake housing rst
starting from the back of the bike to the front.
1. With the rear brake housing coming from
the back of the bike, guide the end of the
housing through the top of the head tube
opening.
2. Use the brake housing to insert the foam
liner into the downtube.
3. Guide the Di2 cable coming from the
shifters through the top of the head tube and
out of the rectangular opening of the console.
4. Guide the Di2 cable coming from the
derailleurs into the downtube and out of the
rectangular opening of the console.
5. Place the Di2 O-Ring around the Shimano
EW-RS910 junction box.
6. Connect the shifters and derailleurs Di2
cables to the Shimano EW-RS910 junction
box.
7. Clip the Shimano EW-RS910 junction box
on the console cap.
8. Fix the console cap to the downtube of the
frame with the screws.
For Wireless groupset, simply x the Wireless
Console Cover to the downtube of the frame
with the screws.
15
Use the square hole to connect all the wires
to the junction box.
Insert the junction box in the hole.
Insert the BB cover in the square hole until it clicks.
EW
EW = Electronic Wire
16
BR
Exit the hydraulic brake hose through
the hole on the chain stay.
BR = Brake Hose
EW = Electronic Wire
EW
17
Rear derailleur cable and rear brake housing must be routed
on the right side in the inside of the downtube.
Rear brake housing need to routed above the bb carbon
sleeve.
Red line: brake cable/housing / Blue line: derailleur cable/housing
18
The Krypton Pro / Krypton GF-IST is optimized
for electronic shifting groupsets.
The frame is also compatible with mechanical
groupsets through our modular console.
Front derailleur
housing
Rear derailleur
housing
Rear derailleur housing
This manual suits for next models
1
Table of contents
Other ARGON18 Bicycle manuals
ARGON18
ARGON18 GALLIUM PRO 347A User manual
ARGON18
ARGON18 NITROGEN User manual
ARGON18
ARGON18 GALLIUM DISC 280A User manual
ARGON18
ARGON18 ELECTRON PRO User manual
ARGON18
ARGON18 E-119 TRI+ User manual
ARGON18
ARGON18 DARK MATTER 282A User manual
ARGON18
ARGON18 GALLIUM 279A User manual
ARGON18
ARGON18 SUM PRO 2022 User manual
ARGON18
ARGON18 NITROGEN DISC 286A User manual
ARGON18
ARGON18 E-116 User manual
ARGON18
ARGON18 E-117 TRI+ User manual
ARGON18
ARGON18 NITROGEN PRO 230A User manual
ARGON18
ARGON18 NITROGEN 231A User manual
ARGON18
ARGON18 GALLIUM PRO DISC 338A 2021 User manual
ARGON18
ARGON18 GALLIUM PRO 259A User manual
ARGON18
ARGON18 E-119 TRI+ User manual
ARGON18
ARGON18 E-119 TRI User manual
ARGON18
ARGON18 KRYPTON 212A User manual
ARGON18
ARGON18 E-118 NEXT User manual
ARGON18
ARGON18 GALLIUM PRO 210A User manual
