Quick Start Guide
Edge Threat Management
Appliance
CCA-ETM-Q20
Arista Networks
www.arista.com
DOC-06003-01

Headquarters
5453 Great America Parkway,
Santa Clara, CA 95054
USA
[phone]
Support
[phone]
[phone]
Sales
[phone]
[phone]
https://www.arista.com/en/ mailto:[email protected] mailto:[email protected]
© Copyright 2023 Arista Networks, Inc. All rights reserved. The information contained herein is subject to change
without notice. The trademarks, logos and service marks ("Marks") displayed in this documentation are the property
of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term
of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for
informational purposes only.

Contents
Contents
Chapter 1: Overview................................................................................1
1.1 Scope......................................................................................................................................1
1.2 Receiving and Inspecting the Equipment...............................................................................1
1.3 Installation Process.................................................................................................................1
1.4 Safety Information...................................................................................................................2
1.5 Obtaining Technical Assistance............................................................................................. 2
1.6 Specifications..........................................................................................................................3
Chapter 2: Preparation............................................................................5
2.1 Site Selection..........................................................................................................................5
2.2 Tools and Parts Required for Installation...............................................................................5
2.3 Electrostatic Discharge (ESD) Precautions............................................................................6
Chapter 3: Mounting the Appliance.......................................................7
3.1 Four-Post Rack Mount........................................................................................................... 7
3.2 Rack Mounting the Appliance................................................................................................ 8
Chapter 4: Cabling the Appliance....................................................... 11
Chapter 5: Configuring the Appliance................................................ 13
Appendix A: Status Indicators.............................................................15
A.1 Front Indicators.................................................................................................................... 15
A.2 Rear Indicators.....................................................................................................................15
Appendix B: Parts List..........................................................................17
Appendix C: Front Panel...................................................................... 19
Appendix D: Rear Panel....................................................................... 21
Appendix E: Regulatory Model Numbers........................................... 23
Appendix F: Taiwan RoHS Information...............................................25
iii

Chapter 1
Overview
The following topics are covered in this section:
•Scope
•Receiving and Inspecting the Equipment
•Installation Process
•Safety Information
•Obtaining Technical Assistance
•Specifications
1.1 Scope
This guide is intended for properly trained service personnel and technicians who need to install the
following Arista appliances:
This guide is covering the CCA-ETM-Q20 appliance.
Important:
Only qualified personnel should install, service, or replace this equipment.
Seul le personnel qualifié doit installer, service, ou remplacer cet équipement.
1.2 Receiving and Inspecting the Equipment
Upon receiving the appliance, inspect the shipping boxes and record any external damage. Retain
packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect
them.
If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any
accessories that may be packaged in the same box as the main unit.
Inspect the packing list and confirm that you received all listed items. Compare the packing list with
your purchase order. Parts List provides a list of components included with the appliance.
1.3 Installation Process
The following tasks are required to install and use the appliance:
1. Select and prepare the installation site Site Selection.
2. Assemble the installation tools listed Tools and Parts Required for Installation.
3. Attach the mounting brackets and install the switch in an equipment rack Mounting the Appliance.
4. Configure the appliance Configuring the Appliance.
Important:
Class 1 Laser Product: This product has provisions to install Class 1 laser transceivers
which provide optical coupling to the communication network. Once a Class 1 laser product
1

Overview
is installed, the equipment is a Class 1 Laser Product. The customer is responsible for
selecting and installing the Class 1 laser transceiver and for insuring that the Class 1
AEL (Allowable Emission Limit) per EN/IEC 60825, CSA E60825-1, and Code of Federal
Regulations 21 CFR 1040 is not exceeded after the laser transceiver have been installed.
Do not install laser products whose class rating is greater than 1. Refer to all safety
instructions that accompanied the transceiver prior to installation. Only Class 1 laser
appliances, certified for use in the country of installation by the cognizant agency are to be
utilized in this product.
Produit Laser de classe 1: Ce produit a des dispositions pour installer des émetteurs-
récepteurs de laser de classe 1 qui offre de couplage au réseau de communication
optique.Une fois un produit laser de classe 1 est installé, l'équipement est un produit Laser
de classe 1 (Appareil à Laser de Classe 1).Le client est responsable pour sélectionner et
installer l'émetteur/récepteur de laser de classe 1 et pour assurer que la classe 1 AEL (limite
d'émission admissible) par EN/IEC 6-825, CSA E60825-1, et Code des règlements fédéraux
21 CFR 1040 ne soit pas dépassée après avoir installé l'émetteur/récepteur de laser. Ne
pas installer des appareils à laser dont la cote de classe est supérieure à 1.Voir toutes
les consignes de sécurité qui ont accompagné l'émetteur-récepteur avant l'installation.
Seuls appareils laser de classe 1 certifiés pour une utilisation dans le pays d’installation par
l’organisme compétent doivent être utilisées dans ce produit.
Important:
Ultimate disposal of this product should be handled in accordance with all national laws and
regulations.
Aucune pièce réparable par l'utilisateur à l'intérieur. Confiez toute réparation à un technicien
qualifié.
1.4 Safety Information
Refer to the Arista Networks document Safety Information and Translated Safety Warnings available
at: https://www.arista.com/en/support/product-documentation.
1.5 Obtaining Technical Assistance
Any customer, partner, reseller or distributor holding a valid Arista Service Contract can obtain
technical support in any of the following ways:
•Email: http://[email protected]. This is the easiest way to create a new service request.
•Web: https://www.arista.com/en/support.
A support case may be created through the support portal on our website. You may also download
the most current software and documentation, as well as view FAQs, Knowledge Base articles,
Security Advisories, and Field Notices.
•Phone: [phone] or [phone].
Important:
No user serviceable parts inside. Refer all servicing to qualified service personnel.
Aucune pièce réparable par l'utilisateur à l'intérieur. Confiez toute réparation à un technicien
qualifié.
2

Overview
1.6 Specifications
This section lists the specifications of the CCA-ETM-Q20.
Table 1: Appliance Specifications (Dimensions and Weights)
Appliance Size (W x D x H) Weight
CCA-ETM-Q20 438mm x 553mm x 44mm 9.5 kg
Table 2: Appliance Specifications (Operational and Storage)
Appliance Operating
Temperature,
Relative
Humidity
Storage
Temperature,
Relative
Humidity
Operating
Altitude
CCA-ETM-Q20 0 – 40C
20% – 80%
-10 – 70°C
5 – 95%
up to 5000
meters
Table 3: Device Specifications (Power Input)
Power Source Ratings
Dual 300W (Redundant PSU) 300W
3

Chapter 2
Preparation
This section describes the initial setup and preparation for installing the CCA-ETM-Q20.
This chapters contains the following topics:
•Site Selection
•Tools and Parts Required for Installation
•Electrostatic Discharge (ESD) Precautions
2.1 Site Selection
The following criteria should be considered when selecting a site to install the appliance.
•Temperature and Ventilation: For proper ventilation, install the appliance where there is ample
airflow to the front and back of the appliance. The ambient temperature should not go below 0° or
exceed 40°C.
Important: To prevent the appliance from overheating, do not operate it in an area where
the ambient temperature exceeds 40°C (104°F).
Pour empêcher l’interrupteur de surchauffe, ne pas utiliser il dans une zone où la
température ambiante est supérieure à 40°C (104°F).
•Airflow Orientation: The airflow of the appliance travels from front to back.
•Rack Space: Install the appliance in a 19" rack or cabinet. The appliance height is 1 RU. The rack
mounting kit provides mounting brackets for four-post racks.
When mounting the appliance in a partially filled rack, load the rack from bottom to top, with the
heaviest equipment at the bottom. Load the appliance at the bottom if it is the only item in the rack.
•Other Requirements: Select a site where liquids or objects cannot fall onto the equipment and
foreign objects are not drawn into the ventilation holes. Verify these guidelines are met:
• Clearance areas to the front and rear panels allow for unrestricted cabling.
• All front and rear panel indicators can be easily read.
• Power cords can reach from the power outlet to the connector on the rear panel.
Important: All power connections must be removed to de-energize the unit.
Toutes les connexions d’alimentation doivent être enlevées pour hors tension l’appareil.
2.2 Tools and Parts Required for Installation
Each appliance provides an accessory kit that contains parts that are required to install the appliance.
The accessory parts list is shown at Parts List.
In addition to the accessory kit, the following tools and equipment are required to install the appliance:
Four-Post Rack
• Screws or rack mounting nuts and bolts.
• Screwdriver
5

Accessory kit does not include screws for attaching the appliance to the equipment rack. When
installing the appliance into an equipment rack with unthreaded post holes, nuts are also required to
secure the appliance to the rack posts.
2.3 Electrostatic Discharge (ESD) Precautions
Observe these guidelines to avoid ESD damage when installing or servicing the appliance.
• Assemble or disassemble equipment only in a static-free work area.
• Use a conductive work surface (such as an anti-static mat) to dissipate static charge.
• Wear a conductive wrist strap to dissipate static charge accumulation.
• Minimize handling of assemblies and components.
• Keep replacement parts in their original static-free packaging.
• Remove all plastic, foam, vinyl, paper, and other static-generating materials from the work area.
• Use tools that do not create ESD.
6

Chapter 3
Mounting the Appliance
The appliance is mounted onto a four-post rack by preparing the chassis for mounting, then securing
the appliance to the front posts using the mounting brackets, followed by securing it to the rear posts.
3.1 Four-Post Rack Mount
Note: Each chassis side has holes that allow for the attachment of the slide rails. Ensure that
the rails are attached symmetrically to the left and right sides of the chassis and the slides can
be extended to connect with the rear rack posts. Depending on the depth of the rear rack, the
number of screws required will vary.
Note: A minimum of two screws are recommended for each side.
7

Mounting the Appliance

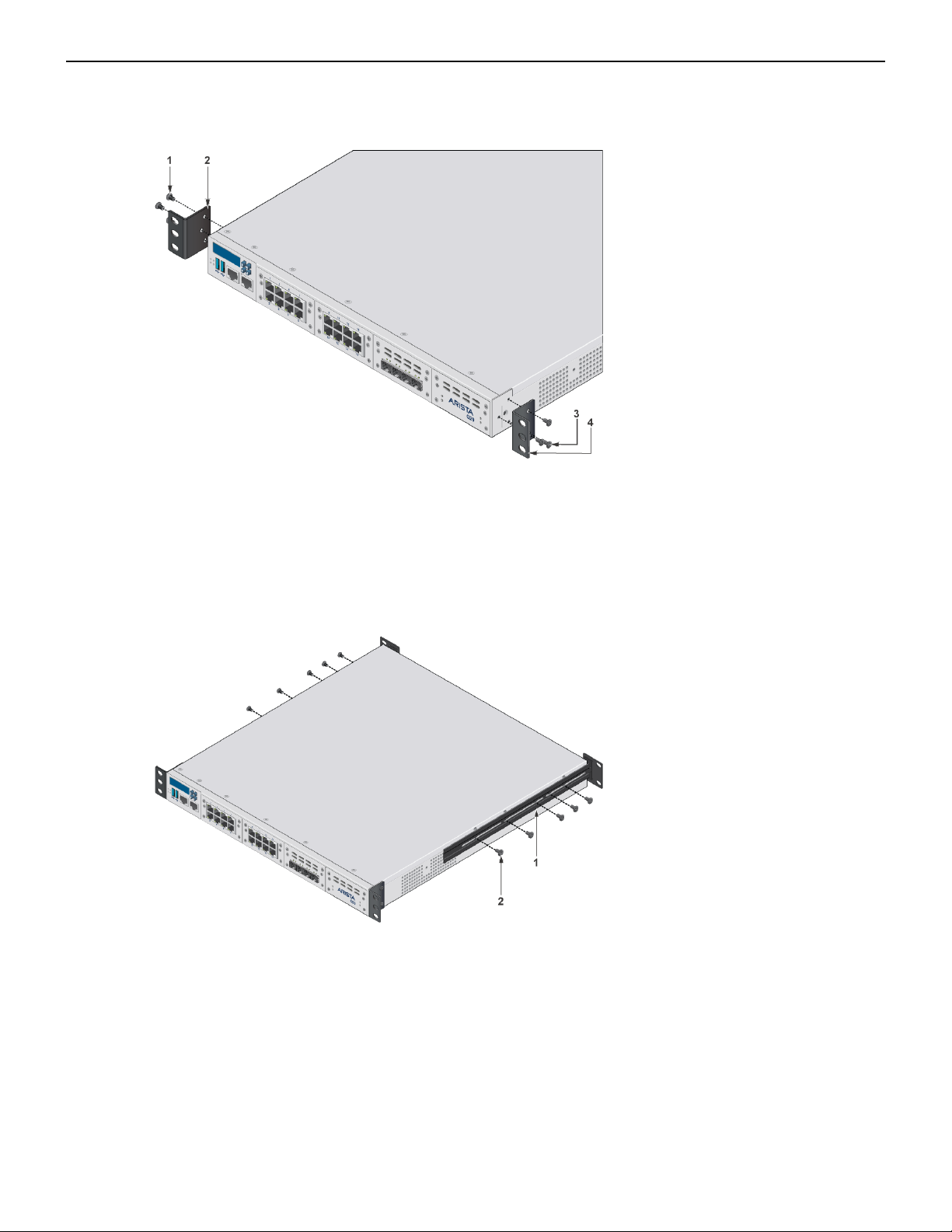

3.2 Rack Mounting the Appliance
1 Mounting screws 3 Mounting screws
2 Left bracket 4 Right bracket
1. Align the left bracket to the left face plate.
2. Attach the left front mounting bracket using three mounting screws.
3. Align the right bracket to the right face plate.
4. Attach the right front mounting bracket using three mounting screws.
1 Mounting rail 2 Mounting screws
1. Align the left rail to the four holes on left side of the appliance.
2. Attach the left rail using four mounting screws.
3. Align the right rail to the four holes on right side of the appliance.
4. Attach the right rail using four mounting screws.
Attaching the Appliance to the rack.
8

Mounting the Appliance
1 Back rack post 4 Front rack post
2 Back bracket 5 Front bracket
3 Mounting screws 6 Mounting screws
1. Insert appliance into the racking at the predetermined height within the left side of the rack.
2. Attach the left rear mounting bracket using three mounting screws.
3. Attach the left front mounting bracket using three mounting screws.
4. Repeat Steps 2 and 3 for the right side Appliance installation into the racking.
9

Chapter 4
Cabling the Appliance
This procedure is for attaching network and power cables to the appliance.
1. Connect an Ethernet cable from your Internet provider modem or router to the designated Internet
port.
2. Connect an Ethernet cable from your management computer or LAN switch to port 1.
3. Plug in a power cable to an AC power source and connect it to a power input on the rear panel.
4. Plug in a second power cable to an AC power source and connect it to the second power input on
the rear panel.
11

Chapter 5
Configuring the Appliance
You can manage your appliance using the Edge Threat Management Dashboard or from the local
network.
From Edge Threat Management Dashboard
1. Navigate your web browser tohttps://edge.arista.com/cmd.
2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up
an account.
3. Navigate to the Appliances screen and click Add.
4. Enter the serial number located on the bottom of your appliance.
5. Click Add to confirm the new appliance.
6. Complete the initial setup to begin managing your appliance.
From the Local Network
1. Connect an Ethernet cable from your management computer or LAN switch to the LAN port.
2. From your management computer, check the network status of your system and confirm that you
receive an IPv4 address in the subnet of 192.168.2.0/24 (example: 192.168.2.100).
3. In a browser, navigate to http://192.168.2.1.
4. Follow the steps in your browser to complete the setup.
13

Appendix A
Status Indicators
A.1 Front Indicators
This section describes the front panel LED status of the CCA-ETM-Q20 appliance.
Figure 1: CCA-ETM-Q20 Front Status Indicators
1 Power 4 Storage activity
2 Port indicator 5 Storage power
3 LAN port indicators
A.2 Rear Indicators
This section describes the rear panel LED status of the CCA-ETM-Q20 appliance.
1 Power indicator
15

Appendix B
Parts List
Each appliance provides an accessory kit that contains parts that are required to install the appliance.
This section lists the installation parts contained in the appliance accessory kit.
1 Back bracket 4 Power cable
2 Mounting bracket 5 Racking mounting screws
3 Mounting rail 6 Appliance mounting screws
The CCA-ETM-Q20 package includes:
• Two power cables
• Rack mounting hardware
• CCA-ETM-Q20 appliance
The installation kit provides the following four-post mounting parts:
• 2 - Front mounting brackets (left and right).
• 2 - Rails (left and right).
• 6 - Screws for the front mounting brackets
• 10 - Screws to attach the side rails to the chassis and the back plates to the rails.
• 2 - Back plates (left and right).
17

Appendix C
Front Panel
1 Reset button 5 Console port
2 LCD controls 6 Internet port
3 LAN ports 7 USB ports
4 SFP+ LAN ports
19

Appendix D
Rear Panel
The following displays the CCA-ETM-Q20 rear panel.
1 Fans 5 Power supply socket
2 Video out (HDMI) 6 PSU handle
3 Power switch 7 Power supply socket
4 PSU handle 8 Power supply units
21

Appendix E
Regulatory Model Numbers
This appendix lists the Regulatory Model Numbers (RMNs), where applicable, for the product models
for the appliances described in this document.
Regulatory Model Number (RMN) Product Number(s)
AN2204, CAR-4040-5200-E90 CCA-ETM-Q20
23

Appendix F
Taiwan RoHS Information
This appendix provides Taiwan RoHS information for appliances covered by this guide.
For Taiwan BSMI RoHS Table, go to https://www.arista.com/assets/data/pdf/AristaBSMIRoHS.pdf.
25
