Arista CCA-ETM-Q8 User manual

Quick Start Guide
Edge Threat Management
Appliance
CCA-ETM-Q8
Arista Networks
www.arista.com
DOC-06001-01

Headquarters
5453 Great America Parkway,
Santa Clara, CA 95054
USA
[phone]
Support
[phone]
[phone]
Sales
[phone]
[phone]
https://www.arista.com/en/ mailto:[email protected] mailto:[email protected]
© Copyright 2022 Arista Networks, Inc. All rights reserved. The information contained herein is subject to change
without notice. The trademarks, logos and service marks ("Marks") displayed in this documentation are the property
of Arista Networks in the United States and other countries. Use of the Marks are subject to Arista Network Term
of Use Policy, available at http://www.arista.com/en/terms-of-use. Use of marks belonging to other parties is for
informational purposes only.

Contents
Contents
Chapter 1: Overview................................................................................1
1.1 Scope......................................................................................................................................1
1.2 Receiving and Inspecting the Equipment...............................................................................1
1.3 Installation Process.................................................................................................................2
1.4 Safety Information...................................................................................................................3
1.5 Obtaining Technical Assistance............................................................................................. 3
1.6 Specifications..........................................................................................................................4
Chapter 2: Preparation............................................................................5
2.1 Site Selection..........................................................................................................................5
2.2 Tools and Parts Required for Installation...............................................................................5
2.3 Electrostatic Discharge (ESD) Precautions............................................................................6
Chapter 3: Mounting the Appliance.......................................................7
3.1 Desktop Installation................................................................................................................ 7
3.2 Rack Mounting the Appliance................................................................................................ 8
3.2.1 Attaching Mounting Brackets to the Appliance.........................................................9
3.2.2 Installing the Power Adapters.................................................................................10
3.2.3 Inserting the Appliance into the Rack.....................................................................11
Chapter 4: Cabling the Appliance....................................................... 13
Chapter 5: Configuring the Appliance................................................ 15

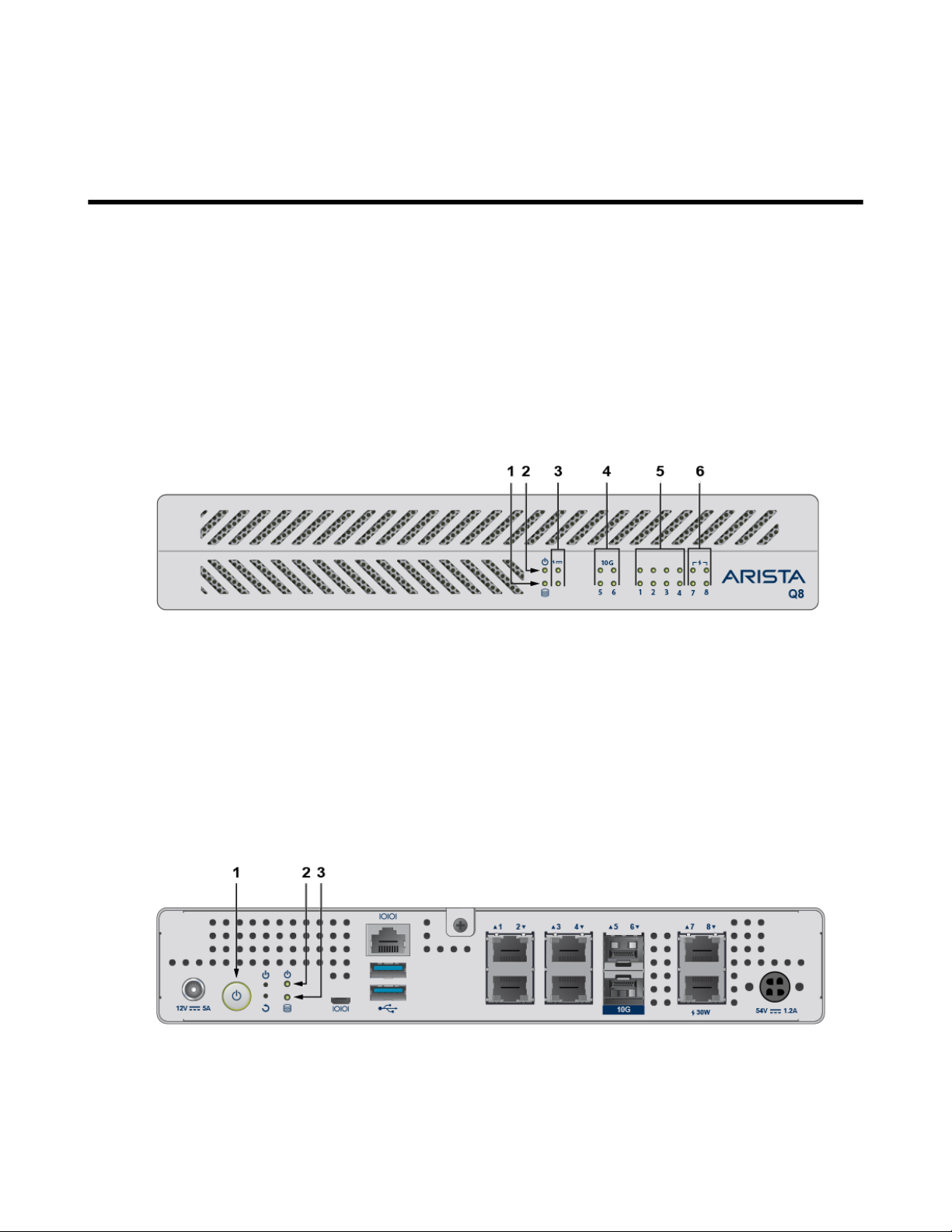

Appendix A: Status Indicators.............................................................17
A.1 Front Indicators.................................................................................................................... 17
A.2 Rear Indicators.....................................................................................................................17

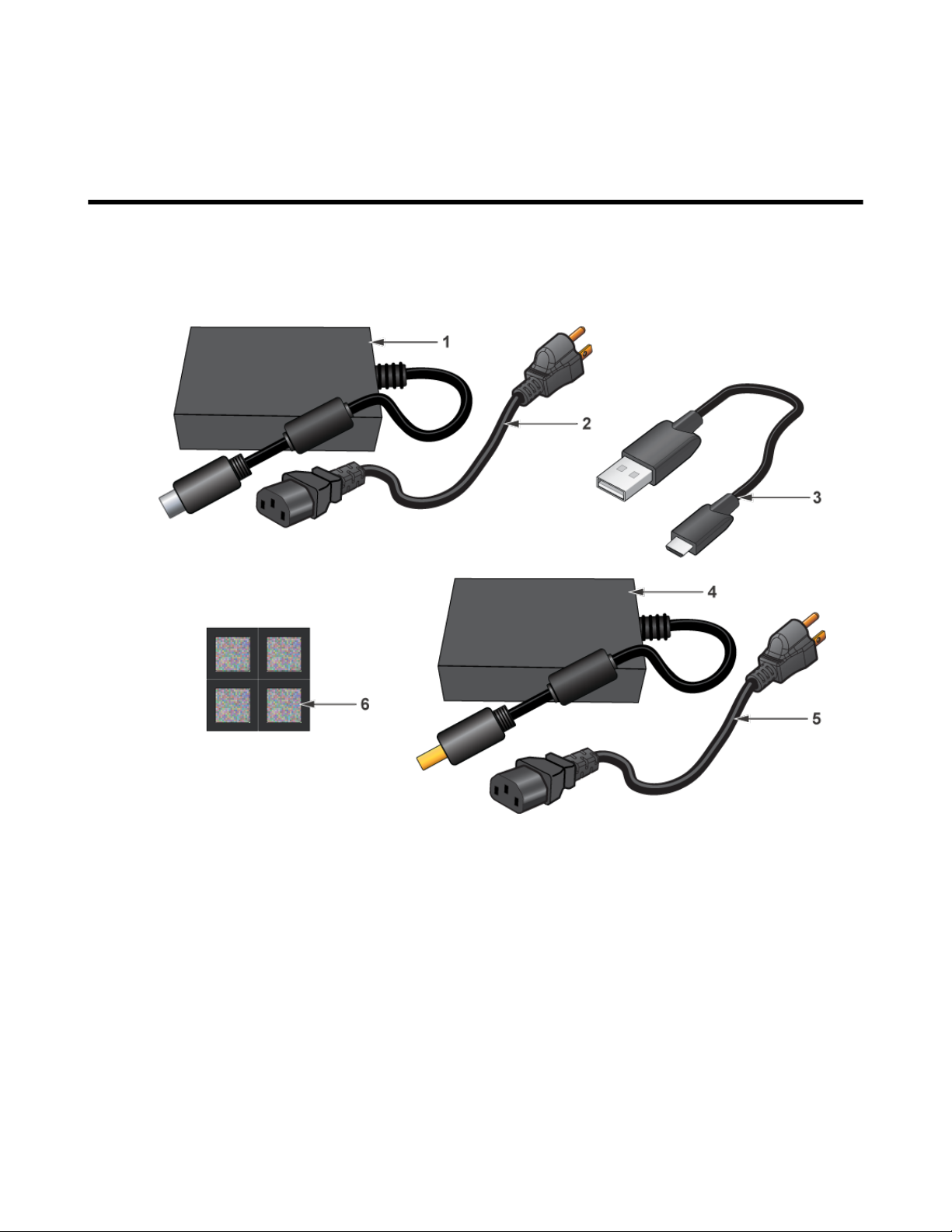

Appendix B: Parts List..........................................................................19
Appendix C: Rear Panel....................................................................... 21
Appendix D: Regulatory Model Numbers........................................... 23
Appendix E: Taiwan RoHS Information.............................................. 25
iii

Chapter 1
Overview
This Quick Start Guide (QSG) describes the CCA-ETM-Q8 appliance.
This chapter contains the following topics:
•Scope
•Receiving and Inspecting the Equipment
•Installation Process
•Safety Information
•Obtaining Technical Assistance
•Specifications
1.1 Scope
This guide is intended for properly trained service personnel and technicians who need to install the
following Arista appliance:
CCA-ETM-Q8
Important:
Only qualified personnel should install, service, or replace this equipment.
Seul le personnel qualifié doit installer, service, ou remplacer cet équipement.
1.2 Receiving and Inspecting the Equipment
Upon receiving the Appliance, inspect the shipping boxes and record any external damage. Retain
packing materials if you suspect that part of the shipment is damaged; the carrier may need to inspect
them.
If the boxes were not damaged in transit, unpack them carefully. Ensure that you do not discard any
accessories that may be packaged in the same box as the main unit.
Inspect the packing list and confirm that you received all listed items. Compare the packing list with
your purchase order. Parts List provides a list of components included with the Appliance.
1

Overview
1.3 Installation Process
The following tasks are required to install and use the Appliance:
1. Select and prepare the installation site (Site Selection).
2. Assemble the installation tools listed (Tools and Parts Required for Installation).
3. Install the Appliance (Mounting the Appliance).
4. Connect the Appliance to the power source and network Appliances (Cabling the Appliance).
5. Configure the Appliance (Configuring the Appliance).
Important:
Class 1 Laser Product: This product has provisions to install Class 1 laser transceivers
which provide optical coupling to the communication network. Once a Class 1 laser product
is installed, the equipment is a Class 1 Laser Product. The customer is responsible for
selecting and installing the Class 1 laser transceiver and for insuring that the Class 1
AEL (Allowable Emission Limit) per EN/IEC 60825, CSA E60825-1, and Code of Federal
Regulations 21 CFR 1040 is not exceeded after the laser transceiver have been installed.
Do not install laser products whose class rating is greater than 1. Refer to all safety
instructions that accompanied the transceiver prior to installation. Only Class 1 laser
switches, certified for use in the country of installation by the cognizant agency are to be
utilized in this product.
Produit Laser de classe 1: Ce produit a des dispositions pour installer des émetteurs-
récepteurs de laser de classe 1 qui offre de couplage au réseau de communication
optique.Une fois un produit laser de classe 1 est installé, l'équipement est un produit Laser
de classe 1 (Appareil à Laser de Classe 1).Le client est responsable pour sélectionner et
installer l'émetteur/récepteur de laser de classe 1 et pour assurer que la classe 1 AEL (limite
d'émission admissible) par EN/IEC 6-825, CSA E60825-1, et Code des règlements fédéraux
21 CFR 1040 ne soit pas dépassée après avoir installé l'émetteur/récepteur de laser. Ne
pas installer des appareils à laser dont la cote de classe est supérieure à 1.Voir toutes
les consignes de sécurité qui ont accompagné l'émetteur-récepteur avant l'installation.
Seuls appareils laser de classe 1 certifiés pour une utilisation dans le pays d’installation
par l’organisme compétent doivent être utilisées dans ce produit.Ultimate disposal of this
product should be in accordance with all applicable laws and regulations.
Important: Ultimate disposal of this product should be handled in accordance with all
national laws and regulations.
Aucune pièce réparable par l'utilisateur à l'intérieur. Confiez toute réparation à un technicien
qualifié.
2

Overview
1.4 Safety Information
Refer to the Arista Networks document Safety Information and Translated Safety Warnings available
at: https://www.arista.com/en/support/product-documentation.
1.5 Obtaining Technical Assistance
Any customer, partner, reseller, or distributor holding a valid Arista Service Contract can obtain
technical support in any of the following ways:
•Email: http://[email protected]. This is the easiest way to create a new service request.
•Web: https://www.arista.com/en/support.
A support case may be created through the support portal on our website. You may also download
the most current software and documentation, as well as view FAQs, Knowledge Base articles,
Security Advisories, and Field Notices.
•Phone: [phone] or [phone].
Important:
No user serviceable parts inside. Refer all servicing to qualified service personnel.
Aucune pièce réparable par l'utilisateur à l'intérieur. Confiez toute réparation à un technicien
qualifié.
3

1.6 Specifications
This section lists the specifications of the CCA-ETM-Q8.
Table 1: Appliance Specifications (Dimensions and Weights)
Appliance Size (W x D xH) Weight
CCA-ETM-Q8 250mm x 252mm x 44mm 2.5 kg
Table 2: Appliance Specifications (Operational and Storage)
Appliance Operating Temperature,
Relative Humidity Storage Temperature, Relative Humidity Operating Altitude
CCA-ETM-Q8 0° – 40°C
20% – 80% RH
-10° – 70°C
5% – 95% RH
up to 5000 meters
Table 3: Appliance Specifications (Power Input)
Power Source Ratings
12V 60W Power Adapter 100-240V, 1.8A, 50-60Hz
54V 65W Power Adapter (PoE+) 100-240V, 1.8A, 50-60Hz
4

Chapter 2
Preparation
This section describes the initial setup and preparation for installing the CCA-ETM-Q8.
This chapters contains the following topics:
•Site Selection
•Tools and Parts Required for Installation
•Electrostatic Discharge (ESD) Precautions
2.1 Site Selection
The following criteria should be considered when selecting a site to install the appliance.
•Temperature and Ventilation: For proper ventilation, install the appliance where there is ample
airflow to the front and back of the appliance. The ambient temperature should not go below 0° or
exceed 40°C.
Important: To prevent the appliance from overheating, do not operate it in an area where
the ambient temperature exceeds 40°C (104°F).
Pour empêcher l’interrupteur de surchauffe, ne pas utiliser il dans une zone où la
température ambiante est supérieure à 40°C (104°F).
•Airflow Orientation: The airflow of the appliance travels from front to back.
•Rack Space: Install the appliance in a 19" rack or cabinet. The appliance height is 1 RU. The rack
mounting kit provides mounting brackets for two-post racks.
When mounting the appliance in a partially filled rack, load the rack from bottom to top, with the
heaviest equipment at the bottom. Load the appliance at the bottom if it is the only item in the rack.
•Other Requirements: Select a site where liquids or objects cannot fall onto the equipment and
foreign objects are not drawn into the ventilation holes. Verify these guidelines are met:
• Clearance areas to the front and rear panels allow for unrestricted cabling.
• All front and rear panel indicators can be easily read.
• Power cords can reach from the power outlet to the connector on the rear panel.
Important: All power connections must be removed to de-energize the unit.
Toutes les connexions d’alimentation doivent être enlevées pour hors tension l’appareil.
2.2 Tools and Parts Required for Installation
These are the tools and parts needed to install the CCA-EMT-Q8 appliance in a rack.
In addition to the rack mount kit SKU KIT-ETM-NGQ8, rack mount installation requires:
1 #2 Phillips screwdriver
5

2.3 Electrostatic Discharge (ESD) Precautions
Observe these guidelines to avoid ESD damage when installing or servicing the switch.
• Assemble or disassemble equipment only in a static-free work area.
• Use a conductive work surface (such as an anti-static mat) to dissipate static charge.
• Wear a conductive wrist strap to dissipate static charge accumulation.
• Minimize handling of assemblies and components.
• Keep replacement parts in their original static-free packaging.
• Remove all plastic, foam, vinyl, paper, and other static-generating materials from the work area.
• Use tools that do not create ESD.
6

Chapter 3
Mounting the Appliance
This chapter covers the following topics:
•Desktop Installation
•Rack Mounting the Appliance
3.1 Desktop Installation
To install the appliance on a desktop, complete the following steps:
1. Attach the rubber feet to the bottom corners of the appliance.
2. Connect the cables according to Cabling the Appliance.
7

Mounting the Appliance
3.2 Rack Mounting the Appliance
The following topics are covered in this section:
•Attaching Mounting Brackets to the Appliance
•Installing the Power Adapters
•Inserting the Appliance into the Rack
To mount the appliance onto a two-post rack, assemble the mounting brackets to the chassis, then
attach the brackets to the rack posts. The rack mount parts are sold separately (SKU KIT-ETM-NGQ8).

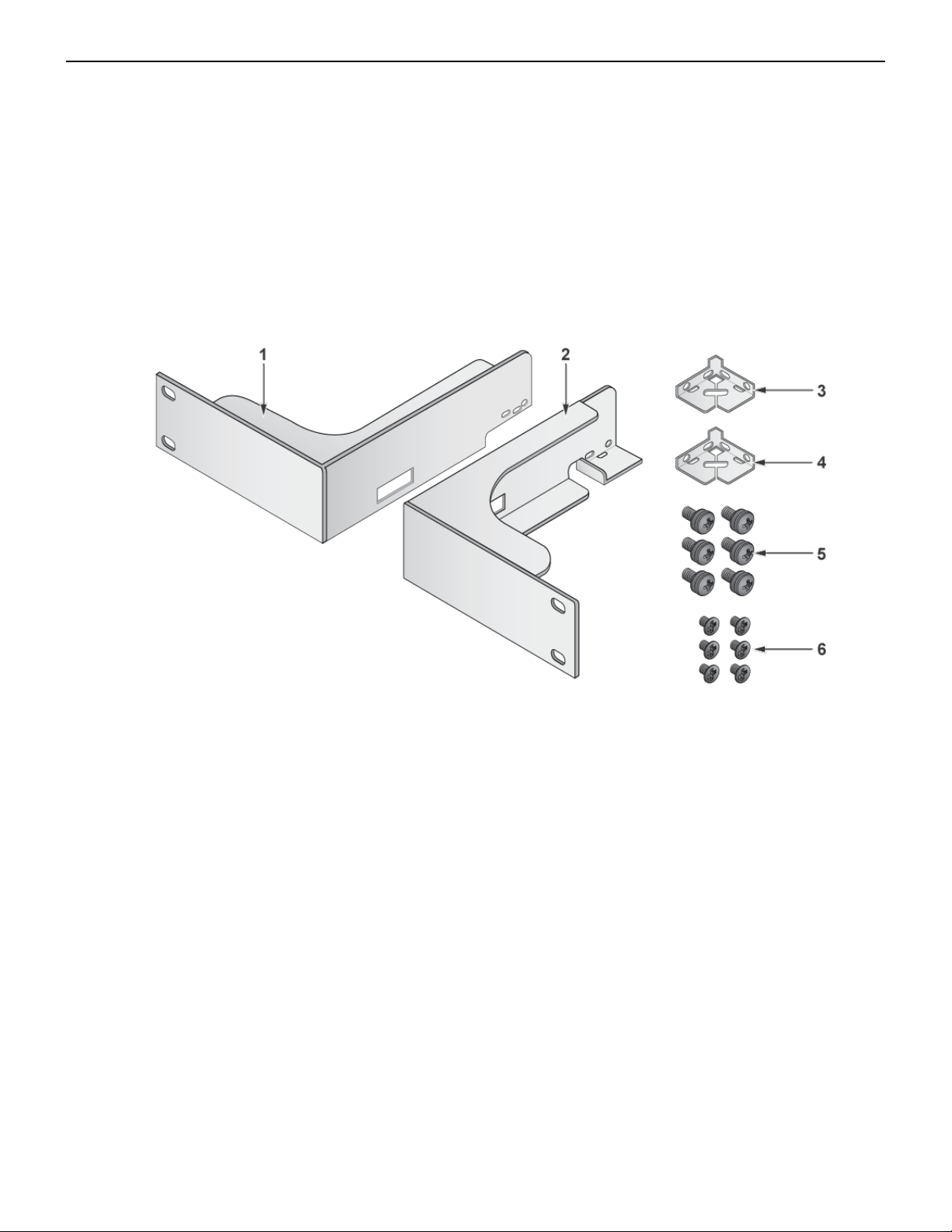

Figure 1: Rack Mount Kit (SKU KIT-ETM-NGQ8)
Parts required for rack mount installation:
1 Left mounting bracket
2 Right mounting bracket
3, 4 Power adapter mounting brackets (2)
5 Phillips pan head M4 screws with lock washers (6)
6 Phillips flat head M3 screws (6)
Cable tie straps (4)
8

Mounting the Appliance
3.2.1 Attaching Mounting Brackets to the Appliance
This procedure attaches mounting brackets to the appliance.
1. Using three M3 flat head screws and one M4 pan head screw with lock washer for each flange,
attach the rack mount flanges to each side of the front of the appliance. The M4 pan head screw
with lock washer should be attached in front of the rearmost M3 flat head screw.
2. Proceed to installation of power adapters as described in Installing the Power Adapters.
9

Mounting the Appliance

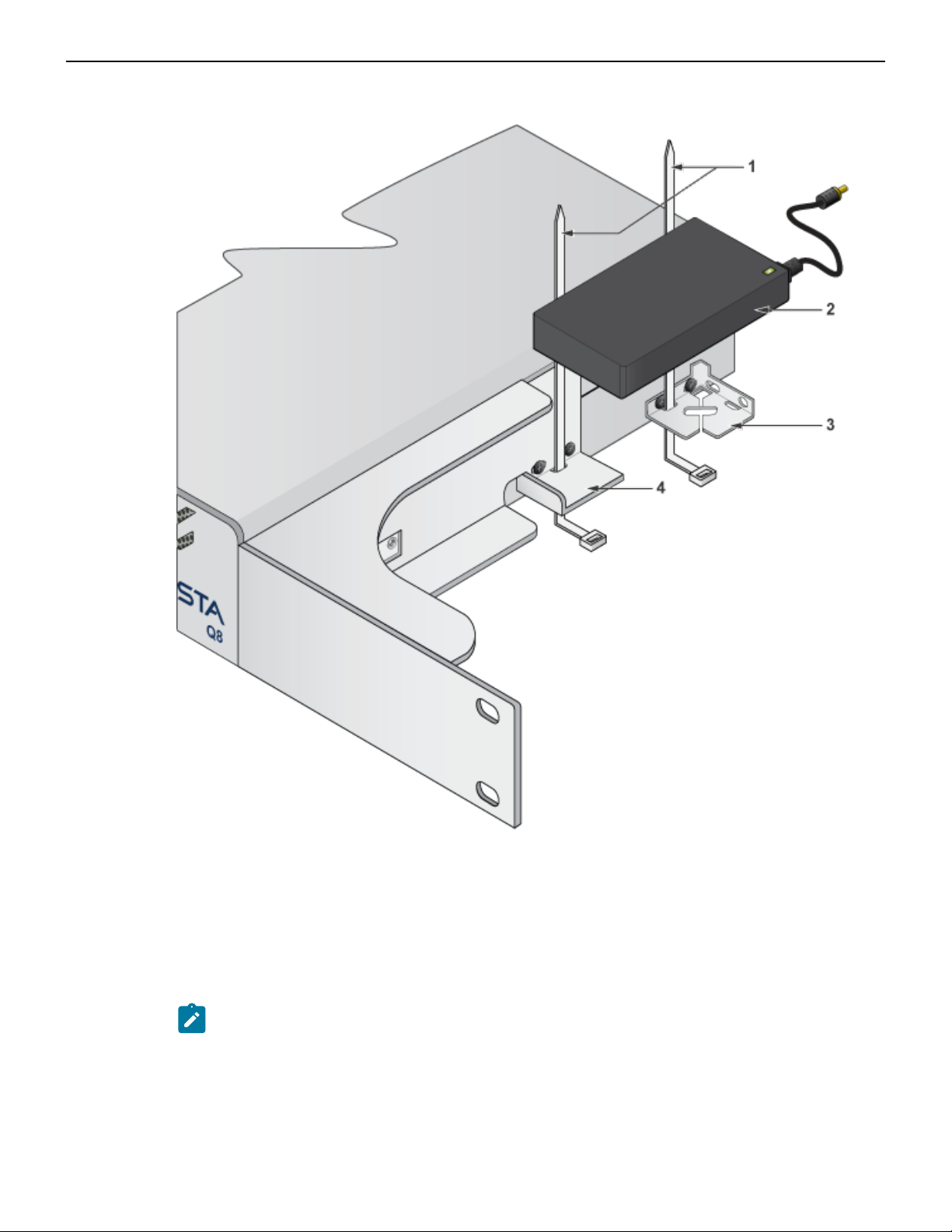

3.2.2 Installing the Power Adapters
Installing the power adapter brackets is required for rack mount installation. The rack mounting
brackets must be installed first. The appliance has two power adapters. The 54V power adapter
is installed on the left side of the appliance, close to the 54V power input. The 12V power adapter
is installed on the right side of the appliance. The illustration below shows the 12V power adapter
installation on the right side of the appliance. The 54V power adapter is installed in the same way on
the left side of the appliance.
Installing Power Adapters
1. Install the rack mount brackets as described in Attaching Mounting Brackets to the Appliance.
2. Align mounting bracket with holes on side of appliance.
3. Secure mounting bracket with M4 screws with lock washers.
4. Place power adapter on top of mounting bracket and rear end of side rack mount bracket.
5. Secure power adapter with cable tie straps.
6. Repeat procedure with other power adapter on other side of appliance.
10

Mounting the Appliance
Figure 2: CCA-ETM-Q8 12V Power Adapter Mounting
3.2.3 Inserting the Appliance into the Rack
This procedure attaches the appliance to the rack.
1. If the mounting brackets and power adapters have not been installed, install them first, as described
in Attaching Mounting Brackets to the Appliance and Installing the Power Adapters.
2. Lift the appliance into the rack. Position the mounting brackets against the rack posts.
3. Select mounting screws that fit your equipment rack.
Note: Rack mounting screws are not included.
11

4. Attach the brackets to the rack posts.
Figure 3: Inserting the Appliance into the Rack
12

Chapter 4
Cabling the Appliance
For all installations:
1. Plug the 12V power adapter into a power source and connect it to the DC 12V power input on the
rear panel.
2. Plug the 54V power adapter into a power source and connect it to the DC 54V power input on the
rear panel.
3. Connect an Ethernet cable from your Internet modem or router to Port 1.
4. Connect an Ethernet cable from your network device to Port 2.
5. Power on the system by pressing the power button located on the rear panel next to the power
input.
6. Allow approximately two minutes for the system to initialize before continuing with the next steps.
13

Chapter 5
Configuring the Appliance
You can manage your appliance using the Edge Threat Management Dashboard or from the local
network.
From Edge Threat Management Dashboard
1. Navigate your web browser to http://edge.arista.com/cmd.
2. Log in with your Edge Threat Management Dashboard account, or click Create Account to set up
an account.
3. Navigate to the Appliances screen and click Add.
4. Enter the serial number located on the bottom of your appliance.
5. Click Add to confirm the new appliance.
6. Complete the initial setup to begin managing your appliance.
From the Local Network
1. Connect an Ethernet cable from your management computer or LAN switch to the LAN port.
2. From your management computer, check the network status of your system and confirm that you
receive an IPv4 address in the subnet of 192.168.2.0/24 (example: 192.168.2.100).
3. In a browser, navigate to http://192.168.2.1.
4. Follow the steps in your browser to complete the setup.
15

Appendix A
Status Indicators
The following topics are covered in this section:
•Front Indicators
•Rear Indicators
A.1 Front Indicators
This section describes the front panel LED status of the CCA-ETM-Q8 appliance.
Figure 4: CCA-ETM-Q8 Front Indicators
1 Hard drive 4 10 Gbit ports
2 Power 5 1 Gbit LAN ports
3 PoE indicator 6 1 Gbit PoE ports
A.2 Rear Indicators
This section describes the rear panel LED status of the CCA-ETM-Q8 appliance.
Figure 5: CCA-ETM-Q8 Rear Indicators
1 Power on button 3 Hard drive
2 Power
17

Appendix B
Parts List
Each appliance provides an accessory kit that contains parts that are required to install the appliance.
This section lists the installation parts contained in the appliance accessory kit.
The CCA-ETM-Q8 package includes:
1 54V power adapter (PoE+) 4 12V power adapter
2 Power cord 5 Power cord
3 Micro USB cable 6 Rubber feet (4)
19

Appendix C
Rear Panel
The following image displays the rear panel ports on the CCA-EMT-Q8 appliance and their
descriptions.
Figure 6: CCA-ETM-Q8 Rear Panel
1 12V 5A connector 5 Micro USB console port 9 10 Gbit SFP+ ports
2 Power on button 6 Console serial port 10 30W PoE ports
3 Reset button 7 USB ports 11 54V 1.2A connector
4 Factory reset button 8 LAN ports
21
