ARJO HUNTLEIGH Skin IQ Microclimate Manager User manual

Skin IQ
Microclimate Manager
Instructions for Use
...with people in mind
408204-AH Rev E • 12/2017
Gebrauchsanweisung • Gebruiksaanwijzing • Mode d’emploi
Istruzioni per l’uso • Instrucciones de uso • Brugervejledning
Bruksanvisning • Bruksanvisning
EN
DE
NL
FR
IT
ES
DA
SV
NO

iii
EN
ENGLISH
DEUTSCH
NEDERLANDS
FRANÇAIS
ITALIANO
ESPAÑOL
DANSK
SVENSKA
NORSK

iv
DISCLAIMER OF WARRANTY AND LIMITATION OF LIABILITY
ARJOHUNTLEIGH HEREBY DISCLAIMS ALL EXPRESS OR IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ON THE ARJOHUNTLEIGH PRODUCT AS DESCRIBED IN THIS PUBLICATION. ANY WRITTEN
WARRANTY OFFERED BY ARJOHUNTLEIGH SHALL BE EXPRESSLY SET FORTH IN THIS PUBLICATION
OR INCLUDED WITH THE PRODUCT. UNDER NO CIRCUMSTANCES SHALL ARJOHUNTLEIGH BE LIABLE
FOR ANY INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES AND EXPENSES, INCLUDING
DAMAGES OR INJURY TO PERSON OR PROPERTY, DUE IN WHOLE OR IN PART TO THE USE OF THE
PRODUCT OTHER THAN THOSE FOR WHICH DISCLAIMER OF WARRANTY OR LIMITATION OF LIABILITY
IS EXPRESSLY PROHIBITED BY SPECIFIC, APPLICABLE LAW. NO PERSON HAS THE AUTHORITY TO BIND
ARJOHUNTLEIGH TO ANY REPRESENTATION OR WARRANTY EXCEPT AS SPECIFICALLY SET FORTH IN
THIS PARAGRAPH.
Descriptions or specifications in ArjoHuntleigh printed matter, including this publication, are meant
solely to generally describe the product at the time of manufacture and do not constitute any
express warranties, except as set forth in the written limited warranty included with this product.
Information in this publication may be subject to change at any time. Contact ArjoHuntleigh for
updates.
IMPORTANT INFORMATION FOR USERS
In order for ArjoHuntleigh products to perform properly, ArjoHuntleigh recommends the following
conditions. Failure to comply with these conditions will void any applicable warranties.
• Use this product only in accordance with these instructions and applicable product
labeling.
• WARNING: Assembly, operations, adjustments, extensions, modifications, technical
maintenance or repairs must be performed only by qualified personnel authorized by
ArjoHuntleigh. Contact ArjoHuntleigh for information regarding maintenance and repair.
• Ensure the electrical installation of the room complies with the appropriate national
electrical wiring standards. To avoid the risk of electric shock, this product must be
connected to a grounded power receptacle.
Specific indications, contraindications, warnings, precautions and safety information exist
for ArjoHuntleigh’s therapeutic support systems. It is important for users to read and
familiarize themselves with these instructions and to consult the treating physician prior to
patient placement and product use. Individual patient conditions may vary.
NOTICE
This product has been configured from the manufacturer to meet specific voltage requirements.
Refer to the power supply label for specific voltage.

1
EN
Table Of Contents
Quick Reference ............................................................................................... 2
Introduction...................................................................................................... 4
Indications .................................................................................................................... 4
Contraindications......................................................................................................... 4
Intended Care Setting.................................................................................................. 4
Compatibility ............................................................................................................... 5
Risks and Precautions................................................................................................... 5
Safety Information....................................................................................................... 6
Unpacking and Inspection .............................................................................. 6
Installation........................................................................................................ 7
Care and Cleaning............................................................................................ 8
Disposal ............................................................................................................ 8
Specifications ................................................................................................... 9
Electromagnetic Compatibility...................................................................... 10
Warranty......................................................................................................... 13
Symbols Used................................................................................................. 14
Customer Contact Information ..................................................................... 15

2
Consult
Instructions for use
1
2
3
4
5
6
7
Smooth out wrinkles.
Pull coverlet tightly over corners.
Connect power supply to fan.
Move hand to end of bed and feel fan
vibration, listen for humming sound.
Quick Reference

EN
3
Consult
Instructions for use
1
2
3
4
5
6
7
Secure coverlet to bed frame.
Connect power supply to power cord
and move power supply under bed.
Connect power cord to wall outlet.

4
Introduction
This document should be saved in an easily accessible place for quick reference.
It is recommended that all sections of these instructions be read prior to product use. Carefully
review the Indications, Contraindications, Risks and Precautions and Safety Information prior
to placing a patient on the Skin IQ™ Microclimate Manager (MCM).
These instructions do not provide specific safety or operational information
for the pressure redistribution surface and / or bed frame provided by
the facility for use with the Skin IQ MCM. Consult product labeling for
information.
Caregivers should discuss Safety Information, Risks and Precautions and Contraindications
with the patient (or the patient’s legal guardians) and the patient’s family.
The Skin IQ MCM is a single patient use, disposable device that provides Negative Airflow
Technology (NAT) to manage the microclimate of the skin at the patient surface when fitted over a
customer-provided pressure redistribution surface.
It is also designed to reduce friction and improve patient comfort.
The Skin IQ MCM is suitable for use in acute and post acute facilities, is vapor permeable, and has a
fluid-resistant nylon taffeta cover.
Indications
The Skin IQ MCM is indicated for use in conjunction with a pressure redistribution surface in order
to aid in the prevention and treatment of skin breakdown and pressure ulcers (Stages I-IV) for
patients who require microclimate management of the skin.
Contraindications
Although Skin IQ MCM has no associated direct contraindications the caregiver should refer to and
follow any contraindications in the product labeling for the pressure redistribution surface and / or
bed frame being used with the Skin IQ MCM.
Intended Care Setting
• Acute Care
• Post Acute Care

5
EN
Compatibility
The Skin IQ MCM is designed to fit on a pressure redistribution surface that is 203.2 cm - 213.4 cm
(80 - 84 in) long by 88.9 cm - 91.4 cm (35 - 36 in) wide by 17.8 cm (7 in) high.
Consult product labeling for the pressure redistribution surface and / or bed frame for compatibility.
Risks and Precautions
Transfer
This product is not intended for use as a transfer device.
Duration of Use
Recommended duration of use for single patient is not more than 60 days for patients
< 172.37 kg (380 lb).
Duration of use for patients weighing 172.37 kg (380 lb) - 227 kg (500 lb) is not to exceed more
than 30 days.
However, patient specific duration of use may vary. Clinical conditions such as, but not limited to,
incontinence, skin condition, nutrition status, medications, mobility, weight, or etiology need to be
considered when assessing duration of use for the Skin IQ MCM.
Height
The Skin IQ MCM will increase the height of the pressure redistribution surface it is applied to by
approximately 6.35 mm (0.25 in).
Use With Other Devices
All Skin IQ MCM components are designed to be used as a single system device.
The included power supply should only be used with the Skin IQ MCM. The coverlet should only
be powered by the Skin IQ Power Supply ArjoHuntleigh part number 4103832.
Any attempt to connect and use the power supply with any other device,
or use any other brand or model of power supply other than ArjoHuntleigh
part number 4103832 will result in improper operation of equipment,
possibly leading to increased risk of patient injury.
Patient Migration
Specialty surfaces have different shear and support characteristics than conventional surfaces and
may increase the risk of patient movement, sinking and / or migration into hazardous positions
of entrapment and / or inadvertent bed exit. Monitor patients frequently to guard against patient
entrapment.

6
Safety Information
Please refer to and follow any safety information in the product labeling for
the pressure redistribution surface and / or bed frame being used with the
Skin IQ MCM.
Power Cord
Only use a grounded power outlet and the power cord supplied with the Skin IQ Power Supply. The
power cord should be positioned to avoid a tripping hazard and / or damage to the cord. The Skin
IQ MCM should never be operated with a worn or damaged power cord. Should the power cord
become worn or damaged, contact ArjoHuntleigh or a ArjoHuntleigh authorized representative to
order a replacement.
Coverlet
Use care when handling or transporting. Dropping or other sudden impacts may result in damage to
the device.
Skin Care
Monitor skin conditions regularly and consider adjunct or alternative therapies for high acuity
patients. Give extra attention to any possible pressure points and locations where moisture or
incontinence may occur or collect. Early intervention may be essential to preventing skin breakdown.
The Skin IQ Microclimate Manager (MCM) Product Family has an
antimicrobial agent formulated into the patient contact layer. Although
rare, there is a potential that some patients may experience sensitivity
or a reaction during use. Regularly monitor the patient’s skin condition.
Discontinue use and seek medical treatment if any signs of a reaction are
observed.
For more information about the Skin IQ MCM Product Family, contact
ArjoHuntleigh at 1-800-343-0974.
Patient Weight
The maximum patient weight for this device is 227 kg (500 lb). In addition, consult the specifications
for the pressure redistribution surface and / or bed frame being used. Additional weight limitations
may apply.
Disposal

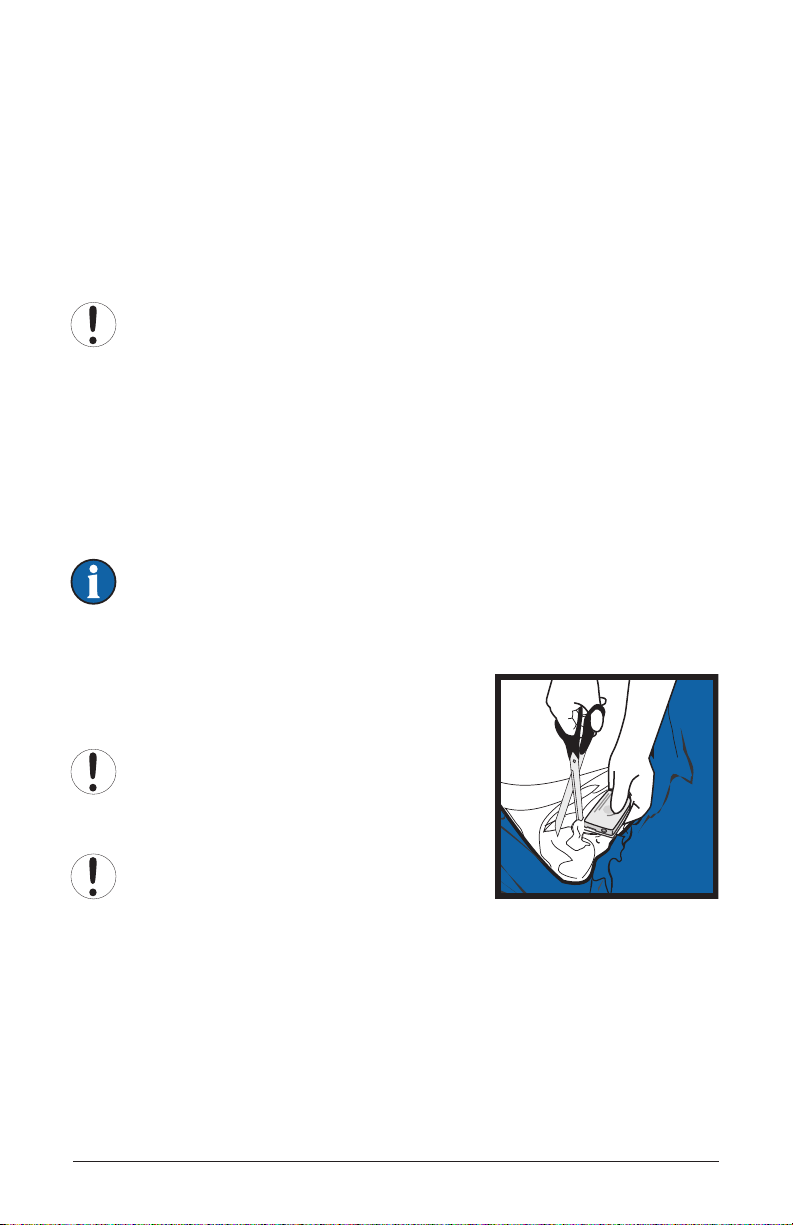

The coverlet contains electrical components that may be removed and disposed of separately.
See Disposal on page 8 for removal.
General Protocols
• Avoid contact of sharp instruments with the Skin IQ MCM. Punctures, cuts and tears will
prevent proper operation.
• Follow all applicable safety rules and institution protocols concerning patient and
caregiver safety.
Unpacking and Inspection
Unpack the Skin IQ MCM from the shipping box and locate items as listed.
• coverlet with instructions for use booklet (included in complete kit or coverlet only)
• power supply (included in complete kit or available as a separate item)
• power cord (included in complete kit or power supply only)
Inspect all items carefully. If any items are damaged or missing, contact ArjoHuntleigh or a
ArjoHuntleigh authorized representative.
