ARRI DRW-1 User manual

!
!
!
!
!
!
Digital Remote Wheels!
DRW-1!
!
!
!
!
Date 01.12.2018!
!
!
!
USER MANUAL

!
!
Imprint!
Copyright © 2018 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
All rights reserved.
No parts of this document may be reproduced without prior written consent of Arnold & Richter !
Cine Technik GmbH & Co. Betriebs KG. Specifications are subject to change without NOTE. !
Errors, omissions, and modifications excepted.
ARRI, ALEXA, AMIRA, LDS and LENS DATA SYSTEM are trademarks or registered trademarks !
of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
All other brands or products are trademarks or registered trademarks of their respective holders !
and should be treated as such. Original version.
For further assistance:
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Türkenstr. 89
80799 München
Germany
www.arri.com!
!
!
!
Document revision history!
!
Version Order Nr Release Date !
1.0 K4.0021085 F06781 01.12.2018
!
!
Scope!
This document describes the components, the setup and programming of the !
DRW-1 Digital Remote Wheels.
!
!
Disclaimer!
Before using the products described in this manual, be sure to read and understand all the !
respective instructions.
Otherwise the customer must contact ARRI before using the product.
While ARRI endeavours to enhance the quality, reliability and safety of their products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. !
To minimize the risk of damage to property or injury (including death) to persons arising from defects
in the products, customers must incorporate sufficient safety measures in their work with the system
and heed the stated conditions of use.
ARRI or its subsidiaries do not assume any responsibility for losses incurred due to improper handling
or configuration of the TRINITY or other system components.
ARRI assumes no responsibility for any errors that may appear in this document. !
The information is subject to change without NOTICE.
For product specification changes after this manual was published, refer to the latest published !
ARRI data sheets or release notes, etc., for the most up-to-date specifications.
Not all products and/or types are available in every country. Please check with an ARRI sales
representative for availability and additional information.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any
claim, representation, cause, action, or whatsoever, express or implied, whether in contract or not,
including negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. !
In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special,
direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost
savings, lost revenues or economic loss of any kind or for any claim by a third party, downtime, !
good-will, damage to or replacement of equipment or property, any cost or recovery of any material !
or goods associated with the assembly or use of our products, or any other damages or injury of the
persons and so on or under any other legal theory. In the event that one or all of the foregoing clauses
are not allowed by applicable law, the fullest extent permissible clauses by applicable law are
validated. !
Imprint
2

!
!
Table of contents!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
1
For your safety……………………………………………………………………………
4
2
Functions…………………………………………………………………………………..
5
3
Assembling the DRW-1…………………………………………………………………..
6
4
LBUS……………………………………………………………………………………….
8
5
Selecting the axes ……………………………………………………………………….
9
6
Brake……………………………………………………………………………………….
9
7
Fluid Drag Ring…………………………………………………………………………..
9
8
Remote Control Setup……………………………………………………………………
10
9
Power Disconnection ……………………………………………………………………
13
10
Technical Data…………………………………………………………………………….
14
3
Table of Contents

!
!
!
1 For your safety!
!
!
!
!
!
!
!
!
!
!
!
All directions are given from a camera operator's point of view. For example, camera-right
side refers to the right side of the camera when standing behind the camera and operating
it in a normal fashion.
Before use, please ensure that all users read, understand, and follow the instructions in !
this document. !
1.1 !
Risk Levels and Alert Symbols!
!
Safety warnings, safety alert symbols, and signal words in these instructions indicate
different risk levels: !
!
!
!
DANGER indicates an imminent hazardous situation which, if not avoided, !
will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided,
may result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
NOTICE
NOTE explains practices not related to physical injury. No safety alert
symbol appears with this signal word.
NOTE
Provides additional information to clarify or simplify a procedure.
!DANGER
!Warning
!CAUTION
For your safety
The DRW-1 and SRH-3 system and products should only be used by experienced
and trained operators. This product is NOT designed for inexperienced users !
and should not and must not be used without proper training.!
!
ARRI recommends that all users of the DRW-1 and SRH-3 system read the manual
in its entirety prior to use.
!Warning
4

!
!

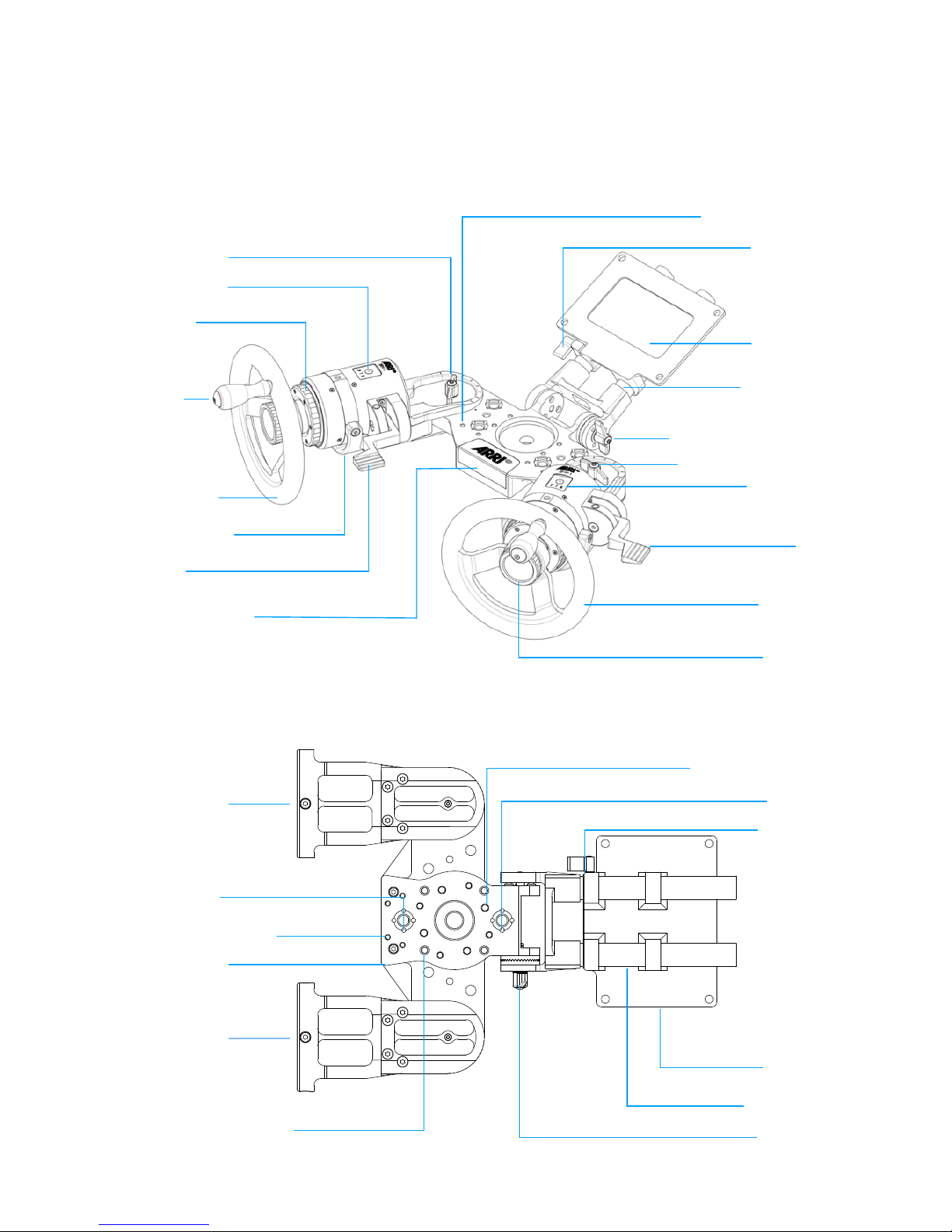

2 Functions!
!
2.1!
Functions top view!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
2.2 !
Functions bottom view!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Functions
Fluid Drag Ring
(Friction)
Clamp Lever
Mounting Bracket
Swivelling Rods
Clamp Lever Swivelling Rods
P T R Selector
Hand Wheel
(150mm diameter)
Brake !
(for the selected axis)
SRH Remote!
Mounting Bracket
Clamp Lever Wheel Carrier
P T R Selector
Clamp Lever
Wheel Carrier
Brake !
(for the selected axis)
Wheel Carrier
Hand Wheel
(150mm diameter)
Cover mounting bay
for the additional 3. axis
Locking Screw
Hand Wheel
Crank
RMB-3 mounting threads
Wheel Carrier
Wheel Carrier
Clamp Lever
Swivelling Rods
Swivelling Rods
SRH Remote!
Mounting Bracket
Clamp Lever
Mounting Bracket
3/8“ Thread
3/8“ Thread
Circular arranged threads
for Mitchell and Euro mounts
Circular arranged threads
for Mitchell and Euro mounts
DRW-1 Mounting Base
Cover Screws
5

!
!
!

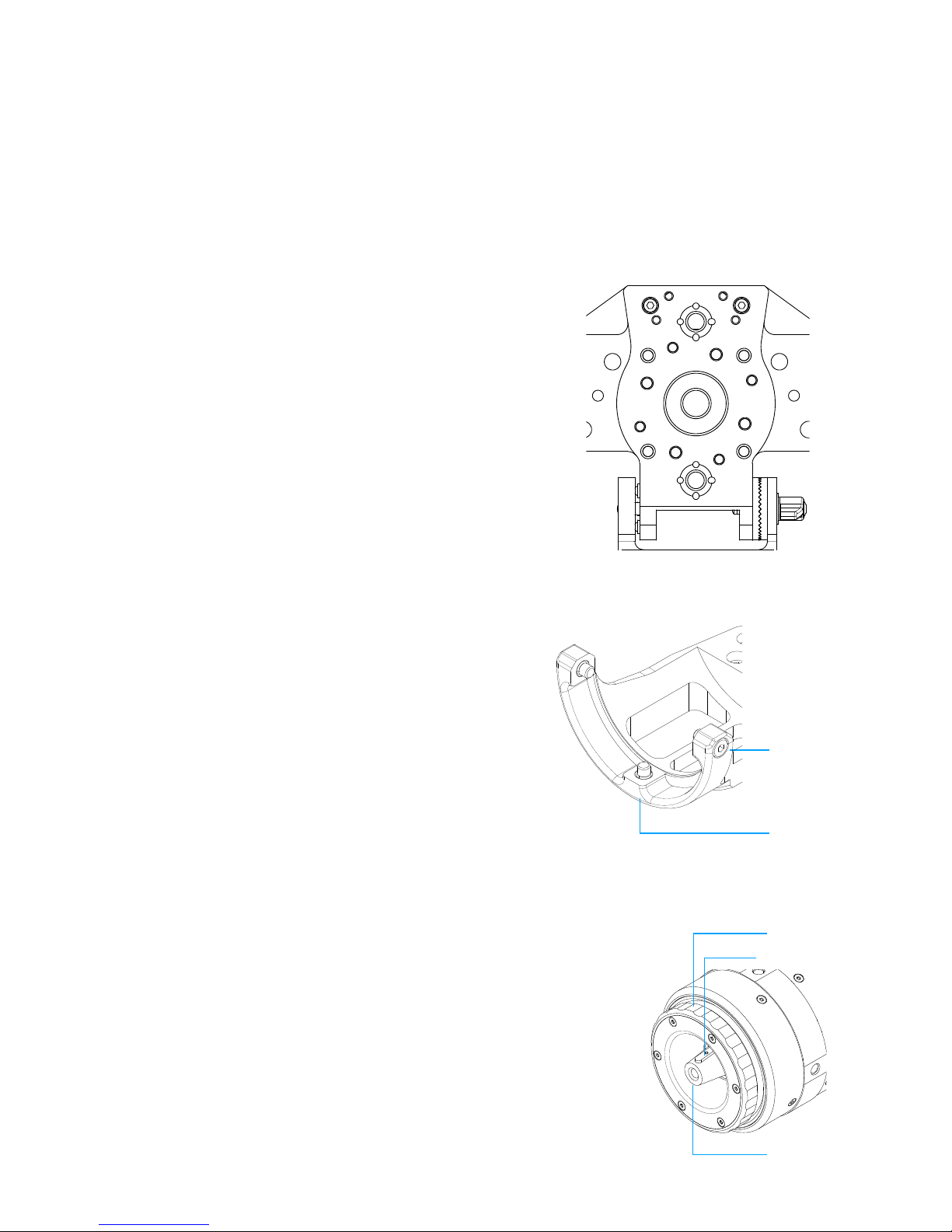

3 Assembling the DRW-1
3.1
Mounting the DRW-1 base!
!
The bottom of the DRW-1 mounting base offers multiple mounting options:
3/8” threads for long camera dovetail plates,
like the O’Connor plate code 08283, !
Euro style quick release plate code 2575-120,
or the Sachtler sideload plate M code1164.
At the bottom there are three circular arranged
thread sets for Mitchell and Euro mounts.
Mitchell Mount K2.0010427, !
Euro Mount K2.0010426 and the !
O’Connor Mitchell Base code 08281
can be mounted to the bottom of the DRW-1 base.
NOTE
To ensure a tight fit, use a minimum of two 3/8” screws
when a dovetail plate is used and four screws
for the Euro Mount and the Mitchell Mount.
3.2!
Mounting the DRW-1 modules
!
There are three M3 threads positioned at the left,
at the bottom, and the right side of the DRW-1
module.
Place the DRW-1 module carefully into the
DRW-1 carrier and tighten all three screws!
using a 3mm hex key.
NOTE
Ensure that all three screws are tightened evenly,
otherwise the DRW-1 module will have a loose fit,
which may affect the application.
3.3 !
Mounting the hand wheel!
!
Turn the location pin of the drive shaft to a 12:00 o’clock position.
Turn the blue fluid drag ring (friction) to the right to reach full friction.
Locate the groove inside the mounting hole of the hand wheel and
bring it into the 12:00 o’clock position too.
Now place the wheel onto the conic drive shaft. !
When the hand wheel has reached its final position, !
tighten the blue locking screw.
NOTE
Turn the fluid drag ring (friction) fully back to the left to reach
the lowest possible friction level.
Assembly
M3 Screw
M3 Screw
Location Pin
Drive Shaft
Fluid Drag Ring
(Friction)
6

!

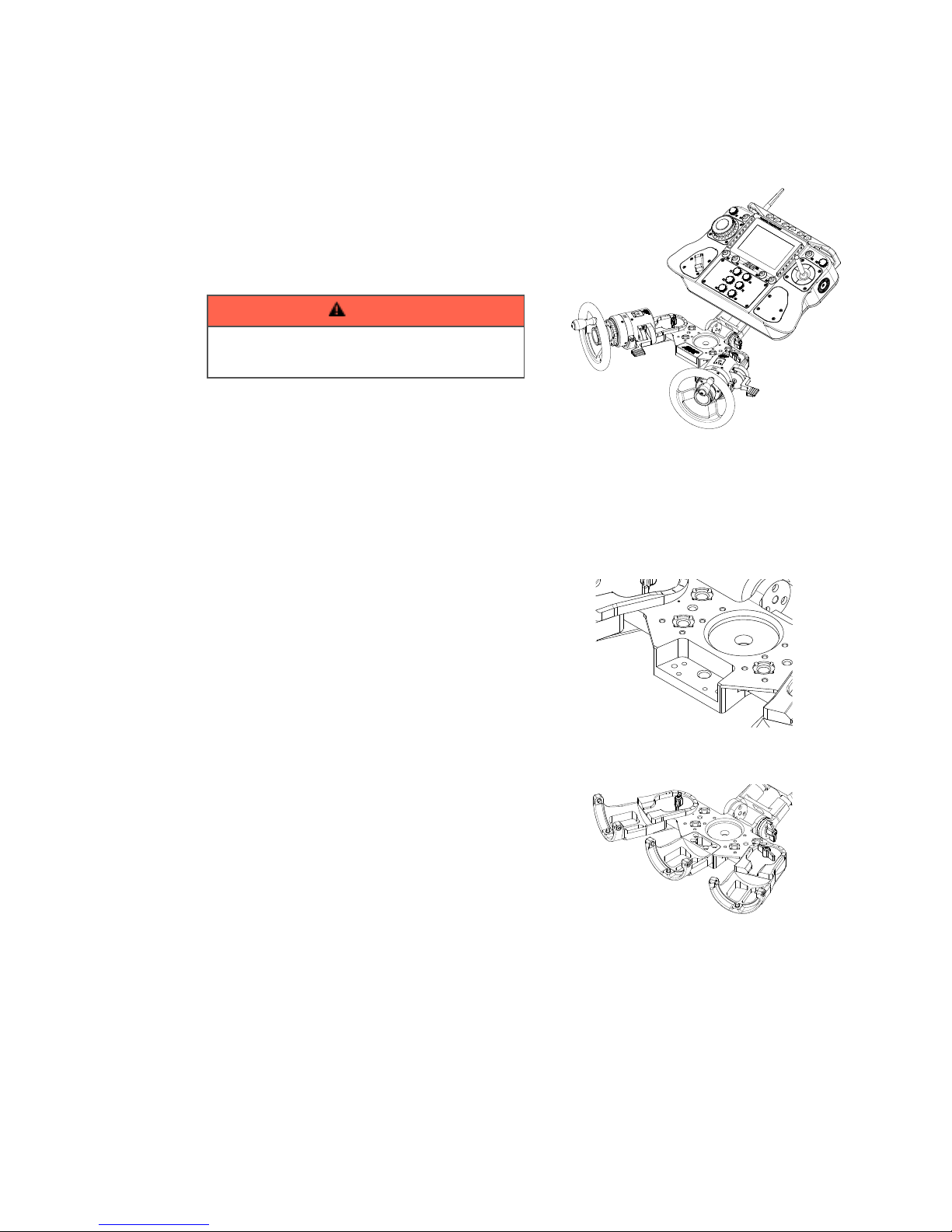

3.4 !
Mounting the SRH remote control panel
!
The bottom of the SRH-3 remote control panel offers four M6 threads.
Open the clamp lever of the remote mounting bracket, remove
the bracket from the rods of the DRW-1 mounting base.
Place the DRW-1 SRH remote mounting bracket
to the bottom of the SRH-3 remote control panel.
Tighten the four included M6 screws.
!
!
!
!
!
3.5!
Adding the optional third hand wheel!
!
The ARRI engraved cover can be removed
after the two screws at the bottom holding !
the cover have been unscrewed.
Now the third wheel carrier can be mounted to the bay.
Redo step 3.2.
NOTE
Ensure that all three screws are tightened evenly,
otherwise the DRW-1 module will have a loose fit,
which may affect the application.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Assembly
Do not use any screws longer than M6x12. !
Longer screws may cause damage.
!Danger
7

!
!
!
4 Connecting the LBUS cables!
4.1 Introduction
Every DRW-1 module is equipped with two LBUS connectors
and daisy chain technology. !
Up to three DRW-1 modules can be linked up in a row. !
Each DRW-1 module has two identical, bi-directional
LBUS interfaces providing power and control signals
to the DRW-1 module.
4.2 Connecting the DRW-1 modules
The DRW-1 Set comes with the following LBUS cables:
1 x Cable LBUS 0.3m/1ft K2.0006750
1 x Cable LBUS 0.5m/1.5ft K2.0006751
The illustration shows how to
daisy chain one wheel to the other
and then with the remote control panel.
The LBUS sockets are located at the
sides of the SRH remote control panel.
Risk of electric shock and fire!
Short-circuits may entail lethal damage!
Before use, read and follow all relevant instructions.
Use solely and exclusively as described in the instructions.
Never open. Never insert objects.
For operation, always use a power source as indicated in the instructions.
Always unplug the cable by gripping the plug, not the cable.
Never try to repair. All repair work should be done by a qualified !
ARRI Service Center.
Never remove or deactivate any safety equipment !
(incl. warning stickers or paint marked screws).
Always protect from moisture, cold, heat, dirt, vibration, shock, or aggressive
substances.
!DANGER
Risk of fire!
Risk of short-circuits and back currents to power supplies/batteries:
Always use original ARRI/cmotion LBUS cables to external power sources !
(D-Tap, XLR)! ARRI/cmotion LBUS cables to external power sources provide !
a protection circuit to prevent back currents to power supplies/batteries.
!DANGER
LBUS
8

!
!
5 Selecting the axes
Each DRW-1 module has a selection button for !
Pan, Tilt and Roll, at the top.
Initially Roll of P T R will be selected and visible, !
after the SRH remote panel had been connected !
to the LBUS.
By pressing the button Pan, Tilt and Roll, the desired
axis for each wheel can be selected.
CAUTION
Ensure that each wheel is assigned to only one individual axis. !
Avoid assigning two wheels to the same axis.
CAUTION
A blue blinking LED indicates a problem in the LBUS daisy chain.
6 The brake
!
The DRW-1 wheels are equipped with a brake
lever, which goes back to the ARRI Gear Head.
The brake lever allows the operator to engage or !
disengage the wheel from the selected motor axis.
NOTE
An unlocked wheel will be indicated by a green LED,
A locked wheel will be indicated by a red LED.
NOTE
Disengaging the wheels can also support operation.
When you need to reproduce a movement and you want the position of the crank
to be at a certain angle, for example at the end of the movement, than first move the
head to the desired end position, disengage the wheel and bring the crank to the
required angle.
Now engage the wheel again and move the head backwards to the starting point.
Start the movement from the beginning.
7 Fluid Drag Ring (friction)
!
The DRW-1 wheels are equipped with a fluid drag ring, !
which allows friction to be adjusted.
!
This unique feature allows the operator to manage the
accuracy of the head through a mechanical friction
adjustment, instead of a software value like
Ramp or Damp.
The mechanical friction allows the setting of Ramp values !
in the remote SRH-3 remote control to zero, or close to zero. !
This will ensure that the DRW-1 wheels and the remote head
reacting prompt and precise.!
Wheel Setup
Unlocked
Locked
9
Softer
Harder

!
!
8 Remote control setup
8.1 Assigning the wheels!
!
NOTE !
The DRW-1 wheels must be
assigned to the corresponding !
axes of the remote head.
For a fast selection, the home screen !
of the SRH remote control offers a !
short cut.
The assignment sub-menu will open
by touching the indicated areas !
below the single axis.
!
!
Select DRWP in the sub-menu if the Pan axis !
shall be assigned to the Pan wheel.
Press Assign!
!
Select DRWT in the sub-menu if the Tilt axis
shall be assigned to the Tilt wheel.!
!
Press Assign.
!
!
!
8.2 !
Changing direction!
!
For a fast adjustment, the home screen !
of the SRH remote control offers a !
short cut.
!
The direction sub-menu will open
by touching the indicated areas !
below the single axes.!
!
!
!
!
!
!
This selection will open a new touchscreen !
that allows to change the direction of the !
control device from standard to reverse.
!
!
!
!
Remote Control Setup
10
Assign Pan Setpoint
DRWP DRWT K1 K2

!
8.3
Selecting the mode
There are two ways to use the wheels: Speed Mode and Angle Mode.
Speed Mode is a good mode when dynamic action needs to be covered,
while angle mode the right choice when extremely precise movements are needed.
NOTE
For daily work, Speed Mode is recommend.

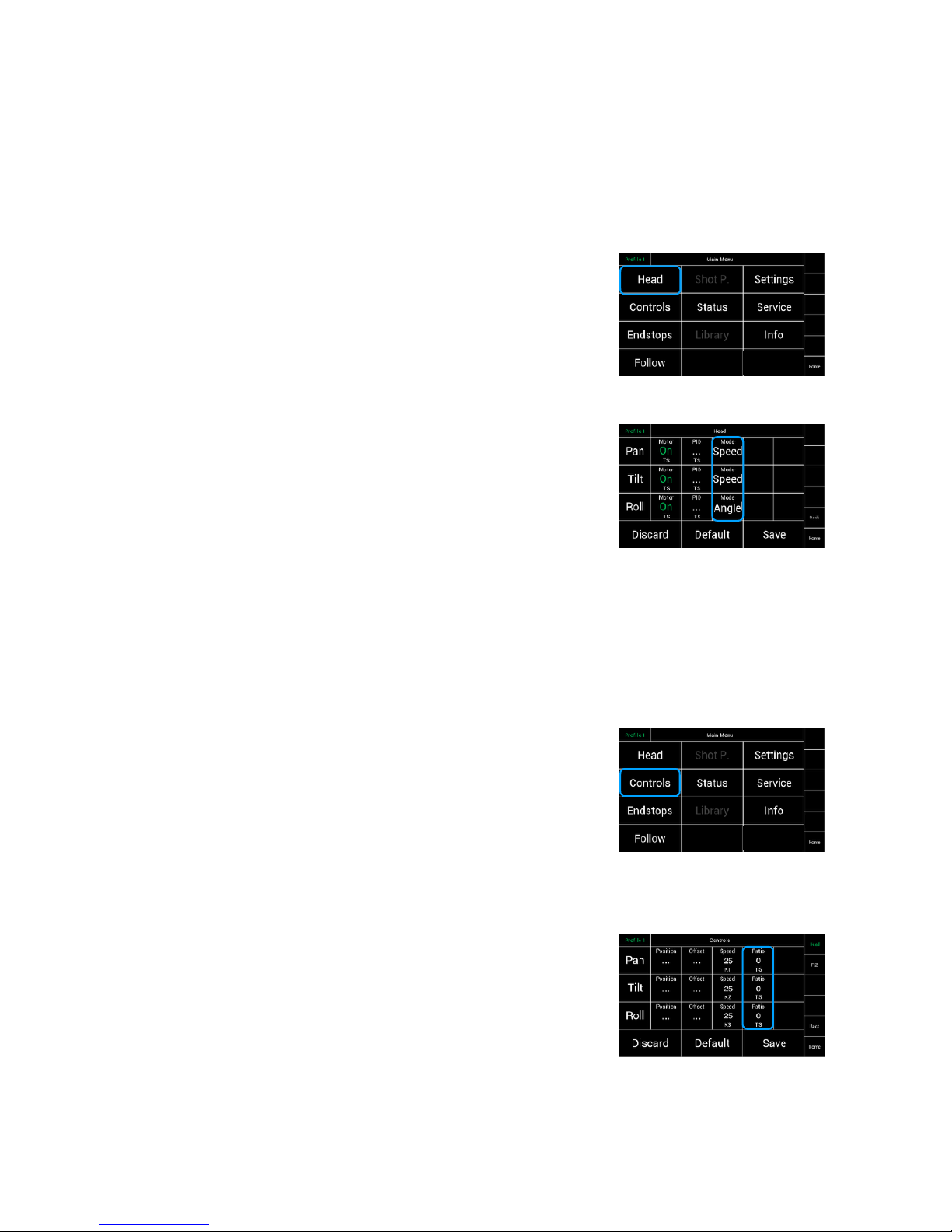

Touch Menu at the lower right corner of the
home screen to reach the Main Menu.
In the Main Menu select Head to reach
the head menu.
In the head menu, touch Mode.
Touching the Mode will change the mode from
Speed to Angle.
Press Save after the mode is selected.
!
!
8.4 !
Additional adjustments
To ensure that the DRW-1 wheels react promptly and precisely, !
the following the following adjustments needs to be considered:
Ratio
Sensitivity
Deadband
Ramp
!
!
8.5 !
Ratio
Touch Controls in the main menu.
Selecting Ratio will open a new touchscreen
display where you can select the required speed !
ratio of the selected Pan, Tilt and Roll axes.!
NOTE
For the initial setup, set the values to ZERO.
Later you can use the Ratio value to gear the wheels up or down.
A low Ratio value, allows you to turn the wheel quite fast, while the
head will move very slowly.
Remote Control Setup
11
FIZ
FIZ

!
8.6 !
Sensitivity

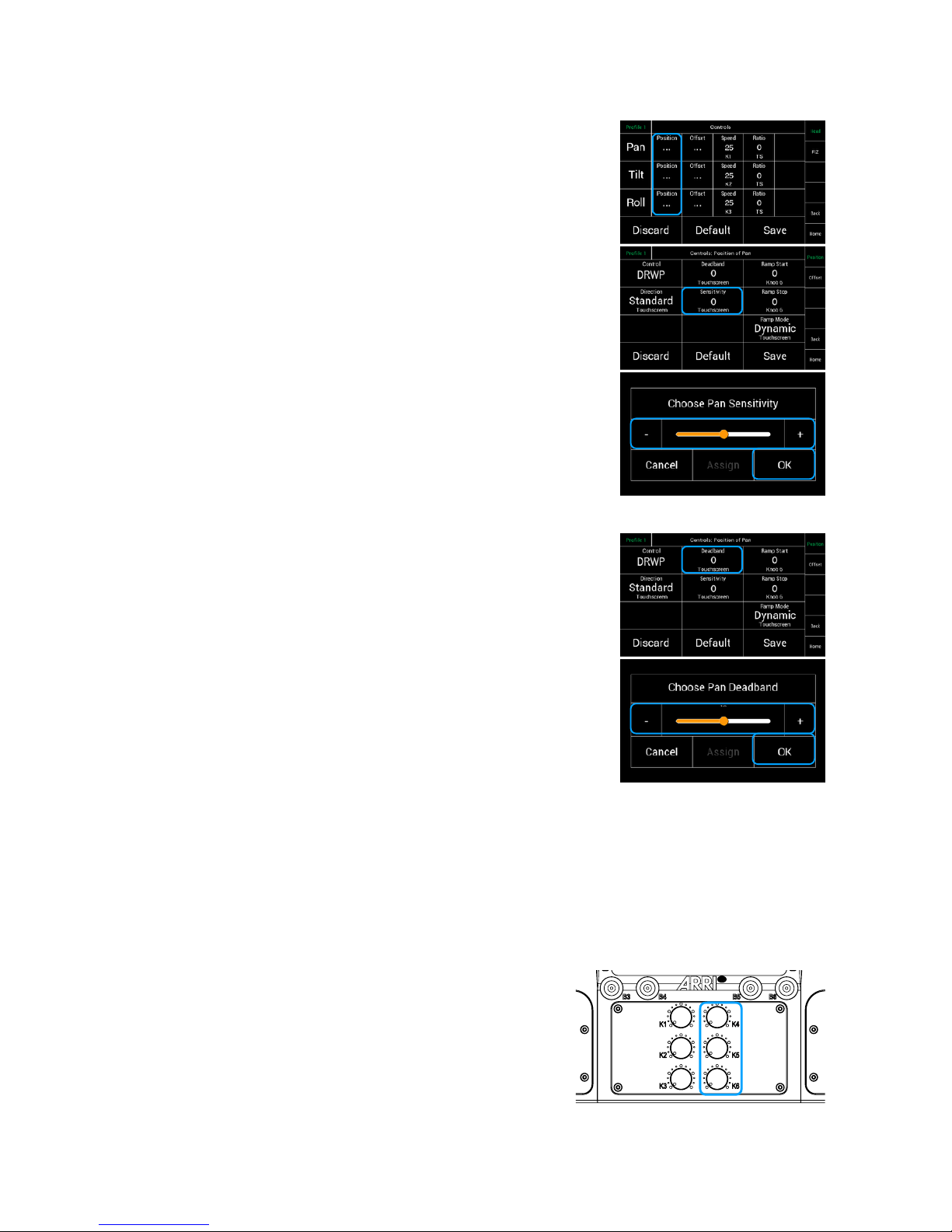

Selecting Position will open the controls
position sub-menu.
!
Touch Sensitivity: this selection will open a new
touchscreen slider that allows you to change the
sensitivity of the control device for the !
selected axis.
!
Move the Sensitivity slider to ZERO position.
NOTE
Redo the procedure for the other axes.
Press OK
!
8.7 !
Deadband
Touch Deadband: this selection will open a new
touchscreen slider that allows you to change the !
amount of Deadband.
Move the Deadband slider to ZERO position.
NOTE
Any value over 0 will delay the reaction of the selected axis.
The interaction between controller and head will be more and
more indirect.
NOTE
Redo the procedure for the other axes.
Press OK
!
!
8.7 !
Ramp
In the factory preset setup, the Ramp is assigned
to the knobs K4, K5 and K6.
Initially, the ramp should be set to ZERO.
NOTE
A positive Ramp value will delay the response of the
head.
The Head will start and stop progressively softer as
the value increases.
Remote Control Setup
12
0
0

!
!
8.8 !
Speed
In the factory preset setup, the Speed is !
assigned to the knobs K1, K2 and K3.
Changing the speed value will also change the
turns required to do a 180° Pan.
!
NOTE
In Speed Mode you will do a 180° turn:
• with two full turns of the wheel, when the speed is set to 100%
• with three full turns of the wheel, when the speed is set to approximately 68%
• with four full turns of the wheel, when the speed is set to approximately 48%
By adding a positive Ratio value, you will gear up the wheel more and more
Depending on the camera payload, one 360° turn of the wheel can cause a 180°, !
or even a 360° turn of the head.
NOTE
Ratio will not make the head move faster, but a high positive value will allow you to reach
the maximum speed more quickly.
NOTE
A negative Ratio value will divide the maximum speed. If the ratio value is set to the lower
negative value the head will only reach 1/5 of the possible maximum speed.!
!
!
!
9. Power Disconnection!
!
!
!
!
!
!
!
!
Remote Control Setup
13
To disconnect the device safely from the power source, remove both cables !
from the RCP of the SRH-3.!
Mount and operate the device in an orientation to ensure easy access to the
connectors.
!CAUTION

!
10 Technical Data
10.1 Sets……………………………………………………………KK.0021212 !
Contains:!
2 x DRW-1 Module ……………………………………………….. K2.0019319
2 x Hand Wheel complete.………………………………………..150 N2.25004.A
1 x DRW-1 Mounting Base ……………………………………….K2.0019325
1 x Cable LBUS 0.3m/1ft ………………………………………… K2.0006750
1 x Cable LBUS 0.5m/1.5ft ……… ………………………………K2.0006751
1 x DRW-1 Foam Set………………………………………………90.0020791
4 x M6x12 stainless hex screws………………………………….O5.15436.0!
1 x DRW-1 User Manual ………………………………………….K4.0021085
Optional Third Wheel Set…………………………………………KK.0021211
!
Contains:
1 x DRW-1 Module ……………………………………………….. K2.0019319
1 x Hand Wheel complete 150mm ………………………………N2.25004.A
1 x Cable LBUS – LBUS (0.5m/1ft) …………………………….. K2.0006751
1 x DRW-1 THIRD-WHEEL-SET-PACKING-SET………………90.0021210
10.2 Weight / Dimensions
Weight:
DRW-1 Modul ………………………………….…………………..0,7kg / 1,5lb
DRW-1 Mounting Base ………………………..………………….1,5kg / 3,3lb
Hand Wheel …………………………………….………………….0,8kg / 1,7lb
Outer dimensions foam……………………….………….………. 518 x 392 x 229 mm
20,39 x 15,43 x 9,01 in
10.3 Environment
Temperature Range………………………………………………..-20°C - 50°C
-04°F - 122°F
Technical Data
14
